300T HANS SCHOEN Hydraulic Press
Hydraulic Press with 3,000 kN Force and 1,800 x 1,000 mm Table
High-Capacity Forming Press

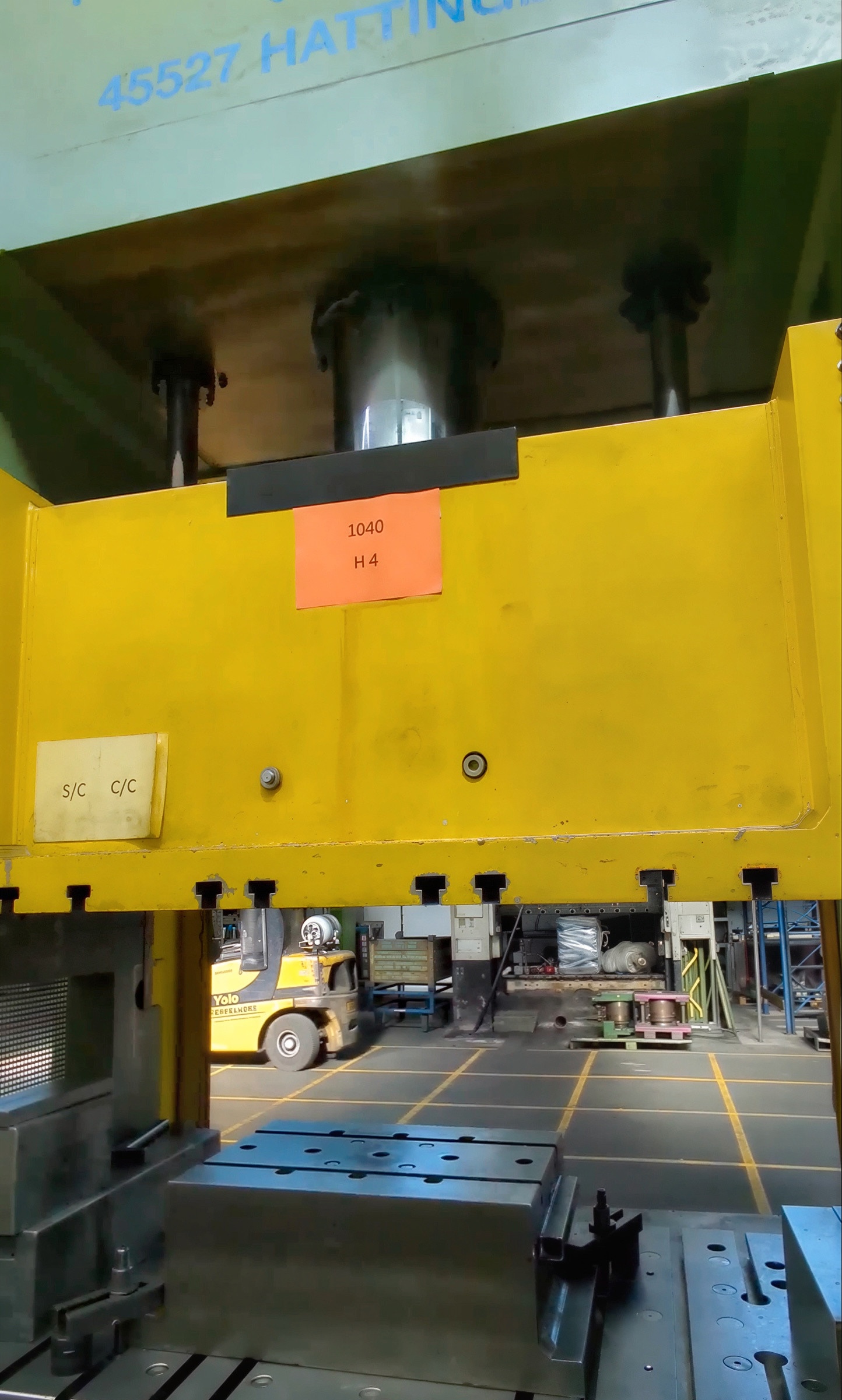

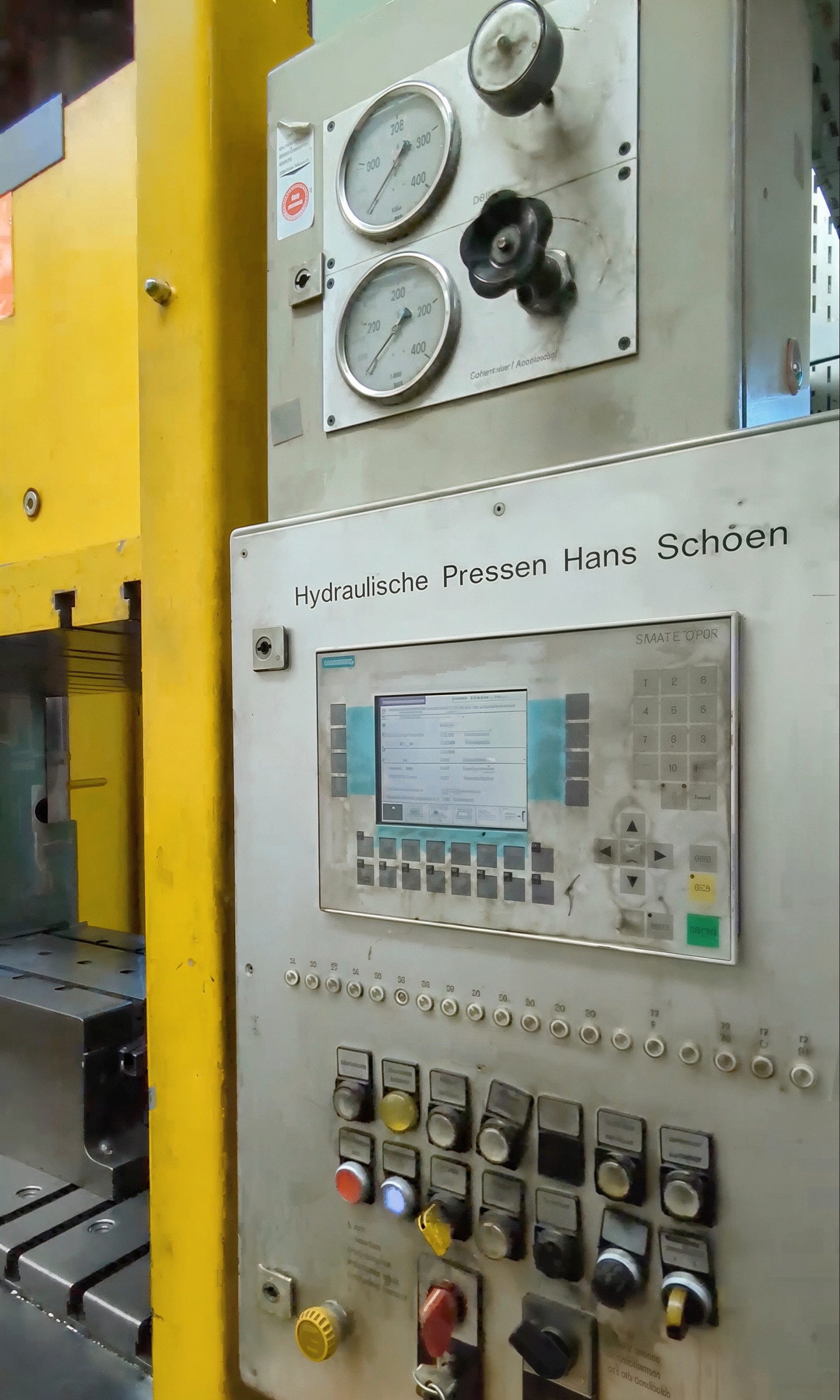

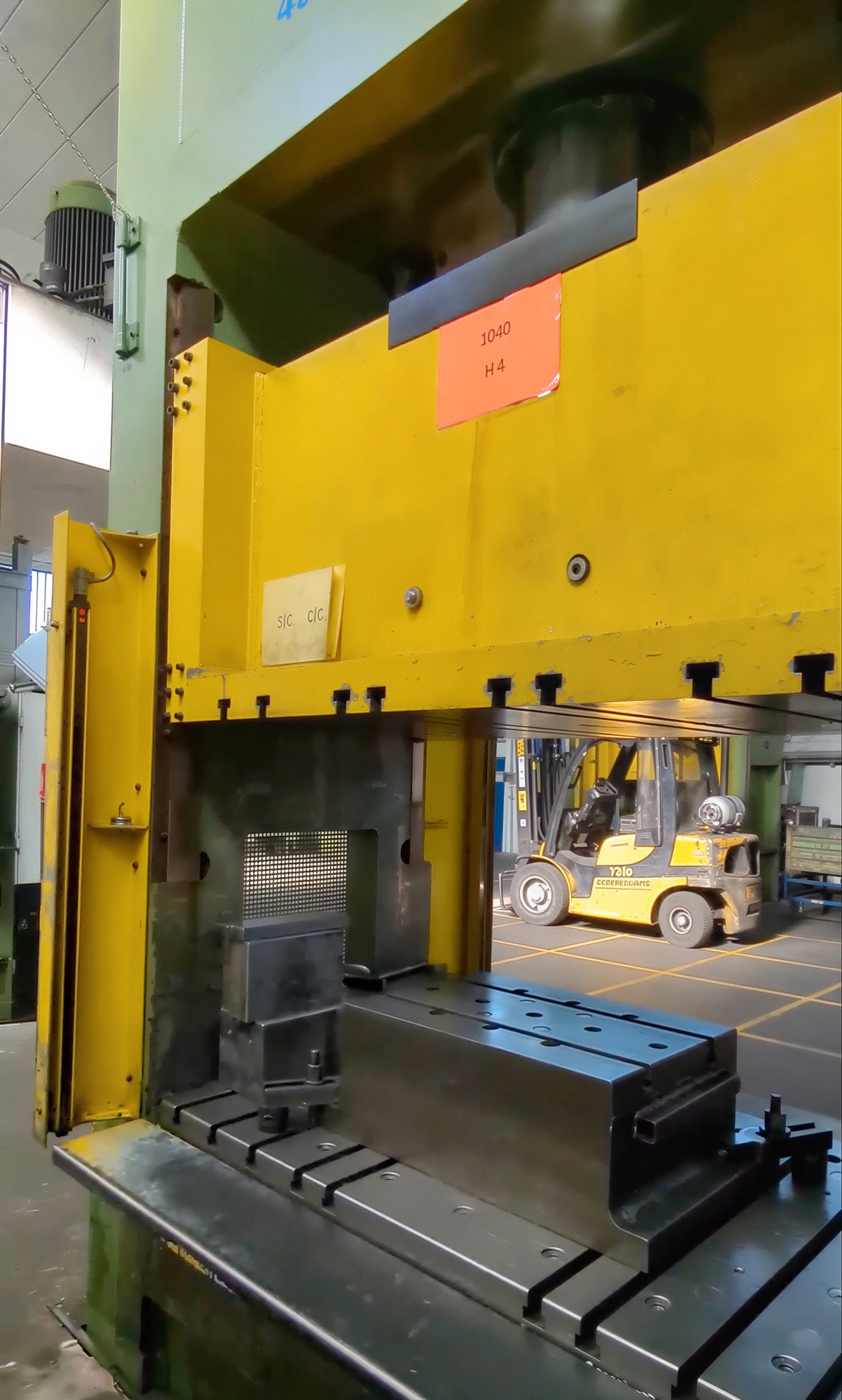

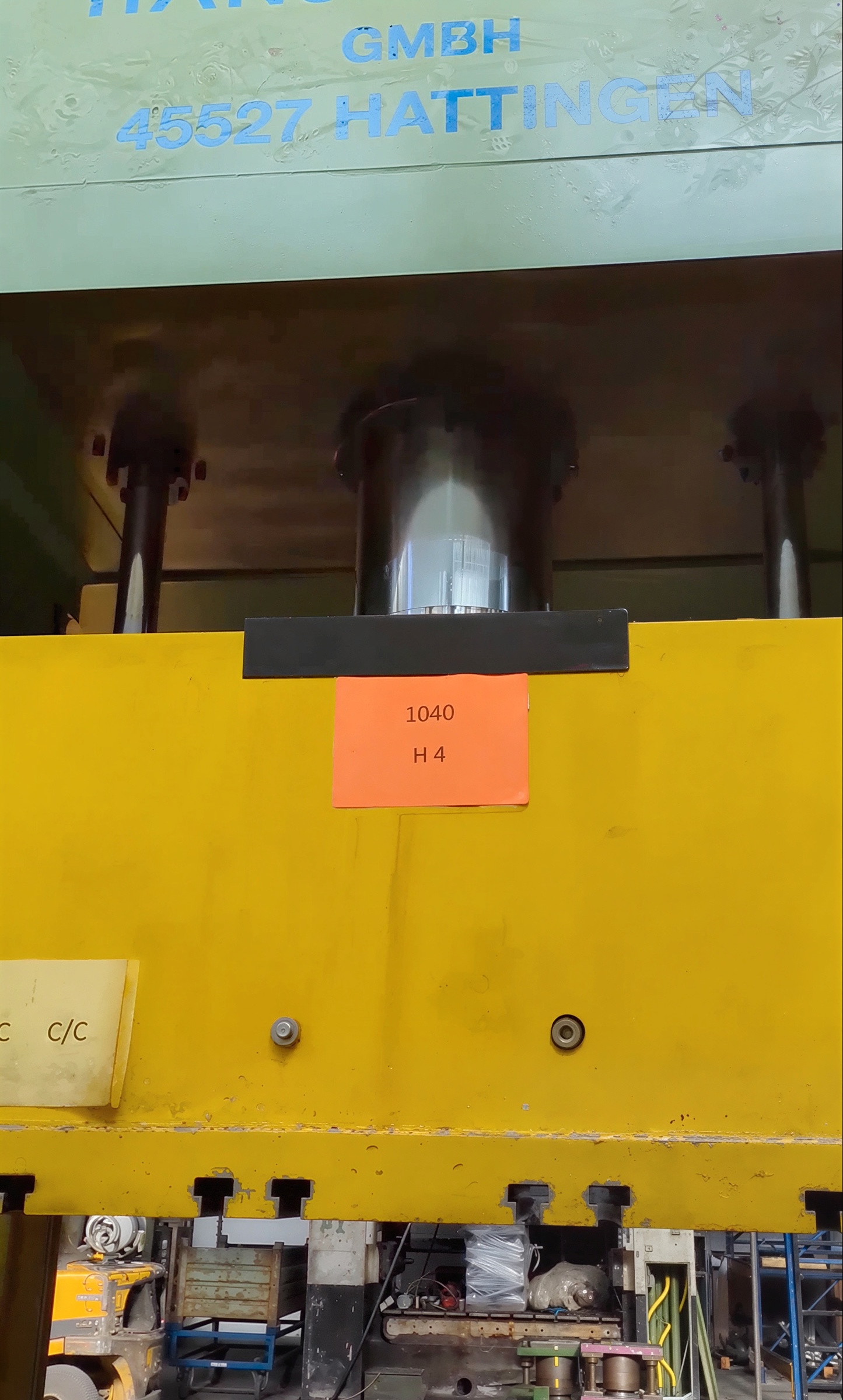

This high-capacity hydraulic press, model UTE/FF/R300/80, was manufactured by Hans Schoen in 2000. It is a heavy-duty industrial unit with a total weight of 40,000 kg and a nominal ram force of 3,000 kN. The machine features a 1,800 mm x 1,000 mm table and a maximum shut height of 1,000 mm, accommodating large-scale workpieces.
Industry
Automotive
Sale Type
Private Treaty
Manufacturer
HANS SCHOEN
Country
Germany
Machine Type
Hydraulic Press
Year of Manufacture
2000
Model
UTE/FF/R300/80
Nominal Force
3000 kN
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Technical Details
General Machine Information
- Manufacturer: Hans Schoen
- Model/Type: UTE/FF/R300/80
- Serial Number: 4519
- Year of Manufacture: 2000
- Total Weight: 40,000 kg
Technical Specifications & Dimensions
- Working Area (Width): 1,850 mm
- Max. Shut Height (Installation Height): 1,000 mm
- Bolster Plate Thickness: 250 mm
- Table Width: 1,800 mm
- Table Depth: 1,000 mm
- Frame/Column Width: 2,550 mm
- Frame/Column Depth: 2,000 mm
Stroke Capacities
- Max. Ram (Slide) Stroke: 600 mm
- Max. Die Cushion (Table) Stroke: 200 mm
Forces and Pressure
- Ram Nominal Force (Load): 3,000 kN (at 245 bar)
- Ram Retraction Force: 380 kN (at 200 bar)
- Die Cushion (Table) Force: 800 kN (at 255 bar)
Utility Requirements
- Power Requirement: 90 kW
- Hydraulic Oil Capacity: 1,500 Liters
