670. Müller-Weingarten Blanking Line
MÜLLER WEINGARTEN HUQ 630.28

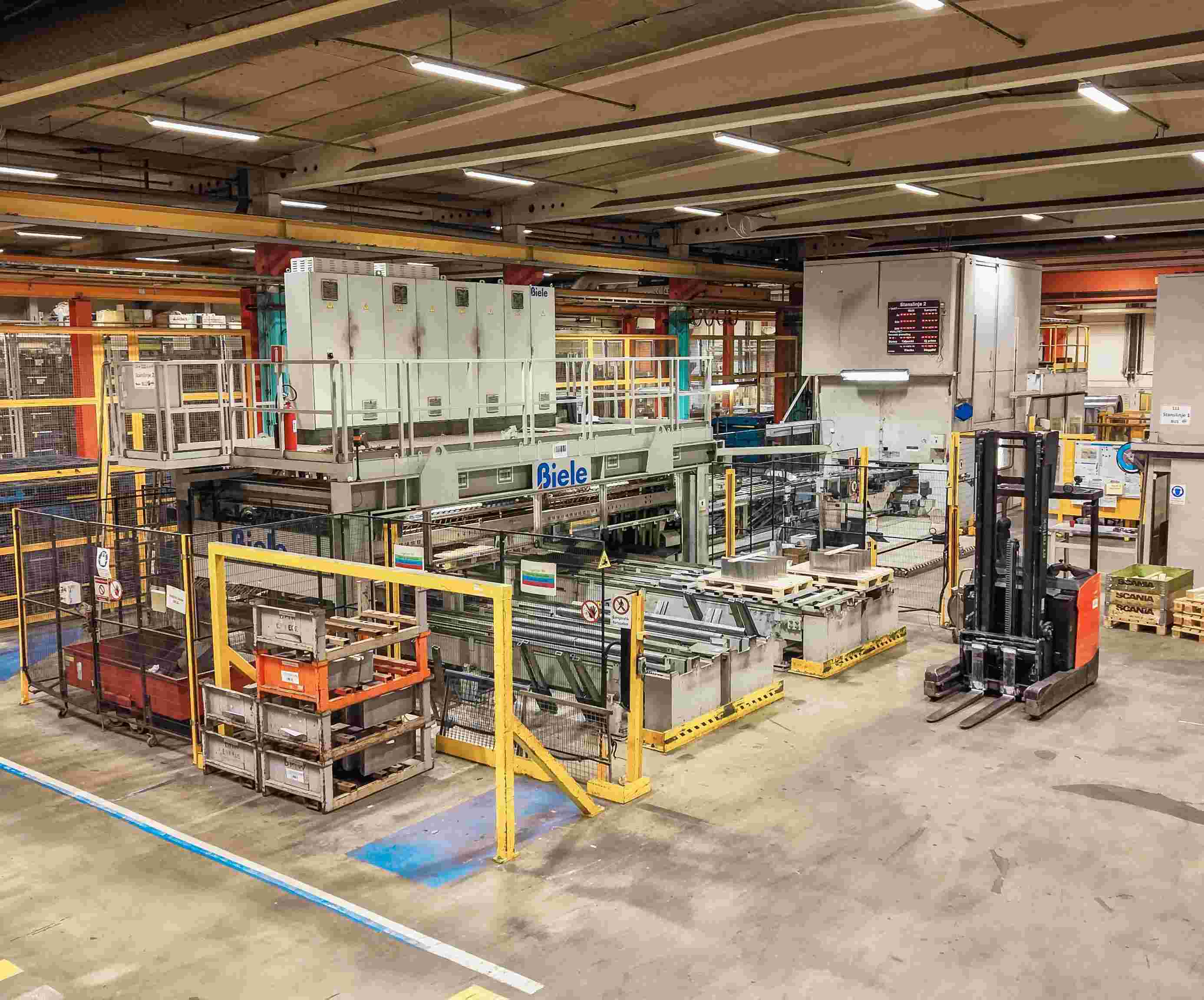

630t Blanking Line with Coil Feed & Biele Stacker
This high-capacity blanking line (originally manufactured in 1996 and modernized in 2012) offers a complete, automated sheet metal stamping solution. At its core is a massive 103,000 kg mechanical press delivering 6,300 kN of force with a variable continuous stroke rate of 15–60 strokes per minute over a generous 2,800 × 2,000 mm table.
Industry
Automotive
Sale Type
Private Treaty
Manufacturer
Müller-Weingarten
Country
Sweden
Machine Type
Blanking Line
Year of Manufacture
2012
Press Force
630t
Stroke
100 mm
Technical Details

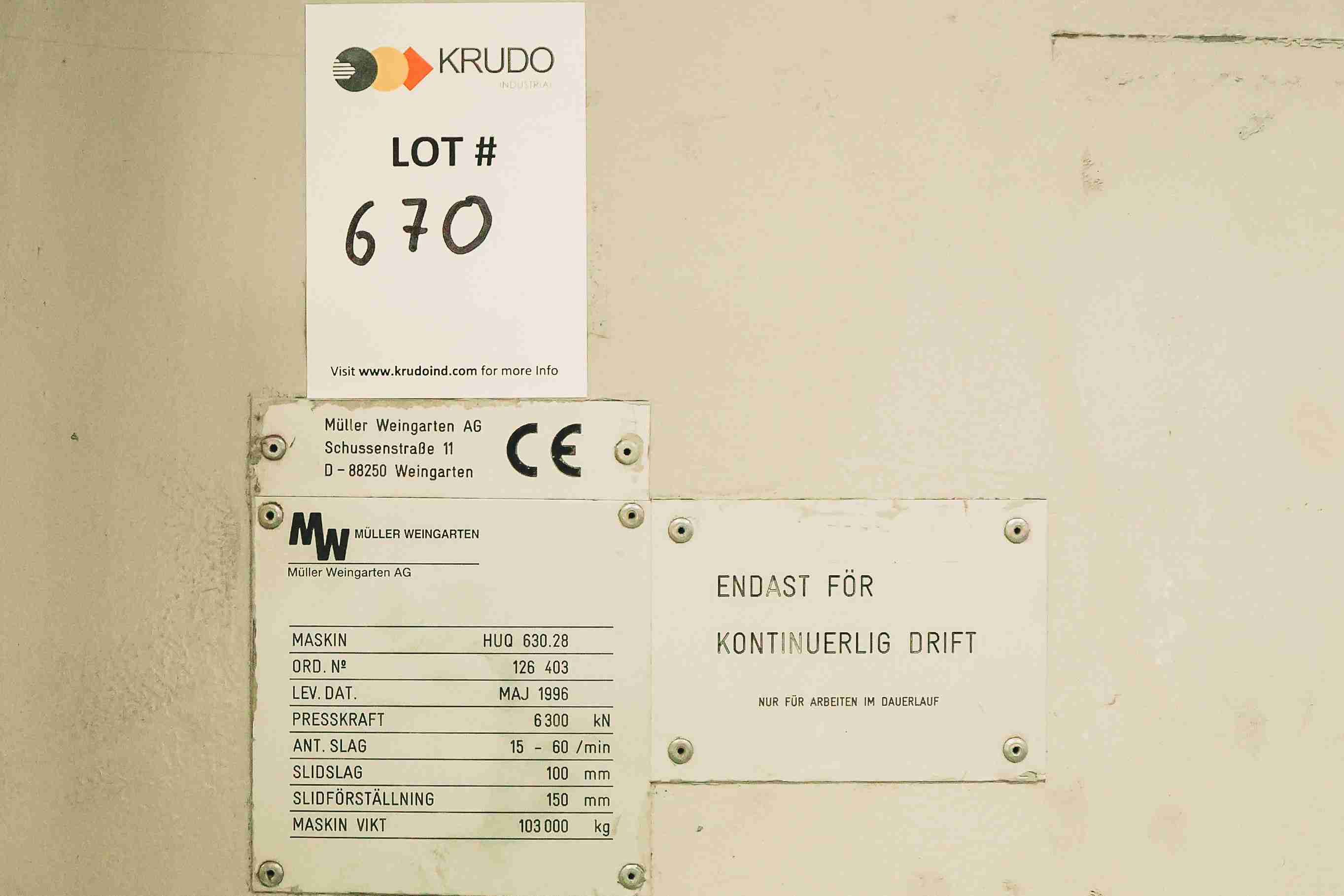

- Lot No. 670

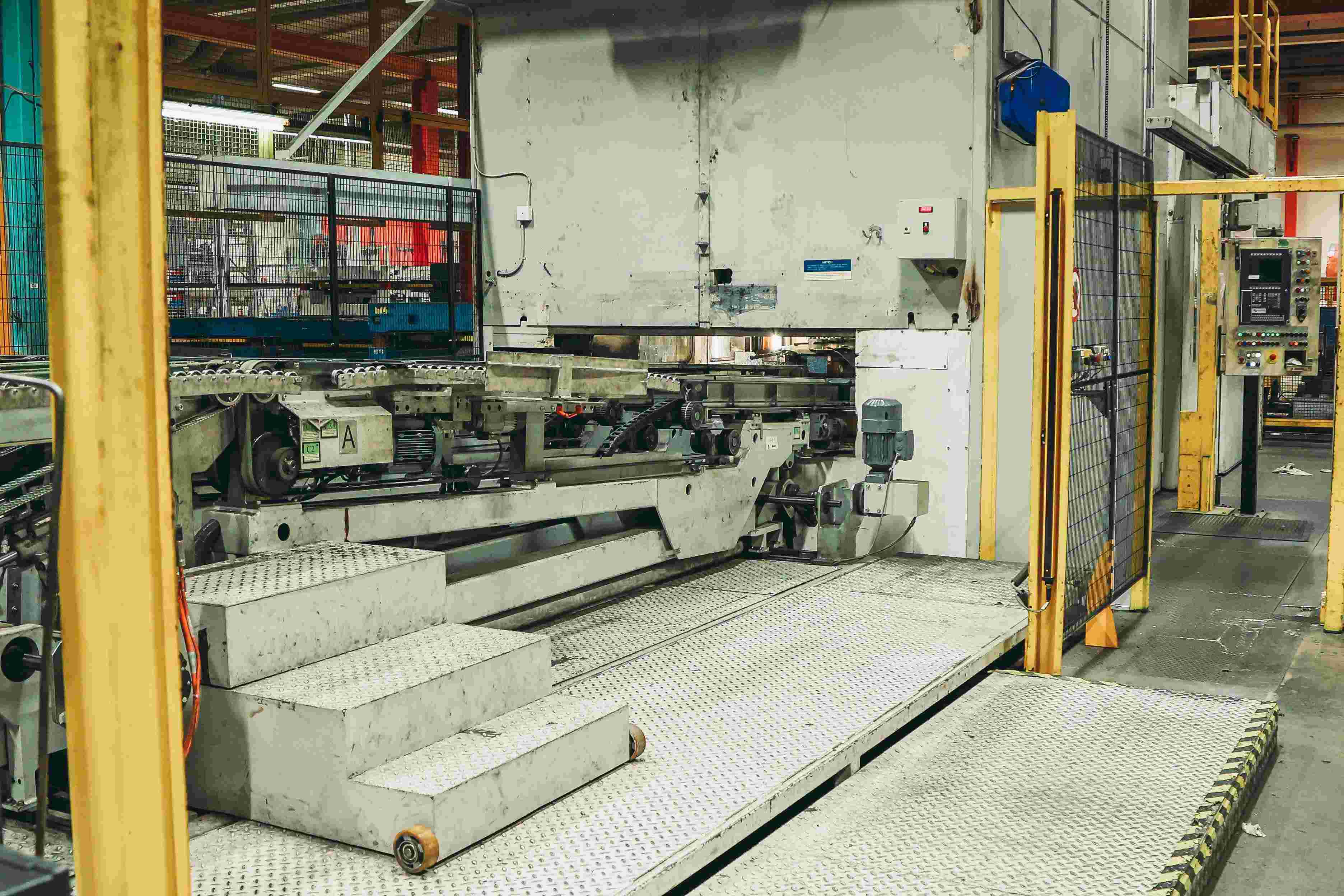

Press Specifications

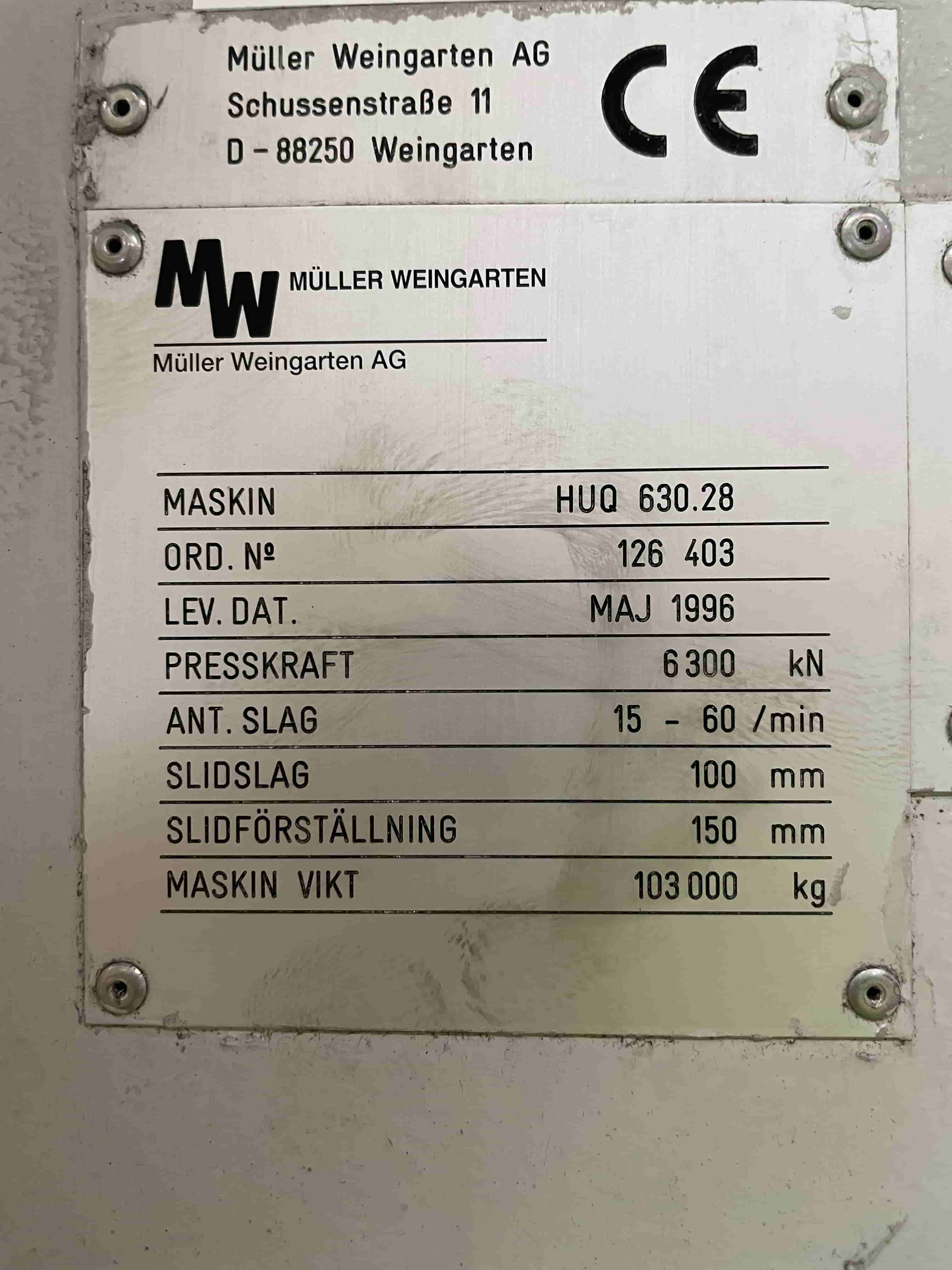

- Manufacturer: Müller-Weingarten
- Year of Manufacture: 1996/2012
- Press Weight: 103,000 kg
- Press Force: 630t / 6,300 kN
- Continuous Stroke Rate: 15–60 strokes/min
- Single Stroke Rate: 15 strokes/min
- Working Energy at 15 strokes/min: 45 kJ
- Drive Motor: 81 kW
- Table Size: 2,800 × 2,000 mm
- Stroke: 100 mm
- Max. Shut Height: 750 mm
- Slide Adjustment: 150 mm

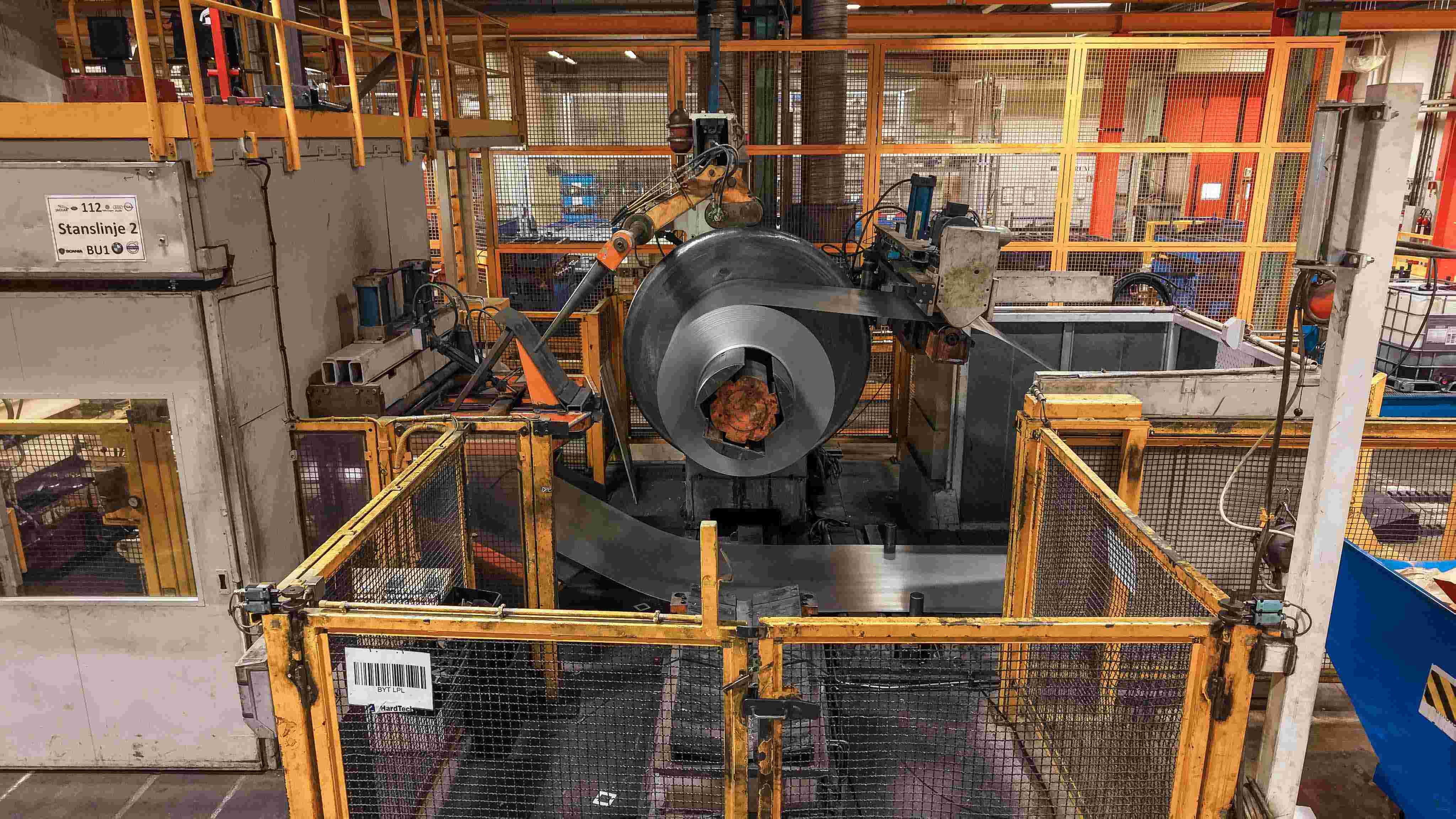

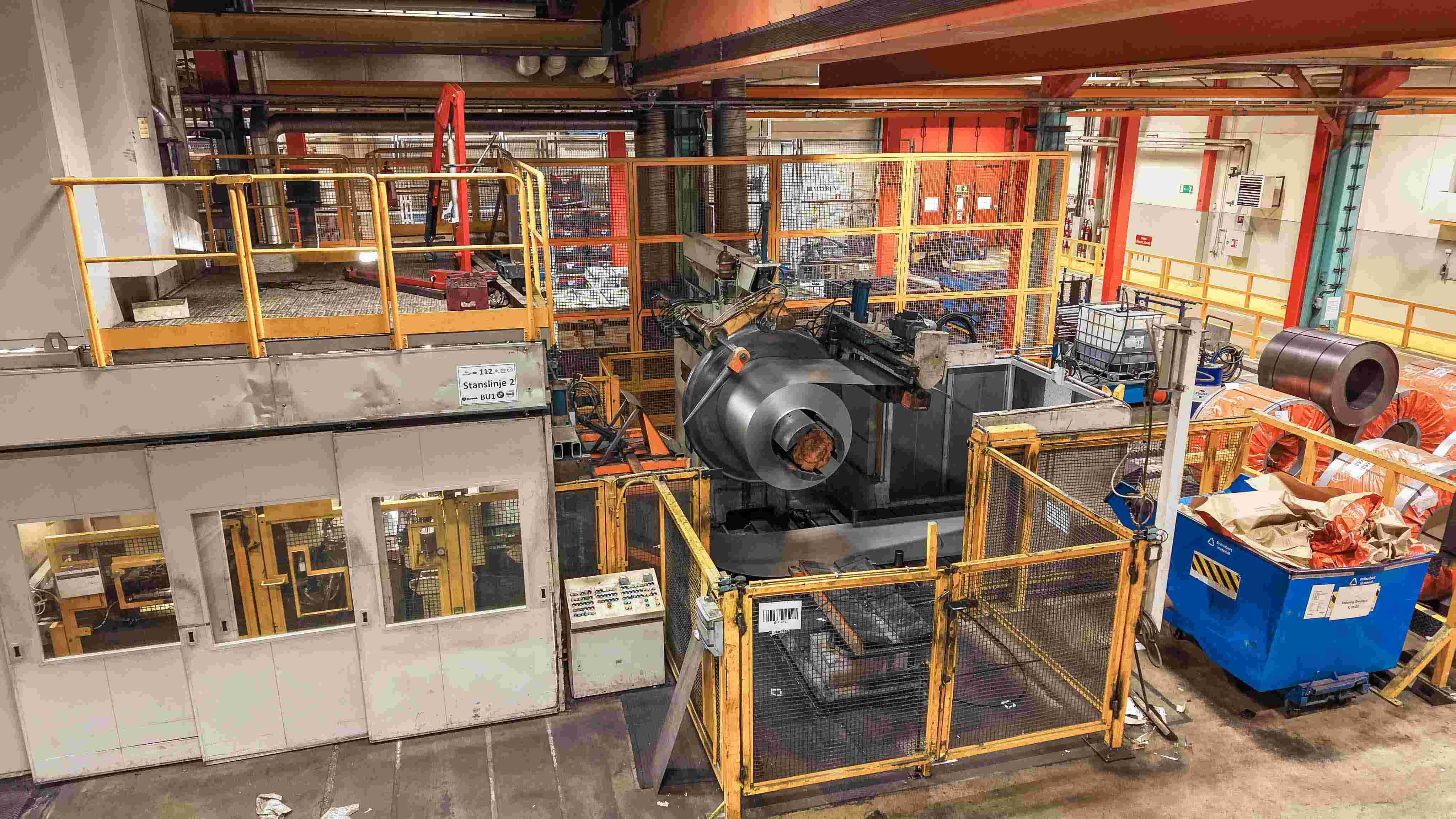

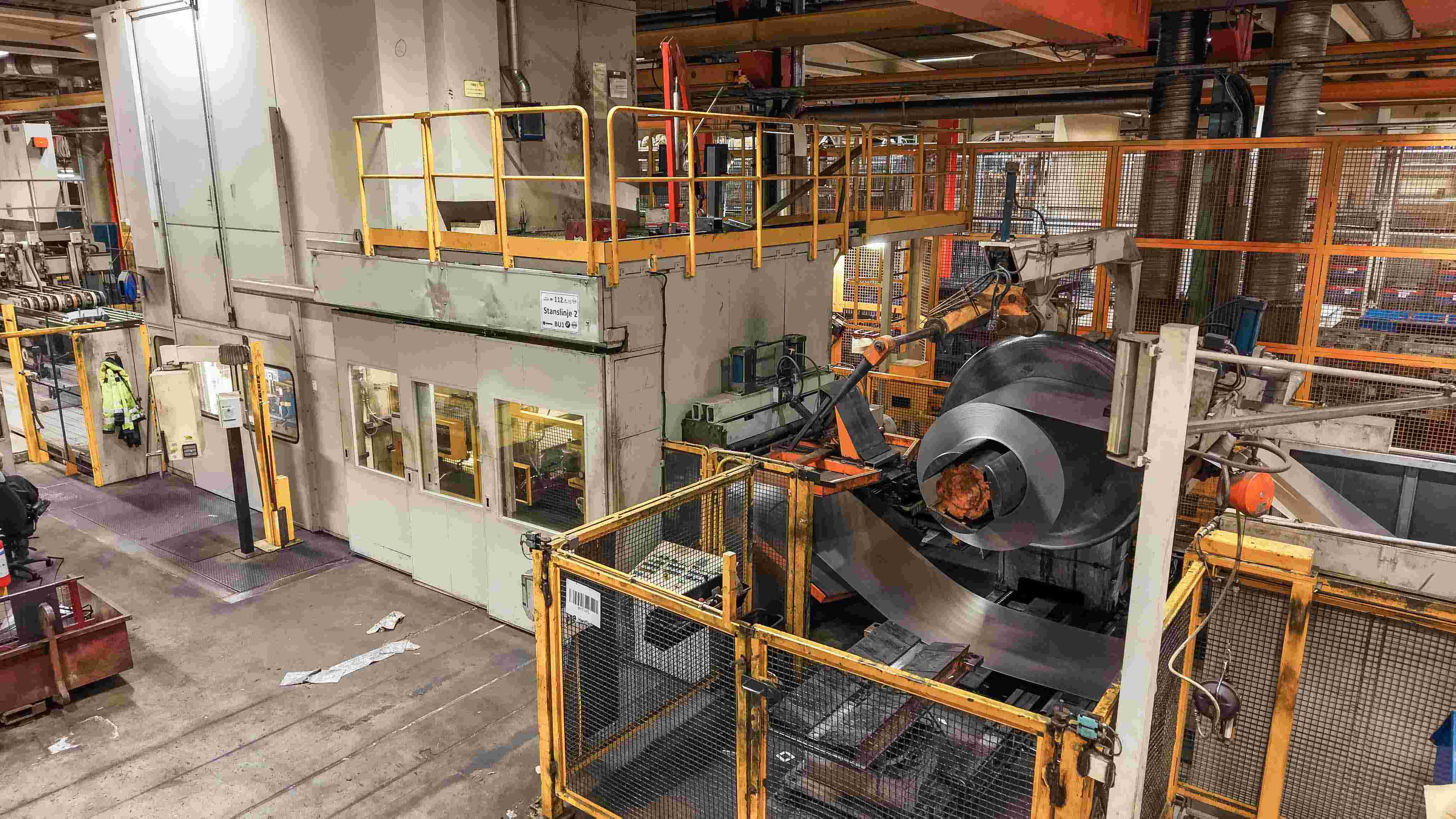

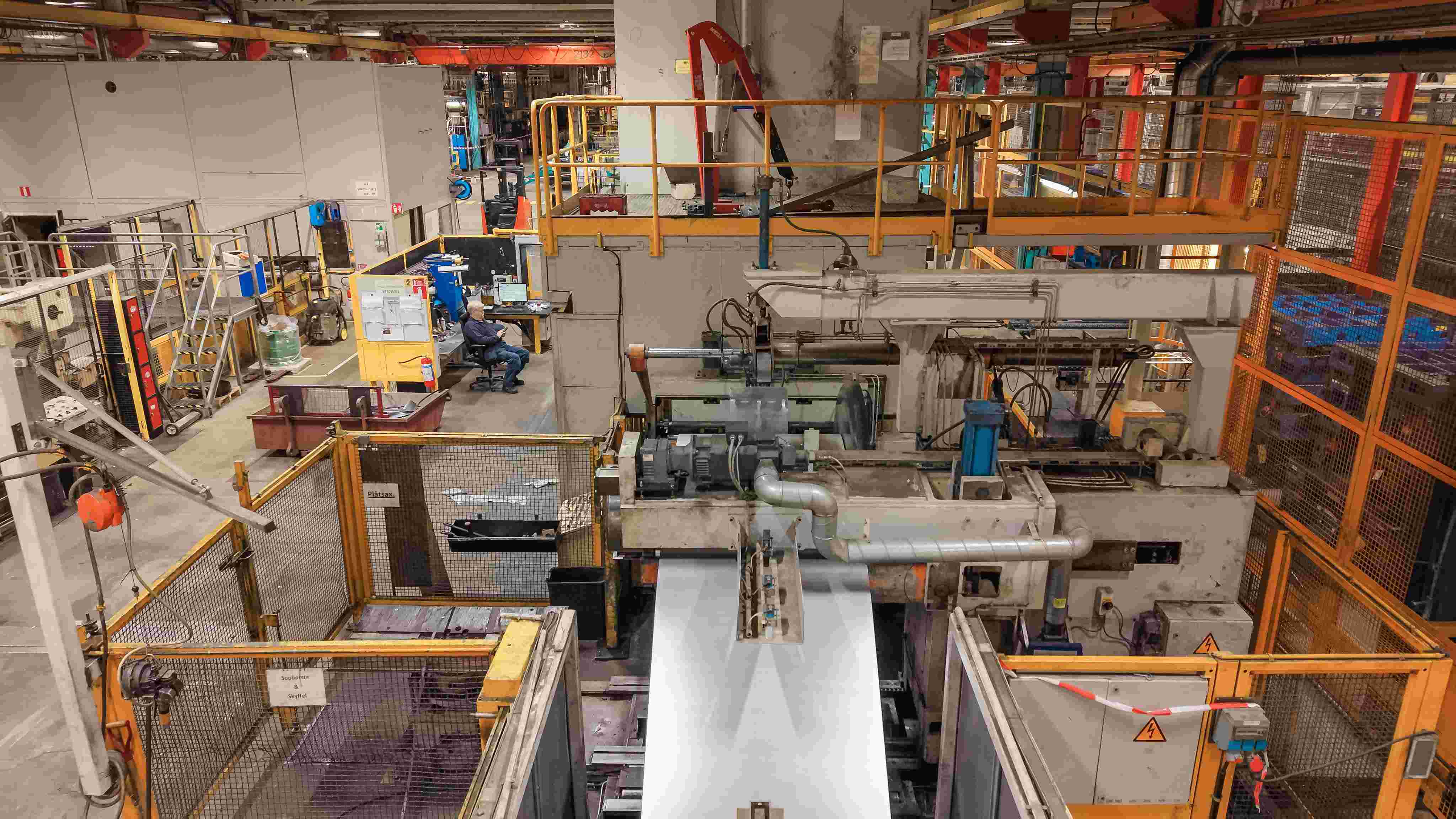

Coil Line Specifications
- Year of Manufacture: 1996
- Coil Weight: Up to 20t
- Material Width: 1000–1600 mm
- Material Thickness: 0.8–3.0 mm

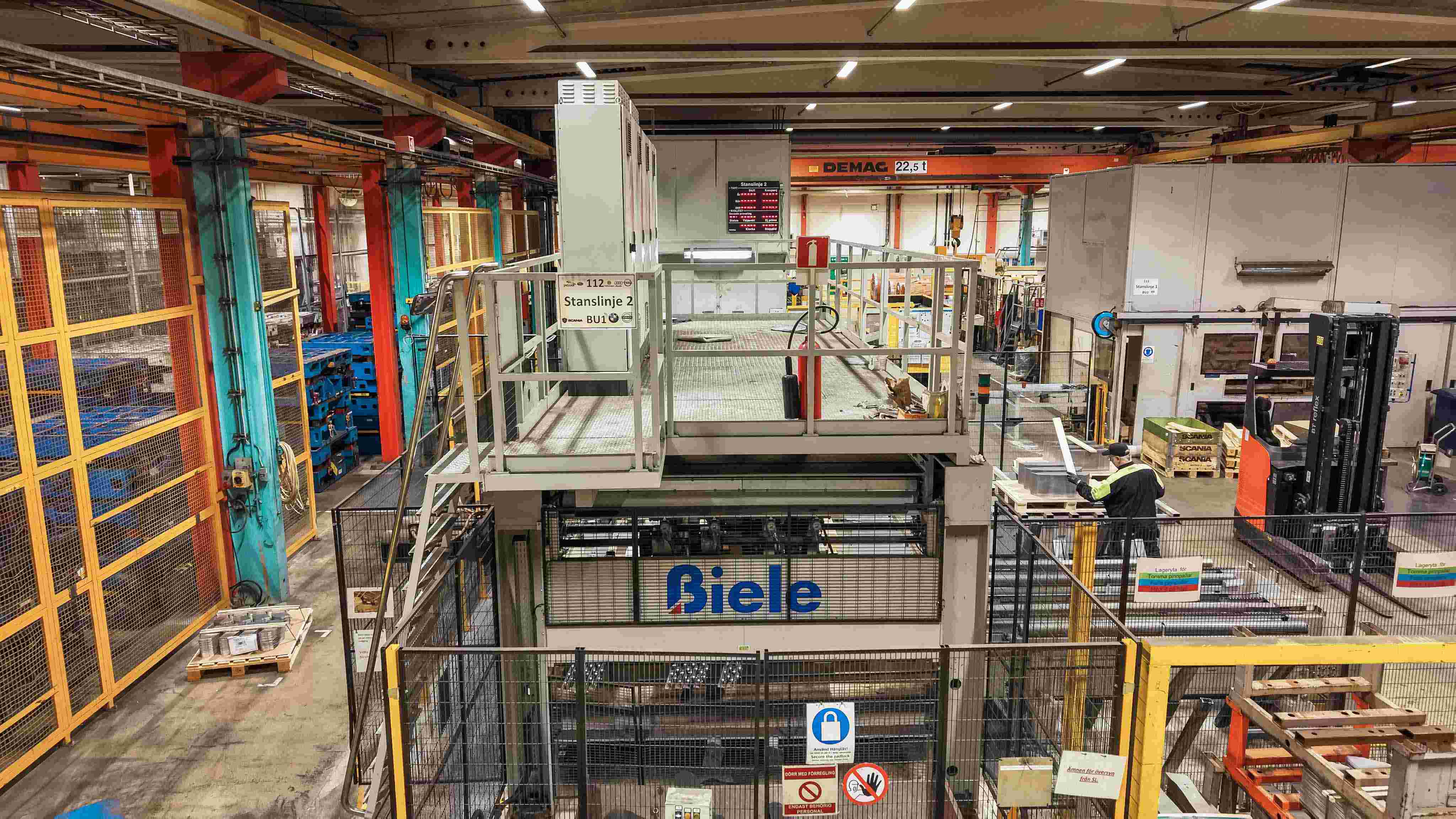

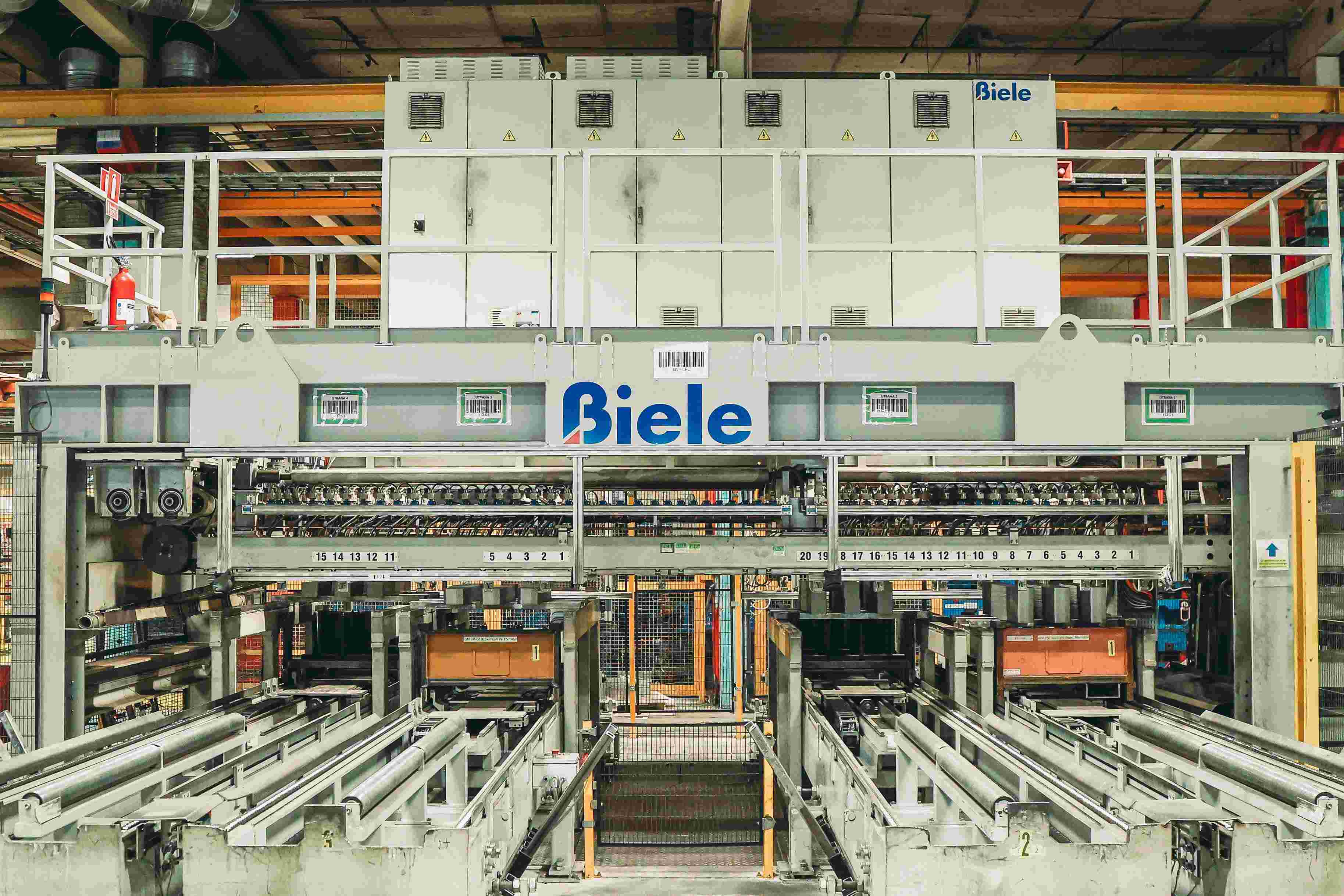

Stacker Specifications
- Manufacturer: Biele
- Number of Stacking Positions: 2 × 2
- Max. Blank Length: 2200 mm
- Max. Blank Width: 800 mm
- Max. Pallet Height: 570 mm at 350 mm stack
Project Value
