687. Trumpf 5-Axis 3D Laser Cutting Machine

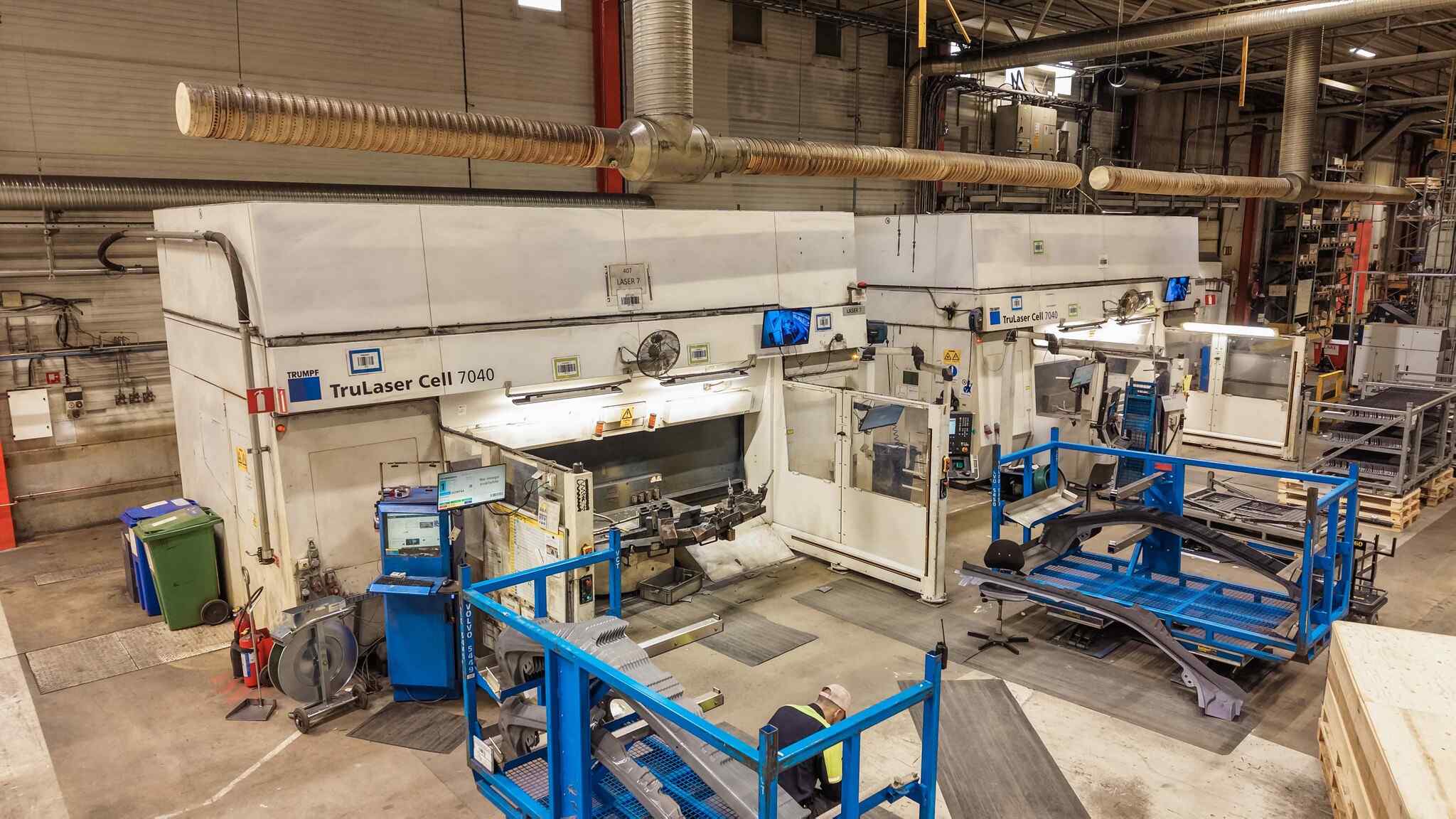

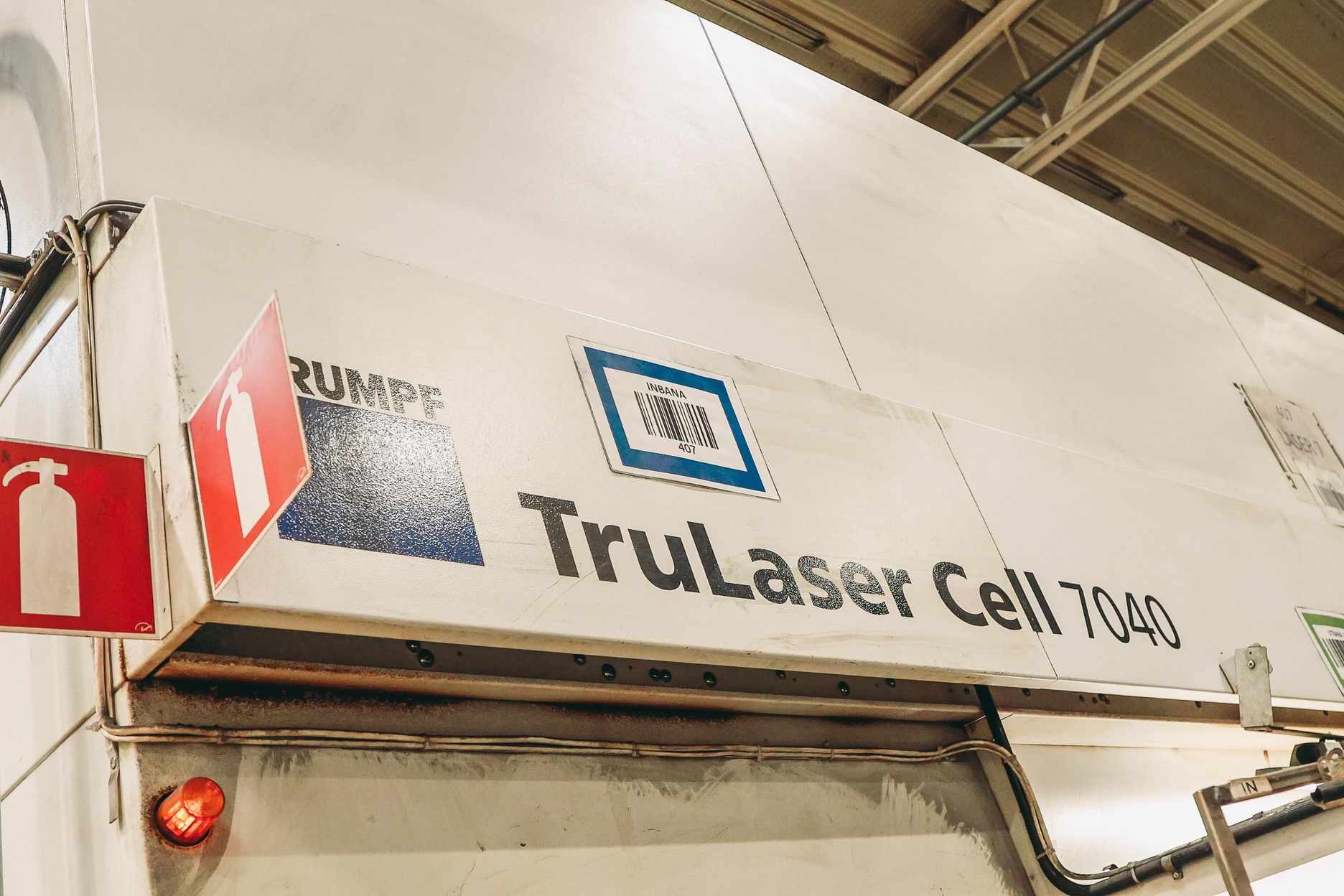

TRUMPF TruLaser Cell 7040 L31

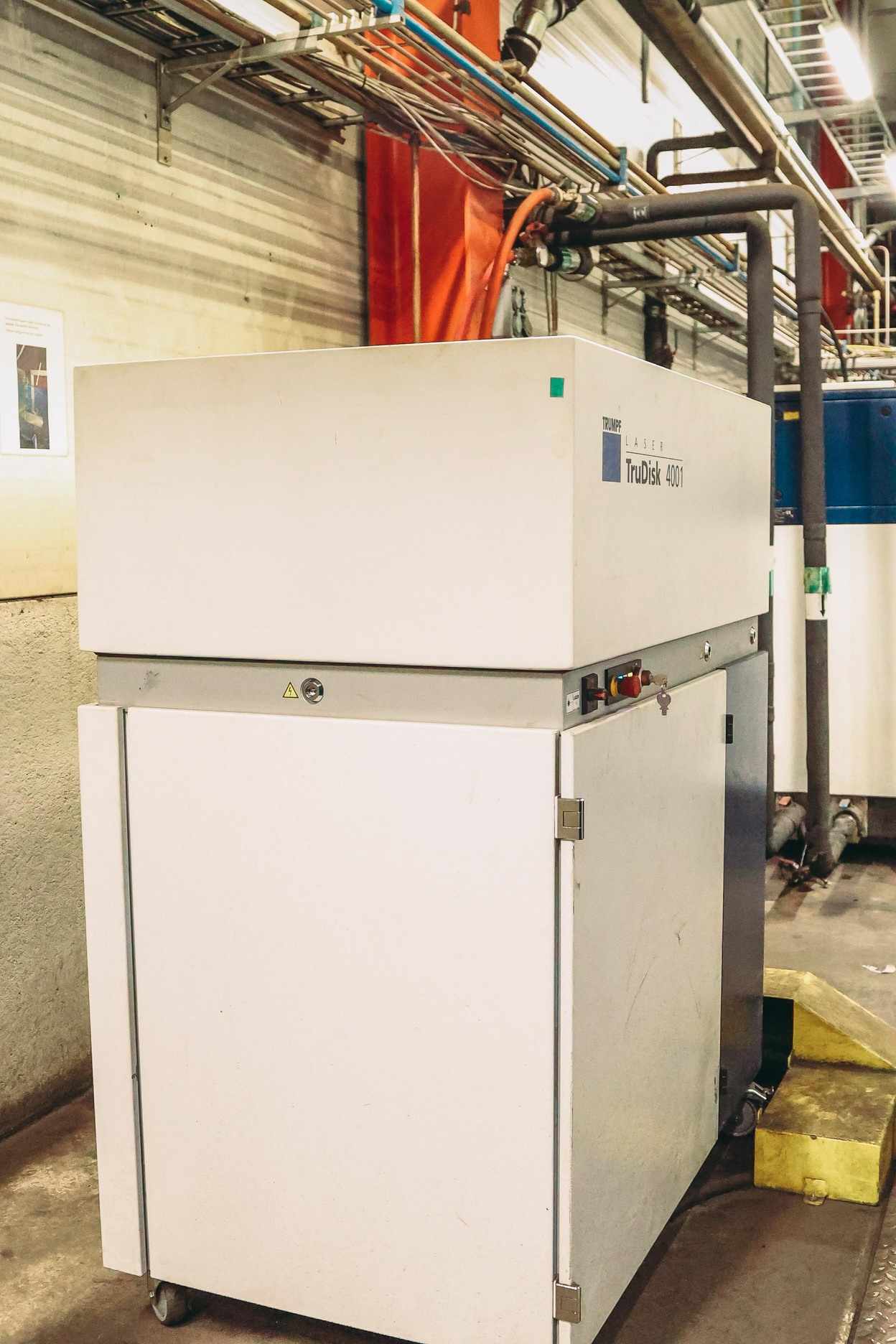

3D Laser Cutting Machine with 4kW TruDisk 4001
This is an advanced 5-axis 3D laser cutting system powered by a high-performance 4,000 W TruDisk 4001 solid-state disk laser. Operating at a 1,030 nm wavelength with exceptional beam quality (4 mm·mrad), it delivers precisely adjustable cutting power from 80 to 4,000 W.
Industry
Automotive
Sale Type
Private Treaty
Manufacturer
Trumpf
Country
Sweden
Machine Type
Laser Cutting Machine
Year of Manufacture
2021
Laser Power
4,000 W
Feed Rates (X/Y/Z)
4000/1500/750 mm
Technical Details
- Lot No. 687
- Manufacturer: Trumpf

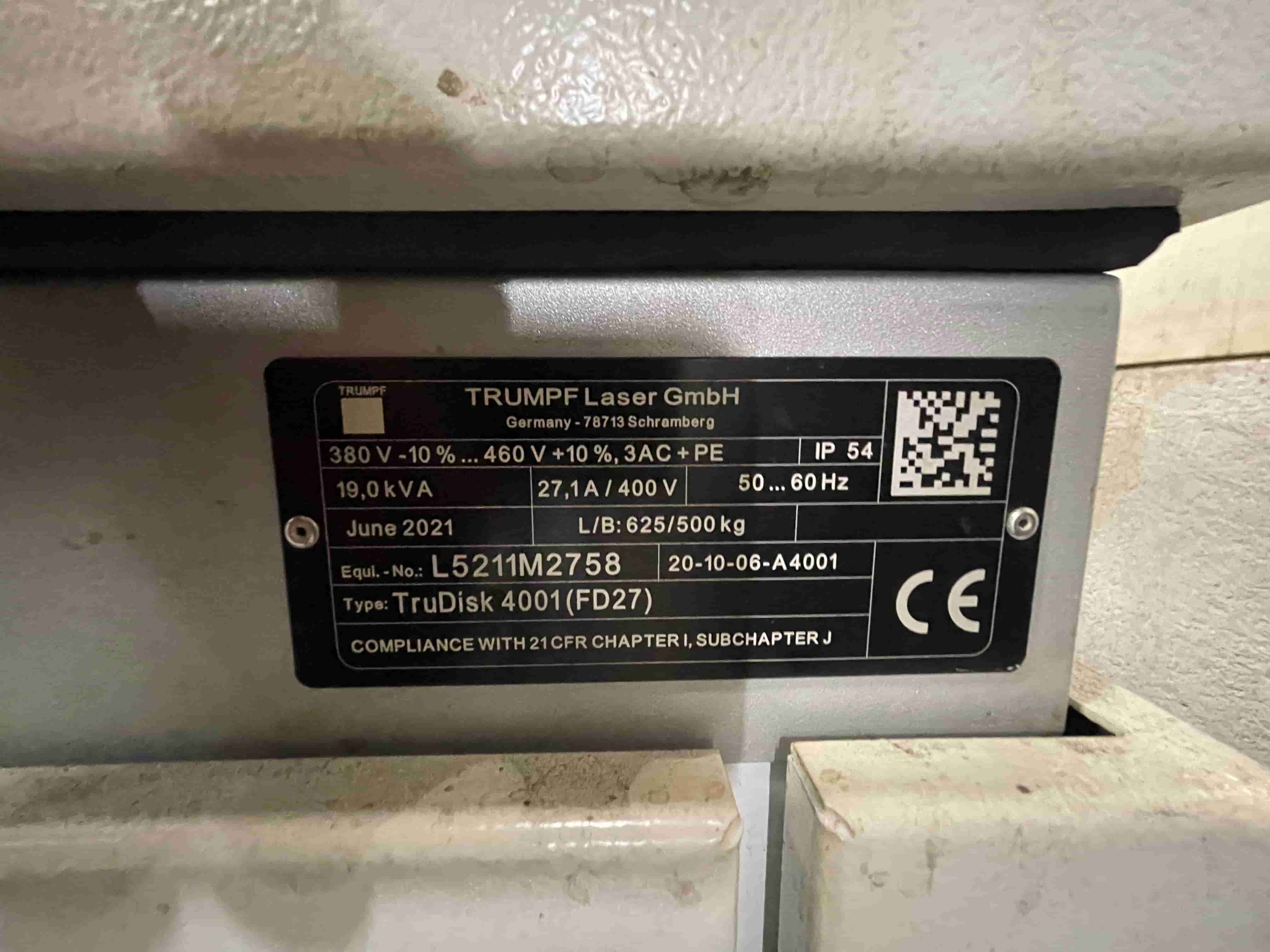

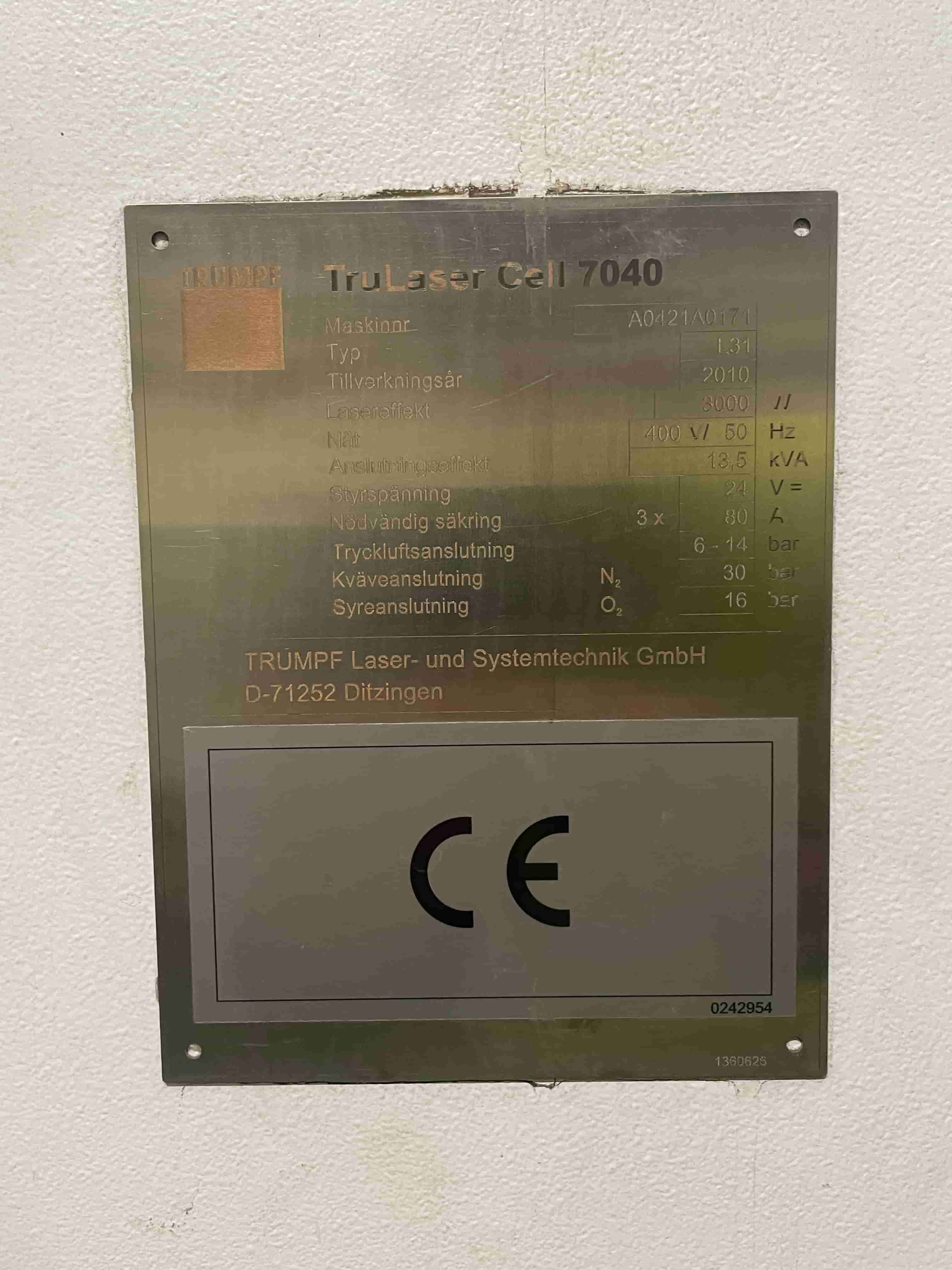

- Model / Type: TruLaser Cell 7040 L31 TruDisk 4001
- Year of Manufacture: 2010/2021
- Laser Type: Solid-State Disk Laser / CW Laser
- Laser Power at Workpiece: 4,000 W
- Adjustable Power Range: 80–4,000 W
- Feed Rates (X/Y/Z): 4000/1500/750 mm
- B-Axis Range: ± 135°
- C-Axis Range: n x 360°
- Max. Axis Speed (X/Y/Z): 100 m/min
- Max. Simultaneous Axis Speed: 173 m/min
- Wavelength: 1,030 nm
- Beam Quality / Beam Parameter Product: 4 mm·mrad
- Numerical Aperture after LLK: 0.1
- Minimum Laser Light Cable Diameter: 100 µm
- Maximum Number of Laser Light Cables: 2
- Maximum with Extended Configuration: 4
- Width: 1,175 mm
- Height: 1,430 mm
- Depth: 725 mm
- Protection Class: IP54
- Ambient Operating Temperature: 10–50°C
