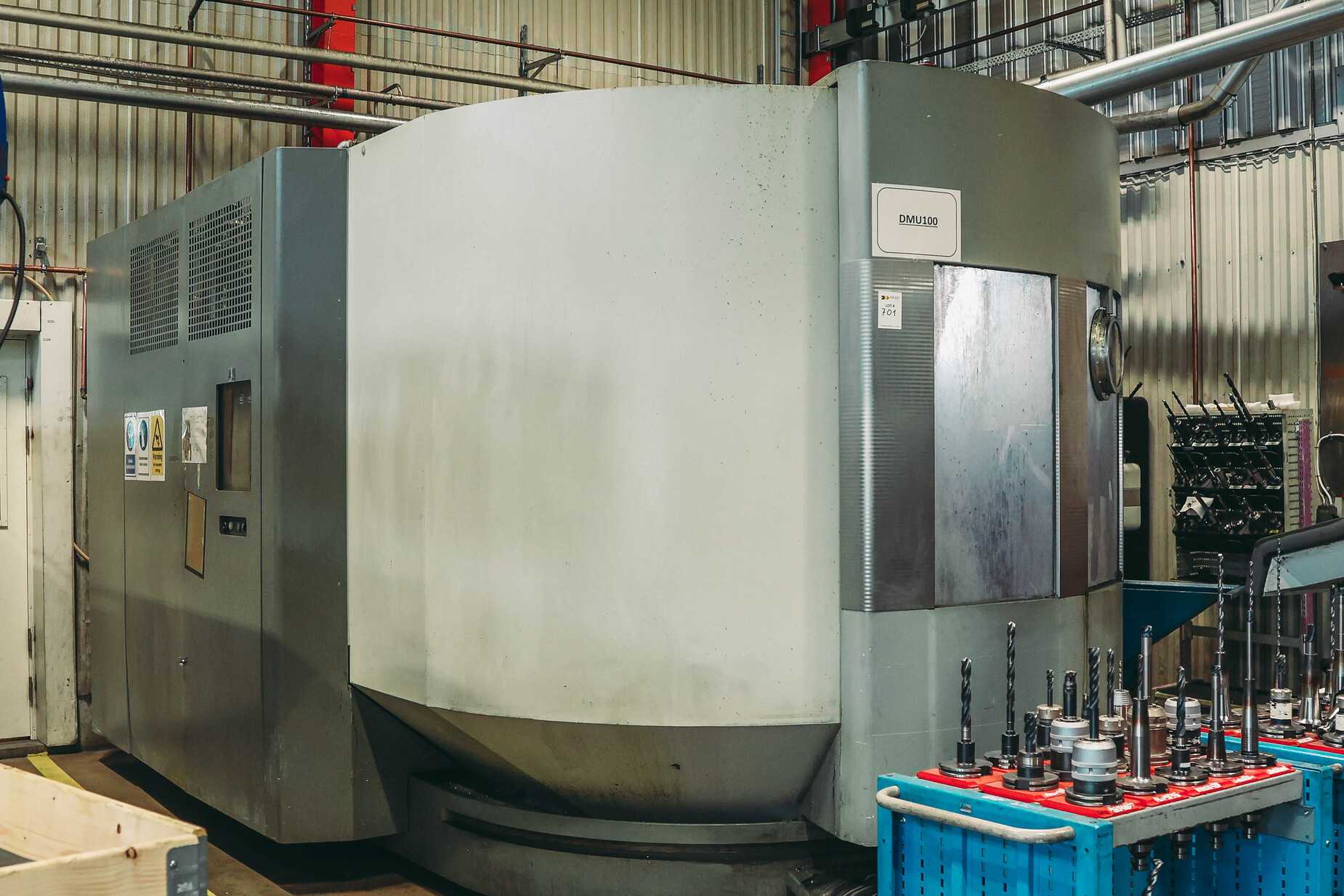

701. Deckel Maho 5-Axis CNC Machining Center

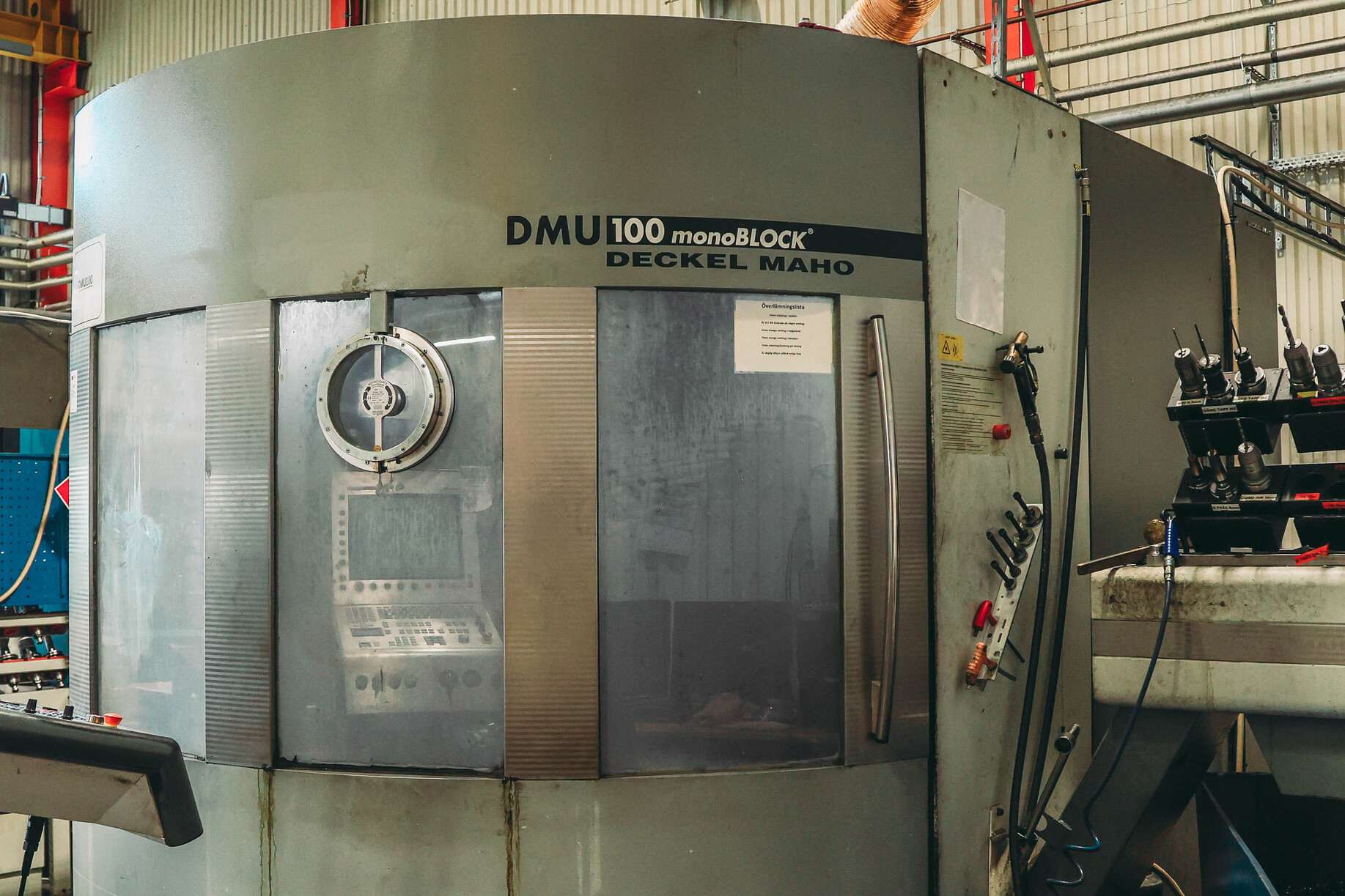

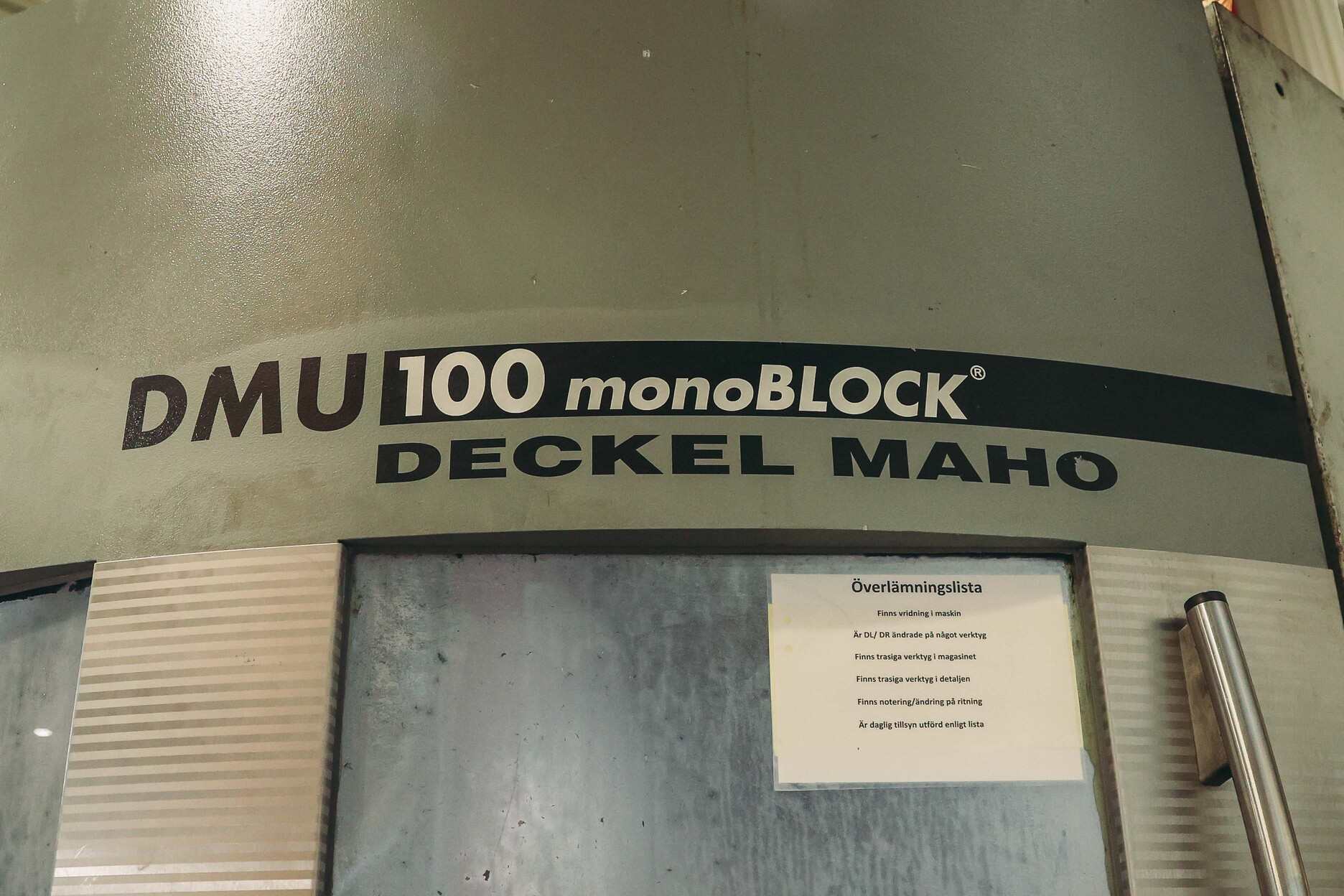

DECKEL MAHO DMU 100 monoBlock
5-Axis Universal Machining Center
This 2007 Deckel Maho is a versatile 5-axis universal machining center with 97,727 operating hours. It features a 1,500×800 mm table with an integrated 800 mm rotary table capable of supporting up to 800 kg. Offering comprehensive multi-sided machining with a swivel B-axis (-120° to +30°) and a full 360° C-axis, it comes equipped with a 12,000 rpm SK 40 spindle, a 60-position tool magazine, and a 40-bar internal coolant supply.
Industry
Automotive
Sale Type
Private Treaty
Manufacturer
Deckel Maho
Country
Sweden
Machine Type
Machining Center
Year of Manufacture
2007
Table Size
1,500 × 800 mm
Max. Spindle Speed
12,000 rpm
Technical Details
- Lot No. 701
- Manufacturer: Deckel Maho
- Model / Type: DMU 100 monoBLOCK
- Year of Manufacture: 2007

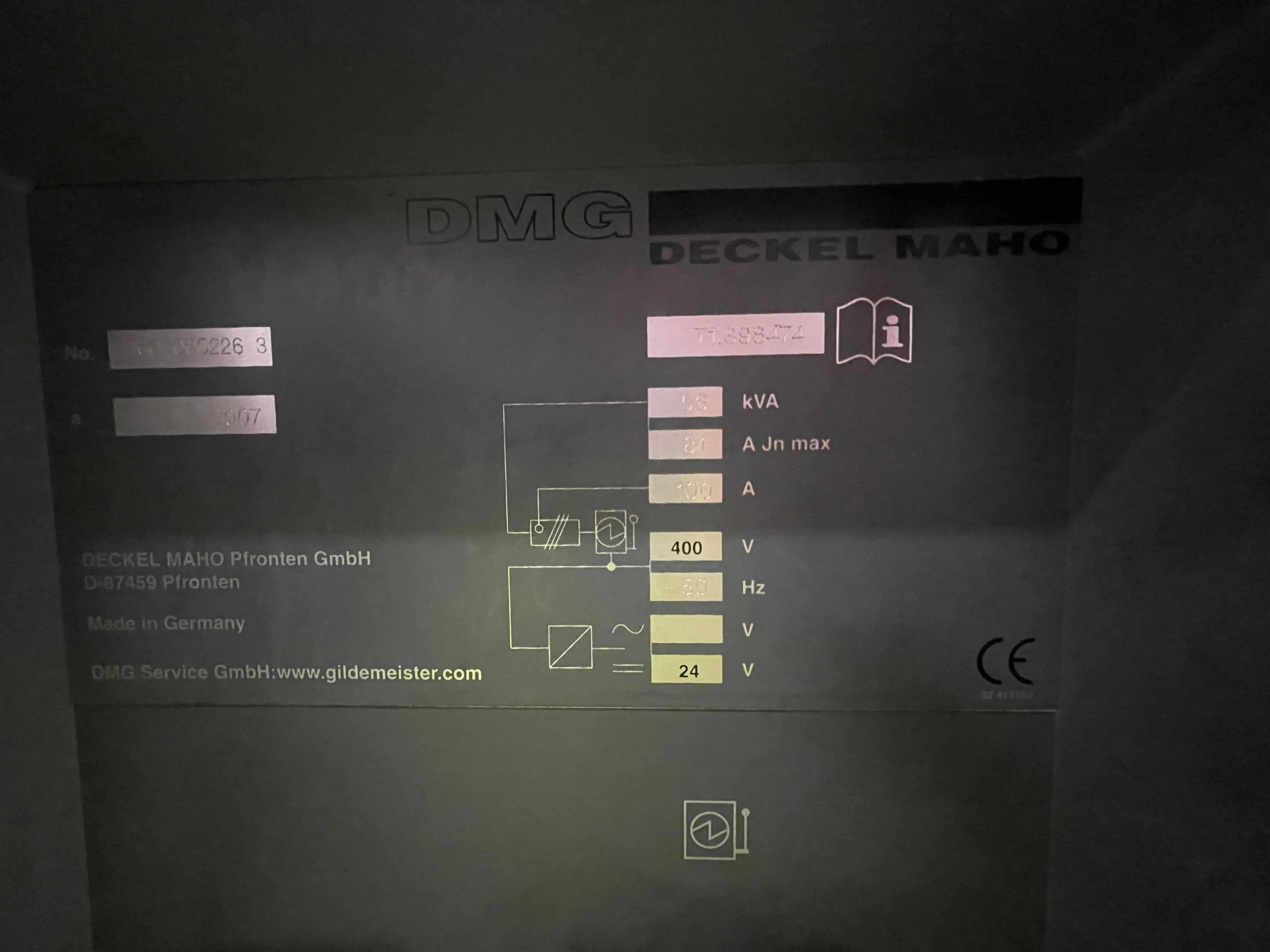

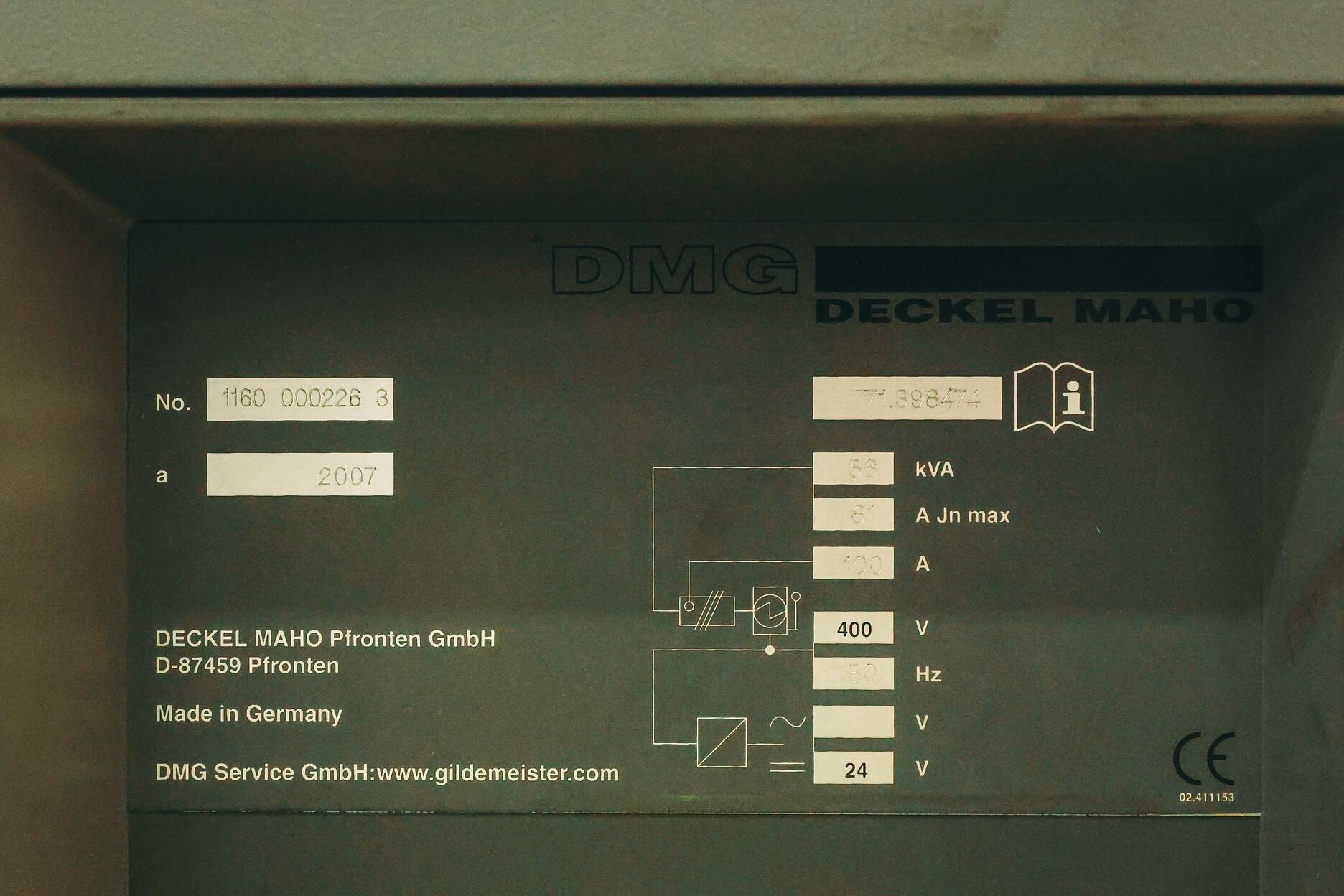

- Machine No. 1180 000226 3
- Machine Type: 5-Axis Universal Machining Center

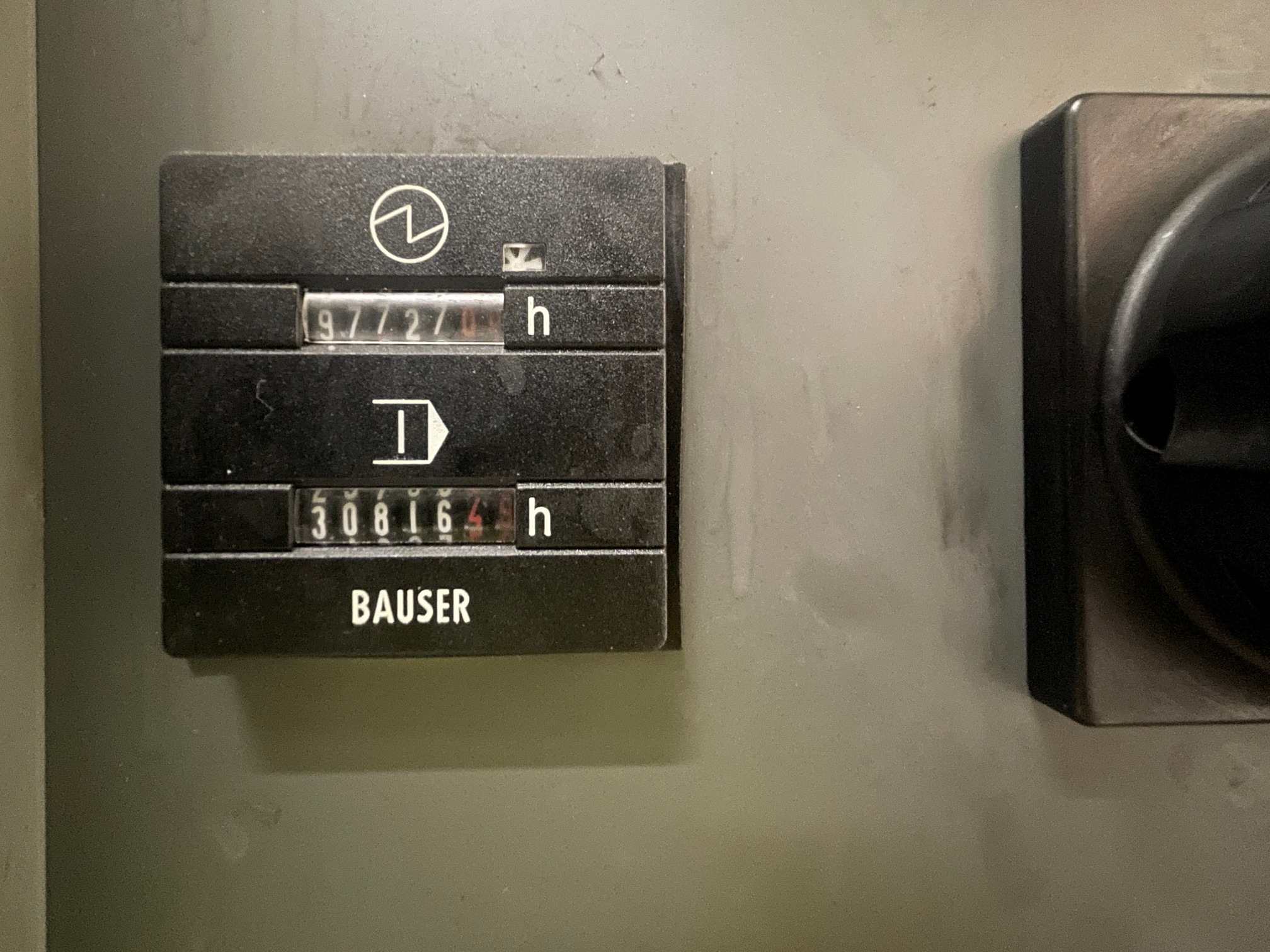

- Machine Hours: 97,727 h
- Spindle Hours: 30,816 h
- X-Axis Travel: 1,250 mm
- Y-Axis Travel: 710 mm
- Z-Axis Travel: 710 mm
- B-Axis / Swivel Range: -120° to +30°
- C-Axis: 360°
- Table Size: 1,500 × 800 mm
- Rotary Table Diameter: 800 mm
- Max. Table Load: 800 kg
- Max. Spindle Speed: 12,000 rpm
- Spindle Motor Power: 15 / 10 kW
- Spindle Taper: SK 40

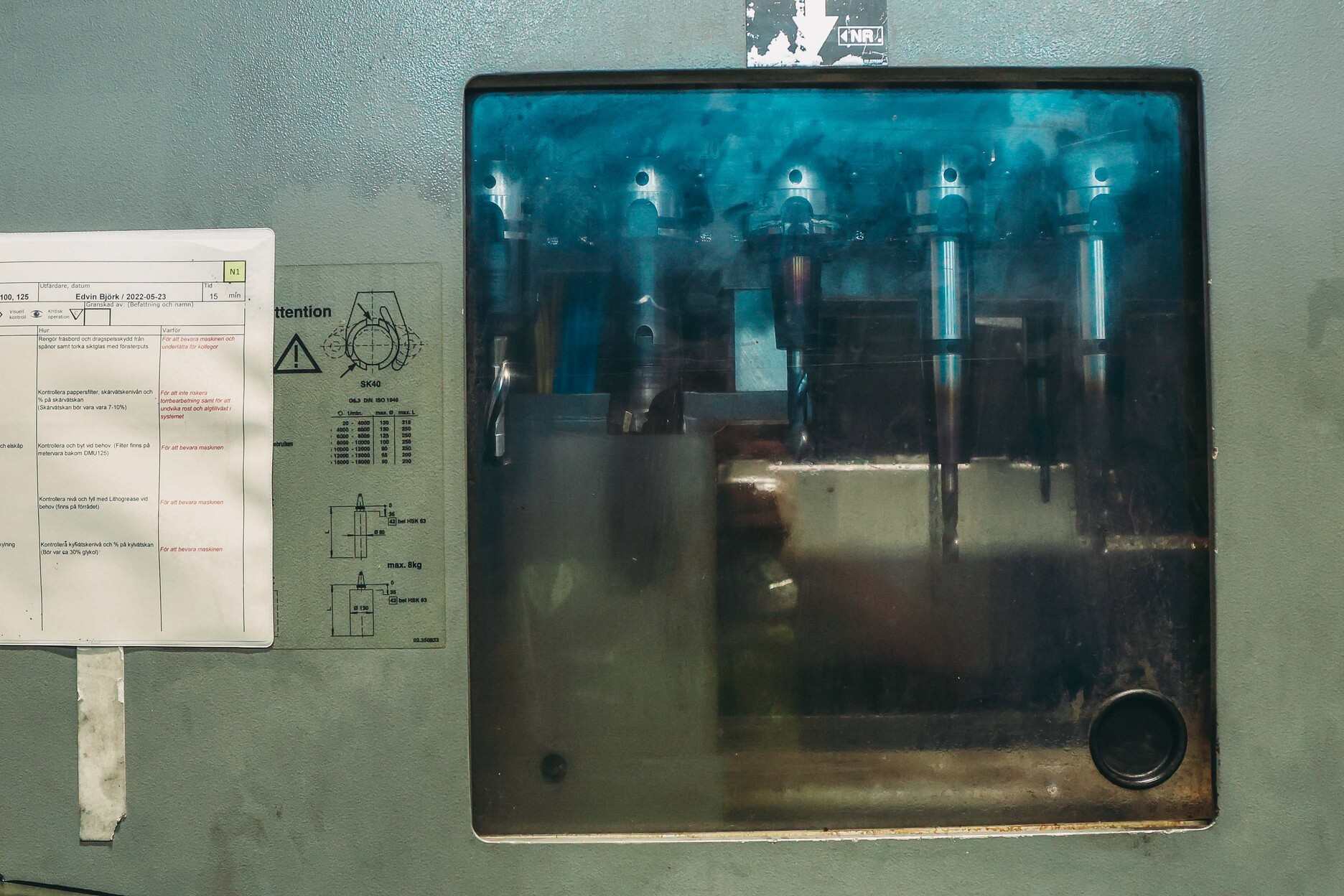

- Tool Magazine: 60 positions
- Internal Coolant Supply: 40 bar
- Coolant Tank: approx. 600 l

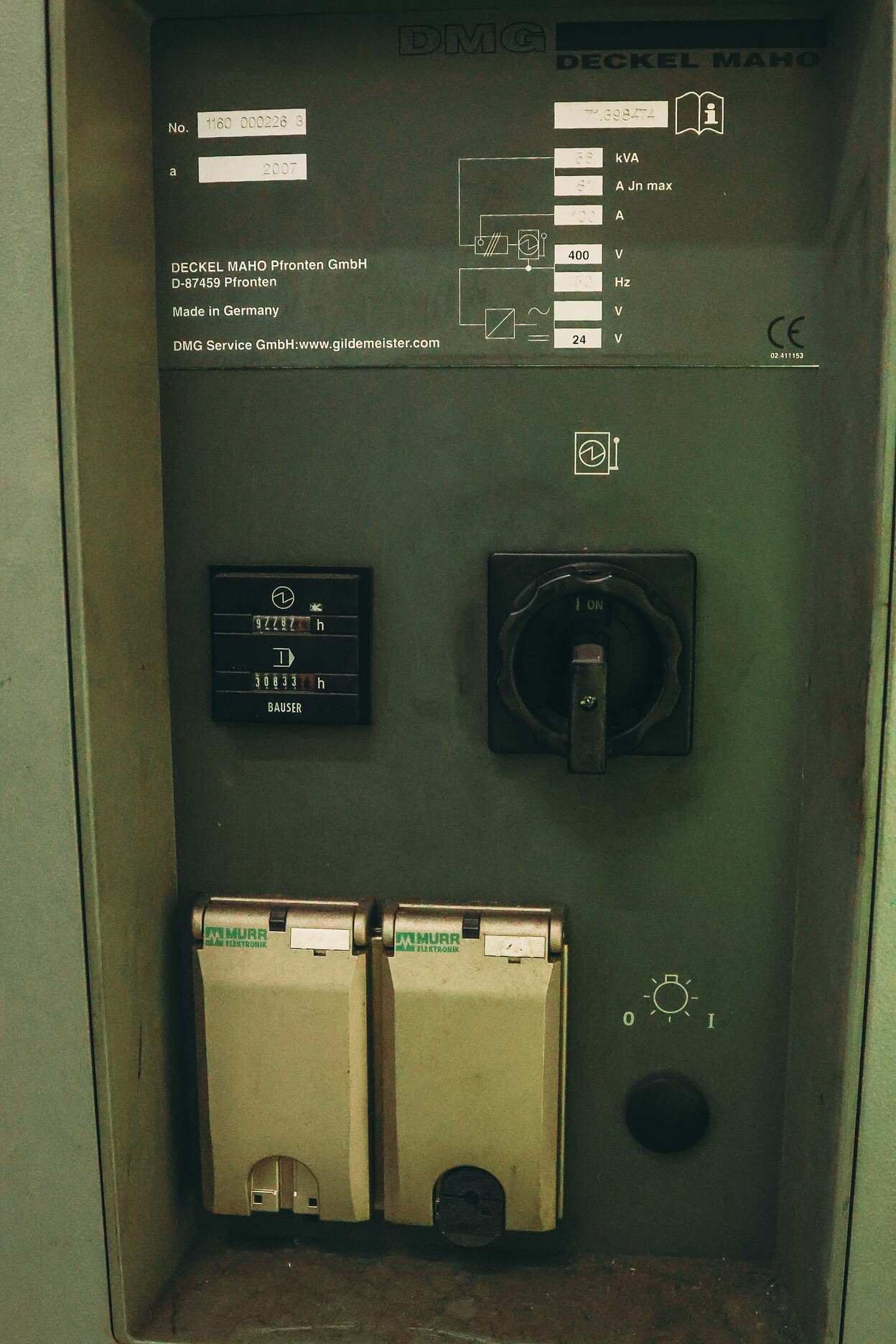

- Total Power Requirement: approx. 44 kVA
- Machine Weight: approx. 10,500 kg
- Machine Dimensions (L × W × H): approx. 3,500 × 2,650 × 2,650 mm
