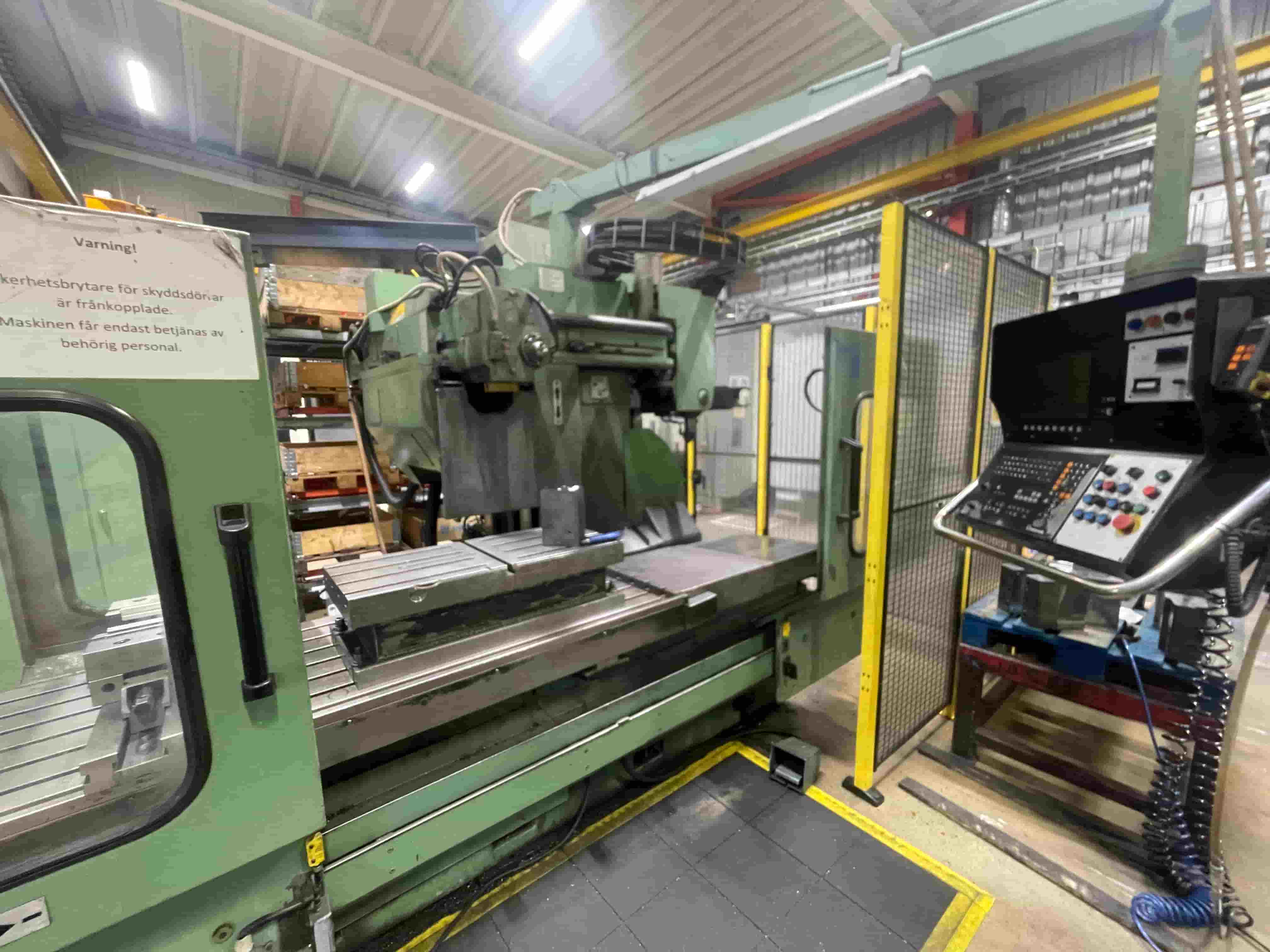

706. Nicolas Correa CNC Horizontal Milling Machine
NICOLAS CORREA CF 20-20
CNC Bed-Type Milling Machine
This Nicolas Correa CF 20-20 is a heavy-duty CNC bed-type milling machine featuring a spacious 2,000 × 700 mm table capable of supporting workpieces up to 3,500 kg. With 30,877 operating hours, it offers generous travel dimensions (X: 1,800 mm, Y/Z: 800 mm) and is driven by a powerful 22 kW ISO 50 spindle, making it well-suited for robust, large-scale precision machining operations.
Industry
Automotive
Sale Type
Private Treaty
Manufacturer
Nicolas Correa
Country
Sweden
Machine Type
Milling Machine
Year of Manufacture
1996
Table Surface
2,000 × 700 mm
Number of T-Slots
6
Technical Details
- Lot No. 706

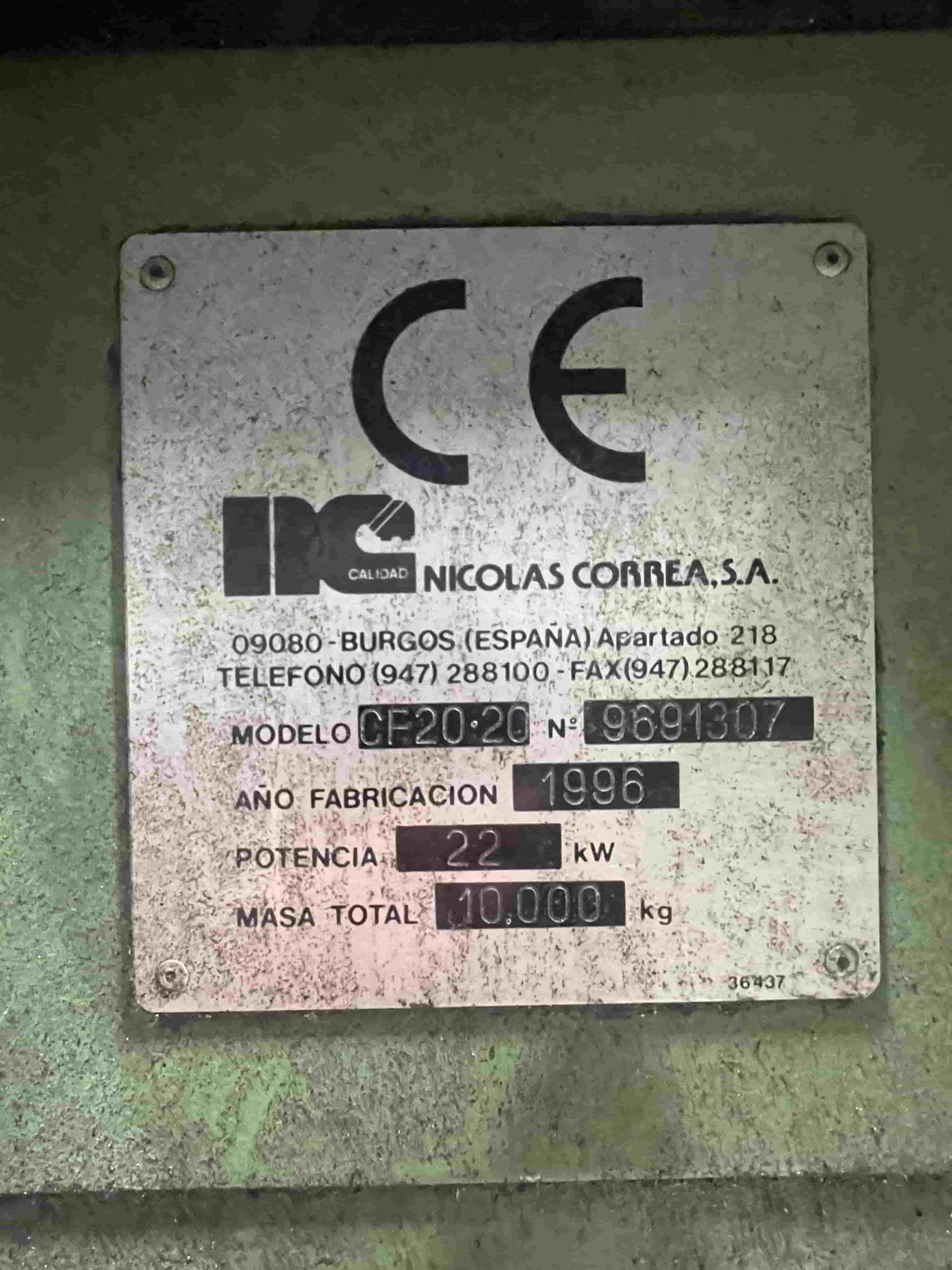

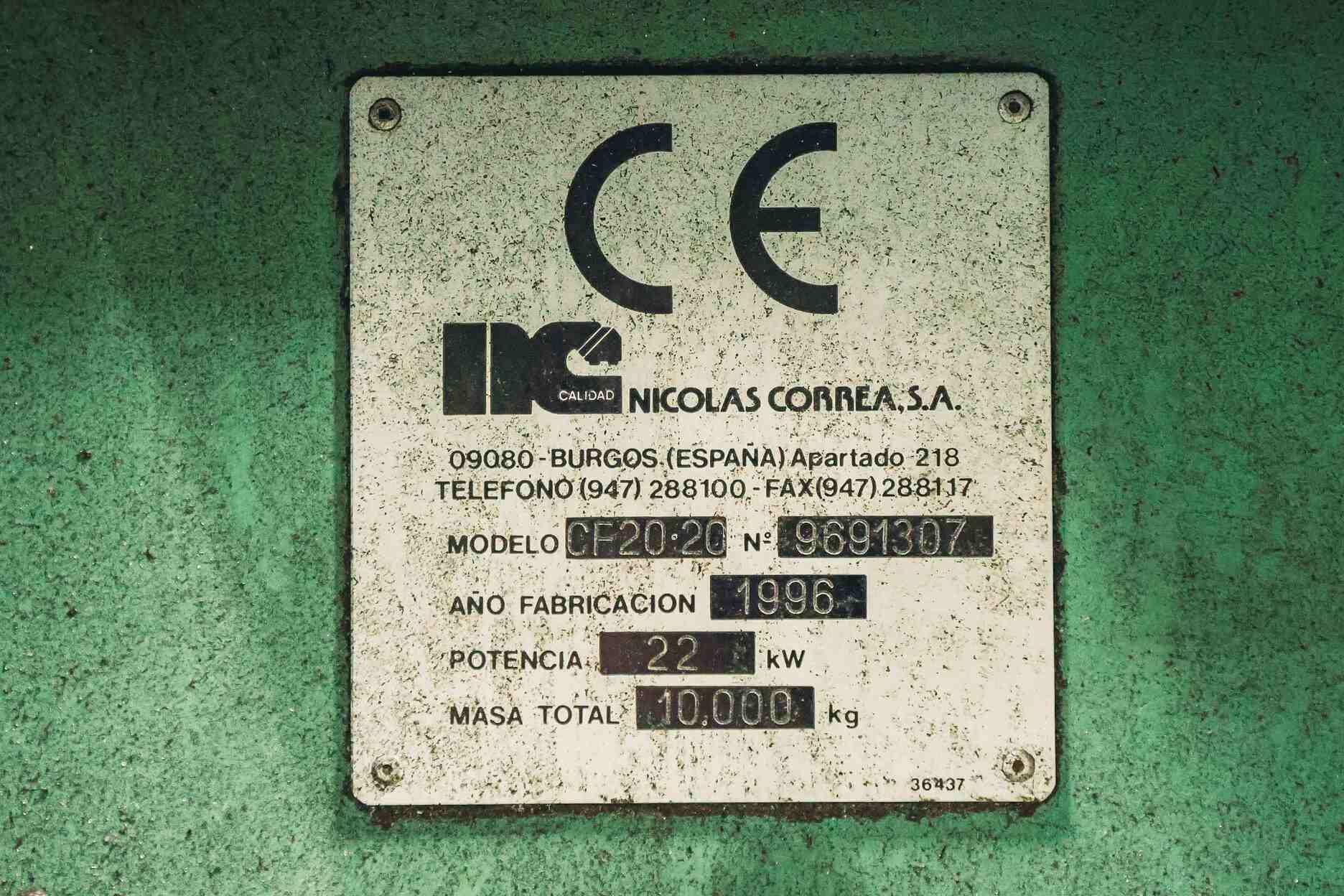

- Manufacturer: NICOLAS CORREA S.A.
- Model / Type: CF 20-20
- Year of Manufacture: 1996
- Machine No. 9691307
- Machine Type: CNC Bed-Type Milling Machine
- Machine Hours: 30,877 h

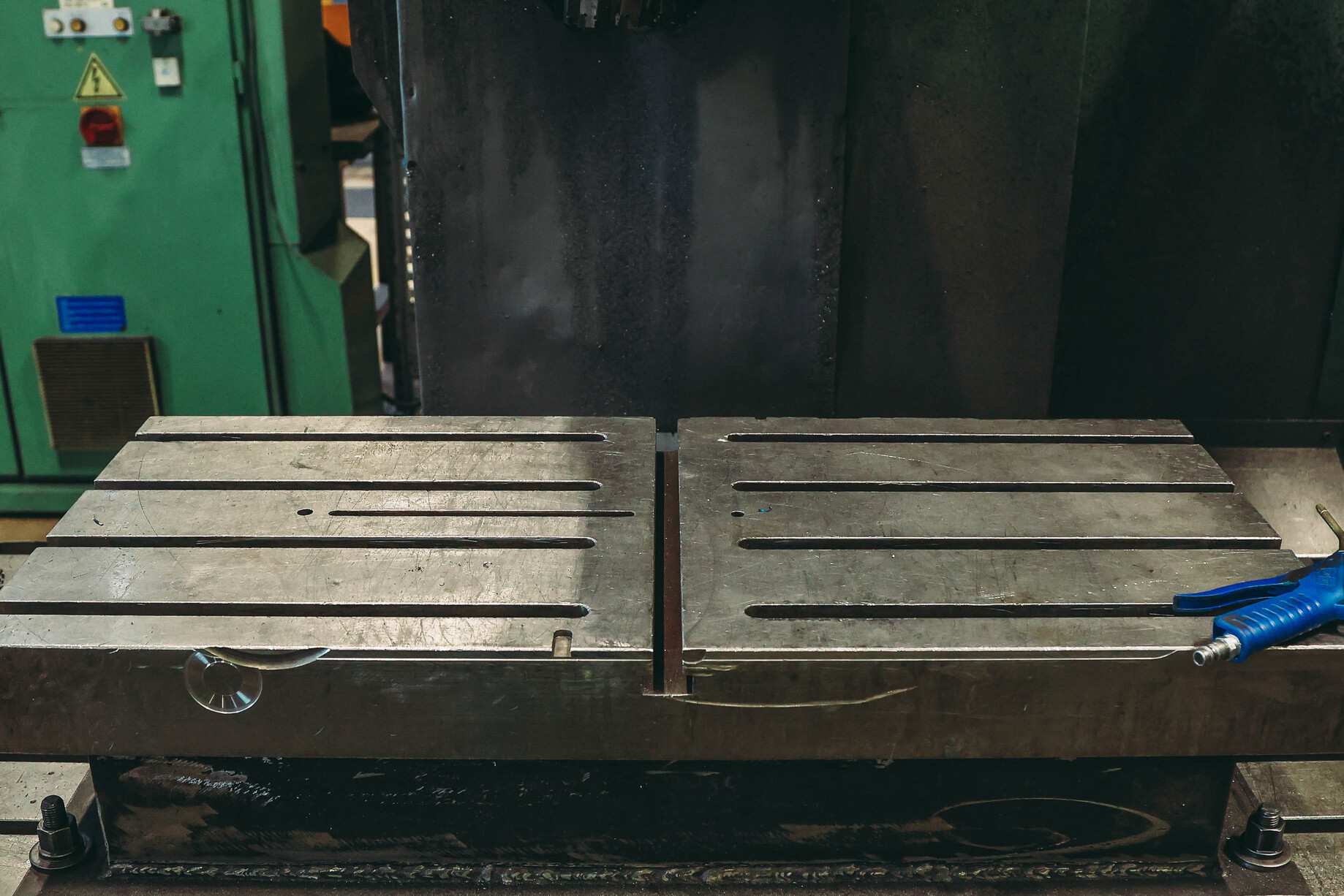

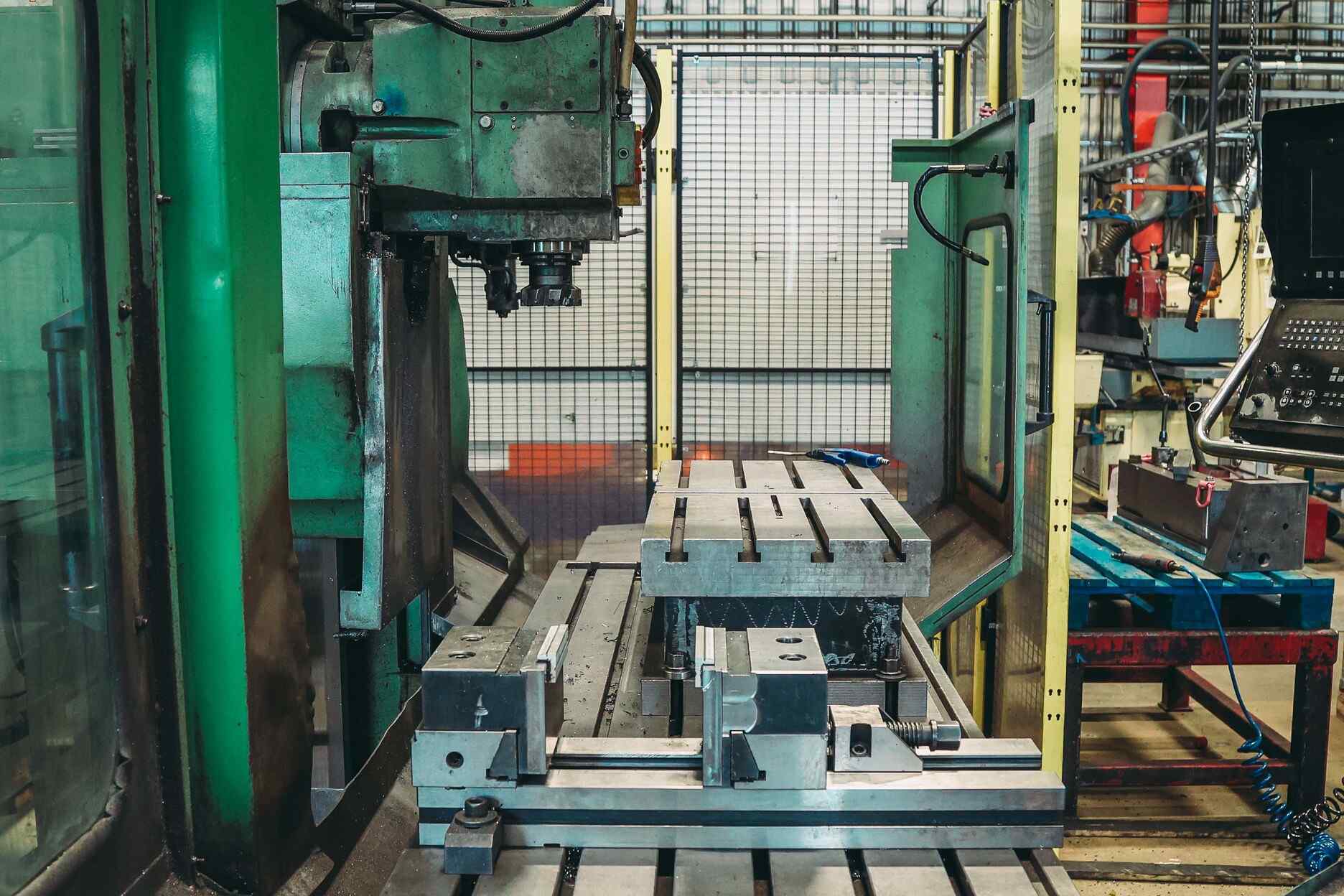

- Table Surface: 2000 × 700 mm
- Number of T-Slots: 6
- T-Slot Width: 18 mm
- T-Slot Spacing: 100 mm
- Longitudinal Travel (X): 1,800 mm
- Cross Travel (Y): 800 mm
- Vertical Travel (Z): 800 mm

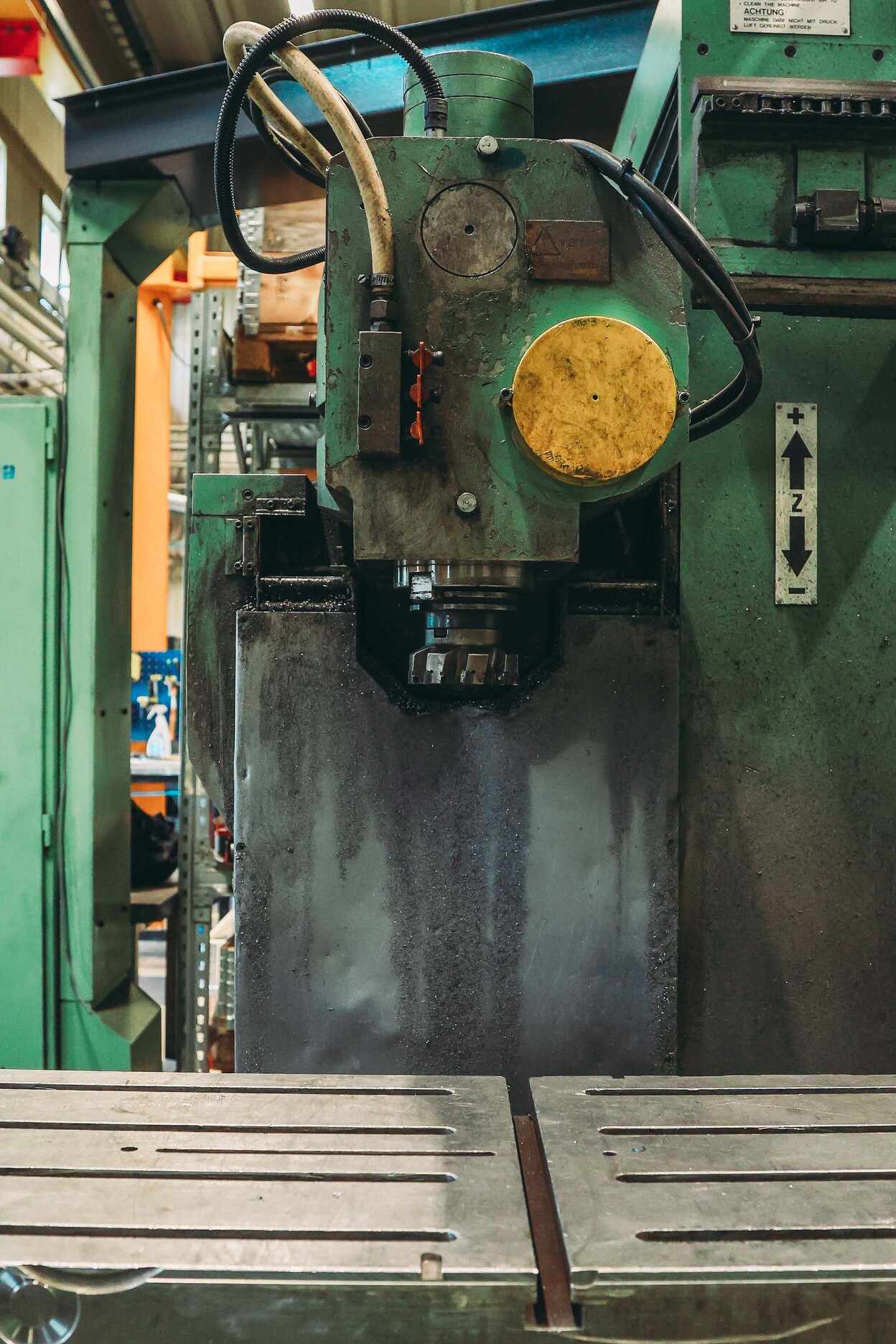

- Spindle Taper: ISO 50
- Front Spindle Bearing Diameter: 100 mm
- Spindle Speed Range: 20–2,500 rpm
- Number of Spindle Speed Ranges: 2
- Working Feed Range: 0.6–5,000 mm/min
- Rapid Traverse: 12,000 mm/min
- Spindle Motor Power: 22 kW
- Feed Motor Torque: 15 Nm
- Max. Workpiece Weight on Table: 3,500 kg
- Machine Weight: 10,000 kg
