705. Zayer 5-Axis CNC Machining Center
ZAYER KPU/AR
5-Axis CNC Bridge Milling Machine

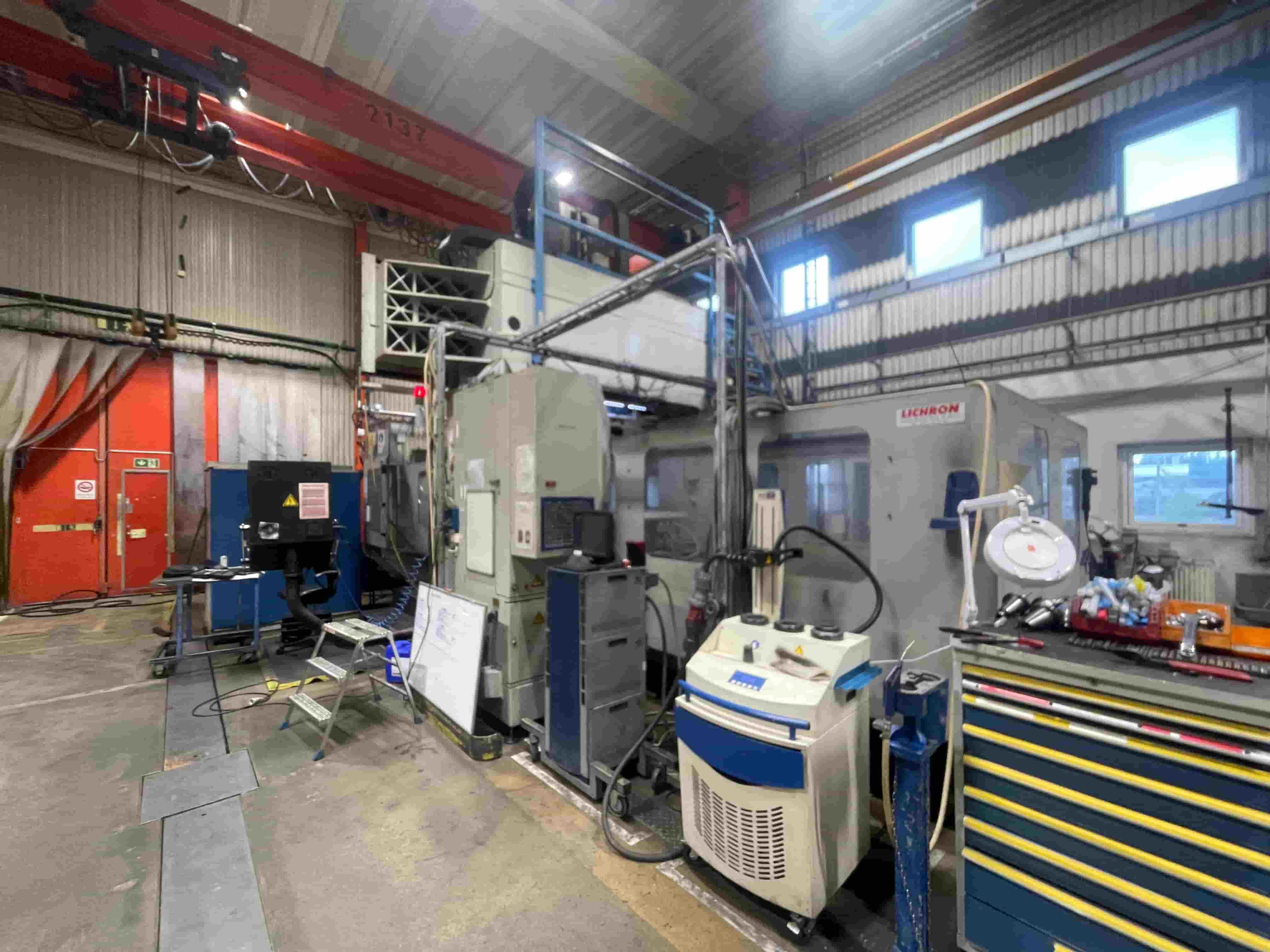

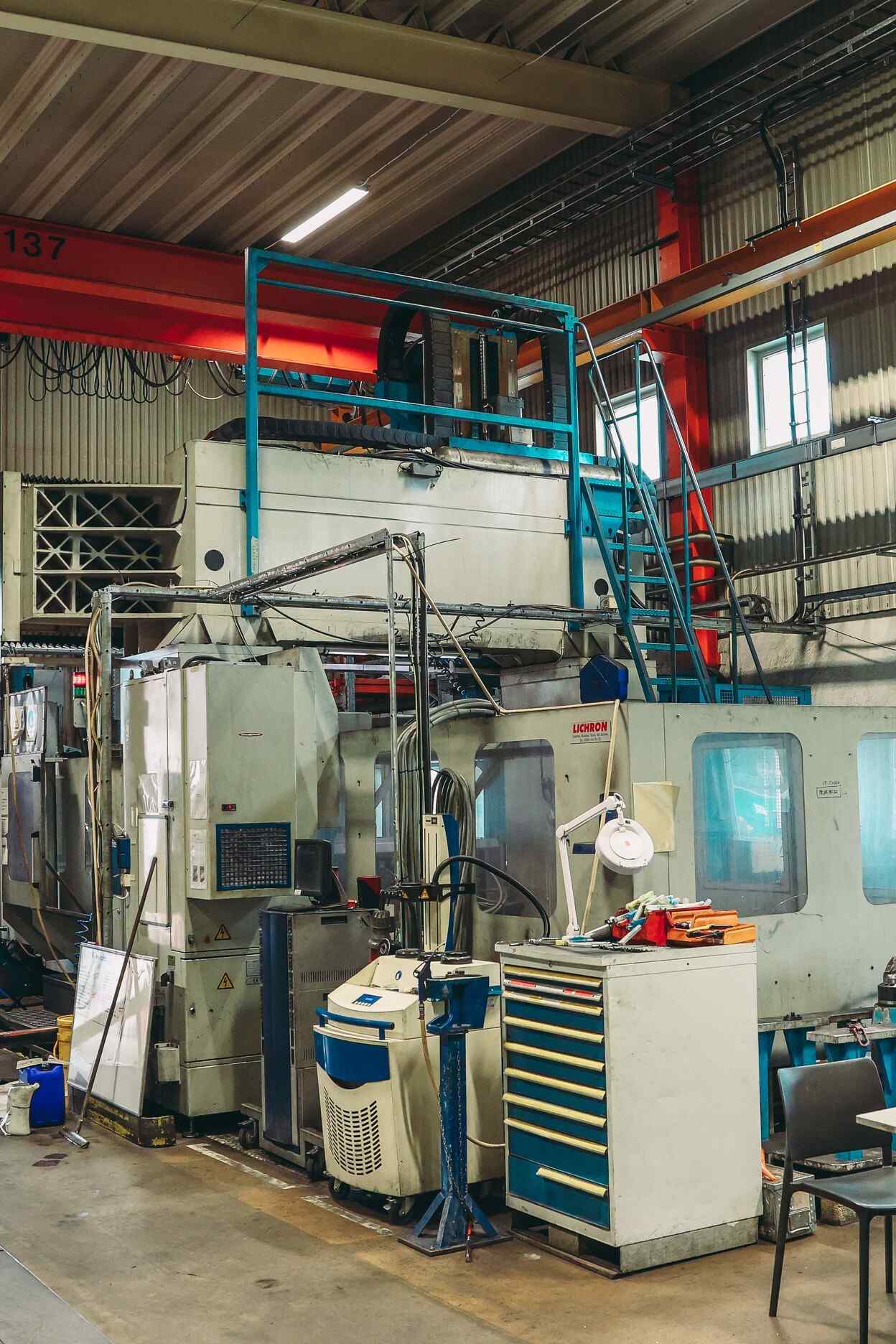

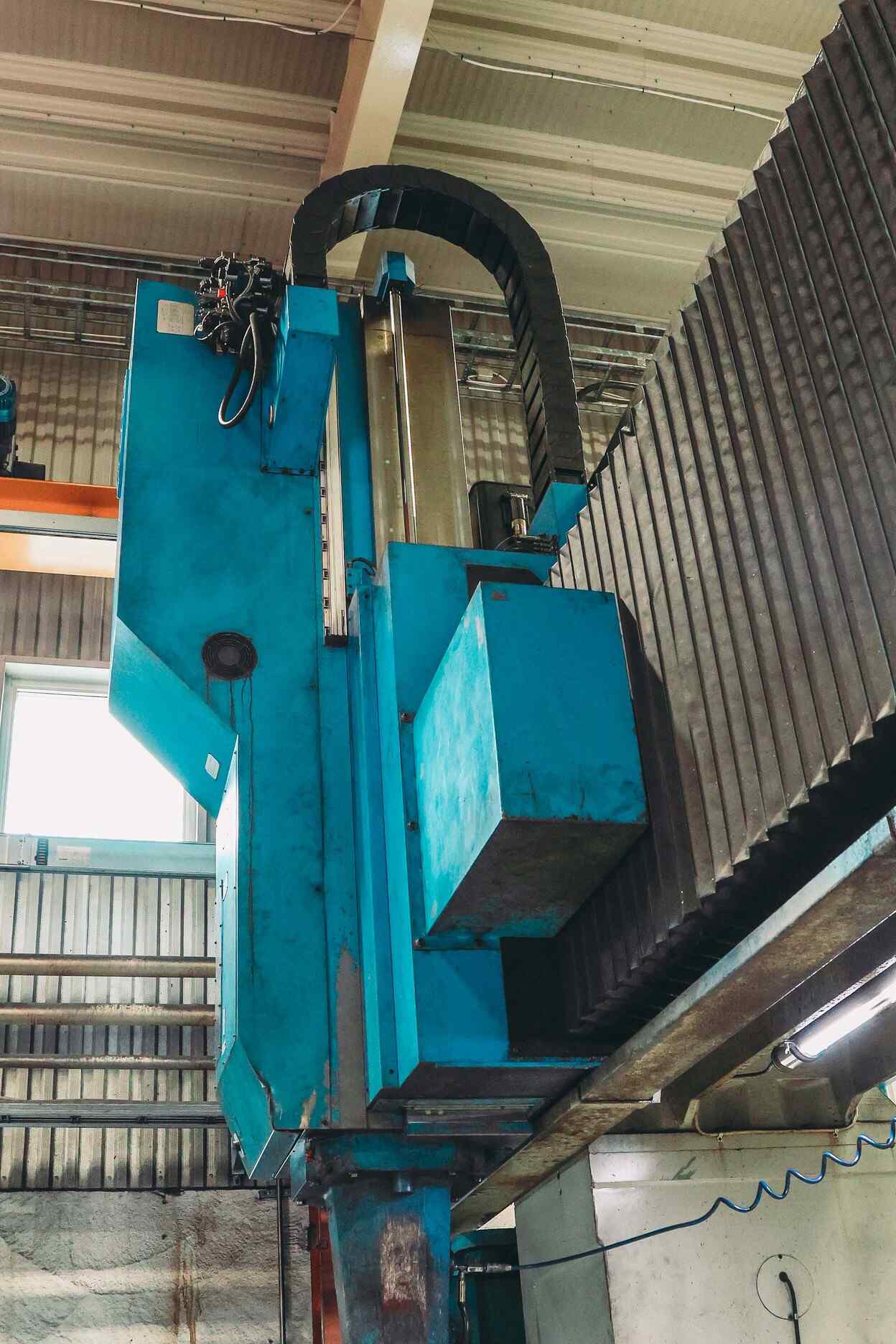

This 2004 Zayer KPU/AR is a heavy-duty CNC bridge/gantry milling machine featuring a 3-axis base configuration with an indexable rotational head for 4th and 5th-axis operations. Built for monumental tasks, it boasts a massive 4,000 × 1,500 mm table capable of supporting 10,000 kg/m², extensive travel dimensions (X: 3,700 mm, Y: 3,050 mm), and a powerful 37 kW main motor.
Industry
Automotive
Sale Type
Private Treaty
Manufacturer
Zayer
Country
Sweden
Machine Type
Machining Center
Year of Manufacture
2004
Table Surface
4,000 × 1,500 mm
Number of T-Slots
11
Technical Details
- Lot No. 705
- Manufacturer: Zayer
- Model / Type: KPU/AR
- Year of Manufacture: 2004

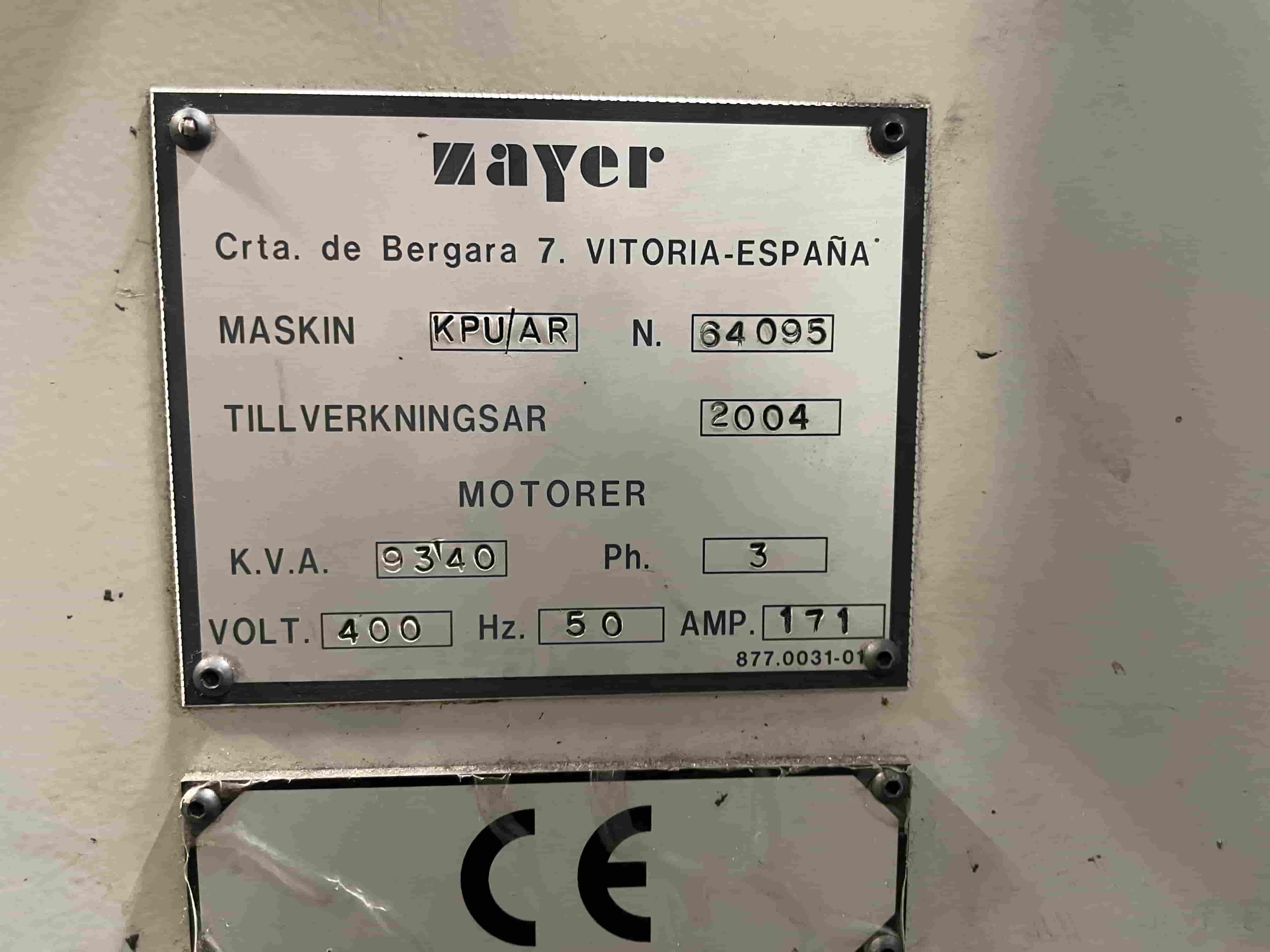

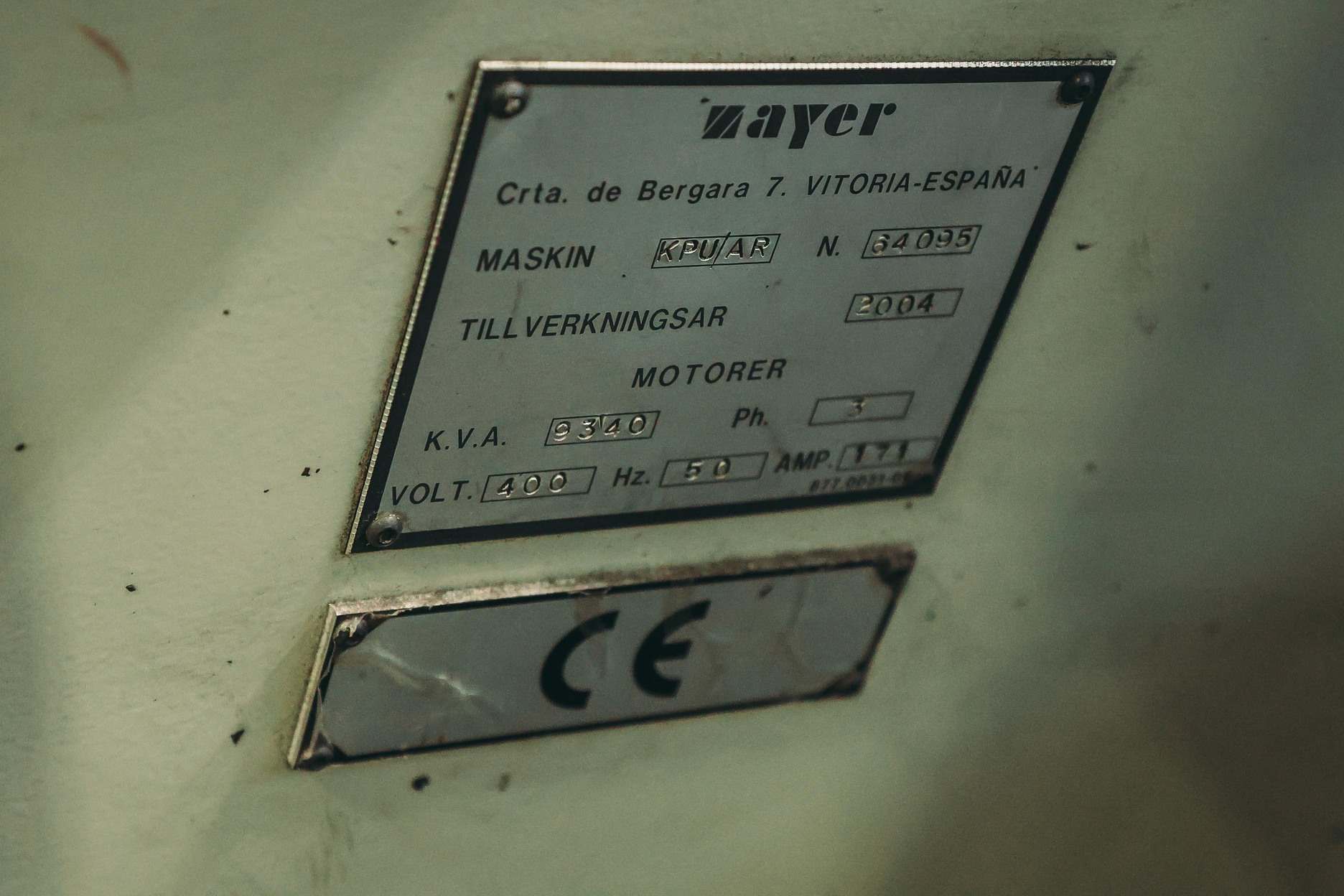

- Machine No. 64095
- Machine Type: CNC Bridge / Gantry Milling Machine

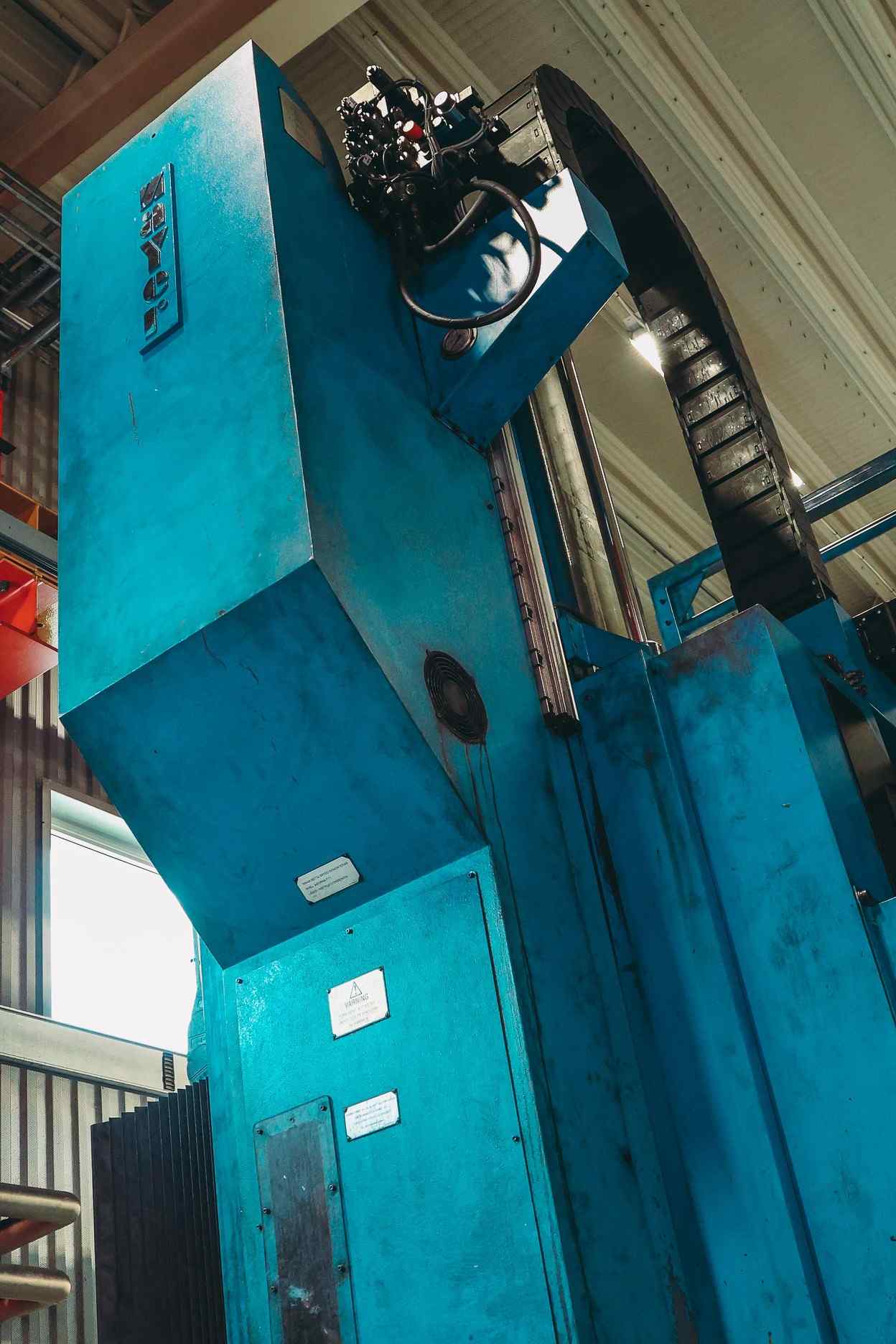

- Machine Configuration: 3-axis machine with optional rotational head with indexable 4th and 5th axes
- Machine Hours: 49,716 h
- Spindle Hours: 13,356 h

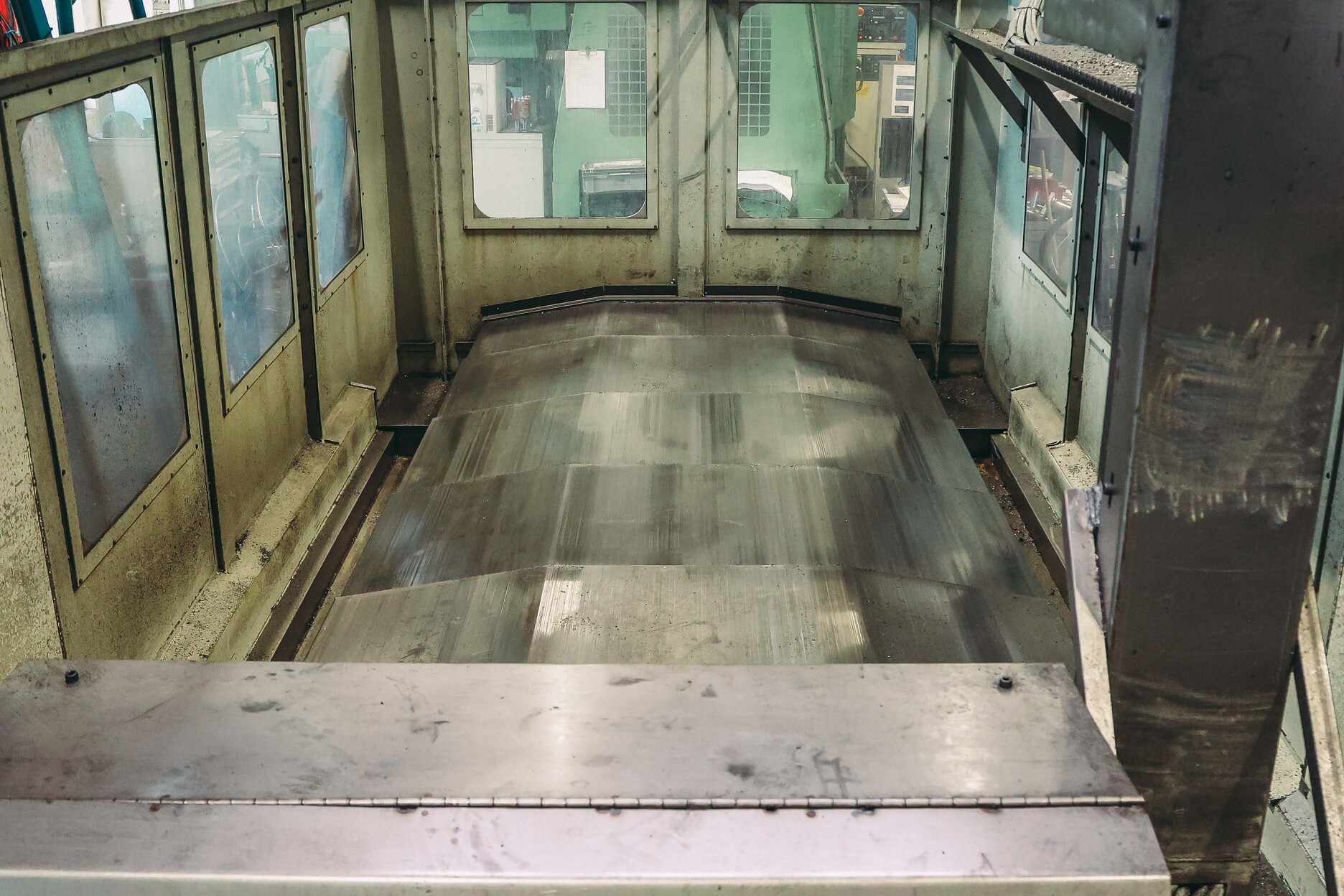

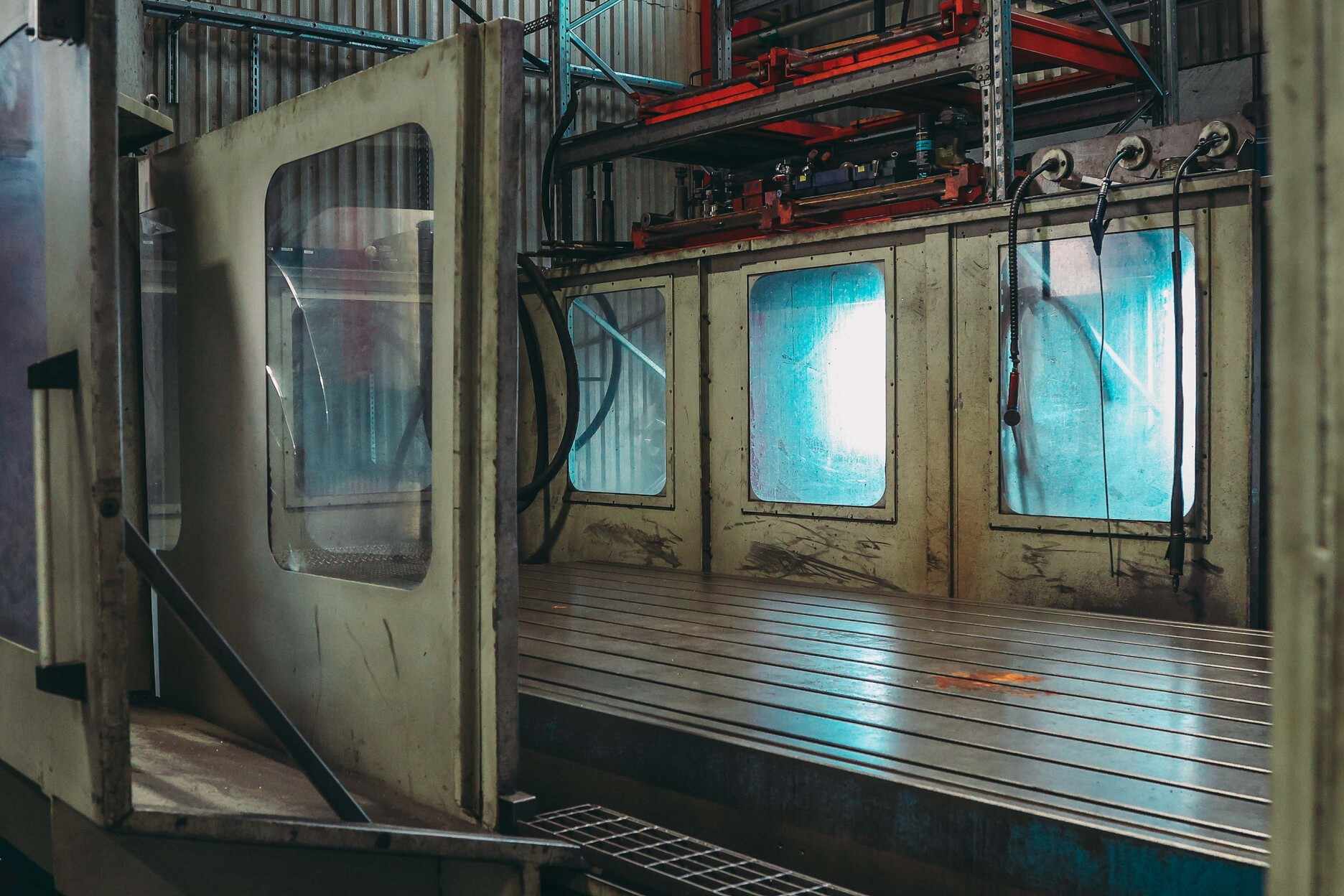

- Table Surface: 4000 × 1500 mm

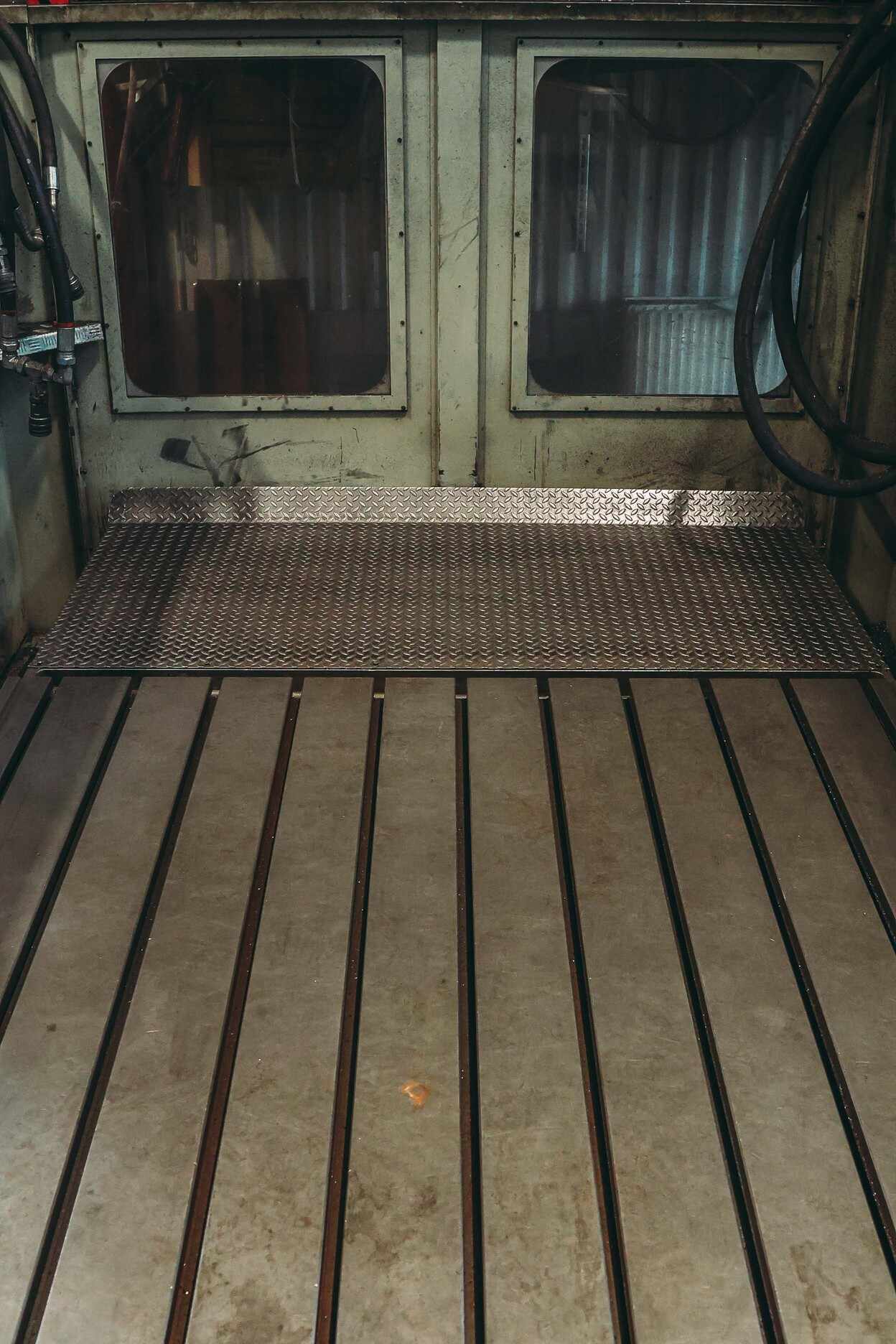

- Number of T-Slots: 11
- T-Slot Distance: 160 mm
- T-Slot Width: 22 mm
- Width Between Columns: 2300 mm
- Longitudinal Travel (X): 3700 mm
- Cross Travel (Y): 3,050 mm
- Vertical Travel of Ram (Z): 1100 mm
- Spindle Speed Range: 37–6000 rpm
- Tool Taper: DIN 69871 – AD50
- Tool Pull Stud: ISO 7388-2 / 050
- Working Feed: 6–15,000 mm/min
- Longitudinal Rapid Feed: 25,000 mm/min
- Cross Rapid Feed: 25,000 mm/min
- Vertical Rapid Feed: 25,000 mm/min
- Main Motor Power: 37 kW
- Positioning Accuracy (P): ±0.010 mm
- Repeatability Accuracy (Ps): ±0.005 mm
- Max. Table Load Capacity: 10,000 kg/m²
- Approx. Net Machine Weight: 37.000 kg
