686. Trumpf 5-Axis 3D Laser Cutting Machine

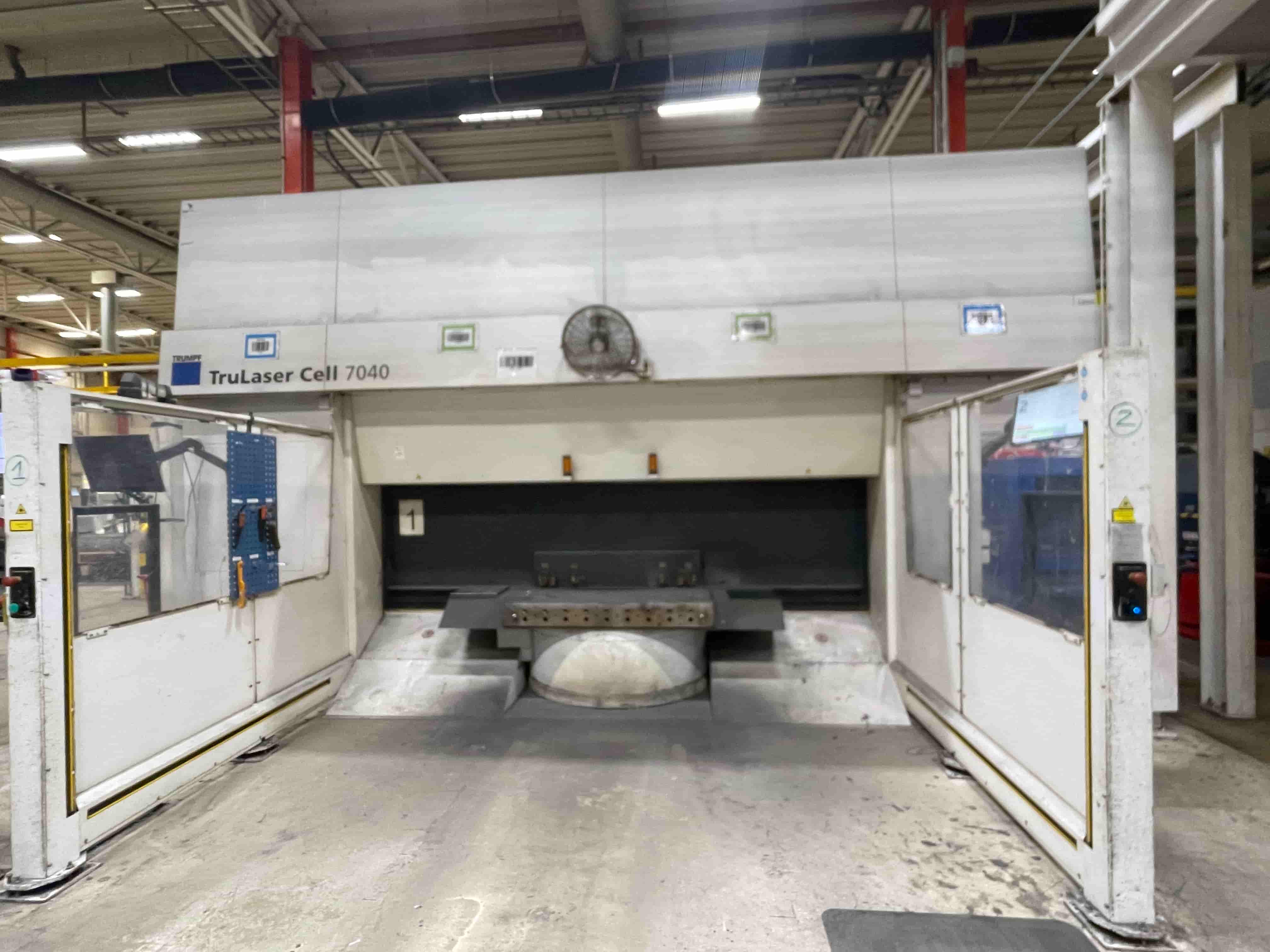

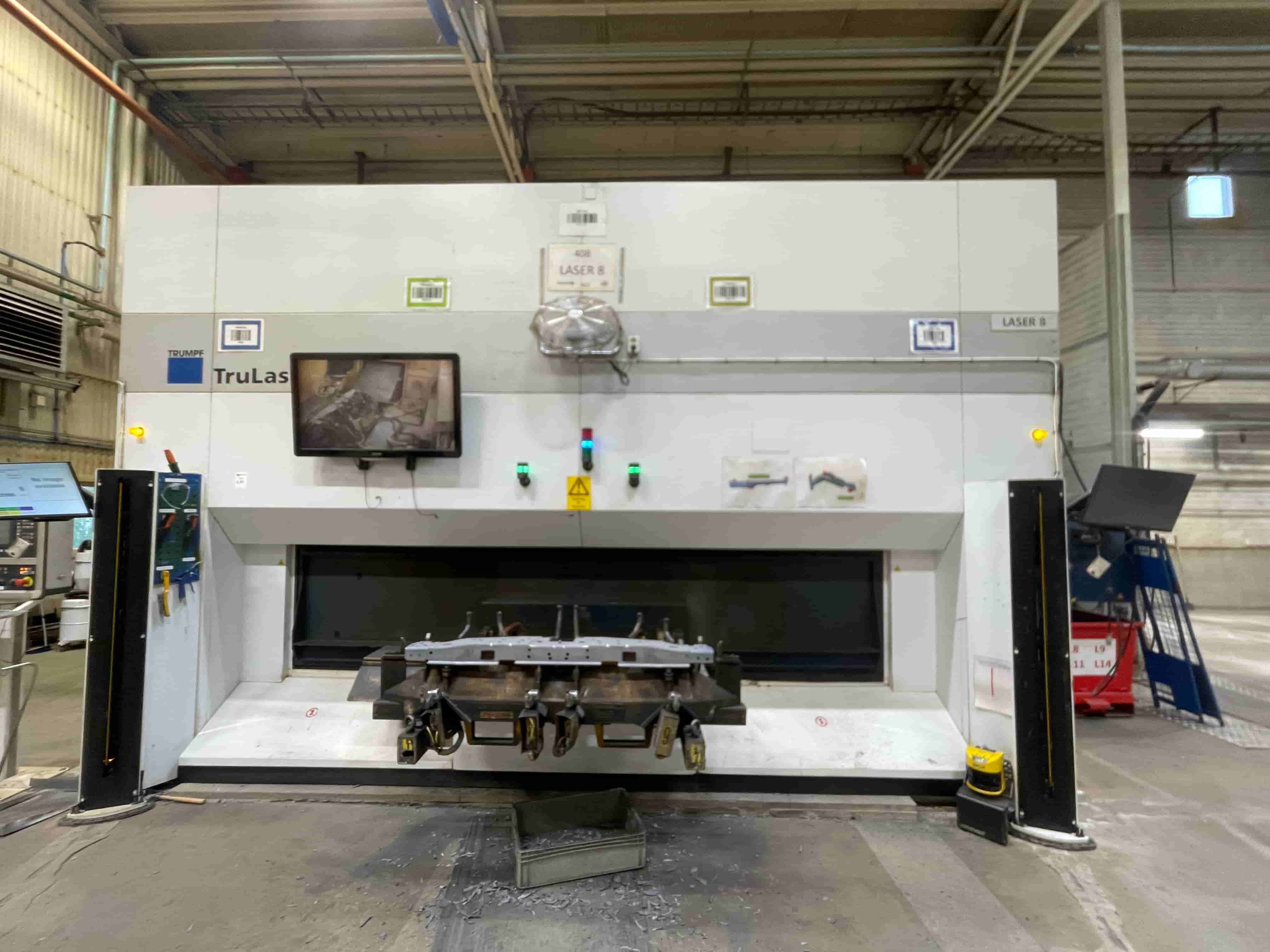

TRUMPF TruLaser Cell 7040 L31

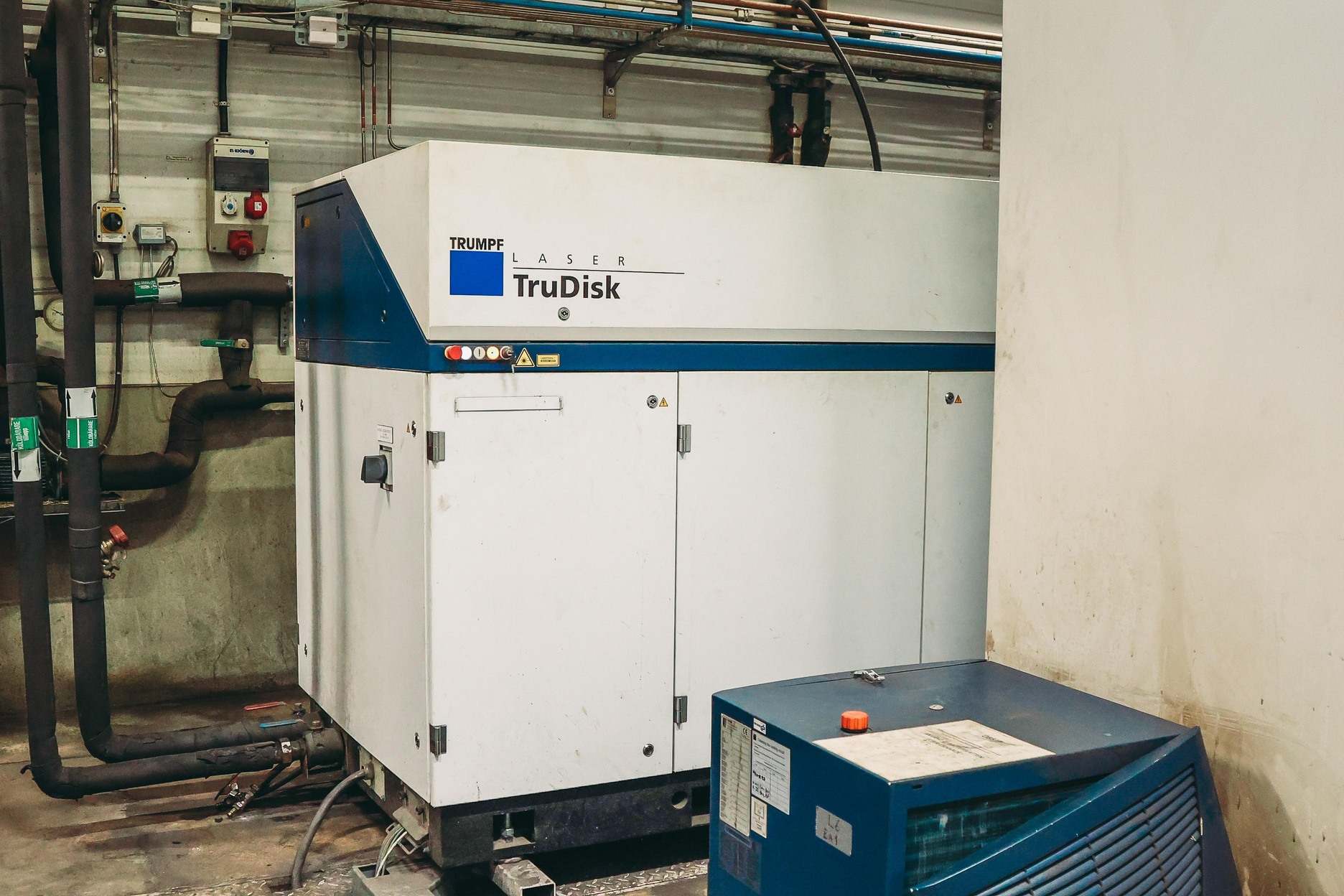

3D Laser Cutting Machine with 4kW TruDisk 4001
This is a high-performance 5-axis 3D laser cutting system powered by a 4,000 W TruDisk 4001 solid-state disk laser. Designed for complex three-dimensional metal processing, it features an extensive work envelope with travels of 4,000 mm (X), 1,500 mm (Y), and 750 mm (Z), flexible rotational articulation (B-axis ±135°, C-axis n × 360°), and rapid simultaneous positioning speeds up to 173 m/min for maximum productivity and cutting precision.
Industry
Automotive
Sale Type
Private Treaty
Manufacturer
Trumpf
Country
Sweden
Machine Type
Laser Cutting Machine
Year of Manufacture
2021
Laser Power
4,000 W
Feed Rates (X/Y/Z)
4000/1500/750 mm
Technical Details
- Lot No. 686
- Manufacturer: Trumpf

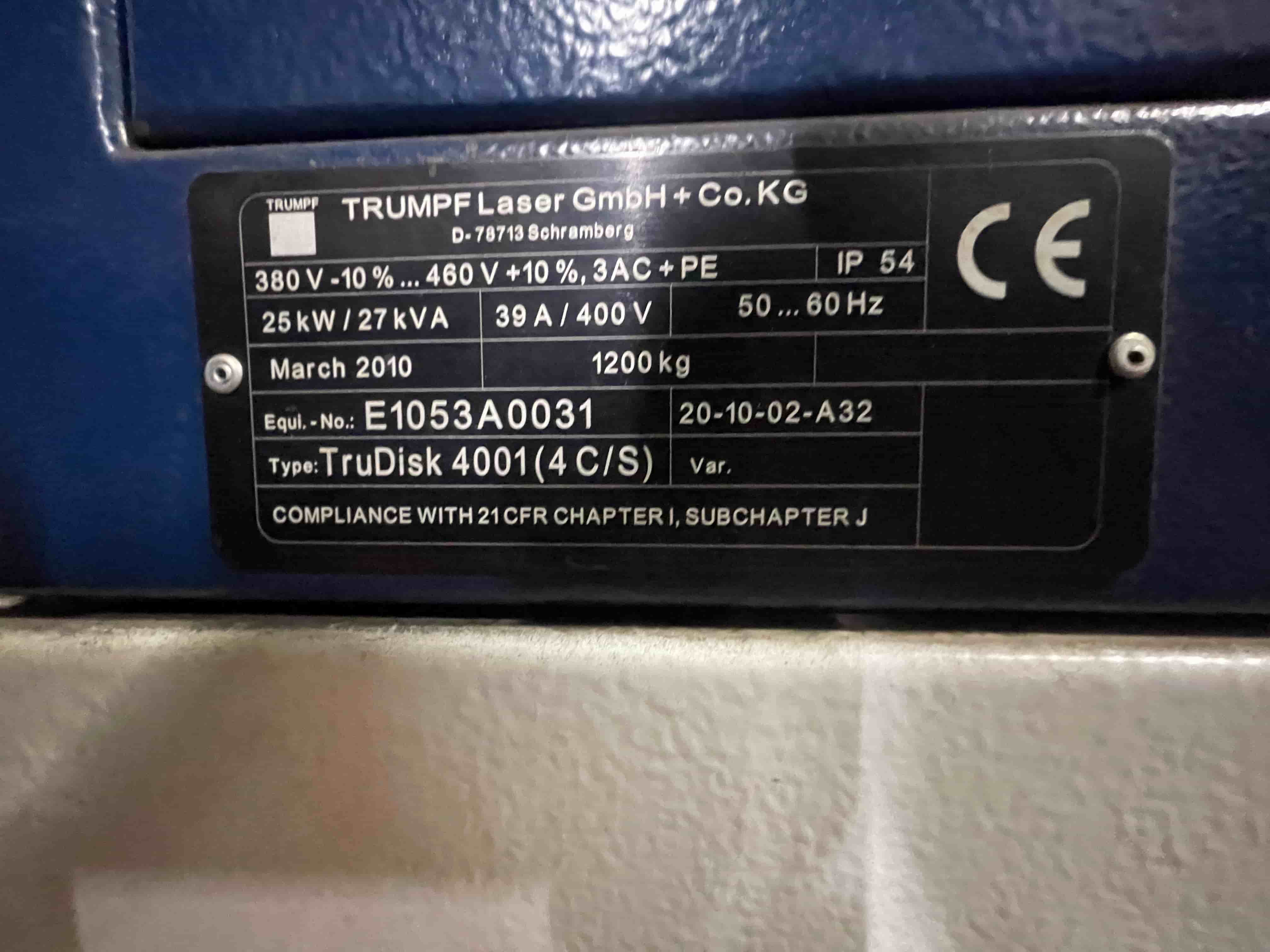

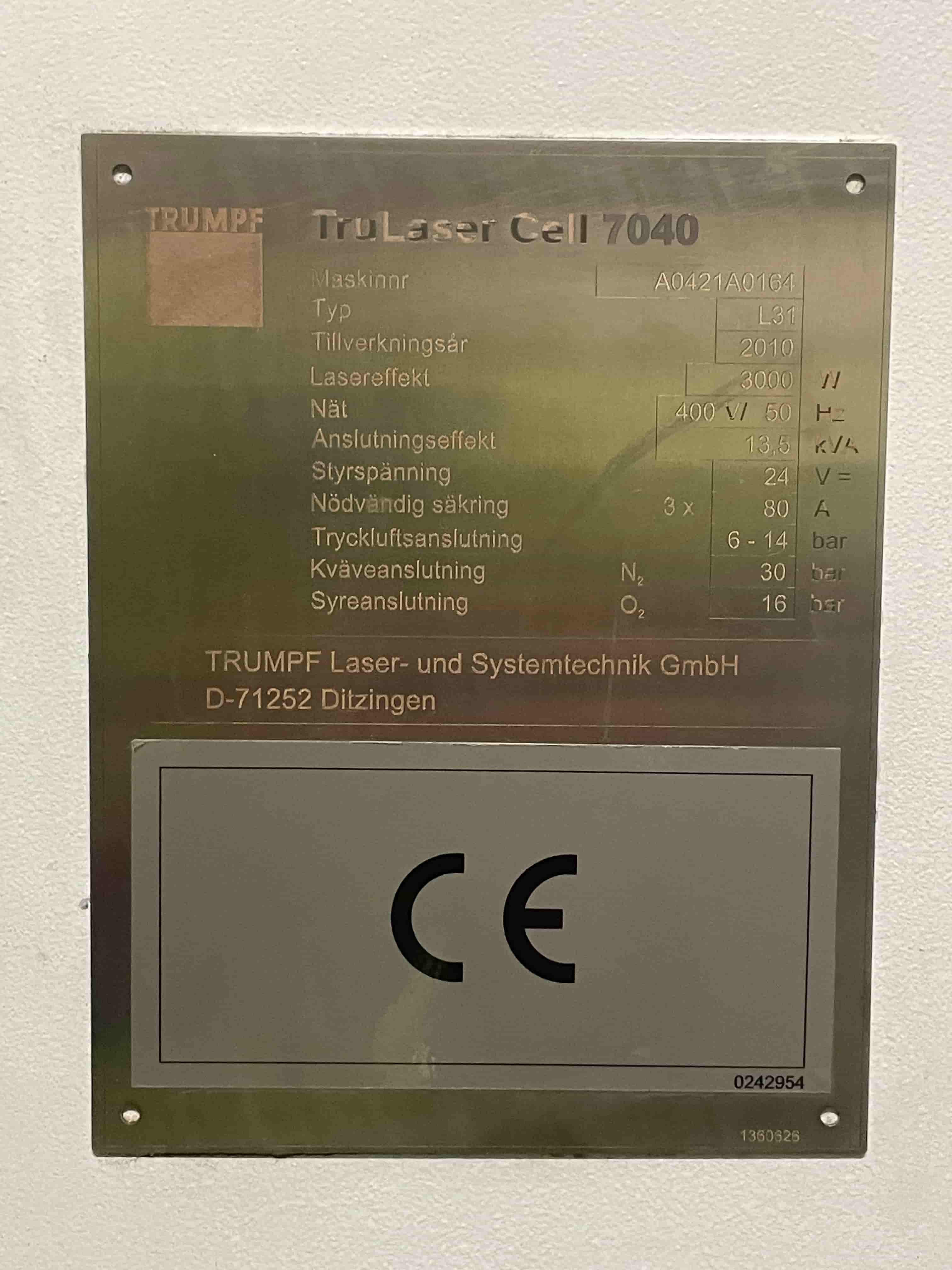

- Model / Type: TruLaser Cell 7040 L31 TruDisk 4001
- Year of Manufacture: 2010/2021

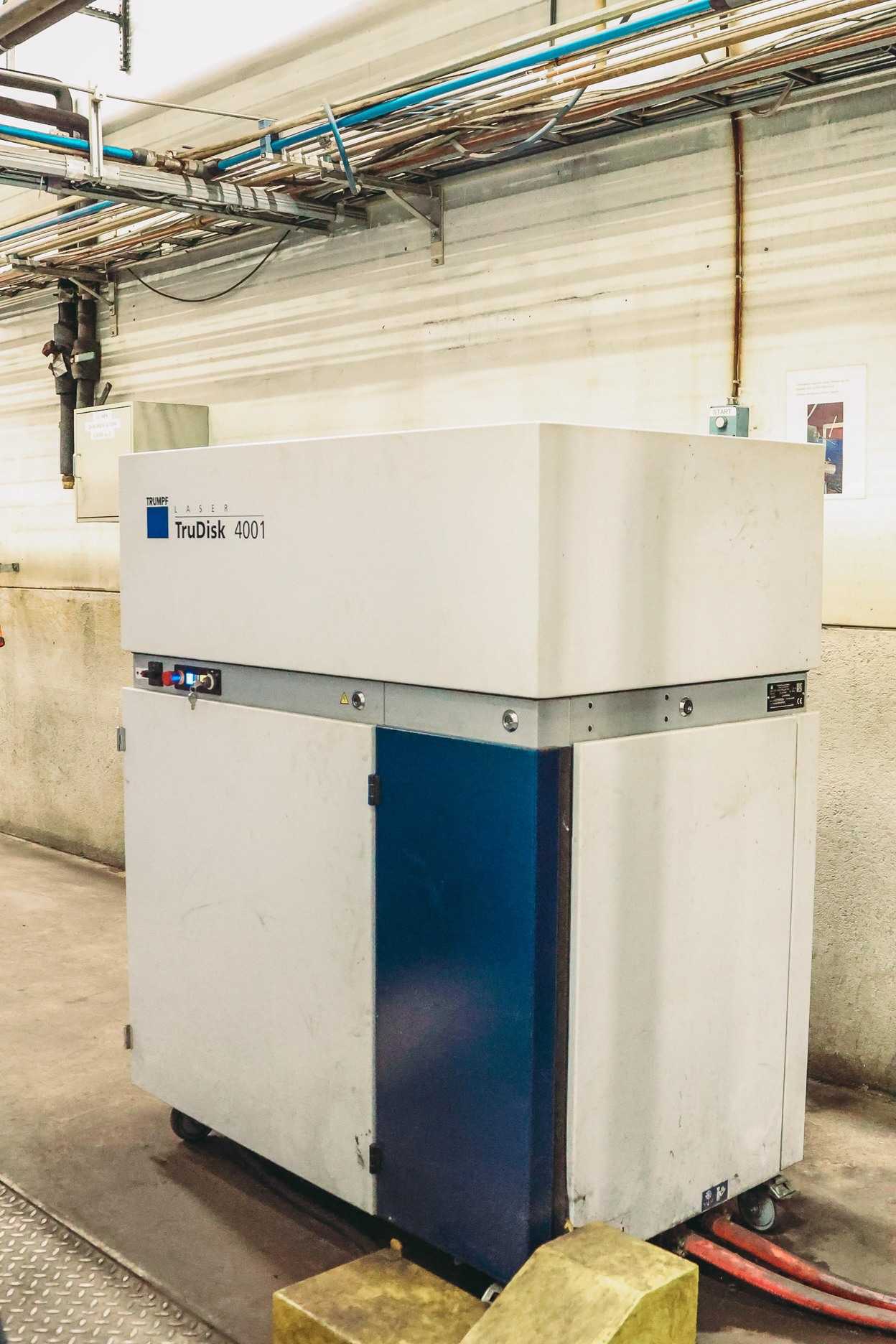

- Laser Type: Solid-State Disk Laser / CW Laser
- Laser Power at Workpiece: 4,000 W
- Adjustable Power Range: 80–4,000 W
- Feed Rates (X/Y/Z): 4000/1500/750 mm
- B-Axis Range: ± 135°
- C-Axis Range: n x 360°
- Max Axis Speed (X/Y/Z): 100 m/min
- Max Simultaneous Axis Speed: 173 m/min
- Wavelength: 1,030 nm
- Beam Quality / Beam Parameter Product: 4 mm·mrad
- Numerical Aperture after LLK: 0.1
- Minimum Laser Light Cable Diameter: 100 µm
- Maximum Number of Laser Light Cables: 2
- Maximum with Extended Configuration: 4
- Width: 1,175 mm
- Height: 1,430 mm
- Depth: 725 mm
- Protection Class: IP54
- Ambient Operating Temperature: 10–50°C
