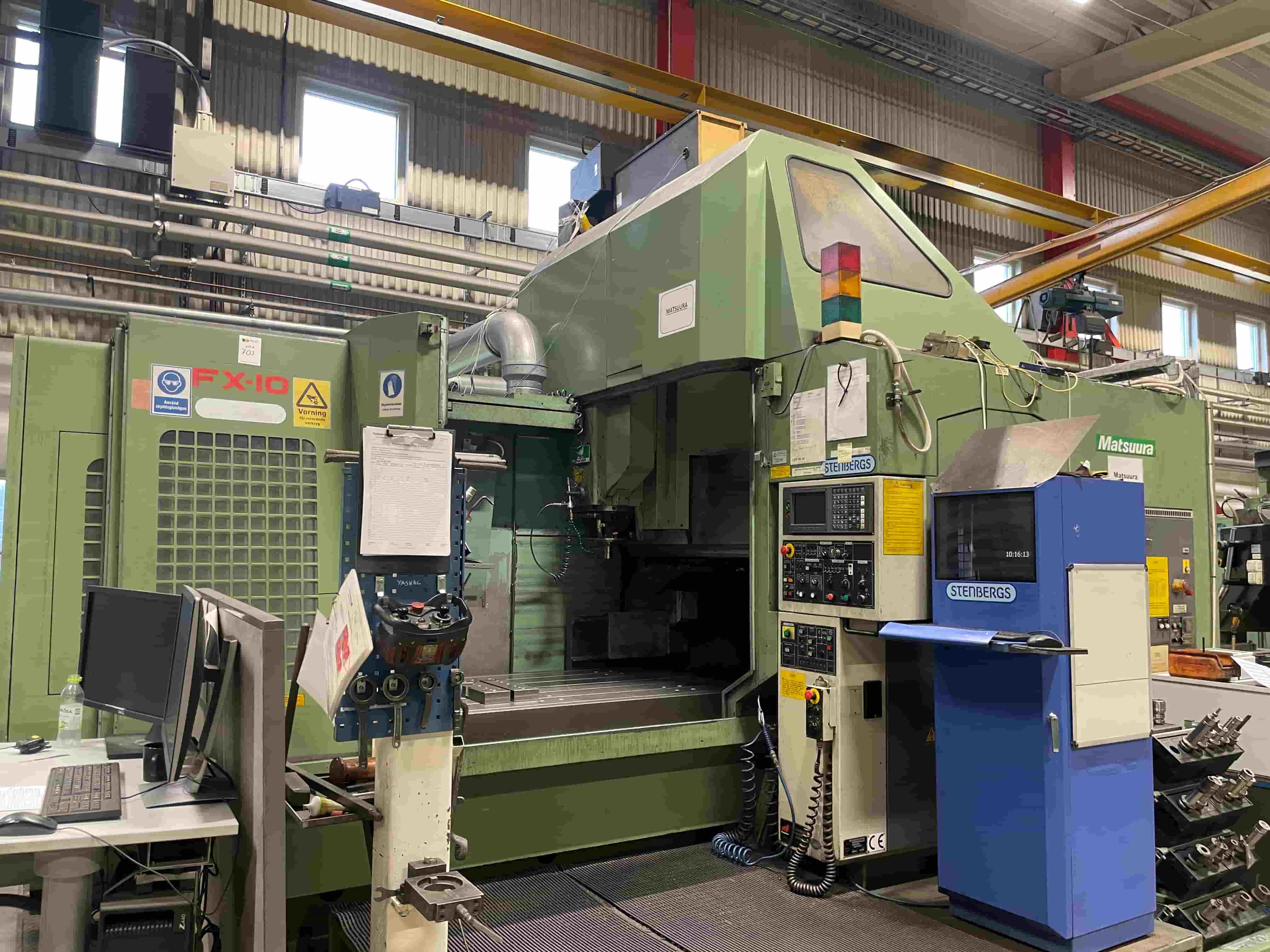

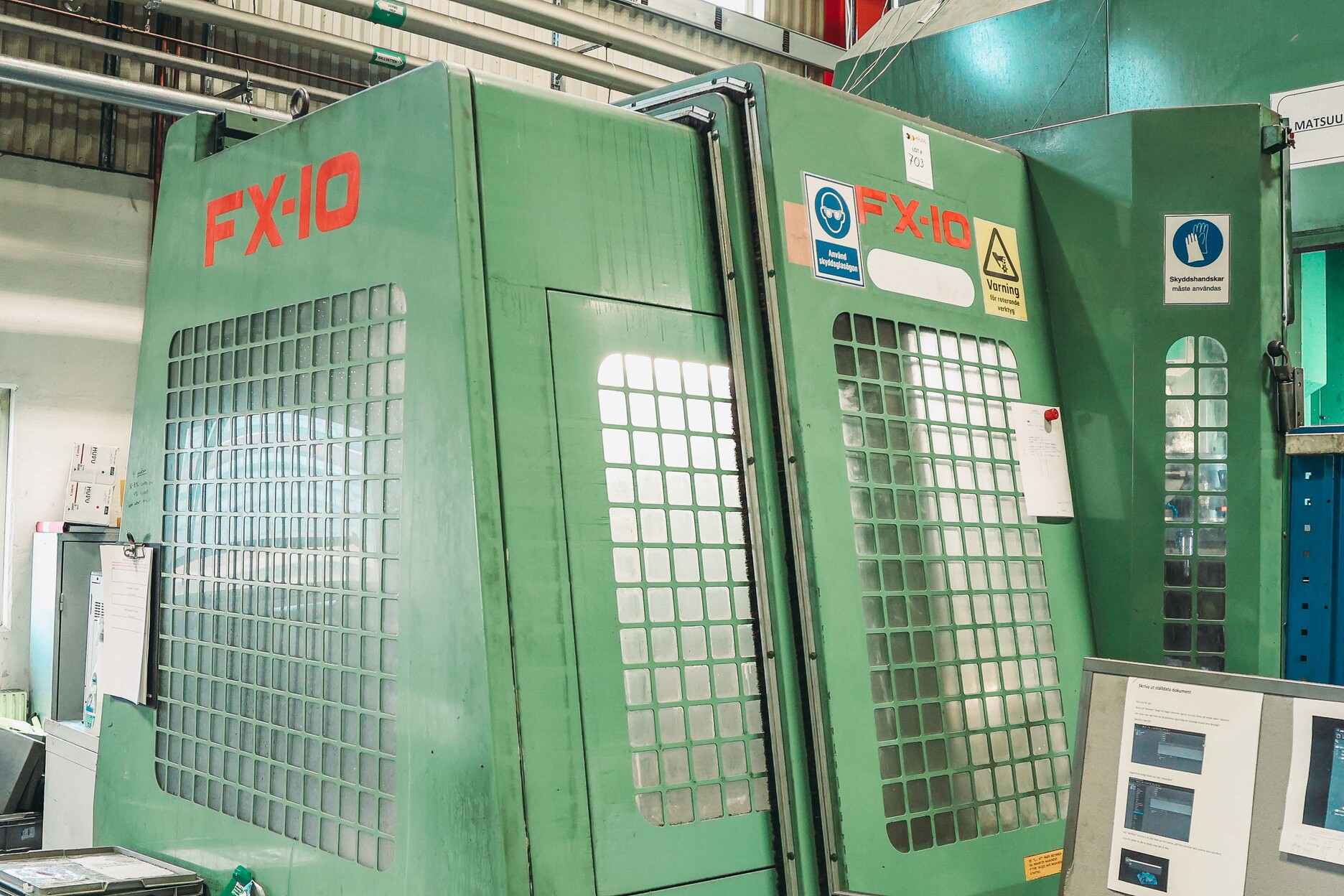

703. Matsuura 3-Axis High-Speed Machining Center
MATSUURA FX-10
High-Speed Vertical Machining Center

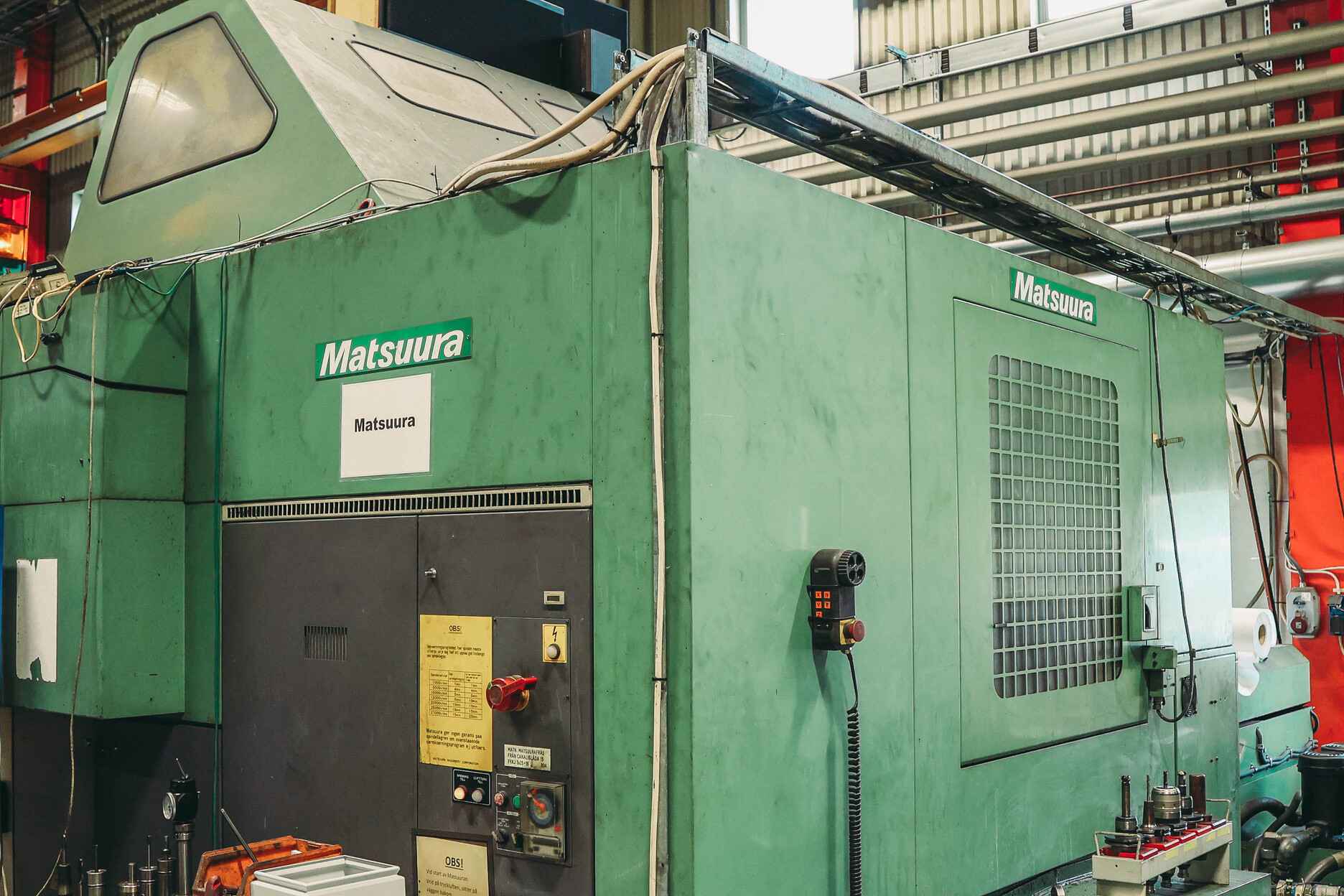

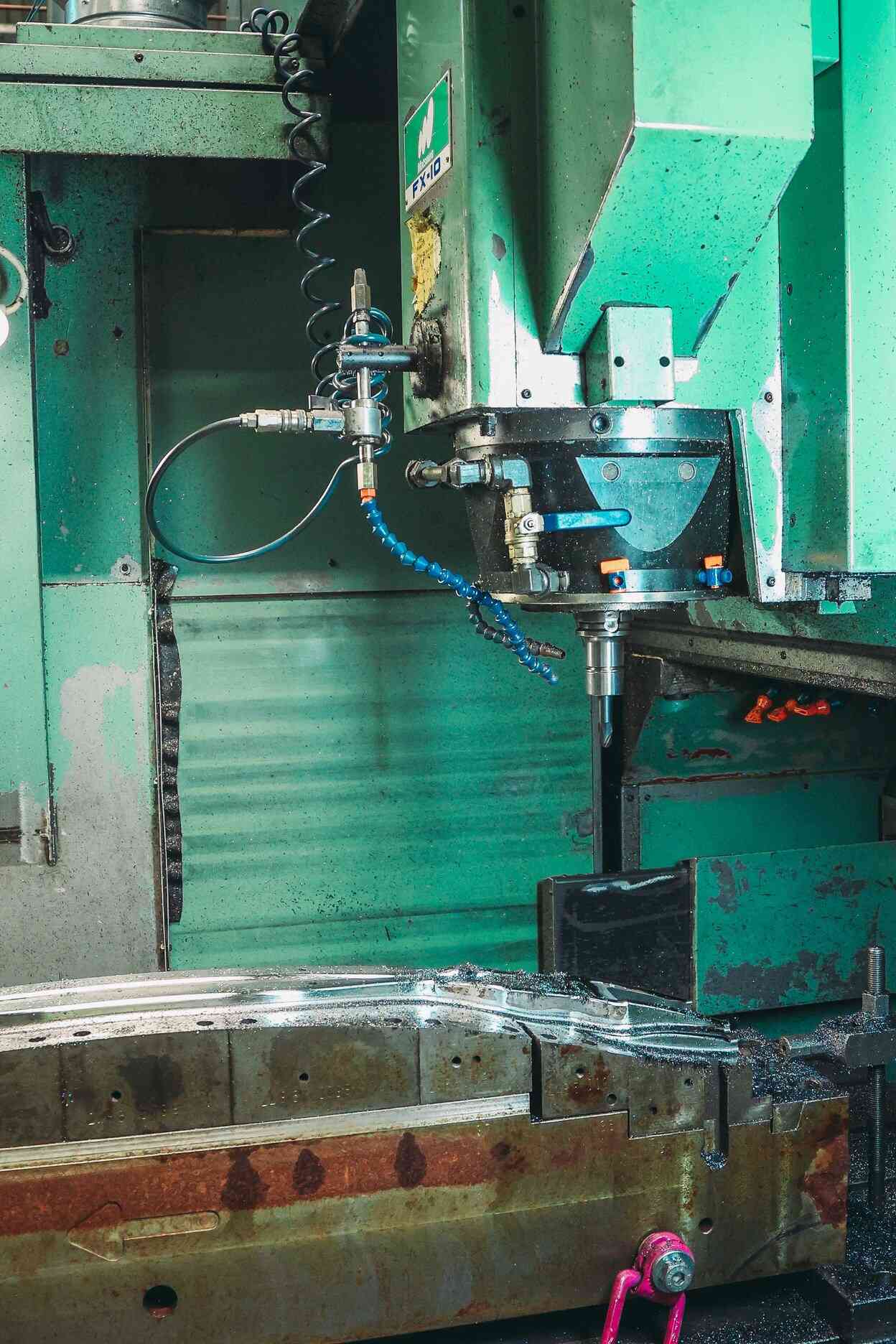

This Matsuura FX-10 (J300) is a high-speed vertical machining center engineered for rapid, precision 3-axis milling. It features a spacious 2,150 × 1,100 mm table with a 1,000 kg load capacity and substantial X and Y travels of 2,000 mm and 1,500 mm. Equipped with an ultra-fast 27,000 rpm spindle capable of 20.3 kW continuous power and a 40-position automatic tool changer (ATC), this machine is optimized for highly efficient, high-speed manufacturing operations.
Industry
Automotive
Sale Type
Private Treaty
Manufacturer
Matsuura
Country
Sweden
Machine Type
Machining Center
Year of Manufacture
1997
Table Size
2,150 × 1,100 mm
Spindle Speed Range
600–27,000 rpm
Technical Details

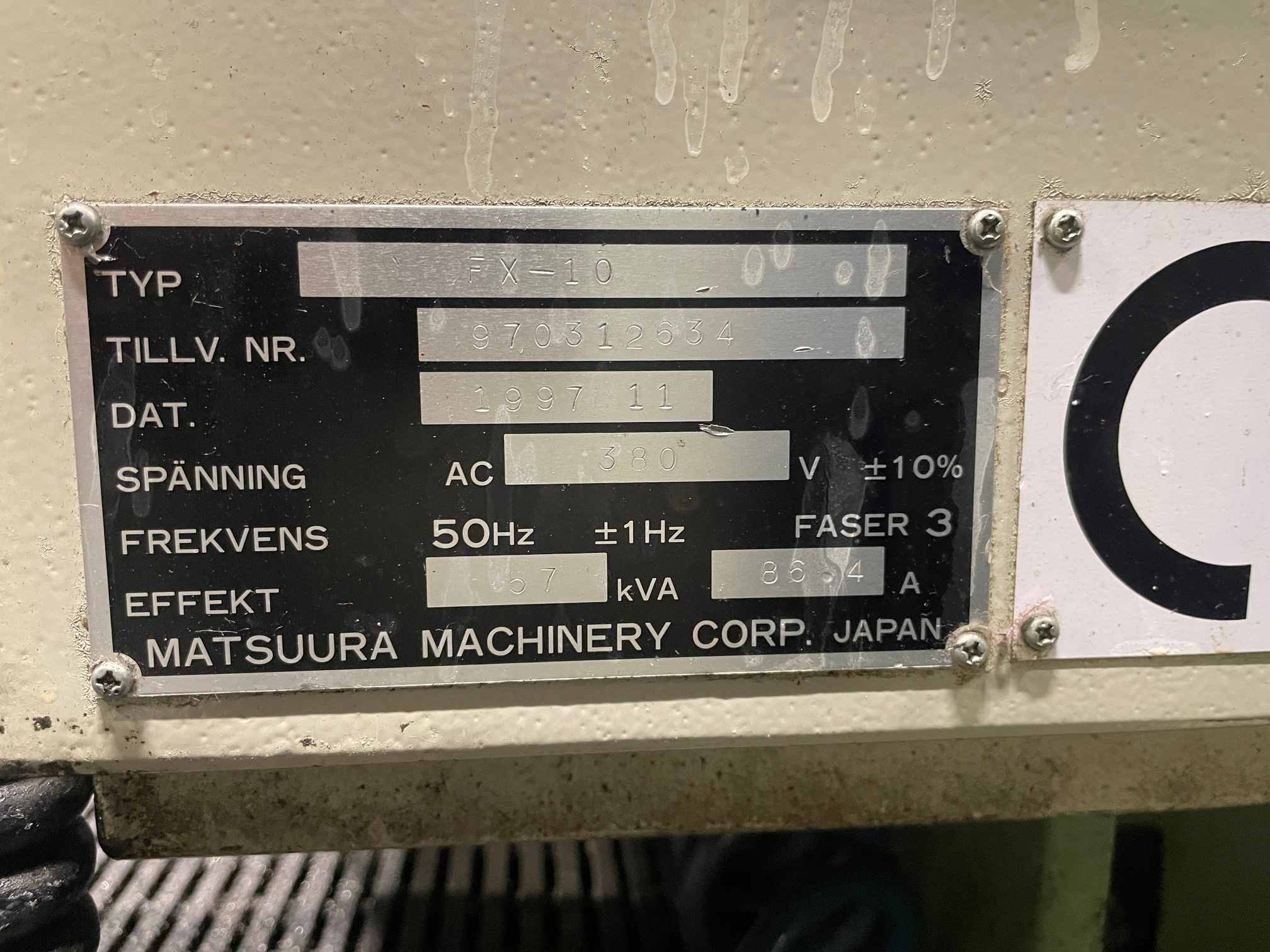

- Lot No. 703
- Manufacturer: Matsuura
- Model / Type: FX-10 / J300
- Year of Manufacture: 1997

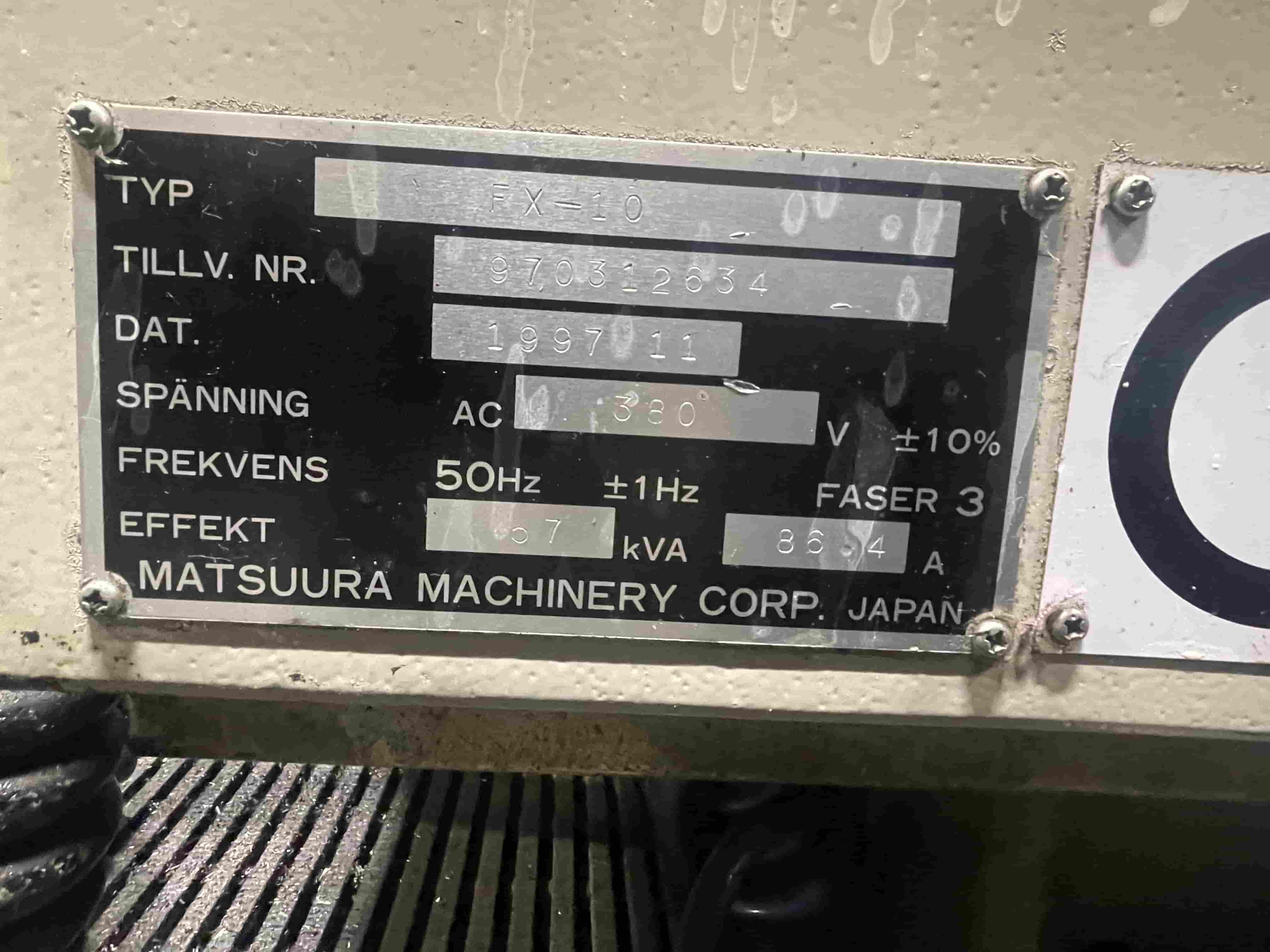

- Machine No. 970312634
- Machine Type: High-Speed Vertical Machining Center
- X-Axis Travel: 2,000 mm
- Y-Axis Travel: 1,500 mm
- Z-Axis Travel: 400 mm
- Distance Table Surface – Spindle Nose: 150–550 mm
- Distance Spindle Center – Column Guide: 210 mm
- Horizontal Clearance Between Columns: 1,400 mm
- Table Size: 2,150 × 1,100 mm
- Max. Table Load: 1,000 kg
- T-Slots: 22 mm × 7 × 165 mm
- Spindle Speed Range: 600–27,000 rpm
- Spindle Taper: No. 40 / JIS #40
- Spindle Bearing Diameter: 60 mm
- Spindle Motor Power – 300–6,000 rpm: 5.5 / 7.5 kW rated / max.
- Spindle Motor Power – 6,001–27,000 rpm: 20.3 kW continuous
- Max. Spindle Torque: 46 Nm at 4,700 rpm
- Spindle Brake: Standard
- Automatic Spindle Orientation: Standard
- Rapid Traverse X/Y/Z: 25,000 mm/min
- Working Feed X/Y/Z : 1–10,000 mm/min
- Manual Continuous Feed: 1–15,000 mm/min
- Manual Feed: 0–4,000 mm/min
- Drive Motors
- X-Axis Servo Motor: 4.0 kW
- Y-Axis Servo Motor: 4.4 kW
- Z-Axis Servo Motor with Brake: 2.9 kW

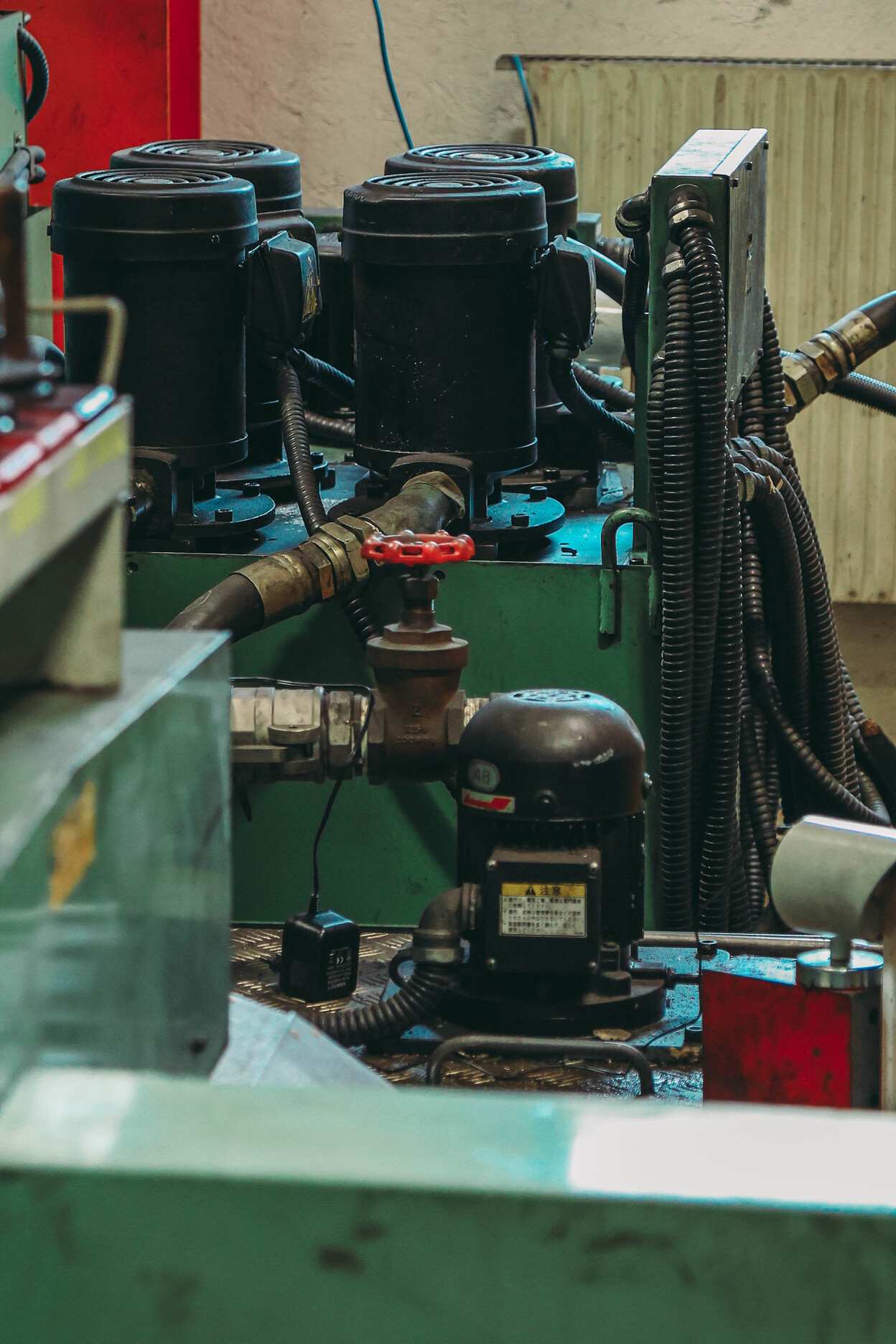

- Coolant Pump: 0.33 / 0.52 kW
- Central Lubrication Pump: 0.1 kW
- Spindle Oil Cooler Pump: 0.4 kW
- Chip Shower Pump: 1.5 kW
- Chip Flushing Pumps: 1.5 kW × 3
- Automatic Tool Changer: 40-Tool Magazine
- Tool Positions: 40

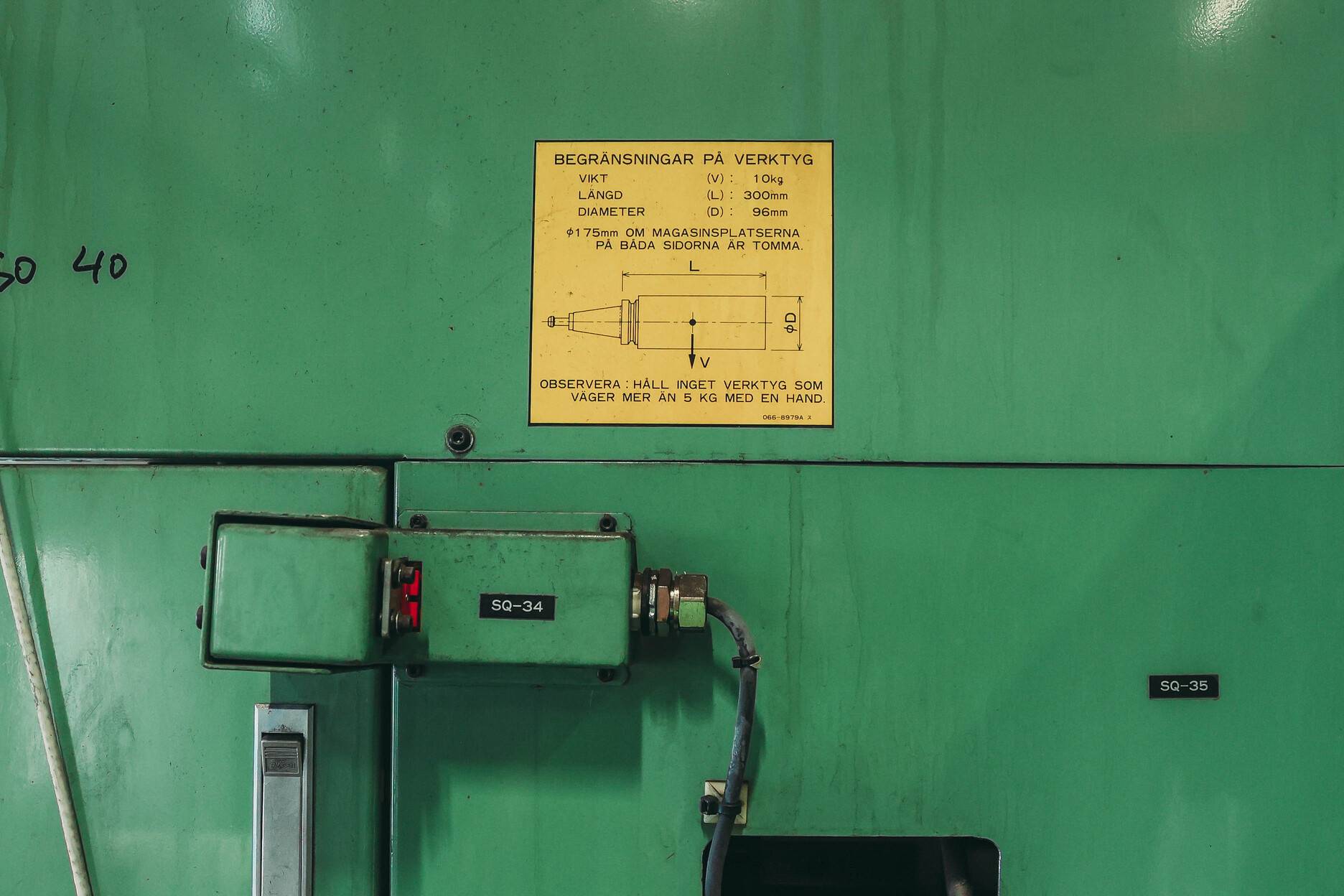

- Max. Tool Diameter: 96 mm
- Max. Tool Diameter with Adjacent Pockets Empty: 130 mm
- Max. Tool Length: 300 mm
- Max. Tool Weight: 10 kg
- Magazine Pocket Pitch: 101.6 mm
- Tool-to-Tool Change Time: 2.5 sec
- Chip-to-Chip Time: 6.0 sec
- Tool Management: Memory Random System
