702. Deckel Maho 5-Axis CNC Machining Center

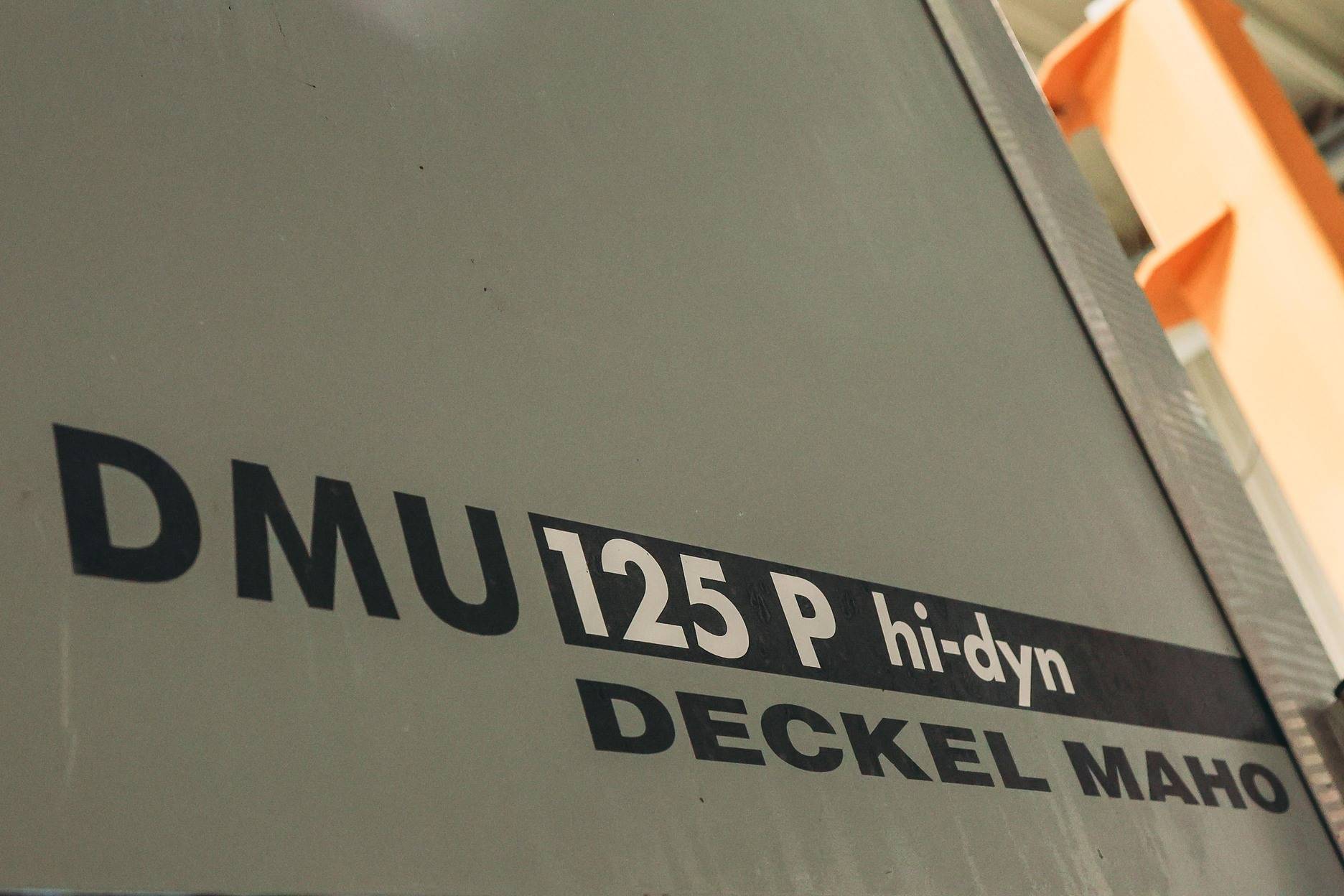

DECKEL MAHO DMU 125P hi-dyn
5-Axis Universal Machining Center

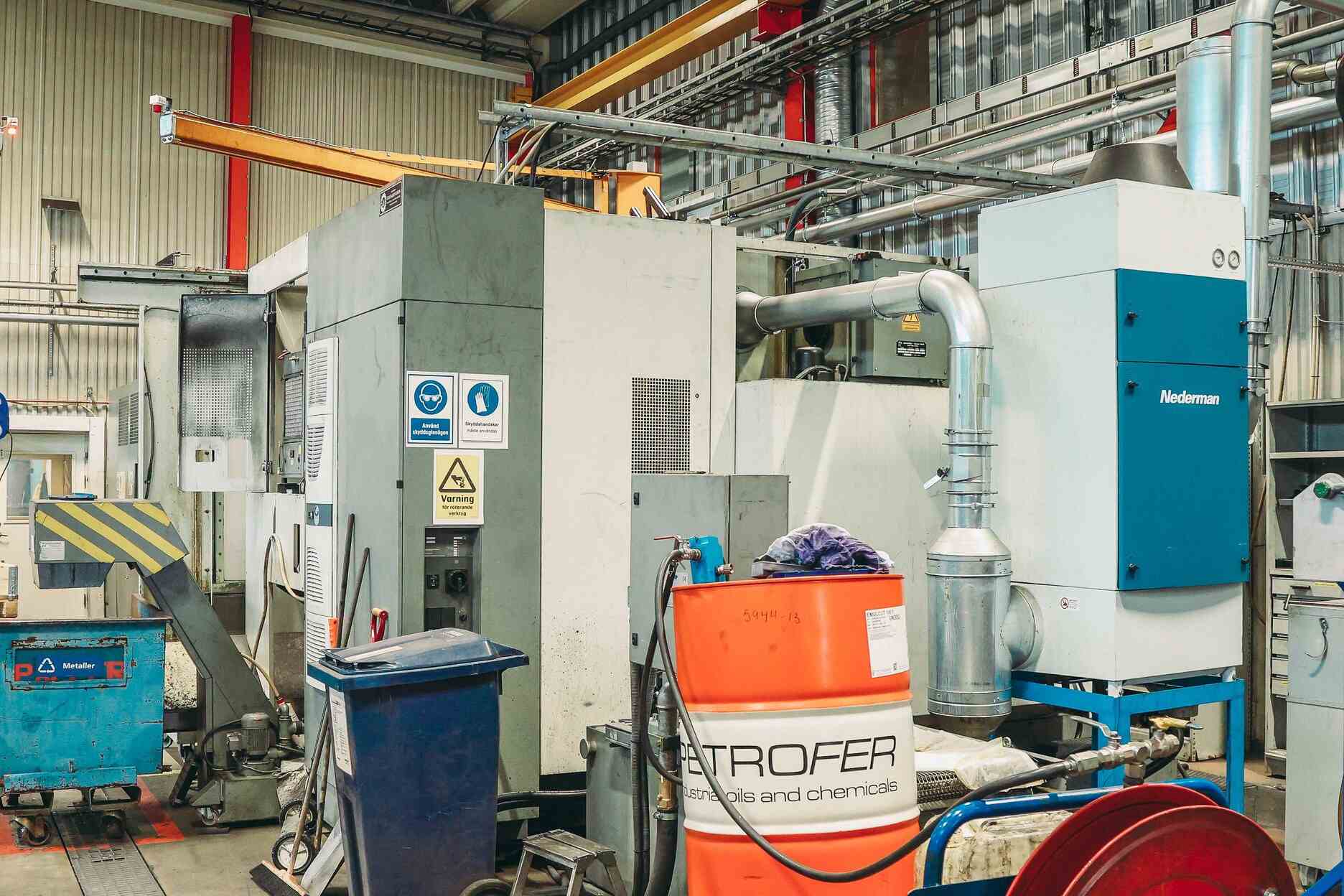

This Deckel Maho DMU 125P hi-dyn is a high-performance 5-axis universal machining center with 34,880 operating hours. It features a Ø1,250 mm round table supporting up to 2,000 kg, travel dimensions of 1,250 mm (X), 880 mm (Y), and 800 mm (Z), and rapid traverse rates up to 40 m/min. Equipped with a 43-position tool magazine and spindle speeds reaching up to 12,000 rpm, this machine excels at highly precise, multi-surface complex machining.
Industry
Automotive
Sale Type
Private Treaty
Manufacturer
Deckel Maho
Country
Sweden
Machine Type
Machining Center
Year of Manufacture
2004
Table Surface
Round, Ø 1250 mm
Max. Spindle Speed
up to 12,000 rpm
Technical Details
- Lot No. 702
- Manufacturer: Deckel Maho
- Model/Type: DMU 125 P hi-dyn
- Year of Manufacture: 2004

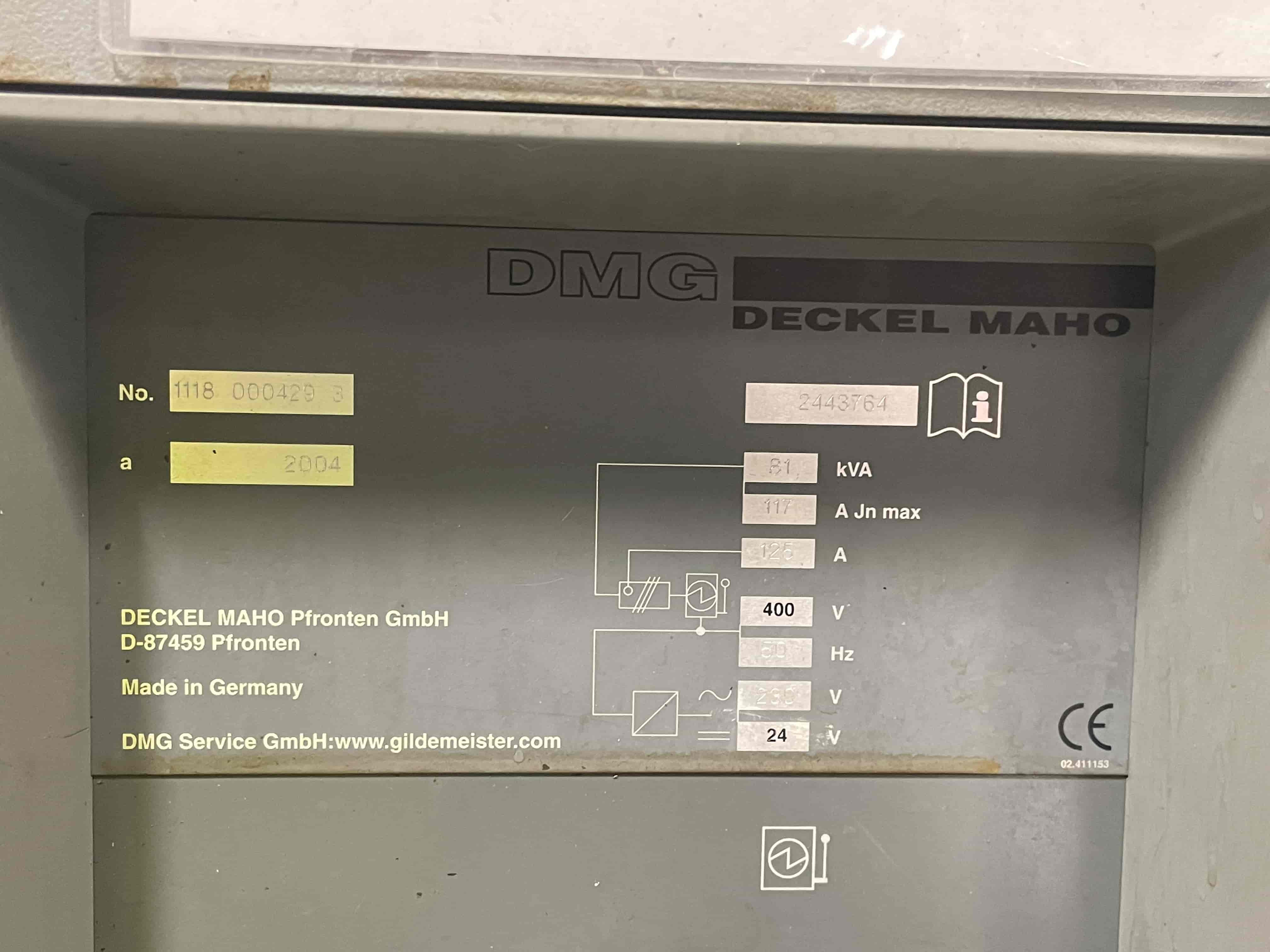

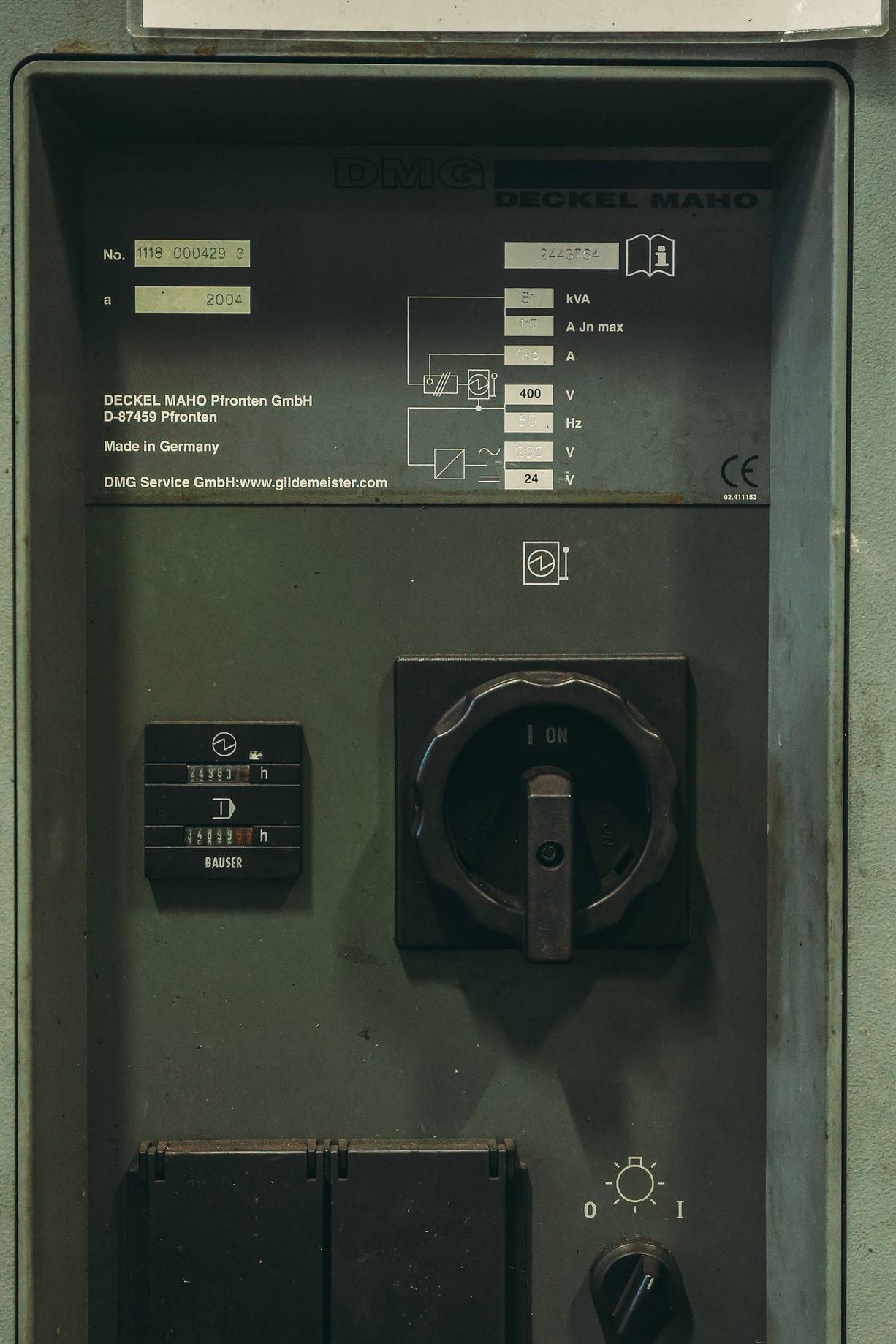

- Machine No. 1118 000429 3
- Machine Type: 5-Axis Universal Machining Center

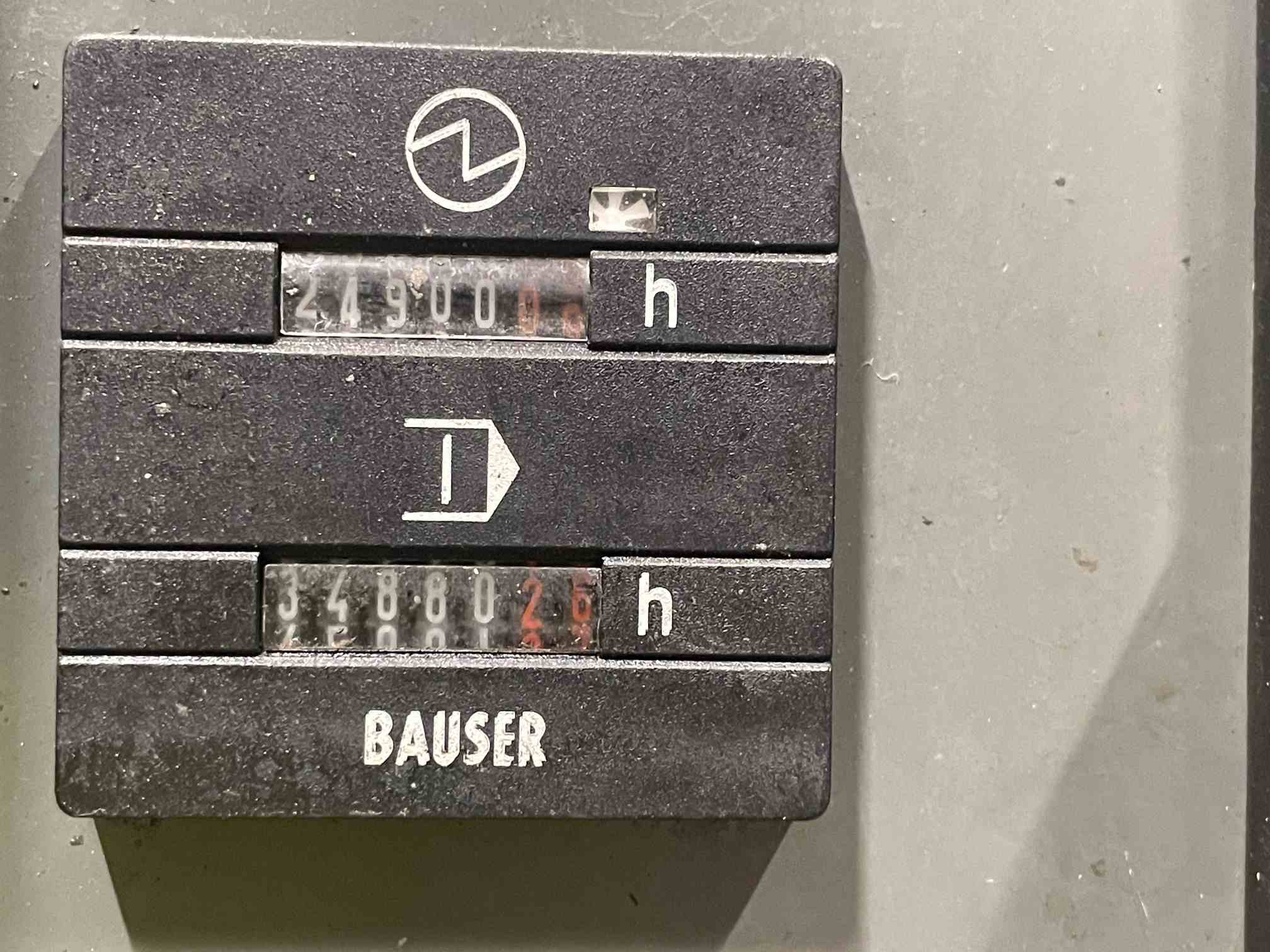

- Machine Hours: 34,880 h
- Spindle Hours: 24,900 h
- X-Axis Travel: 1,250 mm
- Y-Axis Travel: 880 mm
- Z-Axis Travel: 800 mm

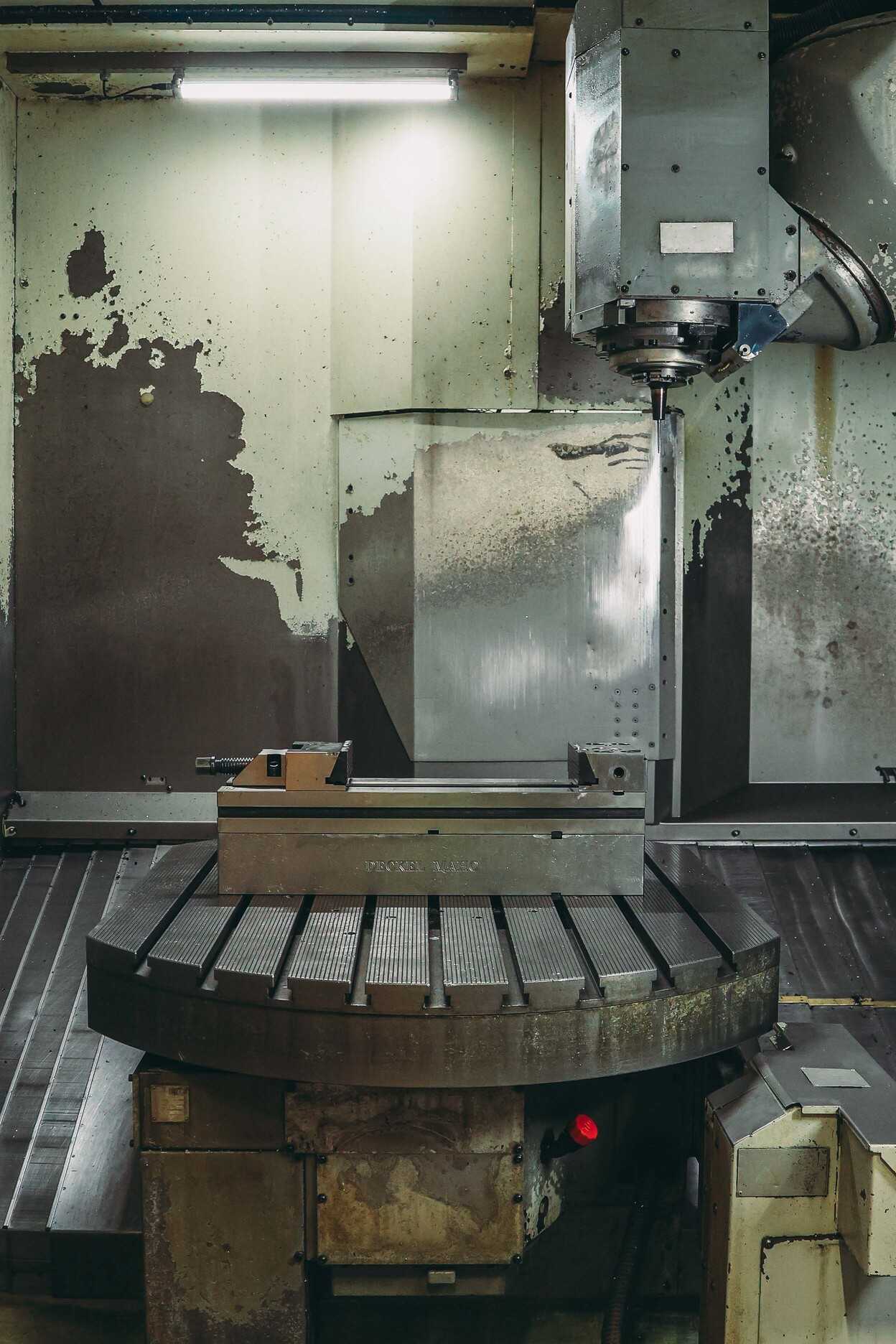

- Table Surface: Round, Ø 1250 mm
- Max. Permissible Table Load: 2,000 kg
- Number of Controlled Axes: 5
- A-Axis: 0.001°
- C-Axis: 0.001°
- Feed Rate X/Y/Z: up to 30,000 mm/min
- Rapid Traverse: up to 40 m/min
- Max. Spindle Speed: up to 10,000–12,000 rpm

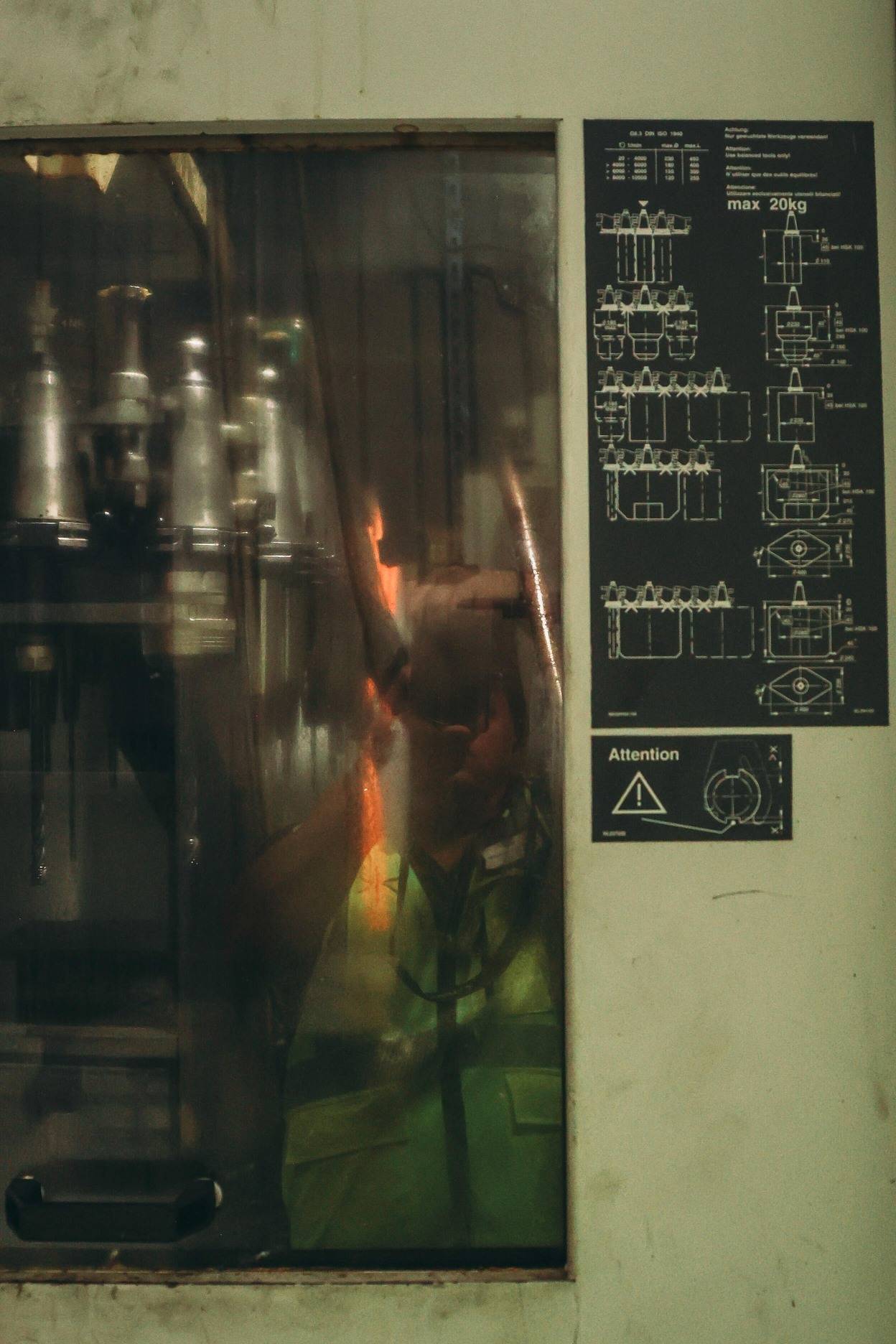

- Tool Magazine: 43 positions depending on configuration
- Internal Coolant Supply: up to 40 bar
- Machine Weight: approx. 16.000 kg
- Machine Dimensions: approx. 7,200 × 4,400 × 2,900 mm
