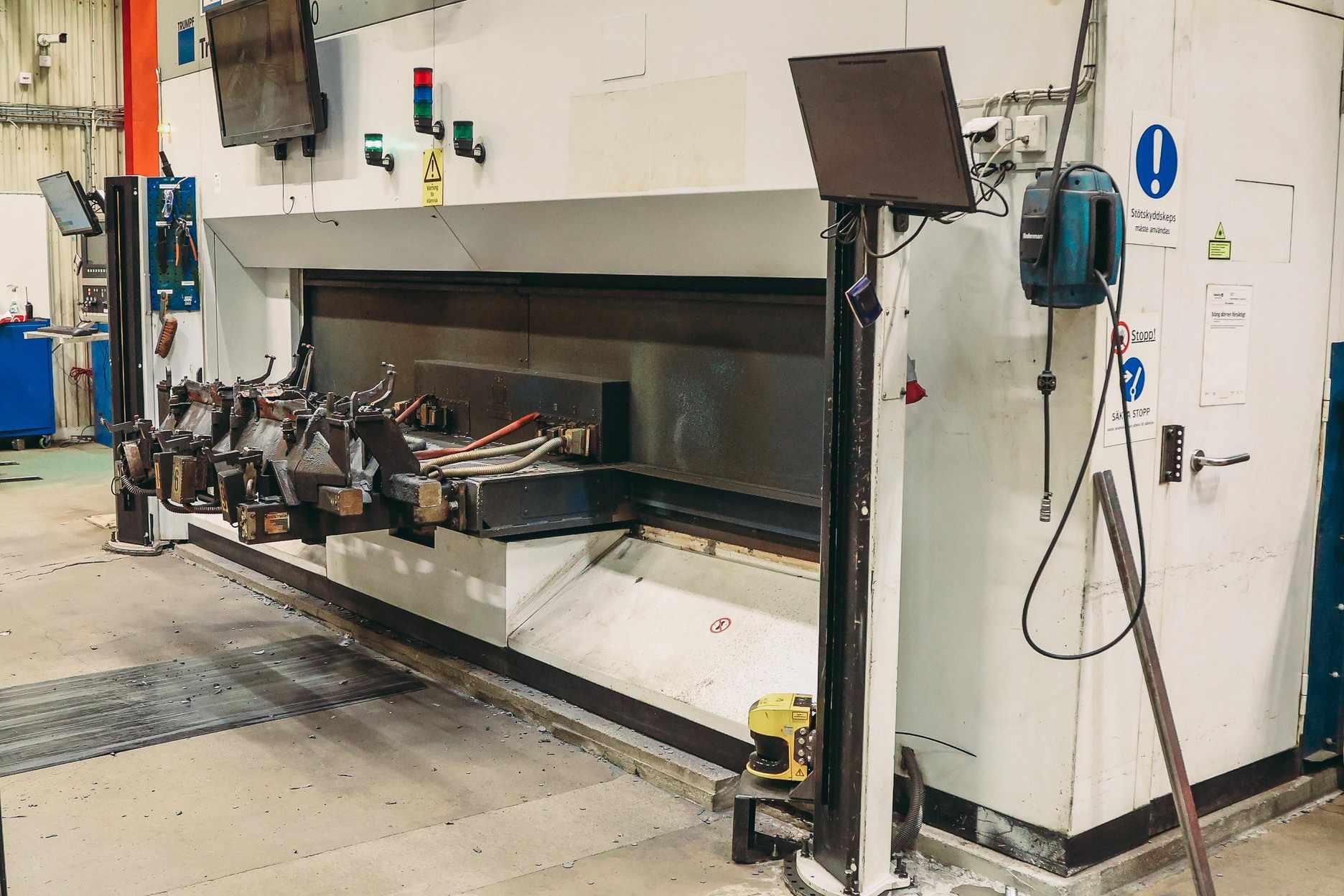

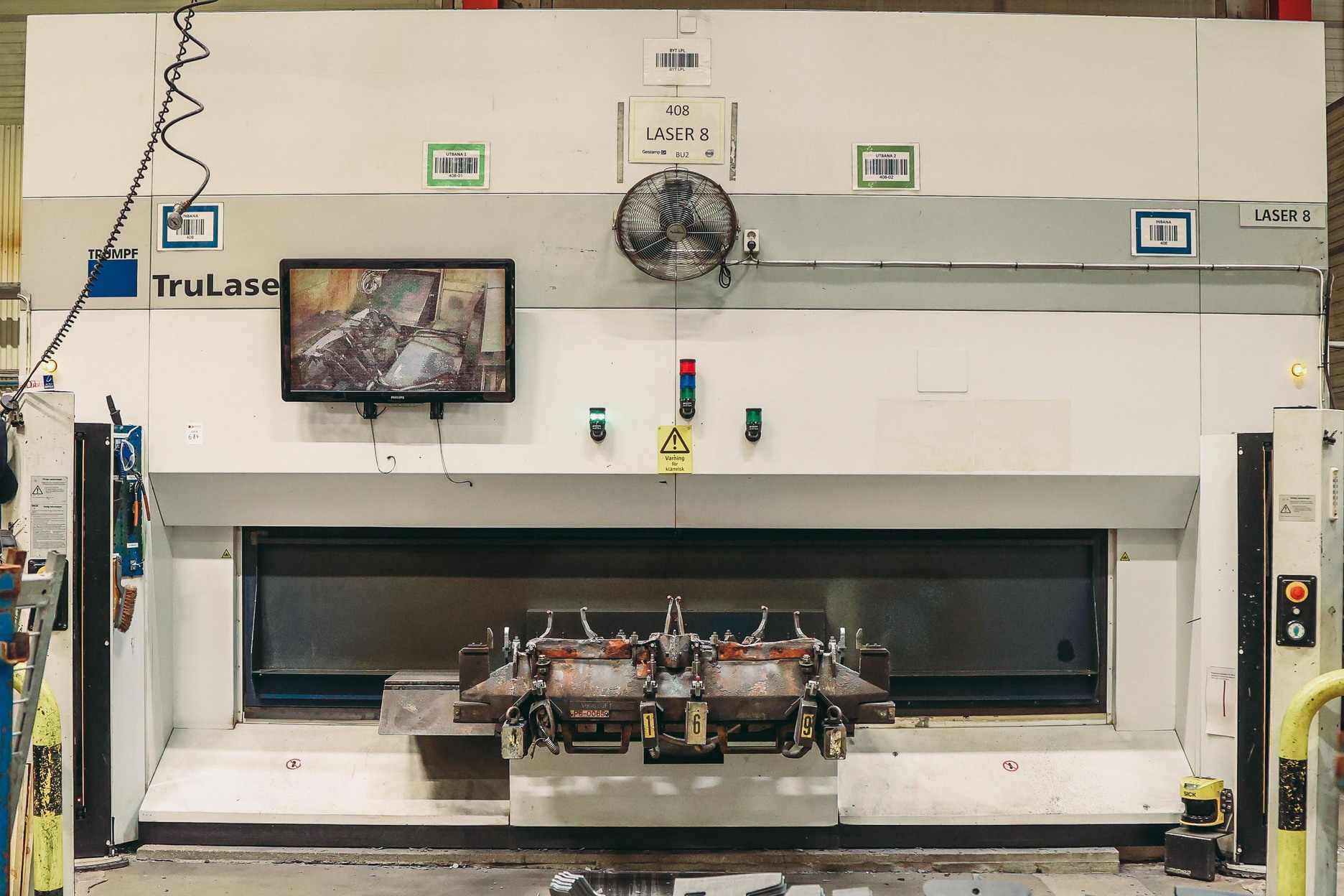

684. Trumpf 5-Axis 3D Laser Cutting Machine

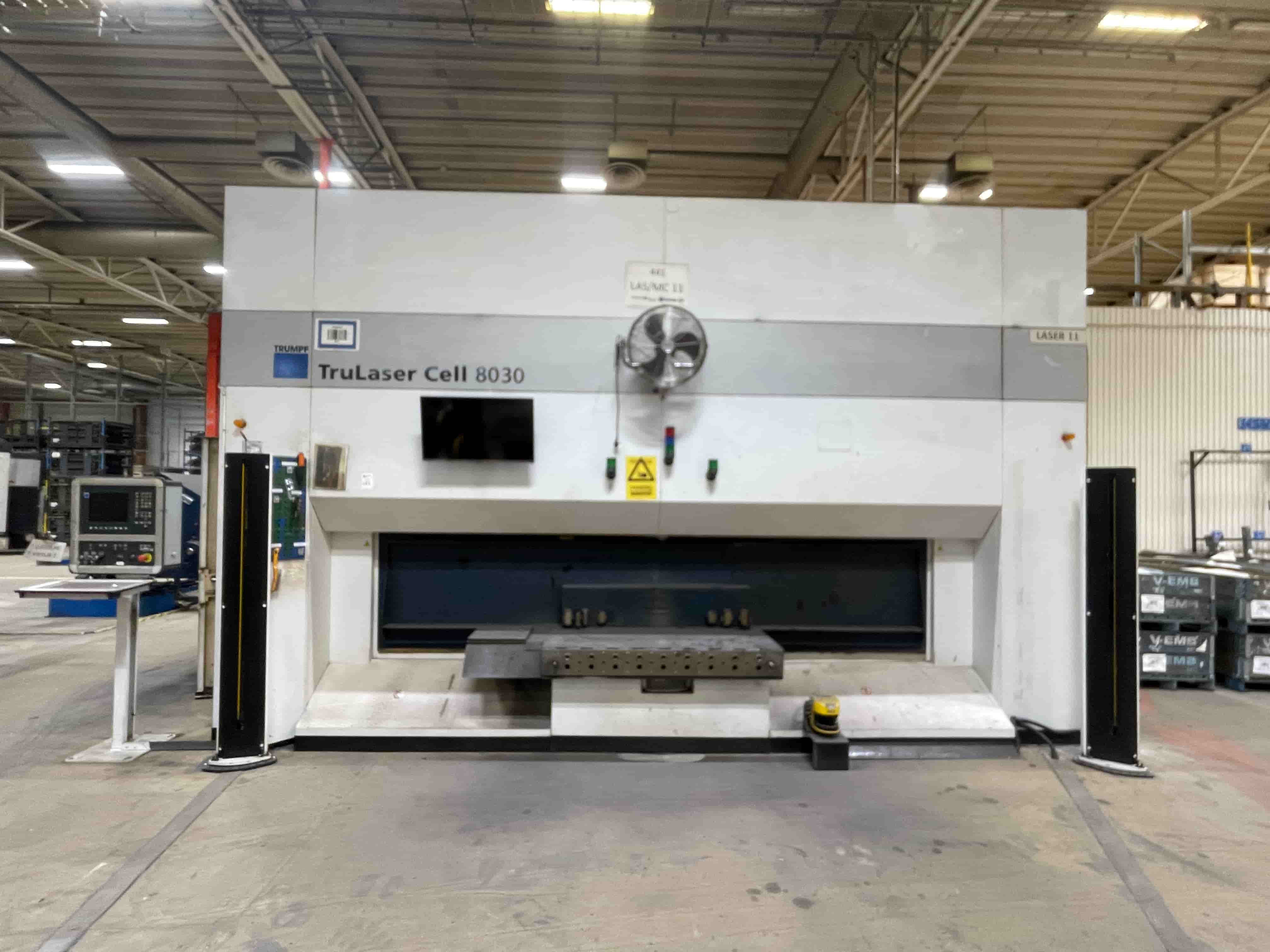

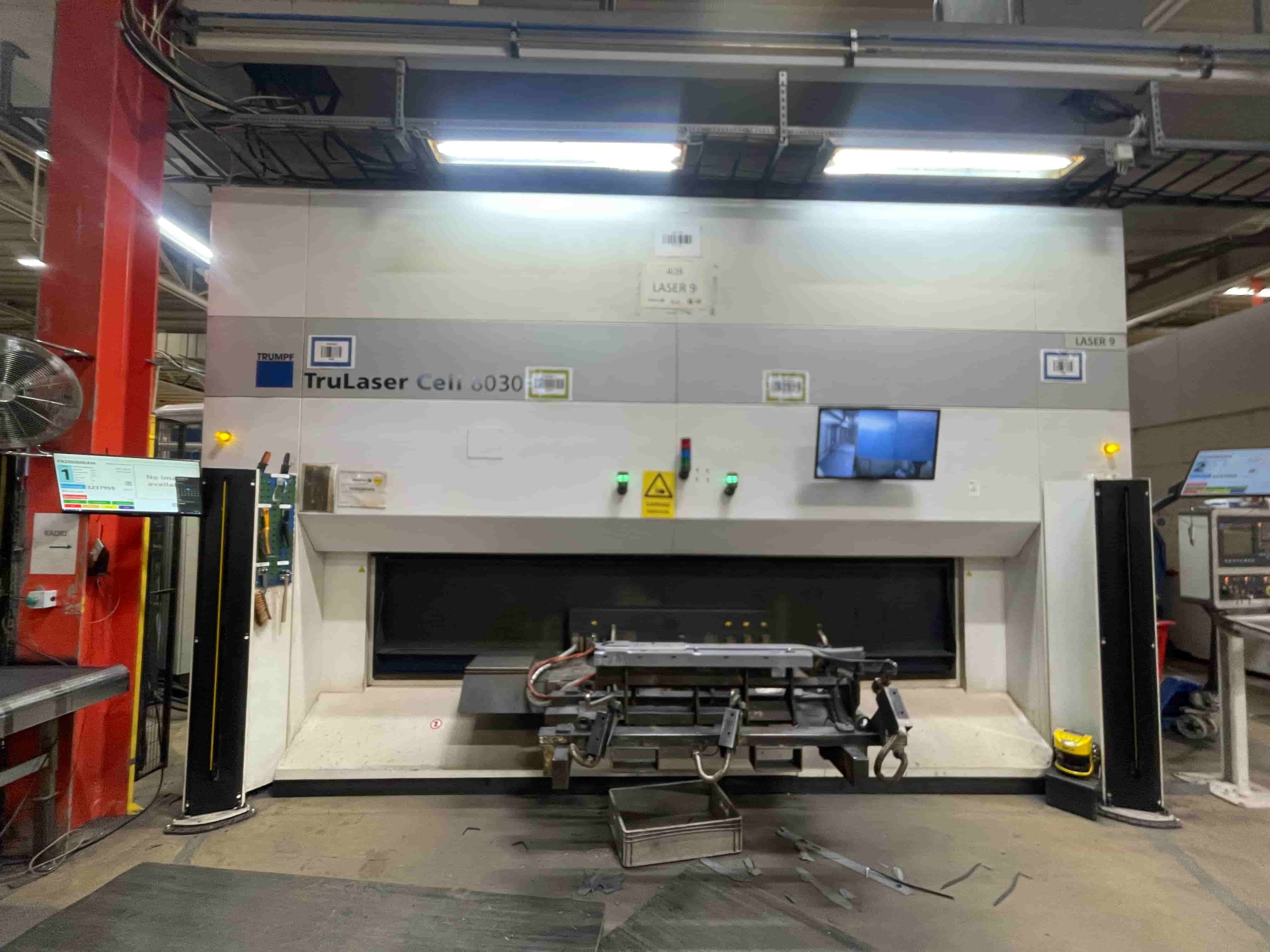

TRUMPF TruLaser Cell 8030 L45
3D Laser Cutting Machine with 3kW TruDisk 3001
This is a high-precision 5-axis 3D laser cutting system equipped with a 3,000 W TruDisk 3001 solid-state disk laser. Engineered for high-speed three-dimensional metal cutting, it offers a work envelope with travels of 3,000 mm (X), 1,300 mm (Y), and 600 mm (Z), full rotational articulation (B-axis 135°, C-axis n × 360°), and highly stable 1,030 nm beam transmission via laser light cable.
Industry
Automotive
Sale Type
Private Treaty
Manufacturer
Trumpf
Country
Sweden
Machine Type
Laser Cutting Machine
Year of Manufacture
2014
Laser Power
3,000 W
Feed Rates (X/Y/Z)
3000/1300/600 mm
Technical Details
- Lot No. 684
- Manufacturer: Trumpf

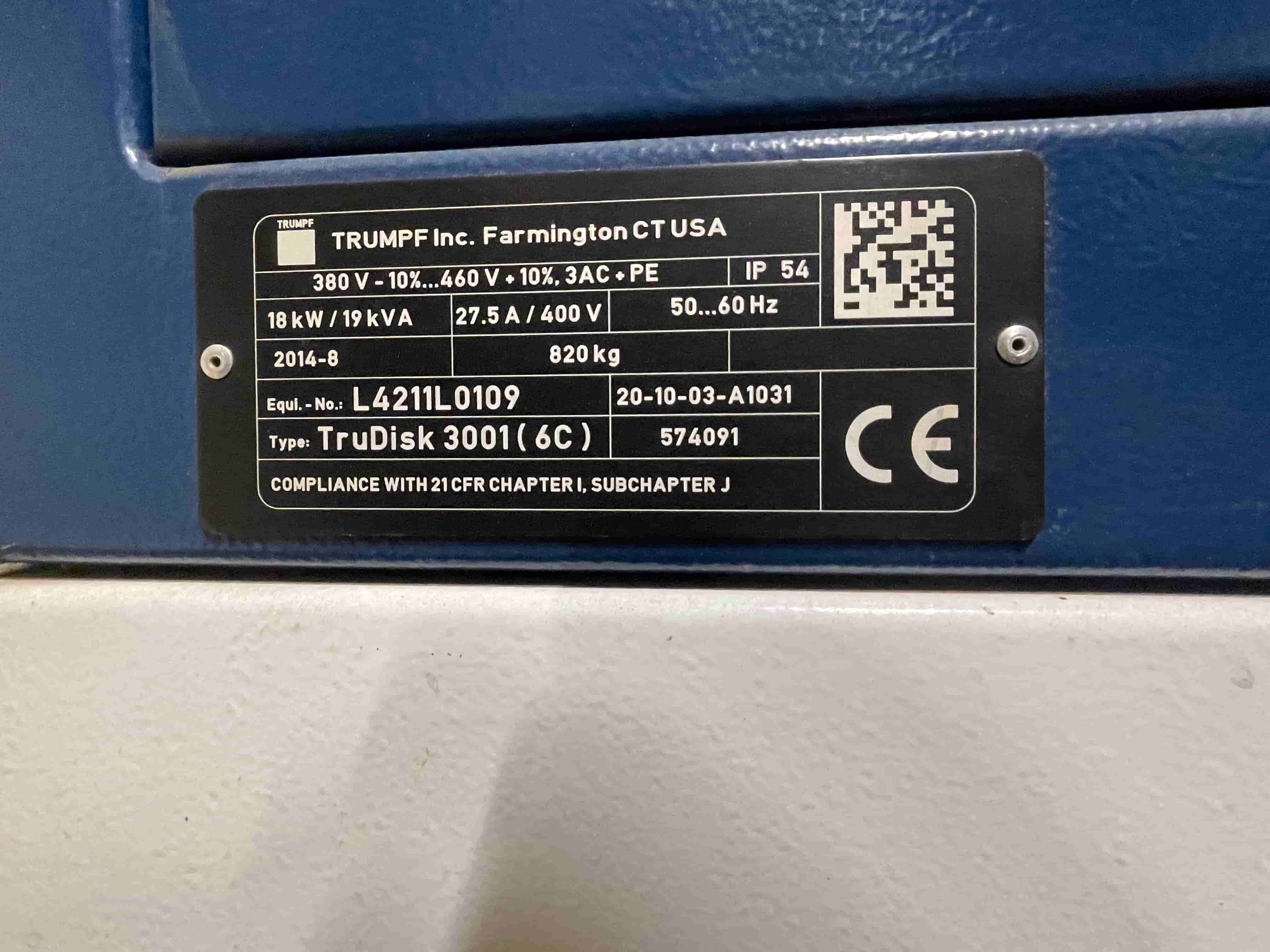

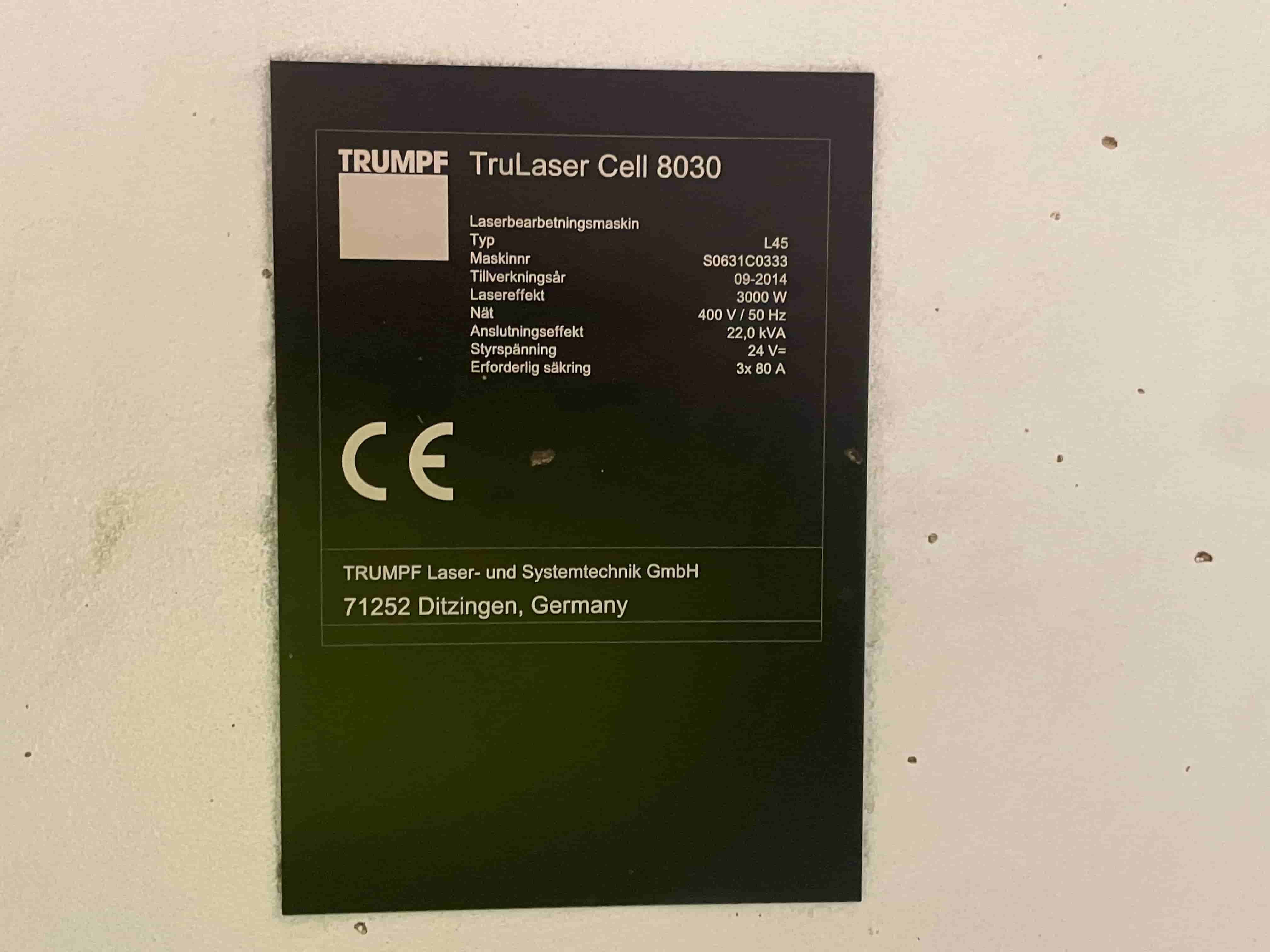

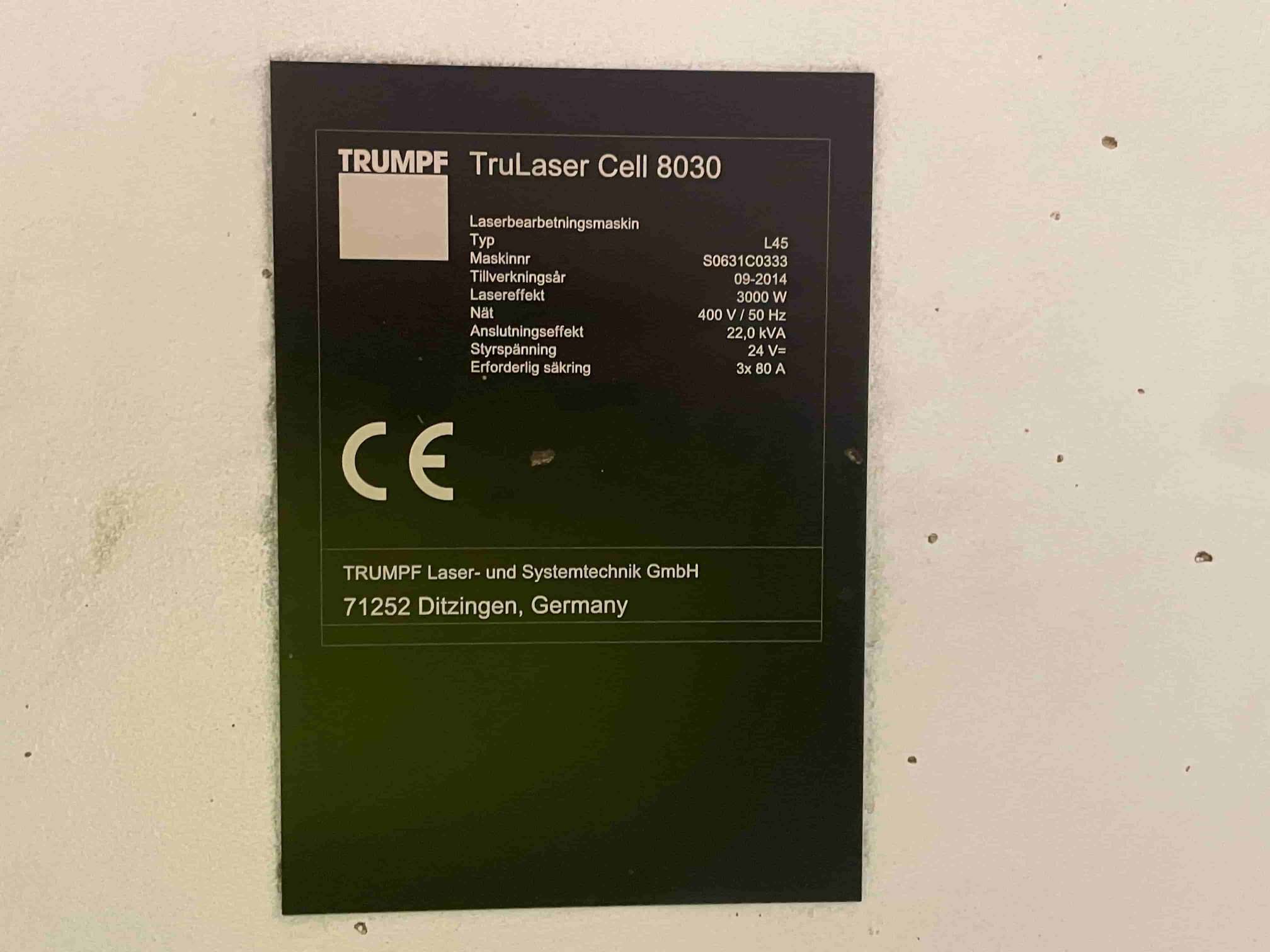

- Model / Type: TruLaser Cell 8030 L45 TruDisk 3001
- Year of Manufacture: 2014
- Laser Type: Solid-State Disk Laser / CW Laser
- Laser Power at Workpiece: 3,000 W
- Adjustable Power Range: 80–3,000 W
- Feed Rates (X/Y/Z): 3000/1300/600 mm
- B-Axis Range: ± 135°
- C-Axis Range: n x 360°
- Wavelength: 1,030 nm
- Beam Quality / Beam Parameter Product: 4 mm·mrad
- Numerical Aperture after Laser Light Cable: 0.1
- Minimum Laser Light Cable Diameter: 100 µm
- Typical Power Stability at Rated Power: ±1%
- Laser Beam Transmission: Laser Light Cable (LLK)
