700. Deckel Maho 5-Axis CNC Machining Center

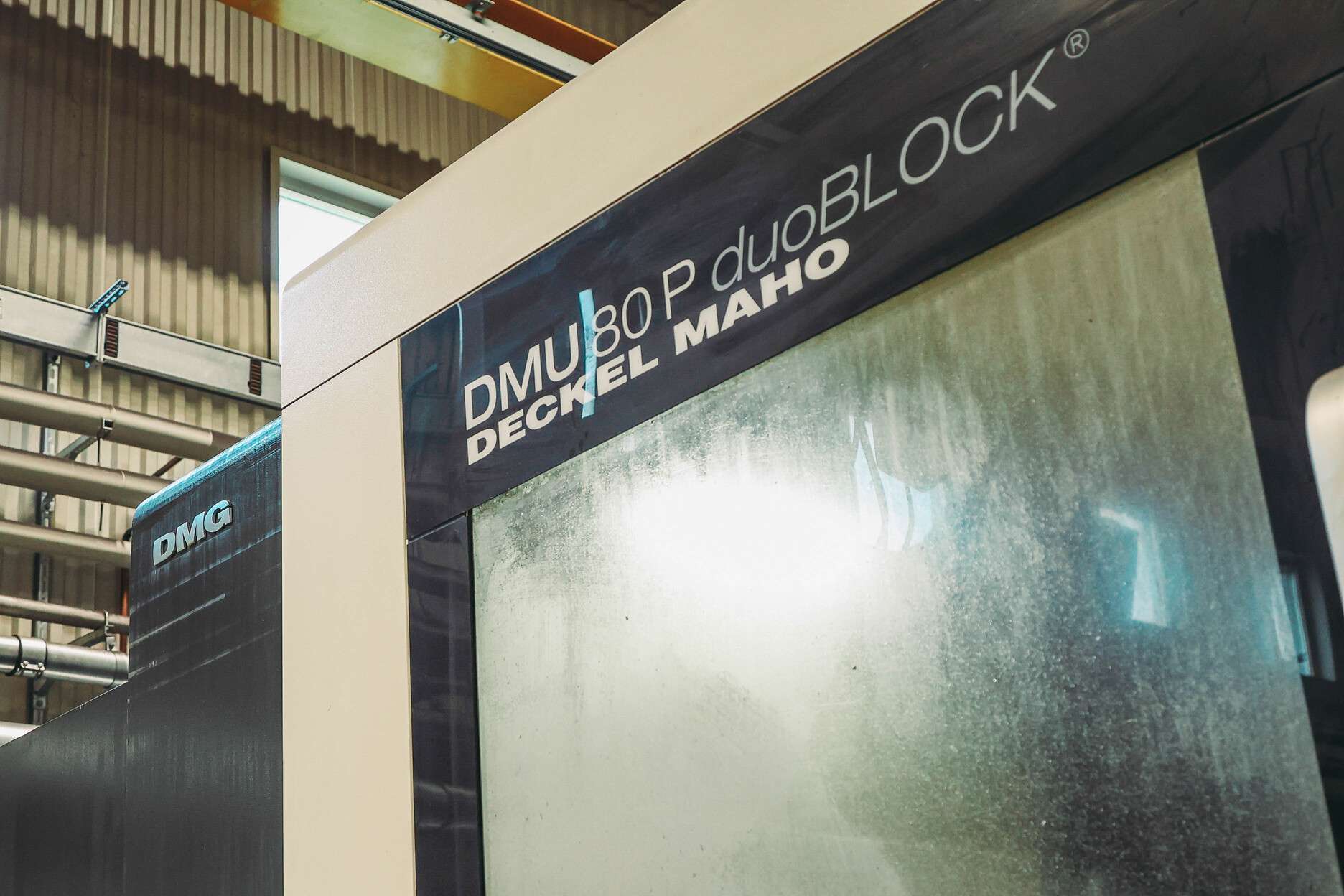

DECKEL MAHO DMU 80P duoBlock
5-Axis Universal Machining Center
This 2008 Deckel Maho duoBLOCK is an advanced 5-axis universal machining center operated by a HEIDENHAIN iTNC 530 control. Featuring low spindle usage of just 2,987 hours, it offers a balanced 800 mm of travel across the X, Y, and Z axes, along with a 900 × 700 mm table supporting up to 1,400 kg.
Industry
Automotive
Sale Type
Private Treaty
Manufacturer
Deckel Maho
Country
Sweden
Machine Type
Machining Center
Year of Manufacture
2008
Table Size
900 × 700 mm
Max. Spindle Speed
up to 18,000 rpm
Technical Details
- Lot No. 700
- Manufacturer: Deckel Maho
- Model / Type: DMU 80 P duoBLOCK

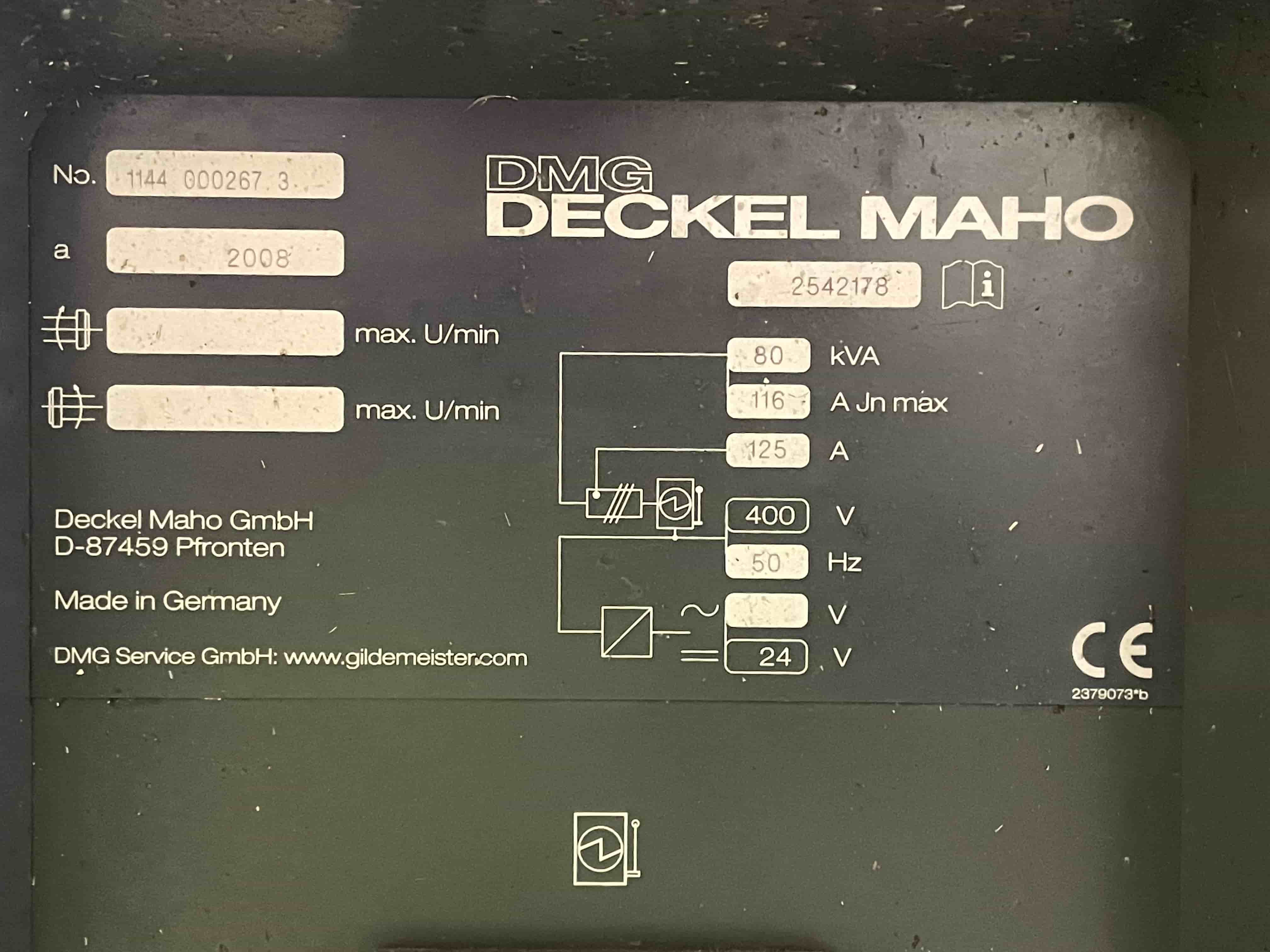

- Machine No. 1144 000267 3
- Year of Manufacture: 2008
- Machine Type: 5-Axis Universal Machining Center

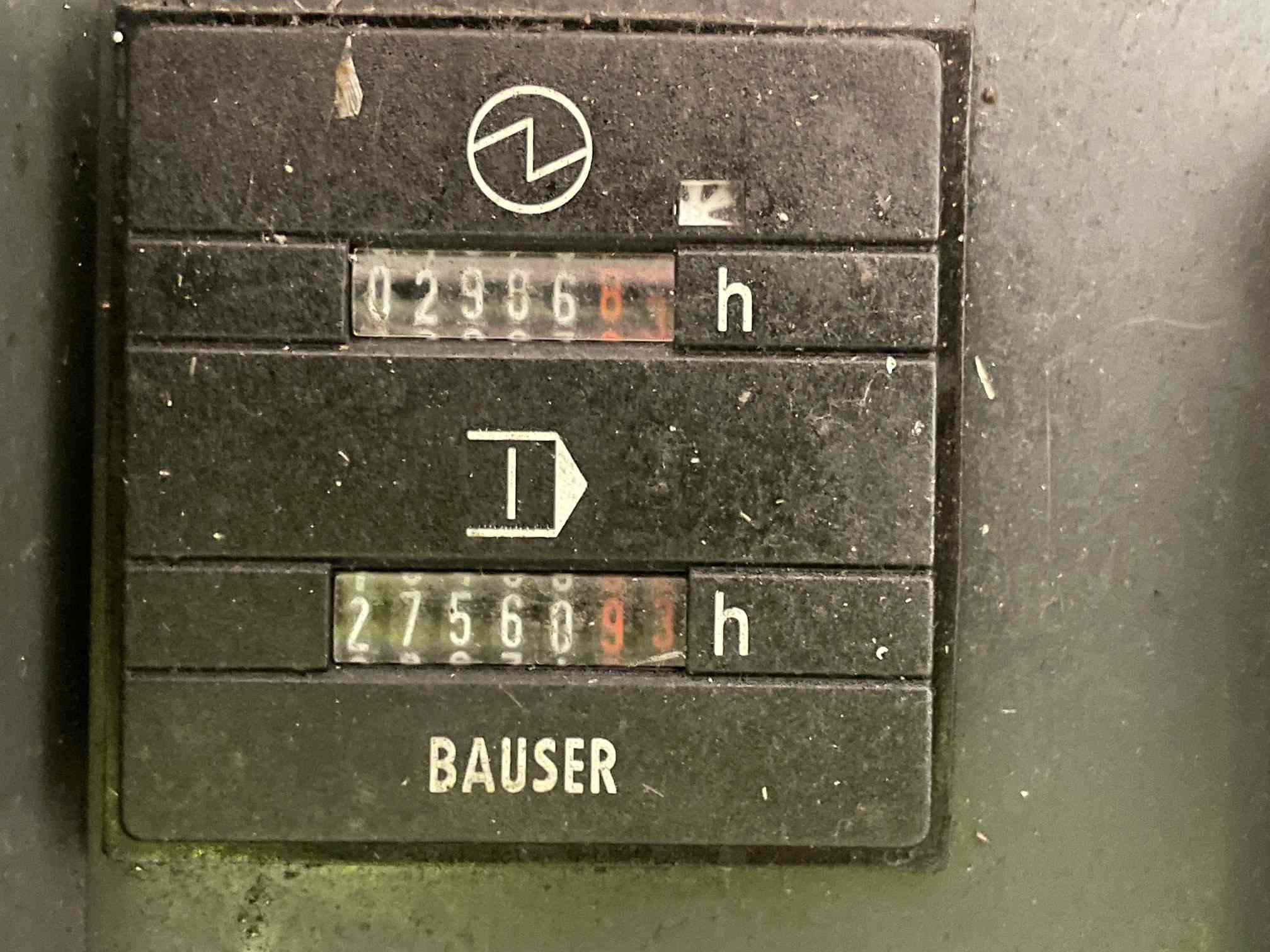

- Machine Hours: 27,561 h
- Spindle Hours: 2,987 h

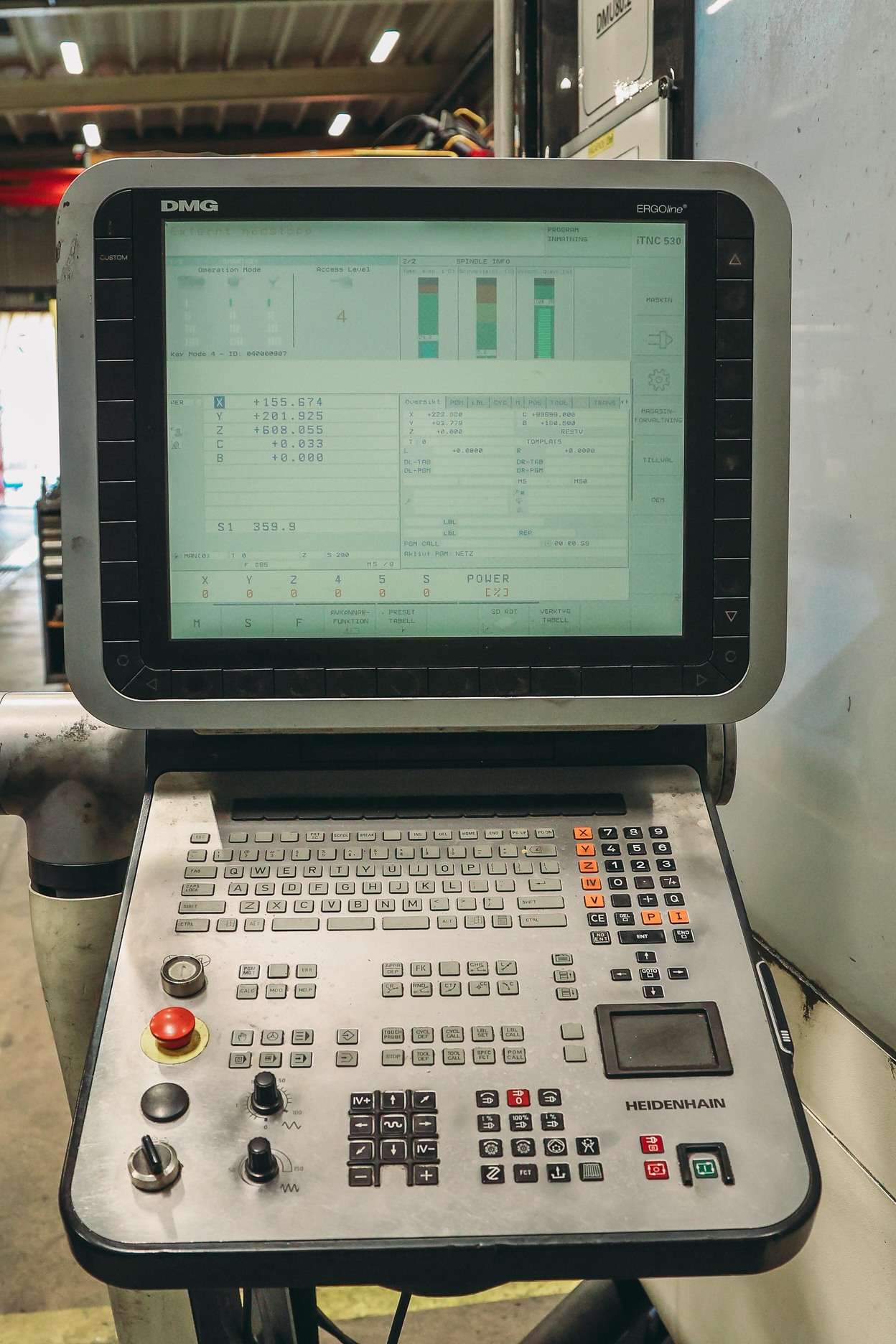

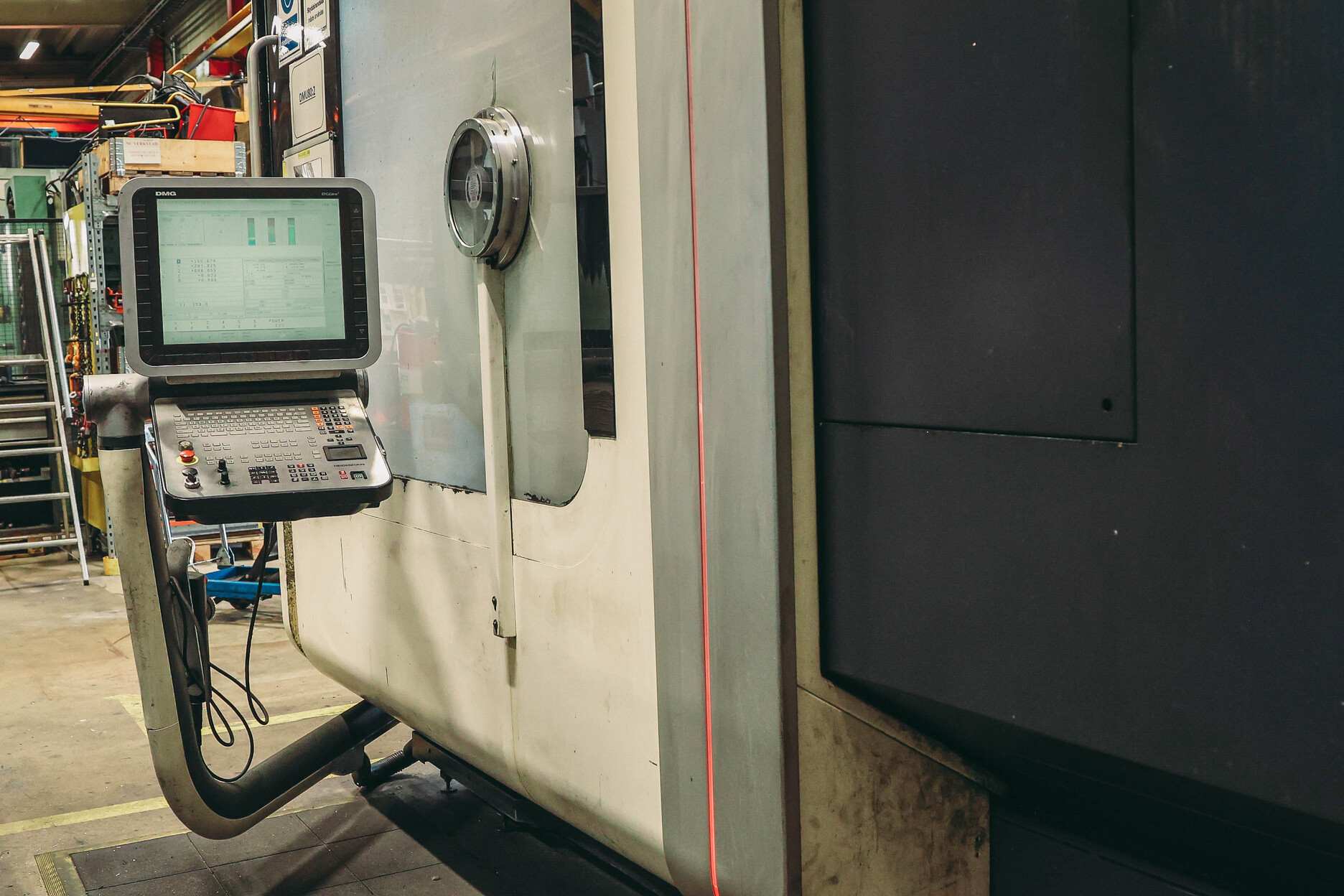

- Control: HEIDENHAIN iTNC 530
- X-Axis Travel: 800 mm
- Y-Axis Travel: 800 mm
- Z-Axis Travel: 800 mm
- Feed Rate X/Y/Z: 20–10,000 mm/min
- Rapid Traverse X/Y/Z: up to 60 m/min
- Setup Mode X/Y/Z: 20–2,000 mm/min
- Feed Drive: AC brake motors for X, Y and Z axes
- B-Axis Swivel Range: 0–190°
- C-Axis Rotation: 360°

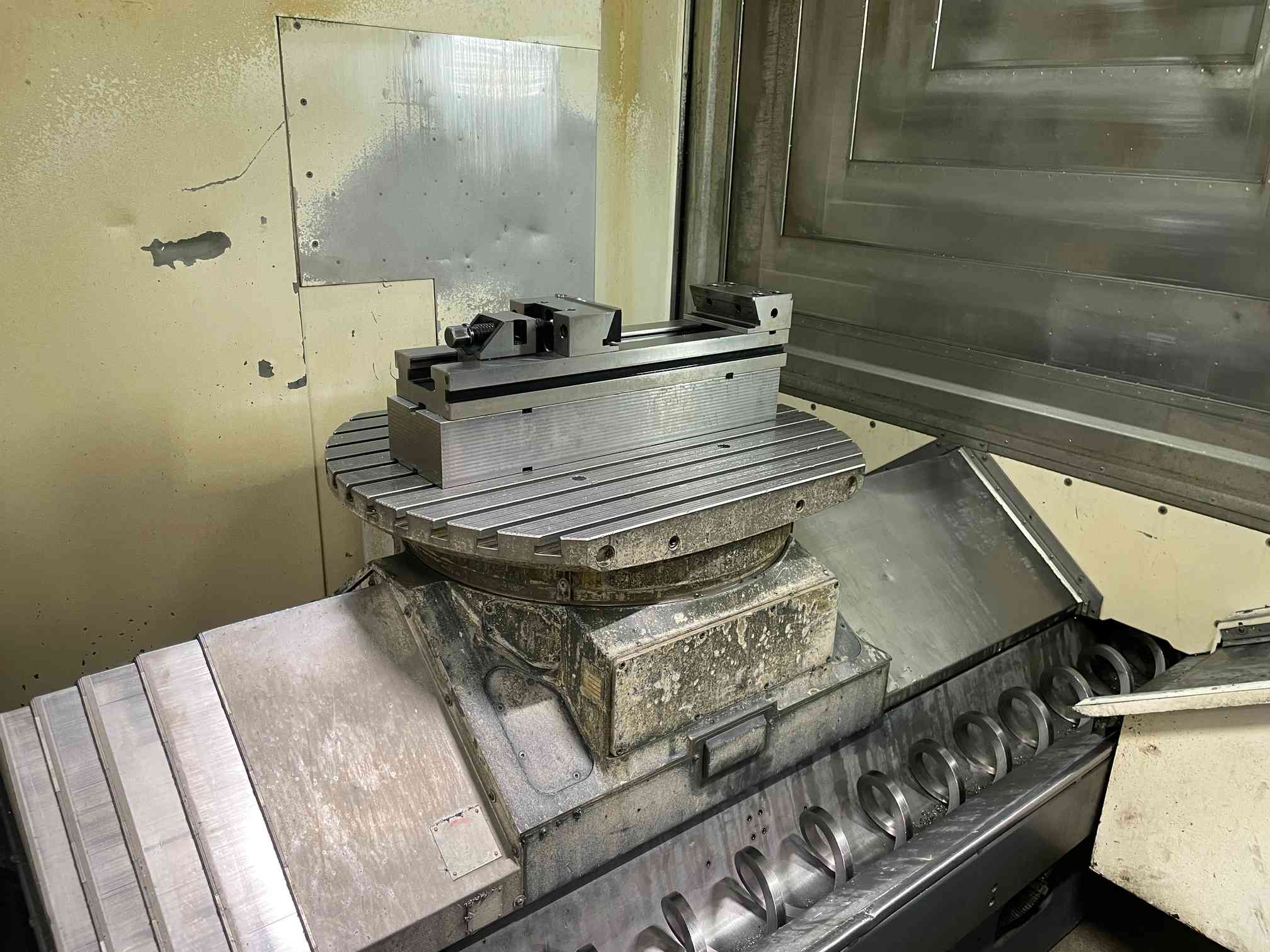

- Table Size: 900 × 700 mm
- Max. Table Load: 1,400 kg

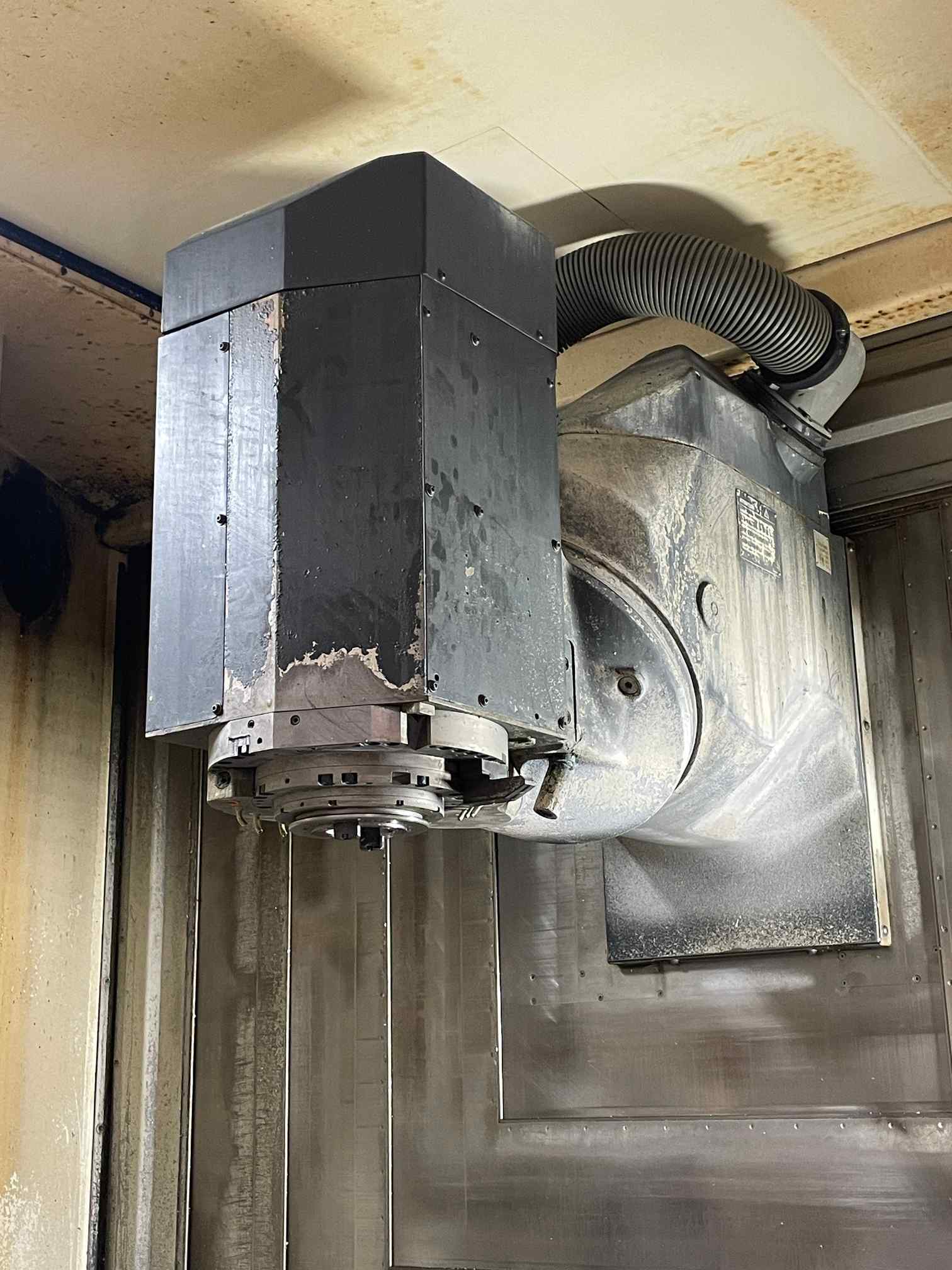

- Max. Spindle Speed: up to 18,000 rpm
- Spindle Power: 28/19 kW
- Max. Spindle Torque: 121 / 82 Nm
- Tool Holder: HSK-A63
- Tool Magazine: 40 positions
- Internal Coolant Supply: 40 bar
- Machine Weight: approx. 14,000 kg
- Machine Dimensions (L × W × H): approx. 6,500 × 6,500 × 3,500 mm
