689. Carl Zeiss 3-axis Coordinate Measuring Machine
CARL ZEISS Prismo 10
CNC Coordinate Measuring Machine
This is a high-precision CNC coordinate measuring machine (CMM) designed for demanding dimensional inspection tasks. It boasts an expansive measuring envelope of 3,000×1,200×1,000 mm and safely accommodates heavy-duty workpieces up to 6,500 kg.
Industry
Automotive
Sale Type
Private Treaty
Manufacturer
Carl Zeiss
Country
Sweden
Machine Type
Measuring Machine
Year of Manufacture
2001
Measuring Range
3,000×1,200×1,000 mm
Max. Load Capacity
6500 kg
Technical Details
- Lot No. 689
- Manufacturer: Carl Zeiss
- Model / Type: Prismo P10
- Machine Type: CNC Coordinate Measuring Machine (CMM)

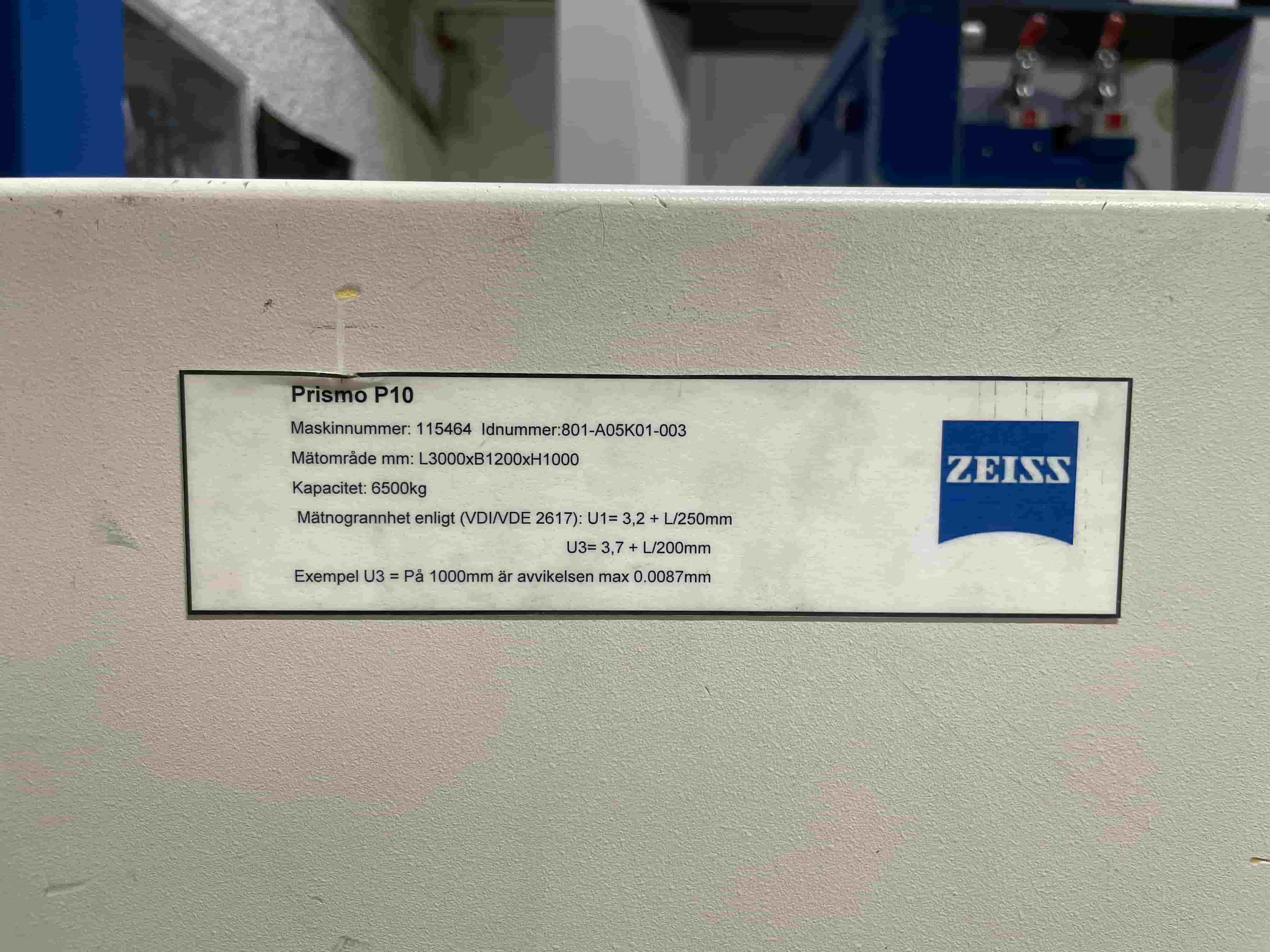

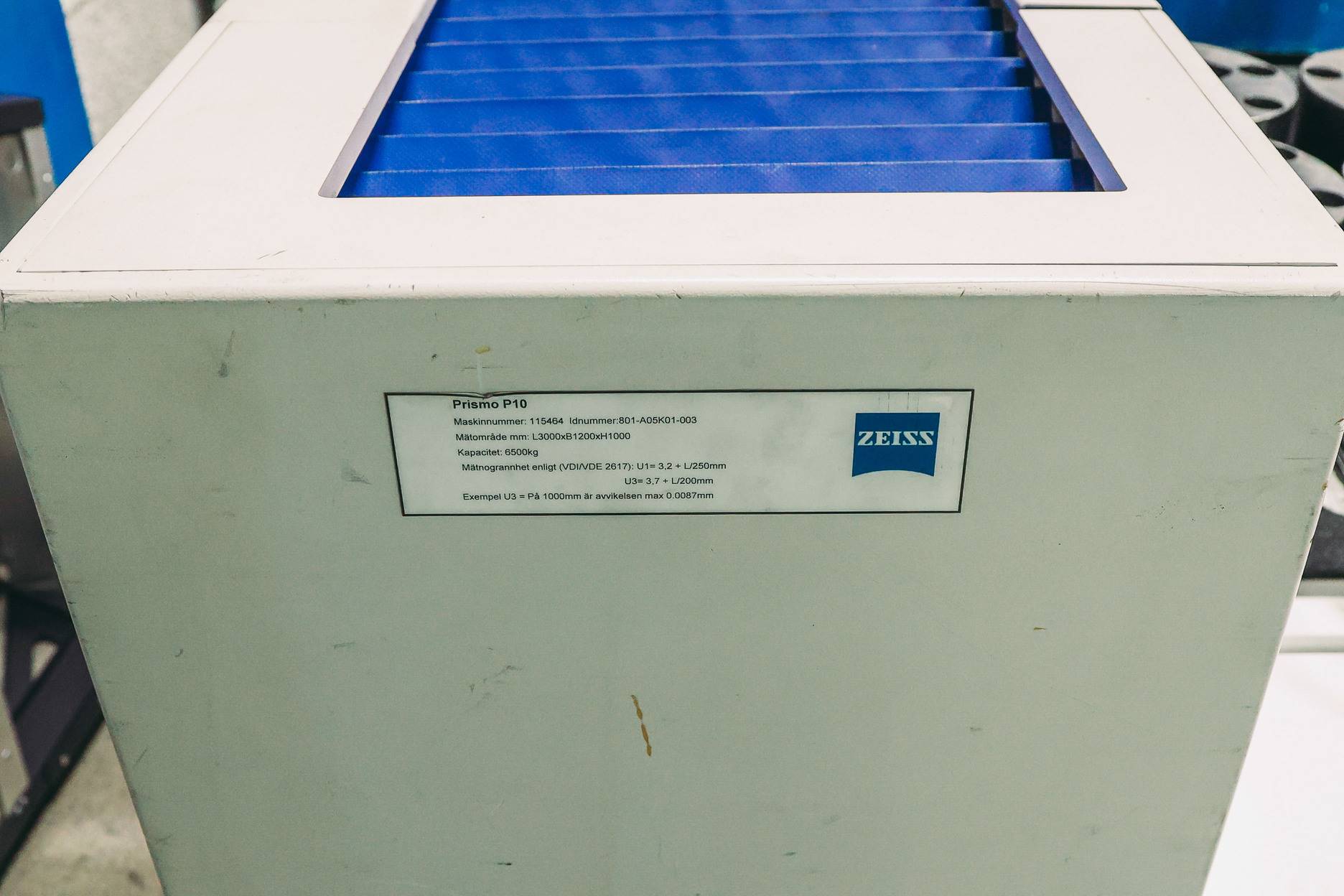

- Machine No. 115464
- ID No. 801-A05K01-003
- Measuring Range (X×Y×Z): 3,000×1,200×1,000 mm
- Max. Load Capacity: 6,500 kg
- Measurement Uncertainty U1 (VDI/VDE 2617): 3.2 + L/250 µm
- Measurement Uncertainty U3 (VDI/VDE 2617): 3.7 + L/200 µm
- Max. deviation: 0.0087 mm
- Measurement Principle: Coordinate measurement / high-precision dimensional inspection
- Measurement Mode: Tactile measurement / scanning, depending on probe configuration
