690. Carl Zeiss 3-axis Coordinate Measuring Machine
Carl Zeiss Contura G2 RDS
CNC Coordinate Measuring Machine

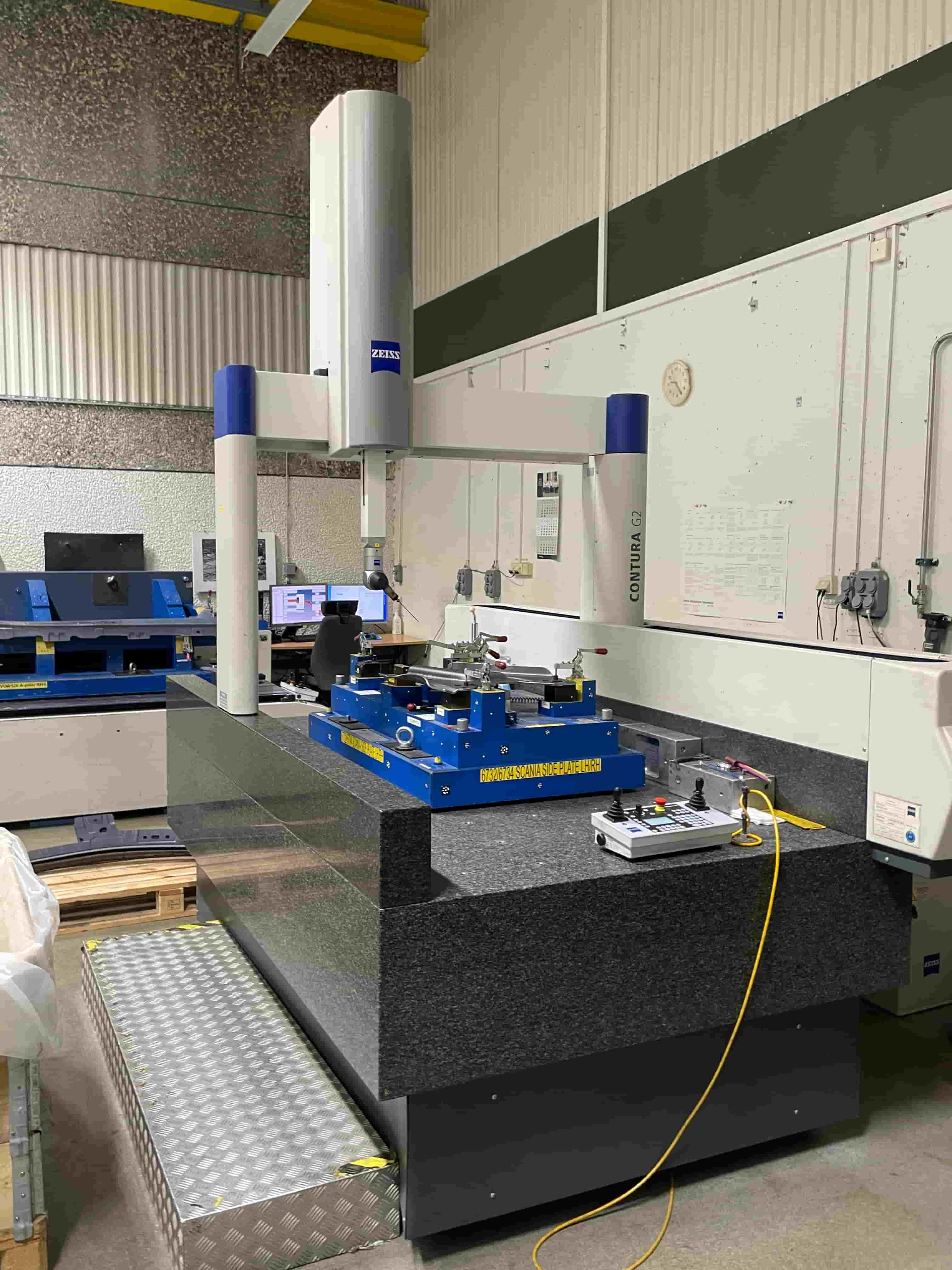

This 2007 Contura G2 RDS is a high-precision, bridge-type CNC coordinate measuring machine (CMM) engineered with advanced ceramic technology. It features a generous measuring envelope of 1,000 × 2,100 × 600 mm and safely supports workpieces up to 1,000 kg.
Industry
Automotive
Sale Type
Private Treaty
Manufacturer
Carl Zeiss
Country
Sweden
Machine Type
Measuring Machine
Year of Manufacture
2007
Measuring Range
1,000×2,100×600 mm
Max. Load Capacity
1000 kg
Technical Details
- Lot No. 690
- Manufacturer: Carl Zeiss

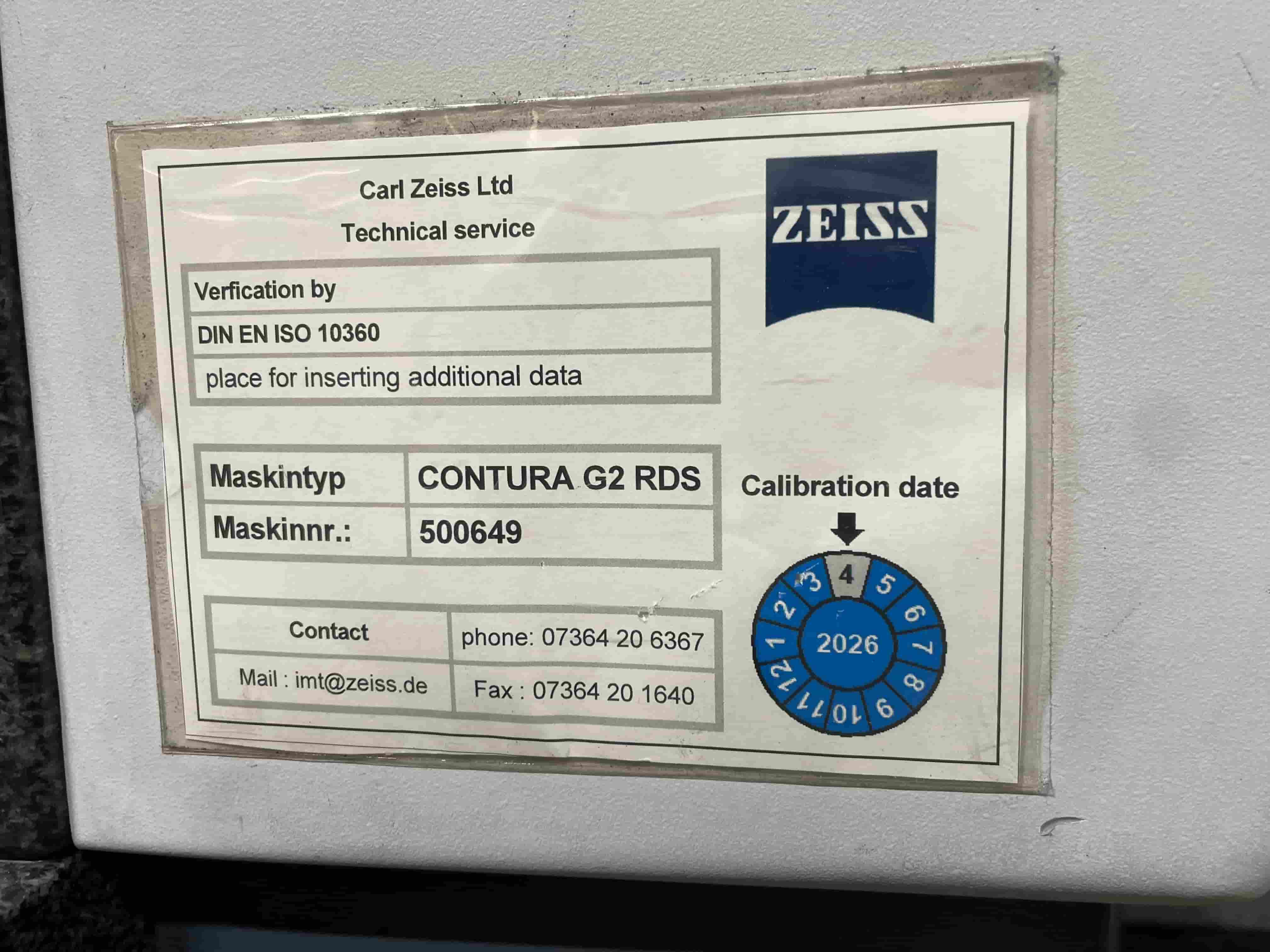

- Model / Type: Contura G2 RDS
- Year of Manufacture: 2007
- Machine Type: CNC Coordinate Measuring Machine (CMM)

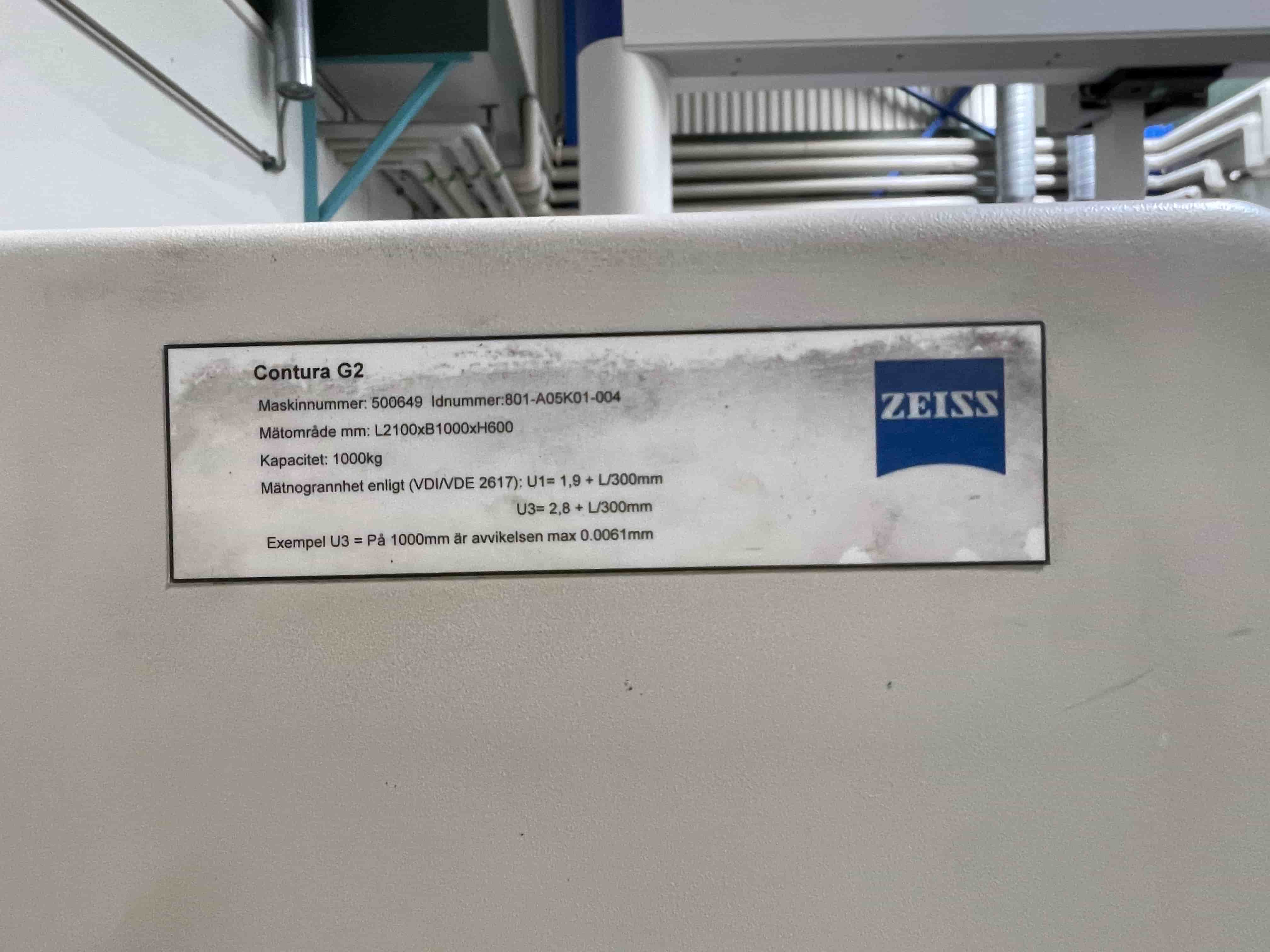

- Machine No. 500649
- ID No. 801-A05K01-004
- Measuring Range (X×Y×Z): 1,000 × 2,100 × 600 mm
- Max. Load Capacity: 1,000 kg
- Measurement Uncertainty U1 (VDI/VDE 2617): 1.9 + L/300 µm
- Measurement Uncertainty U3 (VDI/VDE 2617): 2.8 + L/300 µm
- Max. deviation: 0.0061 mm
- Machine Weight: approx. 5,305 kg
- Table Height: approx. 850 mm
- Transport Height: approx. 2,500 mm
- Max. Travel Speed: 250 mm/s
- Setup Mode Speed: 0–70 mm/s
- RDS Swivel Range: ±180°
- RDS Angular Increment: 2.5°
- RDS Angular Positions: 20,736
- Compressed Air Supply: 6–10 bar
- Electrical Connection: 100–240 V / 50–60 Hz
- Max. Power Consumption: 1,000 VA
- Machine Design: Bridge-type CMM with ceramic technology
- Vibration Damping: Integrated
- Control: PC-based scanning control (ISC)
