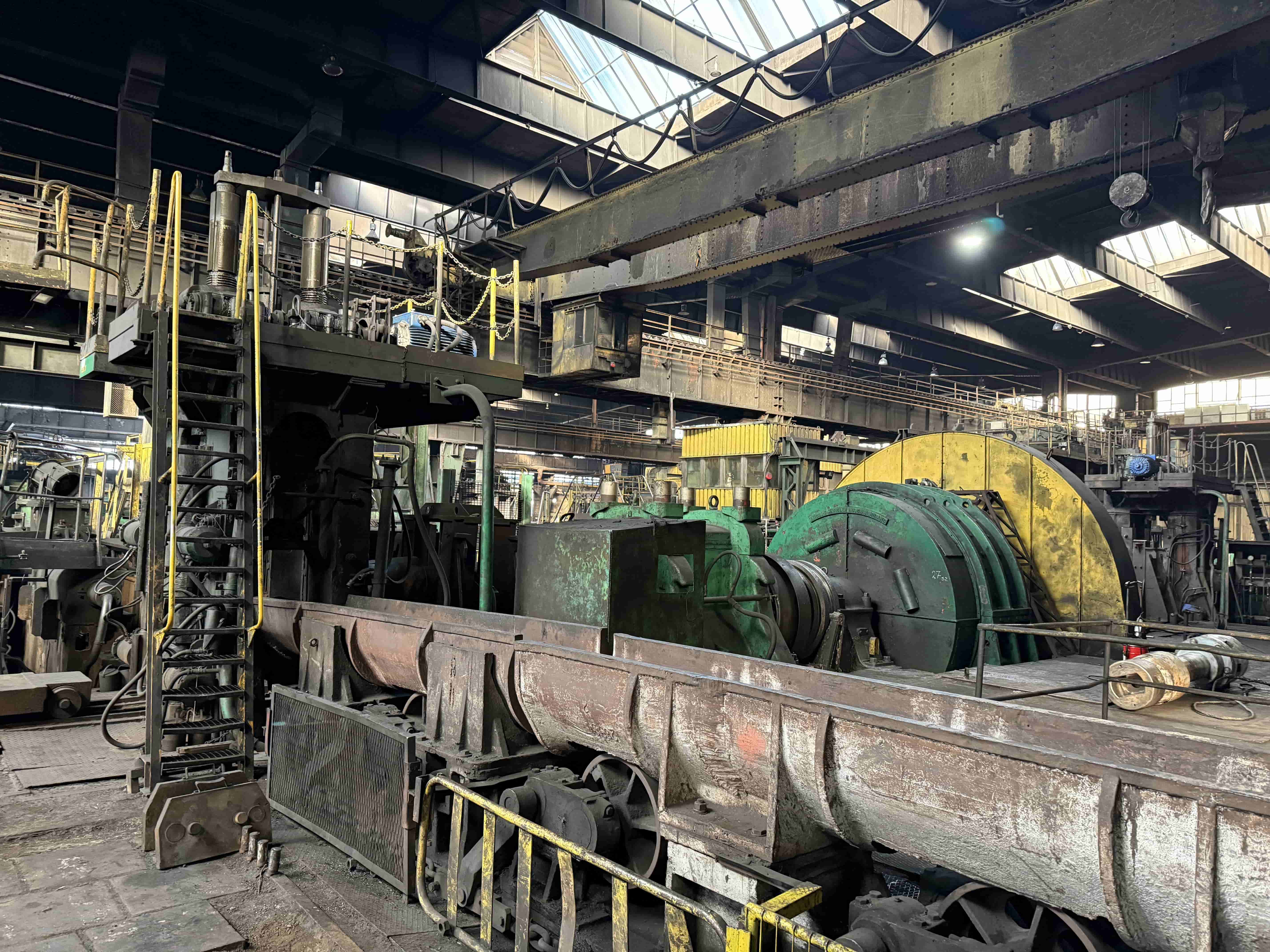

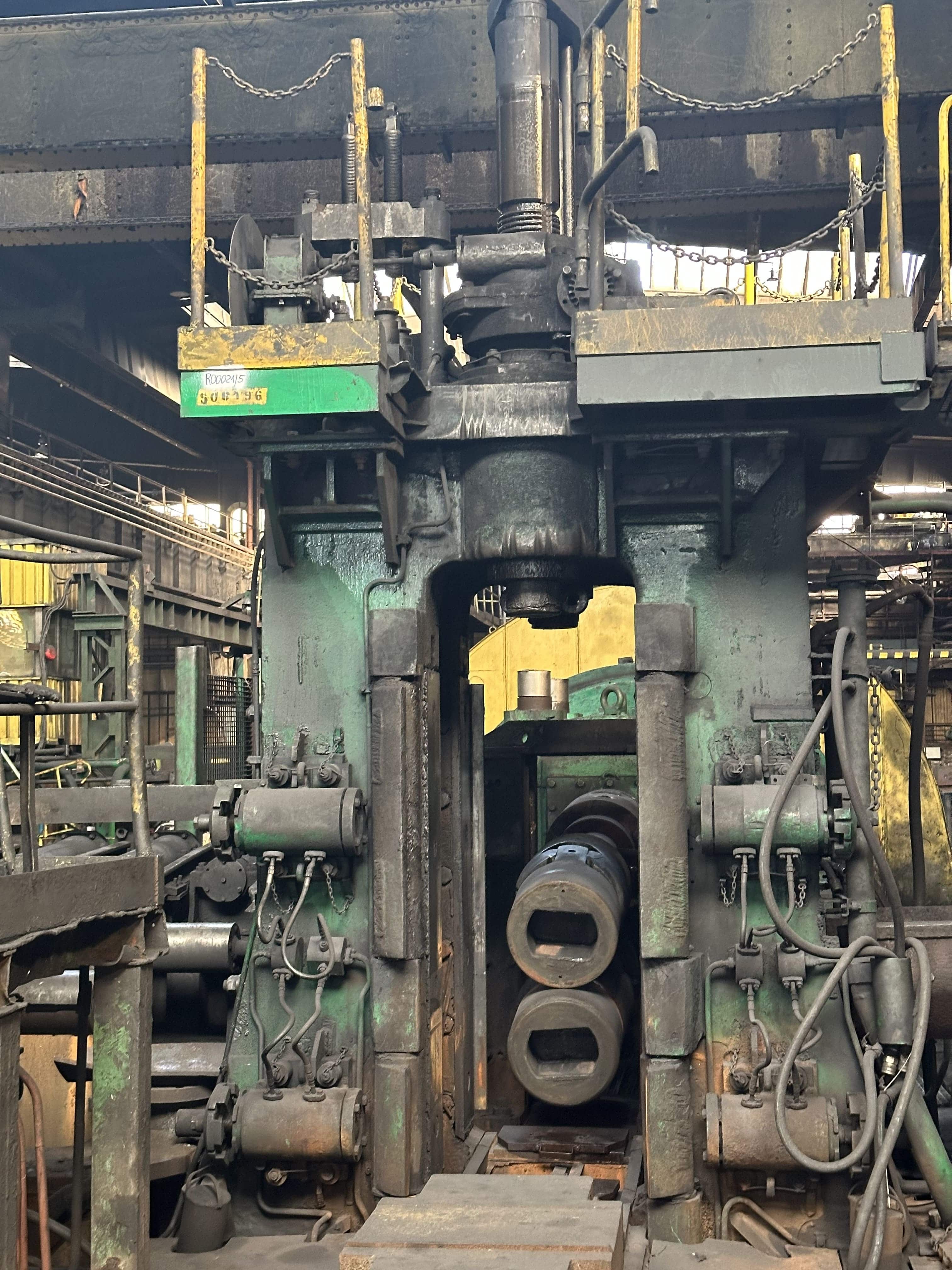

Pilgrim Rolling Mill
INNOCENTI
Heavy-Duty Pipe Rolling System
This specialized rolling mill utilizes the "Pilgrim" periodic rolling process to transform hollow blooms into seamless pipes with precise dimensional tolerances. By employing reciprocating rolls with a tapered groove profile, the system achieves significant diameter reduction and wall thinning in a single pass, making it a cornerstone for heavy-walled and high-strength seamless tube production.
Industry
Steel
Sale Type
Private Treaty
Manufacturer
INNOCENTI
Country
Poland
Machine Type
Rolling Mill
Year of Manufacture
1952
Technical Details
- Equipment Type: Pilgrim Rolling Mill
- Manufacturer: INNOCENTI
- Year of Manufacture: 1952
- Primary Purpose: Longitudinal rolling of seamless raw pipes
- Outer Diameter (OD) Range: 130 mm – 280 mm
- Wall Thickness Range: 4.5 mm – 50 mm
- Maximum Finished Length: 36 m
- Primary Drive: 1900 kW DC Electric Motor
- Rotational Frequency: 60 – 100 / min
- Peak Mass Throughput: 20 Mg/h
- Drive Characteristics: The 1900 kW DC motor provides the high torque and precise speed regulation necessary for the intermittent loading cycles inherent in the Pilgrim rolling process
- Process Versatility: The wide wall thickness range (up to 50mm) highlights the machine's capability for heavy-wall mechanical tubing, while the 36 m band length indicates a high-capacity discharge cooling bed requirement
- Operational Kinematics: The 60 – 100 / min speed range allows for fine-tuning the feed rate against the material's plasticity, optimizing the surface finish of the raw pipe
