60,000 TPY Seamless Pipe Mill
Project Description
We are pleased to offer a seamless pipe mill in Poland, capable of producing hot-rolled seamless pipes with an annual capacity of 60,000 TPY. The mill, with a longstanding history, specializes in manufacturing small-diameter steel pipes, ranging from Ø 21.3mm to Ø 114.3mm and wall thicknesses from 2.0mm to 10.0mm. The equipment is well-maintained and currently operational, producing pipes for industries such as gas engineering, construction, power, petrochemical, and shipbuilding. The facility is equipped with advanced technology and certified under PED, AD 2000, API, and DNV standards. The mill can accommodate various lengths of steel tubes and grades including carbon and low-alloy steels, making it a versatile asset for any industrial need.
General Information about the Pipe Mill:
- Location: Poland
- Annual Production Capacity: 450,000 Mg/year
- Products: Hot-rolled seamless pipes
- Outside Diameter Range: Ø 21.3mm to Ø 114.3mm
- Wall Thickness: 2.0mm to 10.0mm
- Maximum Grade: 10CrMo9-10
- Certifications: PED, AD 2000, API 5L, DNV, UDT, BV, LR, PRS
- Target Markets: Boiler, line pipes, oil & gas, construction.
Length:
- Random: 4 – 12 m (over 12 m upon agreement)
- Limited: +300/-0 mm
- Exact (with maximum deviation): +10/-0 mm for length 12 m
- Multiple with allowance for every cutting
Grades: carbon steel and low-alloy steel (max 10CrMo9-10)
Manufacturing process
These processes cover the full cycle from raw material (bloom) preparation to the final inspection and packaging of the seamless steel tubes.

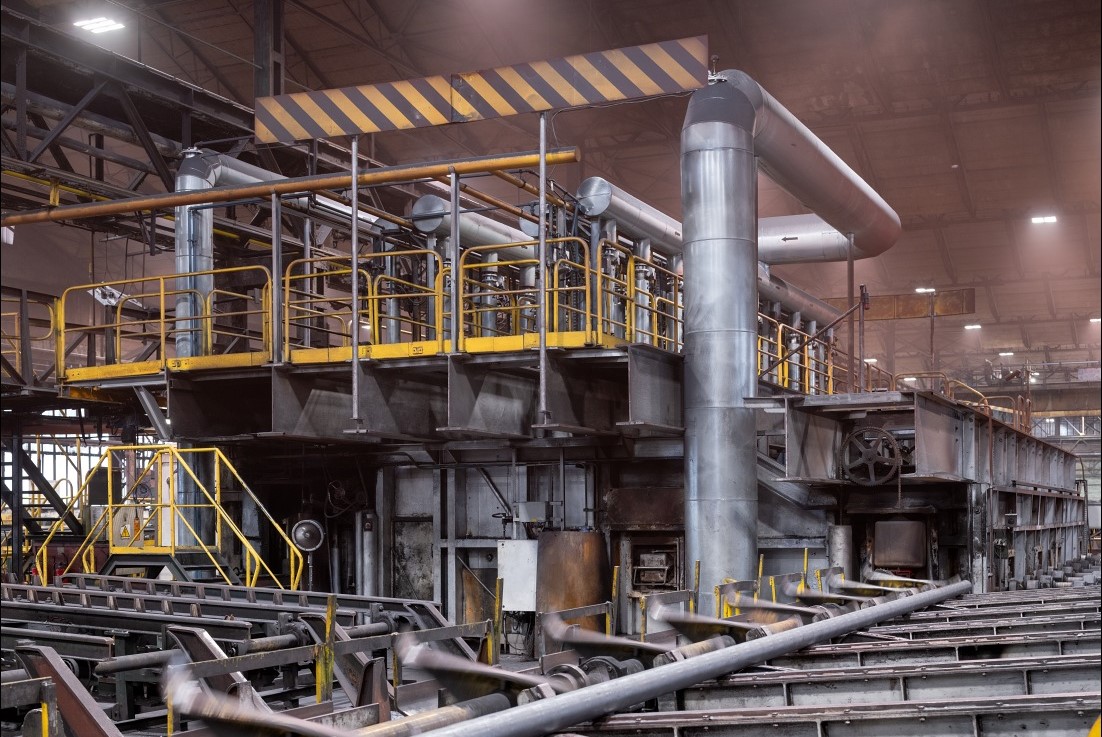

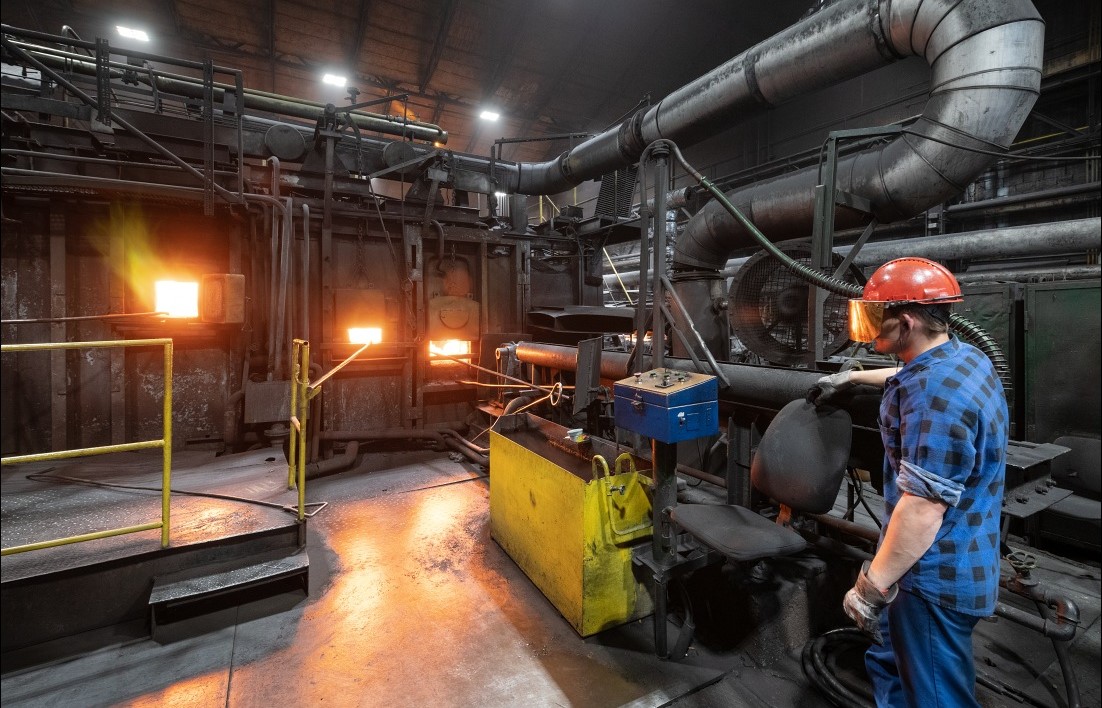

- Bloom preheating

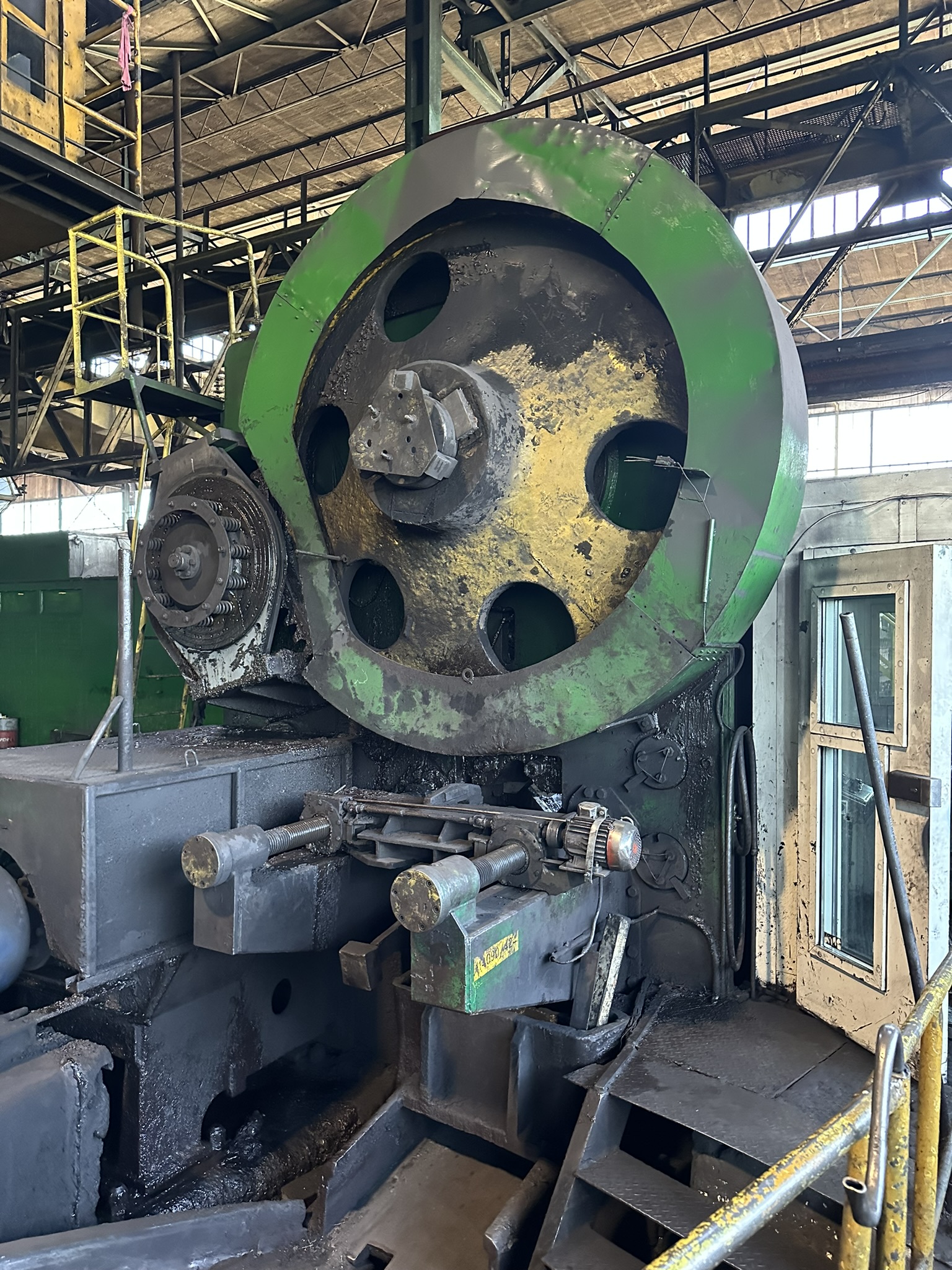

- Bloom cutting
- Heating in rotary furnace

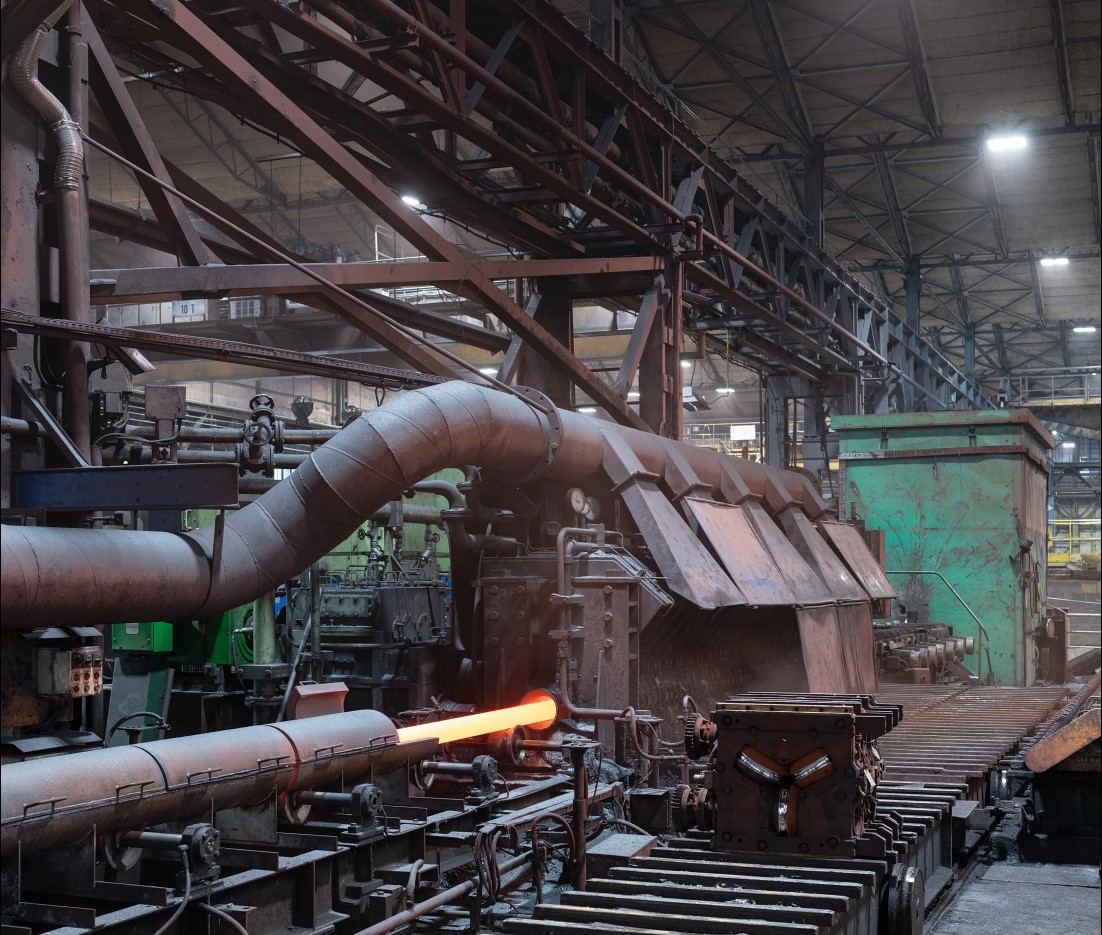

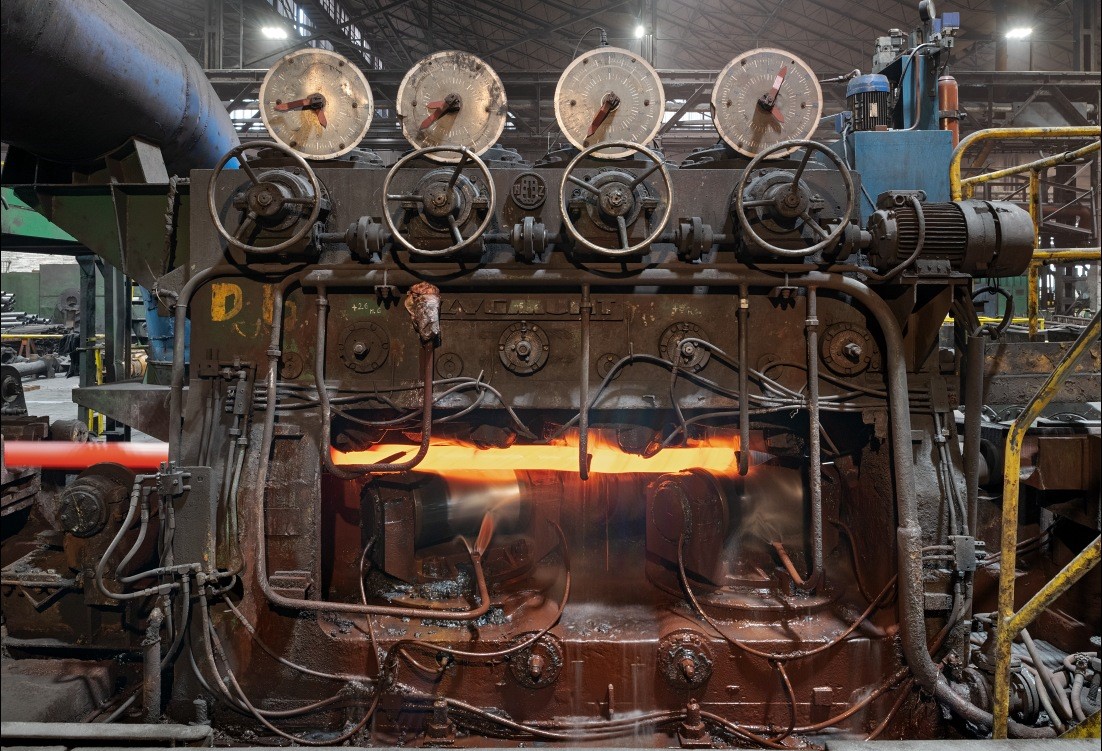

- Calibrating press

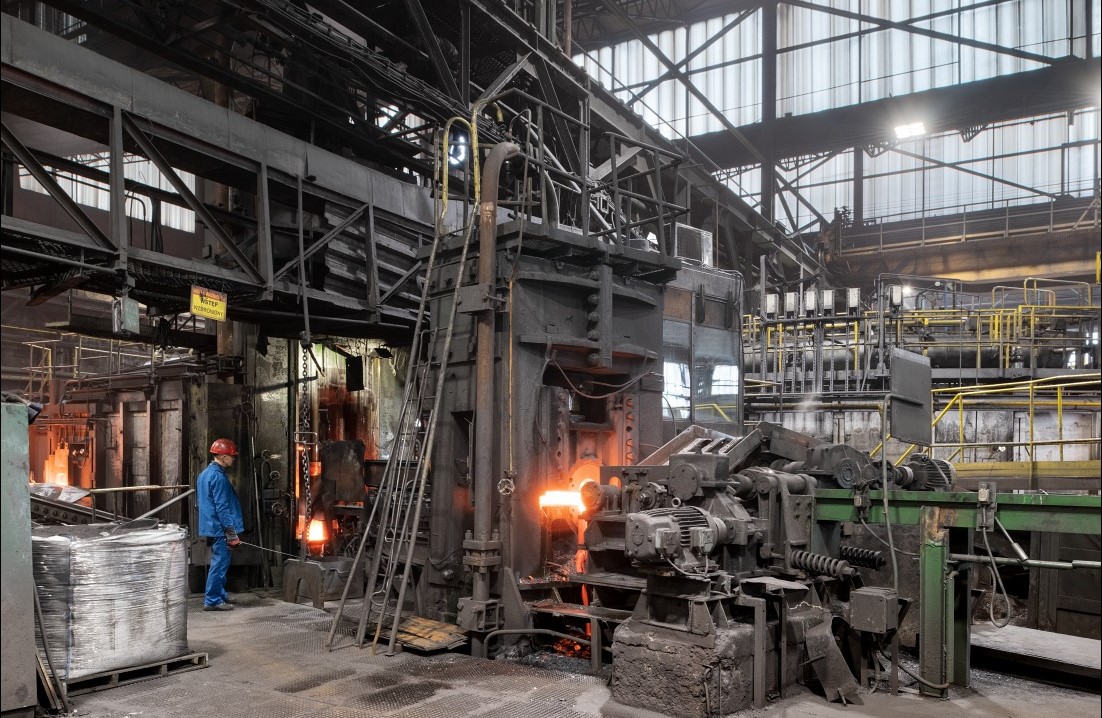

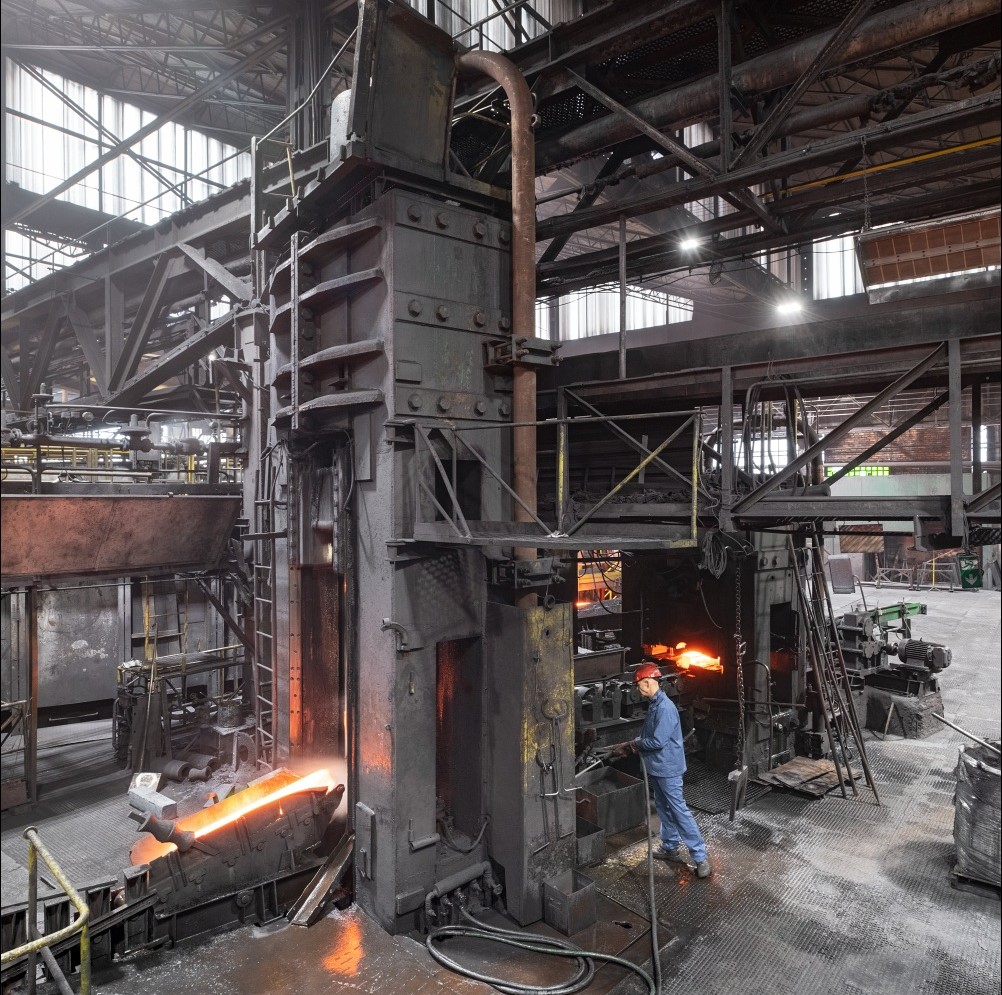

- Piercing press
- Intermediate reheating
- Elongating cross rolling

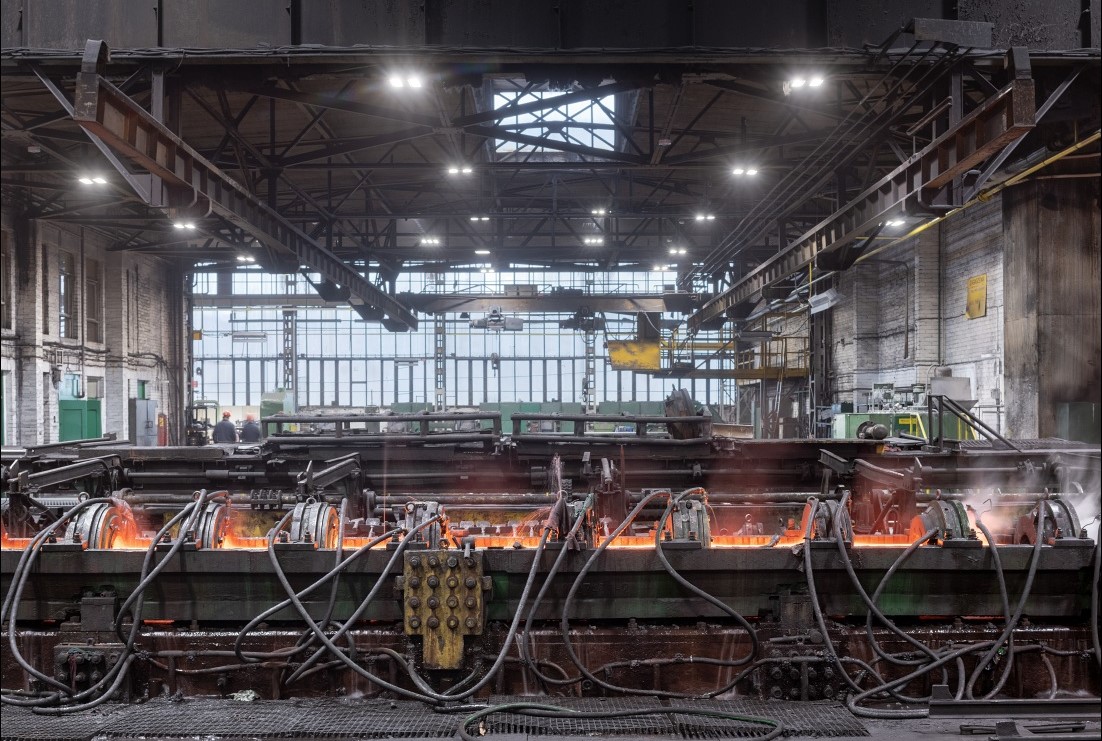

- Push bench rolling
- Reeler mill
- Mandrel drawing
- Bottom and end cutting
- Reheating in walking beam furnace
- Scale removing
- Stretch reduction rolling
- Hot-sawing of tubes

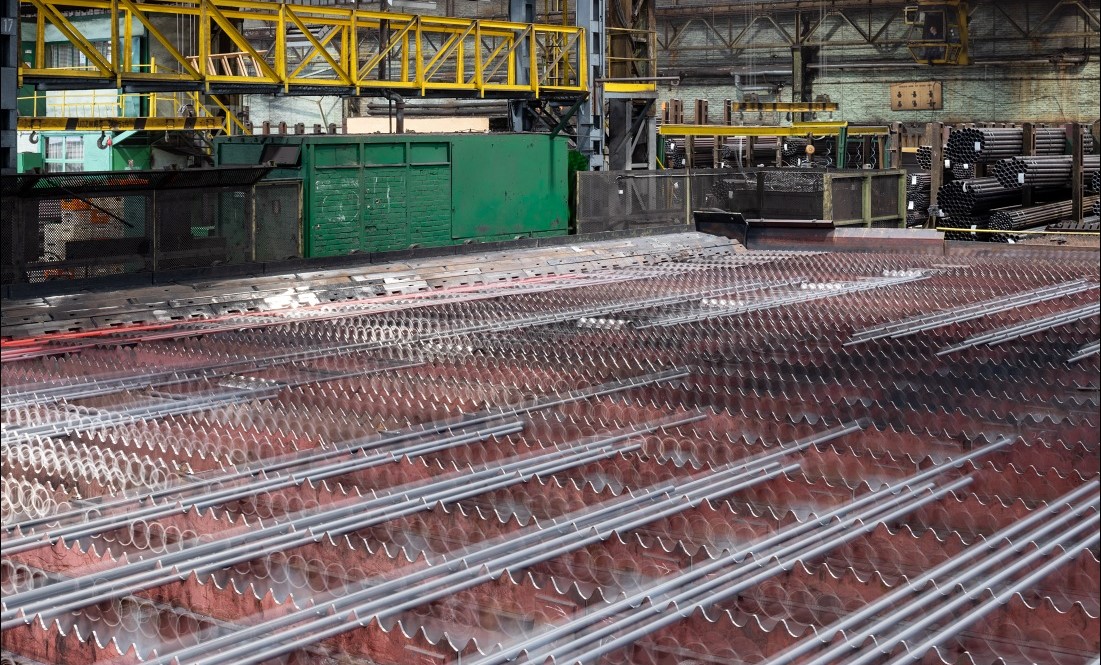

- Cooling of tubes
- Straightening
- Cut to exact length
- End finishing
- Tube heat treatment
- Hydrostatic test
- NDT – Eddy Current
- NDT – Ultrasonic
- Inspection of surface and dimensions
- Laboratory testing
- Tube marking
- Weighing, Measurement of length, packaging
Project Value
End-to-end project management covering acquisition, disassembly, logistics, and compliance — executed with precision and global fluency.
See It in Action

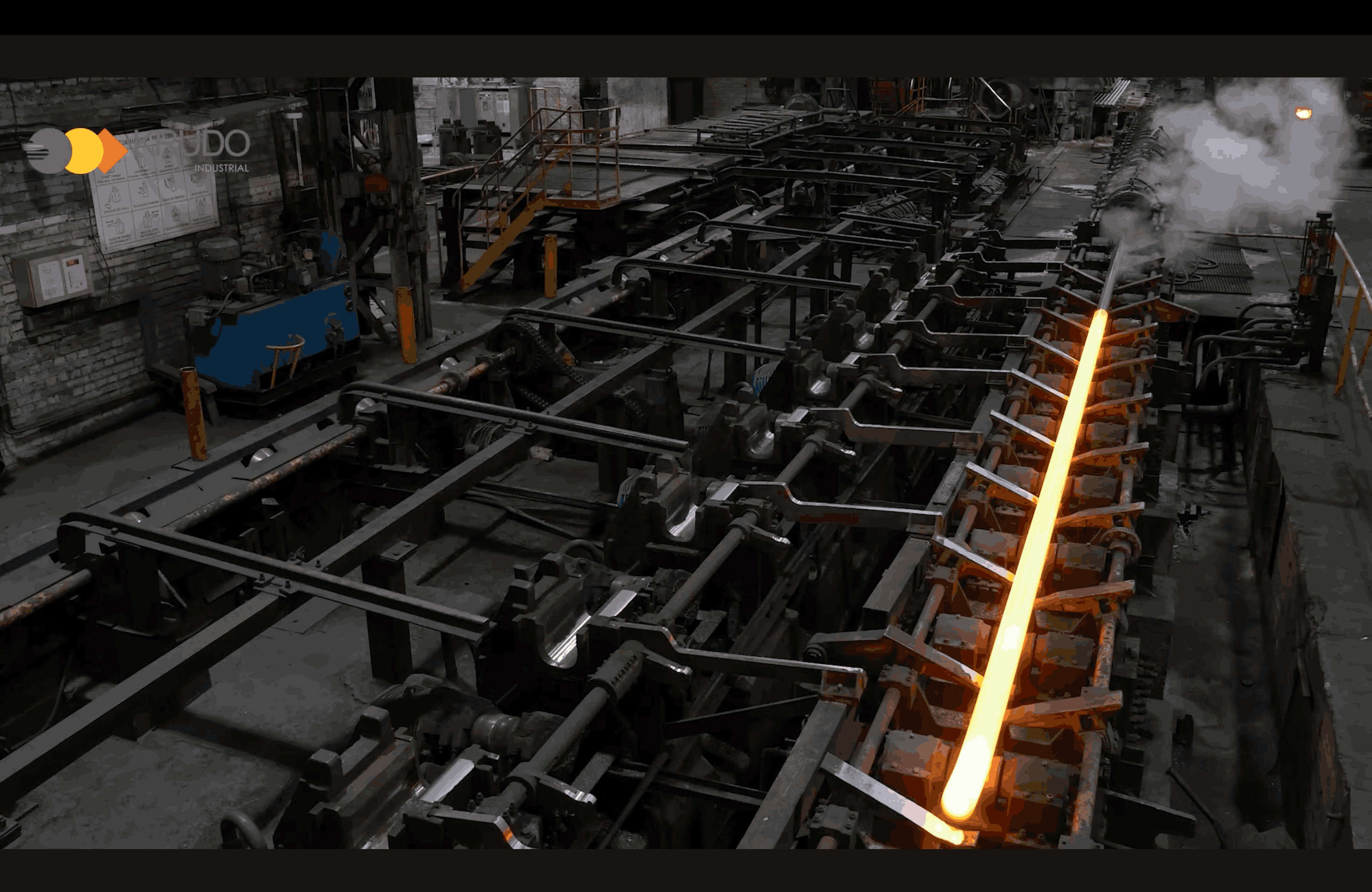

Watch the factory - capturing its quality in a real production environment.
