58. Fully Automated Forging Hammer Line (2023)
SCHULER KGH 6.3B (63 KJ)
Short-Stroke Die Forging Hammer Production Line
Fully automated forging hammer line featuring a 63 kJ SCHULER KGH 6.3B hammer, tilting device, step conveyor, cold conveyor belt, conductive heating system, transfer gripper, hot conveyor belt, 2 forging robots, safety fence, exctraction robot, and output station.
Industry
Forging
Sale Type
Private Treaty
Manufacturer
SCHULER
Country
Germany
Product Line Type
Forging Hammer Line
Year of Manufacture
2023
Model
KGH 6.3B
Maximum Working Capacity
63 kJ
Line Description
The complete line consists of the following machines:
- Tilting Device, Stahlmann
- Step Conveyor, Stahlmann
- Cold conveyor belt

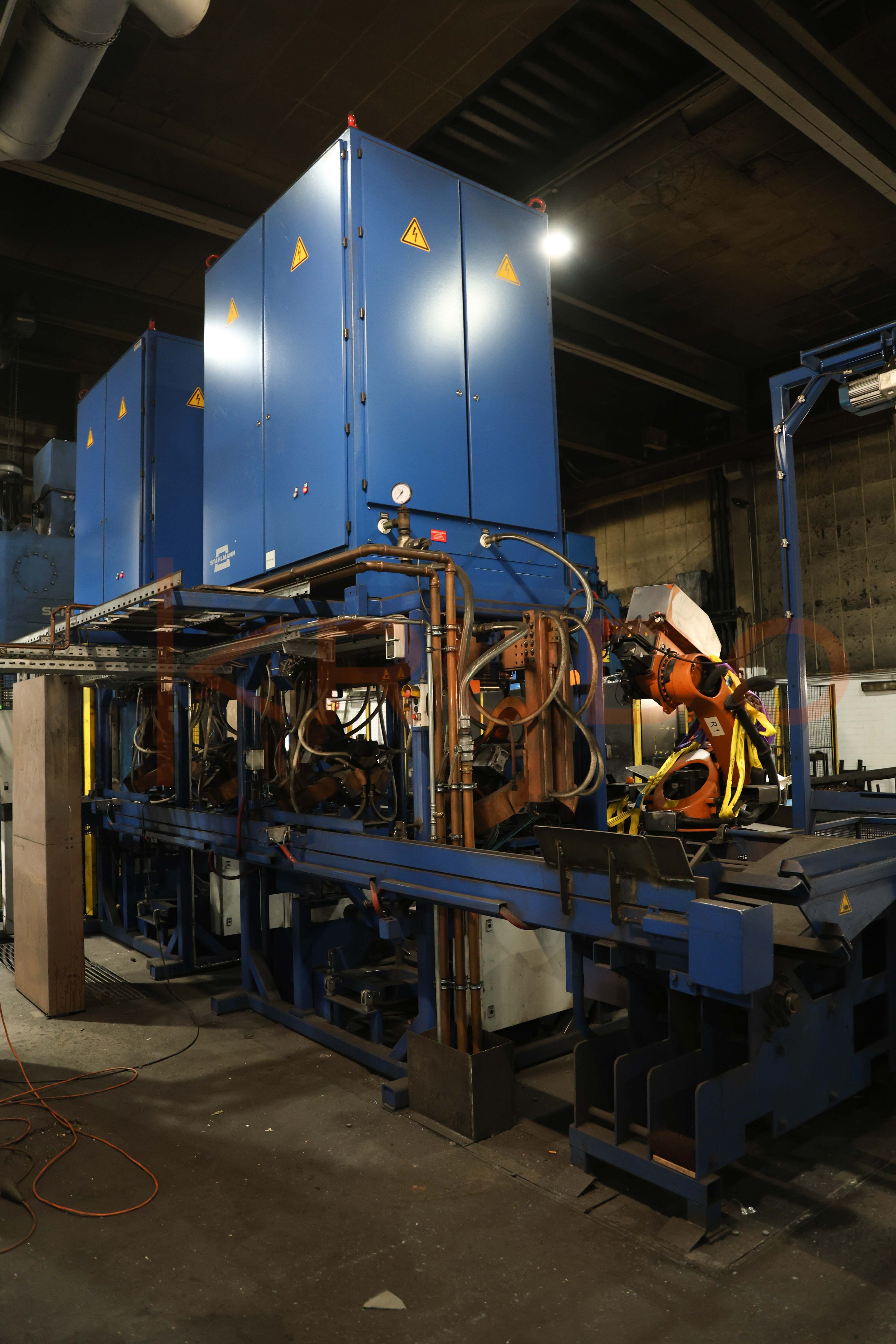

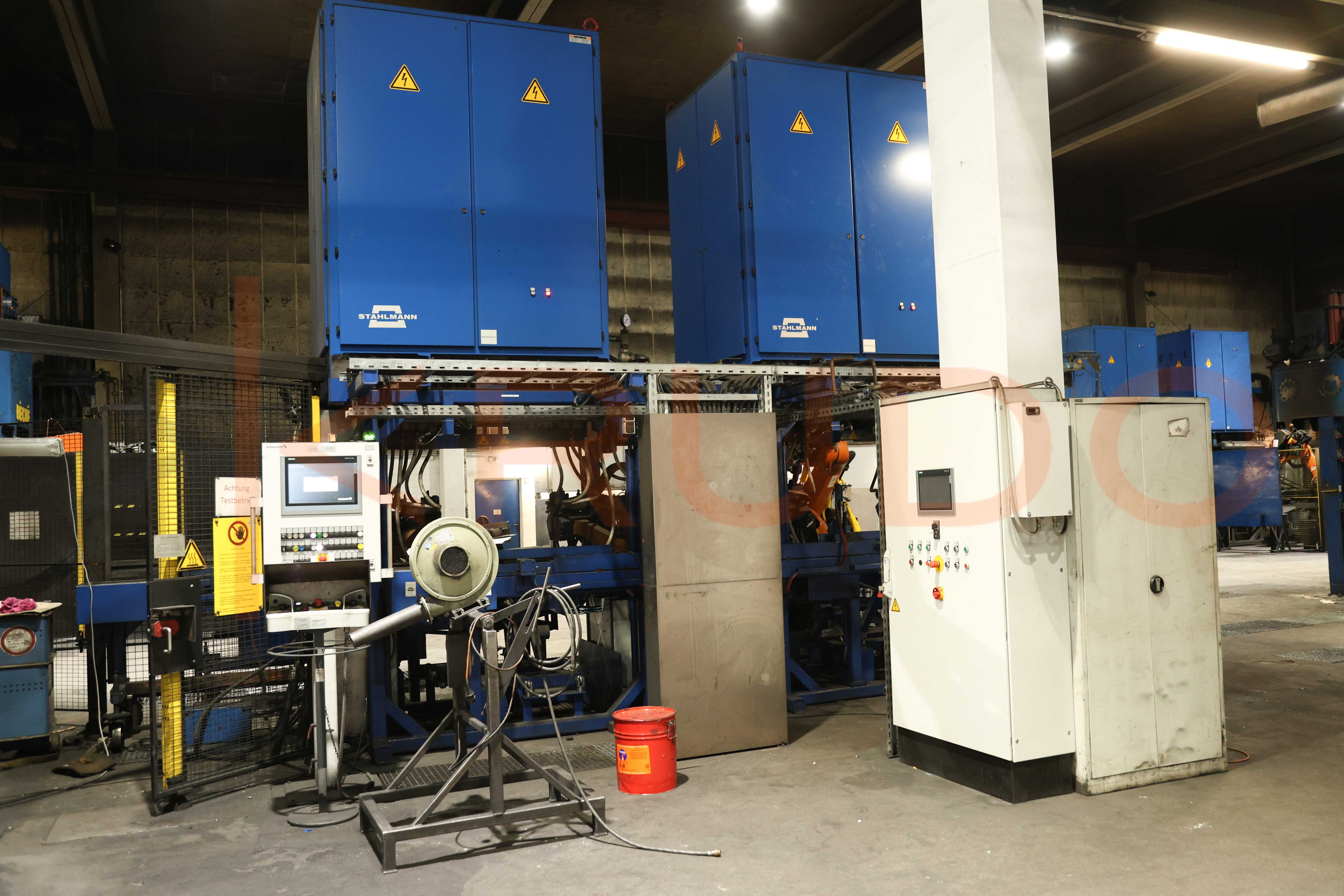

- Conductive Heating System, Stahlmann, E89, 2023
- Transfer Gripper
- Hot Conveyor Belt with Lifting Device

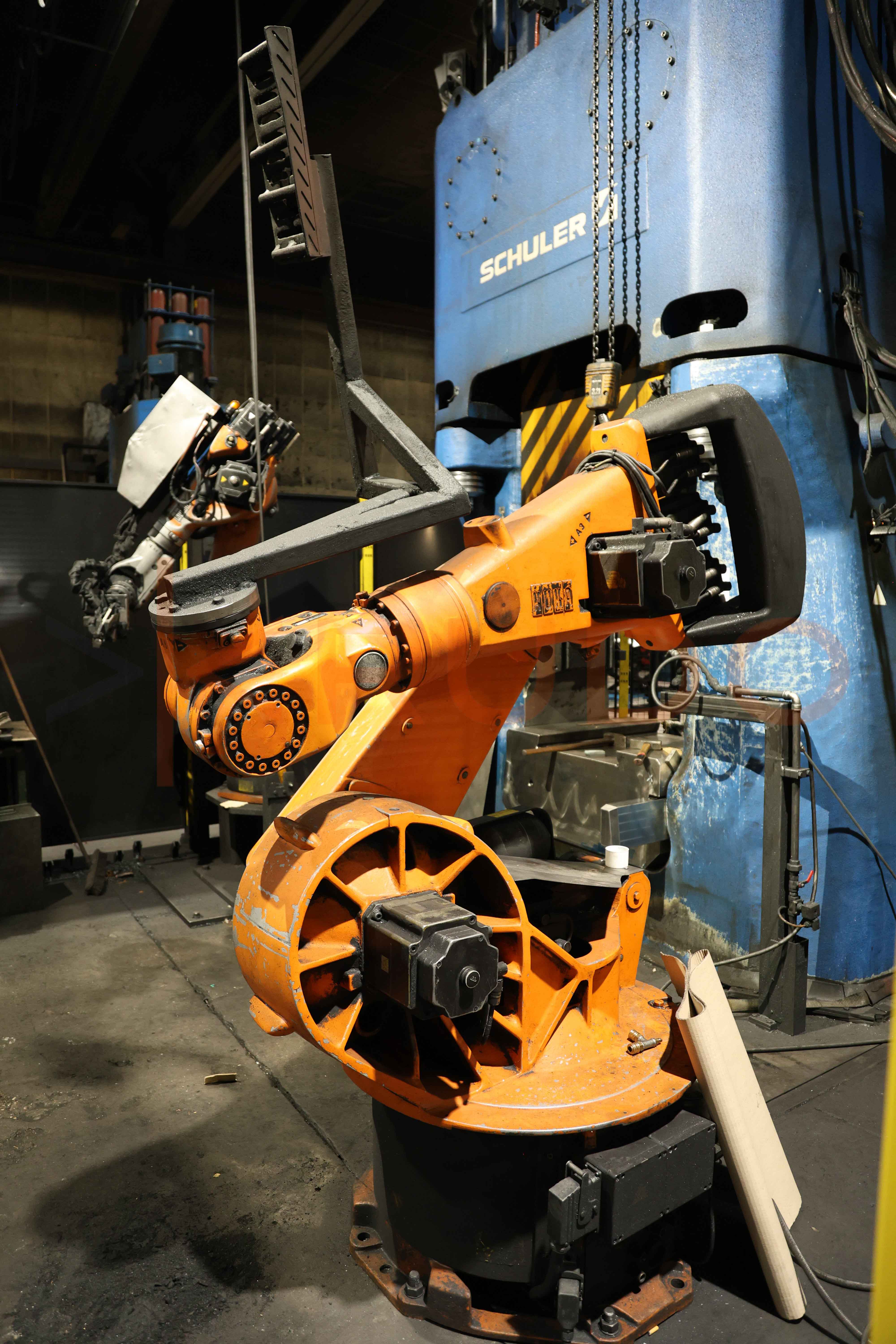

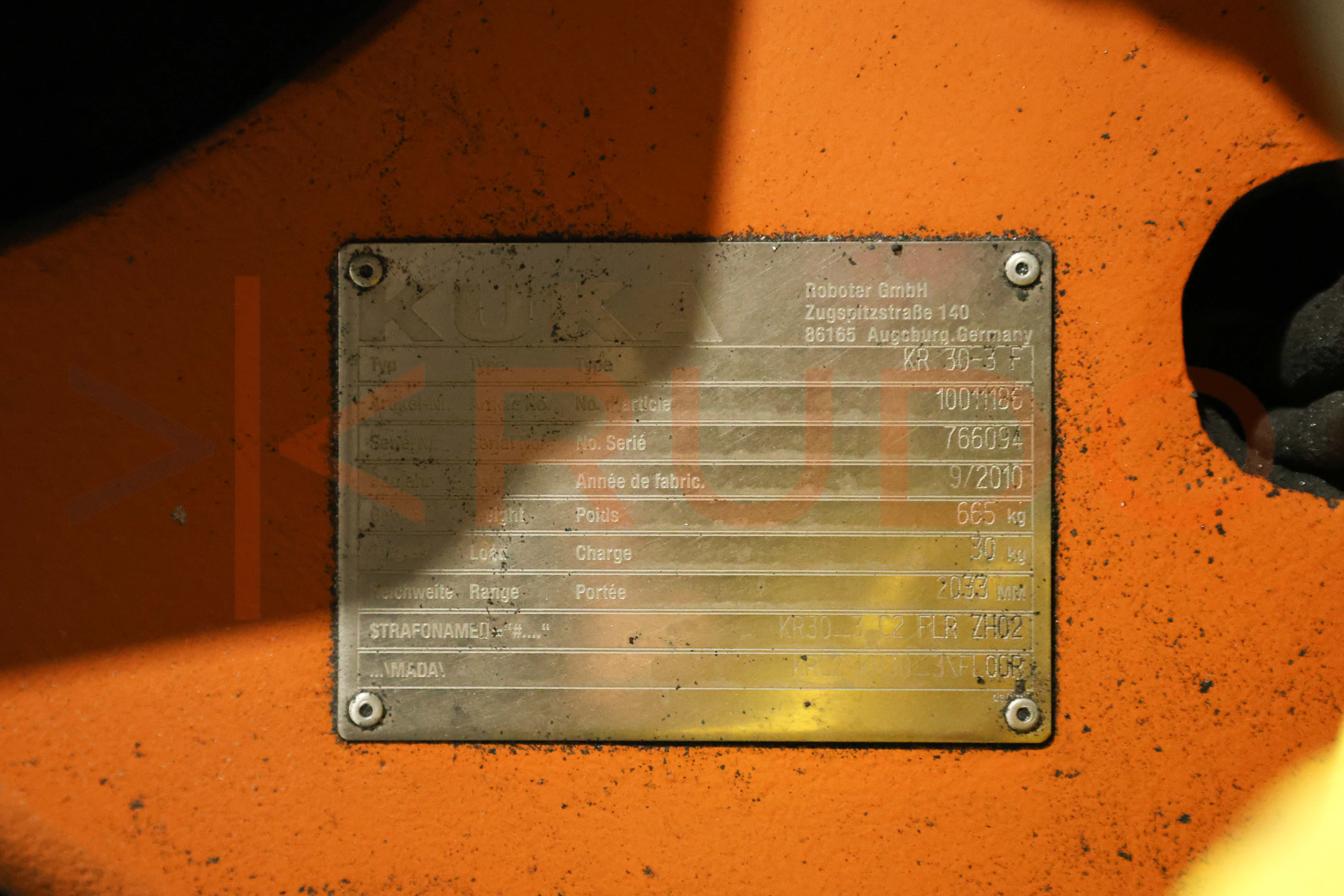

- 2 Forging robot, Kuka, KR 30-3F, 2010
- Safety Fence with Safety Doors

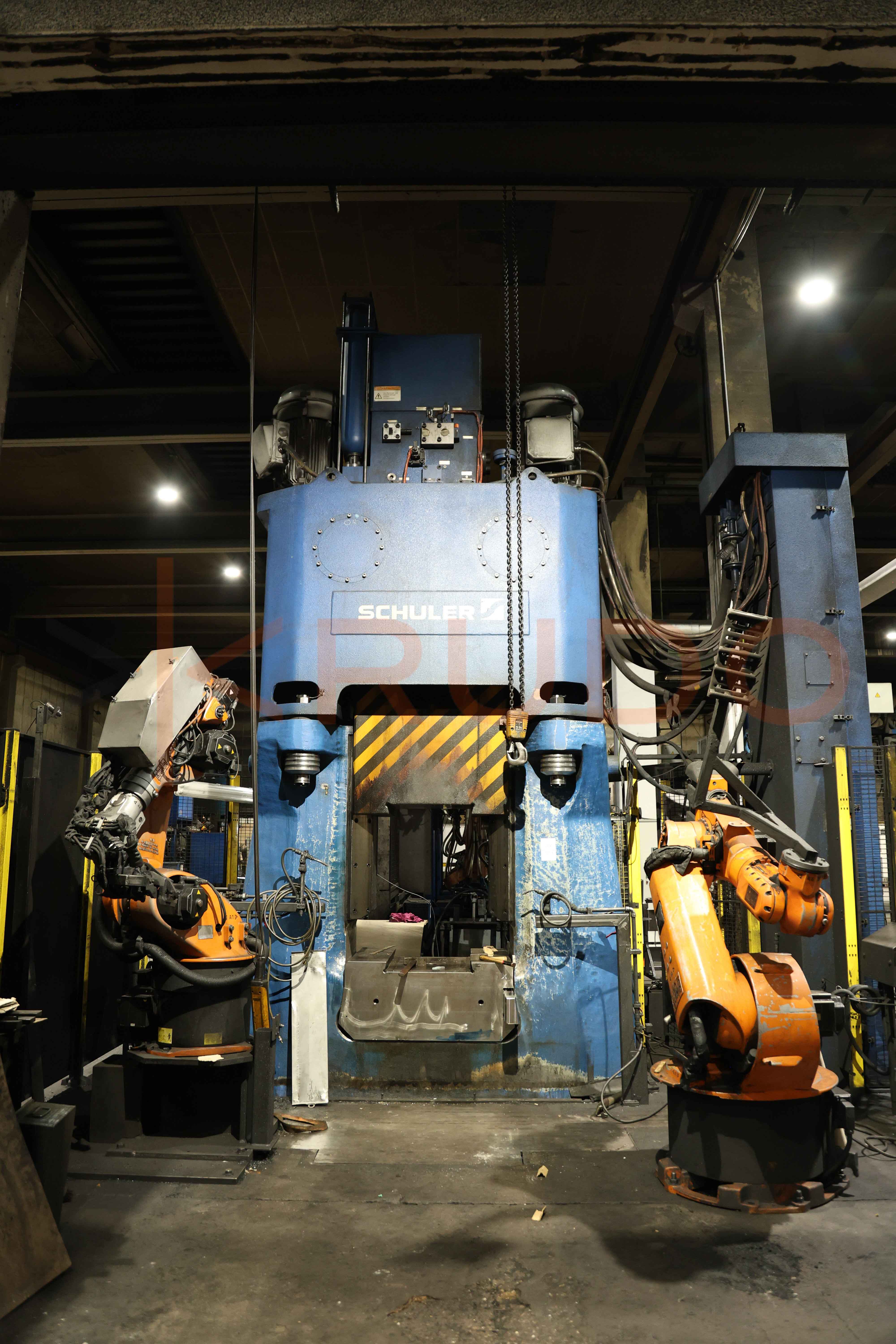

- Short-Stroke Die Forging Hammer, Schuler, KGH 6.3B, 2023
- Discharge / Extraction Robot, Kuka, KR 150/2, 2010
- Output Station, Stahlmann, 2010
Technical Details

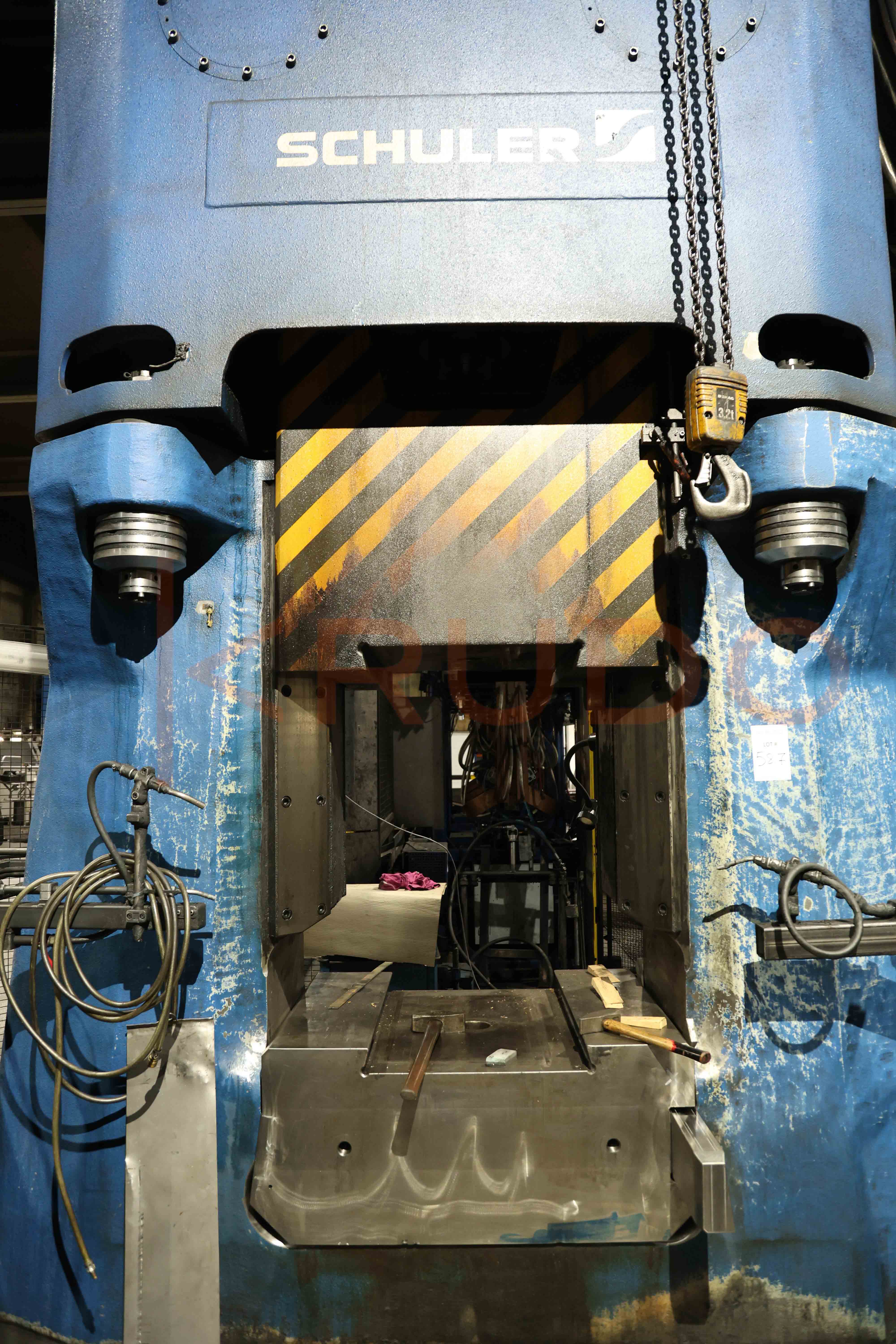

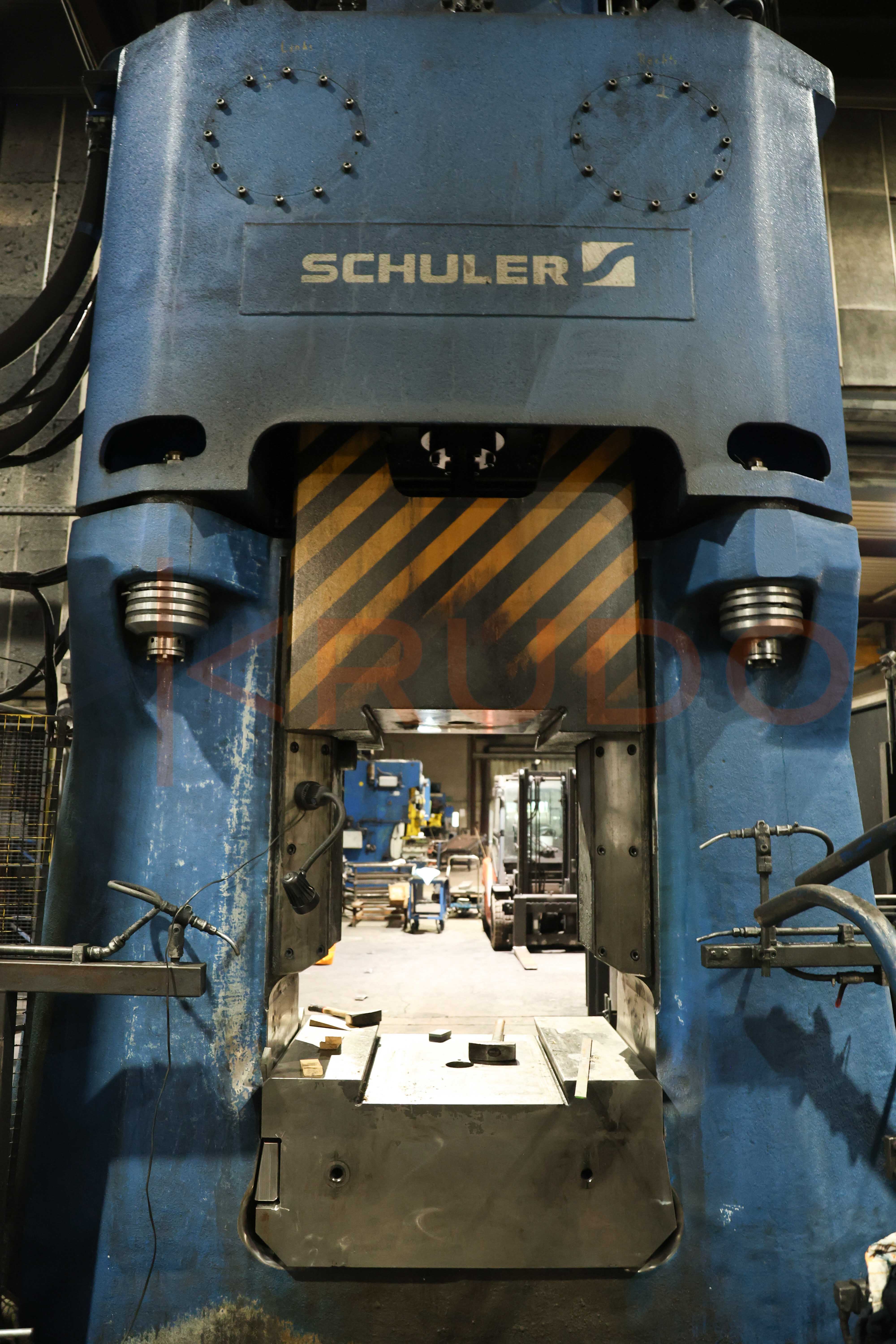

(2023) Short-Stroke Die Forging Hammer SCHULER KGH 6.3B
- Machine identification data
- Name: Short-Stroke Die Forging Hammer
- Model: KGH 6.3B
- Machine number: 119820
- Year of manufacture: 2023
- Operational parameters
- Working capacity max. 63 kJ
- Max. impact frequency 98/min
- Max. usable impact rate 42/min
- Ram speed 5,1 m/s
- Workspace
- Ram Stroke
- Min. 550 mm
- Max. 825 mm
- Die height without dovetail
- Min. total 190 mm
- Max. total 465 mm
- Clear width between guides 831 mm
- Ram depth approx. 750 mm
- Ram Stroke
- Weights
- Total machine weight approx. 95,000 kg
- Anvil bed 81,000 kg
- Dimensions
- Installation height above floor approx. 5655 mm
- Anvil bed Width x Depth: 2950 x 1880 mm
(2023) Conductive Heating System Stahlmann E89
- Machine identification data
- Name: Conductive heating system E89 with 2 modules
- Model: E89
- Machine number: E89/4583
- Year of manufacture: 2023
