56. Fully Automated Forging Hammer Line (2002)
BECHE KGH 5B (55 KJ)
Short-Stroke Die Forging Hammer Production Line

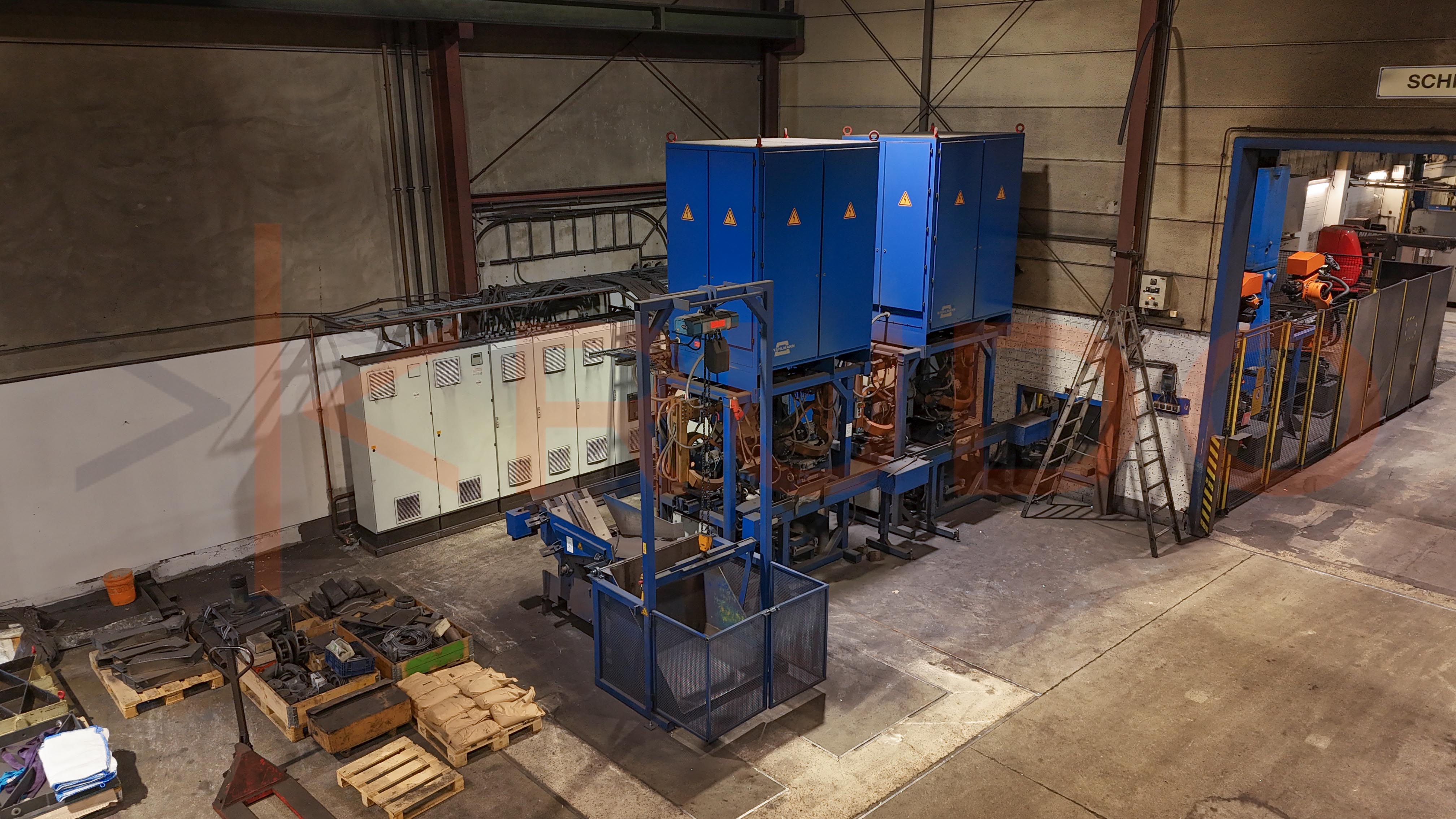

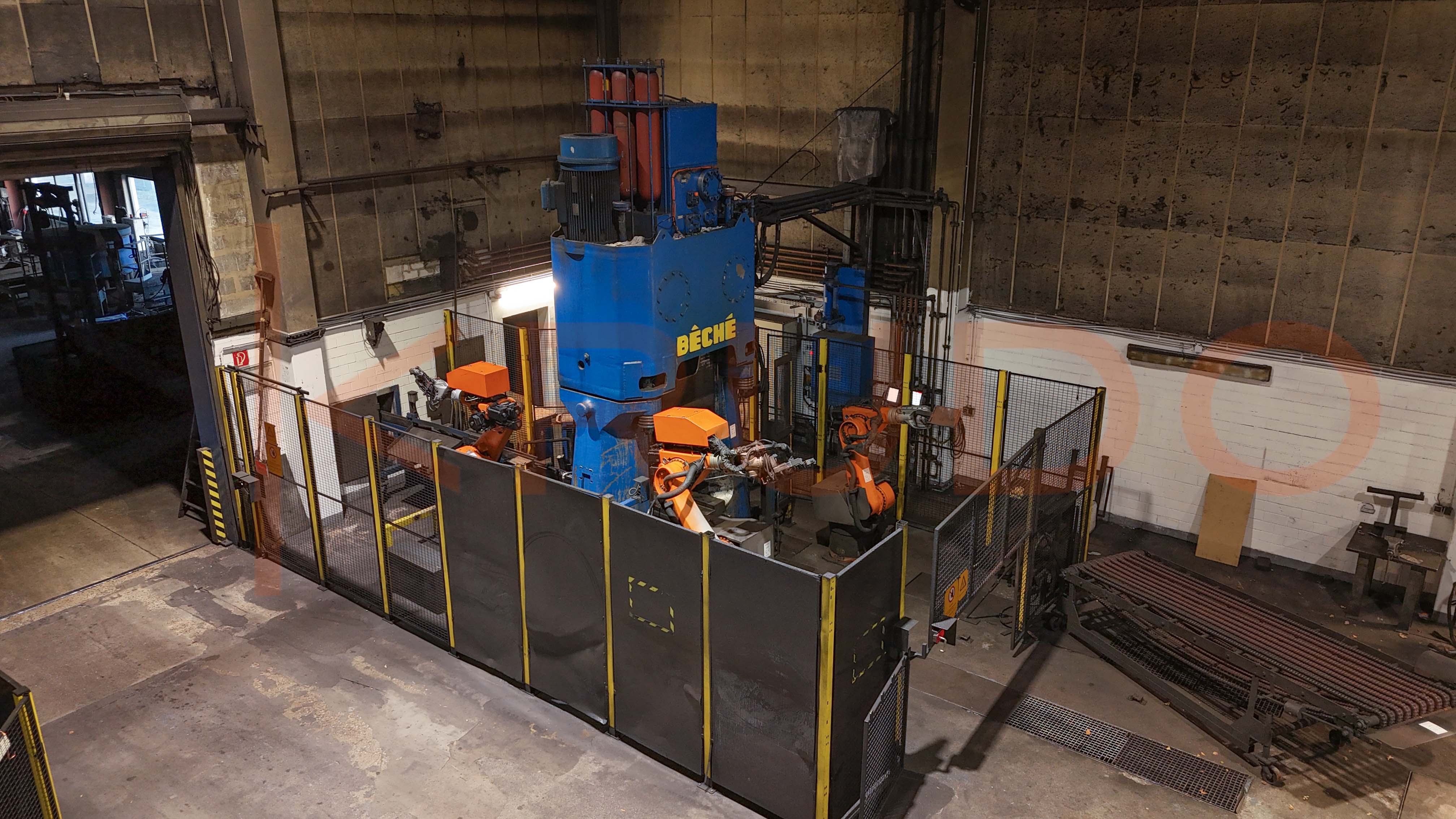

Fully automated forging hammer line featuring a 55 kJ BECHE KG H 5B hammer, tilting device, step conveyor, cold belt conveyor, conductive heating system, heated conveyor belt, forging robot, control cabinet, safety fence, extraction robot, and discharge station.
Industry
Forging
Sale Type
Private Treaty
Manufacturer
BECHE
Country
Germany
Product Line Type
Forging Hammer Line
Year of Manufacture
2002
Model
KGH 5B
Maximum Working Capacity
55 kJ
Line Description
The complete line consists of the following machines:
- Tilting Device, Stahlmann

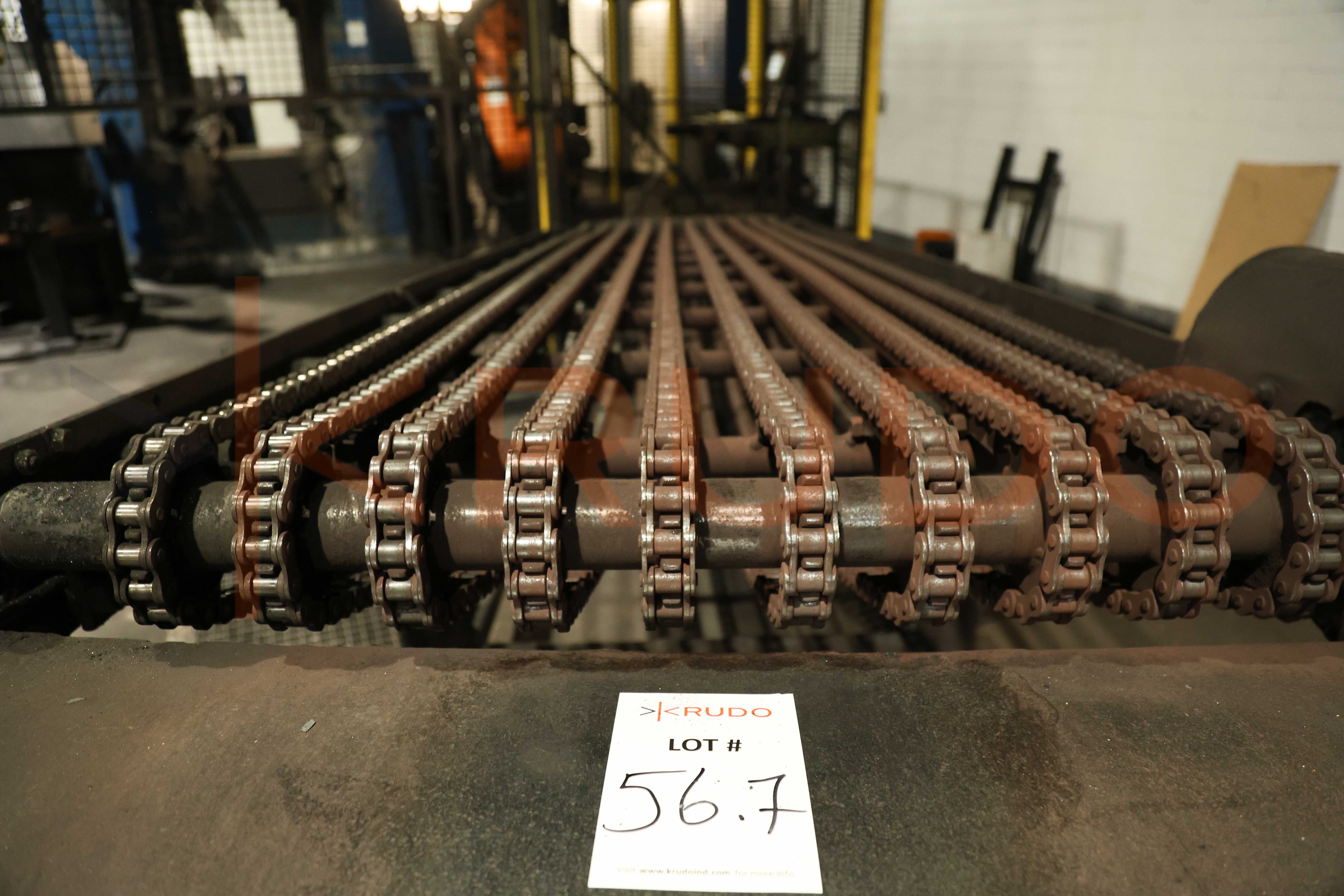

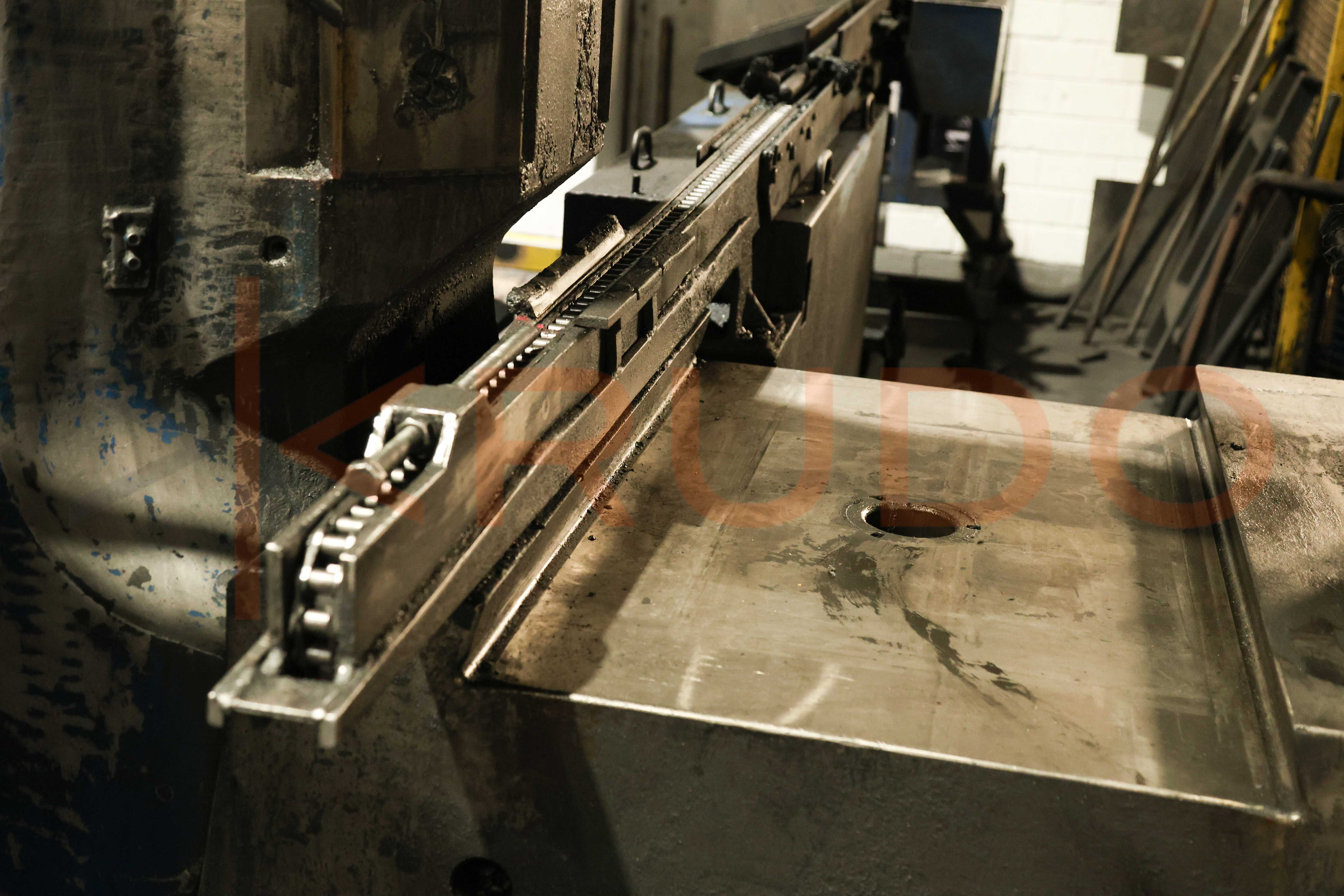

- Step conveyor, Stahlmann

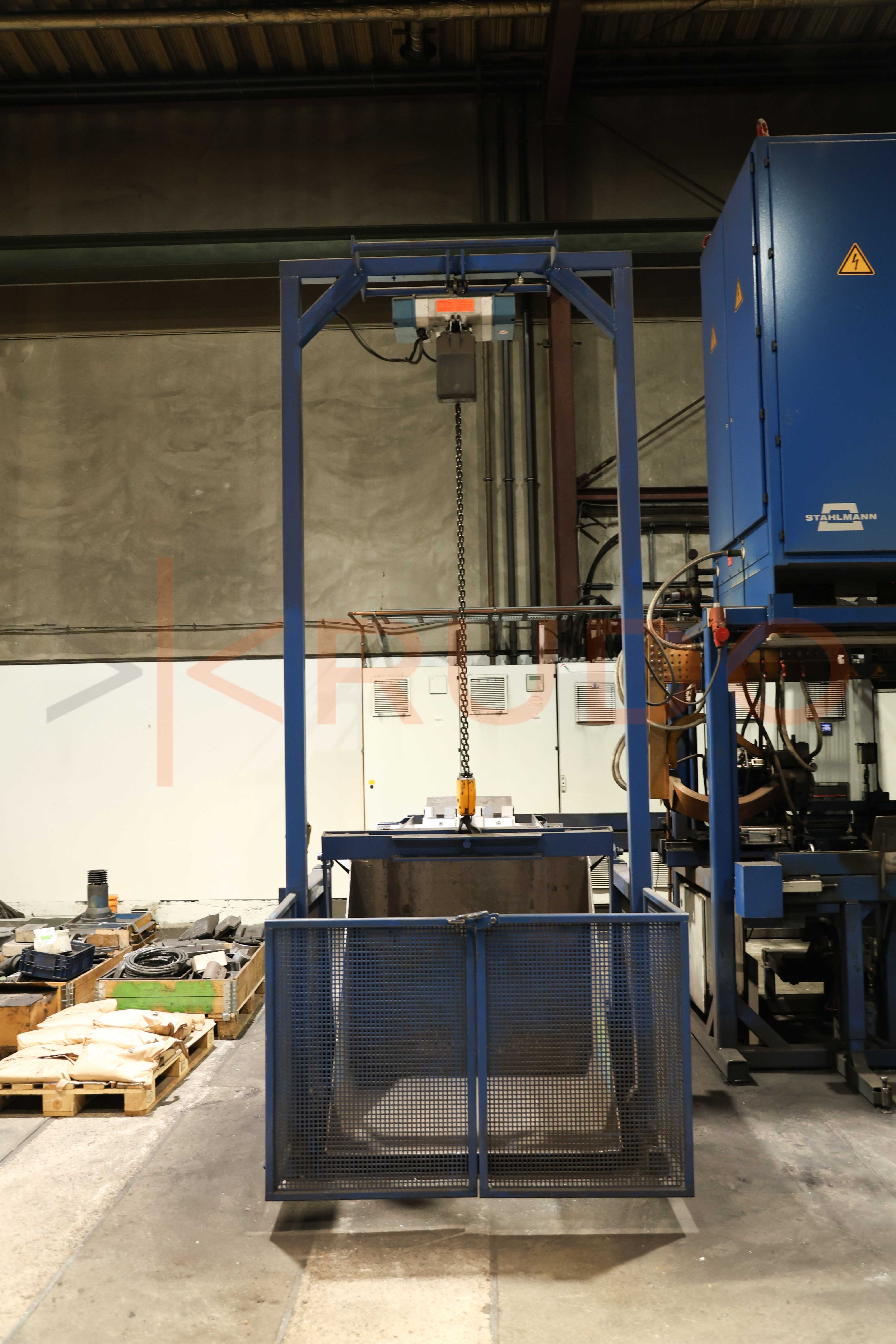

- Cold Belt Conveyor with Lifting Device

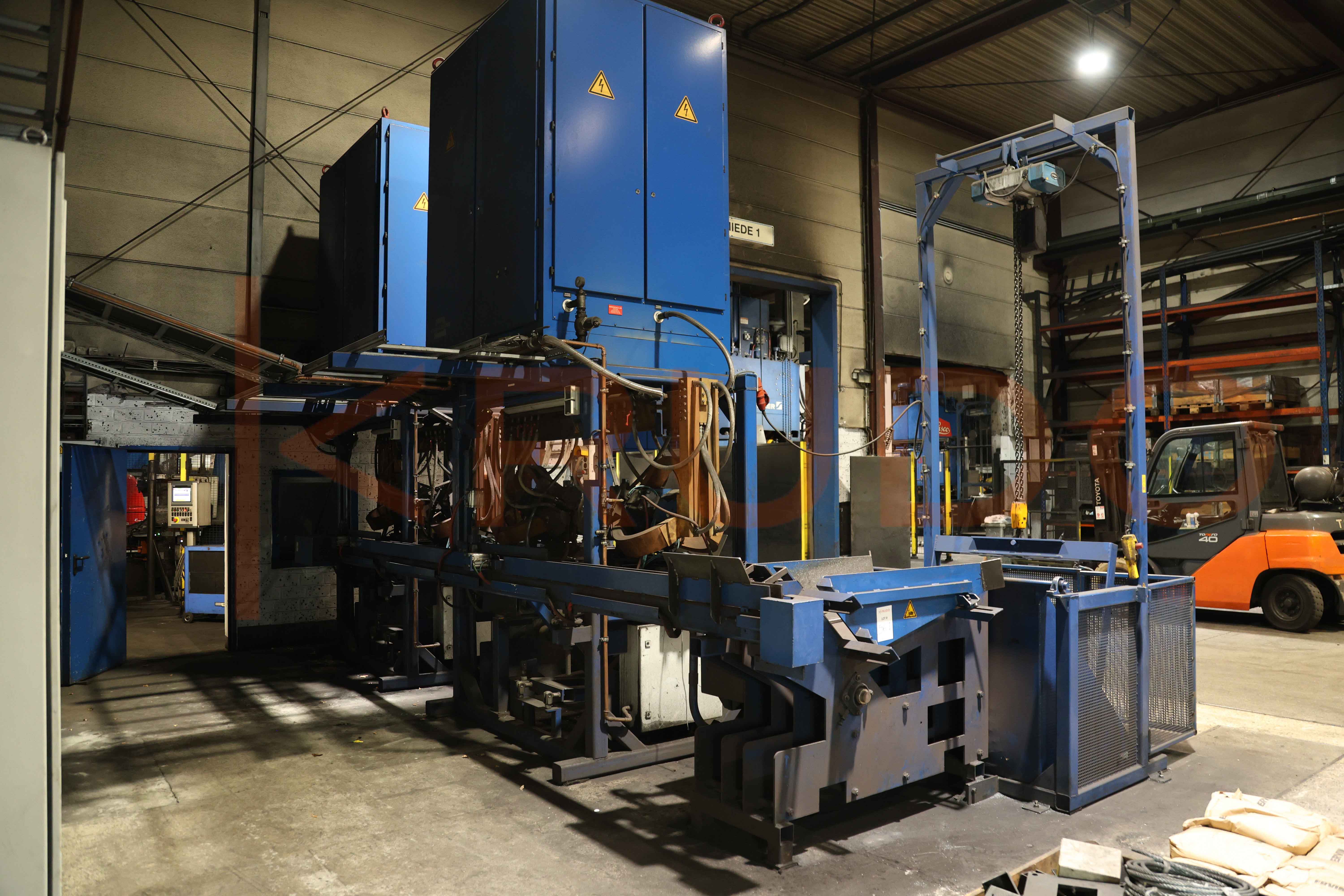

- Conductive Heating System, Stahlmann, E89, 2019
- Heated Conveyor Belt

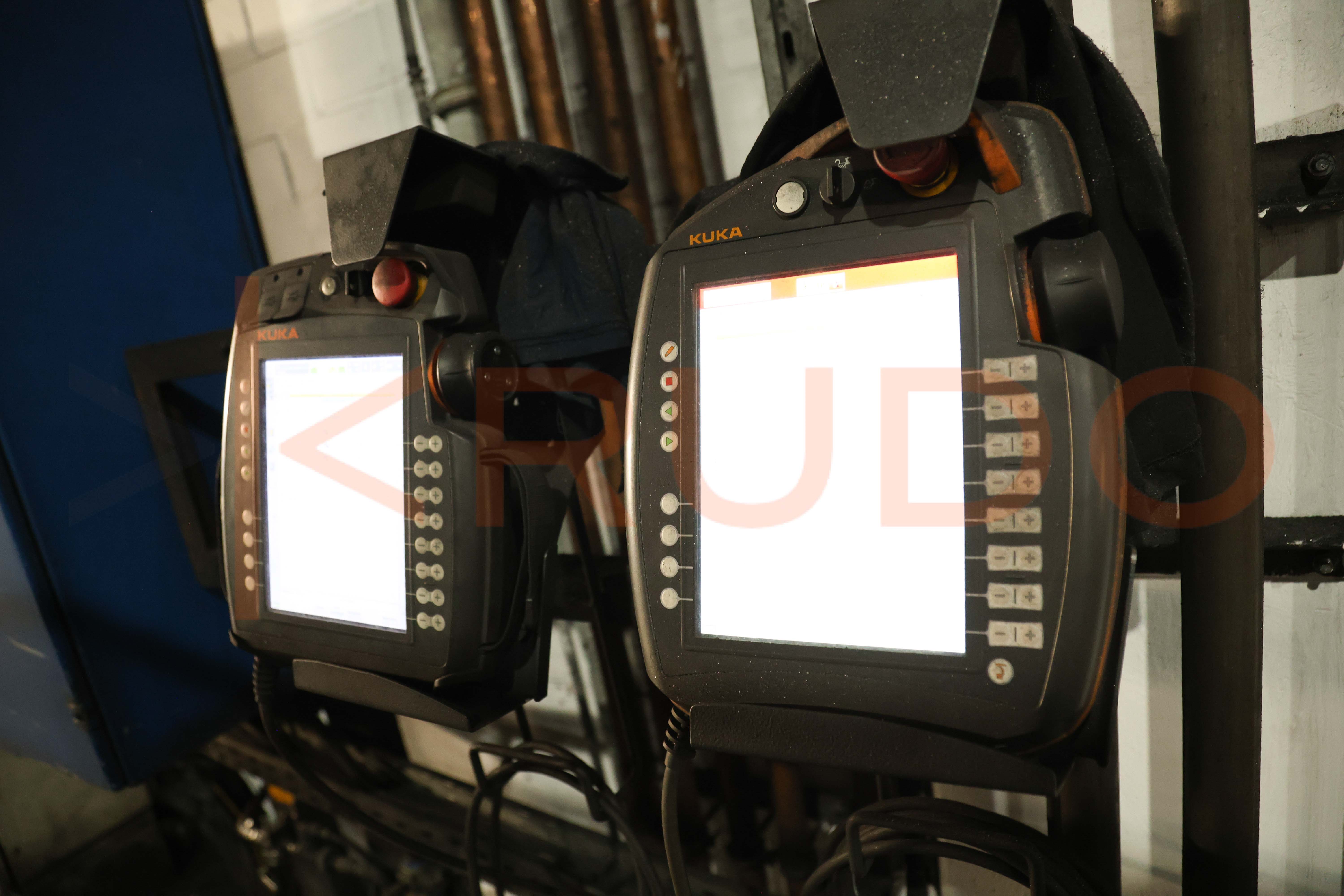

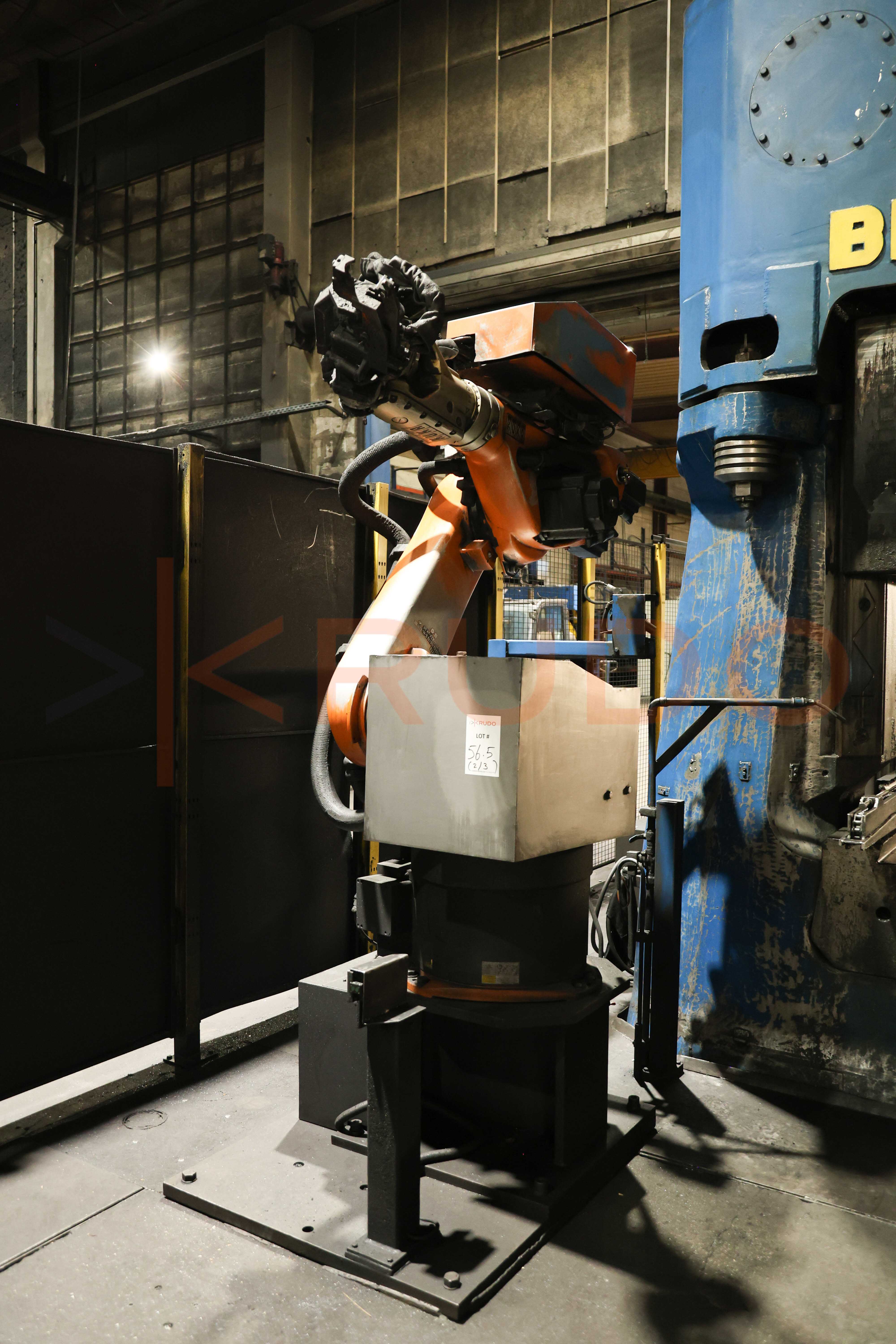

- Forging Robot, Lasco / Kuka, KR 60-3F, 2019

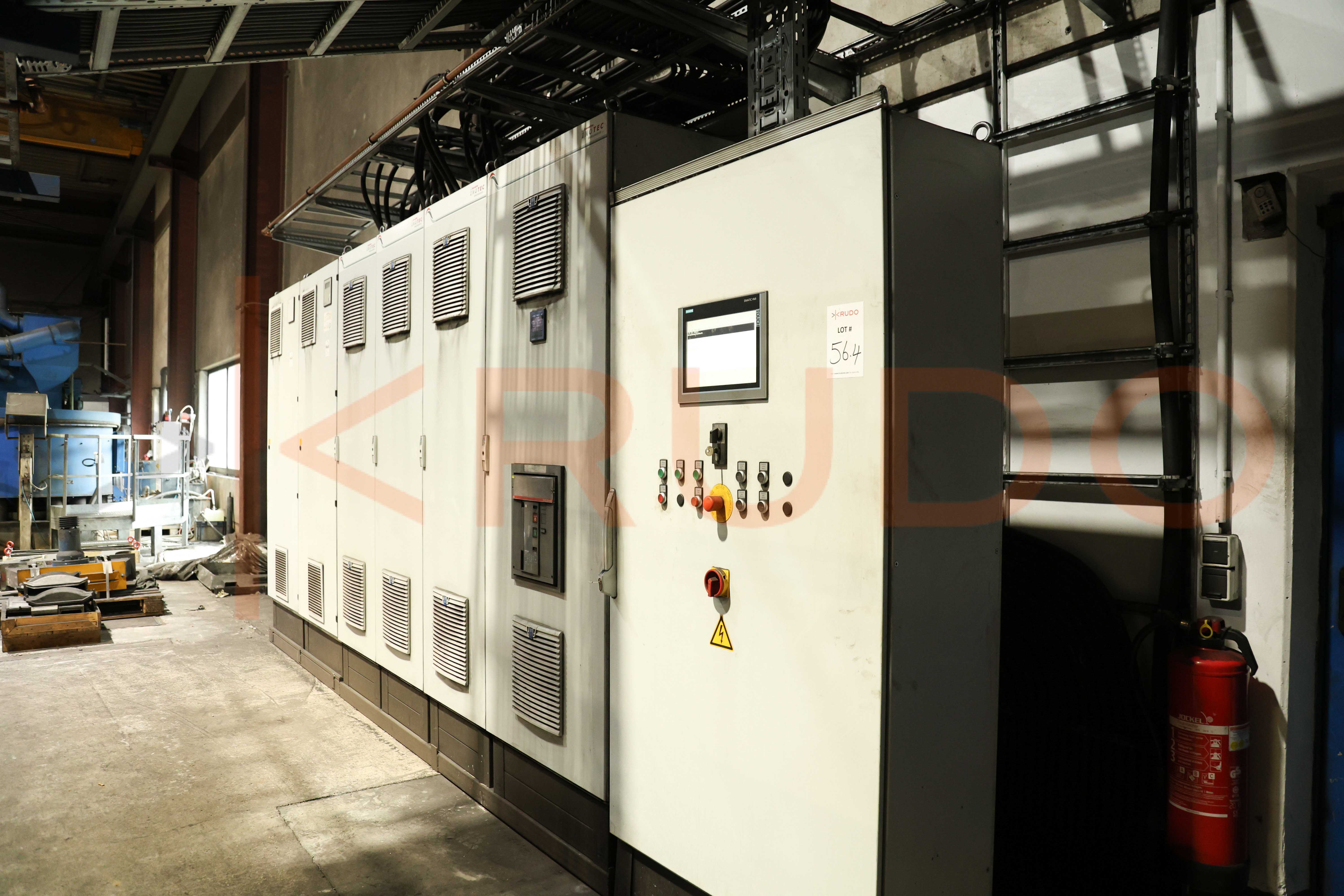

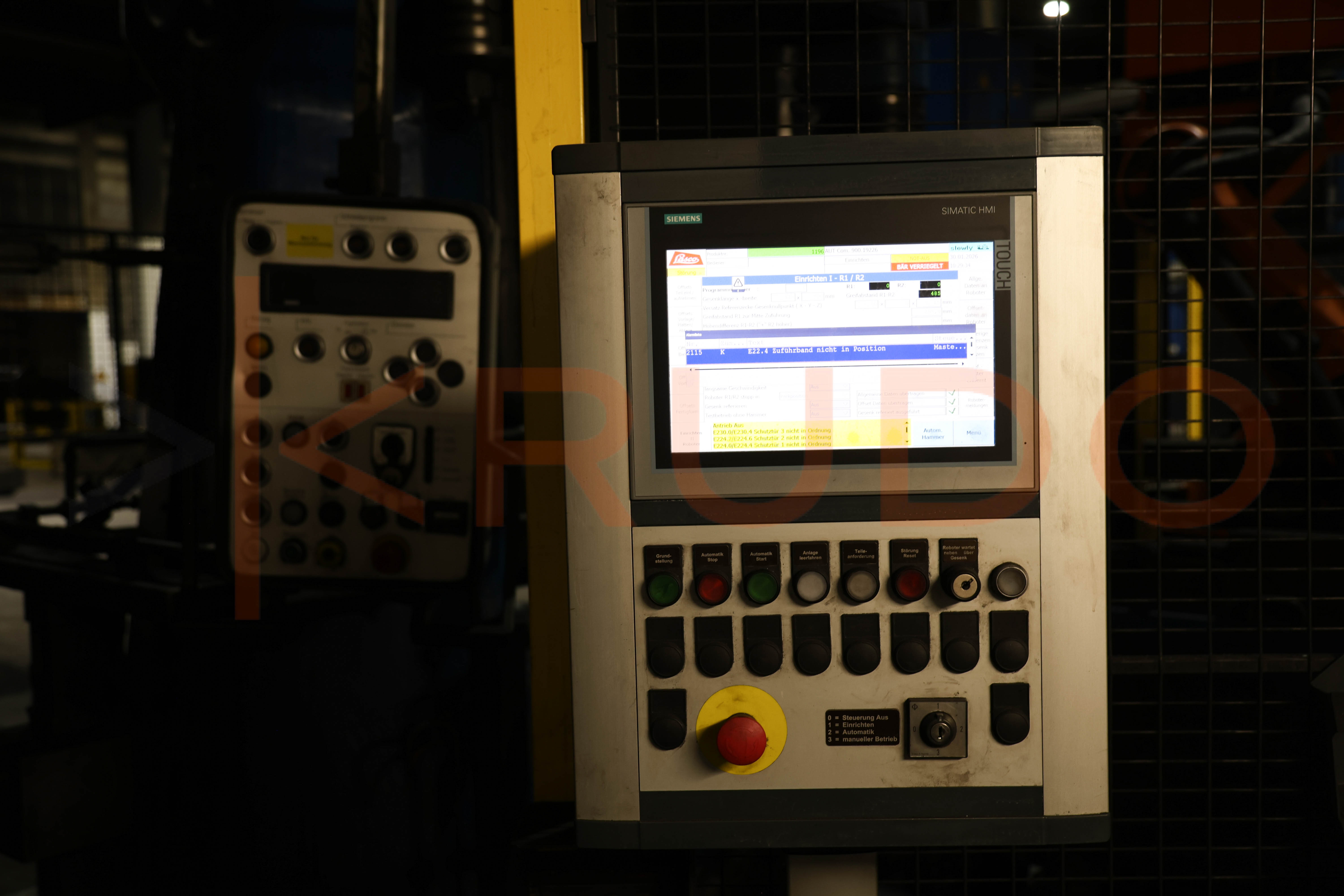

- Central Control Cabinet
- Safety Fence with Safety Doors

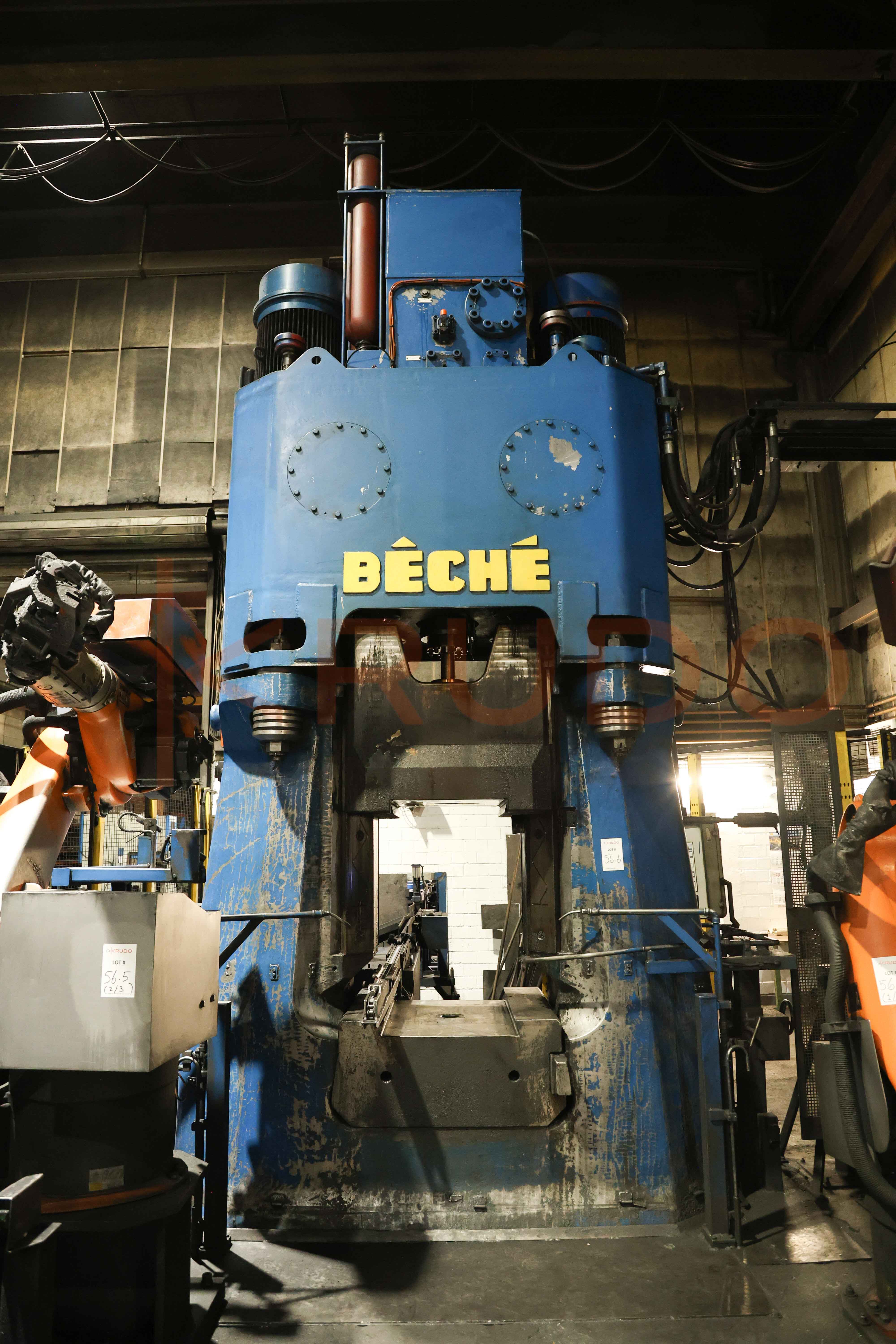

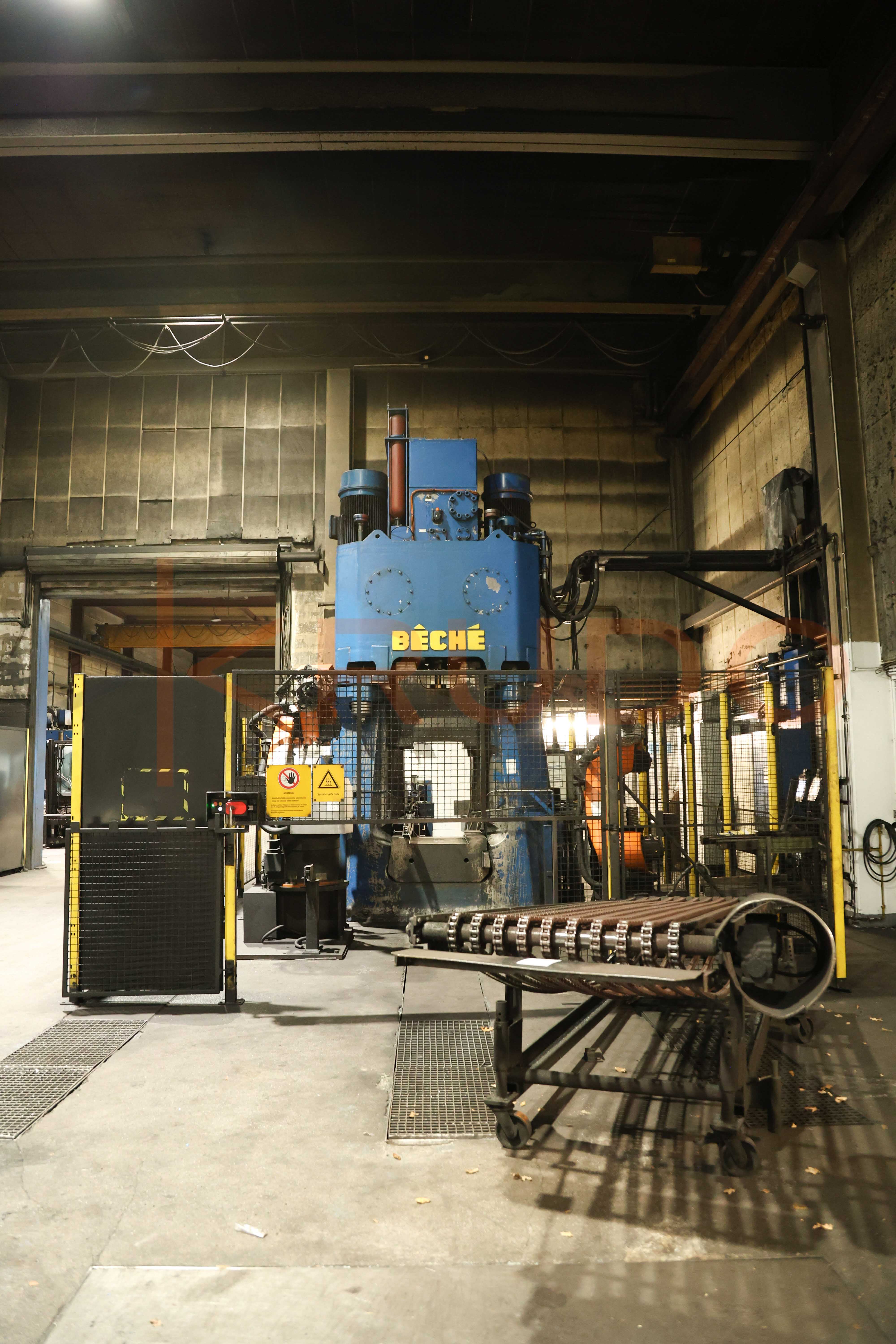

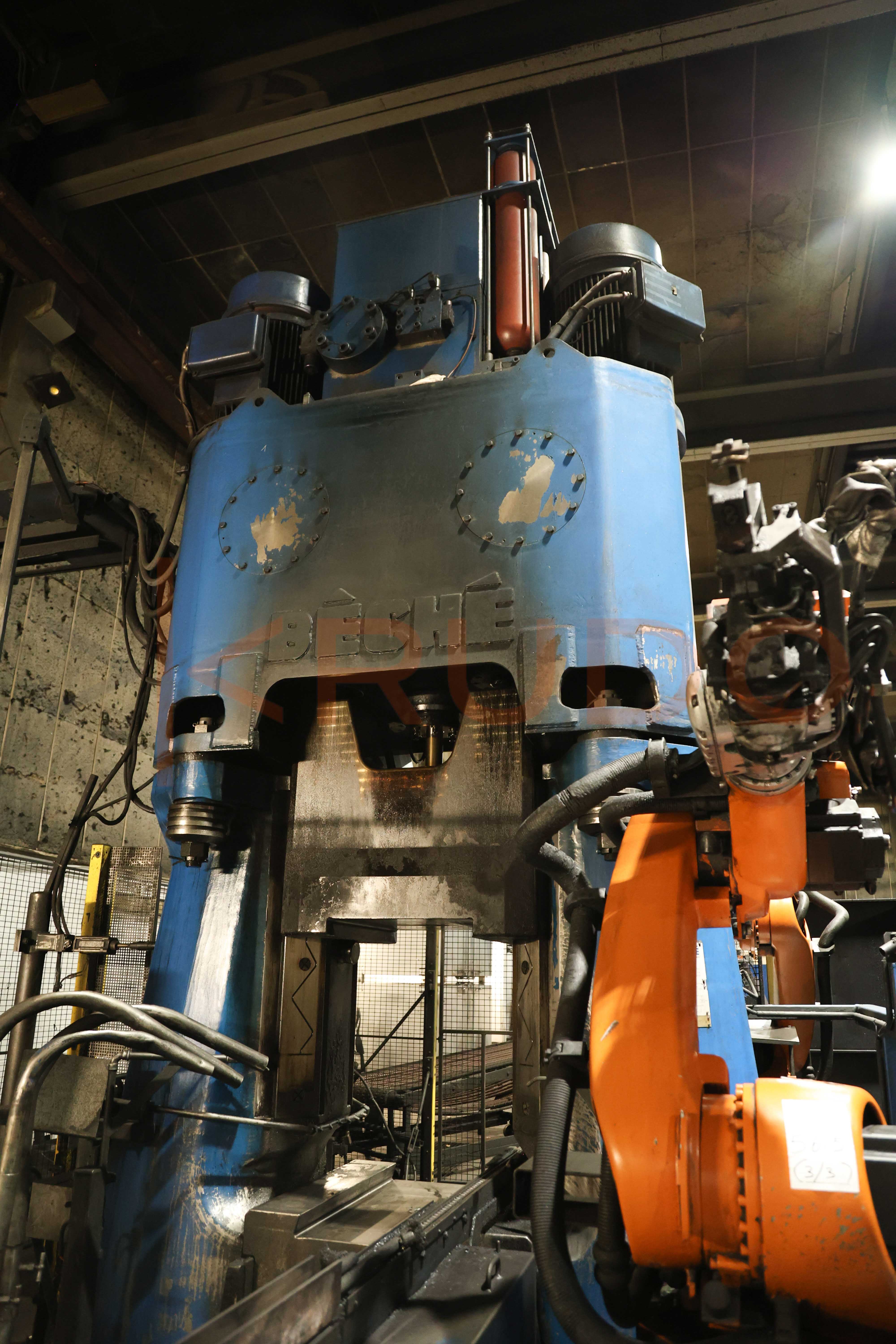

- Short-Stroke Die Forging Hammer, Müller Weingarten (Beche), KGH 5B, 2002

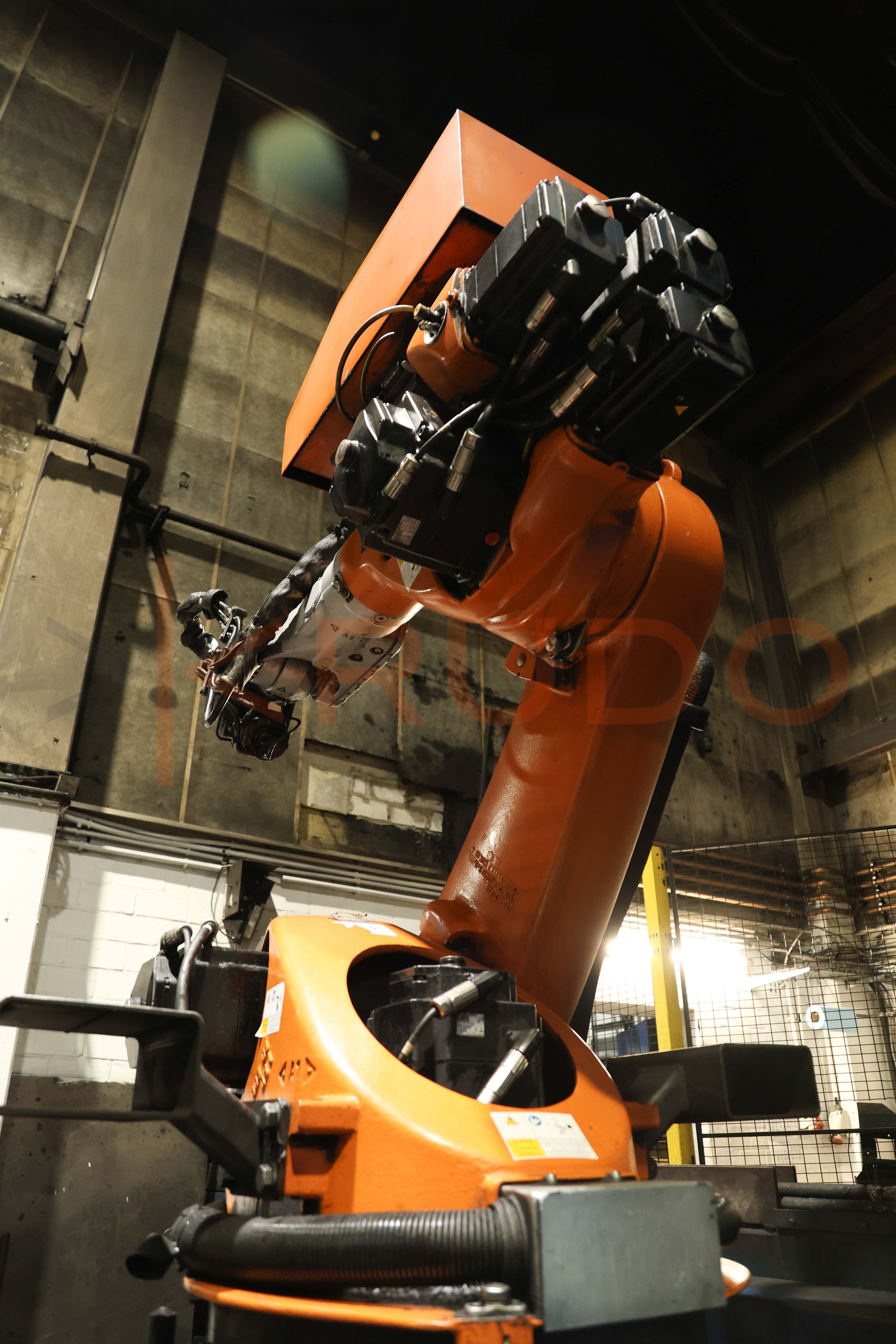

- Extraction robot, Kuka, KR 60-3F, 2019
- Discharge station, Stahlmann
Technical Details
(2002) Short-Stroke Die Forging Hammer BECHE KGH 5B
- Machine identification data
- Name: Short-Stroke Die Forging Hammer
- Model: KGH 5.0B
- Machine number: 127050
- Year of manufacture: 2002
- Operational parameters
- Working capacity max. 55 kJ
- Max. impact frequency 99/min
- Max. usable impact rate 45/min
- Max. ram stroke 775 mm
- Weights
- Total machine weight approx. 75,000 kg
- Anvil bed 58,350 kg
- Drive head complete without oil 12,400 kg
- Ram approx. 3,700 kg
- Dimensions
- Overall height approx. 6600 mm
- Installation height above floor approx. 5695 mm
- Installation height below floor approx. 905 mm
- Width x Depth: 2720 x 1760 mm
- Workspace
- Clear width between guides 766 mm
- Working height to upper edge of the insert 900 mm
- Ram depth 800 mm
- Insertion depth 1000 mm
- Die height without dovetail
- Min. total 190 mm
- Max. total 435 mm

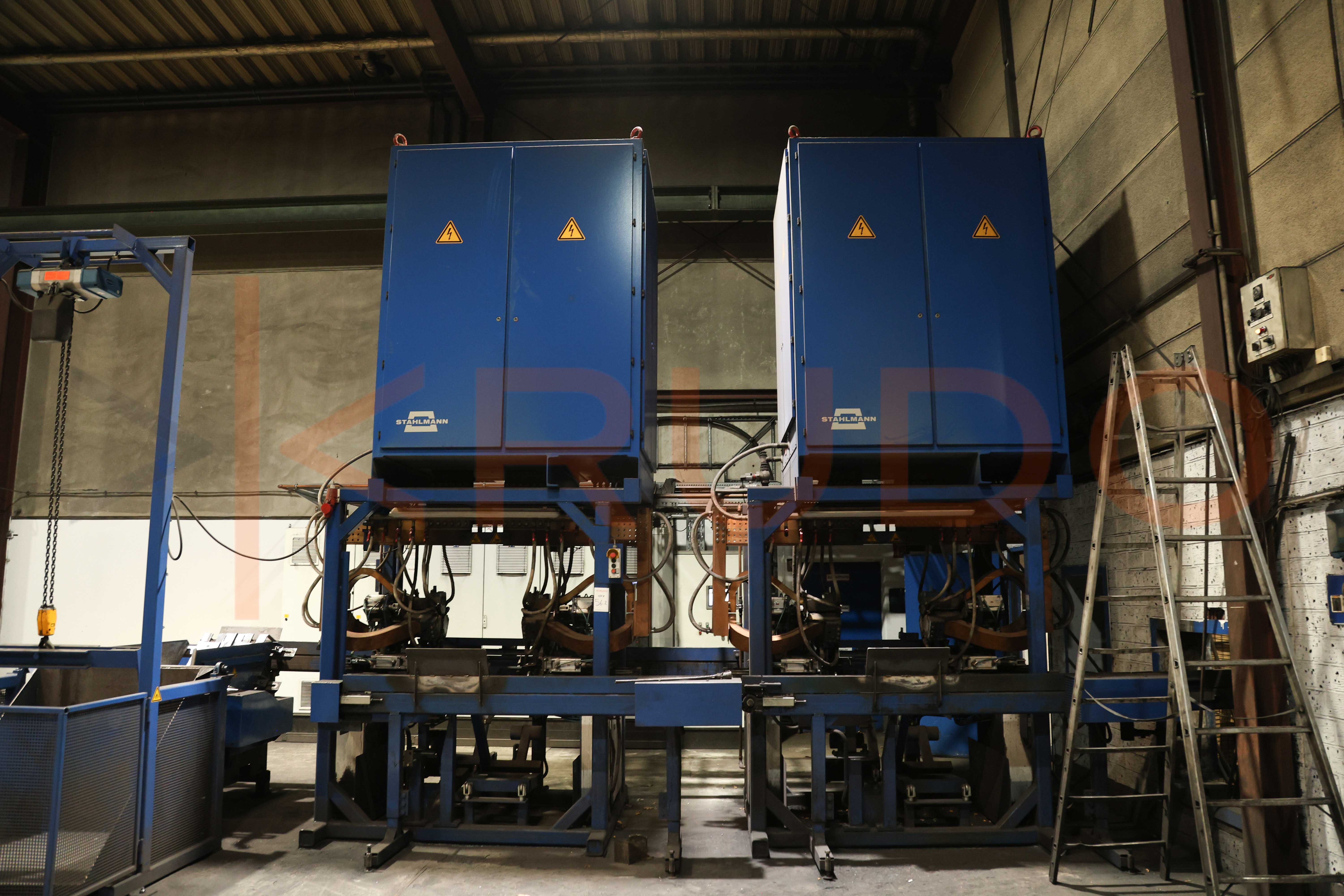

(2019) Conductive Heating System Stahlmann E89 2019
- Machine identification data
- Name: Conductive heating system E89 with 2 modules
- Model: E89
- Machine number: E89/4583
- Year of manufacture: 2019
- Name: Conductive heating system E89 with 2 modules
- Operational parameters
- Suitable for steel rods (round cross-sections)
- Diameter: 23 – 46 mm, full profile
- Length: 400 – 900
- Connection Parameters
- Mains voltage: 3 x 600 V / 50 Hz + N + PЕ +/- 10%
- Mains current: 715 A
- Power consumption: 743 kVA
- Operating inlet pressure compressed air: 6-8 bar, ½"
- Cooling water: 4-6 bar at approx. 7.2 m³/h
- Cooling water inlet: 20-30°C
- Cooling water outlet: 29-39°C
