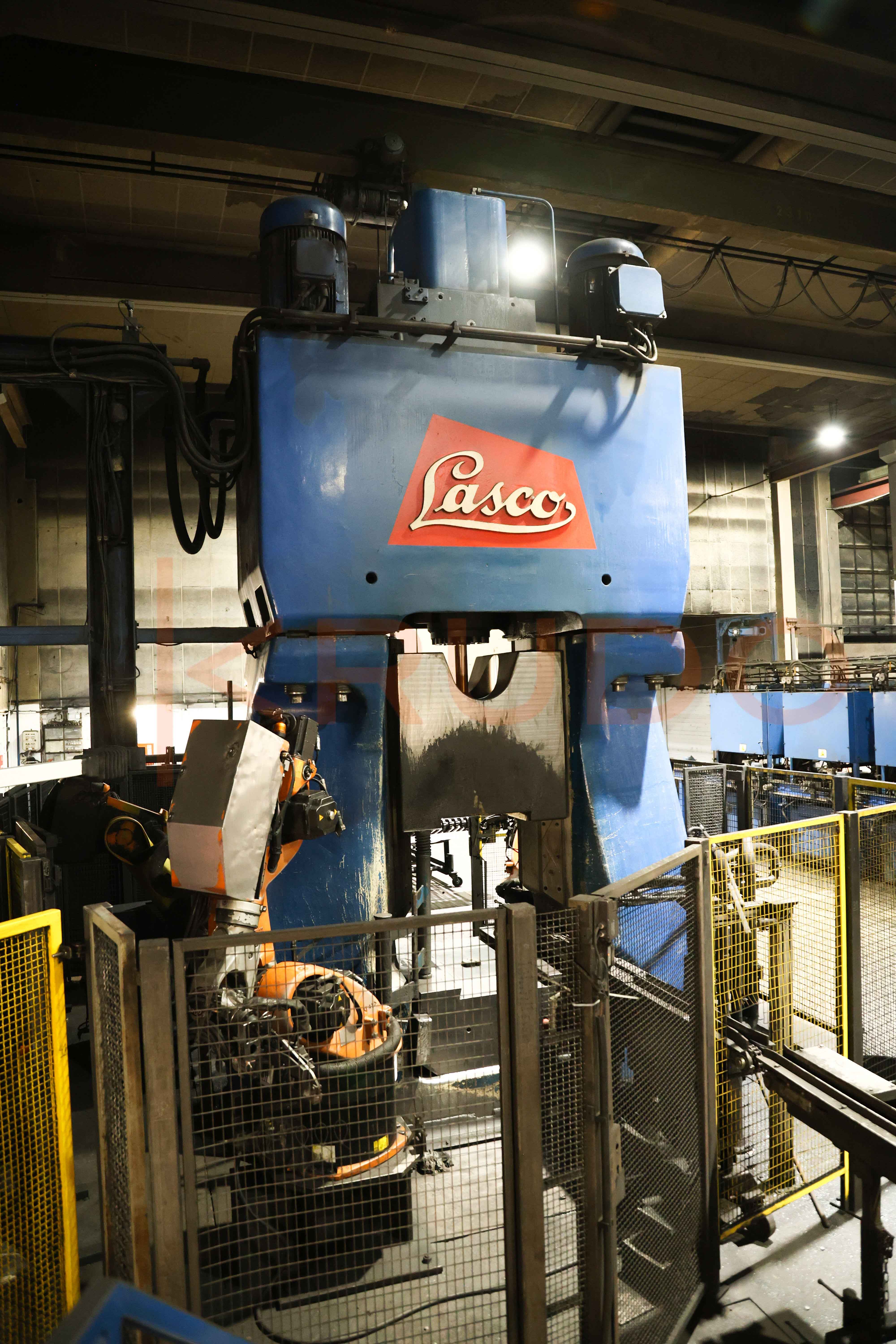

Fully Automated Forging Hammer Line (2009)
LASCO H-OU 800 (80 KJ)
Short-Stroke Die Forging Hammer Production Line

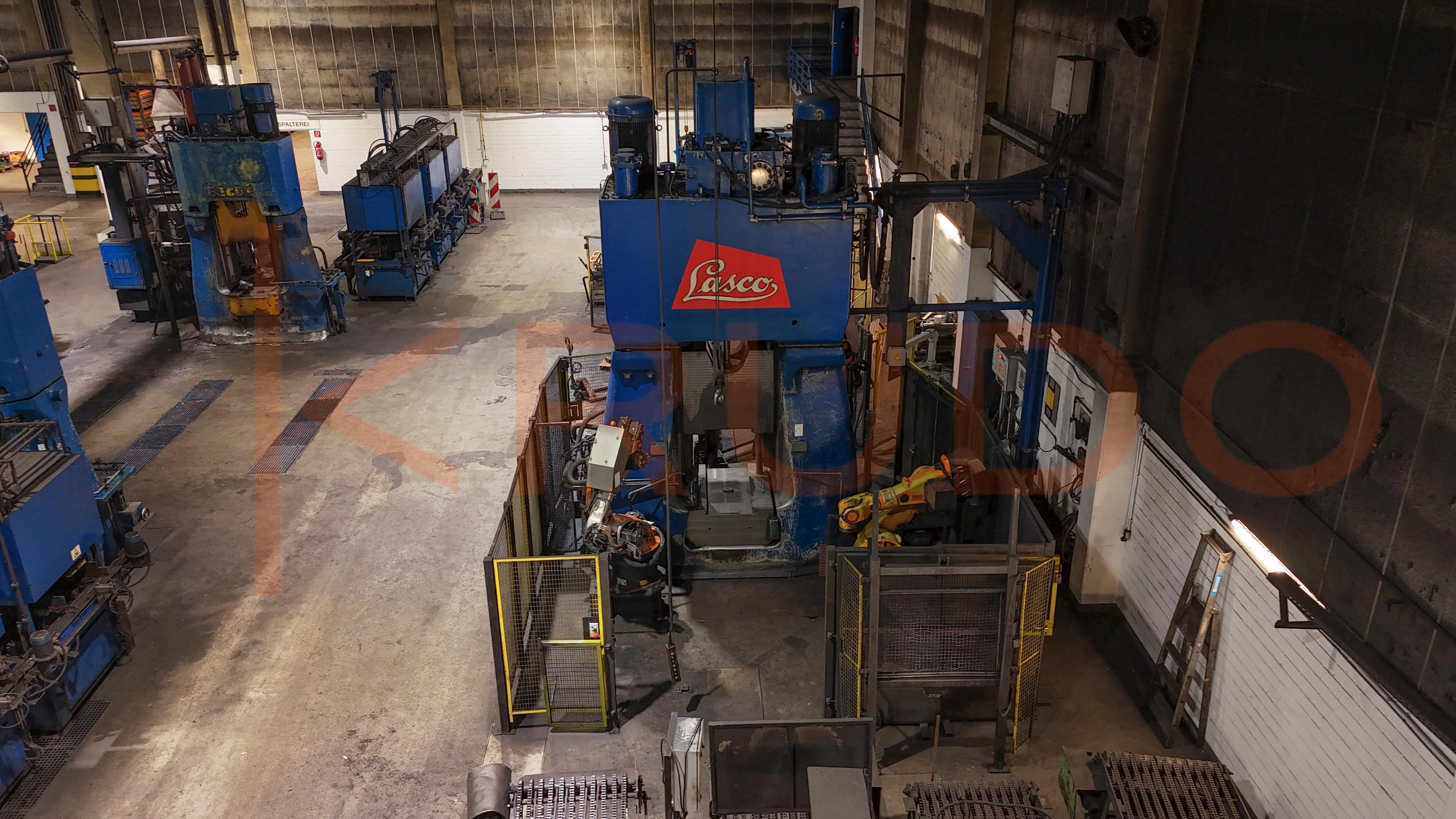

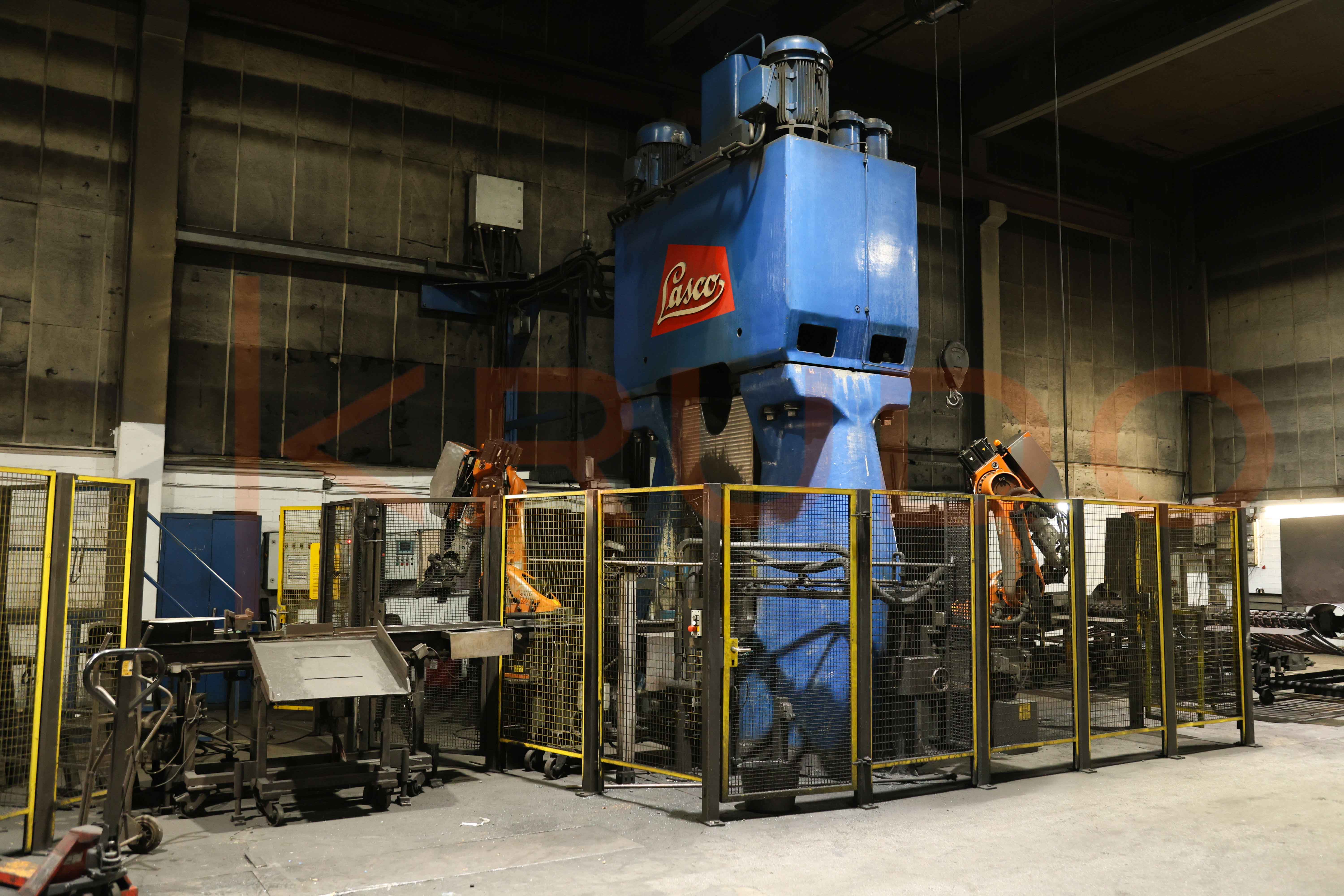

Fully automated forging hammer line featuring a 80 kJ LASCO H-OU 800 hammer, tilting device, induction heating unit, automation unit, 2 forging robots, and picking robot.
Industry
Forging
Sale Type
Private Treaty
Manufacturer
LASCO
Country
Germany
Product Line Type
Forging Hammer Line
Year of Manufacture
2009
Model
H-OU 800
Maximum Working Capacity
80kJ
Line Description
The complete line consists of the following machines:
- Tilting device, Stahlmann
- Step conveyor, Stahlmann
- Induction heating unit, ABP, EBS 345-W, 2009
- Quick-release conveyor
- Automation unit, Lasco, 2009

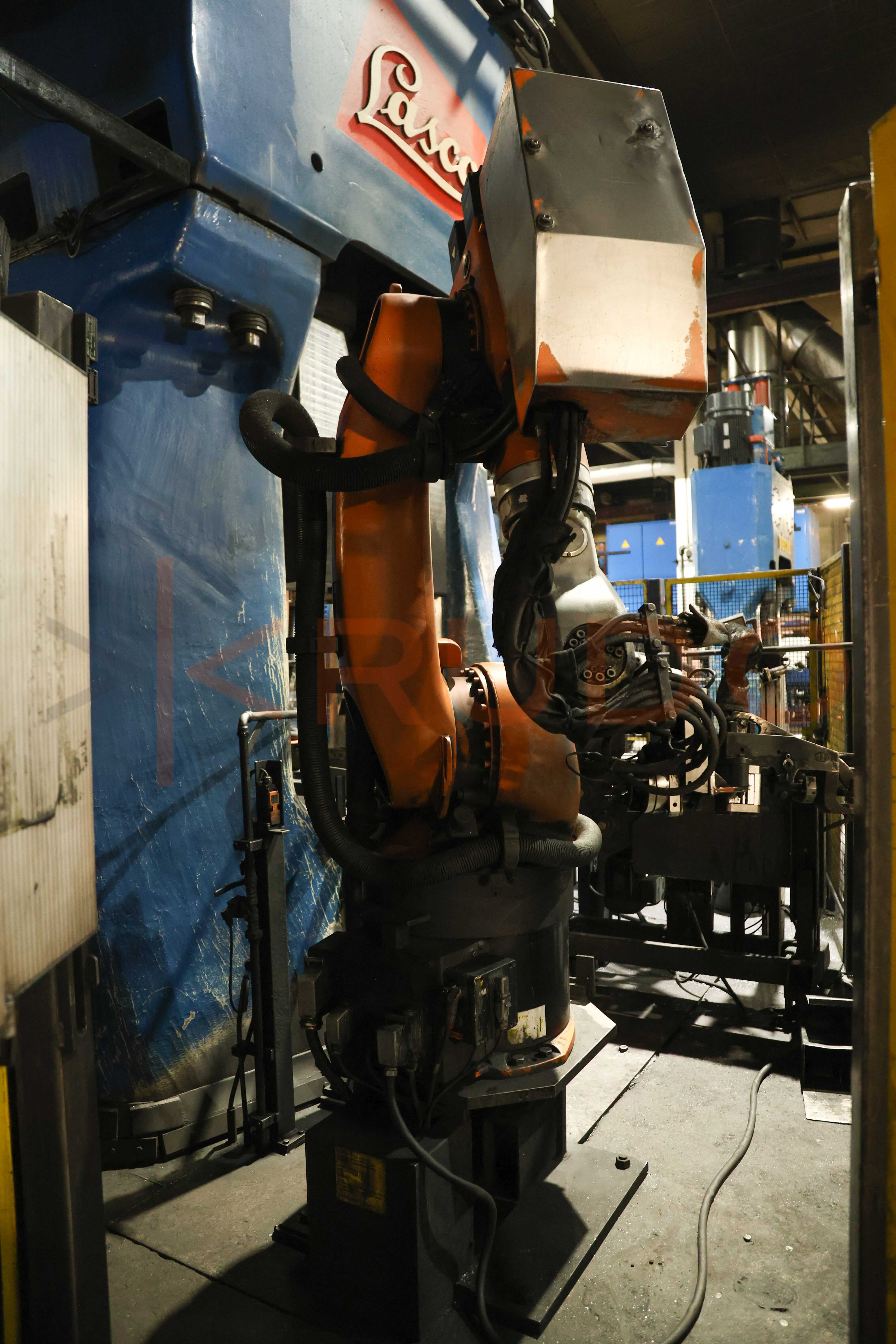

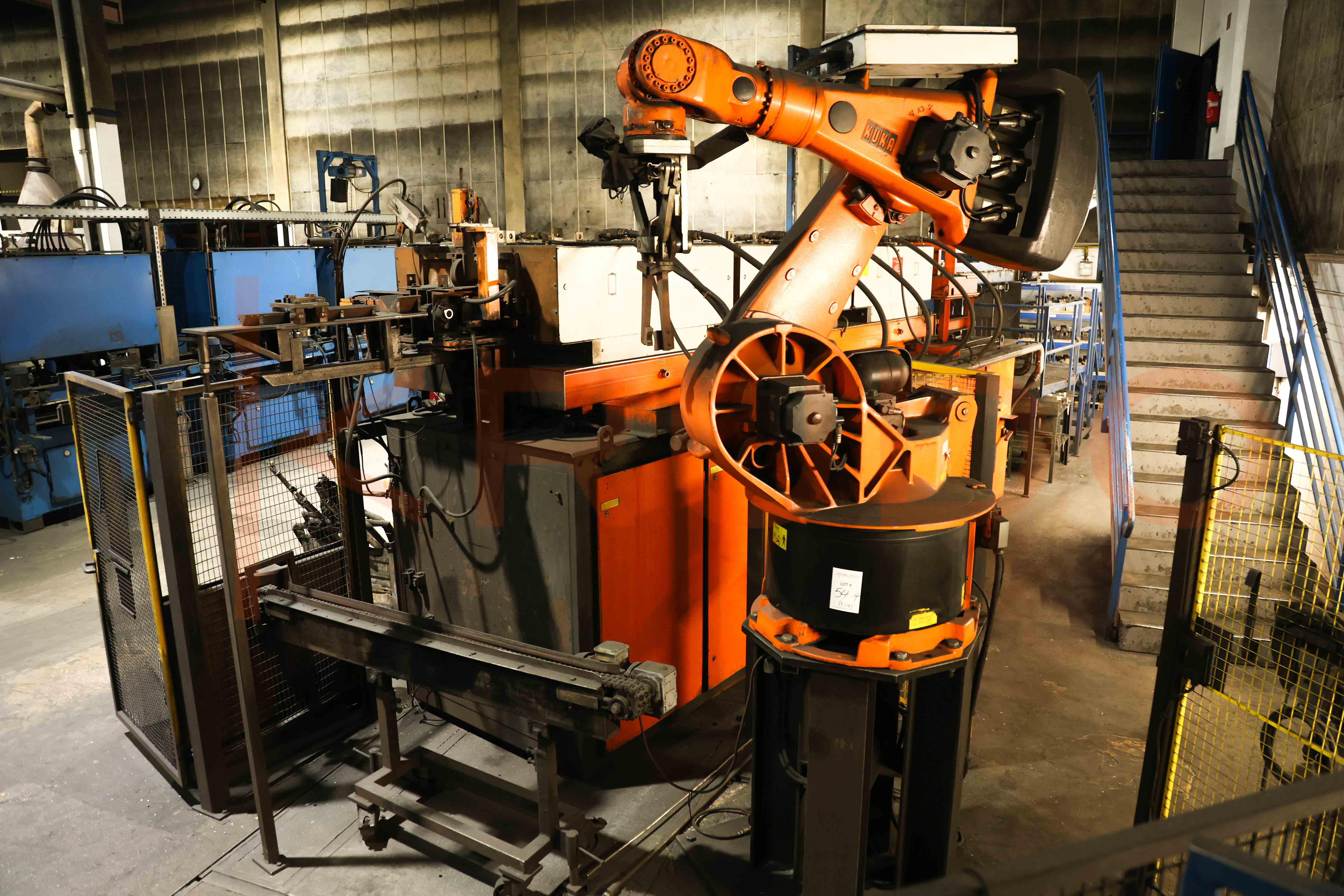

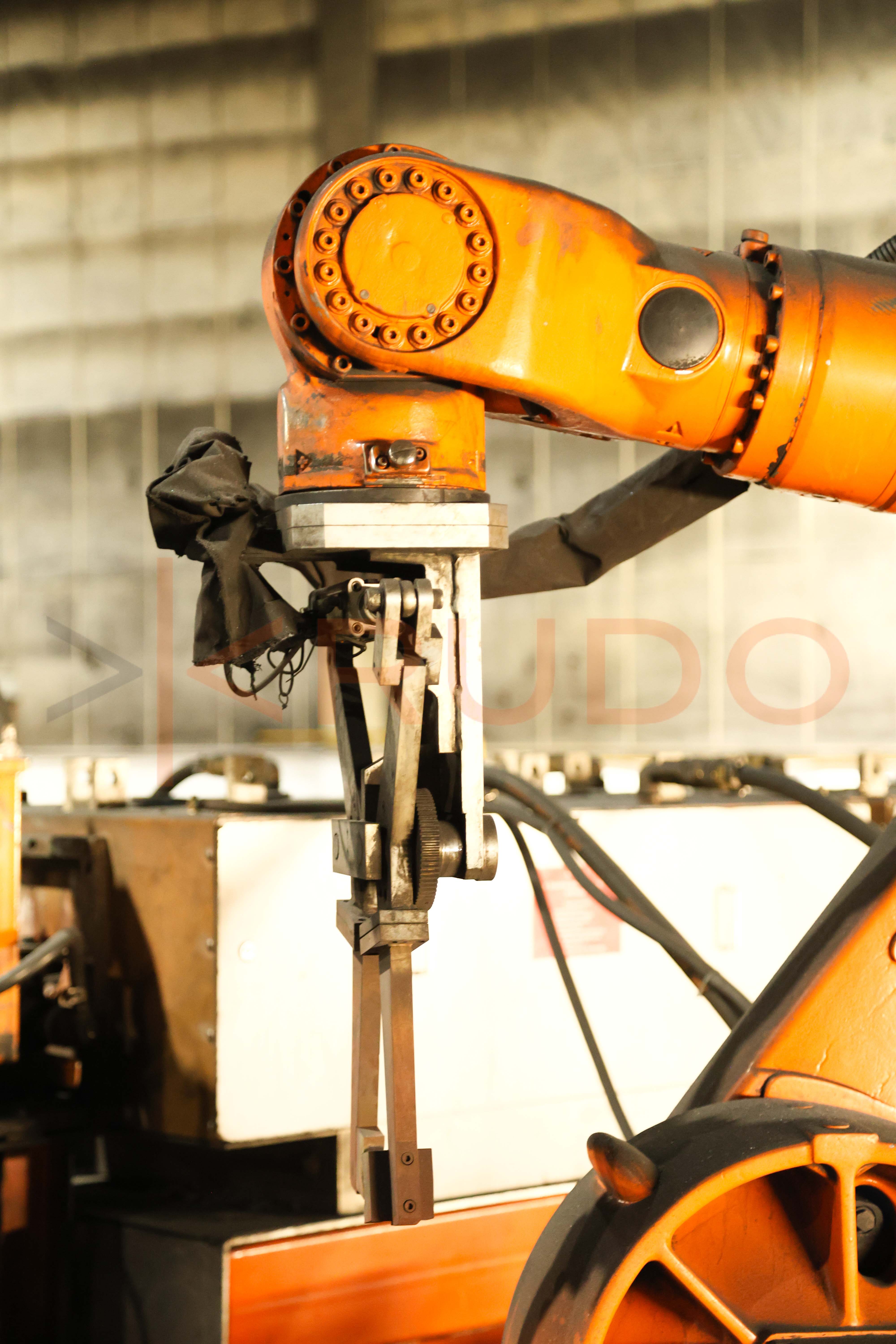

- 2 Forging robots, Kuka KR 30-3F, 2013
- 2 Bases, weight each: 336 kg
- Conveyor belt with lifting device, safety enclosure with doors
- Top pressure drop forging hammer, Lasco, HOU 800, 2009
- Picking robot, Kuka, KR 150/2, 1998
- Dispensing station, consisting of: Discharge conveyor and blow-off control, Manufacturer Schramm
Technical Details

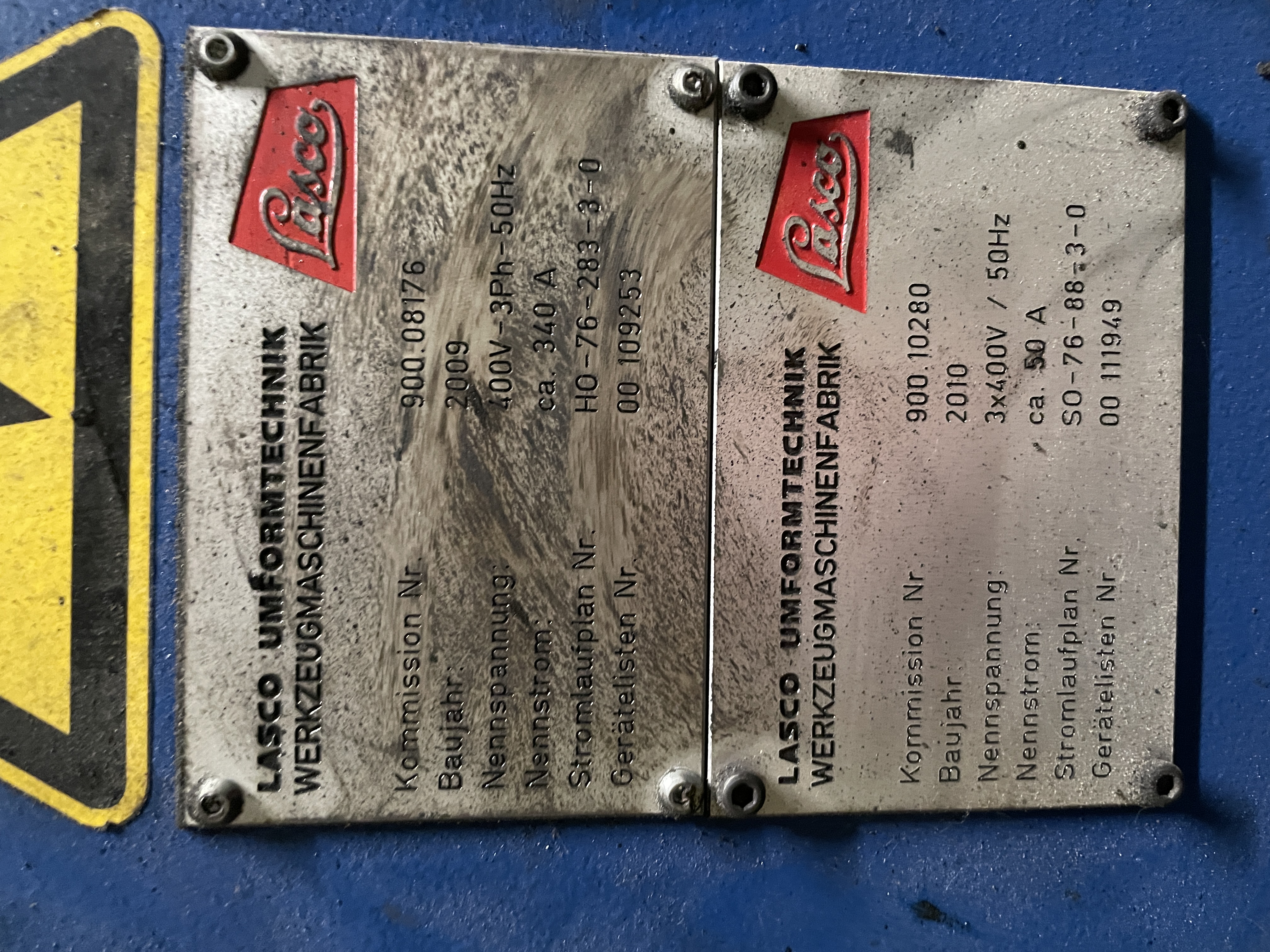

- Machine identification data
- Name: Short-Stroke Die Forging Hammer
- Model: HO-U 800
- Machine number: 00.08175
- Year of manufacture: 2009
- Operational parameters
- Working capacity max. 80 kJ
- Max. impact frequency 80/min
- Impact energy approx. 80 kJ
- Impact frequency at rated working capacity approx. 80 1/min.
- Ram stroke max. 810 mm
- Ram stroke min. 560 mm
- Ram weight approx. 5,600 kg
- Ram depth approx. 800 mm
- Die height of both dies without dovetails
- max. approx. 530 mm
- min. approx. 280 mm
- Frame weight approx. 105,000 kg
- Total weight of the hammer approx. 122,000 kg
- Height above floor with floor height up to top of insert = 700 mm 5,940 mm
- Overall height approx. 7,320 mm
- Oil volume in oil tank approx. 3400
- Storage pressure approx. 130 bar
- Technical Data (Electrical)
- Drive Power - Main Motor 2x90 kW
- Drive Power - Cooling Circuit 5.5 kW
- Drive Power - Lubrication Pump 0.18 kW
- Operating Voltage 400 V/50 Hz
- Control Voltage 230 V/50 Hz
- Valve Voltage 24 V DC
- Connection Power approx. 200 kVA
- Motor Protection Class IP 55
- Control Column Protection Class IP 55

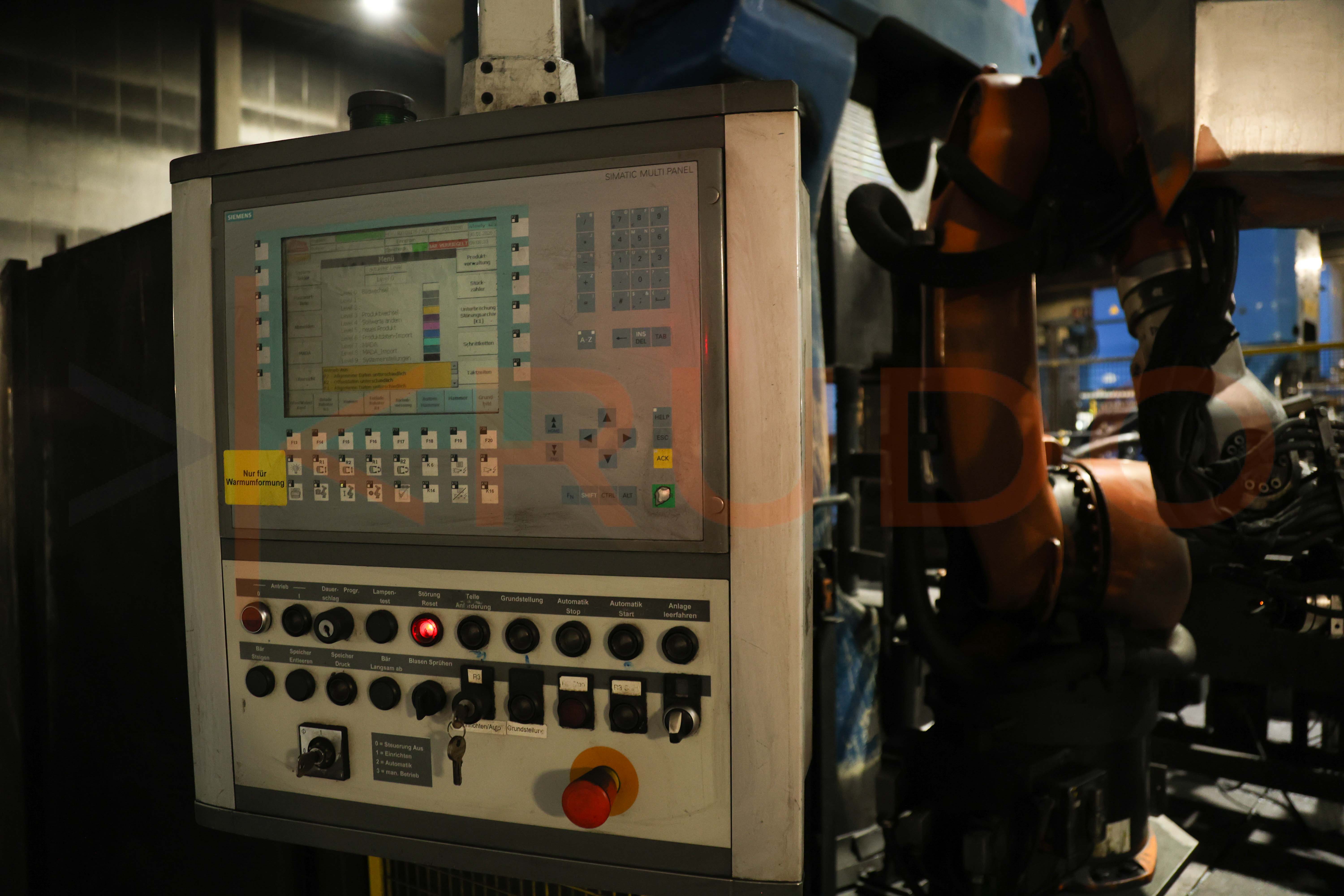

- Display Color
- Screen Diagonal 10.4"
