Project Description
A compact, high-spec meltshop originally installed for low- and medium-alloy steel ingot production. The meltshop was commissioned in 2007 and mothballed in mid-2010 following the global financial crisis. It has been held in dry preservation since, with OEM drawings, electrical diagrams, and operating manuals available for most key systems.
Equipment included:
- (1983) Mannesmann DEMAG 12.4t Electric Arc Furnace
Drawings included to uprate capacity to 16.6t. - (1981) Mannesmann DEMAG 8t AOD Converter
Designed for alloy-steel and stainless applications. - (2008) FRANKWEN FORGE 12t Vacuum Degasser
Twin-tank unit equipped with Boc Edwards IDX1000 dry-pump system. - (1983) TAMINI Main Transformer
Capacity: 10000 kVA. - Complete Extraction & Bag House System
- Scrap Charging Buckets × 4
Each measuring 1730 mm × 1310 mm.
Manufacturing Process
- Scrap Charging
- Four 1.7 m × 1.3 m buckets feed the 12.4 t EAF.
- Melting (12.4t Electric Arc Furnace)
- Ultra-high-power AC furnace, tap-upgrade drawings to 16.6 t.

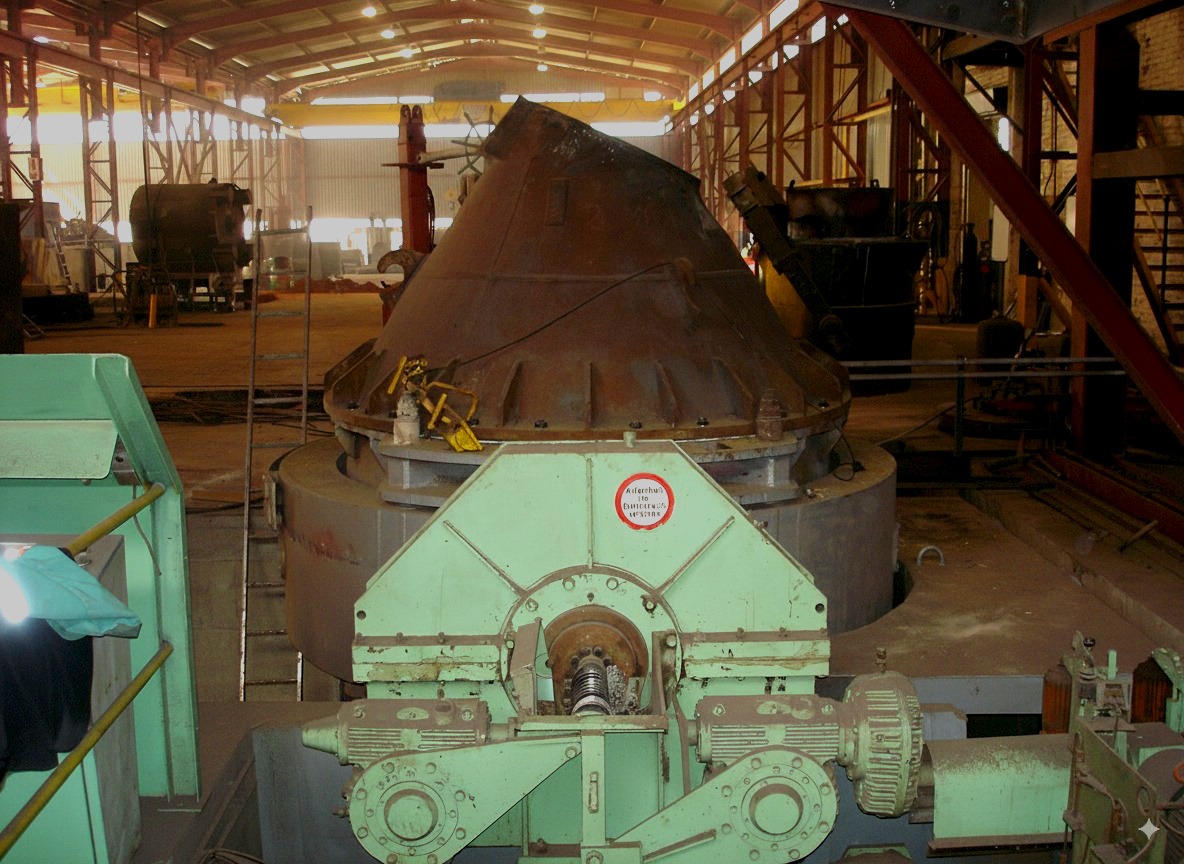

- Primary Refining (AOD 8t)
- Argon/O₂ decarburisation for low- & mid-alloy steels, full tuyere system and control valves included.

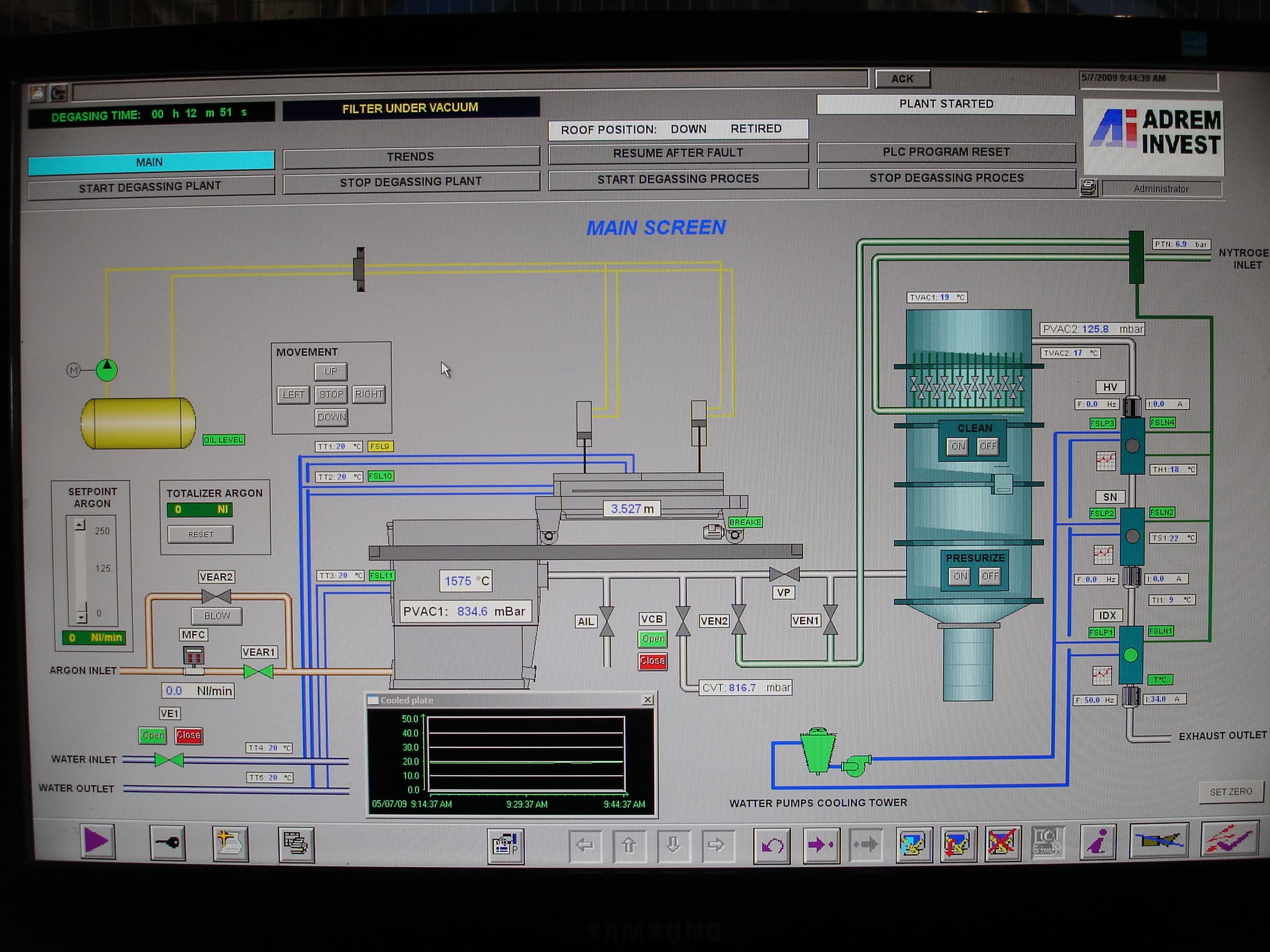

- Secondary Metallurgy (VD)
- 12t Vacuum Degasser with Boc Edwards HV 30 000 booster and IDX1000 dry pumps (ultimate vacuum 5 × 10⁻² mbar).
- Casting
- Casting was carried out into ingot moulds.
- Layout allows straightforward integration of a ladle furnace or continuous caster if desired.
Sale Details
A complete specialty steel meltshop is available for purchase via private treaty, located in South Africa, offered as-is and with immediate availability.
Inspection Visits
On-site inspections are welcome by prior appointment. Please reach out using the contact details below to arrange your visit.
Project Value
End-to-end project management covering acquisition, disassembly, logistics, and compliance — executed with precision and global fluency.
See It in Action
Watch the factory - capturing its quality in a real production environment.
Product Lines from This Factory
These complete production lines were part of the facility’s day-to-day operations—professionally maintained and ready for relocation or reintegration into your own manufacturing environment.
Machinery from This Factory
Explore high-value equipment originally operated within this factory—available individually or as part of a larger line or plant acquisition.
%20Mannesmann%20DEMAG%208%20t%20AOD%20Converter.JPG)
