55. Fully Automated Forging Hammer Line (2004)
BECHE KGH 5B (55 KJ)
Short-Stroke Die Forging Hammer Production Line
Fully automated forging hammer line featuring a 55 kJ BECHE KG H 5B hammer, tilting device, conductive heating system, reactive power compensation, automation system, 2 forging robots, conveyor belt, control cabinet, and discharge robot.
Industry
Forging
Sale Type
Private Treaty
Manufacturer
BECHE
Country
Germany
Product Line Type
Forging Hammer Line
Year of Manufacture
2004
Model
KG H 5B
Maximum Working Capacity
55 kJ
Line Description

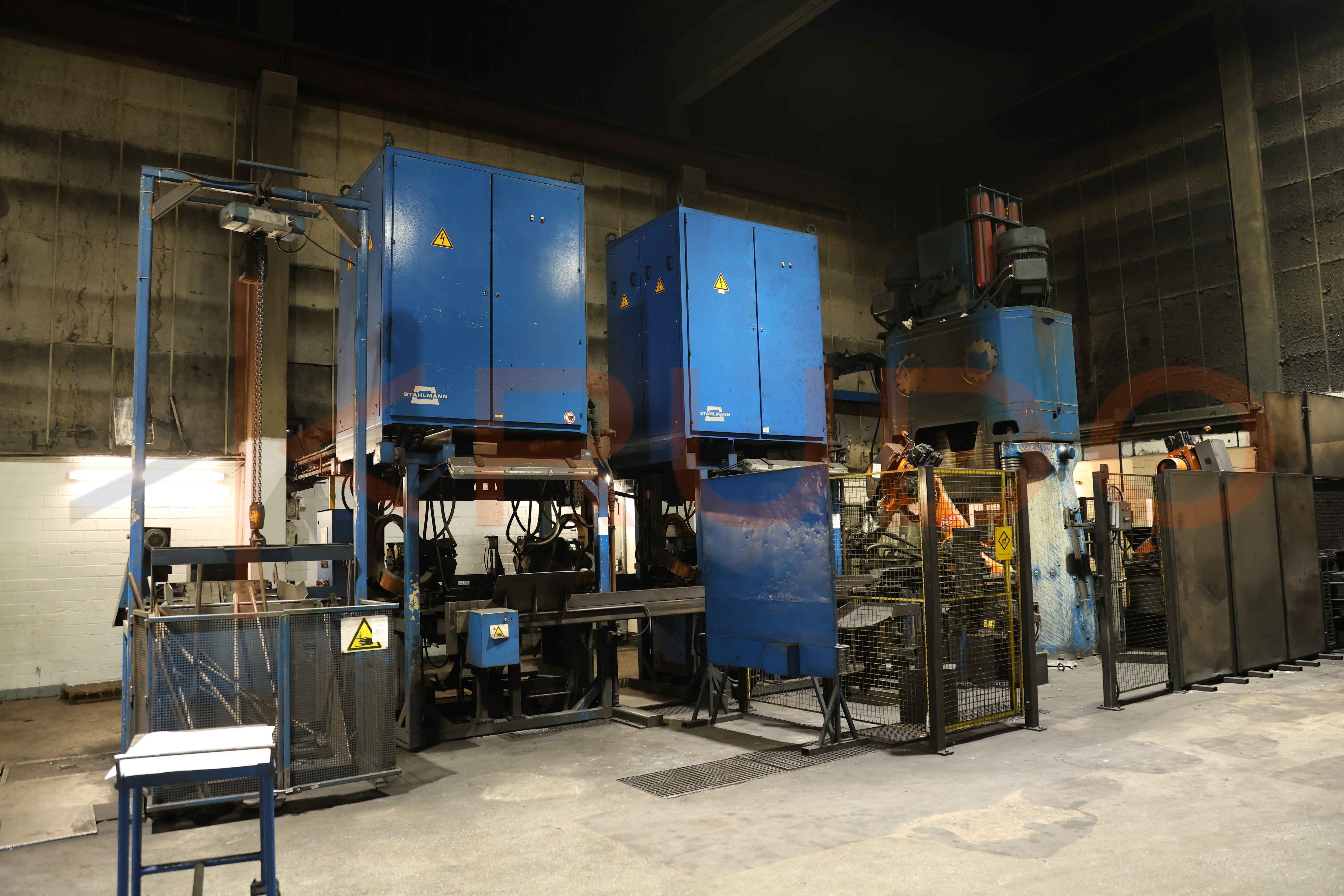

The complete line consists of the following machines:
- Tilting device, Stahlmann
- Conductive heating system, Stahlmann, D400G21/39000 XSH, 2004
- Frako reactive power compensation
- Automation system, Lasco, 2009

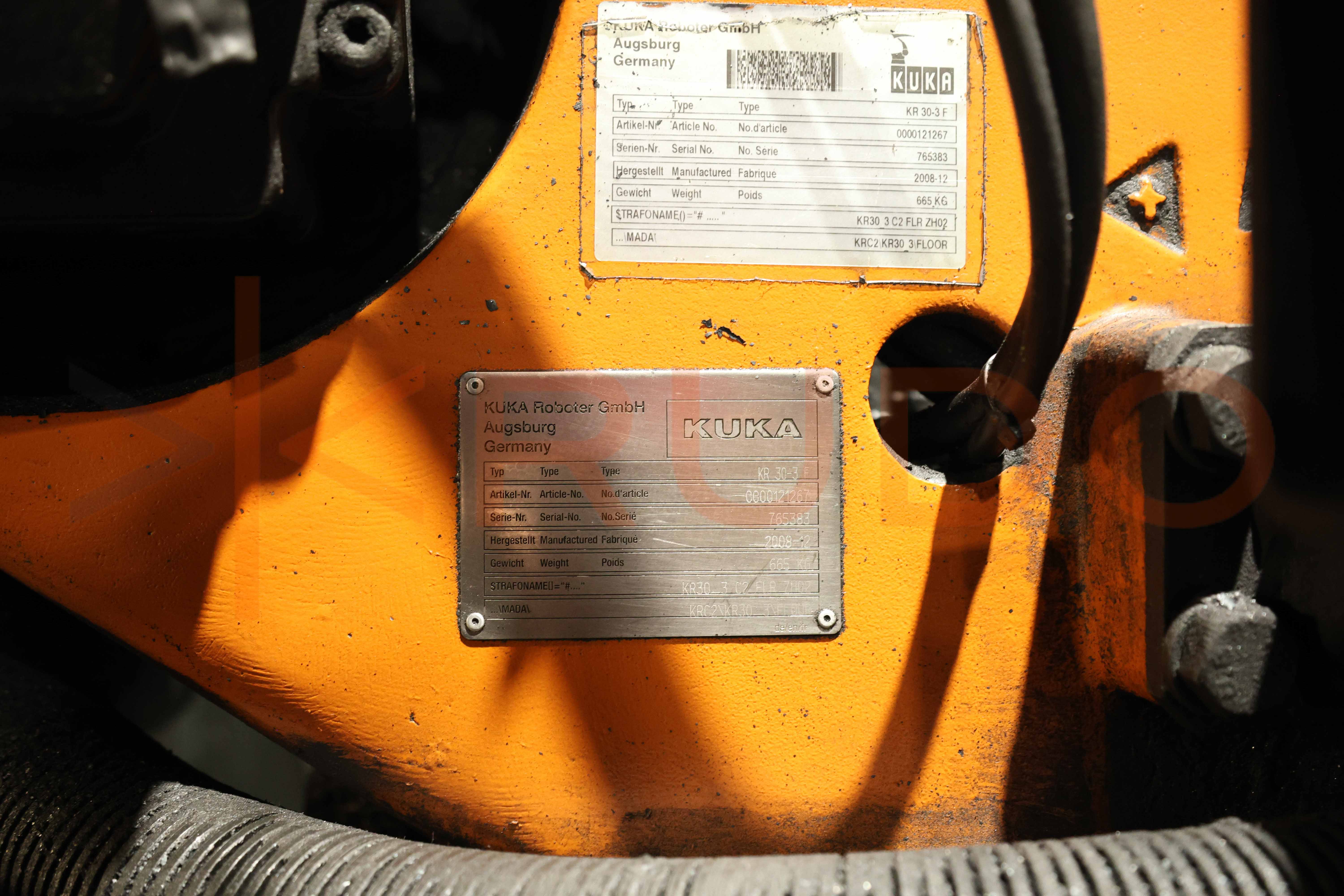

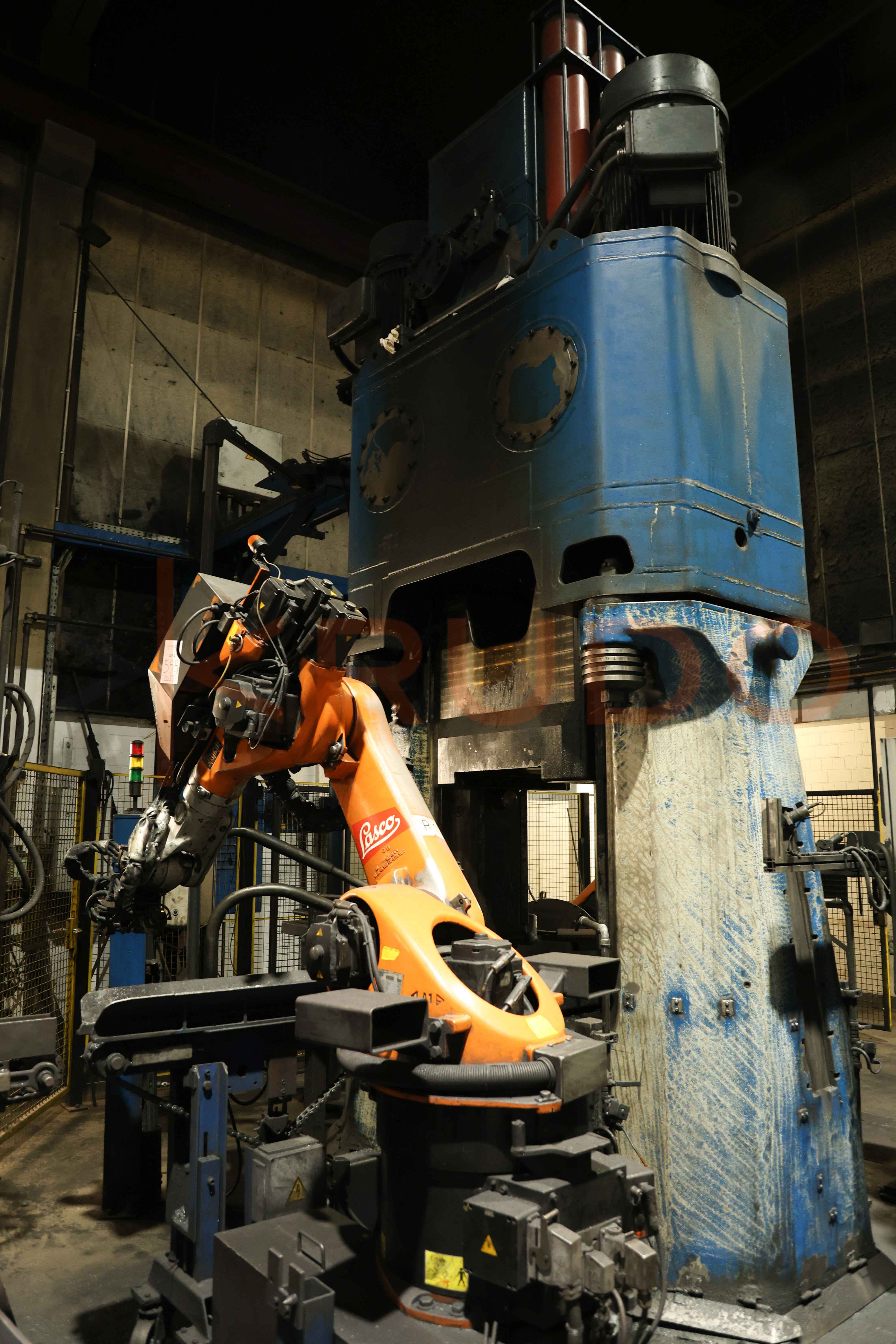

- 2 Forging robots, Kuka, KR 30-3F
- Conveyor belt with lifting device

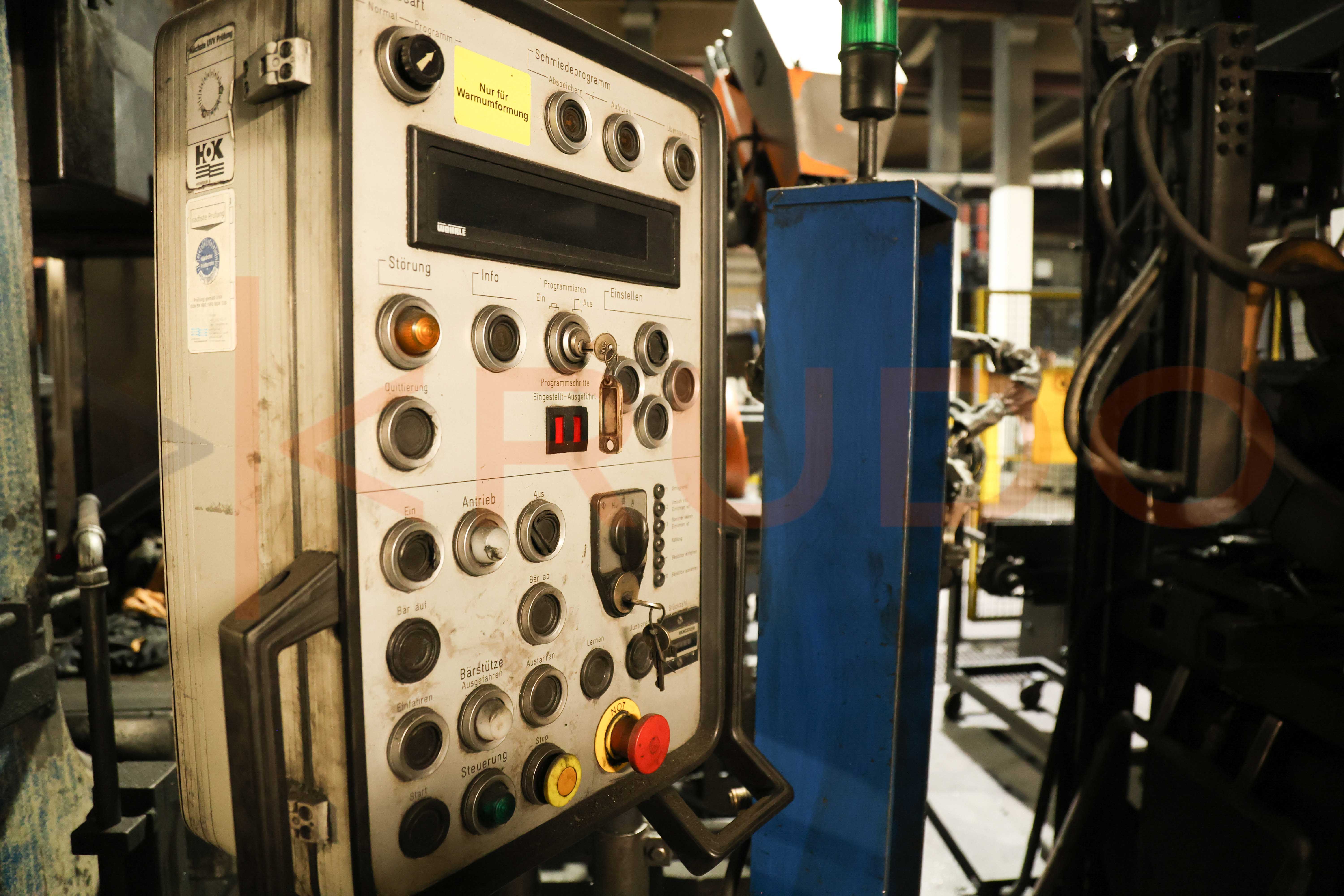

- Control cabinet with higher-level control system
- Short-stroke drop hammer, Beche, KG H 5.0B, 2004
- Discharge robot for removal, Kuka, KR 30/2, with bucket, 1999
Technical Details

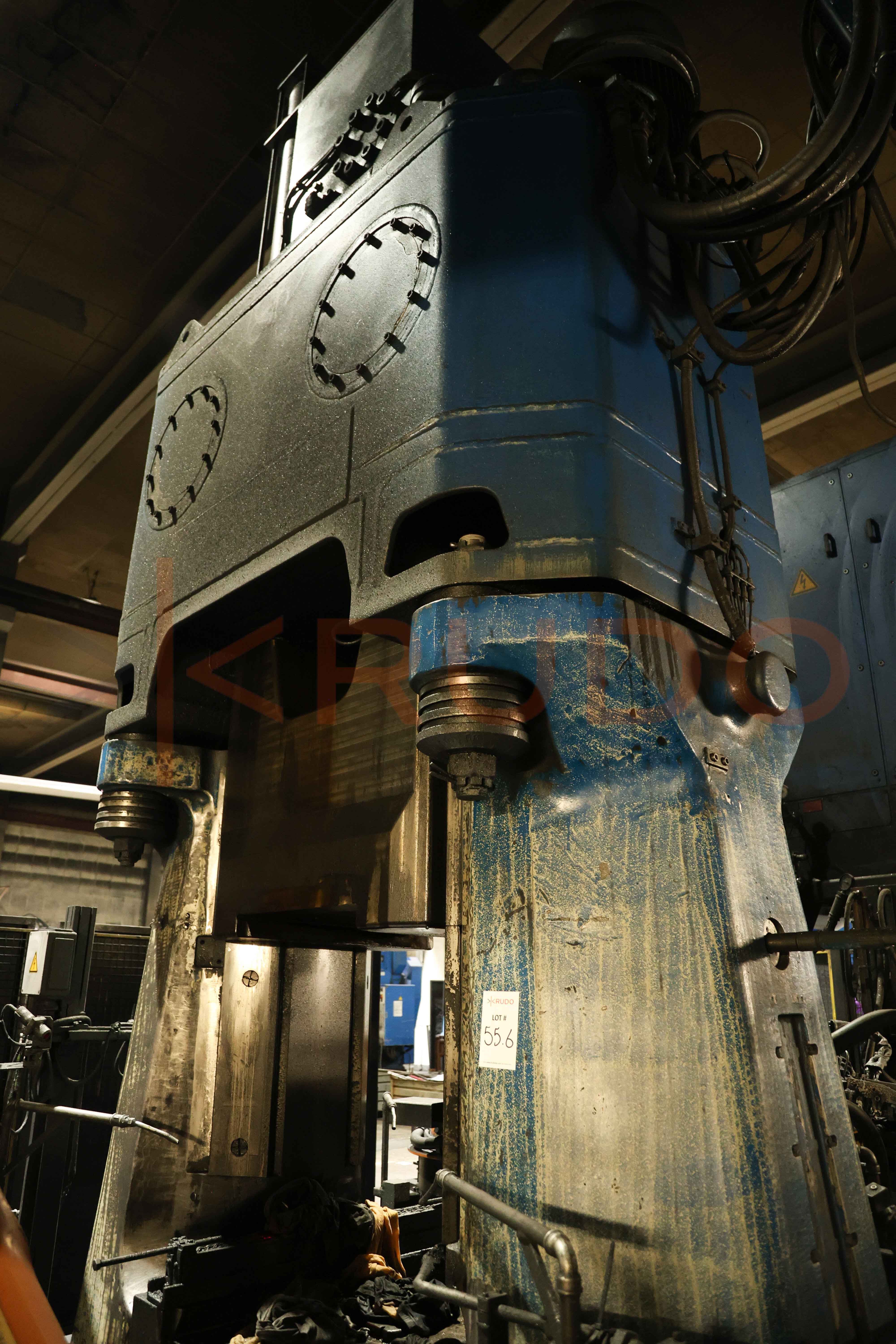

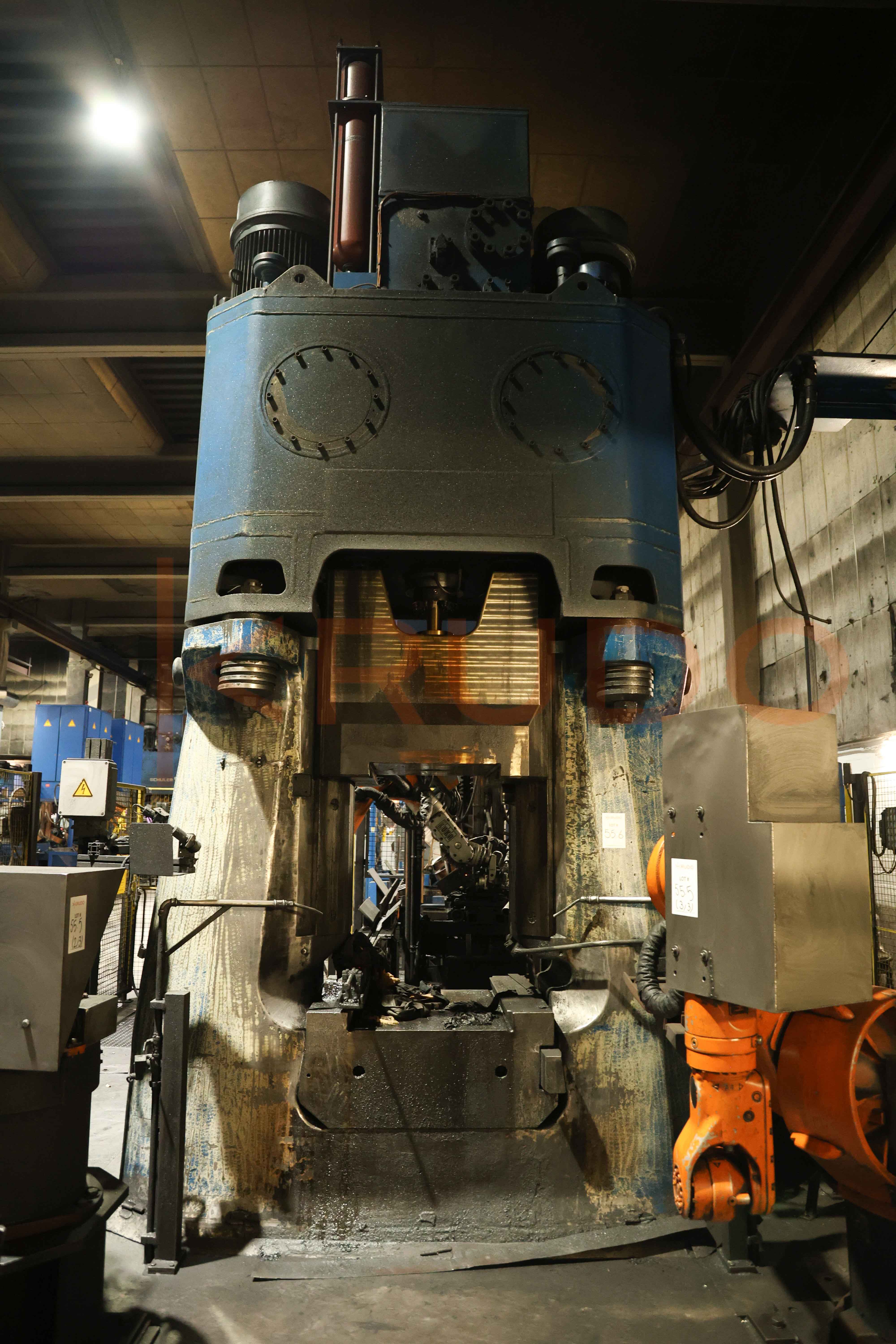

(2004) Short-Stroke Die Forging Hammer BECHE KGH 5B
- Machine identification data
- Name: Short-Stroke Die Forging Hammer
- Model: KGH 5.0B
- Machine number: 155002
- Year of manufacture: 2004
- Operational parameters
- Working capacity max. 55 kJ
- Max. impact frequency 99/min
- Max. usable impact rate 55/min
- Maximum impact rate at rolling impact 120 min⁻¹
- Min. ram stroke: 530 mm
- Max. ram stroke: 775 mm
- Weights
- Total machine weight approx. 75,000 kg
- Anvil bed 58,350 kg
- Drive head complete without oil 12,400 kg
- Ram approx. 3,700 kg
- Dimensions
- Overall height approx. 6600 mm
- Installation height above floor approx. 5695 mm
- Installation height below floor approx. 905 mm
- Width x Depth: 2720 x 1760 mm
- Workspace
- Clear width between guides 766 mm
- Working height to upper edge of the insert 900 mm
- Ram depth 800 mm
- Insertion depth 1000 mm
- Die height without dovetail
- Min. total 190 mm
- Max. total 435 mm

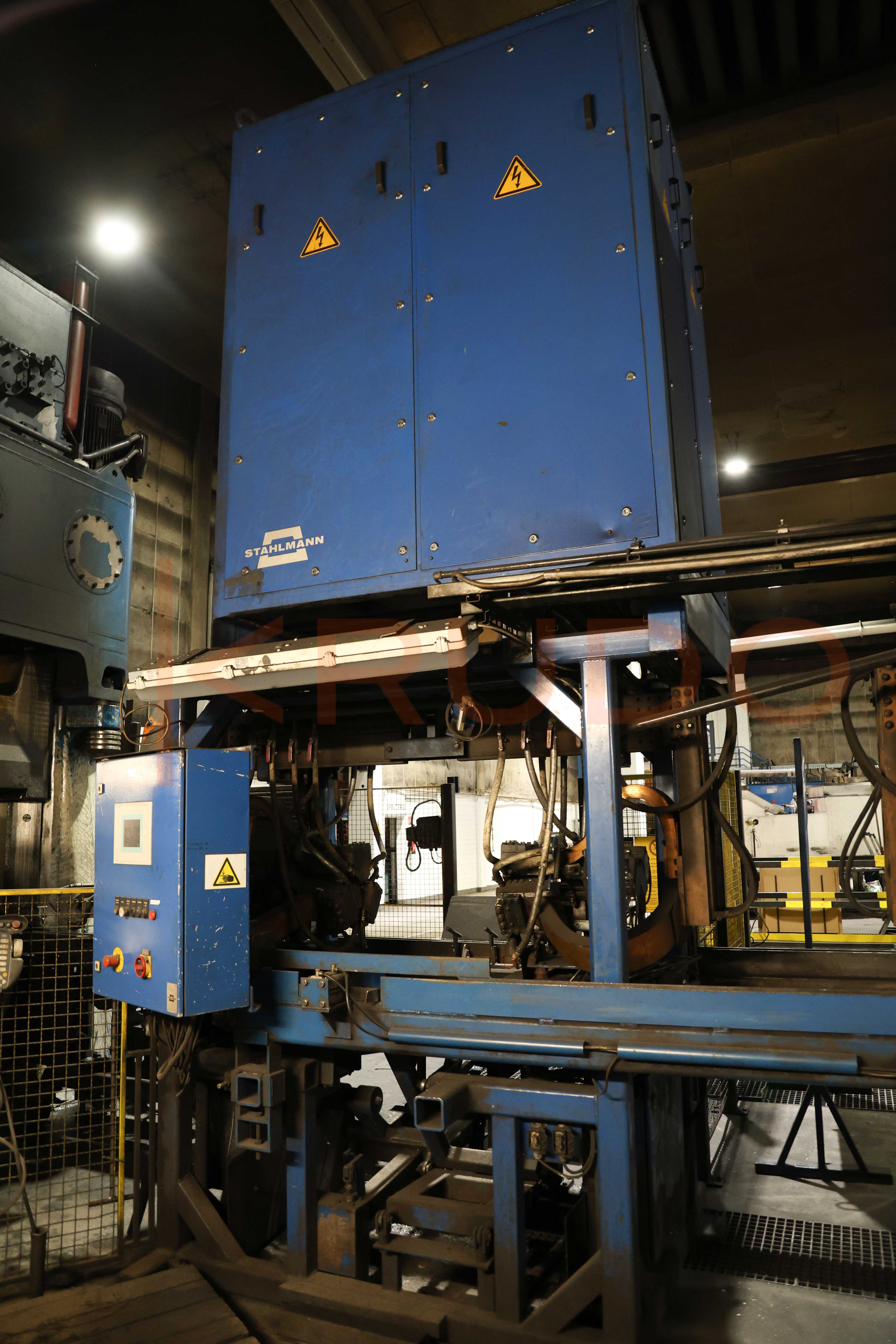

Conductive Heating System Stahlmann E89
- Machine identification data
- Name: Conductive heating system E89 with 2 modules
- Model: E89
- Machine number: E89/4583
- Name: Conductive heating system E89 with 2 modules
- Operational parameters
- Suitable for steel rods (round cross-sections)
- Diameter: 23 – 46 mm, full profile
- Length: 400 – 900
- Suitable for steel rods (round cross-sections)
- Connection Parameters
- Mains voltage: 3 x 600 V / 50 Hz + N + PЕ +/- 10%
- Mains current: 715 A
- Power consumption: 743 kVA
- Operating inlet pressure compressed air: 6-8 bar, ½"
- Cooling water: 4-6 bar at approx. 7.2 m³/h
- Cooling water inlet: 20-30°C
- Cooling water outlet: 29-39°C
- Mains voltage: 3 x 600 V / 50 Hz + N + PЕ +/- 10%
Project Value
End-to-end project management covering acquisition, disassembly, logistics, and compliance — executed with precision and global fluency.
By clicking Save my spot you're confirming that you agree with our Terms and Conditions.
USD
Total Project Cost

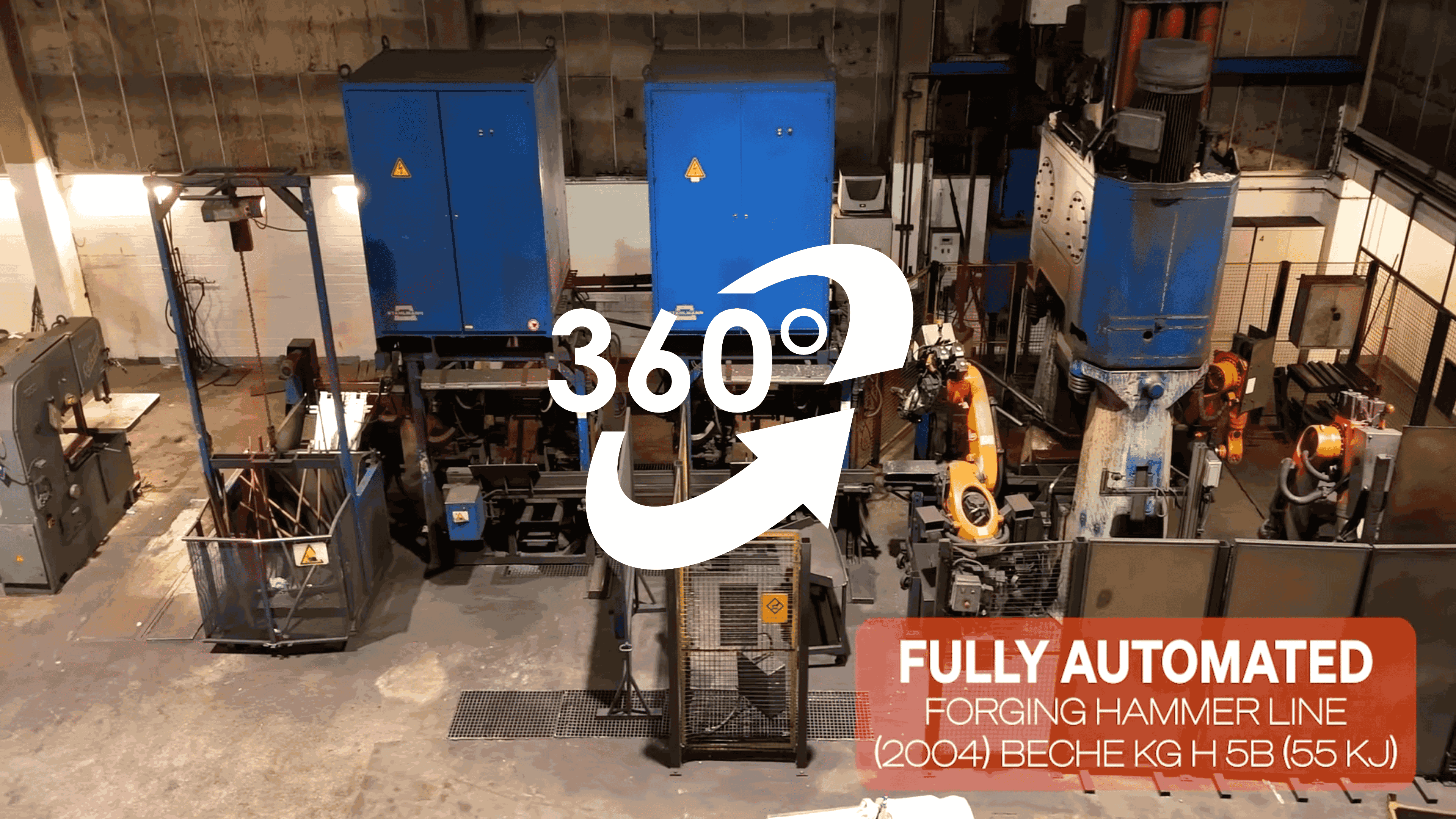

See It in Action
