60. Forging Hammer (1998)
BECHE KG H 4B (40 KJ)
Short-Stroke Die Forging Hammer Production Line
Die Forging Hammer Production Line including a 40 kJ BECHE KGH 4B hammer, and induction heating unit.
Industry
Forging
Sale Type
Private Treaty
Manufacturer
BECHE
Country
Germany
Product Line Type
Forging Hammer
Year of Manufacture
1998
Model
KGH 4B
Maximum Working Capacity
40 kJ
Line Description
The complete line consists of the following machines:
- Induction heating unit, ABP, EBS 225-W UPW, 2007 (defective)

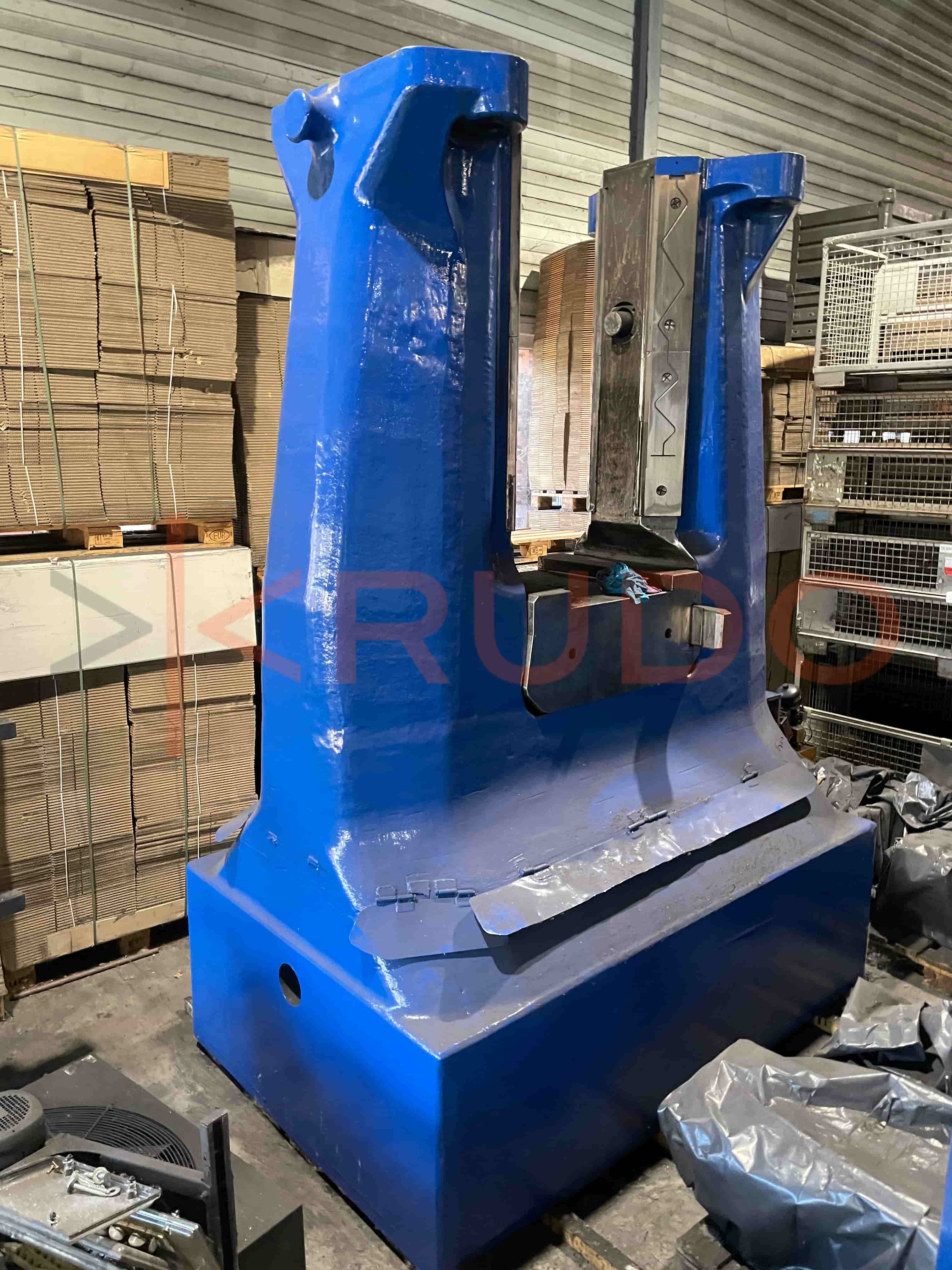

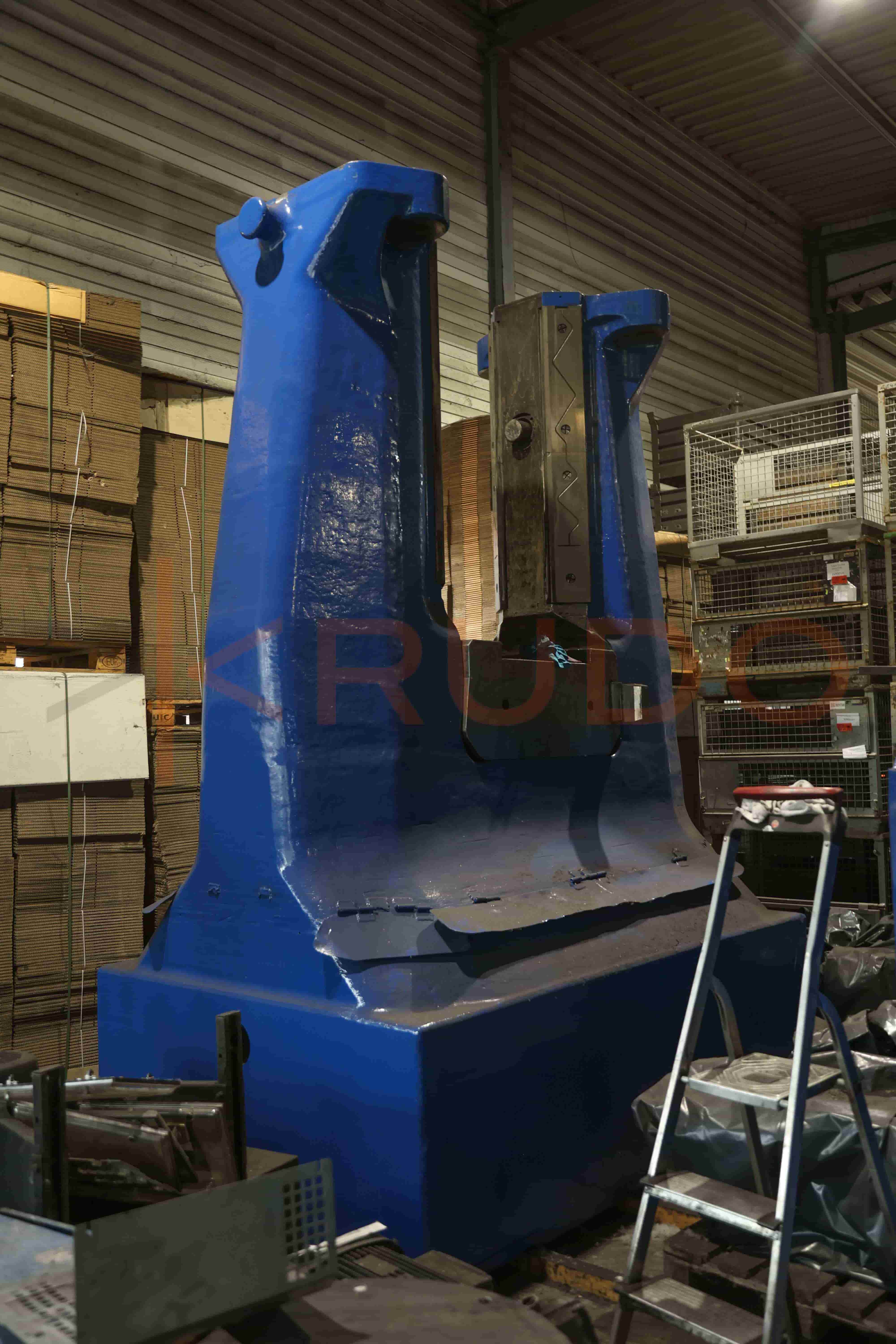

- Hammer 6 (short-stroke die forging hammer), Beche, KG H 4B, 1998, 40 KJ
Technical Details
- Machine identification data
- Name: Short-Stroke Die Forging Hammer
- Model: KGH 4B
- Machine number: 119820
- Year of manufacture: 1998
- Operational parameters
- Working capacity max. 40 kJ
- Max. impact frequency 98/min
- Max. usable impact rate 41/min
- Max. ram stroke 790 mm
- Weights
- Total machine weight approx. 65,000 kg
- Anvil bed 52,500 kg

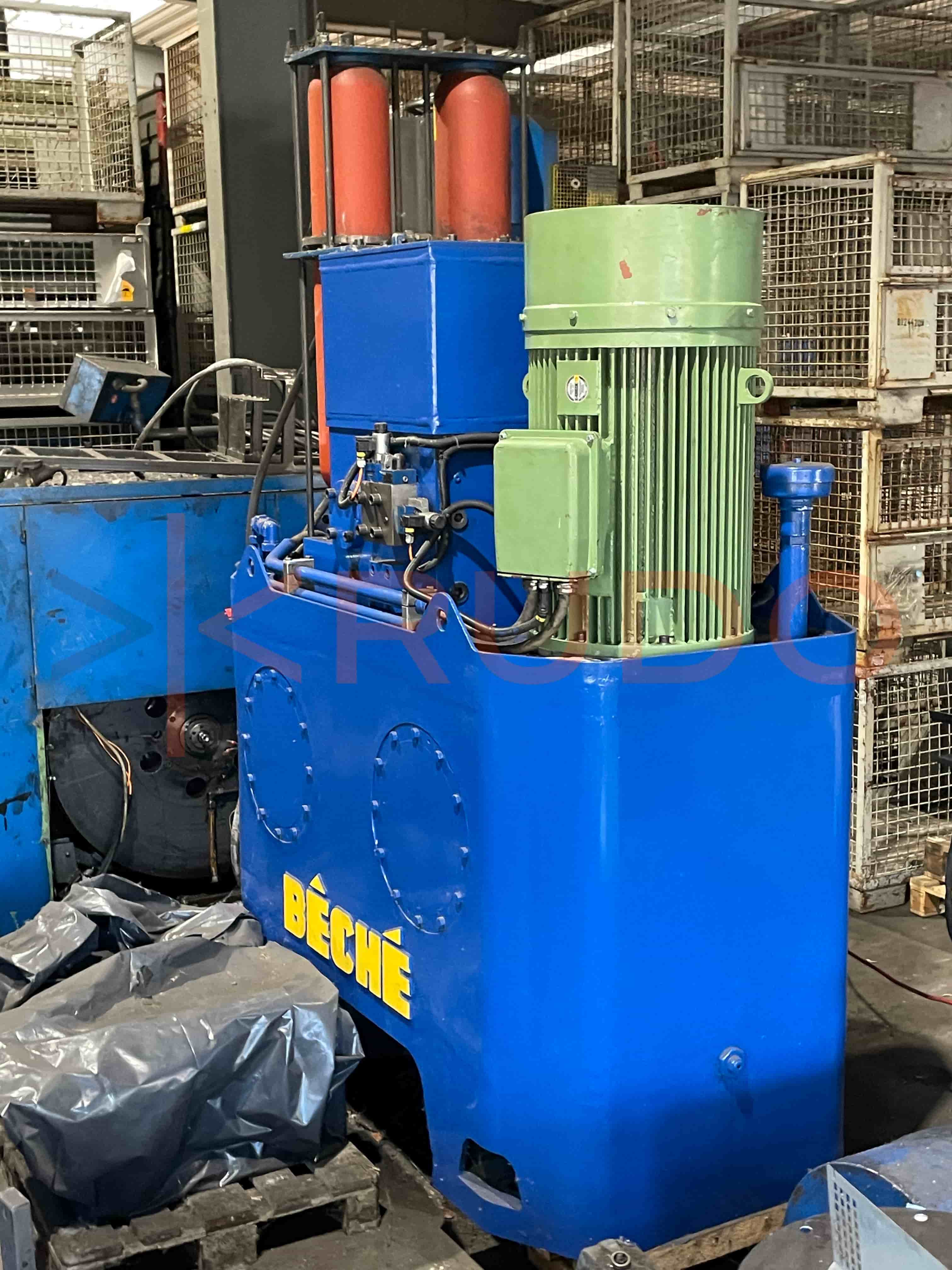

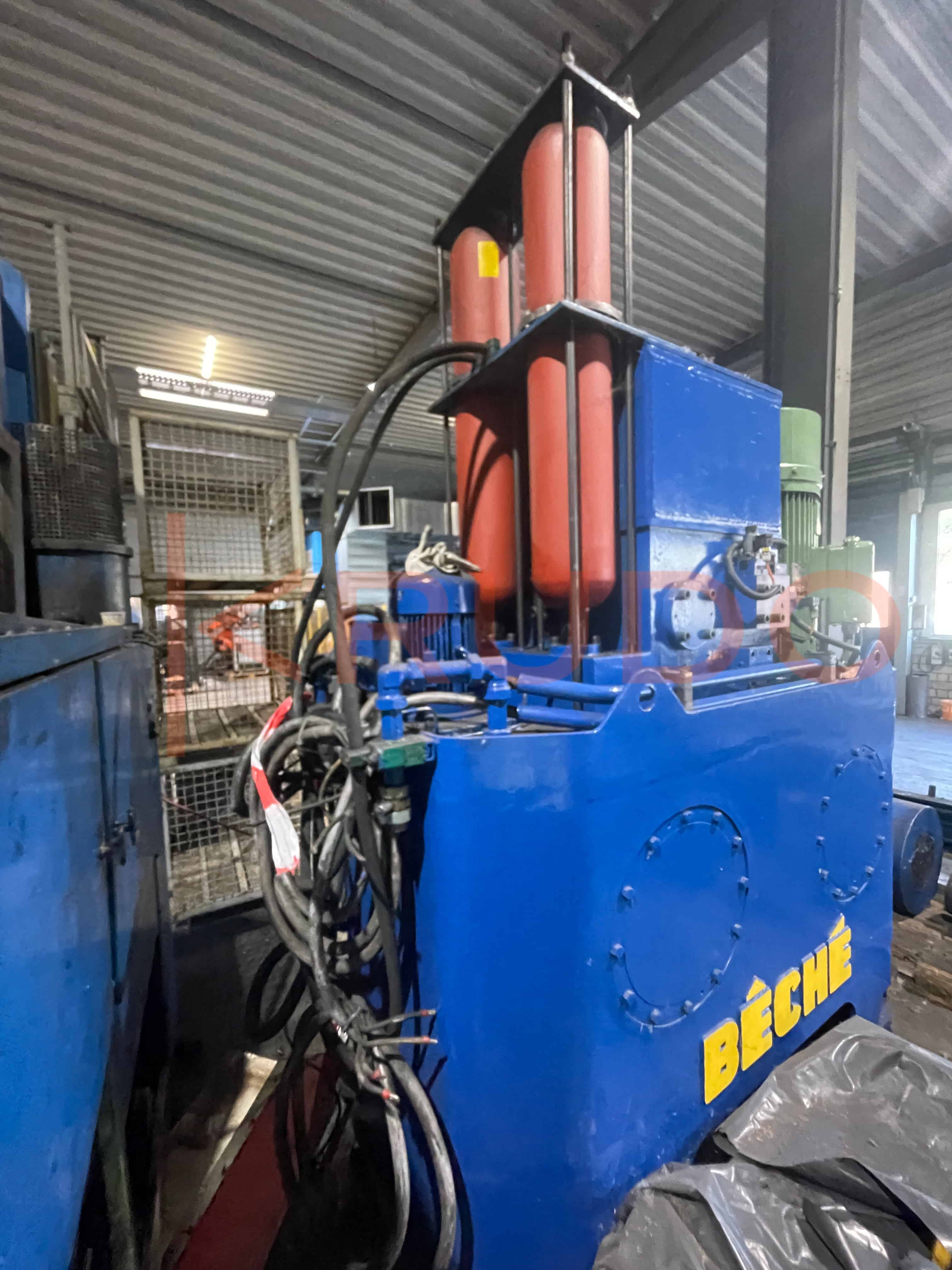

- Drive head complete without oil 7,800 kg
- Ram approx. 2,700 kg
- Dimensions
- Overall height approx. 6450 mm
- Installation height above floor approx. 5220 mm
- Installation height below floor approx. 1230 mm
- Width x Depth: 2520 x 1620 mm
- Workspace
- Clear width between guides 717 mm
- Working height to upper edge of the insert 700 mm
- Ram depth 640 mm
- Insertion depth 750 mm
- Die height without dovetail
- Min. total 175mm
- Max. total 455 mm
