49. Cutting/Splitting Bar Shear Line 2
Bar stock shear for round and square steel bars up to Ø 63 mm
Peddinghaus Bar Shear Line (Caddy 63)

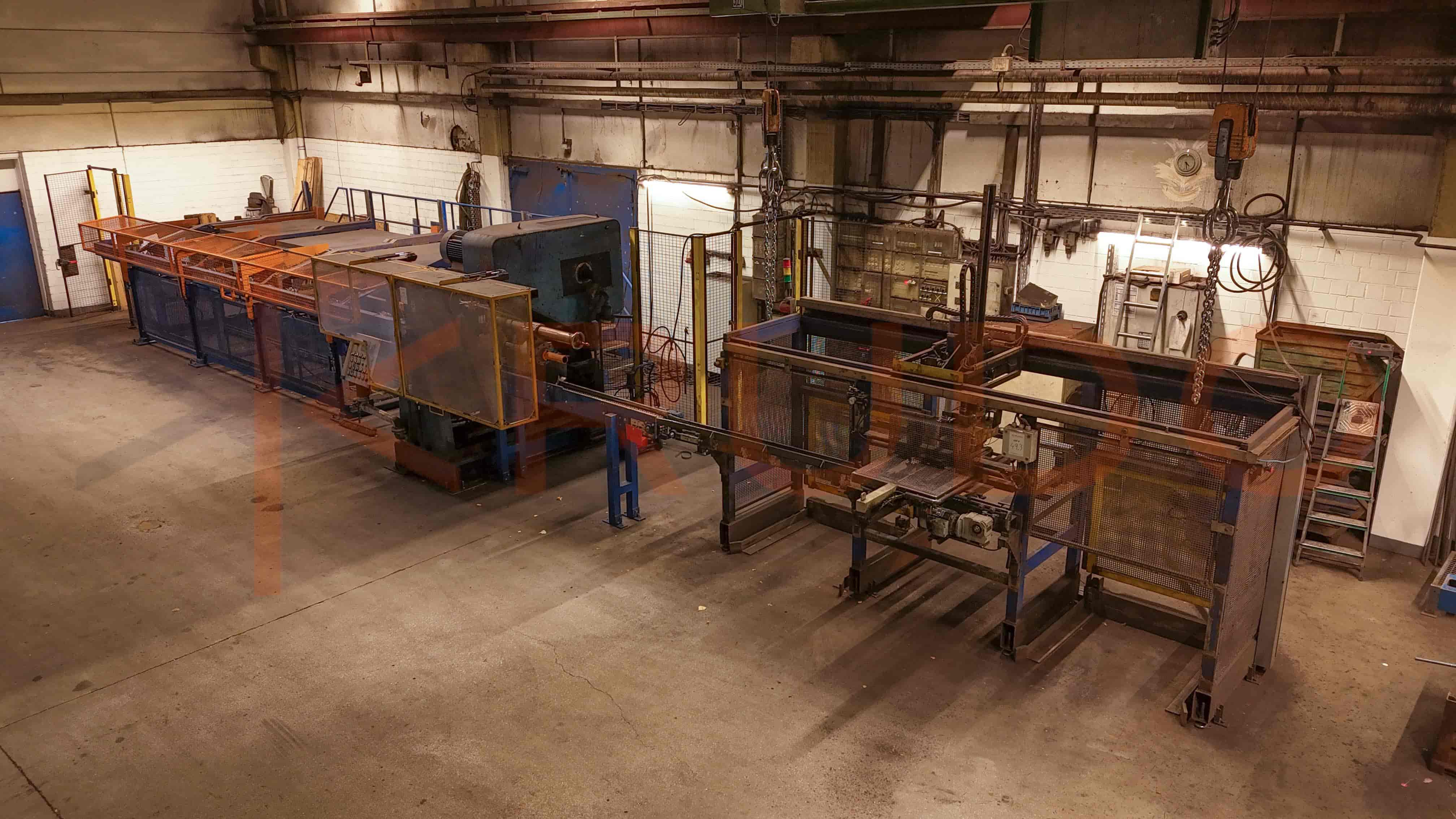

This line features a bar shear, a bar magazine with a roller conveyor, a conveyor, and a stacker arm.
Industry
Forging
Sale Type
Private Treaty
Manufacturer
Peddinghaus
Country
Germany
Product Line Type
Bar Shear Line
Year of Manufacture
1982-2022
Number of Machines
4
Shearing Force
2000 kN
Line Description

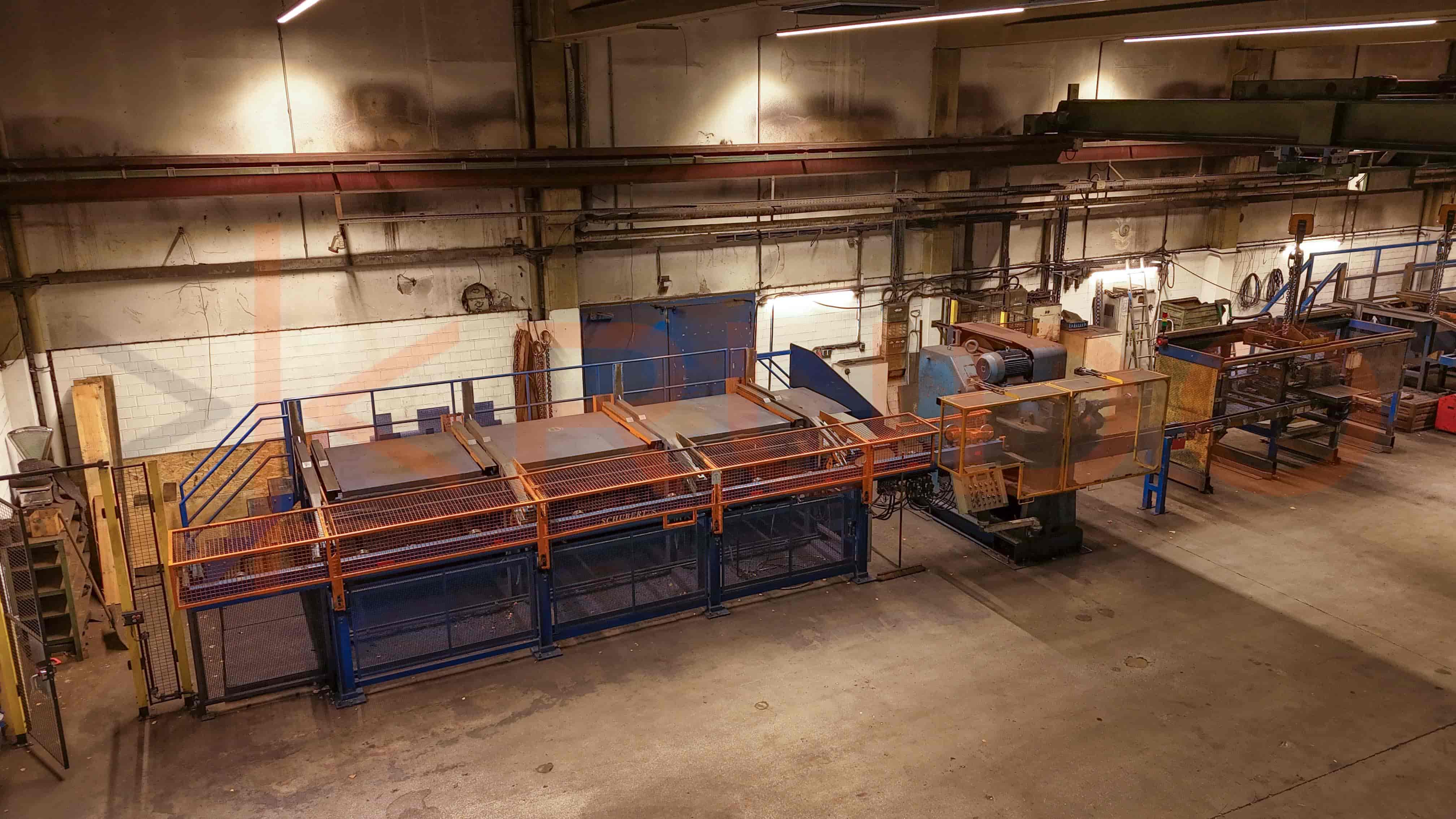

The complete line consists of the following machines:

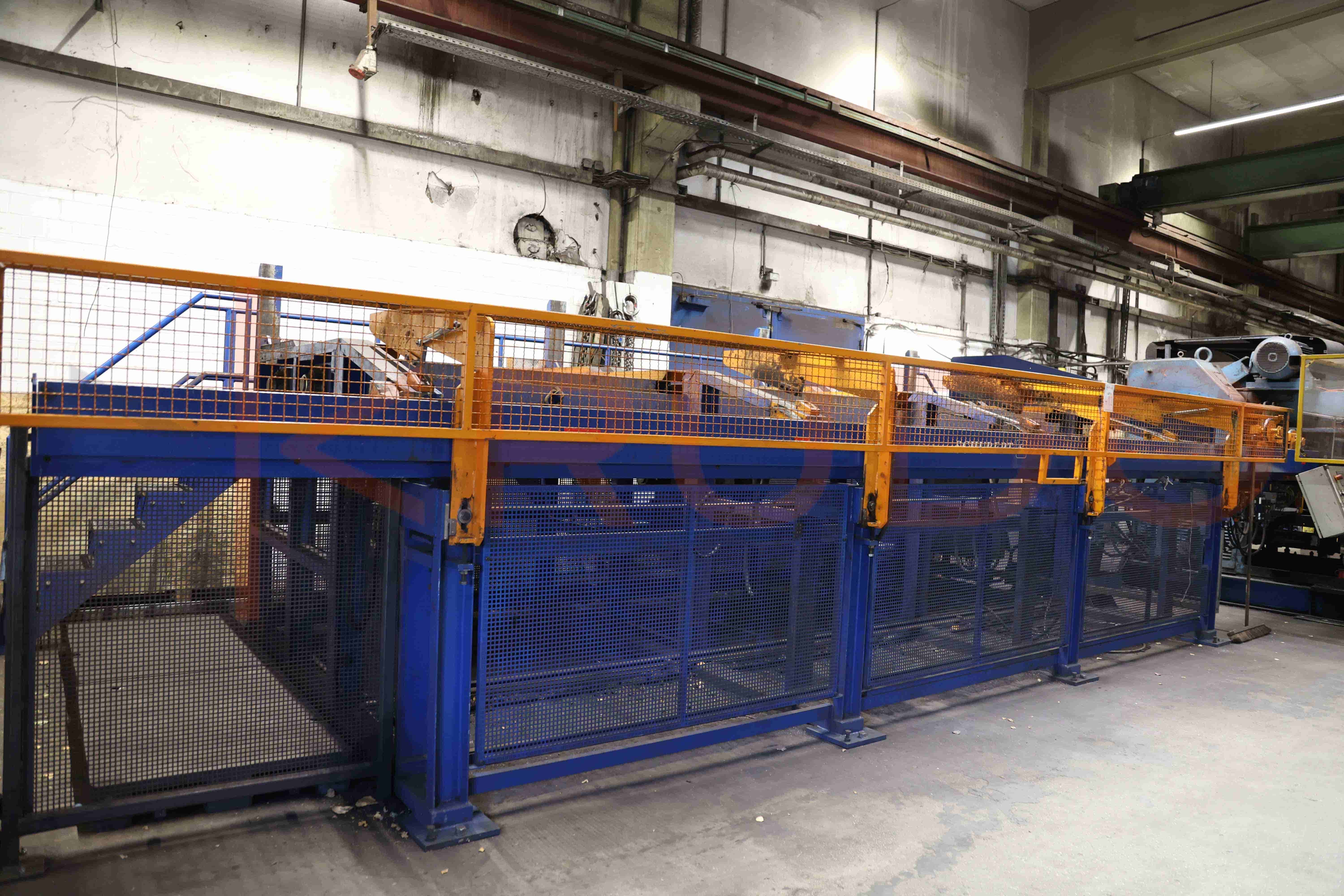

- Bar magazine Schubert SMH 50 (2020)
- Bar stock shear Peddinghaus Caddy 63 (1982) – Electrical Retrofit (2022)

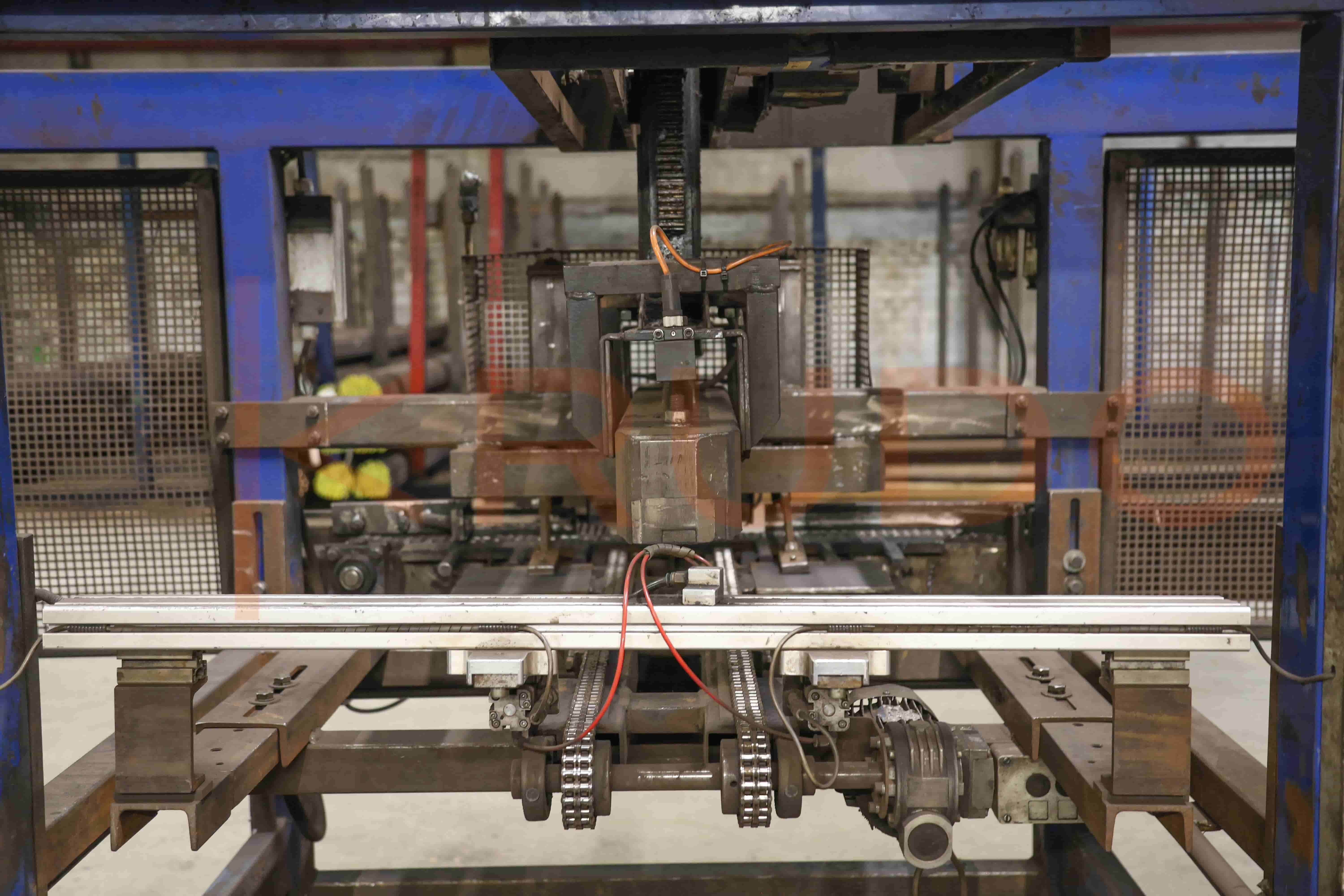

- iTFT Single-track chain conveyor (2019)

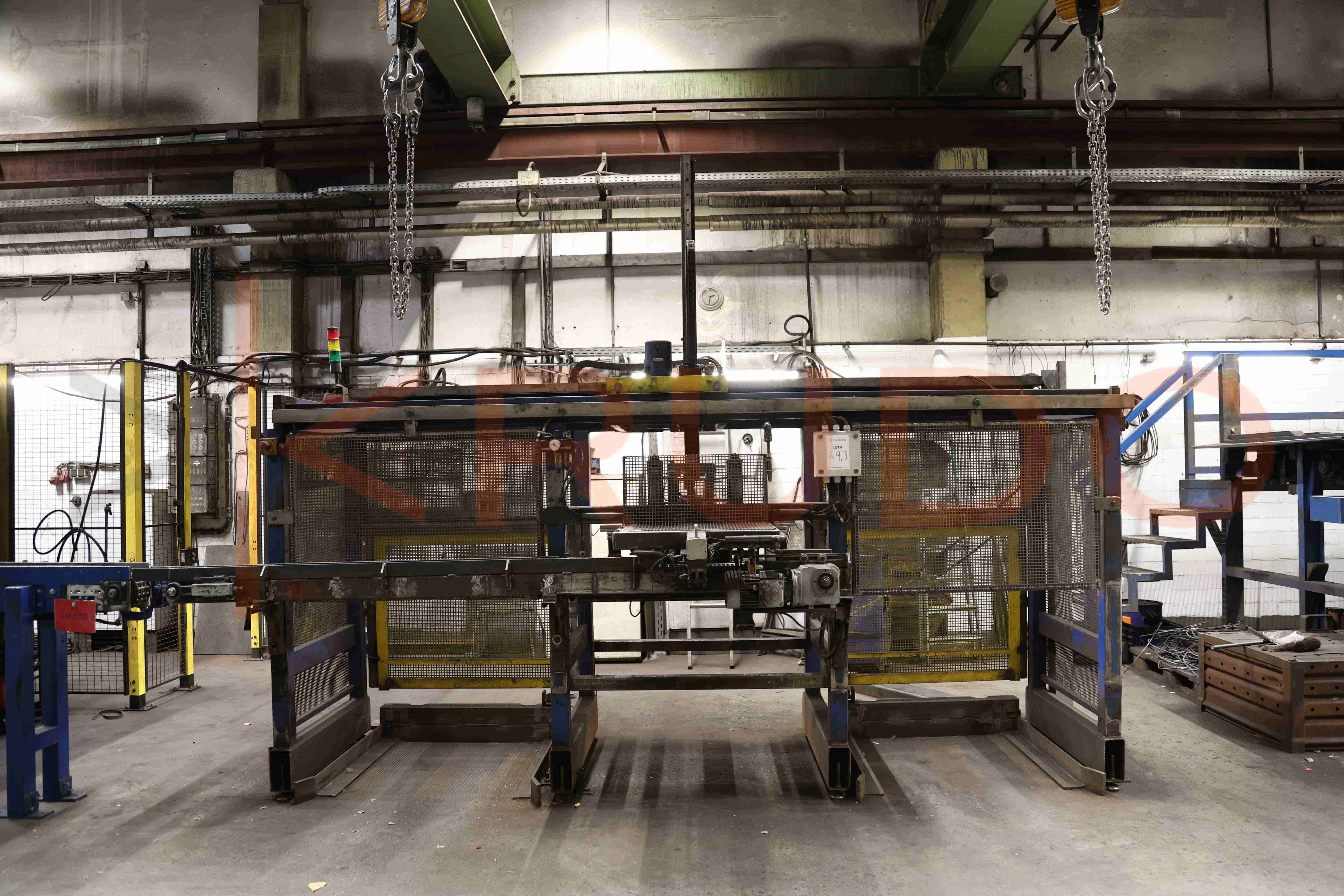

- Stacking magazine
Technical Details

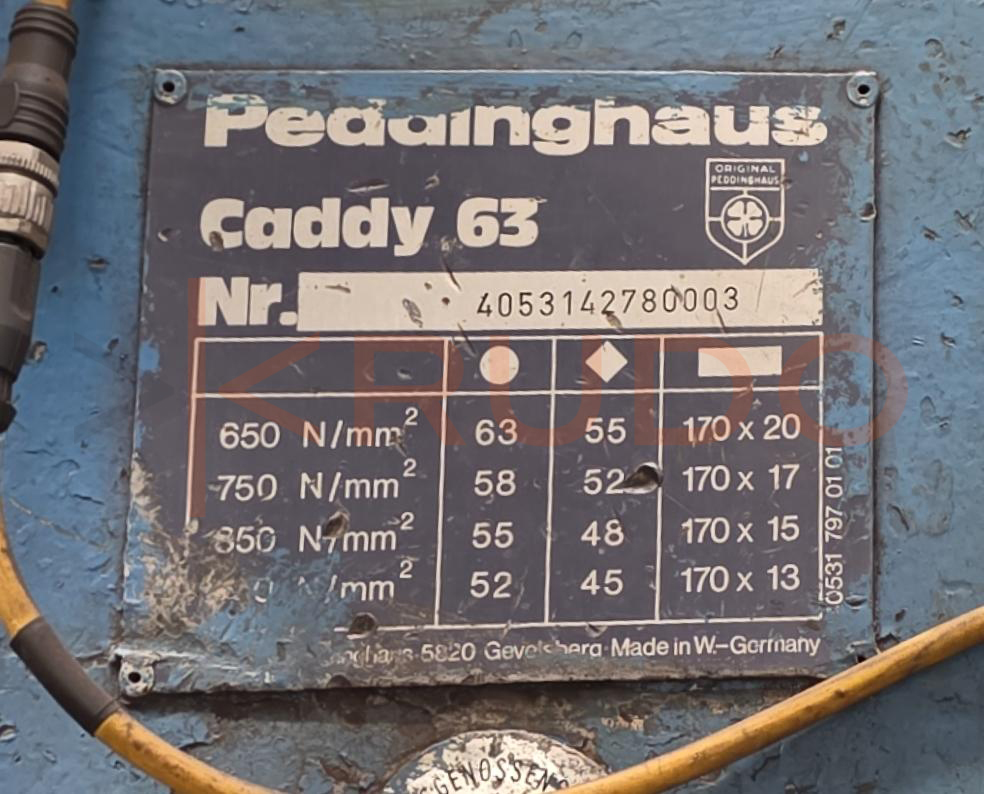

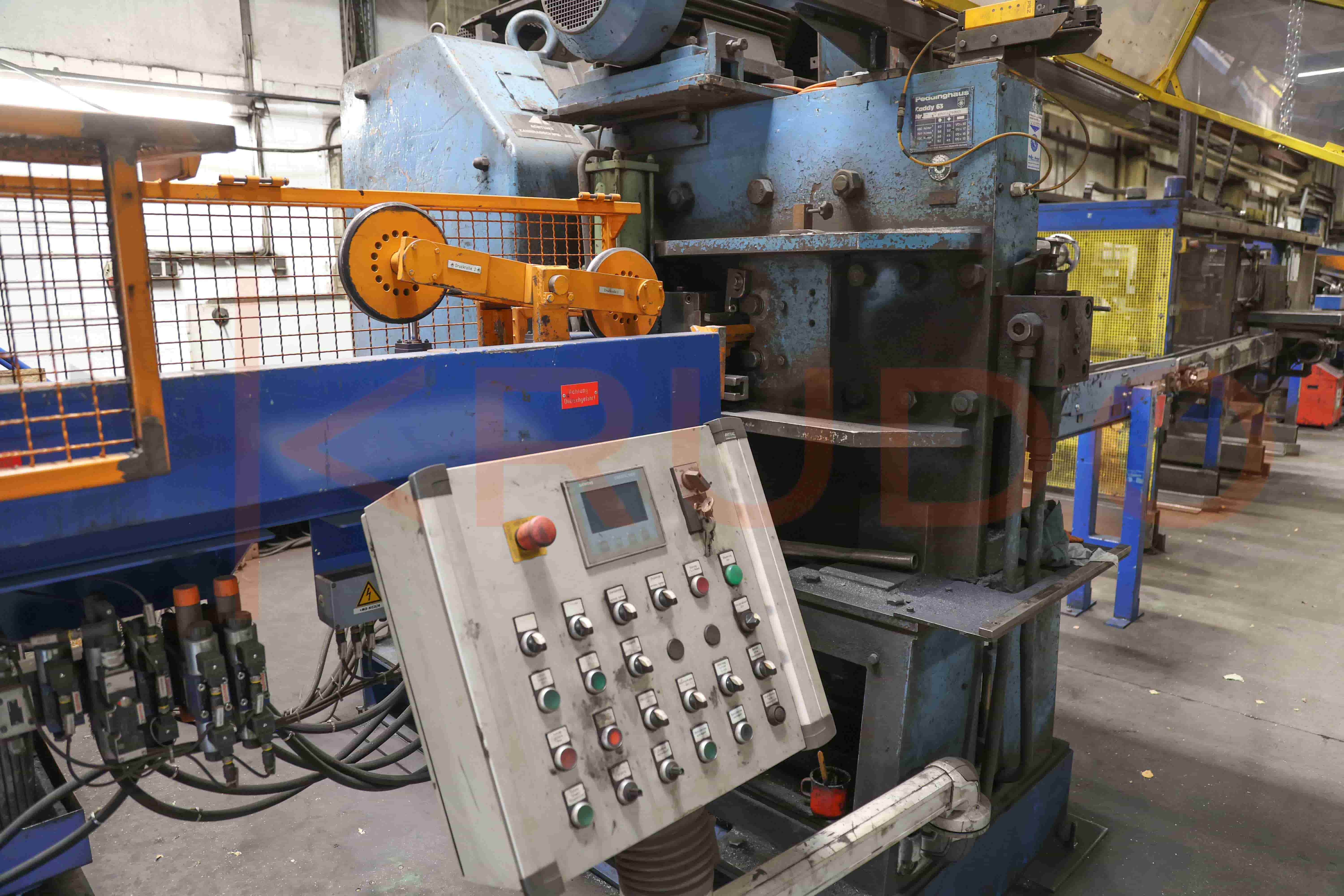

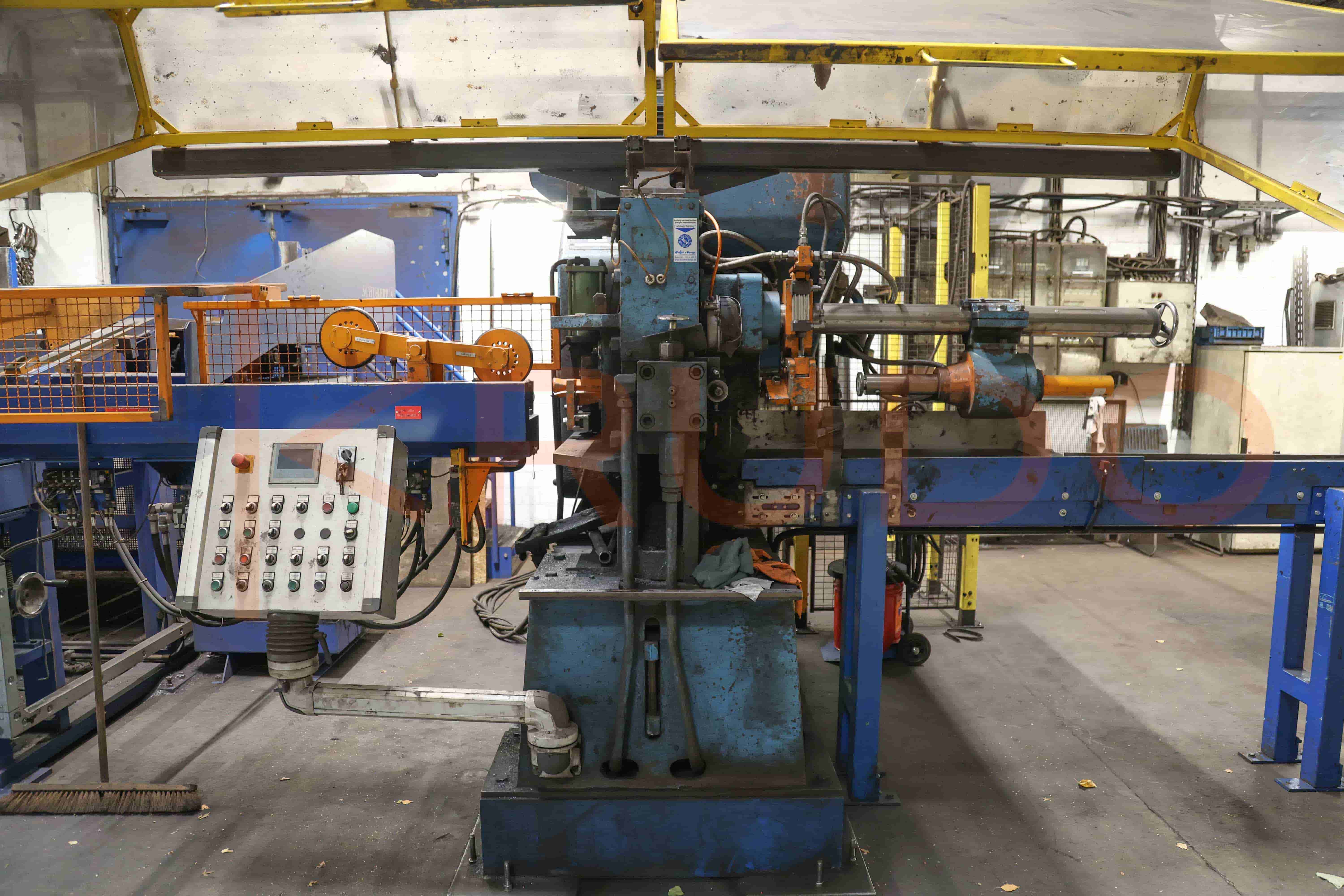

(1982/2022) Bar stock shear Peddinghaus Caddy 63
- Machine identification data
- Name: Bar stock shear
- Model: Caddy 63
- Machine number: 4053142780003
- Year of manufacture: 1982
- Name: Bar stock shear
- Operational parameters
- Shearing force: 2000 kN
- Stroke rate max. 48/min
- The number of cuts depends on part of lengths and general equipment

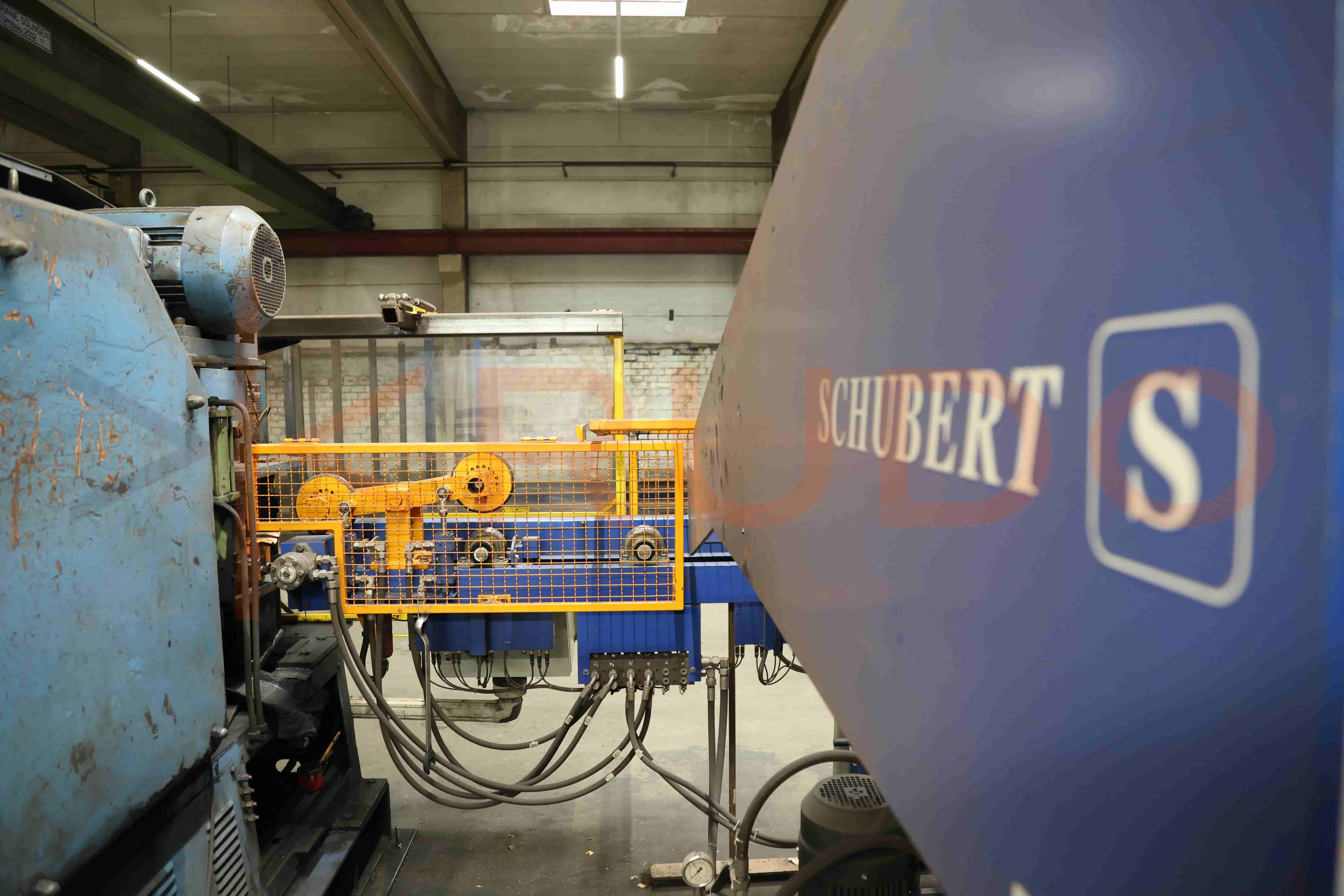

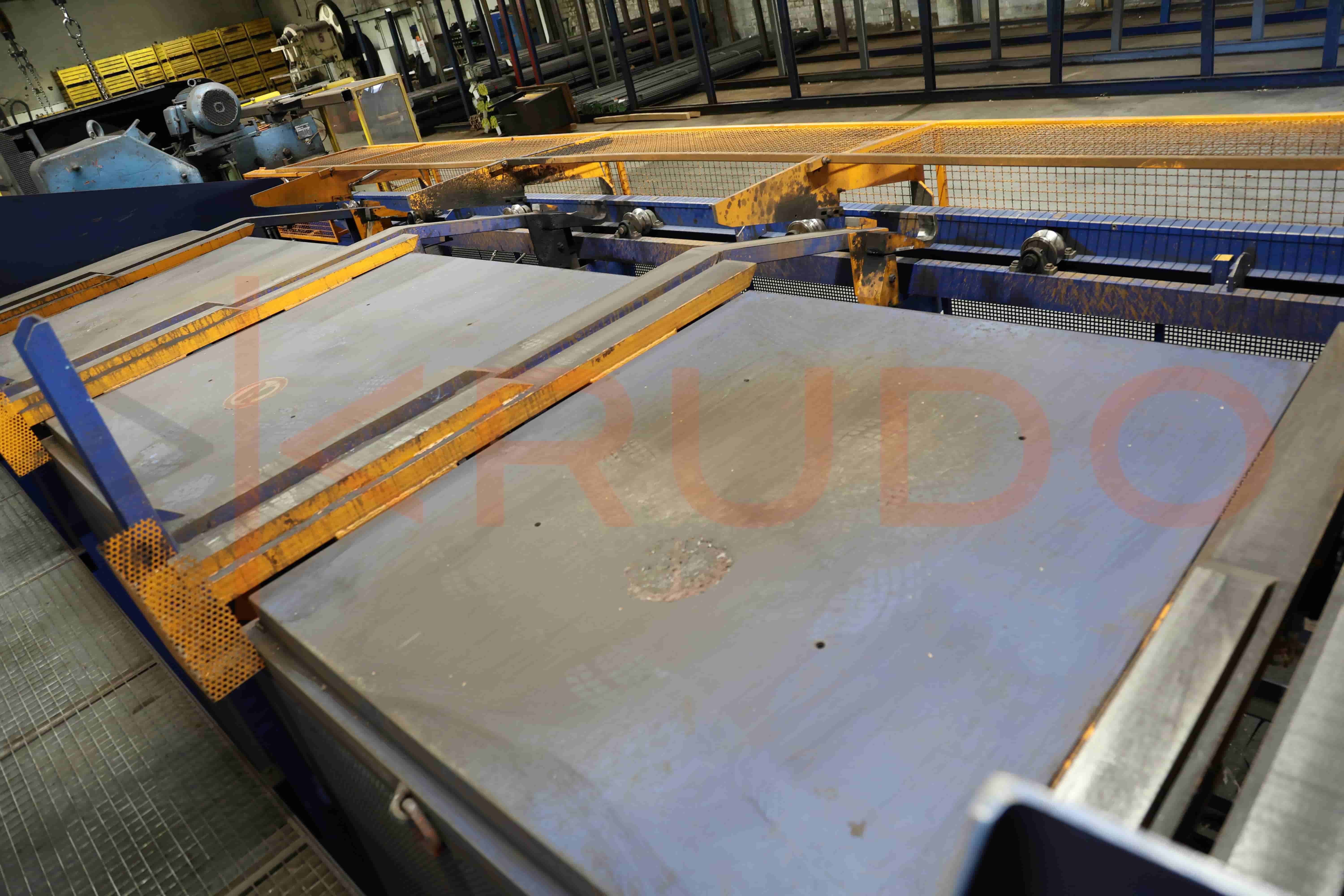

(2020) Bar magazine Schubert SMH 50
- Machine identification data
- Name: Bar magazine
- Manufacturer: Schubert
- Model: SMH 50
- Year of Manufacture: 2020
- Operational paramenters
- Dimensions
- H = approx. 2,150 mm
- W = approx. 8,500 mm
- D = approx. 3,000 mm
- Inlet height above floor: approx. 1,350 ±40 mm
- Weight: approx. 6,600 kg
- Loading capacity: max. 5,000 tons
- Electr. Drive - Lifting beam: 5.5 kW / IE3 (geared motor)
- Hydraulic power units: 4 kW
- Hydr. Drive - Transport rollers: OMRX100 (Sauer-Danfoss)
- System pressure hydraulics: approx. 65 bar
- Material Specifications (Round Steel)
- Permissible dimensions: Ø 12 to Ø 52 mm
- Bar lengths: 2800 to 7500 mm
- Dimensions
