49.2. Bar Magazine
Schubert SMH 50
Automated Bar Feeding System

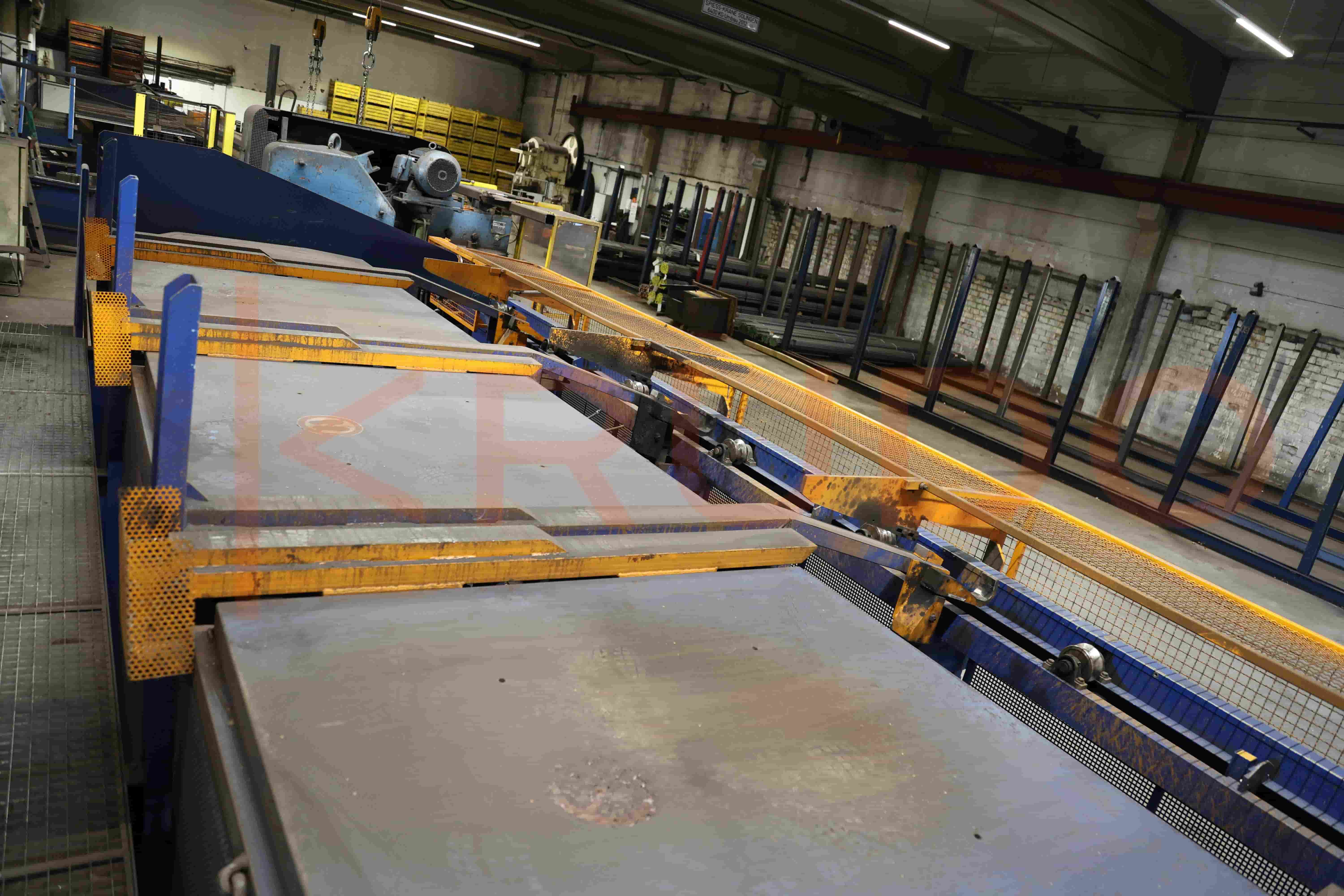

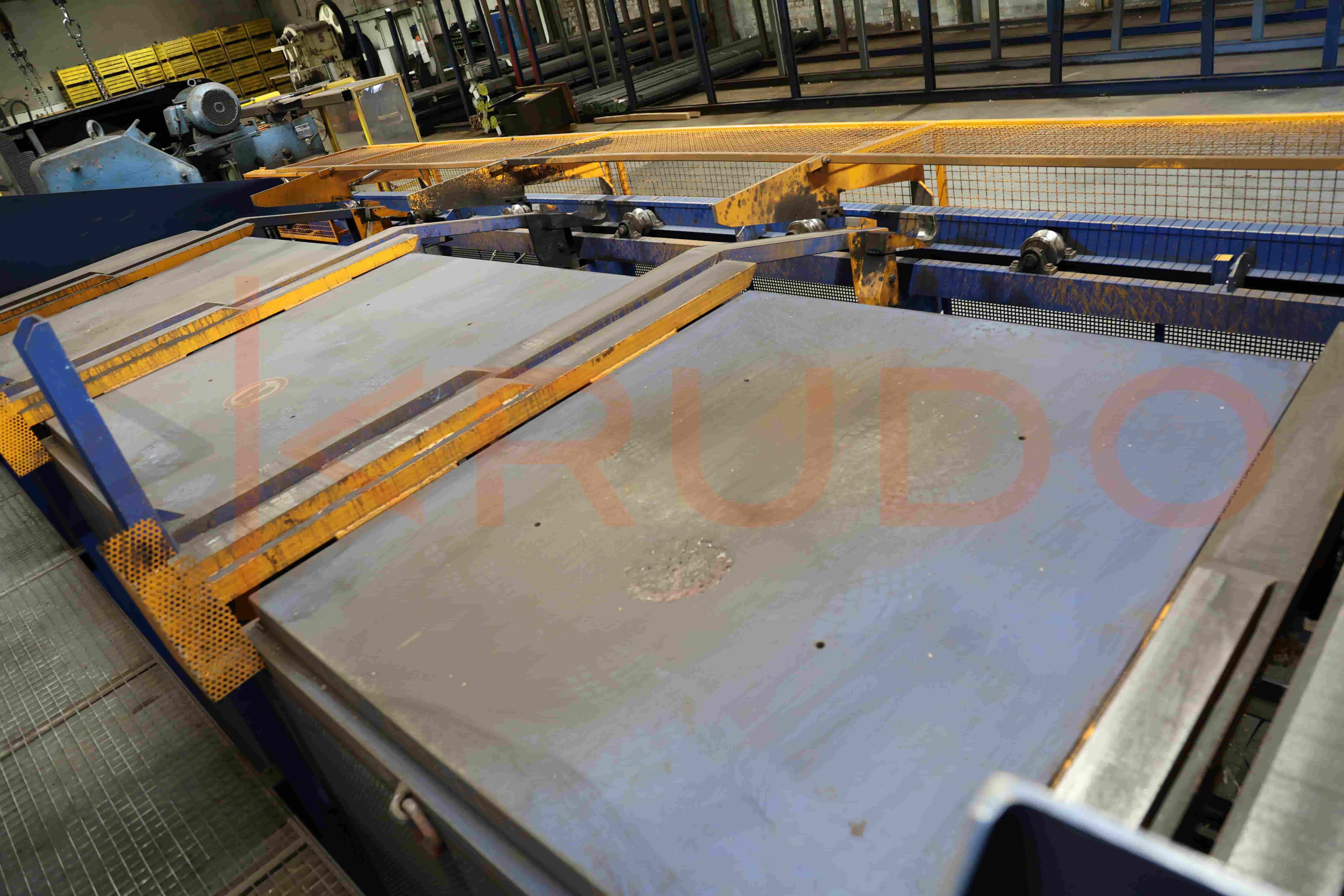

This Schubert bar magazine is designed for efficient and automated handling of bar material in forging and cutting lines. The system ensures smooth material supply and controlled transfer to downstream processing equipment.
Industry
Forging
Sale Type
Private Treaty
Manufacturer
Schubert
Country
Germany
Machine Type
Bar Magazine
Year of Manufacture
2020
Model
SMH 50
Technical Details
(2020) Bar magazine Schubert SMH 50
- Machine identification data
- Name: Bar magazine
- Manufacturer: Schubert
- Model: SMH 50
- Year of Manufacture: 2020
- Operational paramenters
- Dimensions
- H = approx. 2,150 mm
- W = approx. 8,500 mm
- D = approx. 3,000 mm
- Inlet height above floor: approx. 1,350 ±40 mm
- Weight: approx. 6,600 kg
- Loading capacity: max. 5,000 tons
- Electr. Drive - Lifting beam: 5.5 kW / IE3 (geared motor)

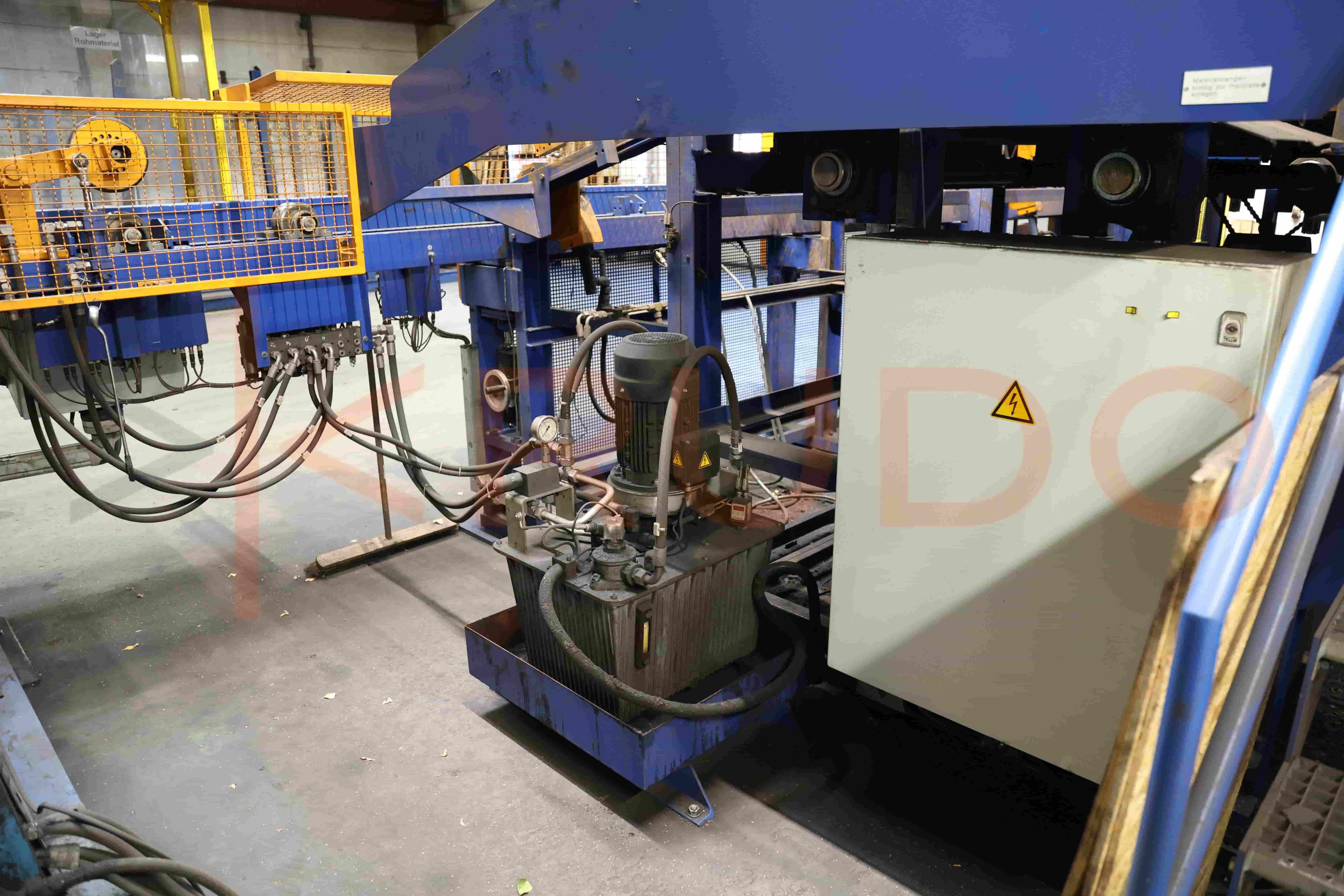

- Hydraulic power units: 4 kW
- Hydr. Drive - Transport rollers: OMRX100 (Sauer-Danfoss)
- System pressure hydraulics: approx. 65 bar
- Material Specifications (Round Steel)
- Permissible dimensions: Ø 12 to Ø 52 mm
- Bar lengths: 2800 to 7500 mm
- Dimensions
