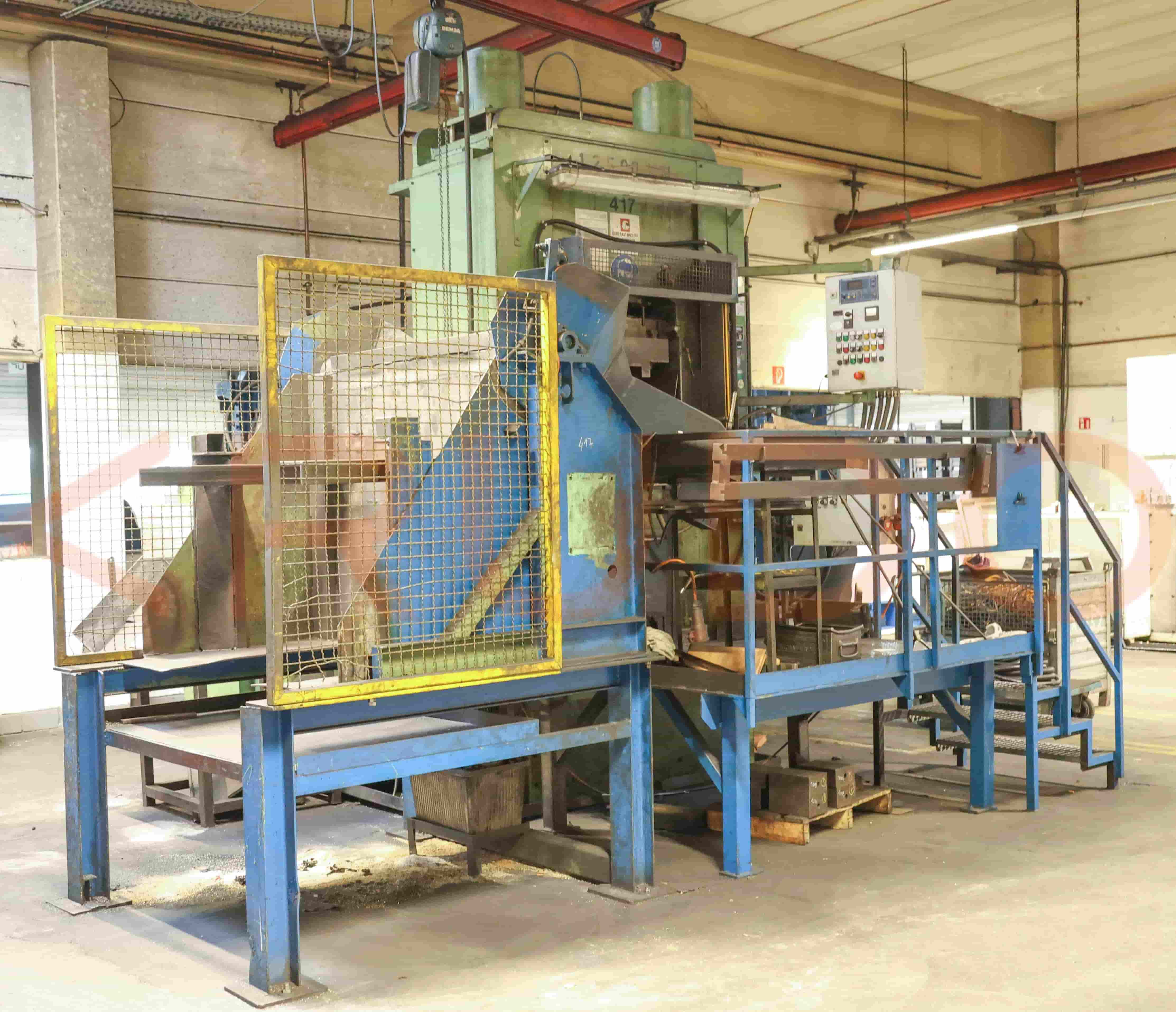

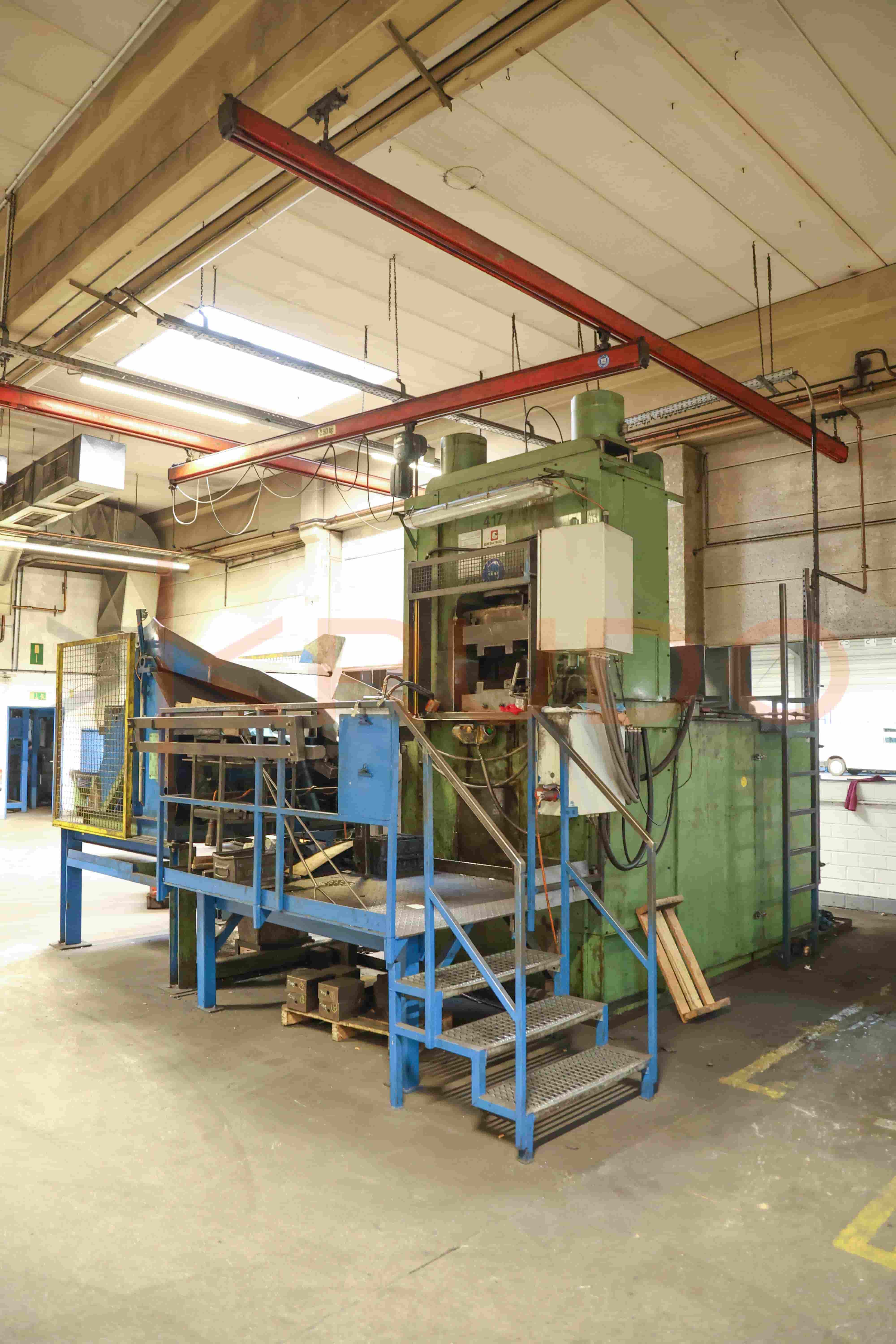

114. (1994) 1250t Wolff Knuckle-Joint Press
Wolff KHP 1250
High-Precision Knuckle-Joint Press for Massive Forming Loads

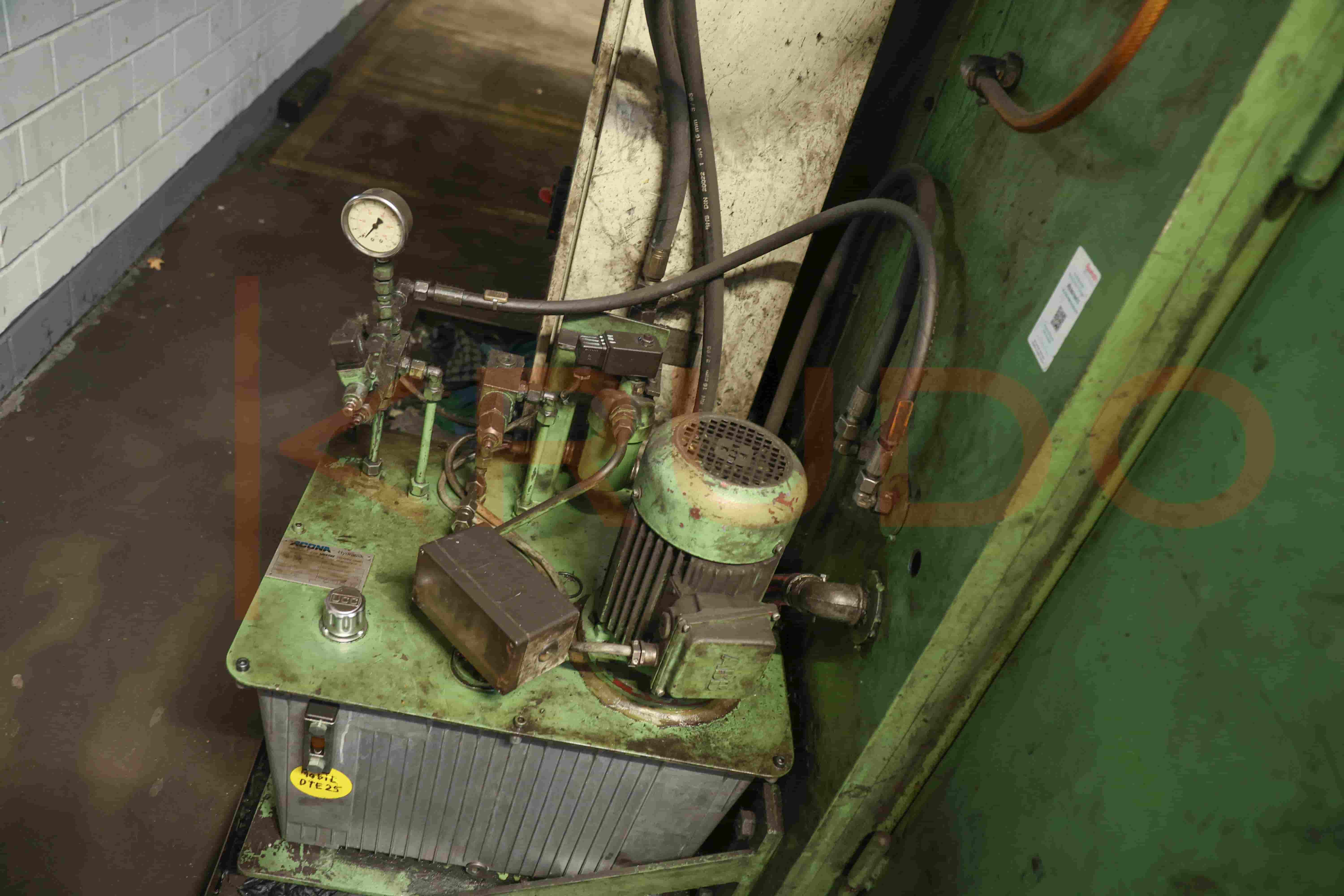

This Wolff press is a heavy-duty powerhouse, delivering a massive 12,500 kN of force specifically rated at 30° before Bottom Dead Center. Engineered for longevity and extreme precision, it features a 32-ton frame, permanent oil pressure lubrication, and electronic force monitoring to ensure consistent performance during high-capacity cold-forming operations.
Industry
Forging
Sale Type
Private Treaty
Manufacturer
Wolff
Country
Germany
Machine Type
Knuckle-Joint Press
Year of Manufacture
1994
Model
KHP 1250
Nominal Force
1250t
Technical Details
- Machine Type: Knuckle-Joint Press
- Manufacturer: Wolff
- Model: KHP 1250
- Year of Manufacture: 1994
- Nominal Force (30° before BDC): 1250t
- Stroke Rate (Continuous): 25 strokes/min
- Ram Stroke: 90 mm
- Ram Adjustment: 70 mm
- Shut Height (min/max): 490 mm / 560 mm
- Max. Distance (Table to Ram): 625 mm
- Clearance in Ram Frame: 680 mm
- Table Surface Area (W x D): 660 mm x 660 mm
- Ram Surface Area (W x D): 660 mm x 460 mm
- Ram Spigot Hole (Ø x Depth): 80 mm x 110 mm
- Drive Motor: 45 kW
- Total Machine Weight: 32,000 kg
