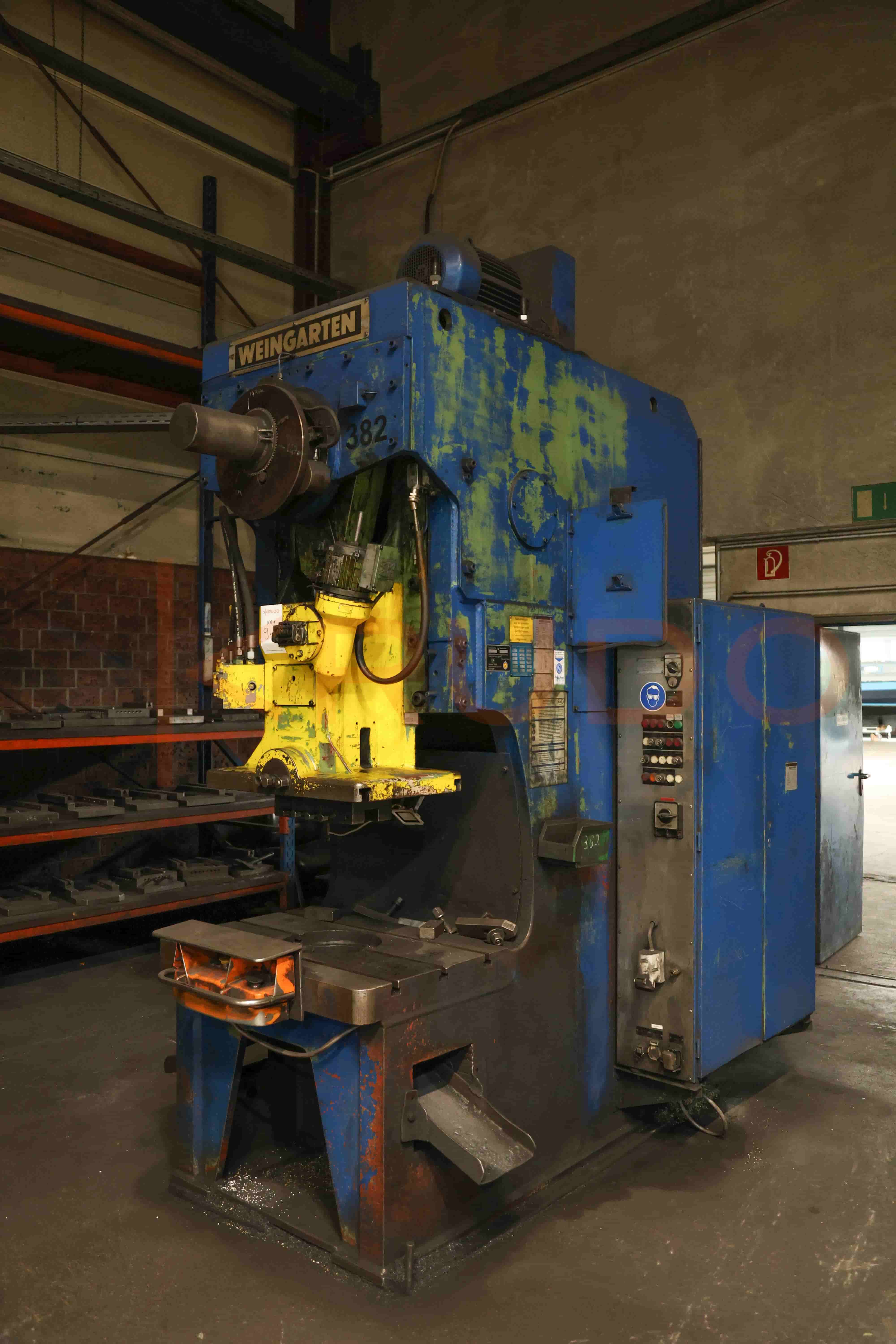

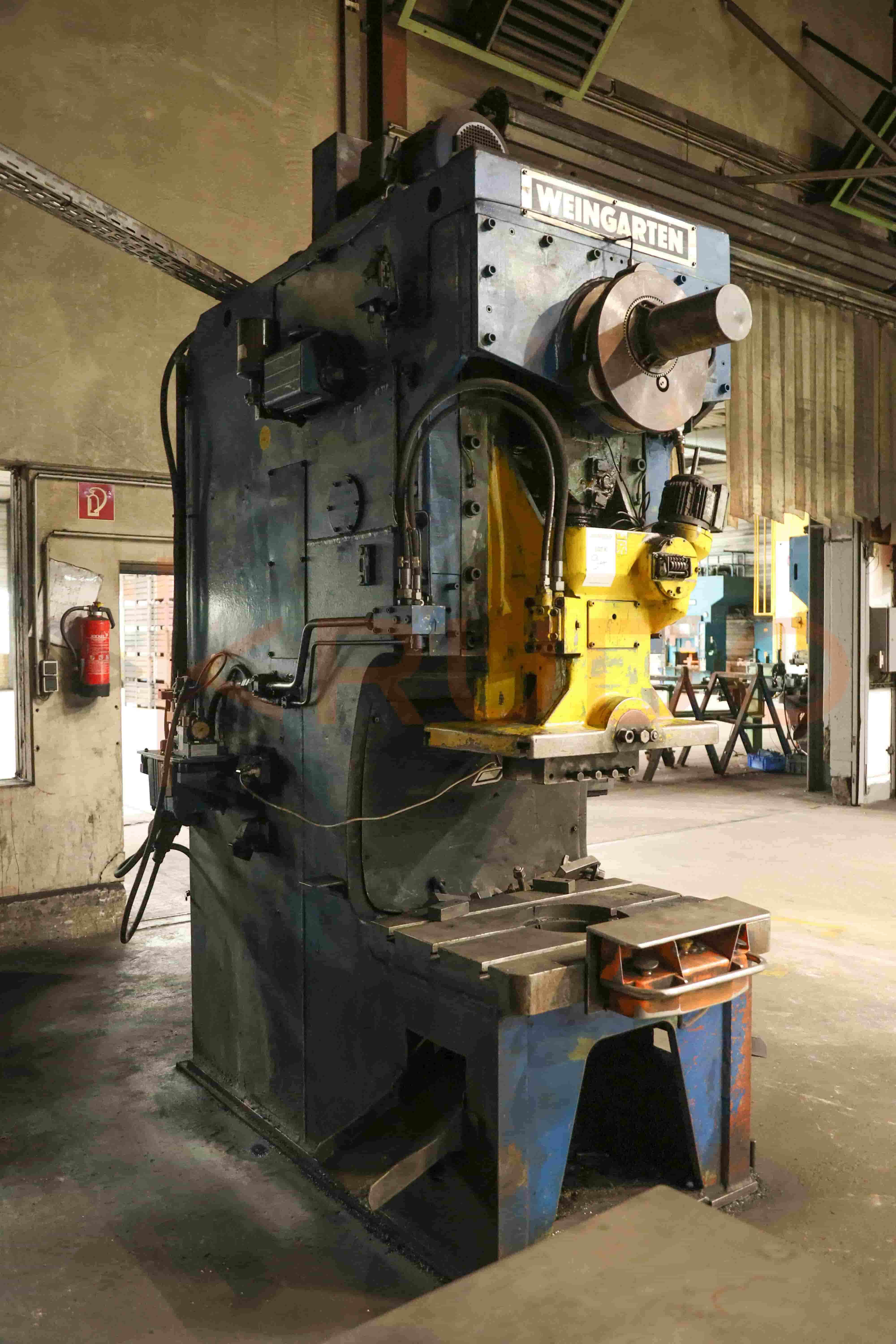

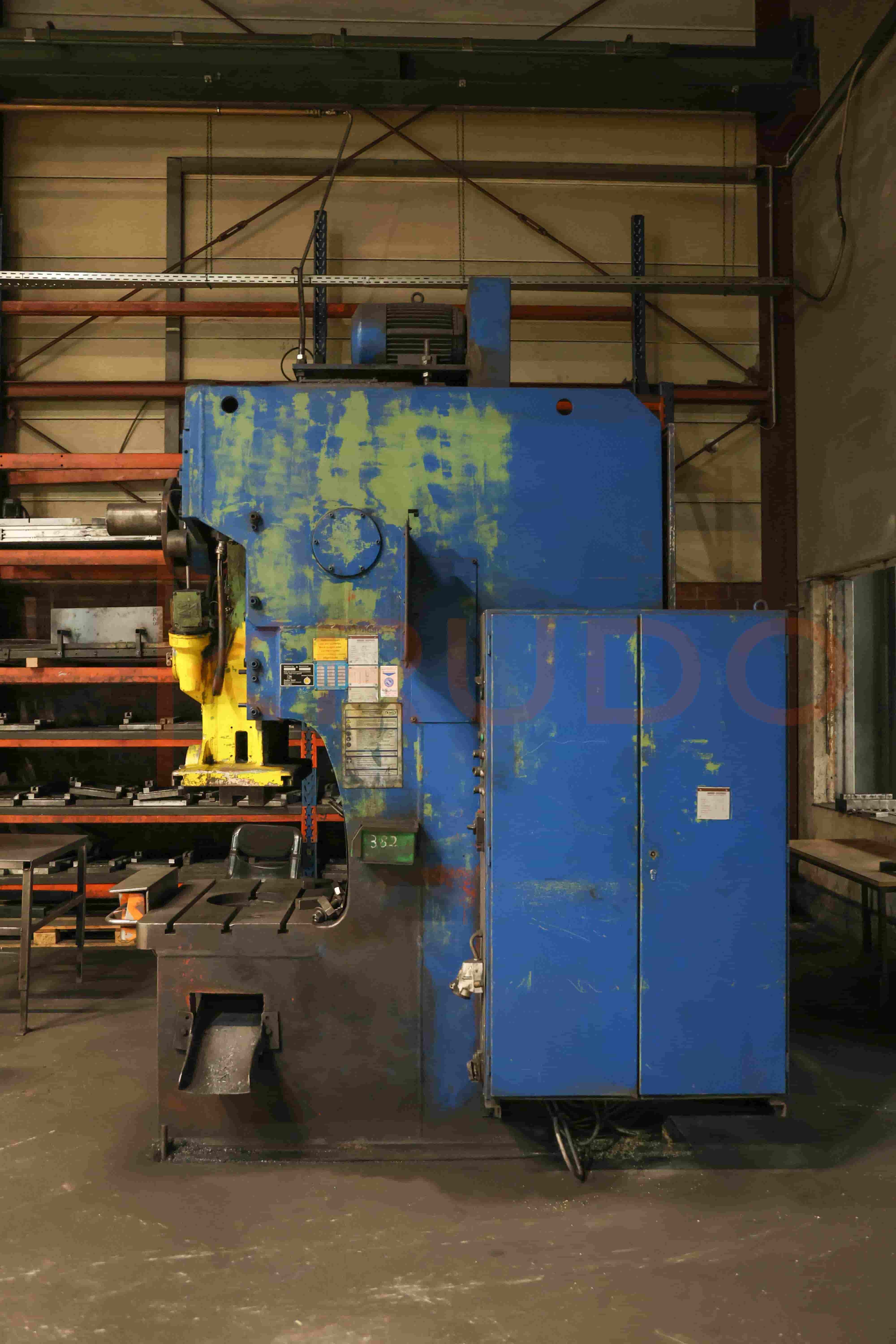

94. (1984) 100t Müller-Weingarten Eccentric Press
Müller-Weingarten ARP 100
High-Speed Single-Column Eccentric Press with Versatile Stroke Adjustment
This Müller-Weingarten press is a highly adaptable industrial machine, featuring a 100-ton nominal force and an impressive stroke rate of 60 per minute.
Industry
Forging
Sale Type
Private Treaty
Manufacturer
Müller-Weingarten
Country
Germany
Machine Type
Eccentric Press
Year of Manufacture
1984
Model
ARP 100
Nominal Force
100t
Technical Details
- Machine Type: Eccentric Press
- Manufacturer: Müller-Weingarten
- Model: ARP 100
- Year of Manufacture: 1984
- Nominal Force: 100t
- Stroke Rate: 60 strokes/min
- Throat Depth (Projection): 375 mm
- Frame Passage (Front to Back): approx. 570 mm
- Max. Distance (Table to Ram): 384 mm
- Adjustable Ram Stroke: 8 mm – 137 mm
- Intermediate Strokes: 8, 23, 43, 63, 81, 97, 111, 122, 130, 135, 137 mm
- Ram Adjustment: 80 mm
- Ram Clamping Surface (W x D): 700 mm × 450 mm
- Ram Shank Hole (Ø x Depth): 50 mm × 85 mm
- Ejector Travel: 55 mm
- Table Clamping Surface (W x D): 920 mm × 660 mm
- Table Bed Hole (Diarrhea hole): 280 mm diameter
- Motor Specs: 11.0 kW / 1,500 rpm
- Total Weight: approx. 8,000 kg
