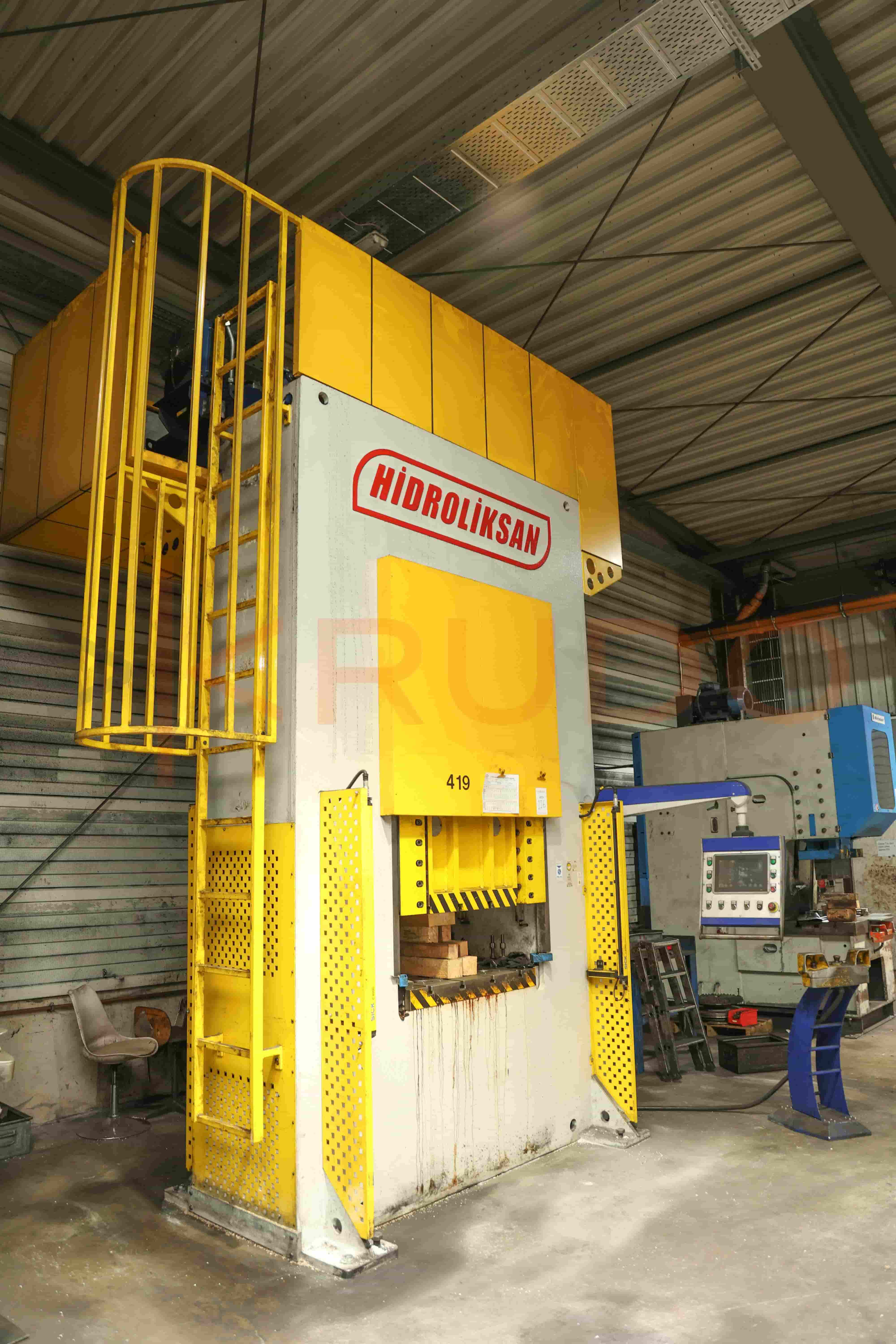

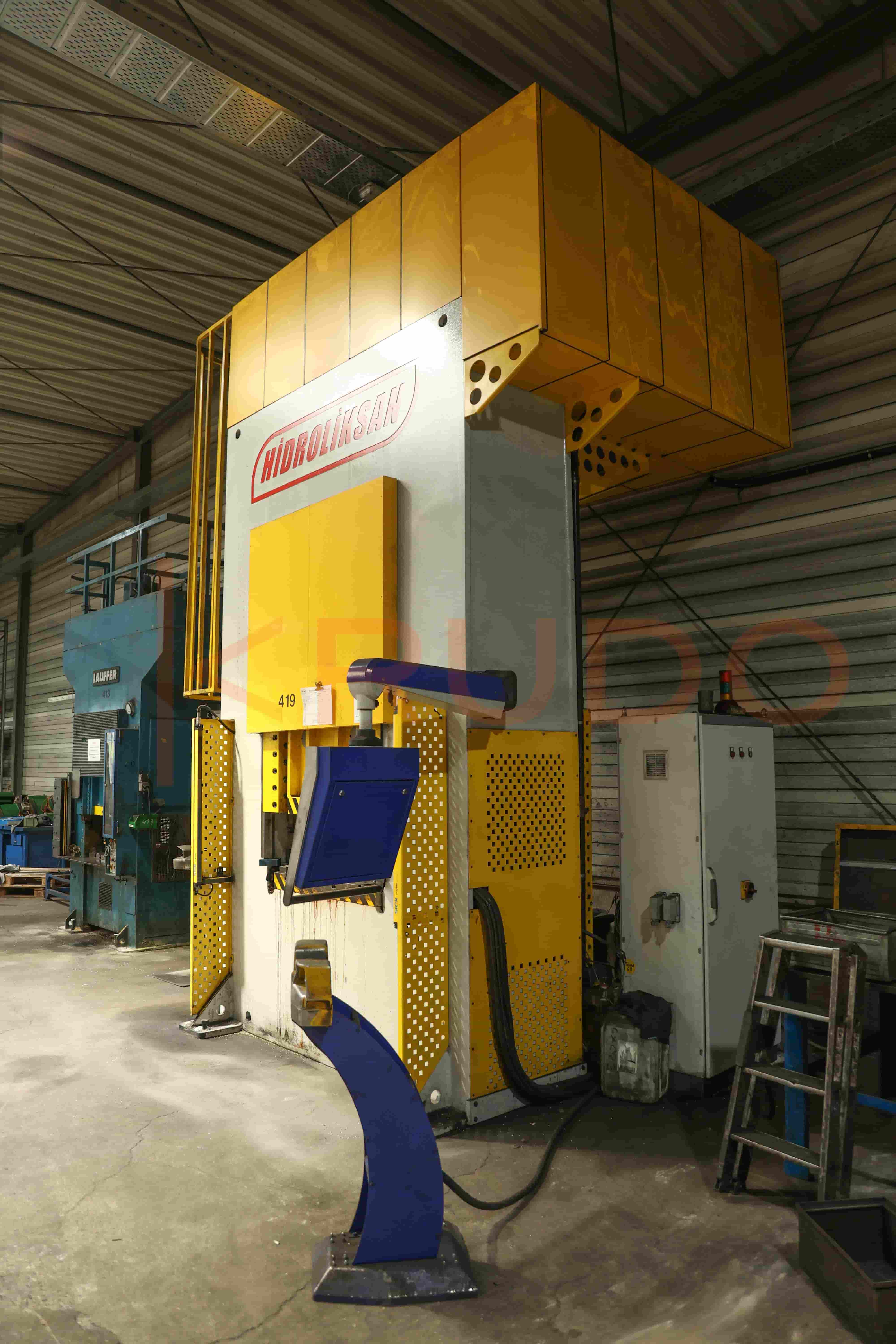

116. (2018) 250t Hidroliksan Hydraulic Press
Hidroliksan H-TYPE
Hydraulic Press with Integrated Die Cushion for Deep Drawing
This 2018 hydraulic double-column press is a heavy-duty production unit designed for versatility, featuring a robust 250-ton capacity and high-quality Rexroth and SICK components. With its 100-ton integrated die cushion and generous 500 mm stroke, it is exceptionally well-suited for complex deep drawing and forming operations that require precise pressure control.
Industry
Forging
Sale Type
Private Treaty
Manufacturer
Hidroliksan
Country
Germany
Machine Type
Hydraulic Press
Year of Manufacture
2018
Model
H-TYPE
Nominal Force
250t
Technical Details
- Machine Type: Hydraulic Double-Column Press
- Manufacturer: Hidroliksan
- Model: H-TYPE
- Nominal Force: 250t
- Return Force: 50t
- Stroke Length: 500 mm
- Speeds:
- Approach: 160 mm/sec
- Pressing: 5 – 15 mm/sec
- Return: 190 mm/sec
- Working Surfaces:
- Ram Plate: 1,000 x 800 mm
- Table Plate: 1,000 x 800 x 100 mm
- Components:
- Pump: REXROTH (71cc – 103 L/min)
- Motor: 22 kW (30 hp), 1,500 rpm (WAT – IE 3)
- Safety: SICK Light Sensors (900 + 150 mm)
- Die Cushion:
- Capacity: 100t
- Stroke: 200 mm
- Oil Reservoir: approx. 1,200 Liters
- Total Weight: approx. 15,500 kg
