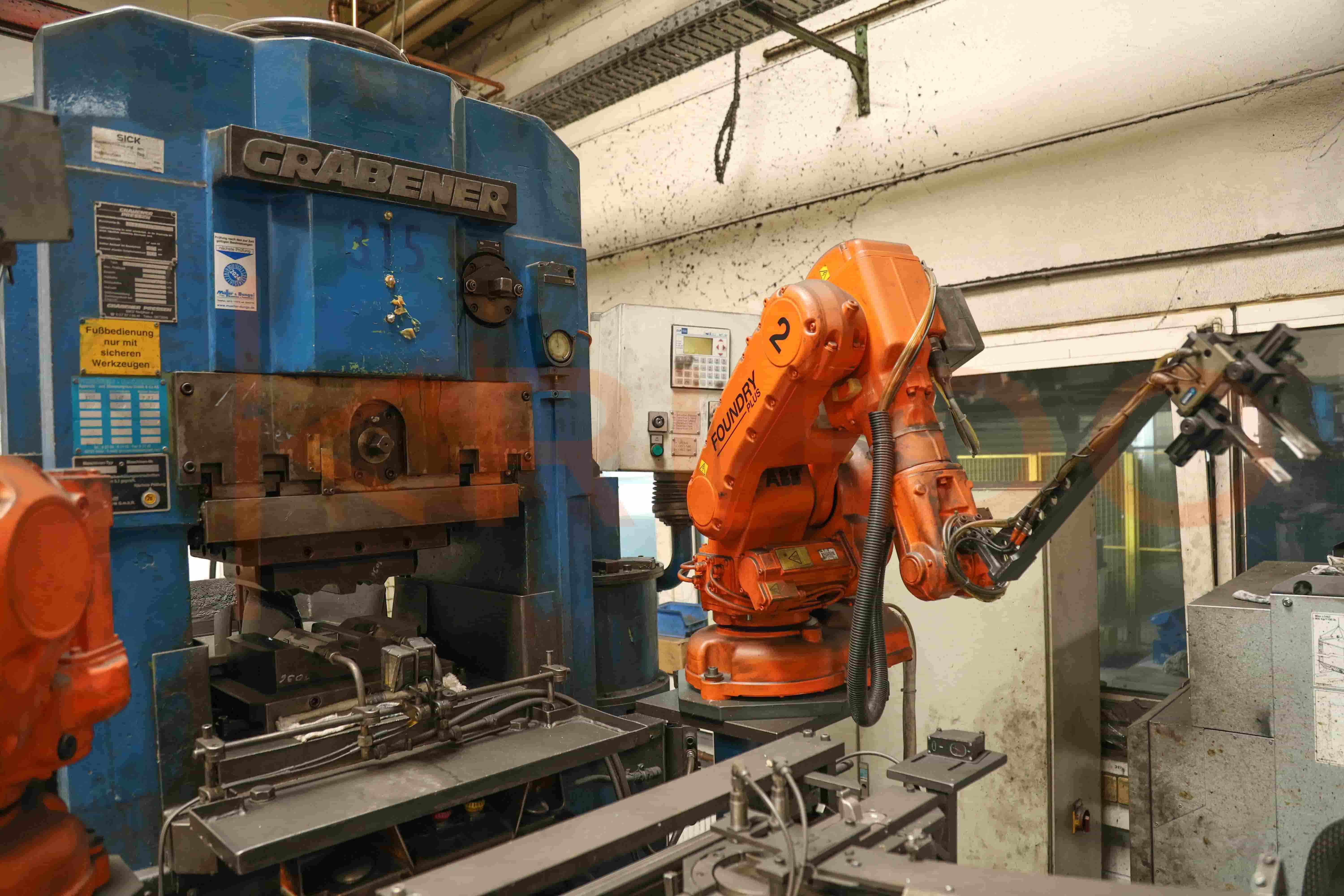

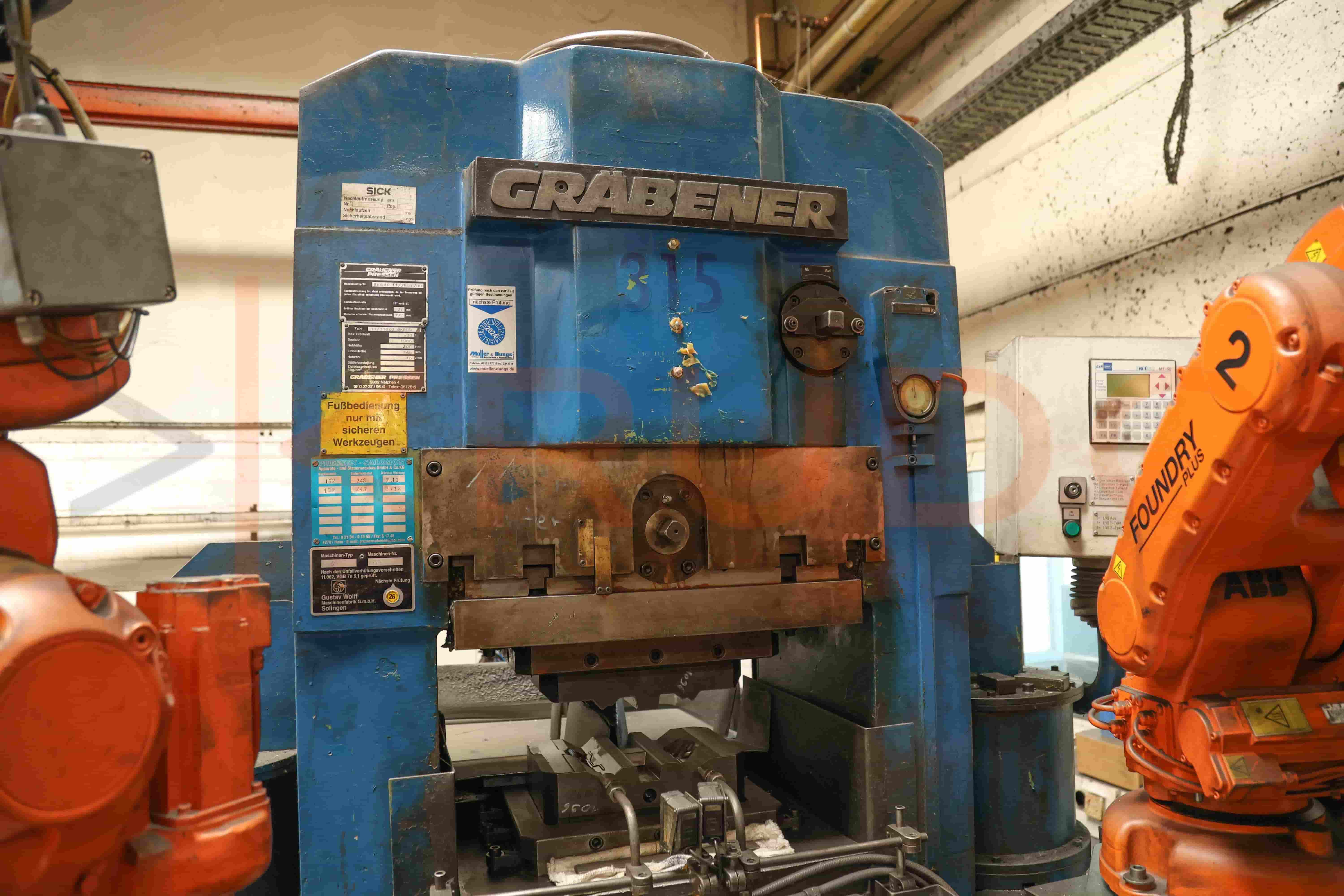

82. (1986) 600t Gräbener Knuckle-Joint Press
Gräbener GK 600
Fully Automated High-Precision Short-Stroke Forming
This knuckle-joint press delivers a nominal force of 600 metric tons, designed for high-precision forming applications requiring controlled force near bottom dead center.
Industry
Forging
Sale Type
Private Treaty
Manufacturer
Gräbener
Country
Germany
Machine Type
Knuckle-Joint Press
Year of Manufacture
1986
Model
GK 600
Nominal Force
600t
Technical Details
- Machine Type: Knuckle-Joint Press
- Model: GK 600
- Nominal Force: 600t
- Year of Manufacture: 1986
- Rated Force Travel (Pressing Path): 1.7 mm
- Nominal Work Capacity: 10,200 Nm
- Stroke: 100 mm
- Stroke Rate: 45 strokes/min
- Shut Height (Max. Die Space): 360 mm
- Tool Holder Adjustment: 50 mm
- Clearance Between Uprights: 580 mm
- Table Area (Width x Depth): 550 mm x 430 mm
- Tool Holder Shank Hole (Ø x Depth): 65 mm x 105 mm
- Motor Output: 15 kW
- Motor Speed: 1,500 rpm
- Pneumatic Connection Pressure: 5.5 bar
- Operating Voltage: 3x 380V / 220V, 50Hz
- Total Weight: 13,500 kg
- Machine Dimensions (WxDxH): 1,600 x 2,500 x 2,800 mm

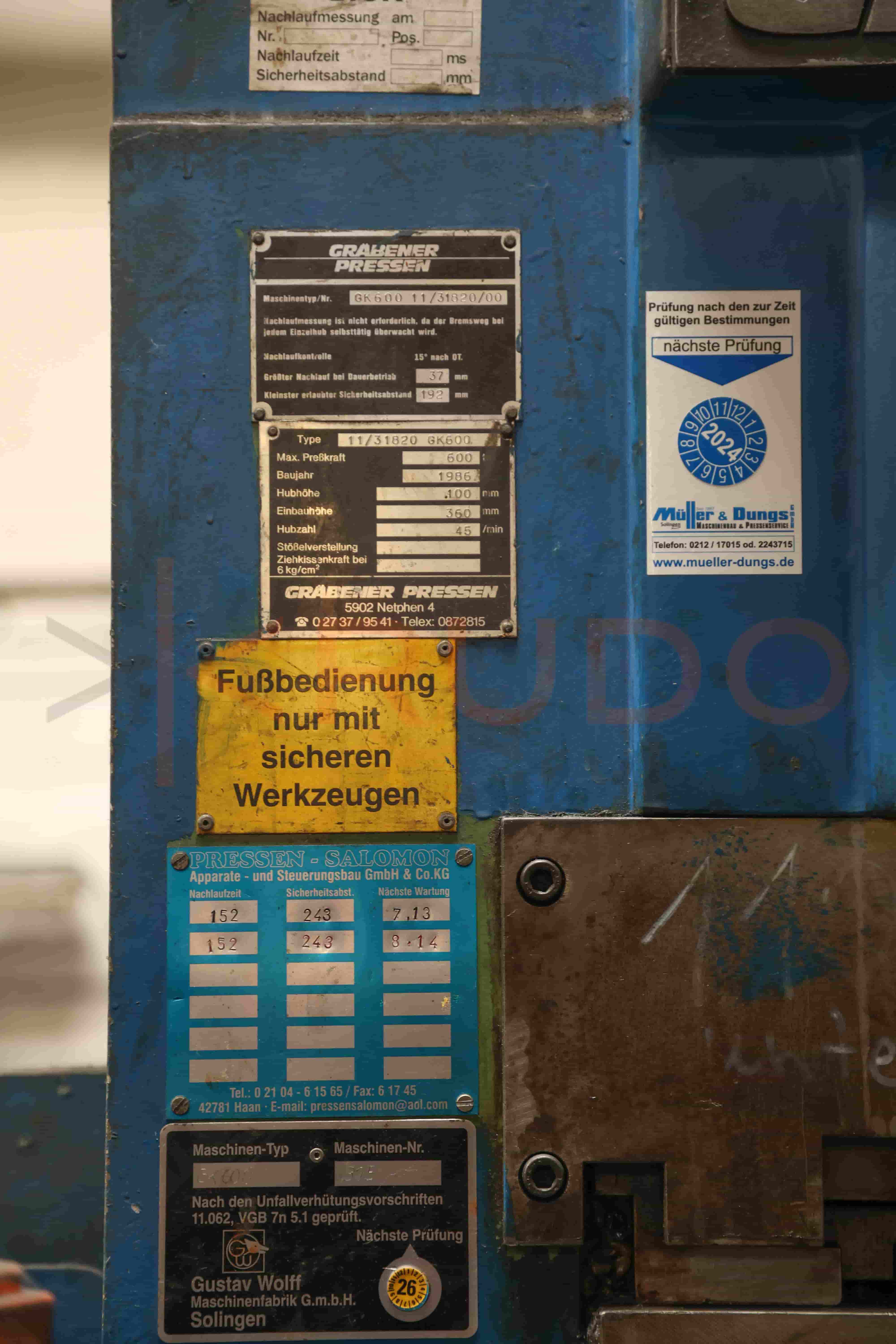

- Overrun Time (Stopping Time): 152 ms
- Safety Distance: 243 mm
