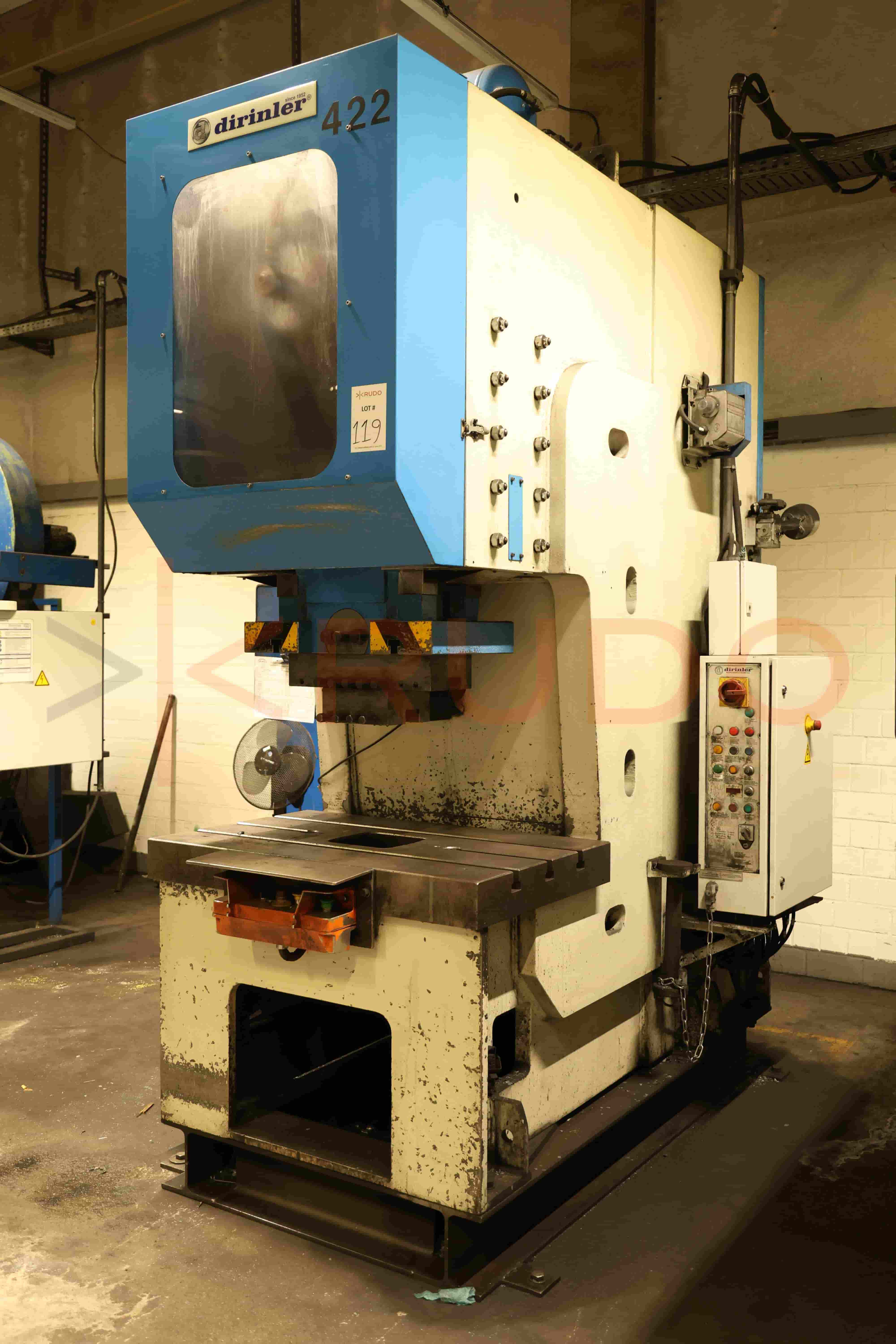

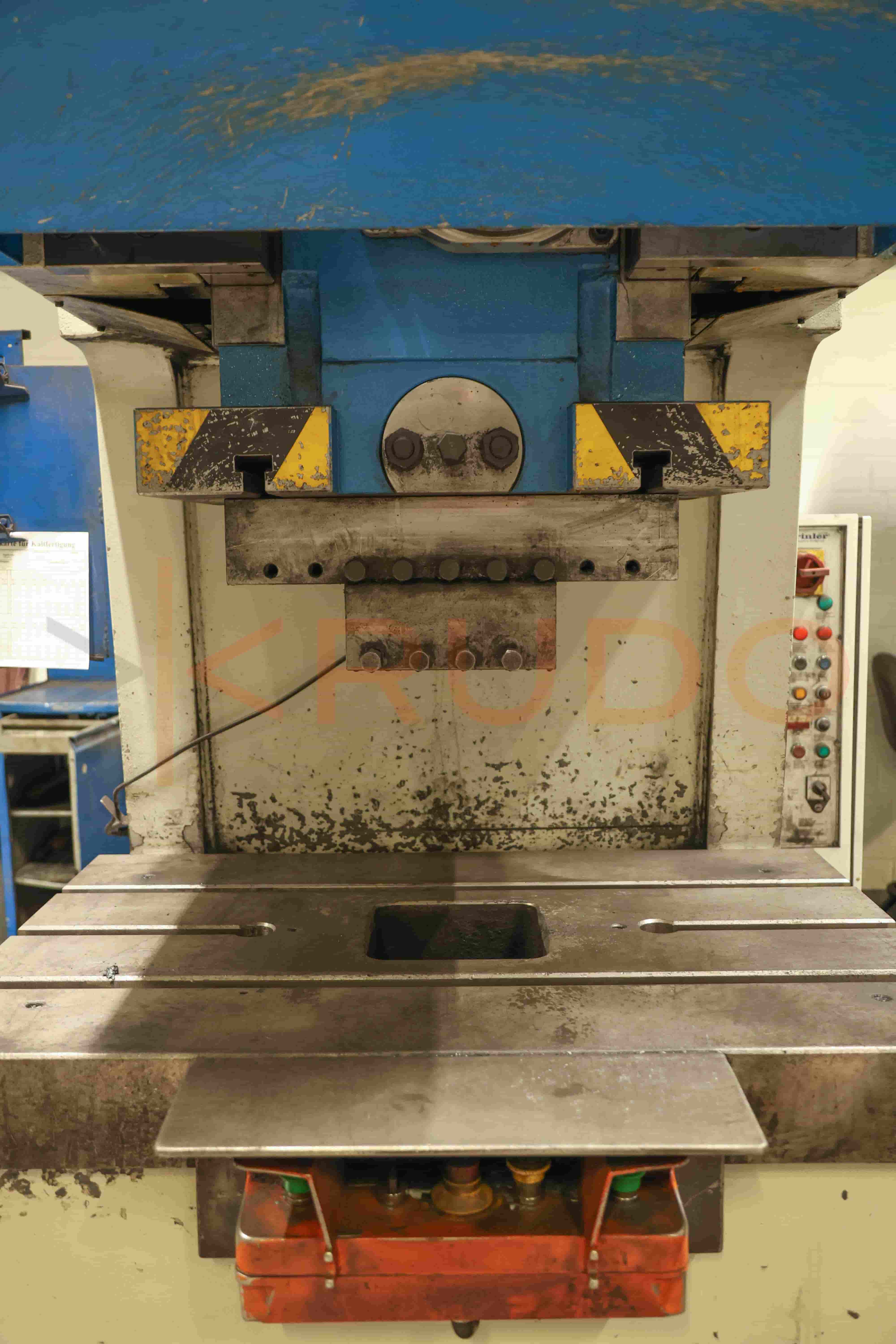

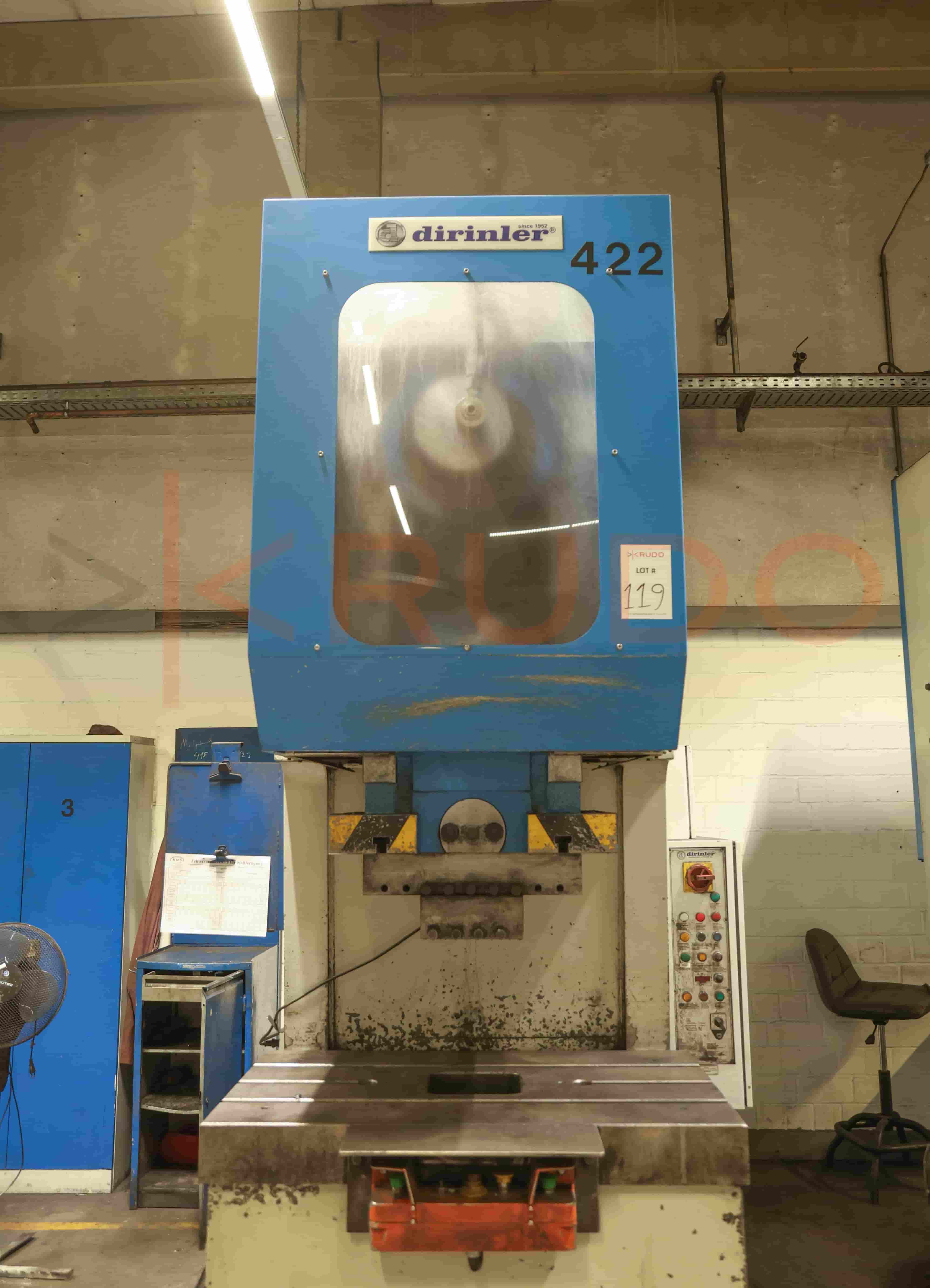

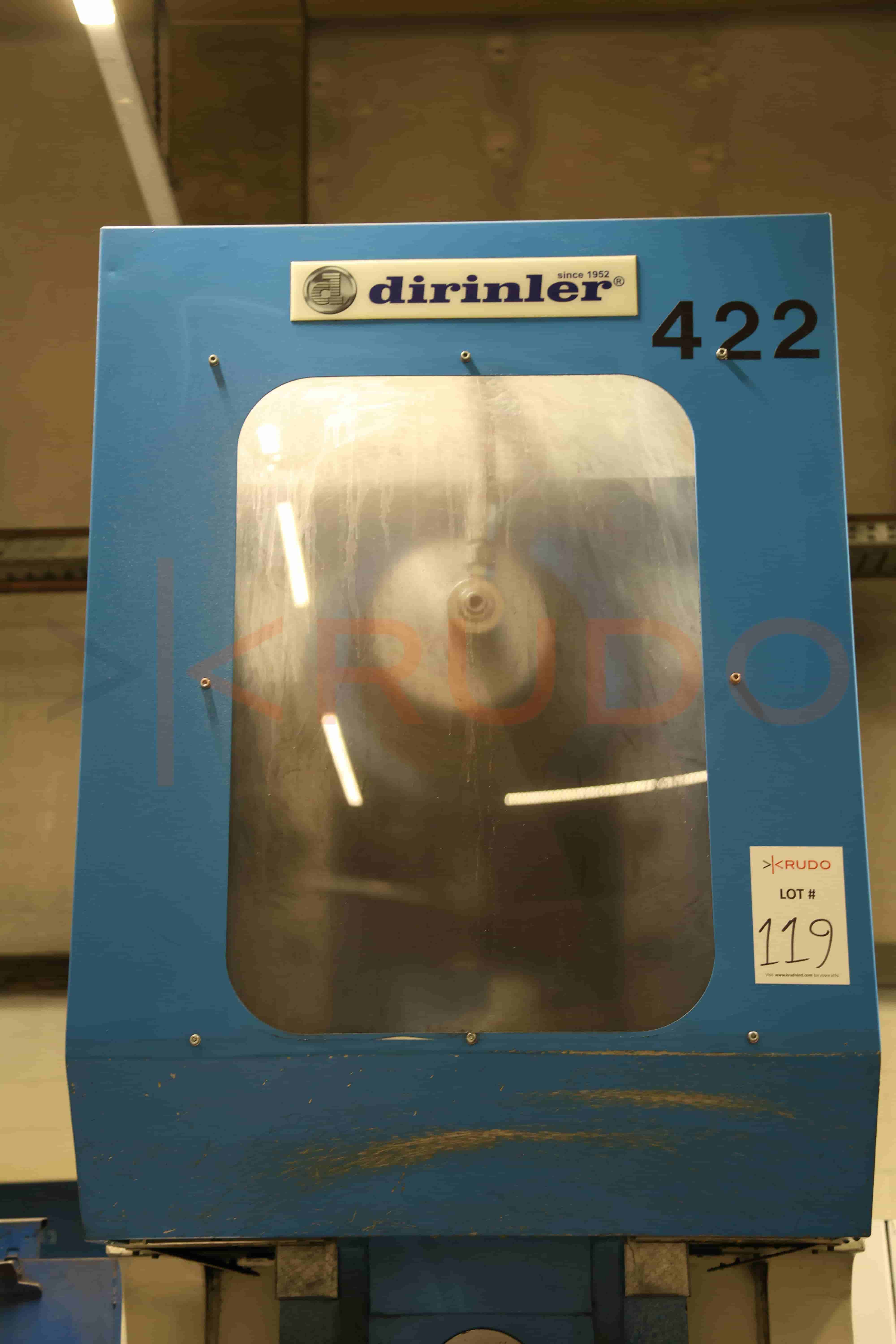

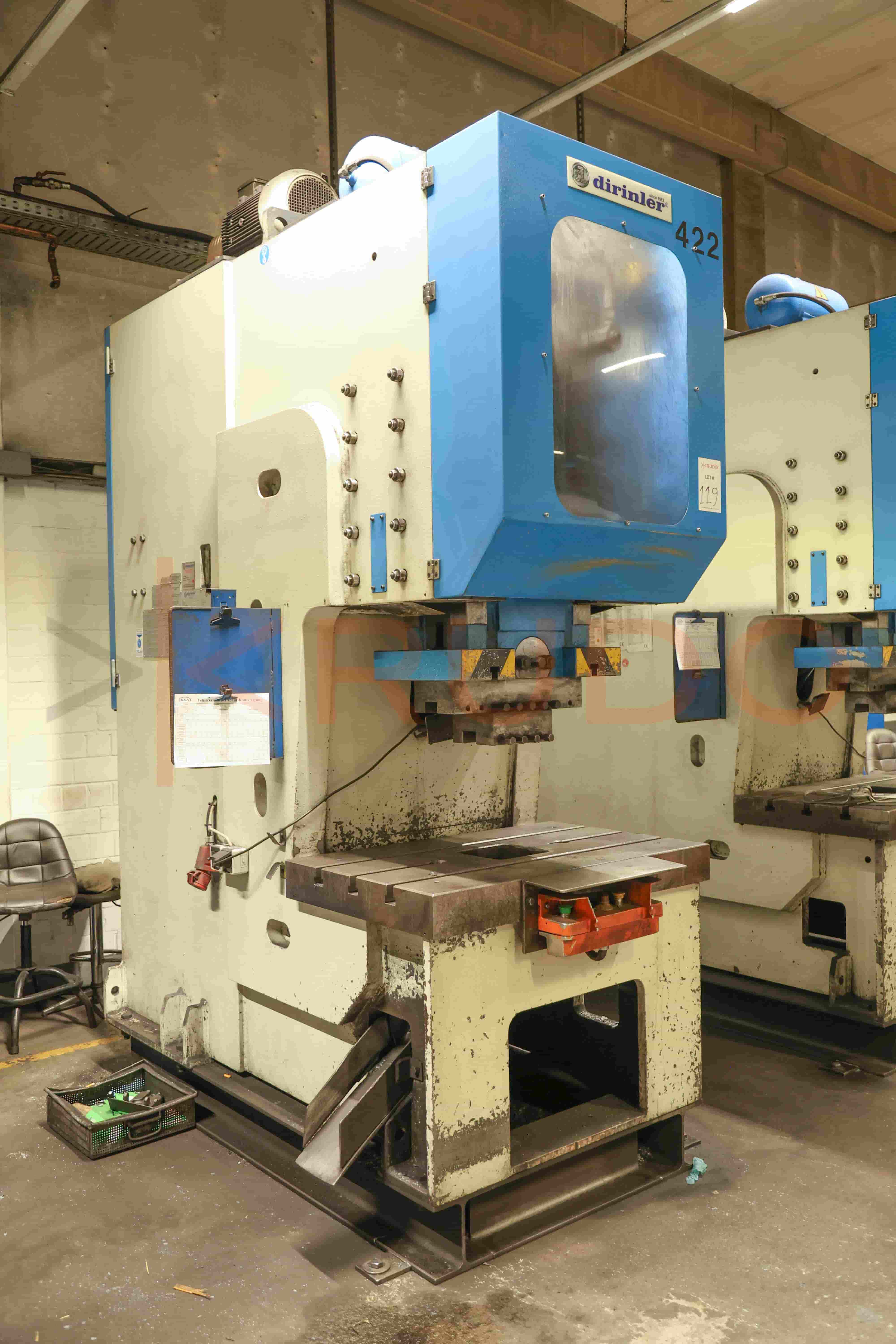

119. (2019) 160t Dirinler Eccentric Press
Dirinler CDCS 1600 P81
High-Speed 160-Ton Precision Eccentric Press
This 2019 Dirinler eccentric press is a modern, high-speed production unit capable of delivering 1,600 kN of force with a variable stroke rate of up to 85 per minute.
Industry
Forging
Sale Type
Private Treaty
Manufacturer
Dirinler
Country
Germany
Machine Type
Eccentric Press
Year of Manufacture
2019
Model
CDCS 1600 P81
Nominal Force
160t
Technical Details
- Machine Type: Eccentric Press
- Manufacturer: Dirinler
- Model: CDCS 1600 P 81
- Serial Number: 04H160007A180153R
- Year of Manufacture: 2019
- Nominal Force: 160t
- Stroke Rate: 60 – 85 strokes/min
- Stroke Length (Adjustable): 30 – 110 mm
- Ram Adjustment: 97 mm
- Distance Between Table and Ram: 482 mm
- Table Dimensions: 1,100 mm x 700 mm
- Motor Power: 15 kW (1,460 rpm)
- Max. Permissible Upper Tool Weight: 187 kg
- Over-run Time: 143 ms
- Safety Distance: 228 mm
- Machine Weight: approx. 9,960 kg
