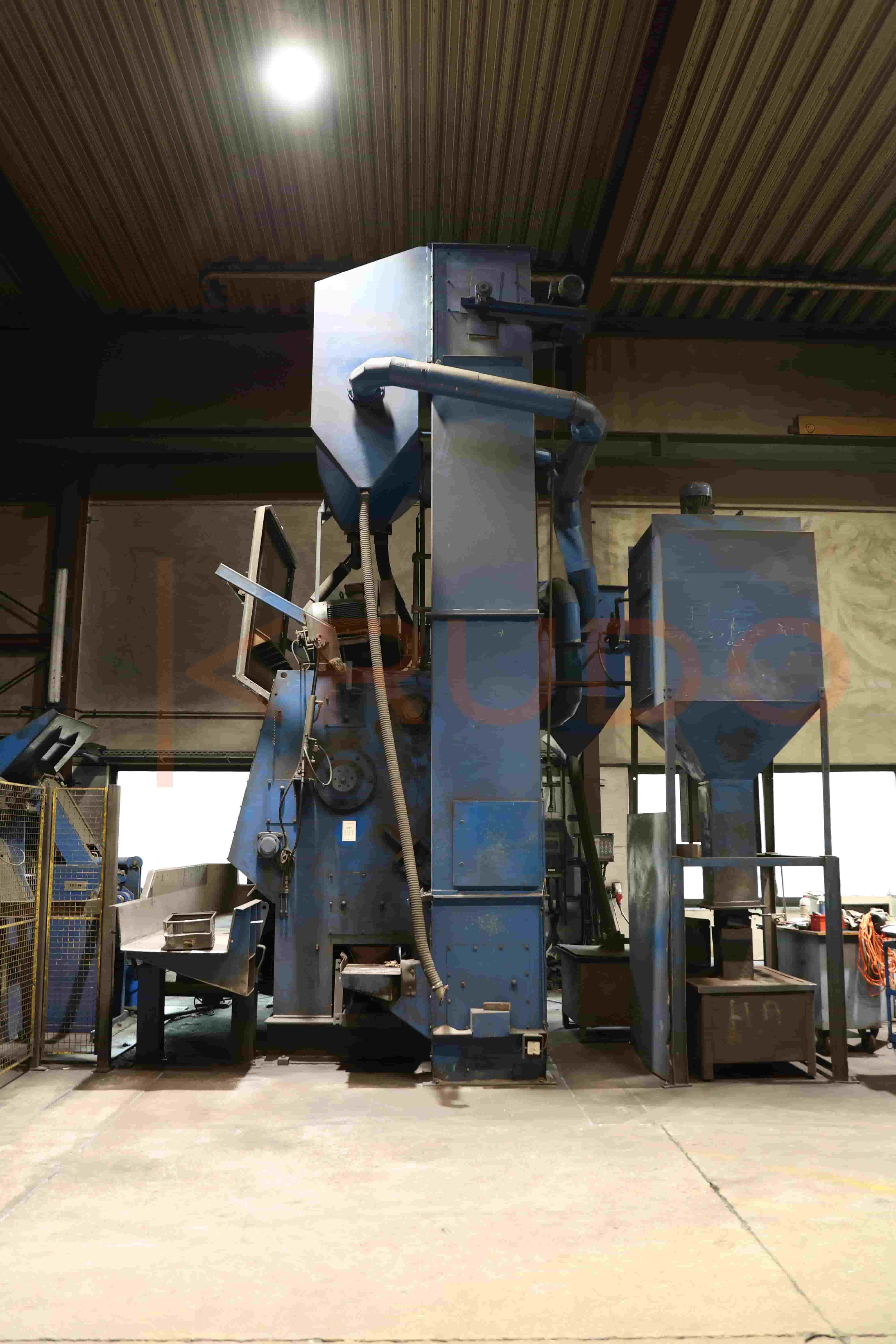

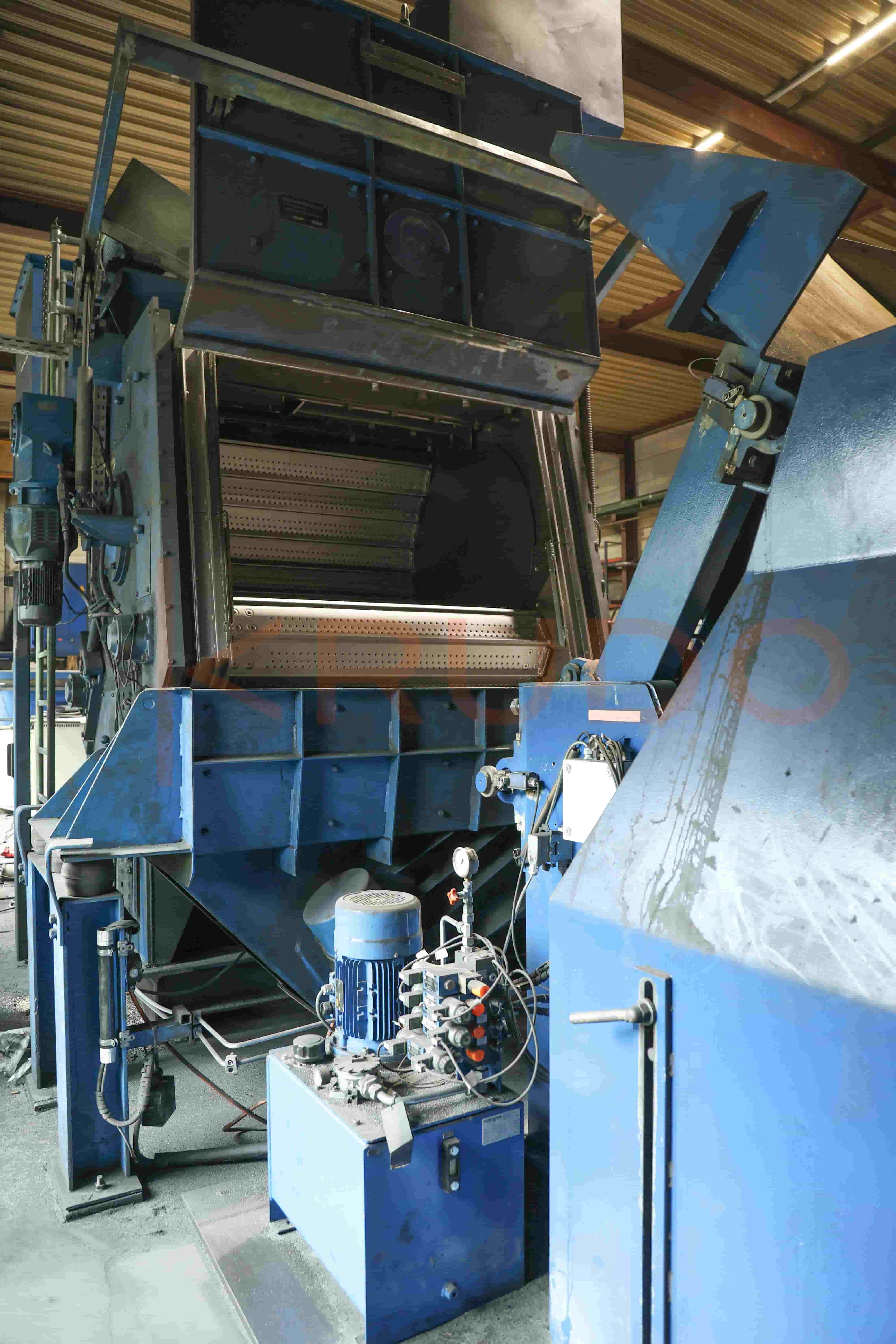

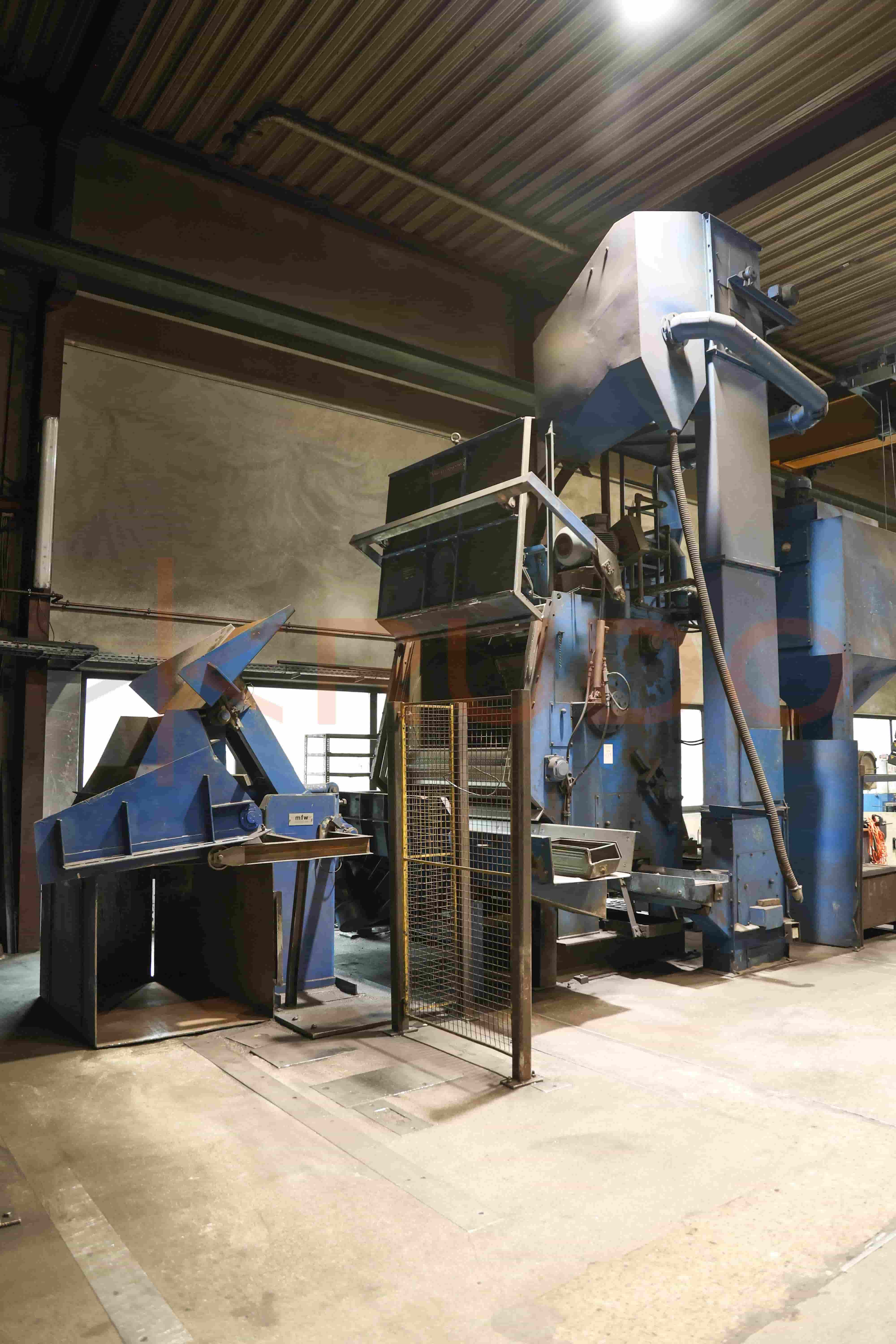

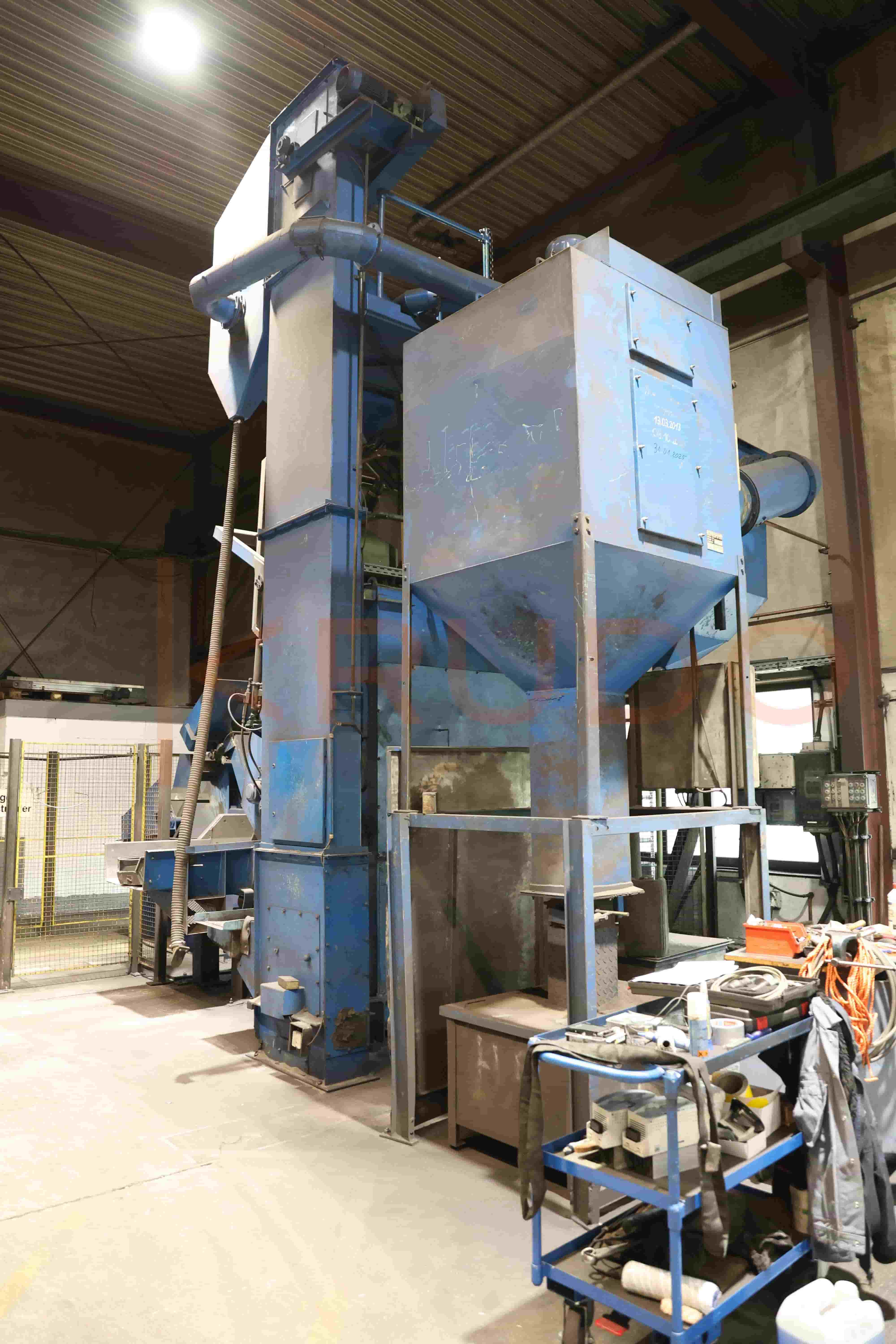

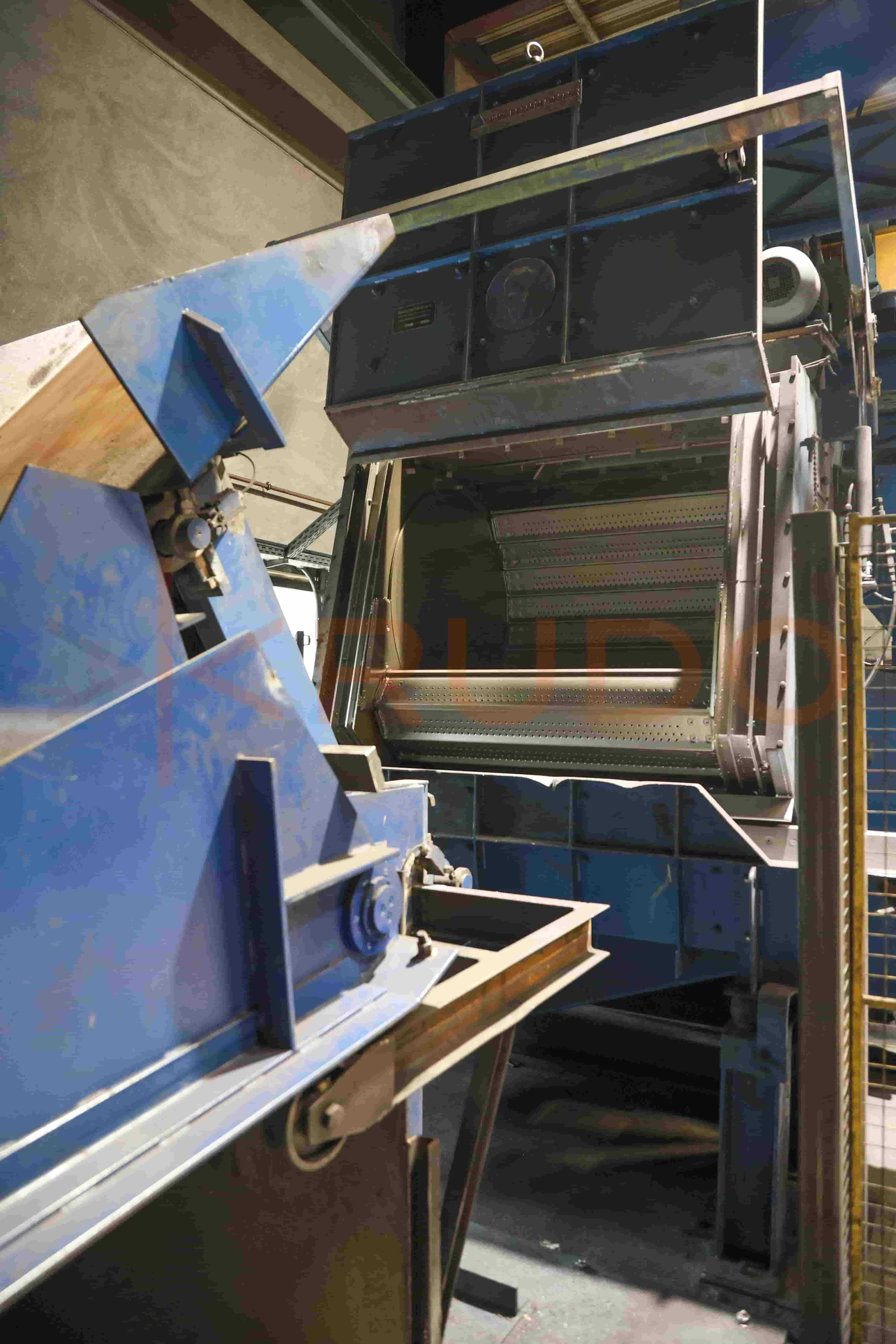

139. Wheelabrator Shot Blasting System
High-Capacity Tumble Blast Cleaning for Heavy Batch Processing
Technical Details

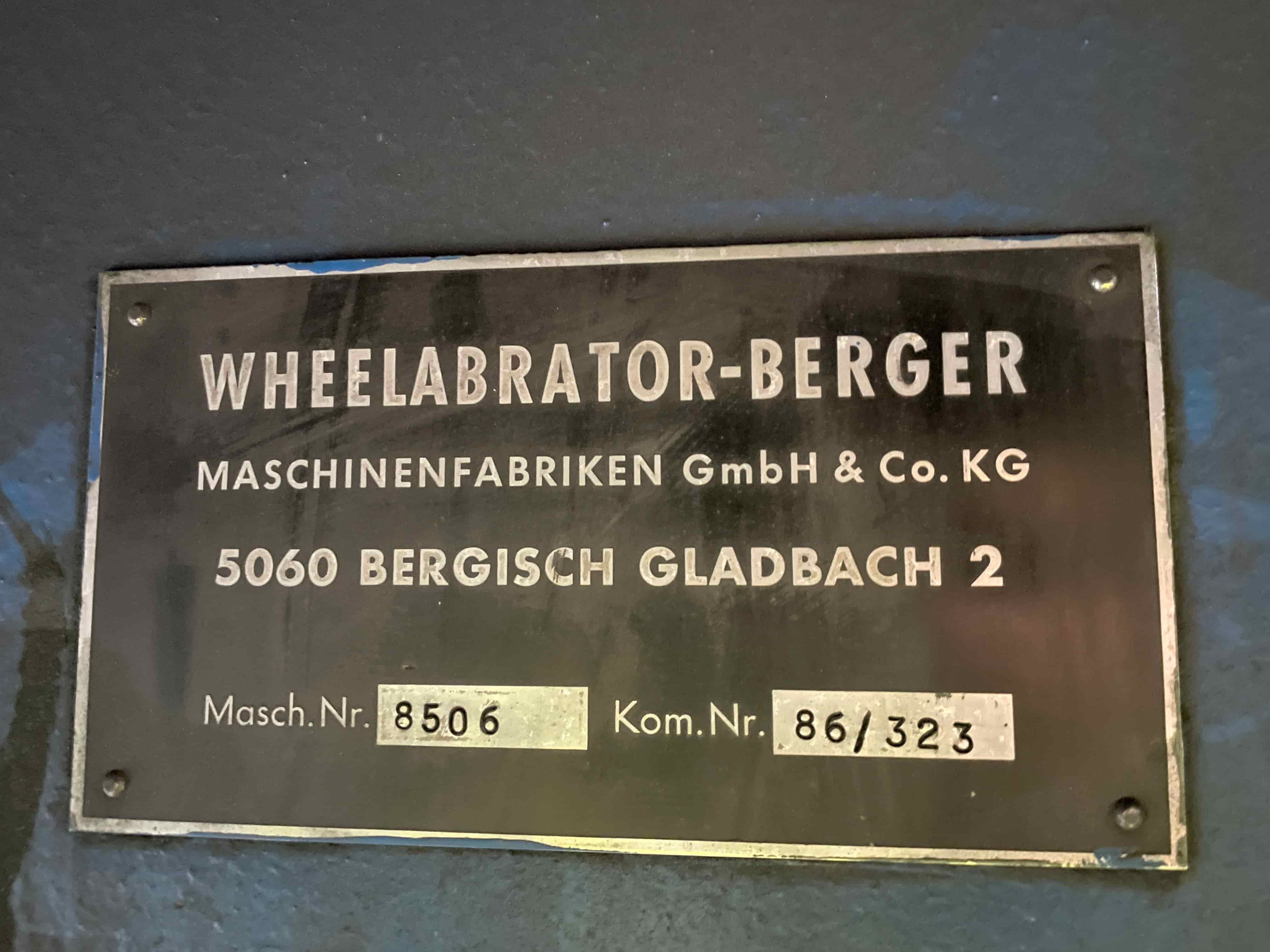

- Machine identification data
- Name: Shot Blasting System
- Model: R 3 cV
- Machine number: 8506
- Year of manufacture: 1986
- Operational parameters
- Number of blast wheels 2xØ380mm, N=18,5KW

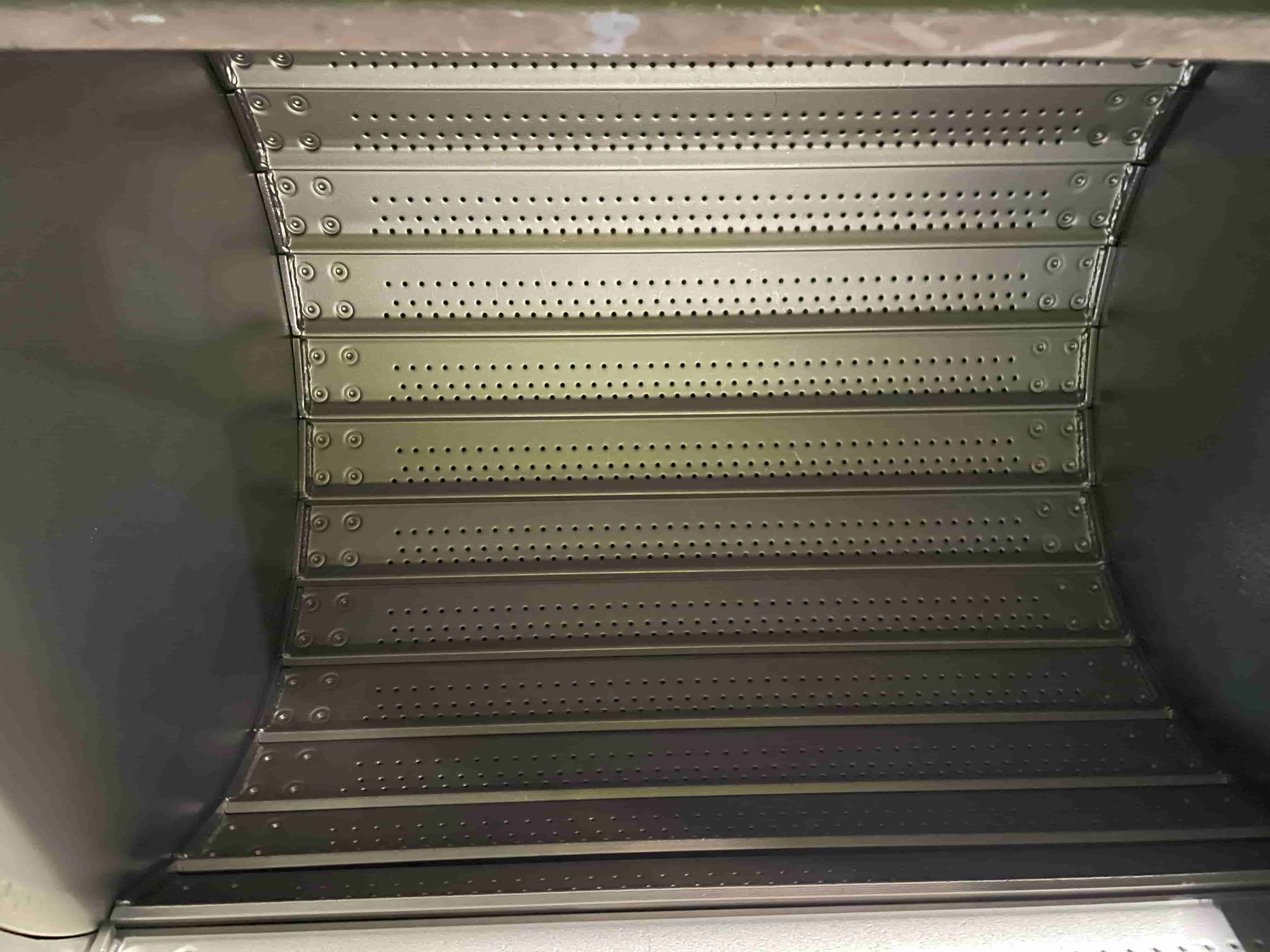

- Drum pulley diameter 1200 mm
- Drum length 1500 mm
- Filling volume max. 0.7 m³
- Piece dimensions max. 500 mm
- Filling weight 1500 Kg
- Unit weight 120 kg
- Electrical connected load of the blasting machine appr. 50 kW
- Max. permissible temperature of the parts to be blasted 120°

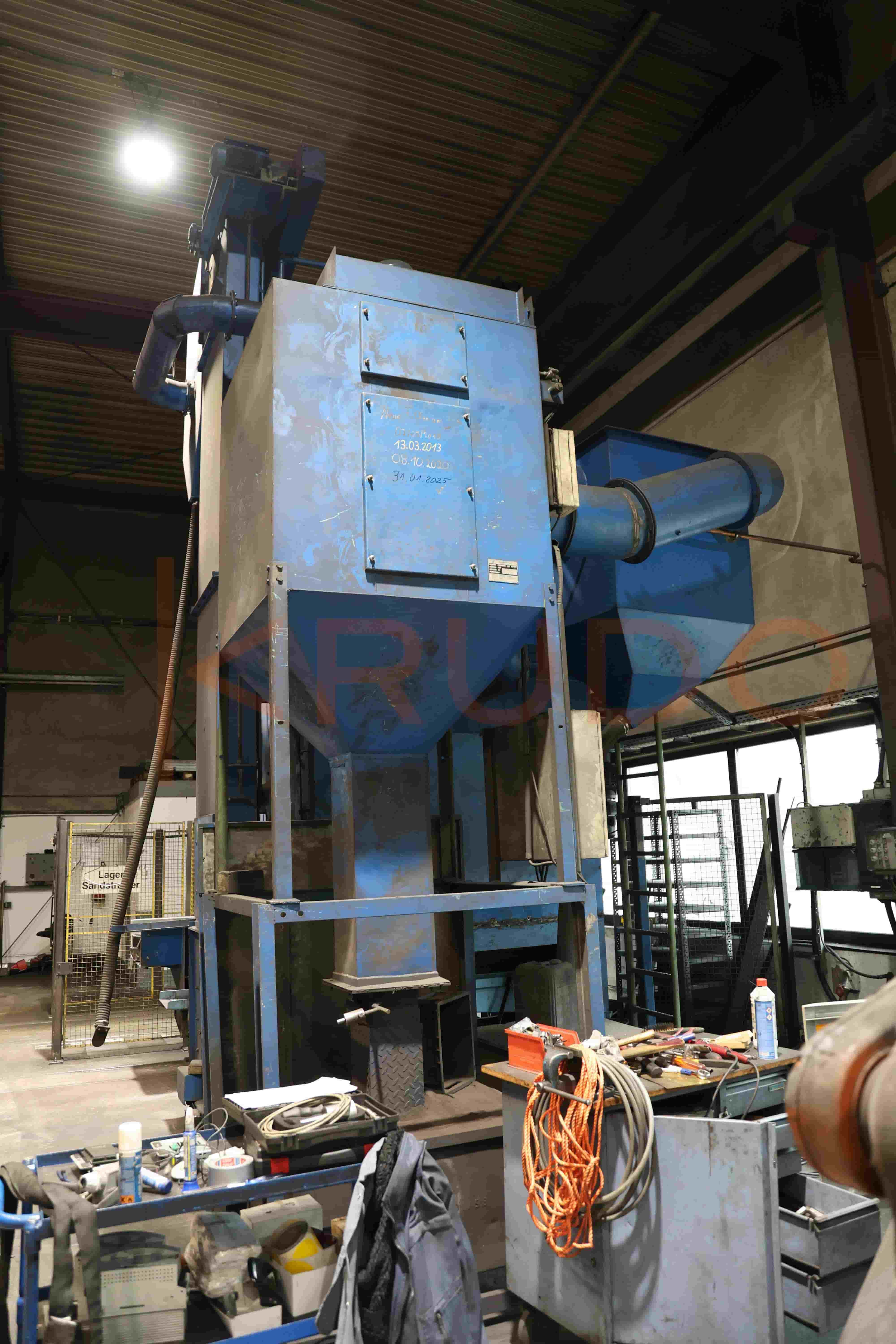

- Required Suction power 6,000 m³/h
The blasting machine is suitable for cleaning and decapitating grey, tempering and steel castings, as well as for descaling forging and pressing parts.
