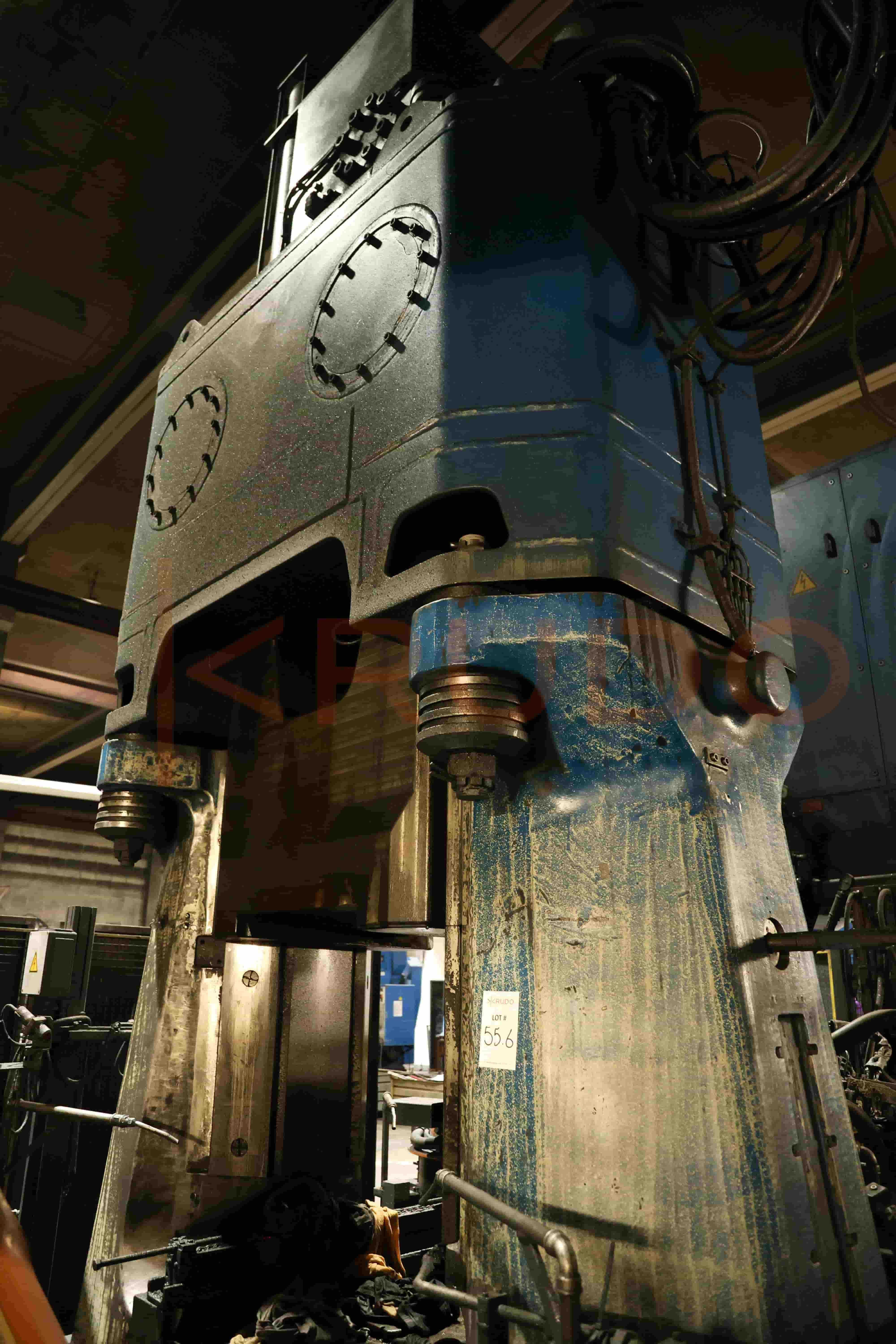

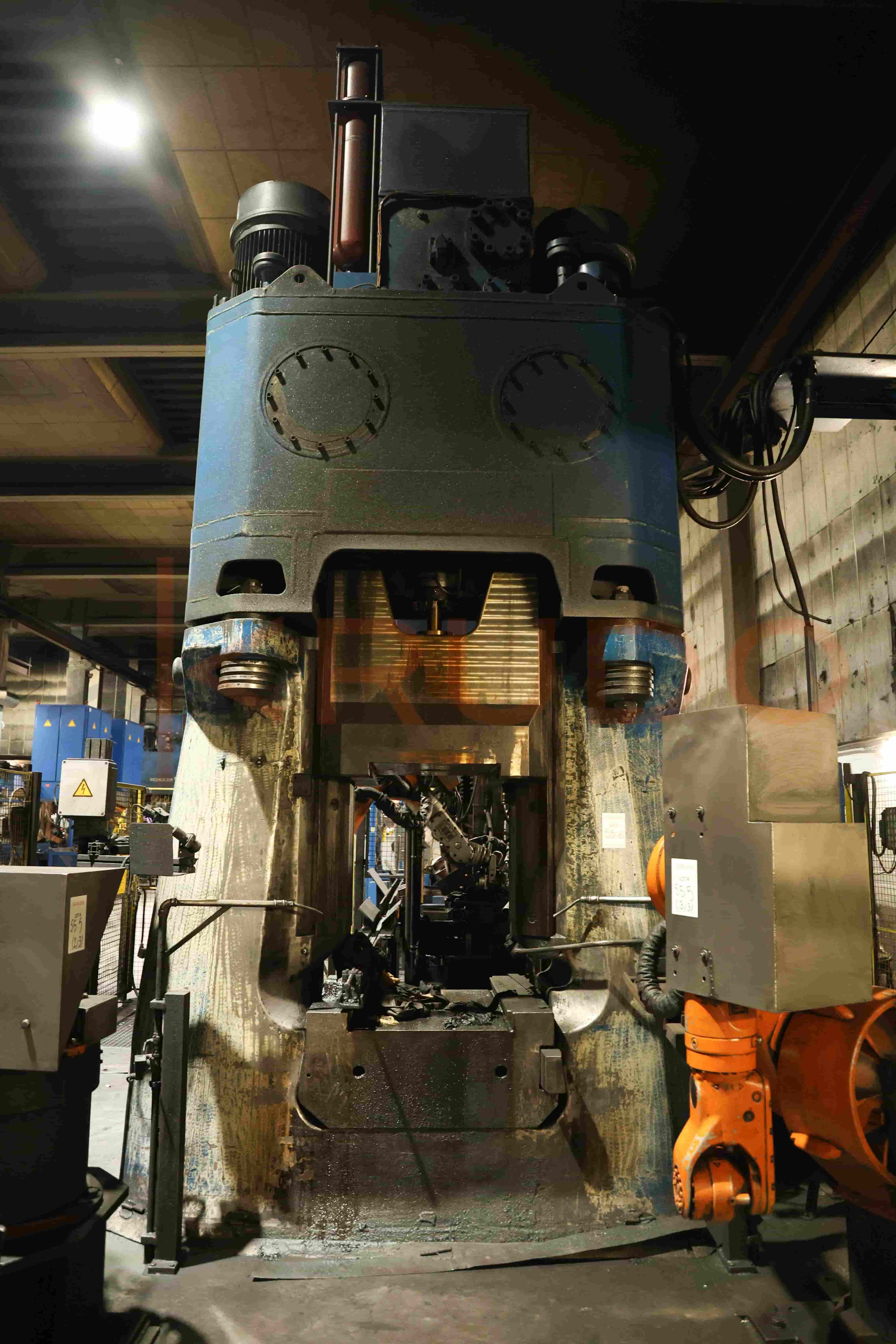

55.6. Forging Hammer
Beche KGH 5B (55 KJ)
Short-Stroke Die Forging Hammer
This short-stroke forging hammer delivers precise, high-energy forming with a nominal impact energy of 55 kJ. Designed for fully automated forging lines, it ensures excellent repeatability and high productivity.
Industry
Forging
Sale Type
Private Treaty
Manufacturer
Beche
Country
Germany
Machine Type
Forging Hammer
Year of Manufacture
2004
Model
KGH 5B
Maximum Working Capacity
55 kJ
Technical Details
- Machine identification data
- Name: Short-Stroke Die Forging Hammer
- Model: KGH 4B
- Machine number: 155002
- Year of manufacture: 2004
- Operational parameters
- Working capacity max. 55 kJ
- Max. impact frequency 99/min
- Max. usable impact rate 55/min
- Maximum impact rate at rolling impact 120 min⁻¹
- Min. ram stroke: 530 mm
- Max. ram stroke: 775 mm
- Weights
- Total machine weight approx. 75,000 kg
- Anvil bed 58,350 kg
- Drive head complete without oil 12,400 kg
- Ram approx. 3,700 kg
- Dimensions
- Overall height approx. 6600 mm
- Installation height above floor approx. 5695 mm
- Installation height below floor approx. 905 mm
- Width x Depth: 2720 x 1760 mm
- Workspace
- Clear width between guides 766 mm
- Working height to upper edge of the insert 900 mm
- Ram depth 800 mm
- Insertion depth 1000 mm
- Die height without dovetail
- Min. total 190 mm
- Max. total 435 mm
