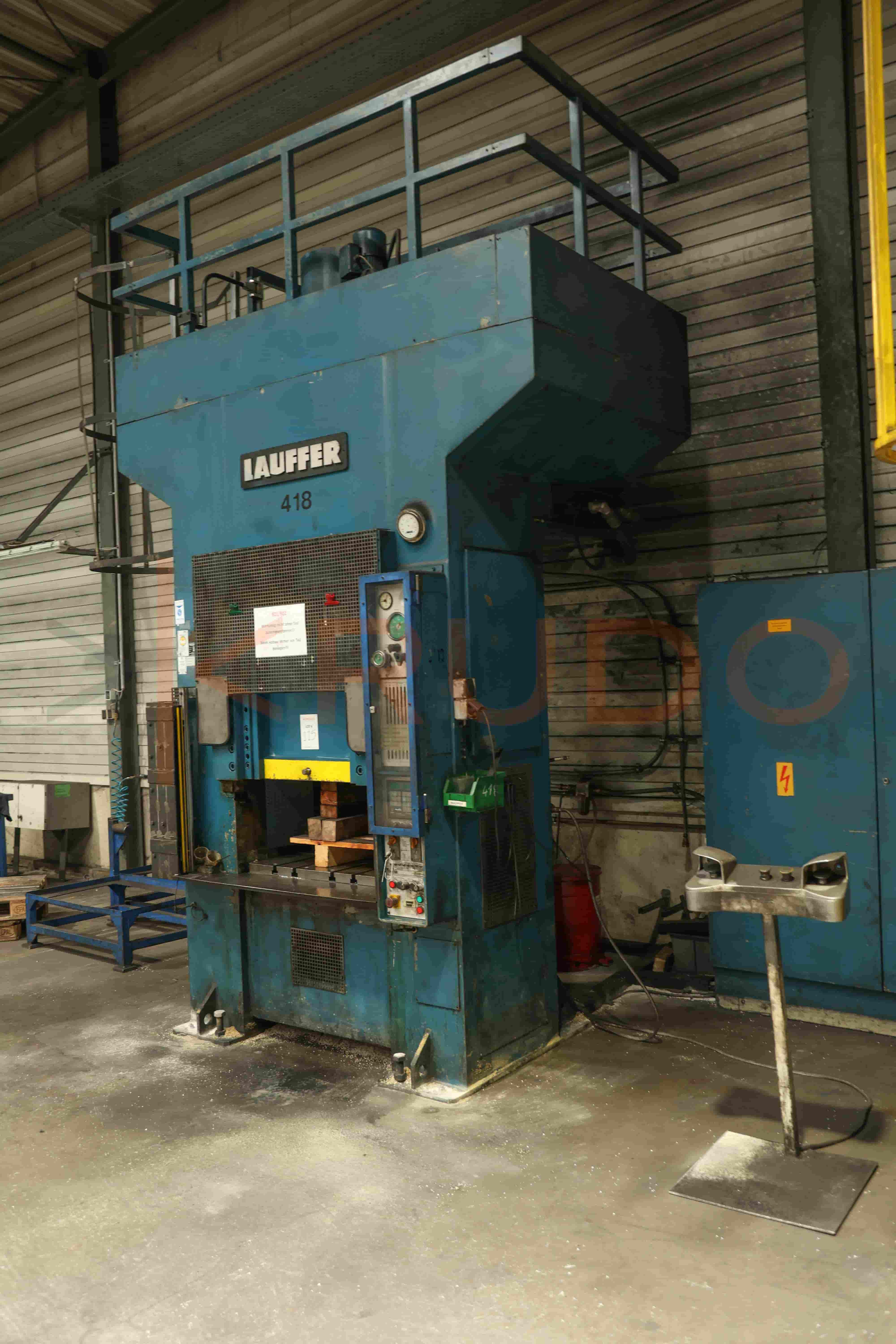

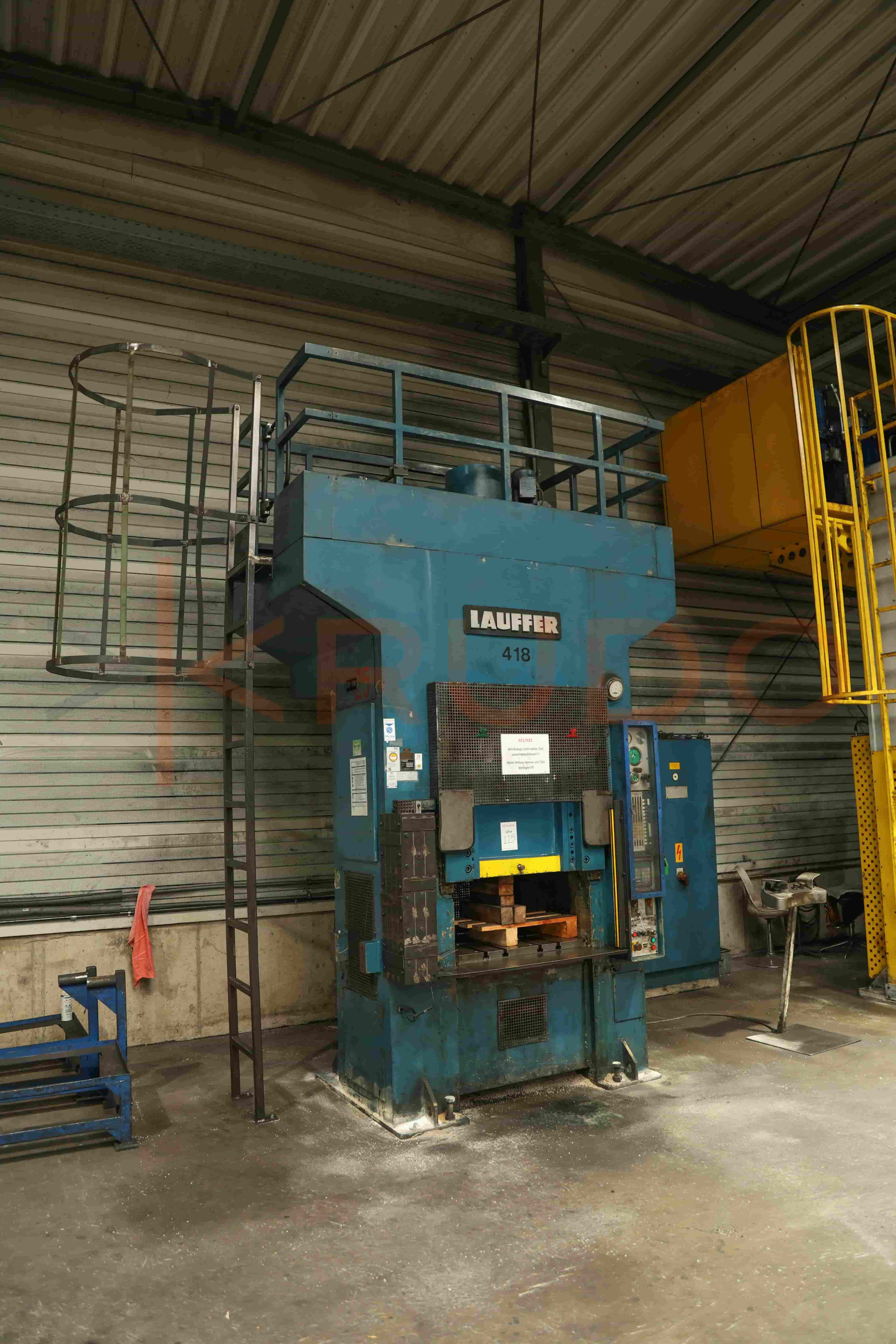

115. (1982) 200t Lauffer Hydraulic Press
Lauffer RPS 200
High-Speed Hydraulic Press with Advanced Shock Absorption
This Lauffer hydraulic press is a high-performance machine designed for speed and precision, capable of 2,000 kN of pressing force. Its high-speed designation is backed by a rapid descent speed of 330 mm/sec and a sophisticated 8-fold flat guidance system to maintain ram alignment even under heavy or off-center loads.
Industry
Forging
Sale Type
Private Treaty
Manufacturer
Lauffer
Country
Germany
Machine Type
Hydraulic Press
Year of Manufacture
1982
Model
RPS 200
Nominal Force
200t
Technical Details
- Machine Type: Hydraulic Press
- Manufacturer: Lauffer
- Model: RPS 200
- Year of Manufacture: 1982
- Nominal Force: 200t
- Max. Return Force: 225 kN
- Max. Ram Stroke: 200 mm
- Shut Height: 500 mm
- Ram Guidance: 8-fold flat guidance
- Table & Ram Surface Area (W x D): 800 mm x 630 mm
- Table Hole Diameter: 204 mm
- Clearance Between Uprights (Front / Side): 840 mm / 320 mm
- Operating Speeds:
- Rapid Descent: 0 – 330 mm/sec (steplessly adjustable)
- Pressing Speed: 0 – 17.7 mm/sec
- Return Speed: 0 – 290 mm/sec
- Mechanical Hard Stop: 135 mm travel with 0.05 mm adjustment accuracy
- Drive Power: 37 kW
- Voltage: 380 V
