53.5. Forging Hammer

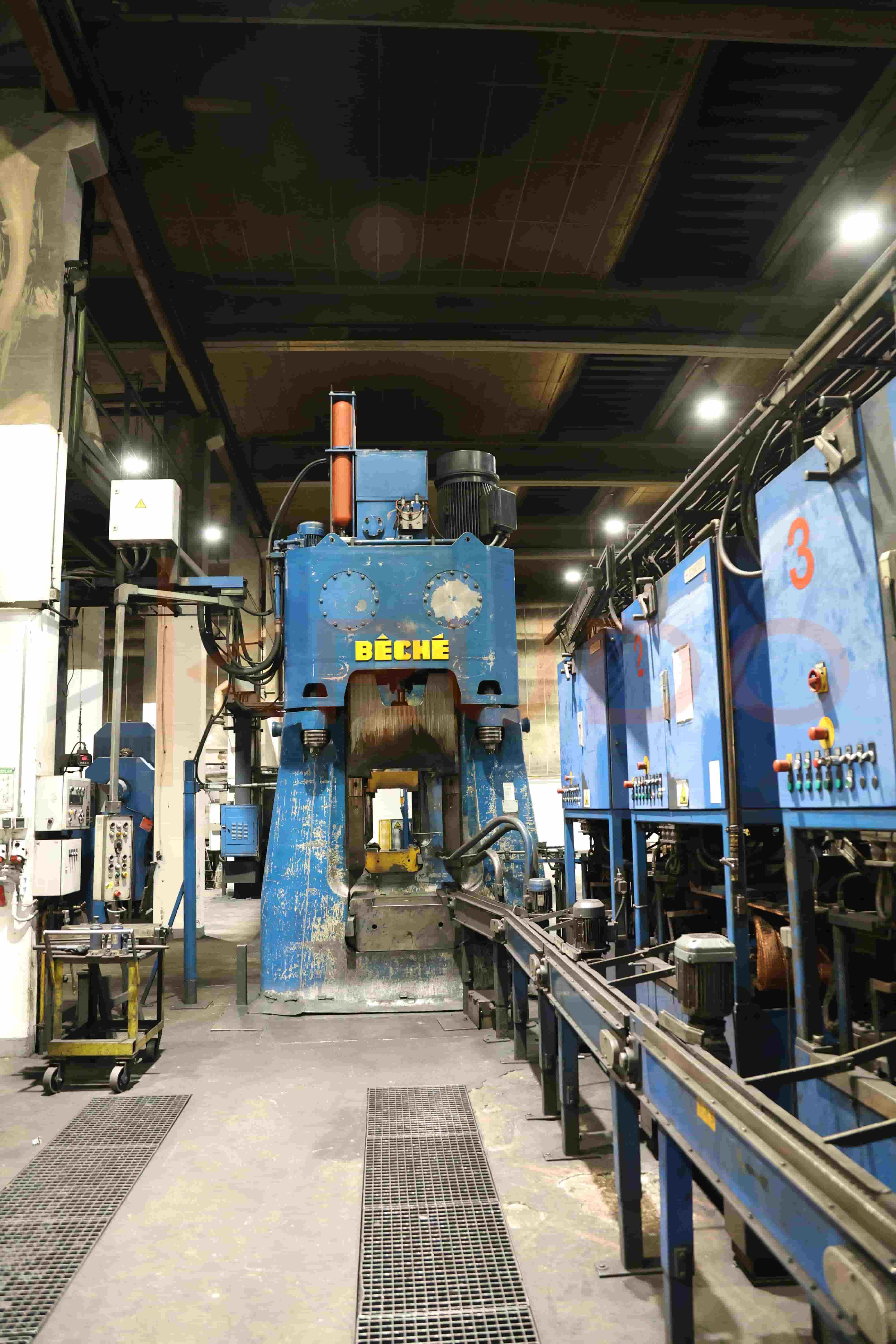

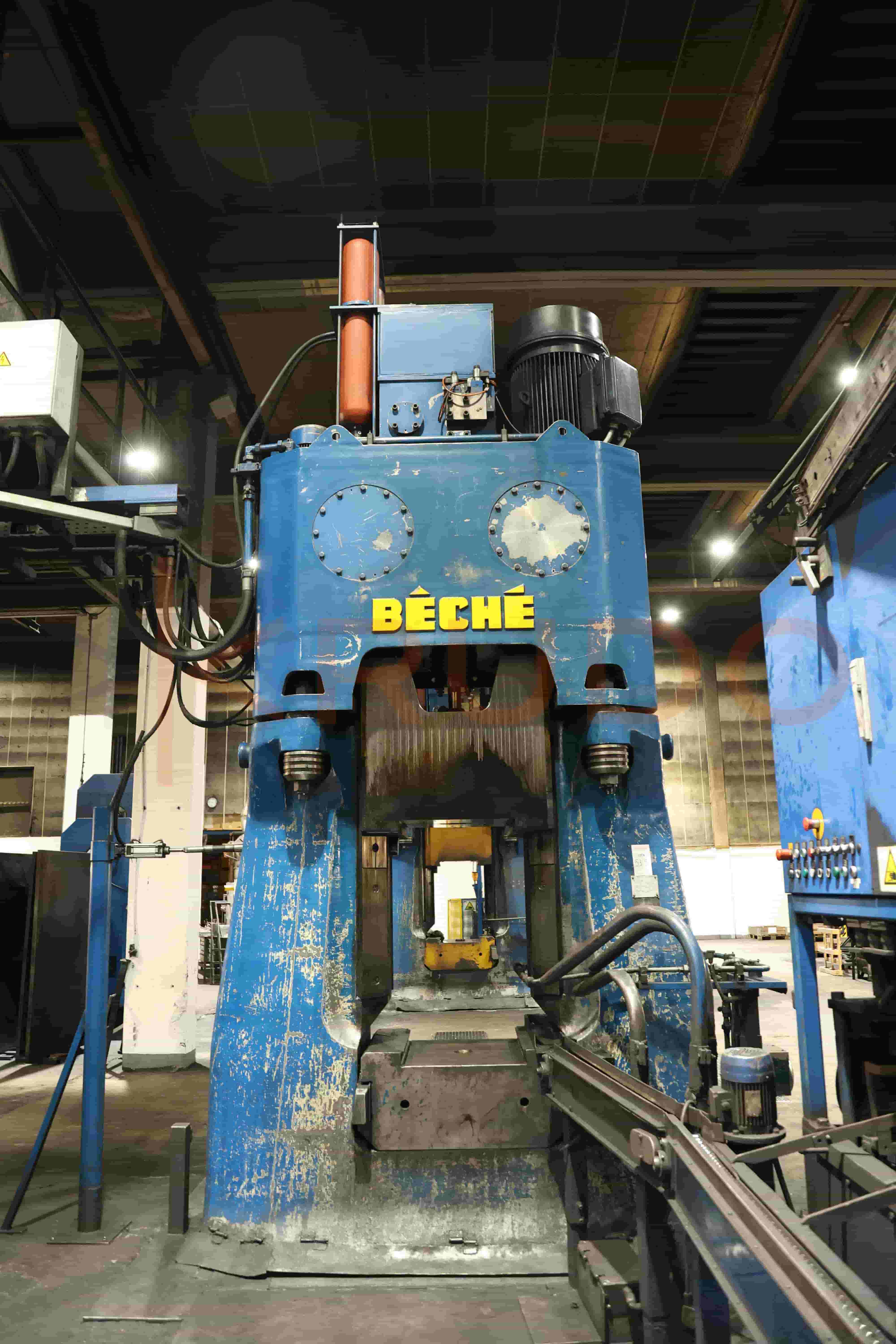

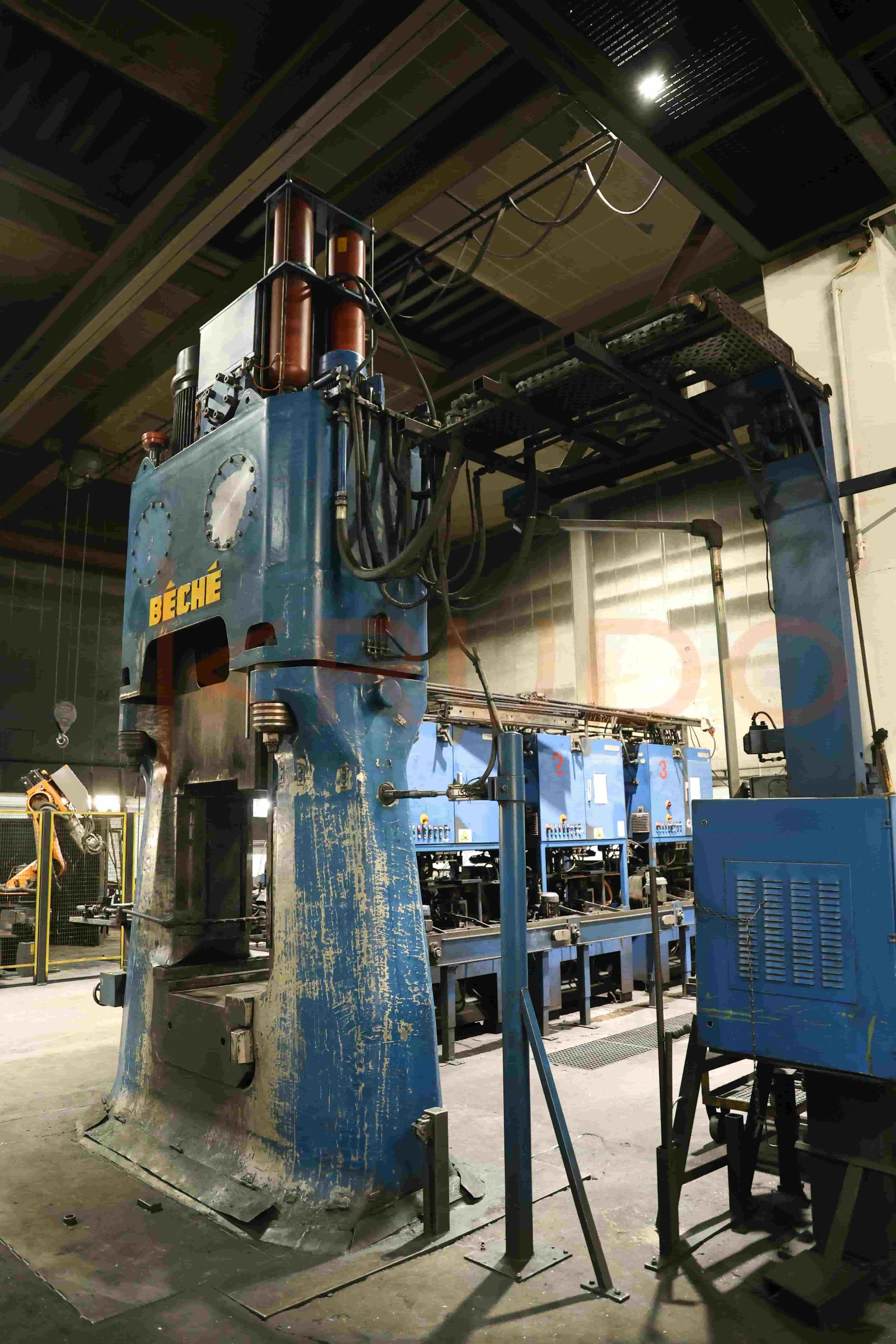

Beche KGH 4B (40 KJ)
Short-Stroke Die Forging Hammer
This Beche forging hammer delivers a nominal impact energy of 40 kJ, providing precise and repeatable forming performance.
Industry
Forging
Sale Type
Private Treaty
Manufacturer
Beche
Country
Germany
Machine Type
Forging Hammer
Year of Manufacture
2001
Model
KGH 4B
Maximum Working Capacity
40 kJ
Technical Details
- Machine identification data
- Name: Short-Stroke Die Forging Hammer
- Model: KGH 4B
- Machine number: 127050
- Year of manufacture: 2001
- Operational parameters
- Working capacity max. 40 kJ
- Max. impact frequency 98/min
- Max. usable impact rate 41/min
- Max. ram stroke 790 mm
- Weights
- Total machine weight approx. 58,000 kg
- Anvil bed 46,000 kg
- Drive head complete without oil 7,800 kg
- Ram approx. 2,700 kg
- Dimensions
- Overall height approx. 6250 mm
- Installation height above floor approx. 5220 mm
- Installation height below floor approx. 1030 mm
- Width x Depth: 2520 x 1620 mm
- Workspace
- Clear width between guides 717 mm
- Working height to upper edge of the insert 700 mm
- Ram depth 640 mm
- Insertion depth 750 mm
- Die height without dovetail
- Min. total 175 mm
- Max. total 455 mm
