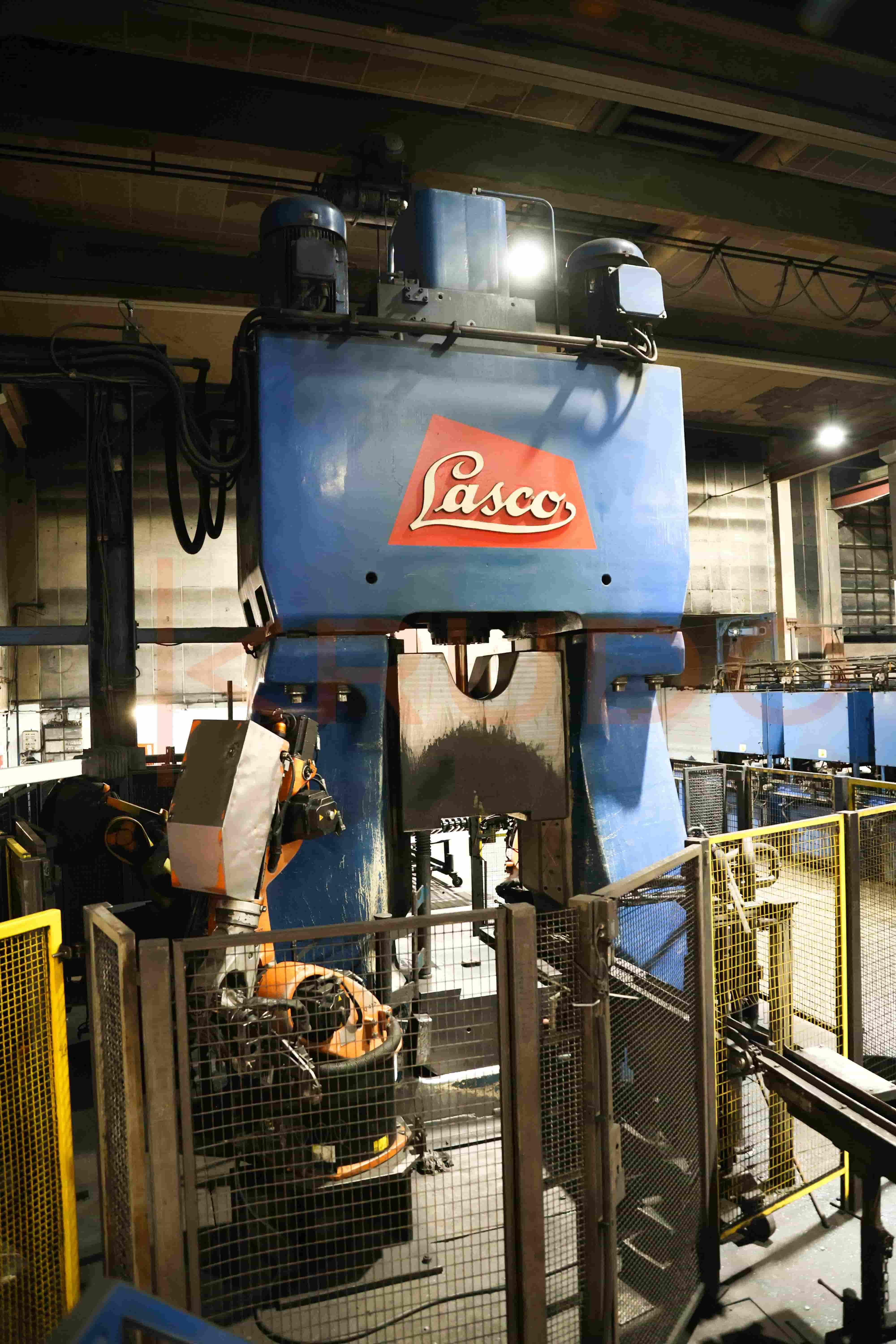

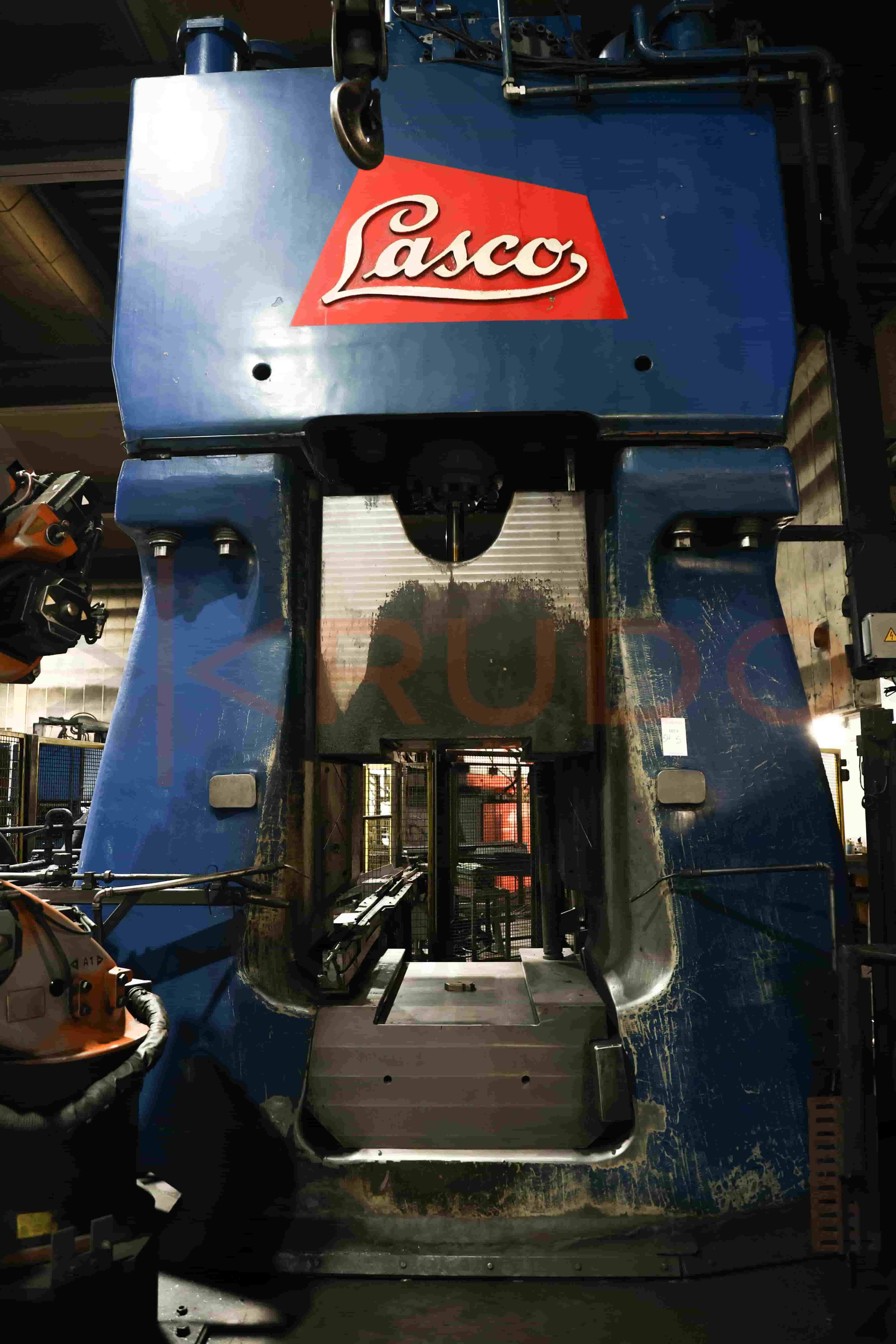

54.5. Forging Hammer
Lasco H-OU 800 (80 KJ)
Short-Stroke Die Forging Hammer
This double-acting forging hammer delivers precise, high-energy forming with a nominal impact energy of 80 kJ. Designed for fully automated forging lines, it ensures excellent repeatability and high productivity.
Industry
Forging
Sale Type
Private Treaty
Manufacturer
Lasco
Country
Germany
Machine Type
Forging Hammer
Year of Manufacture
2009
Model
H-OU 800
Maximum Working Capacity
80 kJ
Technical Details
- Machine identification data
- Name: Short-Stroke Die Forging Hammer
- Model: HO-U 800
- Machine number: 00.08175
- Year of manufacture: 2009
- Operational parameters
- Working capacity max. 80 kJ
- Max. impact frequency 80/min
- Impact energy approx. 80 kJ
- Impact frequency at rated working capacity approx. 80 1/min.
- Ram stroke max. 810 mm
- Ram stroke min. 560 mm
- Ram weight approx. 5,600 kg
- Ram depth approx. 800 mm
- Die height of both dies without dovetails
- Max. approx. 530 mm
- Min. approx. 280 mm
- Frame weight approx. 105,000 kg
- Total weight of the hammer approx. 122,000 kg
- Height above floor with floor height up to top of insert = 700 mm 5,940 mm
- Overall height approx. 7,320 mm
- Oil volume in oil tank approx. 3400
- Storage pressure approx. 130 bar
- Technical Data (Electrical)
- Drive Power - Main Motor 2x90 kW
- Drive Power - Cooling Circuit 5.5 kW
- Drive Power - Lubrication Pump 0.18 kW
- Operating Voltage 400 V/50 Hz
- Control Voltage 230 V/50 Hz
- Valve Voltage 24 V DC
- Connection Power approx. 200 kVA
- Motor Protection Class IP 55
- Control Column Protection Class IP 55

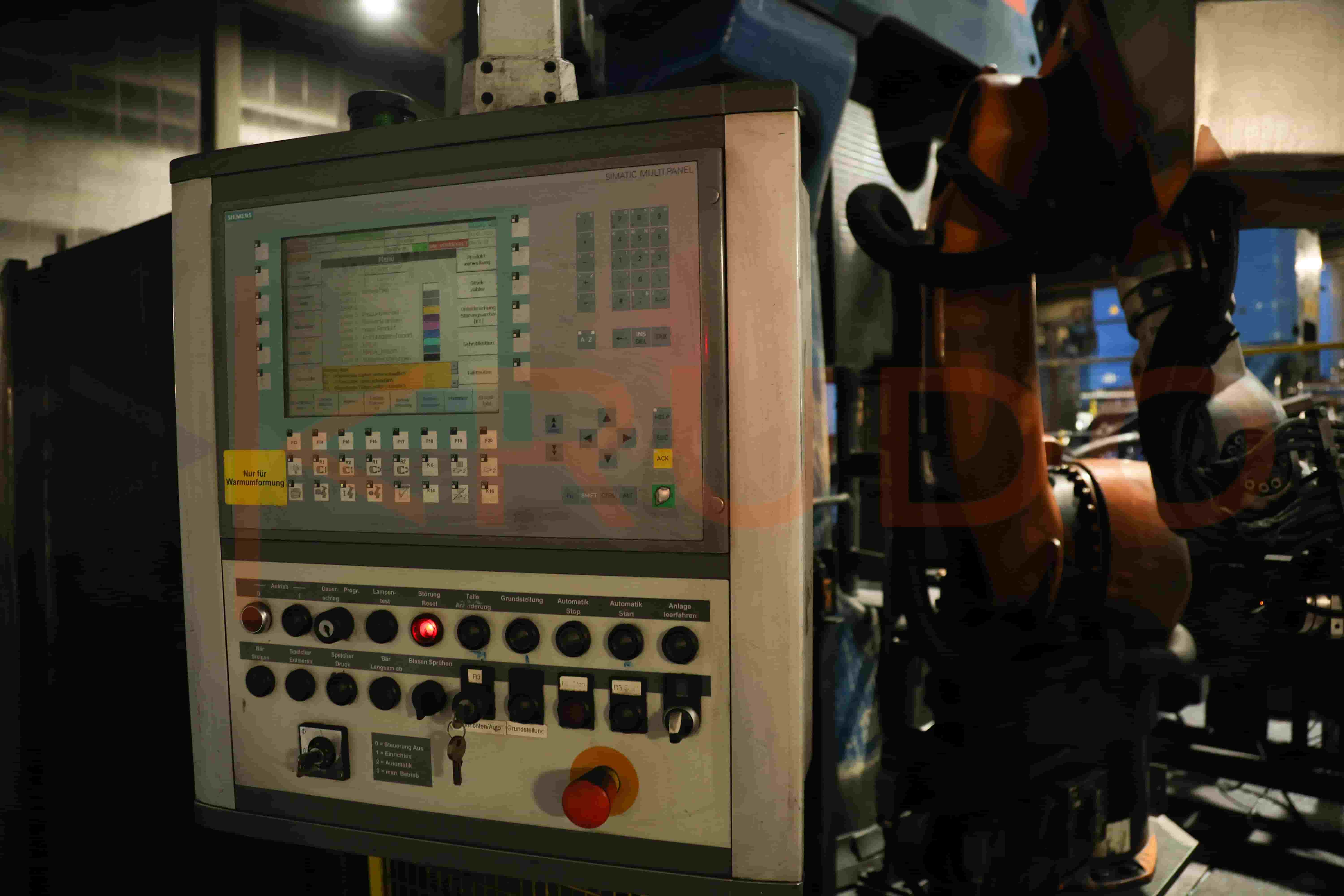

- Display Color
- Screen Diagonal 10.4"
