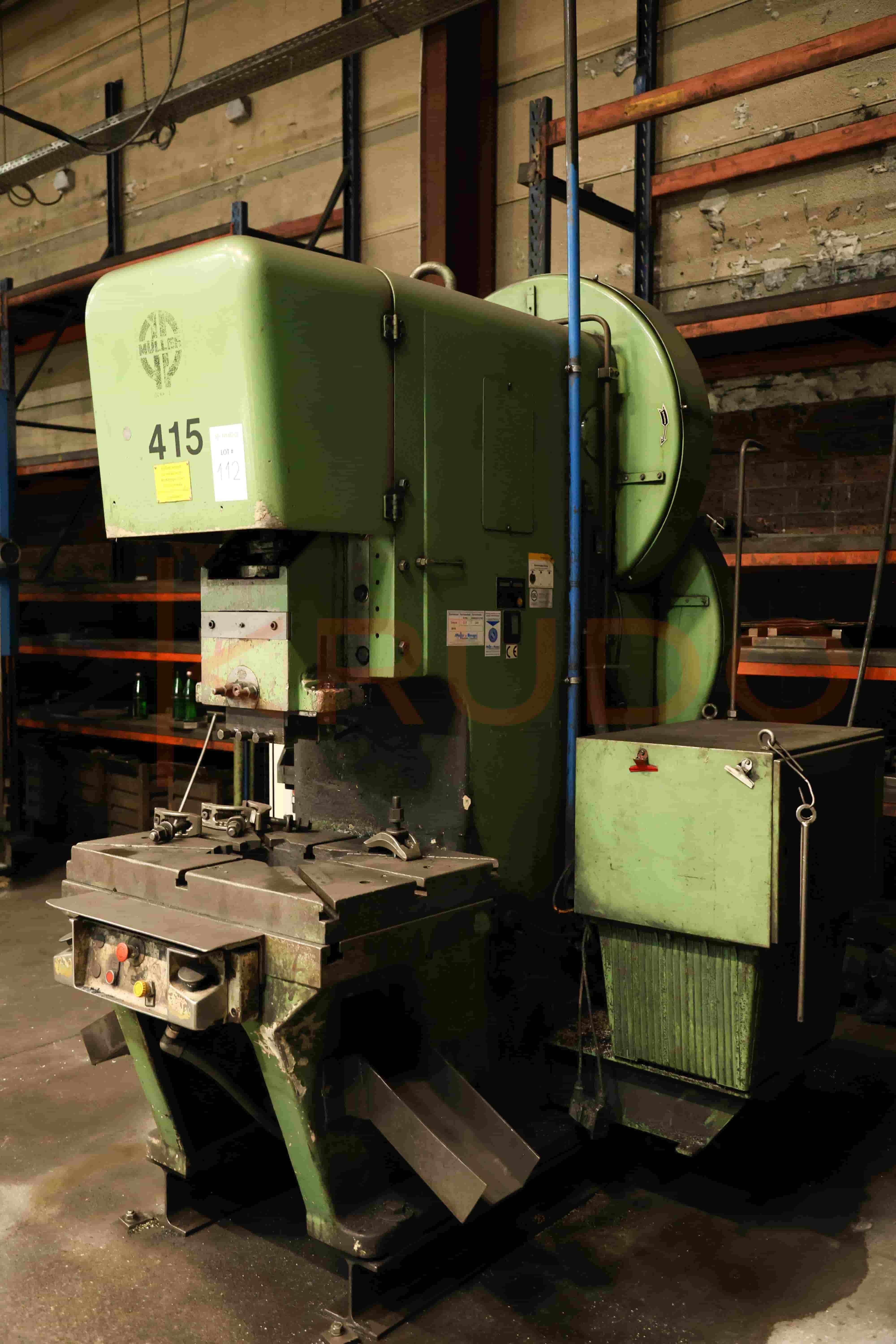

112. (1995) 100t Paul Müller Eccentric Press
Paul Müller EXP 100 RF-HK
C-Frame Press with Hydraulic Clutch System
This Paul Müller press is characterized by its hydraulic clutch system and a 60 strokes-per-minute cycle rate, making it a high-utility asset for precision stamping and blanking operations.
Industry
Forging
Sale Type
Private Treaty
Manufacturer
Paul Müller
Country
Germany
Machine Type
Eccentric Press
Year of Manufacture
1995
Model
EXP 100 RF-HK
Nominal Force
100t
Technical Details
- Machine Type: Eccentric Press
- Manufacturer: Paul Müller
- Model: EXP 100 RF-HK
- Year of Manufacture: 1995 / 2015
- Nominal Capacity: 100t
- Working Capacity: 9,530 Nm
- Stroke Rate: 60 strokes/min
- Adjustable Ram Stroke: 10 – 100 mm
- Ram Adjustment: 60 mm
- Shut Height: 390 mm
- Throat Depth: 300 mm
- Table Clamping Surface (W x D): 900 mm x 600 mm
- Table Passage: 300 mm x 200 mm
- Ram Clamping Surface (W x D): 440 mm x 235 mm
- Ram Spigot Hole (Ø x Depth): 50 mm x 85 mm
- Max. Material Thickness: approx. 12 mm
- Max. Upper Tool Weight: 160 kg
- Drive Motor: 7.5 kW
- Hydraulic Clutch: Type 86 EB
- Machine Dimensions (H x W x D): approx. 2.4 m x 1.7 m x 1.8 m
- Total Weight: approx. 5,200 kg
