48. Cutting/Splitting Bar Shear Line 1
Bar stock shear for round and square steel bars up to Ø 50 mm
Peddinghaus Bar Shear Line (Caddy 50)

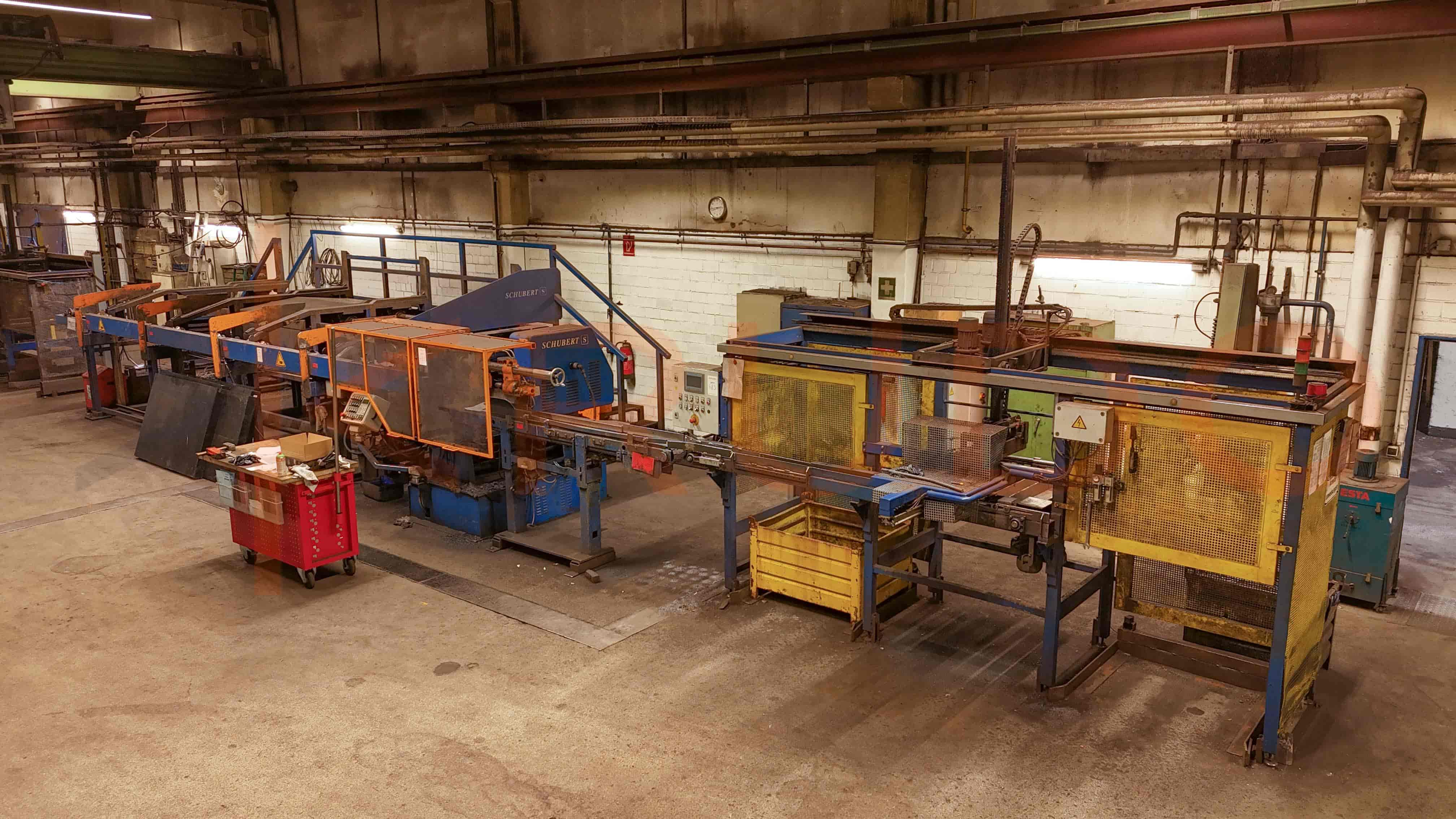

This line features a bar shear, a bar magazine, and a stacker arm.
Industry
Forging
Sale Type
Private Treaty
Manufacturer
Peddinghaus
Country
Germany
Product Line Type
Bar Shear Line
Year of Manufacture
1979-2022
Number of Machines
3
Shearing Force
900 kN
Line Description
The complete line consists of the following machines:
- Bar magazine Schubert SMH 50 (2020)
- Bar stock shear Peddinghaus Caddy 50 (1979/2006/2022)

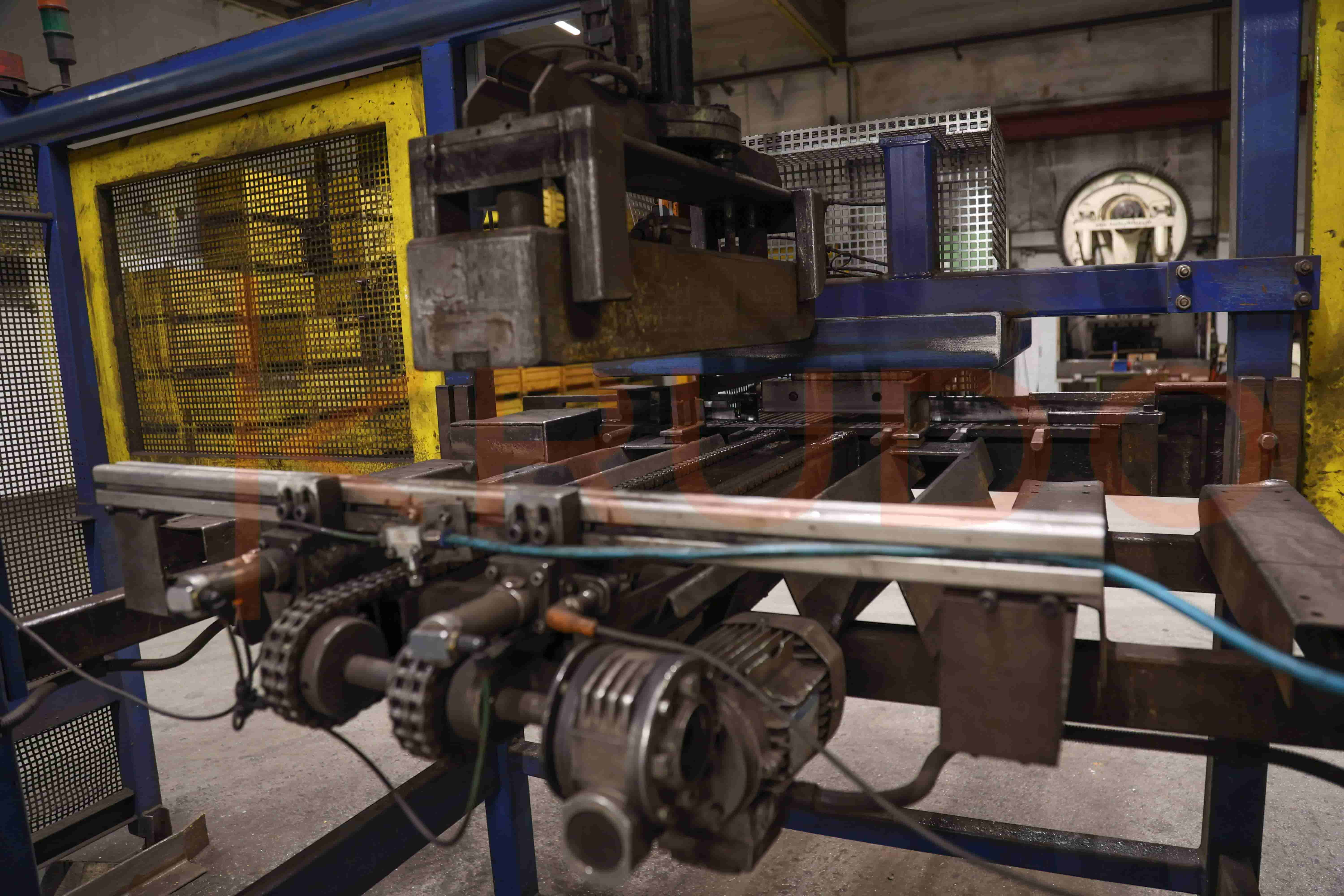

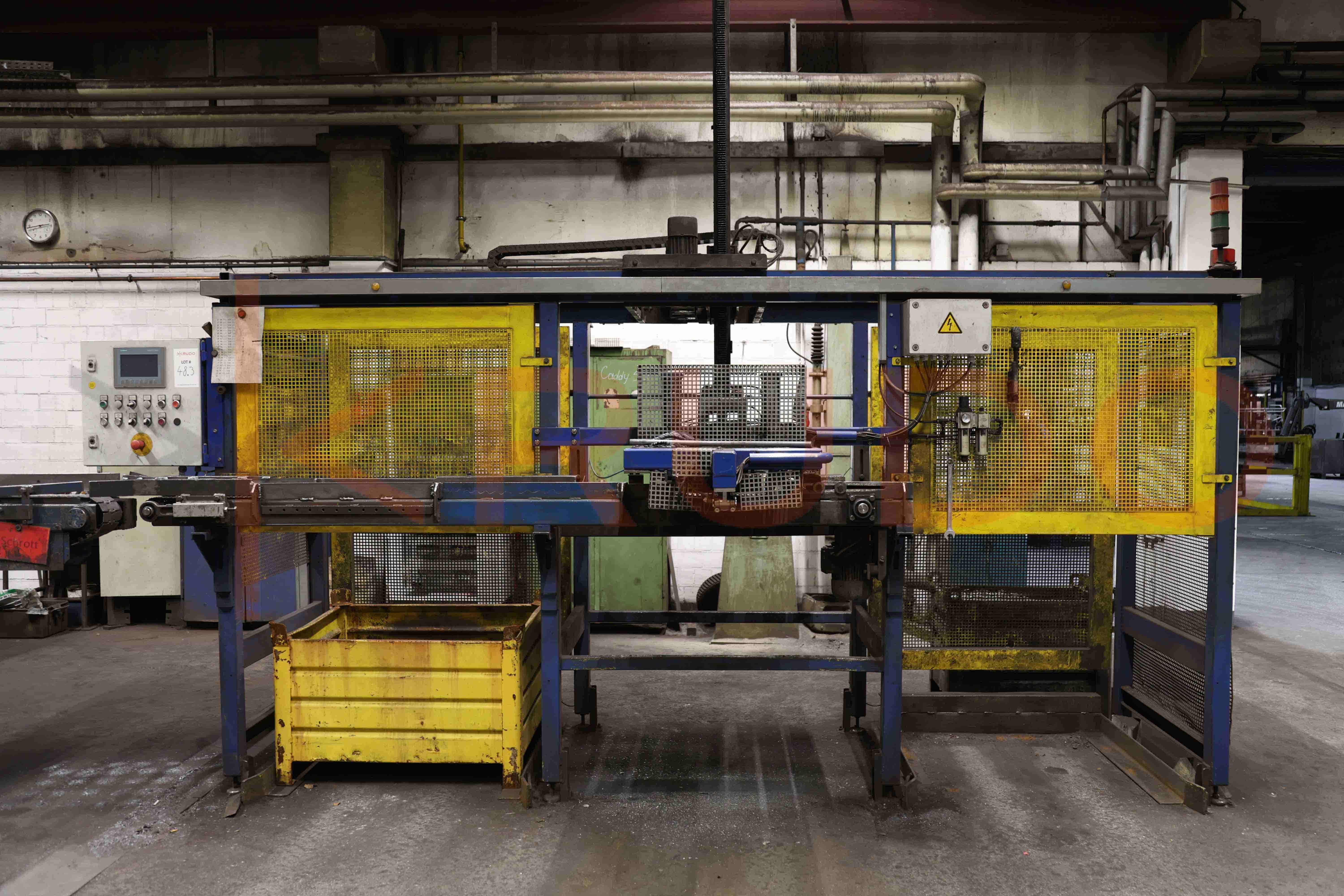

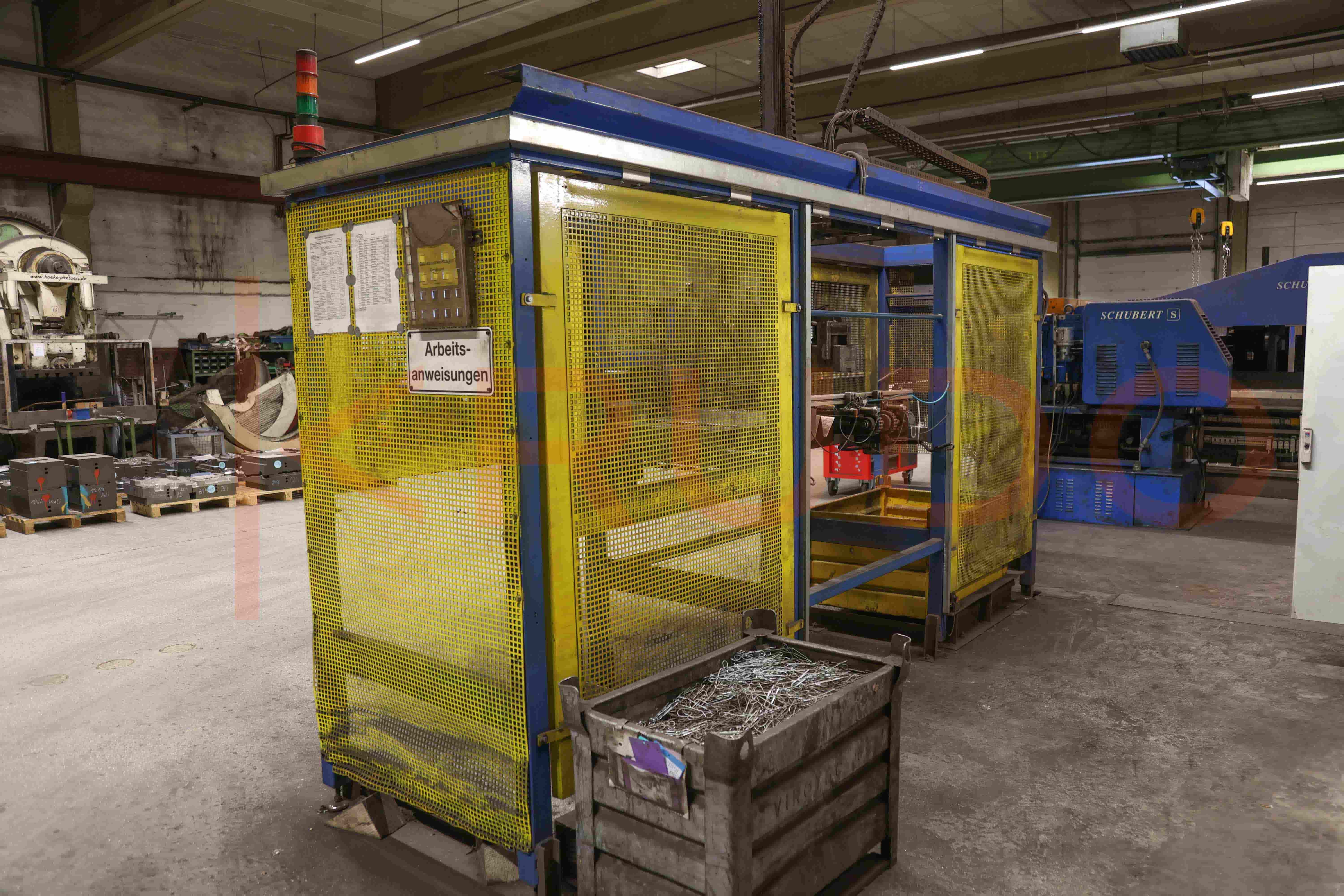

- Stacking Magazine
Technical Details

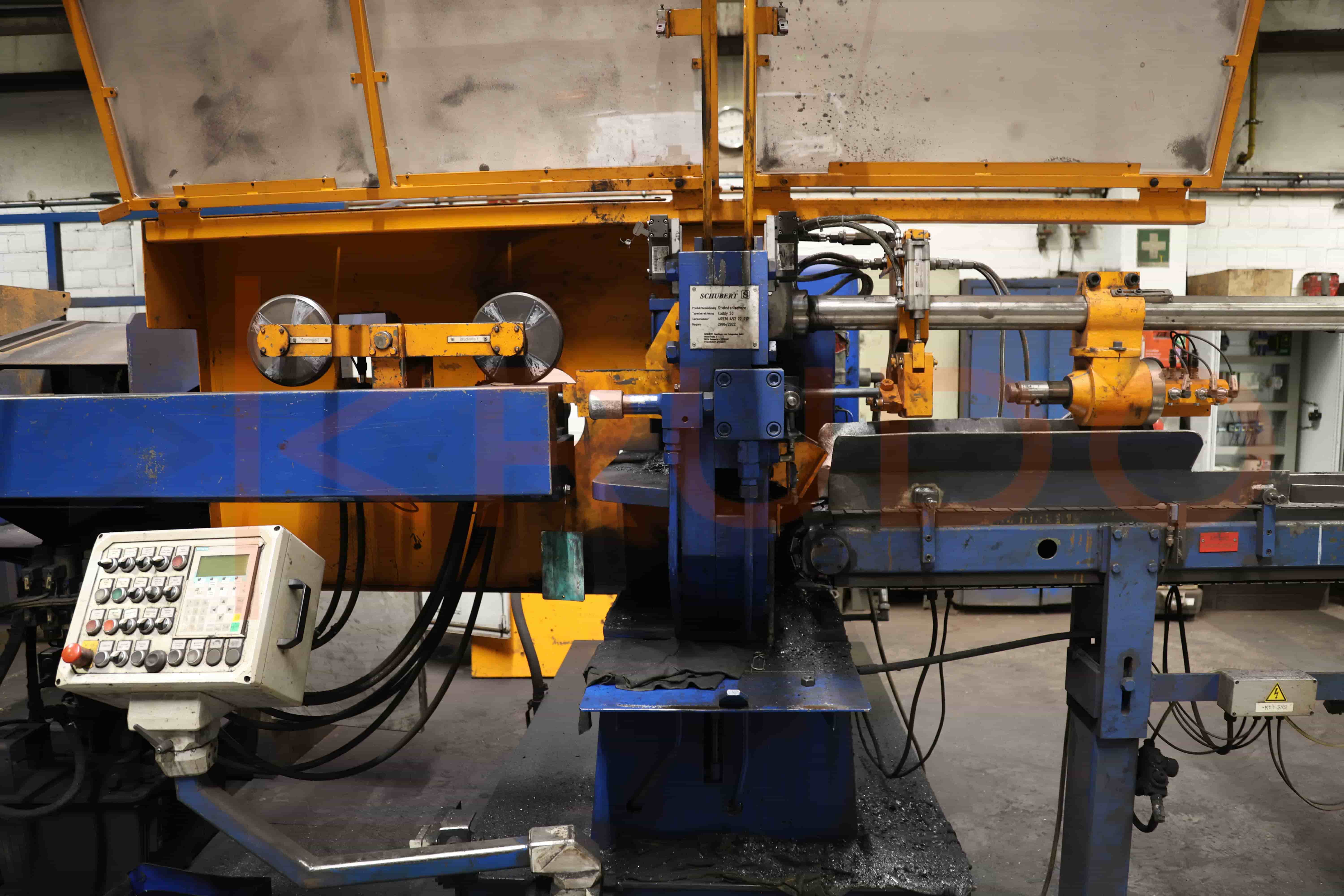

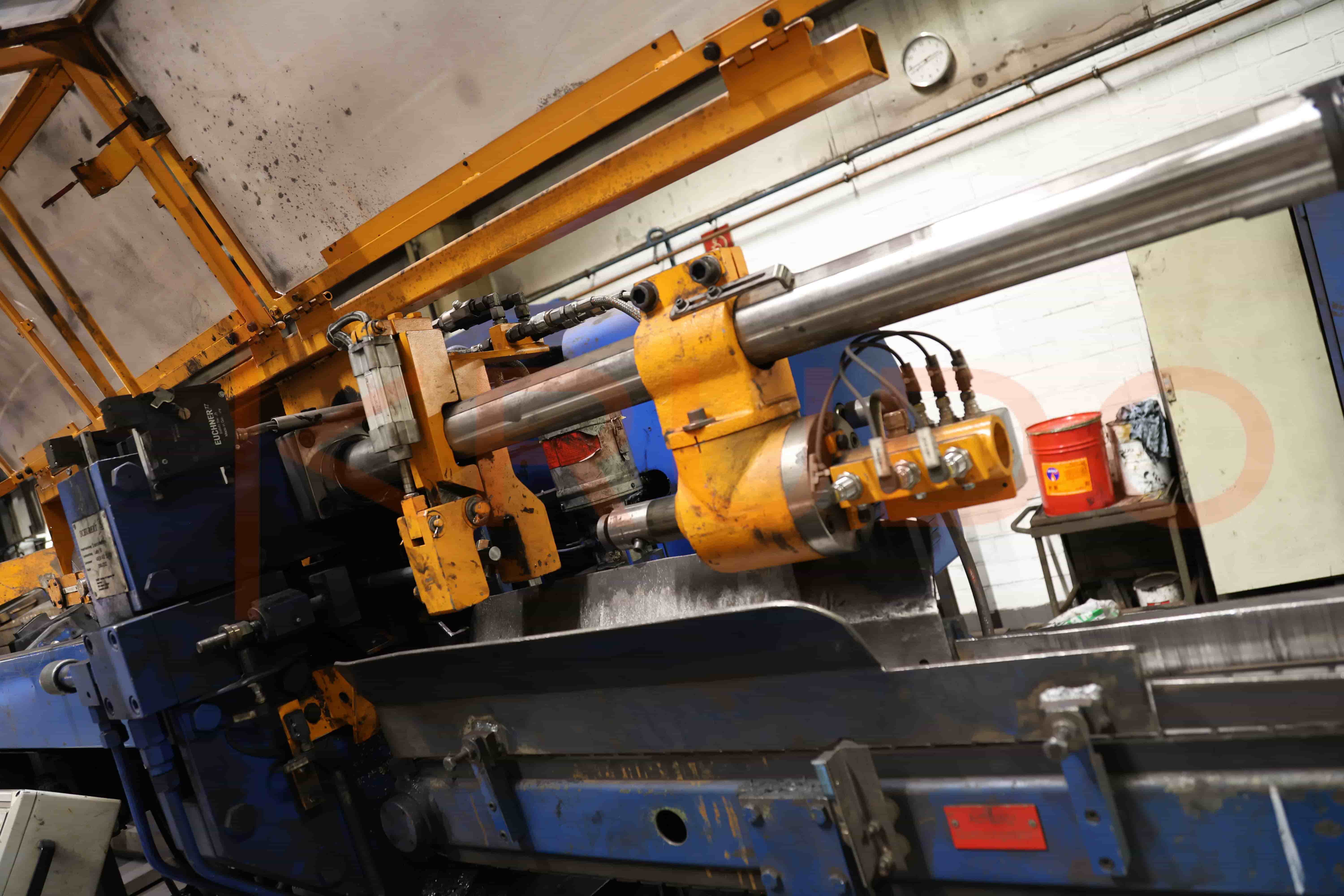

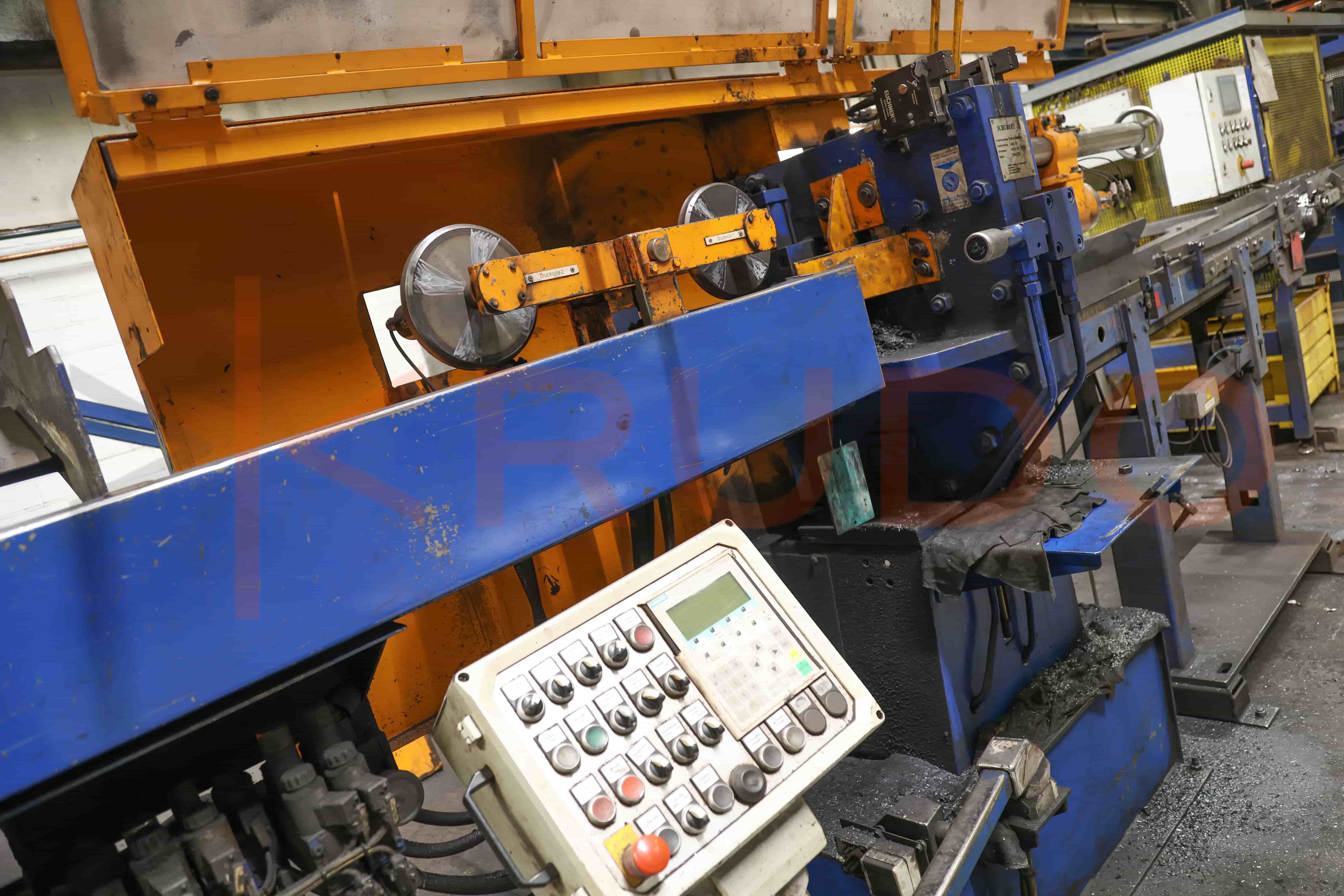

(1979/2006/2022) Bar stock shear Peddinghaus Caddy 50
- Machine identification data
- Name: Bar stock shear
- Model: Caddy 50
- Machine number: 40530 437 79 022
- Year of manufacture: 1979/2006/2022
- Operational parameters
- Shearing force: 900 kN
- Stroke rate max. 45/min
- The number of cuts depends on part of lengths and general equipment
- Main motor: 11 kW
- Length stop 0-500 mm
- Machine dimensions (height x width x depth): 1450 mm x 2140 mm x 1780 mm
- Net Weight 2800 kg

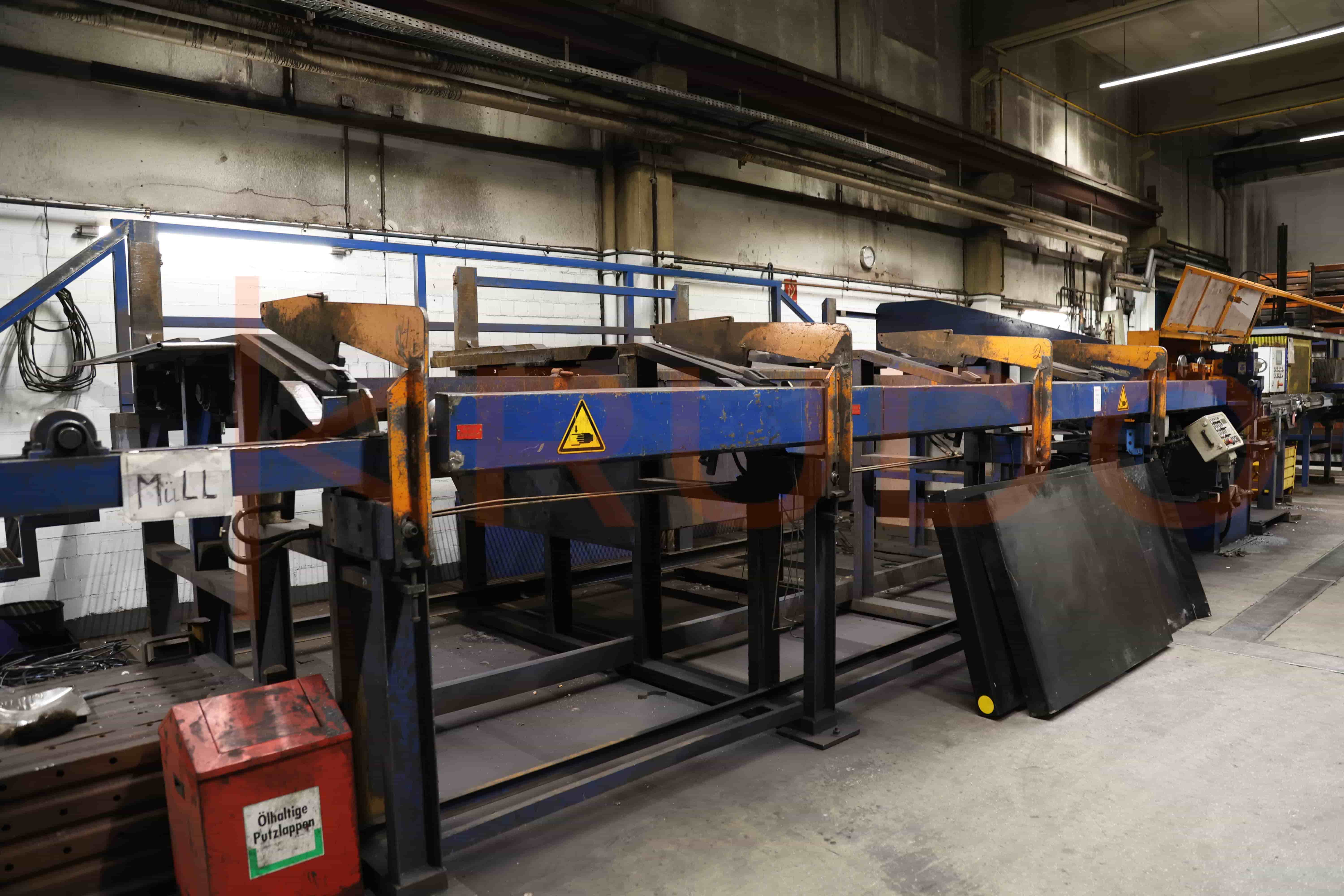

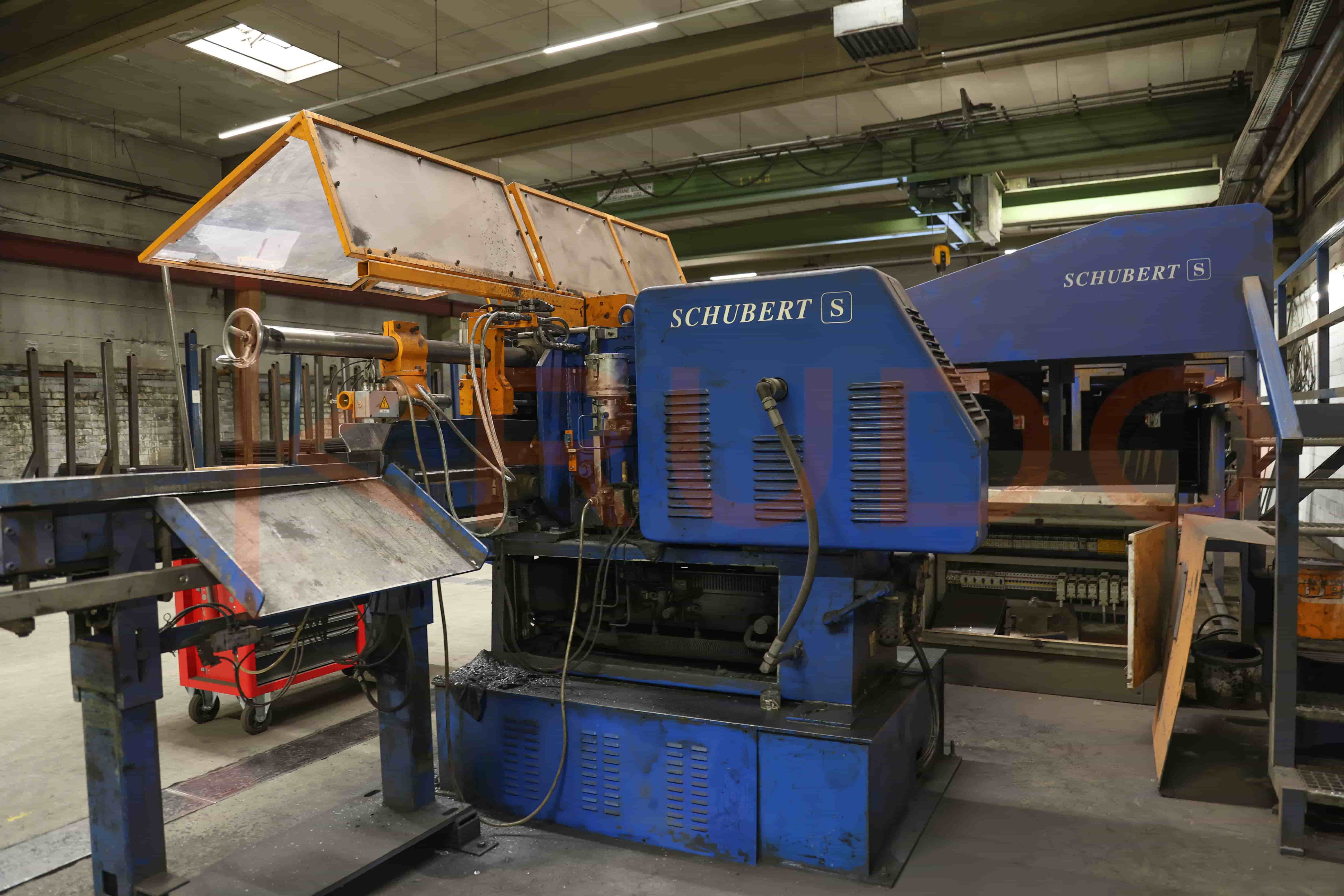

(2020) Bar magazine Schubert SMH 50 with roller table TRB 50
- Machine identification data
- Name: Bar magazine with roller table
- Model: SMH 50 / TRB 50
- Manufacturer: Schubert
- Year of manufacture: 2020
- Operational parameters
- Dimensions (height x width x depth): 2515 mm x 8500 mm x 3300 mm
- Hydraulic power units: 4 kW
