(2015) TEPRON FLEX FLOW2
Wet Painting Line for Electric Motors up to 850KG
High-Capacity Automated Wet Painting System with Cooling Tunnel
This automated wet painting line is designed for high-volume finishing of components up to 100 kg, such as electric motor housings. The system features a circular conveyor with adjustable speeds, a dedicated painting booth, and an integrated drying oven equipped with evaporation and cooling tunnels to ensure a professional and durable finish.
Industry
Electric Motors
Sale Type
Private Treaty
Manufacturer
TEPRON
Country
Poland
Product Line Type
Paint Line
Year of Manufacture
2015
This line consists of:
- (2015) Painting Cabin

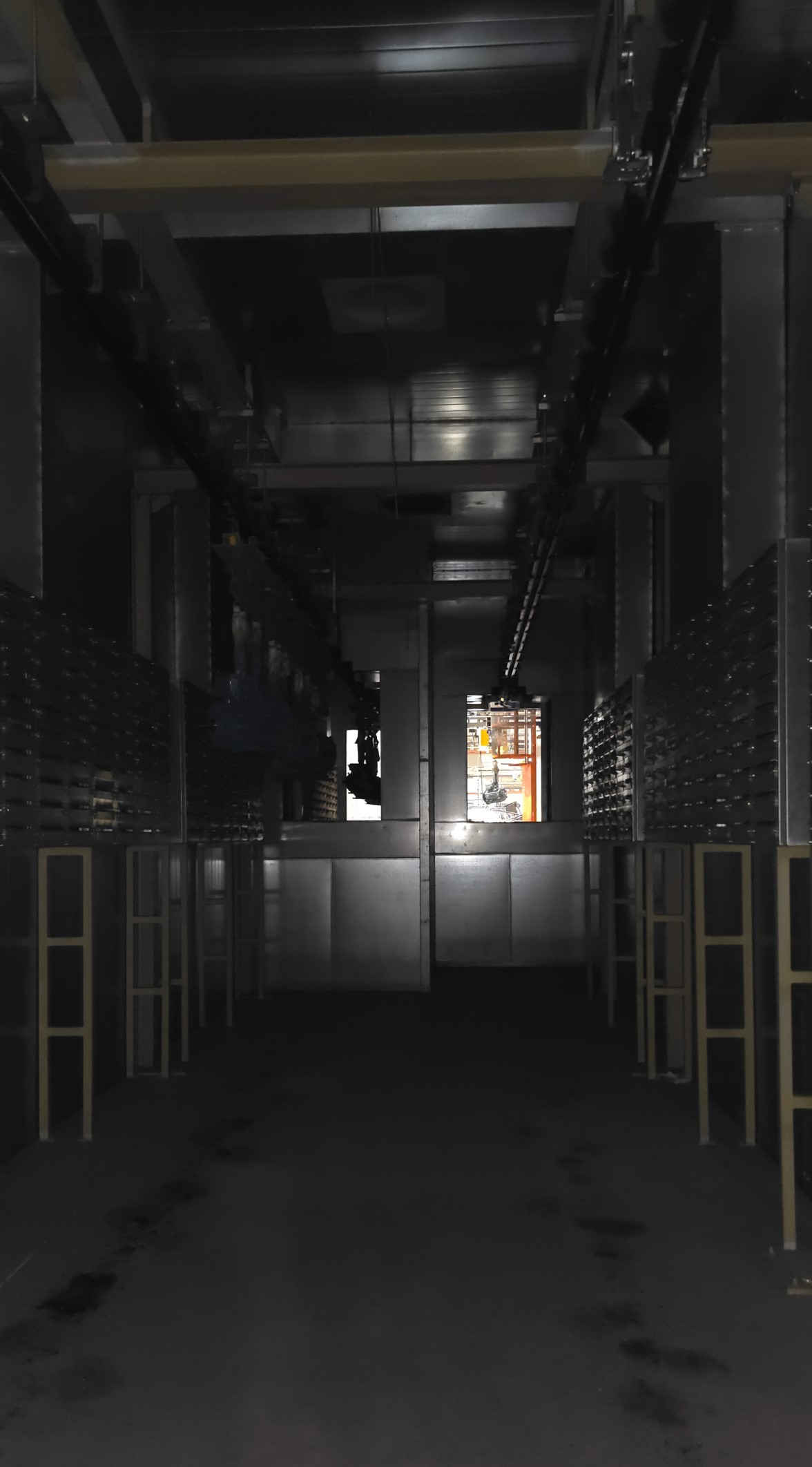

- (2015) Dryer with Cooling Tunnel

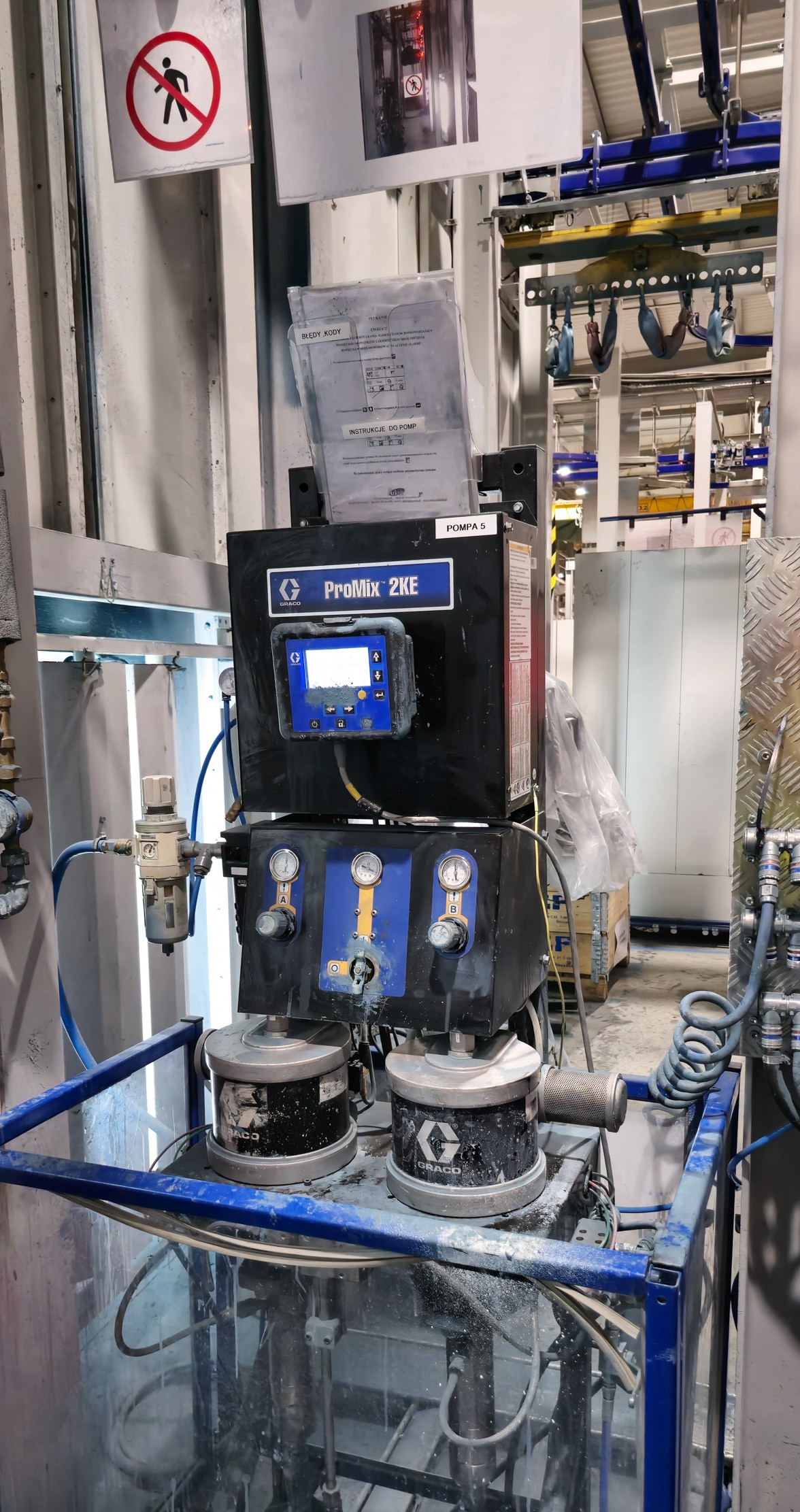

- (2015) Paint Storage

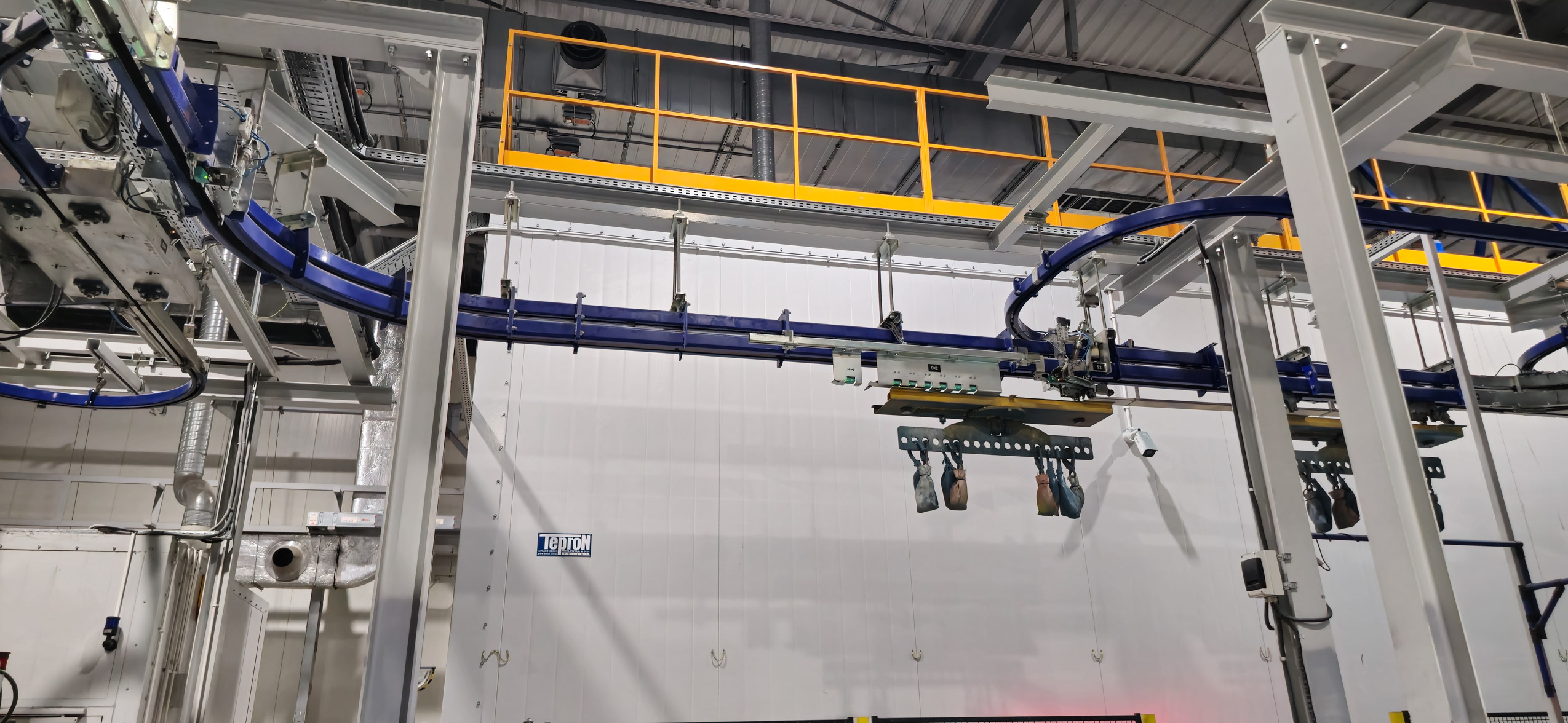

- (2015) Circular Conveyor System

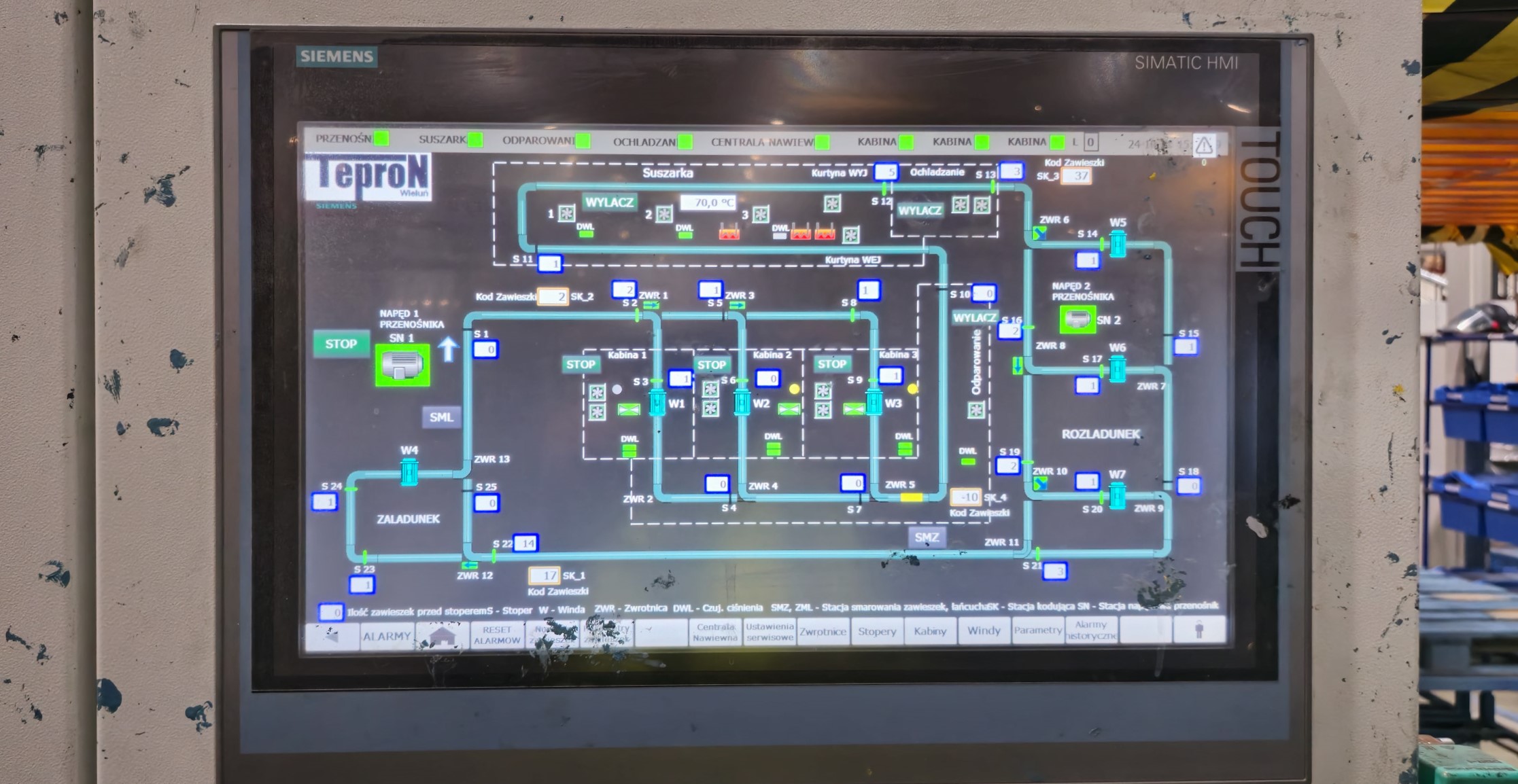

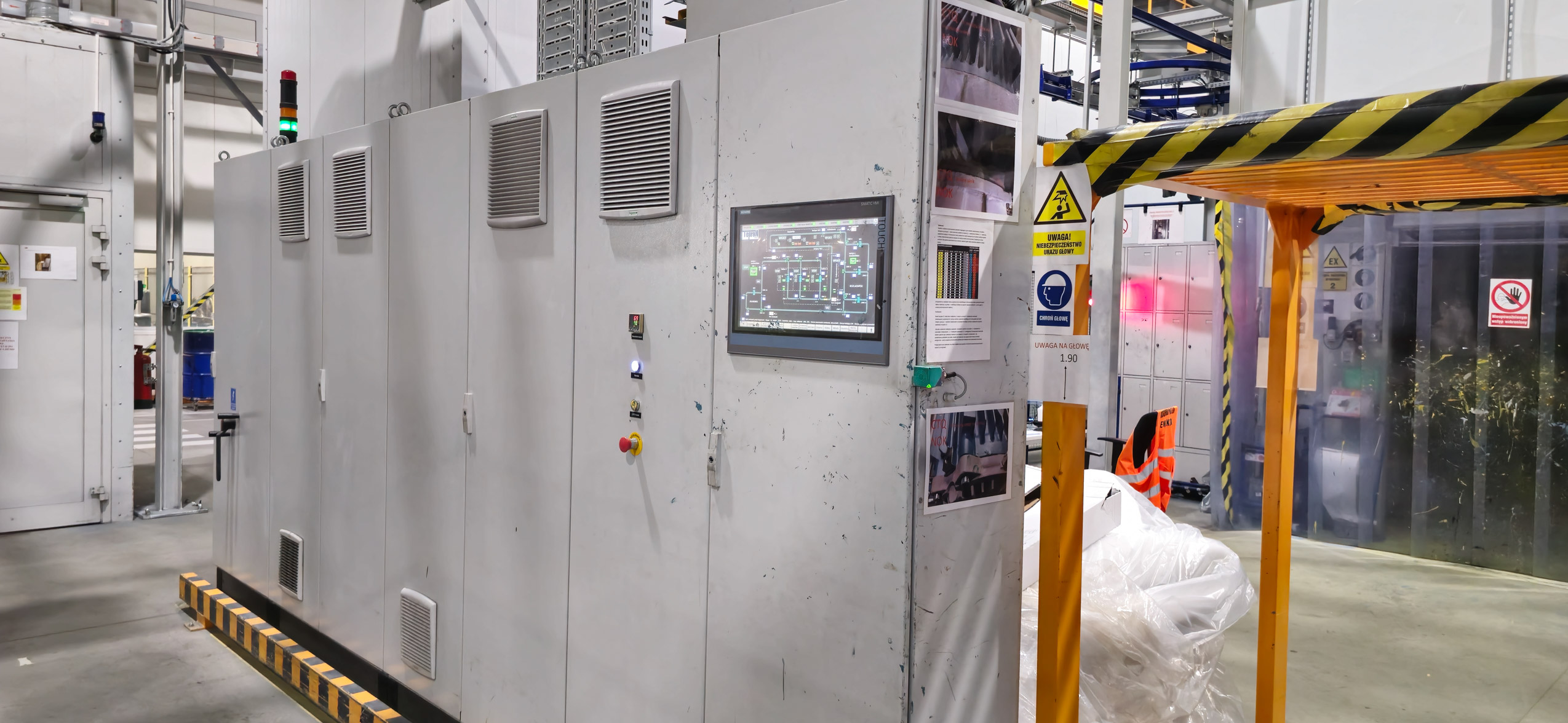

- (2015) Electrical Installation for Power and Control
Technical Details
- Production Data:
- Max Detail Size: Ø 265 mm x Height 650 mm
- Max Detail Weight: 100 kg
- Annual Production: 295,000 units
- Energy Requirements:
- Electricity: 3 × 400/230 V + N + PE; 50 Hz
- Compressed Air: 0.7 MPa
- Technological Process Overview:
- Shifts: Operates 3 shifts (5100 hours/year)
- Line Utilization Factor: Approximately 0.85
- Cycle Time: About 1 minute per painting cycle
- Painter Cycle Time: Approximately 4 minutes
- Hanging Spacing on Conveyor: 540 mm
- Nominal Speed of Circular Conveyor: 0.54 m/min (adjustable between 0.3 and 0.8 m/min)
- Max Load on Conveyor: 120 kg over a length of 1080 mm
- Key Equipment and Specifications:
- Paint Booth
- Drying Oven with Evaporation and Cooling Tunnels
- Paint Storage
- Safety and Operational Features:
- Fire and Explosion Safety
- Electric Safety
- Manual Transport System
