Manufacturing Setup 2: Rotor & Stator Production Line
High-Tech Automated Line for Mid-Range Motor Component Fabrication
Manufacturing Setup Description
Built with state-of-the-art technology, this line is designed for the production of mid-range motors with frame sizes between 160-250 and power outputs from 11 to 55 kW. Key equipment includes a SCHULER High-speed Lamination Press Line (2014), a DEMA Stator Welding Cell (2018), and a HYUNDAI WIA Stator Housing Machining Line (2015), ensuring precision and automation at every step. Additionally, this line includes an IDRA Aluminum Die Casting Cell (2010), VIRTANEN Stator Press (2015) and a TECNOFIRMA Impregnation Machine (2012) for enhanced motor quality and durability.
The manufacturing setup consists of:
- (2014) SCHULER Lamination Press Line (SOLD)
- (2014) SCHULER SAL400 Lamination Press
- (2015) ALTEK Coil Turner with Roller Track
- (2013) SARONNI A04/C – R28/600 Decoiler
- (2014) SARONNI Straightener
- (2014) SCHULER Feedmax 630 Feeder
- (2019) ASTOS DM225 Scrap Conveyor
- (2018) DEMA Robotized Welding Line (SOLD)
- (2018) ABB IRB 6700 Sheet Handling Robot
- (2018) BIMAC DEMA 2 Sheet Palletizer
- (2018) DEMA Welding Unit on Turning Table
- (2001) WHITBY SIMI-15V MULTI Slot Insulation
- (2018) ABB IRB 7600 Stator Core Handling Robot
- (2018) DEMA Stator Core Palletizer

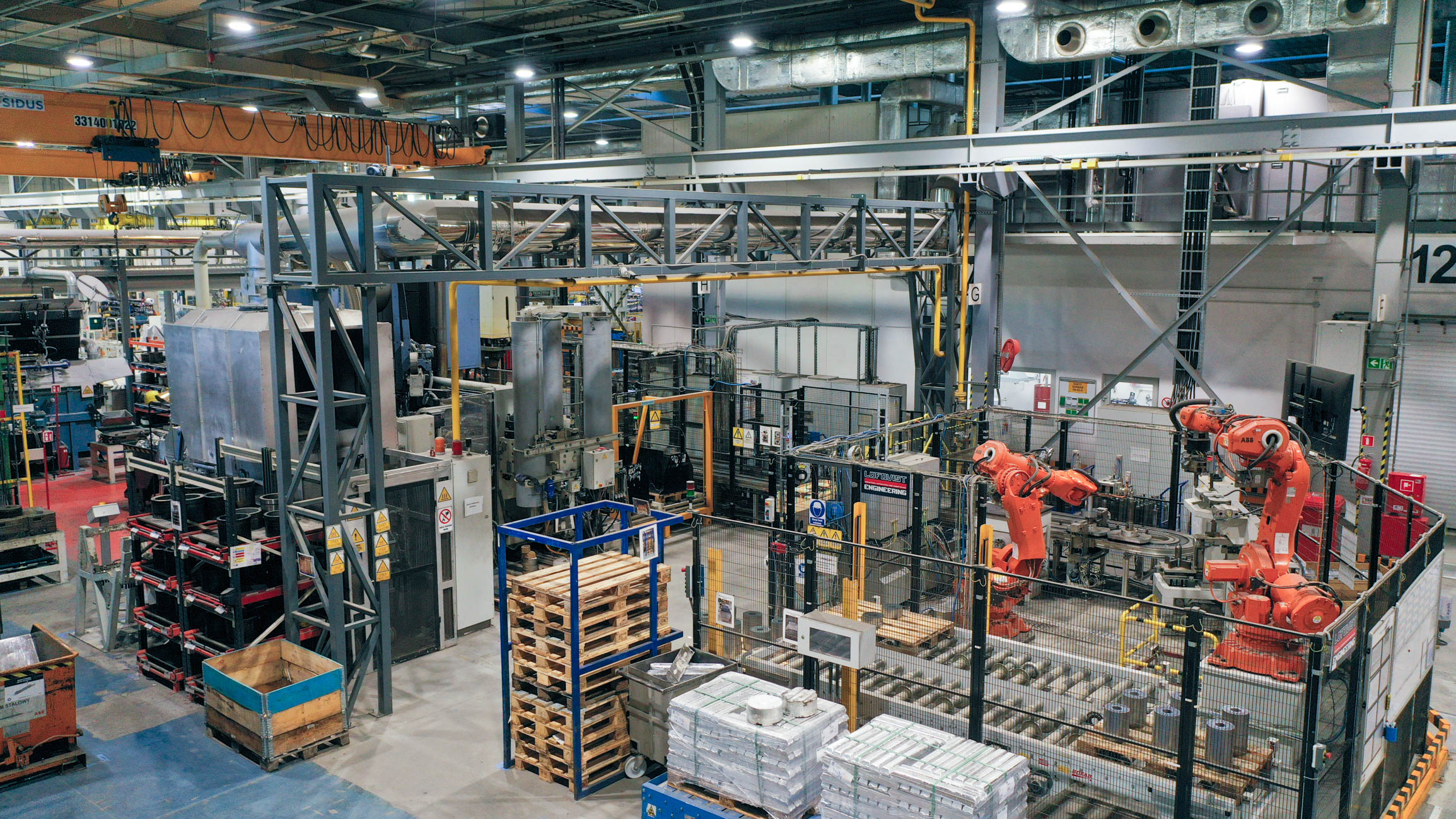

- (2010) IDRA Aluminum Die Casting Cell (SOLD)
- (2014) ABB IRB 6640 Buffer Robot Cell
- (2014) ABB IRB 6840 Compensation Station Robot
- (2014) BOFAB InterRoll S3950 Conveyor Rolls
- (2010) FERGAL FFCA01 Aluminum Melting Furnace
- (2010) IDRA CLE30 Casting Ladle
- (2010) IDRA OLK802/1300S Aluminum Die Casting Press
- (2009) ABB IRB 7600 Foundry Plus Handling Robot
- (2010) ROBOPRESS Trancia CS 40 Trimming Press
- (2015) HYUNDAI WIA Stator Housing Machining Line (SOLD)
- (2016) PREVAS Sinac 50-65-70 Induction Heating Station
- (2015) ABB IRB 7600 Handling Robot
- (2015) HYUNDAI WIA LV800RM Vertical Turning Lathe
- (2015) CAMPOJAT Gantry1 Gantry
- (2015) HYFRA Sigma 56-S Chiller Unit
- (2015) UNIROLTECH Conveyor System
- (2012) TECNOFIRMA Impregnation Machine (SOLD)
- (2015) VIRTANEN Press (SOLD)
Project Value
End-to-end project management covering acquisition, disassembly, logistics, and compliance — executed with precision and global fluency.
