Fagor Arrasate Blanking Line (1975)
Thickness 1.5–10.0 mm
Heavy-Duty Coil Blanking System
A classic and heavy-duty production line from one of Spain’s most respected industrial engineering manufacturers. Though older in year, the line reflects the robust mechanical engineering standards of its era and remains a strong base for refurbishment, upgrade, or spare part utilization.
Industry
Steel
Sale Type
Private Treaty
Manufacturer
Fagor Arrasate
Country
Spain
Product Line Type
Blanking Line
Year of Manufacture
1975
Line Description
Material Specs
- Max coil width: 1550 mm
- Min coil width: 300 mm
- Max coil weight: 25 tons
- Thickness: 1.5– 10.0 mm
Final Product
- Length: 12,000 mm
- Max speed: 25 m/min
- Line direction: Left/Right
Main Features

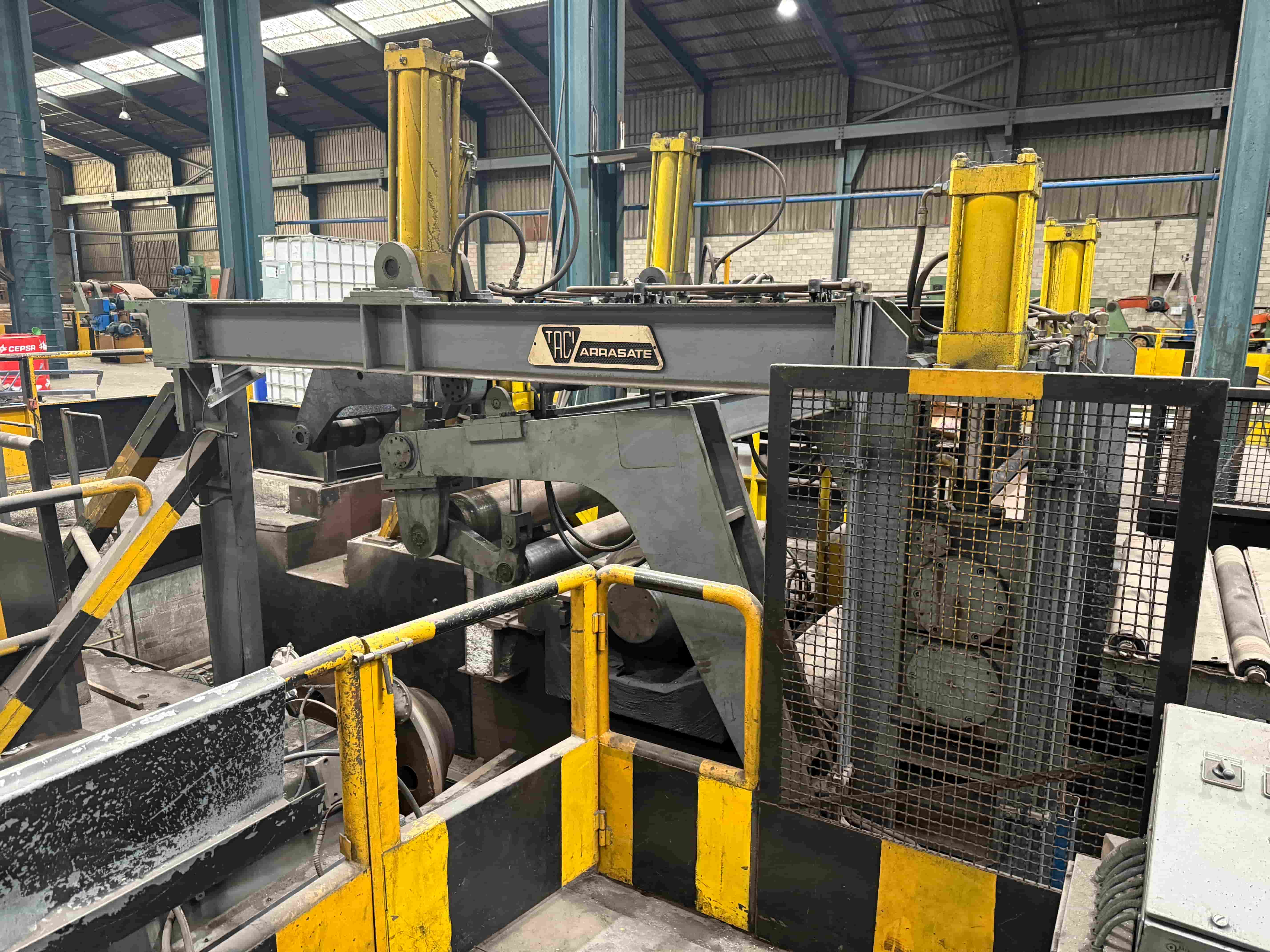

- Double expandable mandrel decoiler
- Coil Ø (outer): 2000 mm/ min. 600mm
- Coil Ø (inner): 760 mm / min.508. mm
- Motorized holding roll
- Hydraulic Expansion

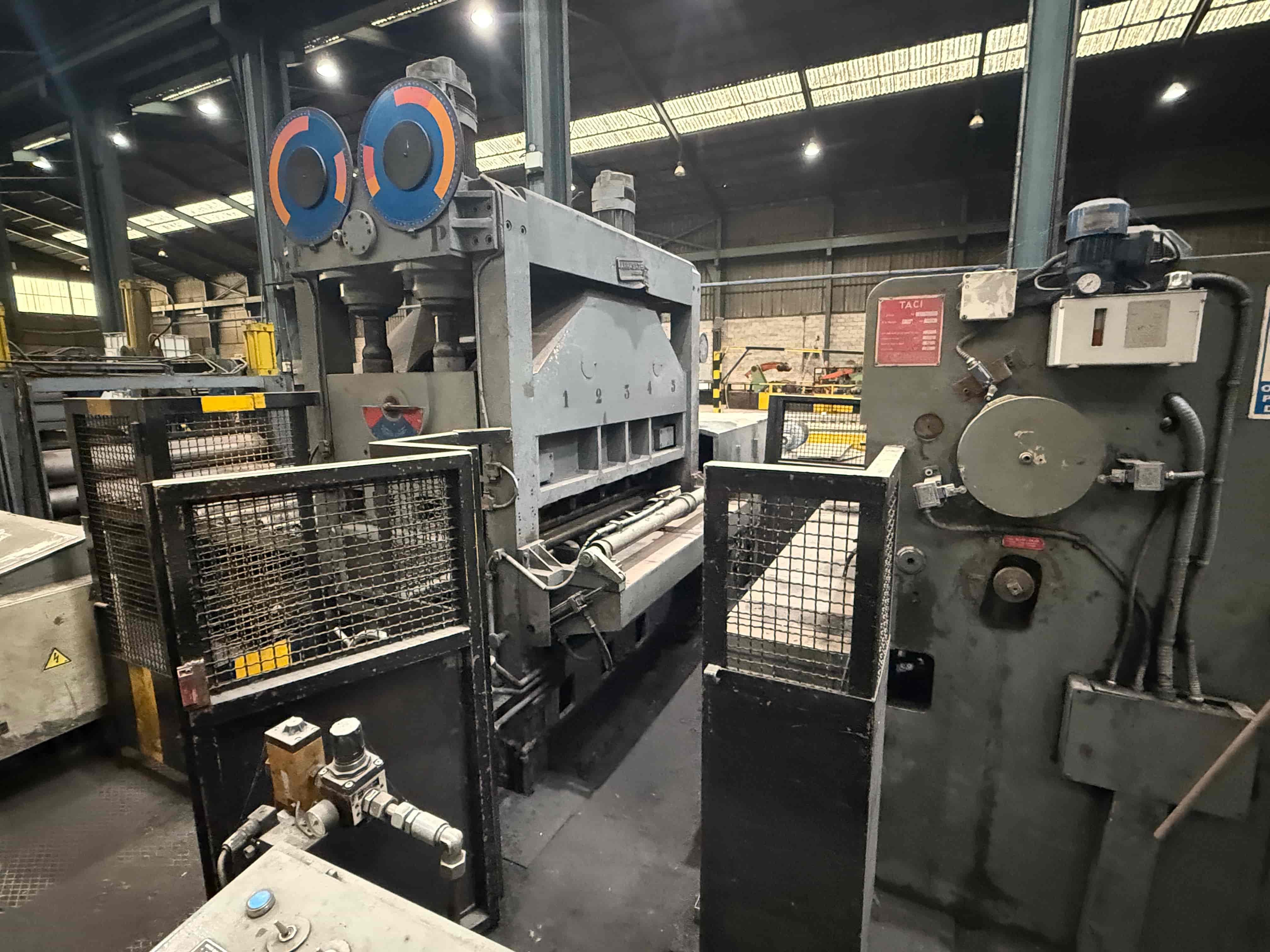

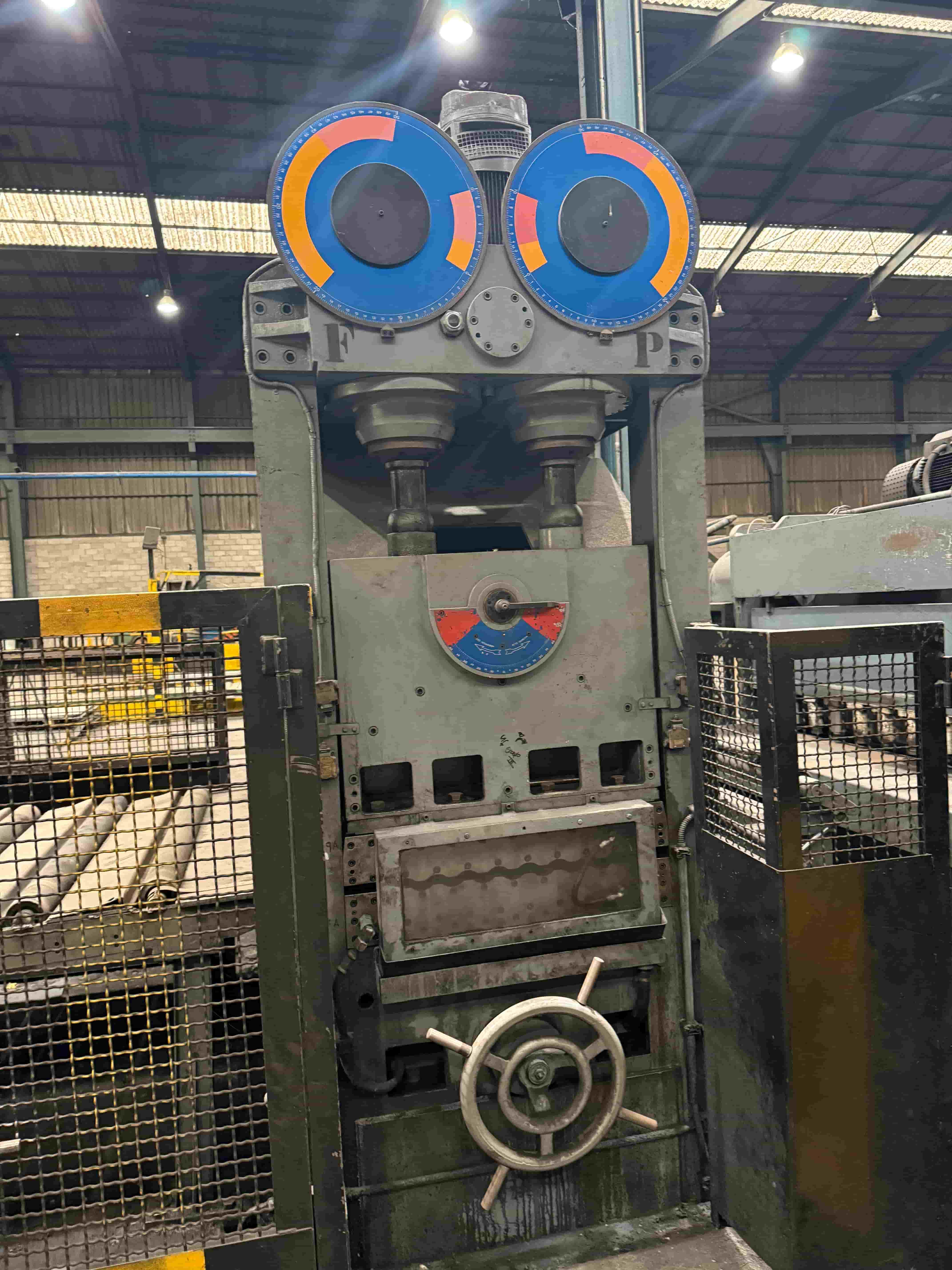

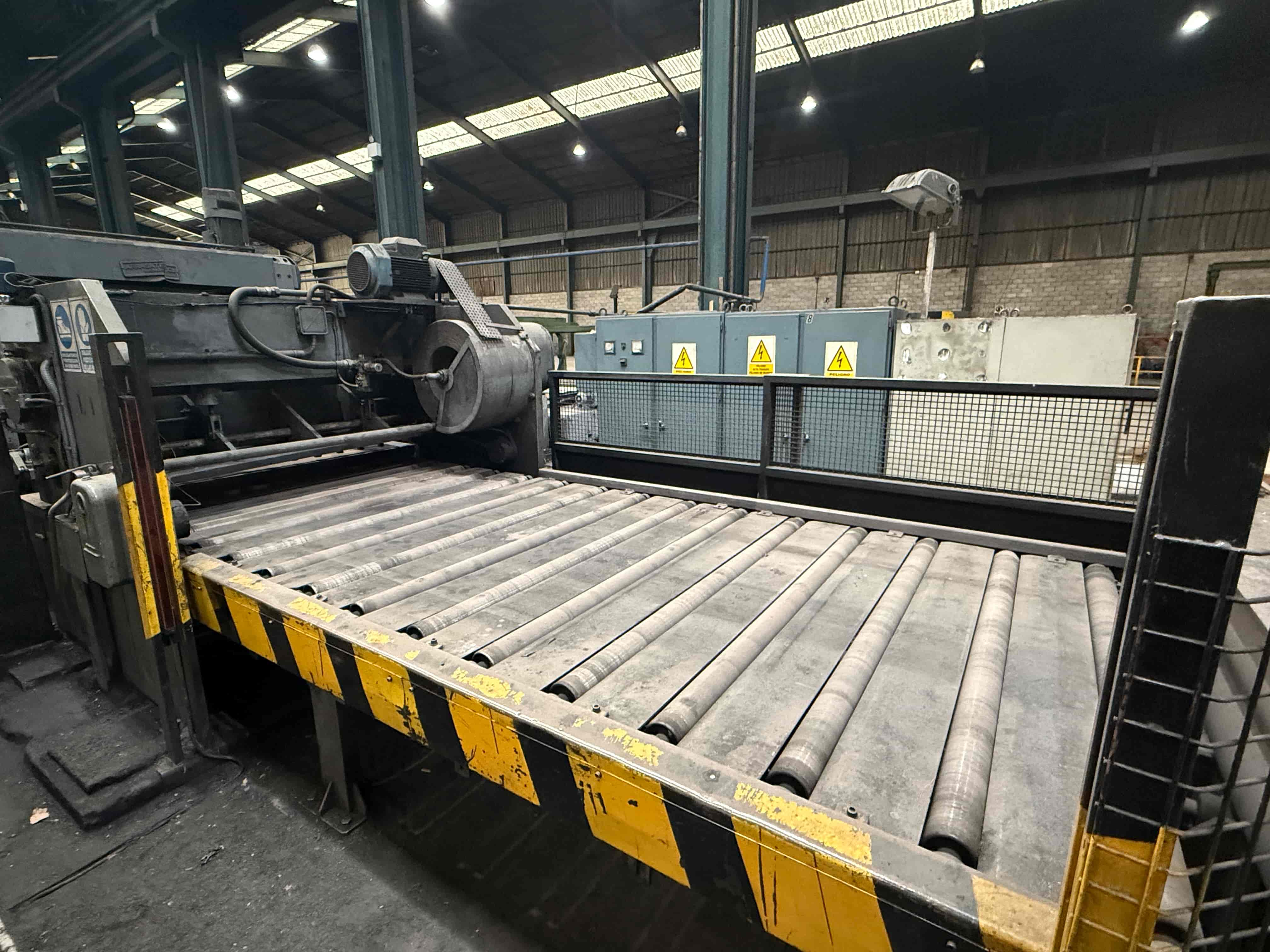

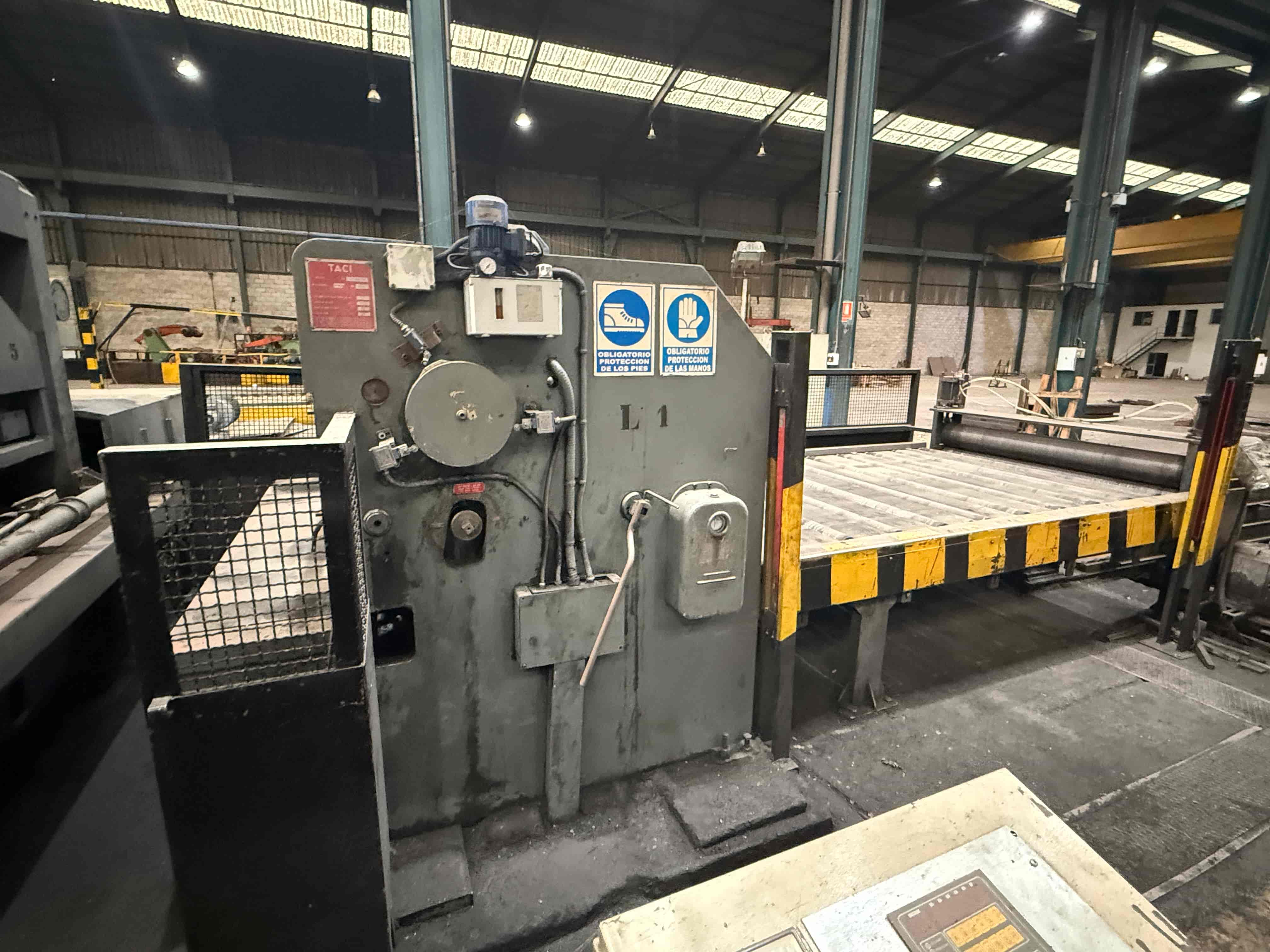

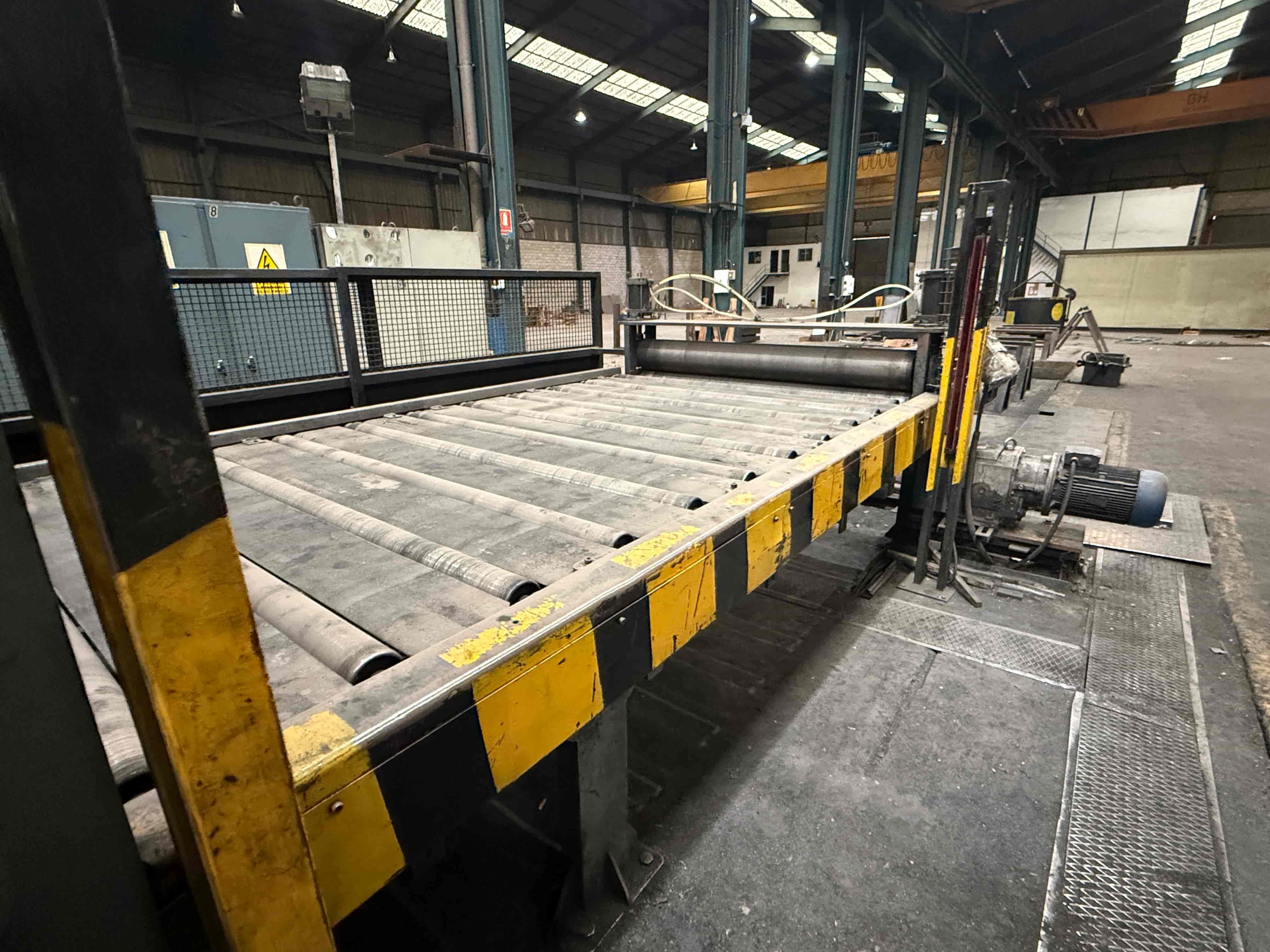

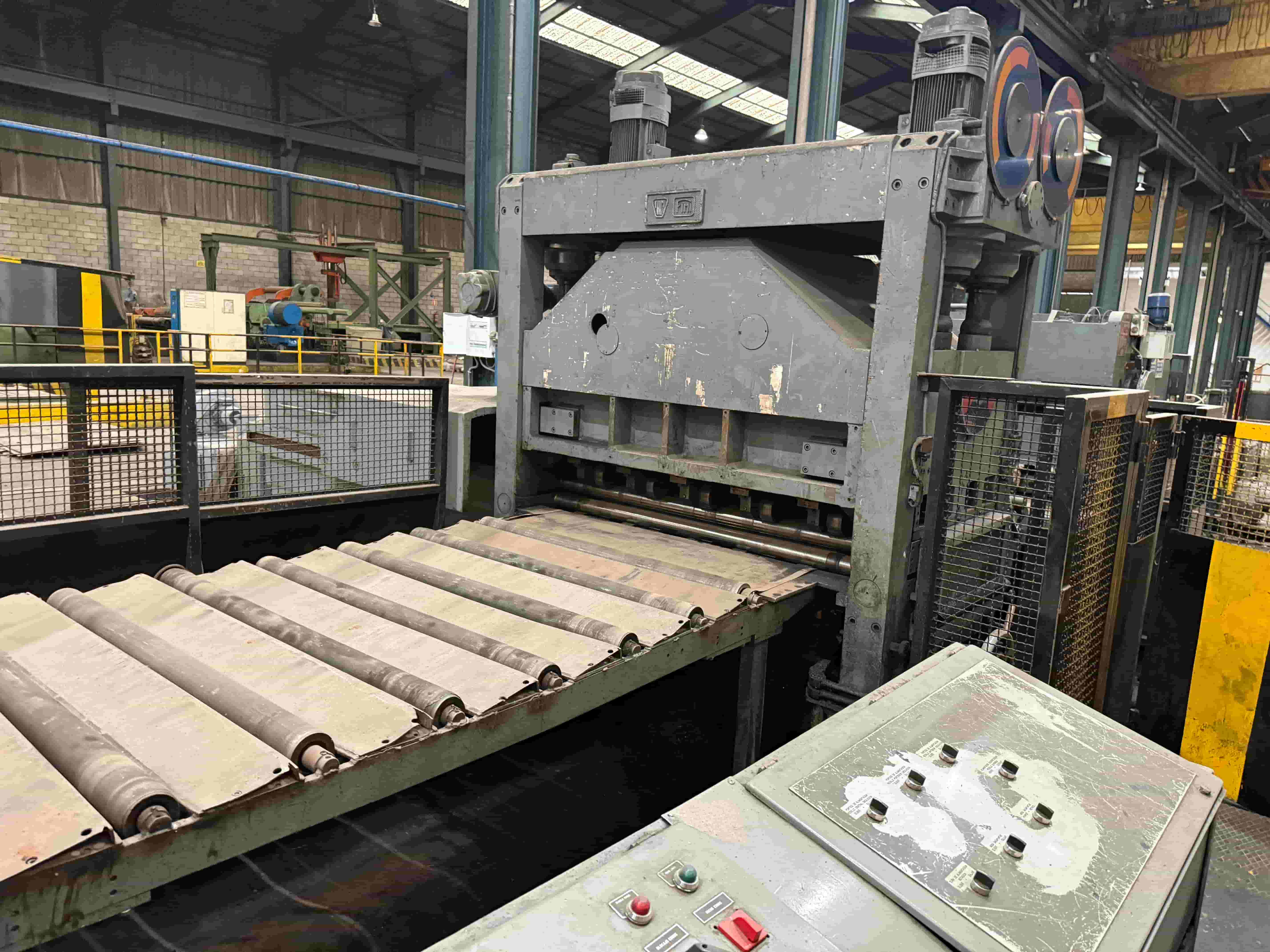

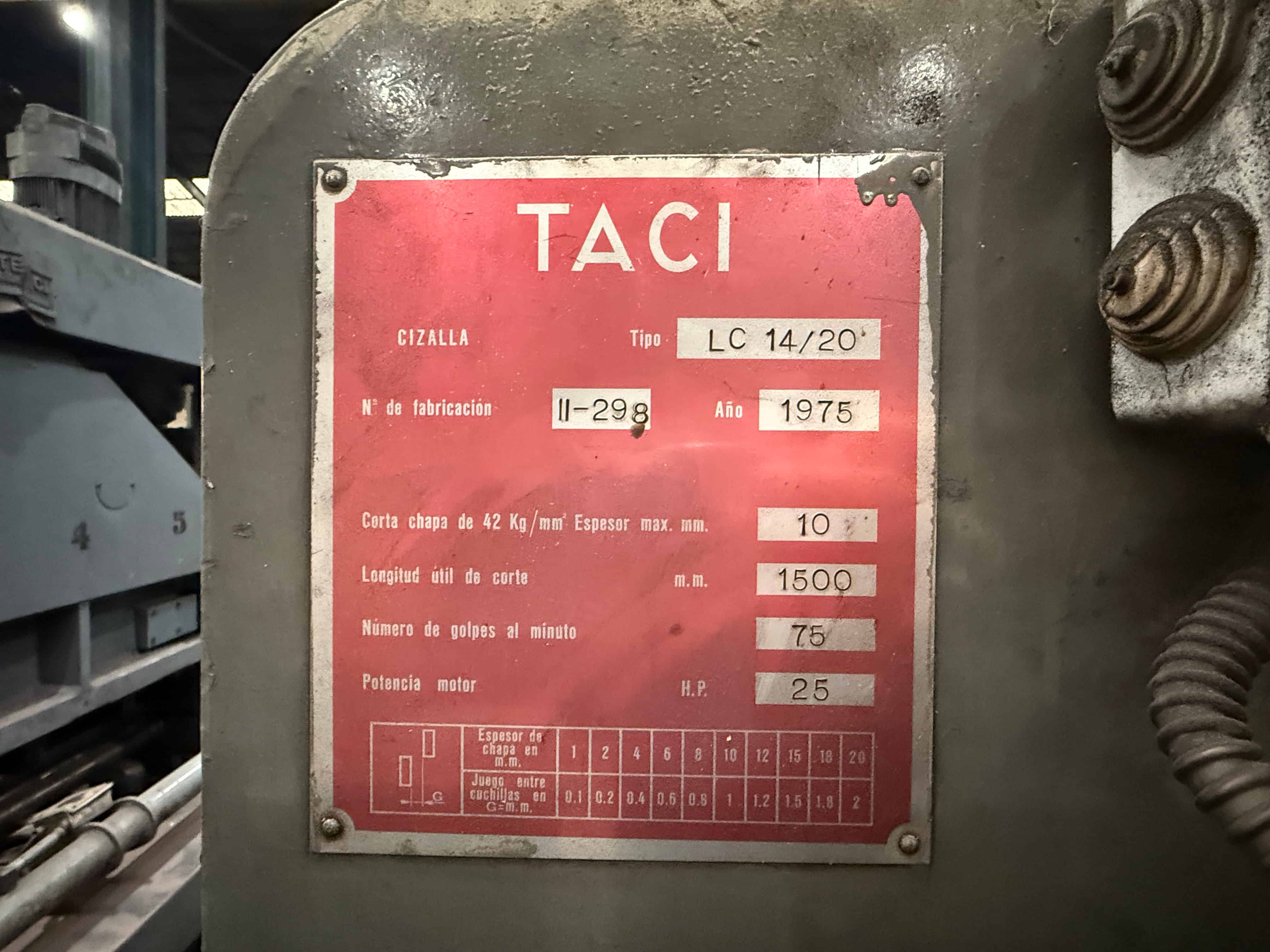

- Roller section composed of leveler, pneumatic cutting shear, and measuring table with motorized roller
- Packing drawers

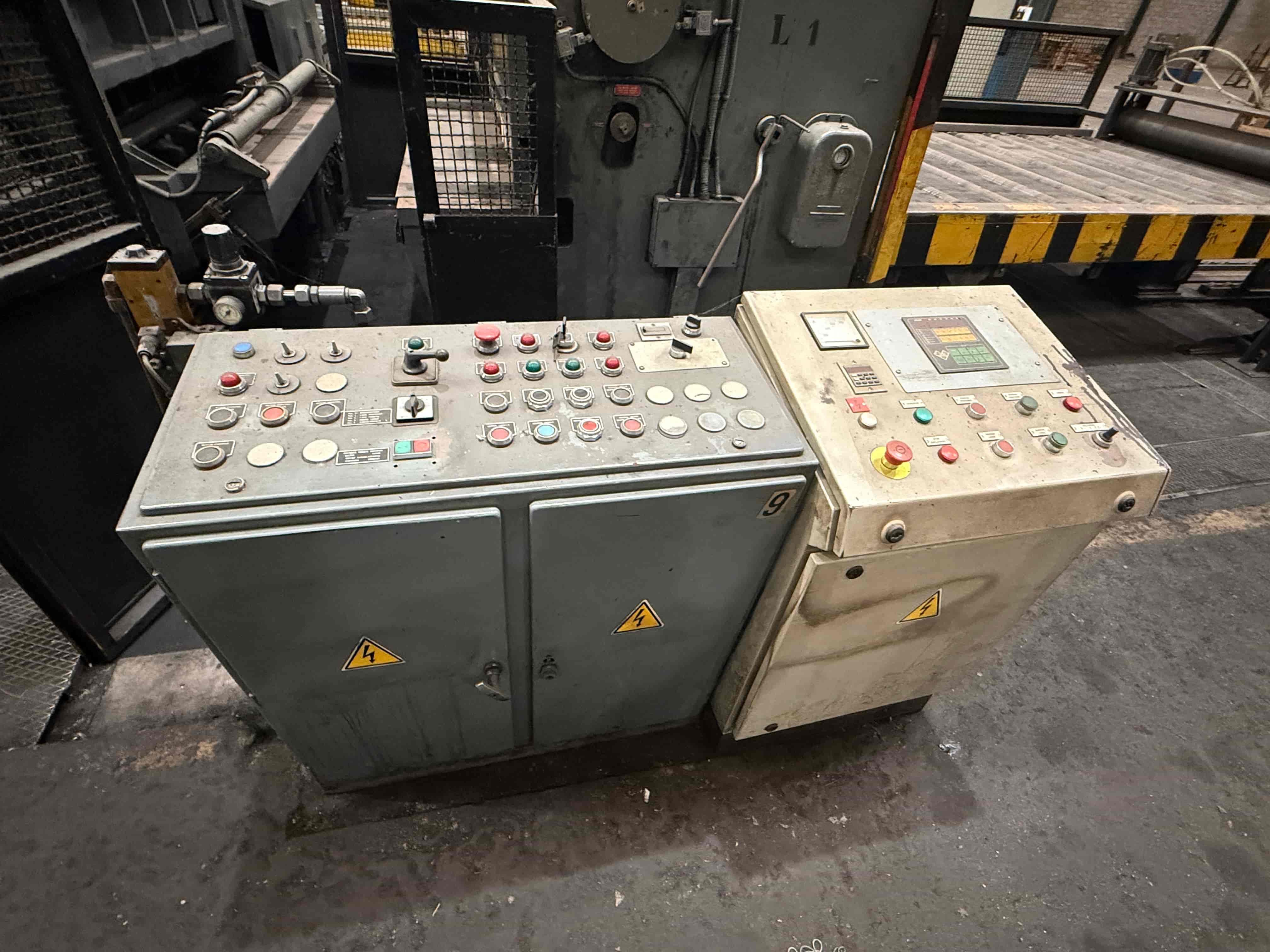

- Hydraulic & electrical controls
- Extras
- Civil, mechanical & electrical drawings
- List of recommended spare parts
Project Value
End-to-end project management covering acquisition, disassembly, logistics, and compliance — executed with precision and global fluency.
