Forest-Liné ATLAS/ACCESS Dual-Phase Tape Laying Line #3
Automatic Carbon Fiber Reinforced Polymer (CFRP) Tape Laying System
Line Description
The complete line is consisting of:

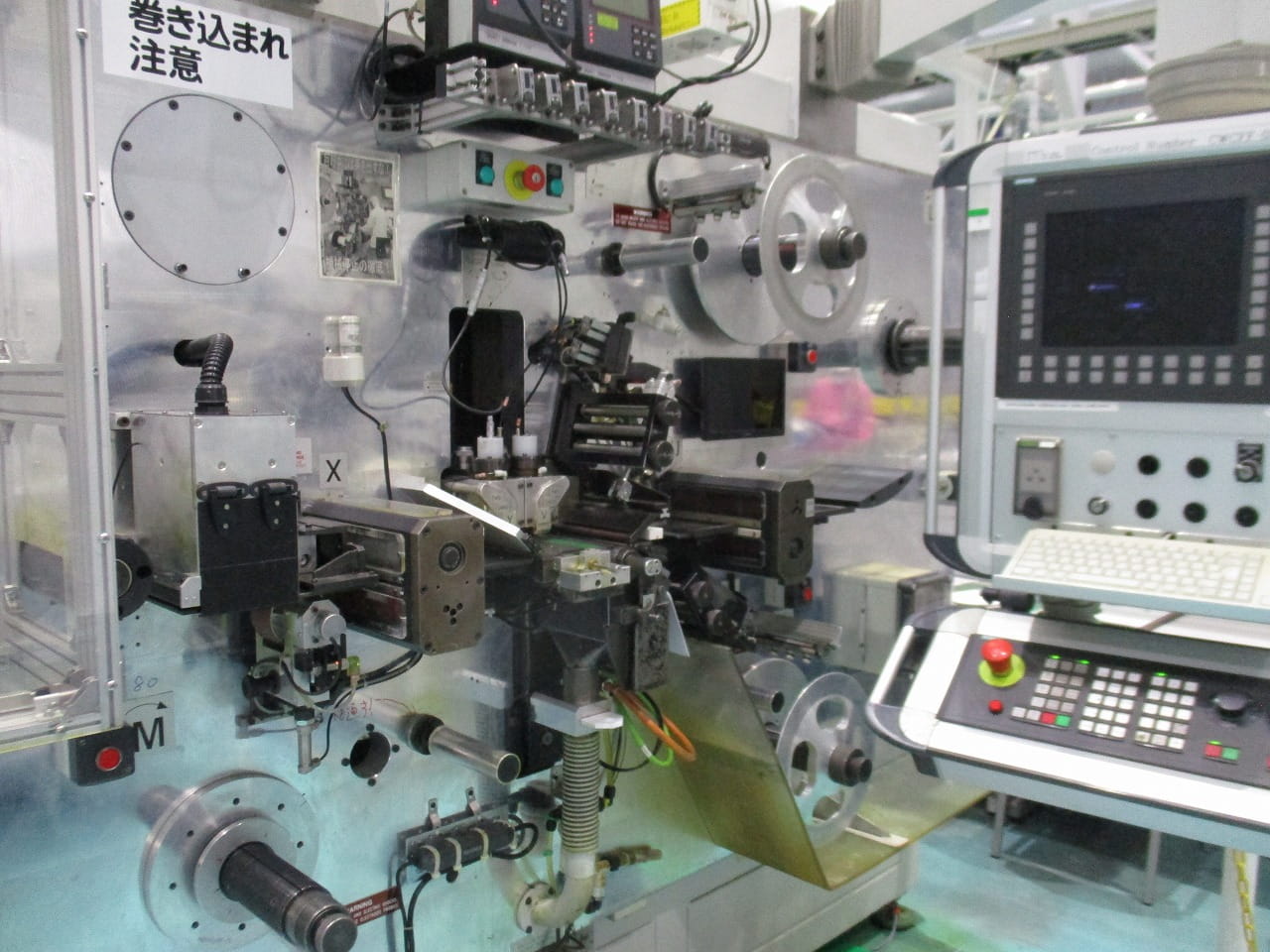

- Precut Machine

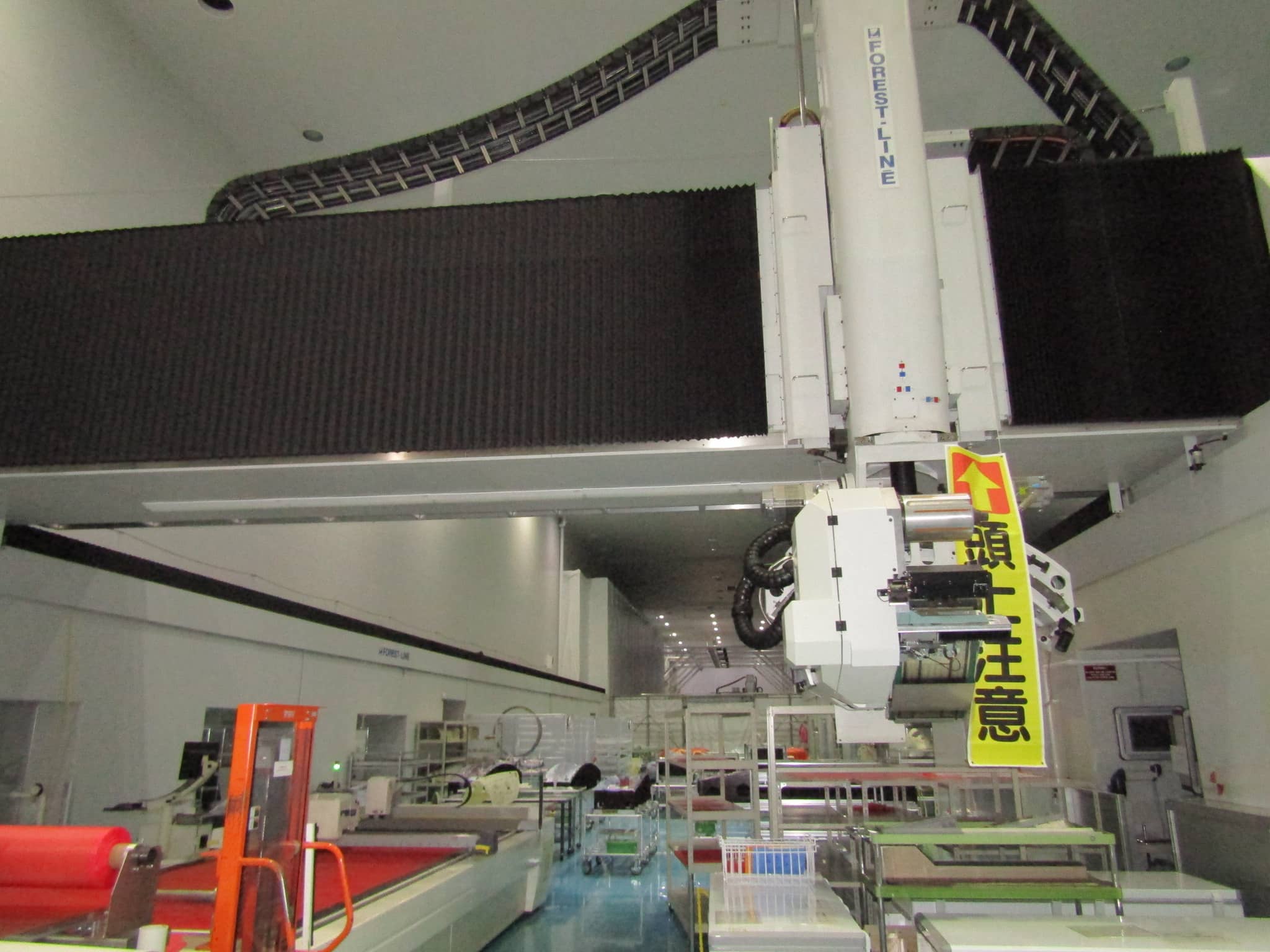

- Gantry
- Ram
- Lamination Head
- Main Control
- X-Axis Bed
- X-Axis Cable Bear
- Y-Axis Cable Bear
- Main Air Unit
- Scrap Box
- Hydraulic Unit
- X-Axis Step
Technical Details
Manufacturer: Forest-Liné
Installation Year: April 2008
Operating Hours (Servo ON): 16,837 hours
Machine Dimensions: 44.0 m (Length) x 12.5 m (Width) x 7.5 m (Height)
Effective Working Size: 36.5 m (Length) x 6.5 m (Width) x 1.2 m(Height)
Max. Speed (X/Y Axes): 60 m/min (Rapid Traverse)
Positioning Accuracy: ±0.025 mm/300 mm
Critical Components of the Asset
The equipment is composed of the following main parts that require individual dismantling and handling:
- Main Structure: Gantry and Ram, X-Axis Bed
- Process Heads: Lamination Head and Peeling/Cut Head
- Auxiliary Systems: Main Control Panel, Hydraulic Unit, Main Air Unit
Note: This is solely mentioned as it becomes relevant due to size of the machine.
