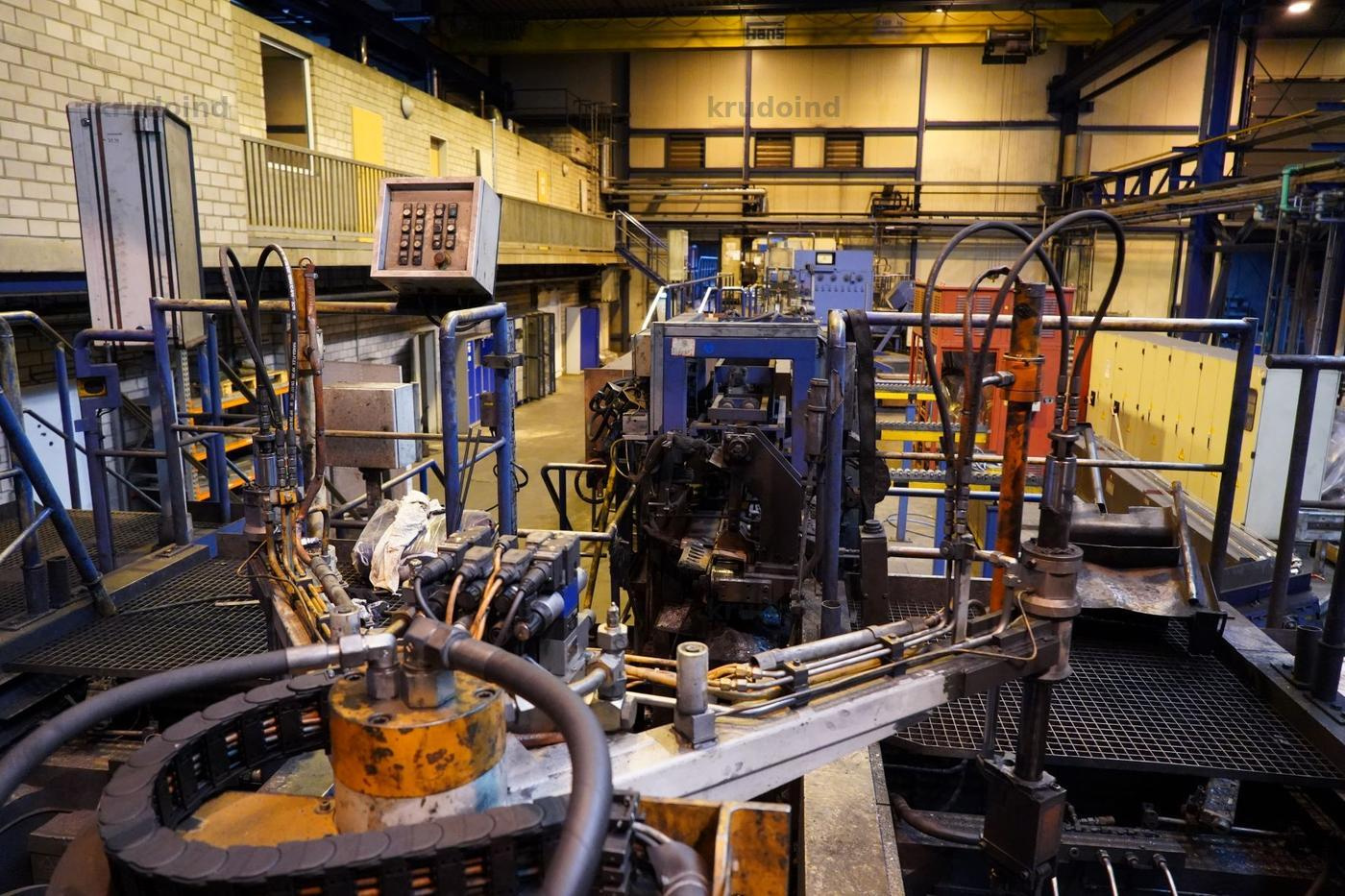

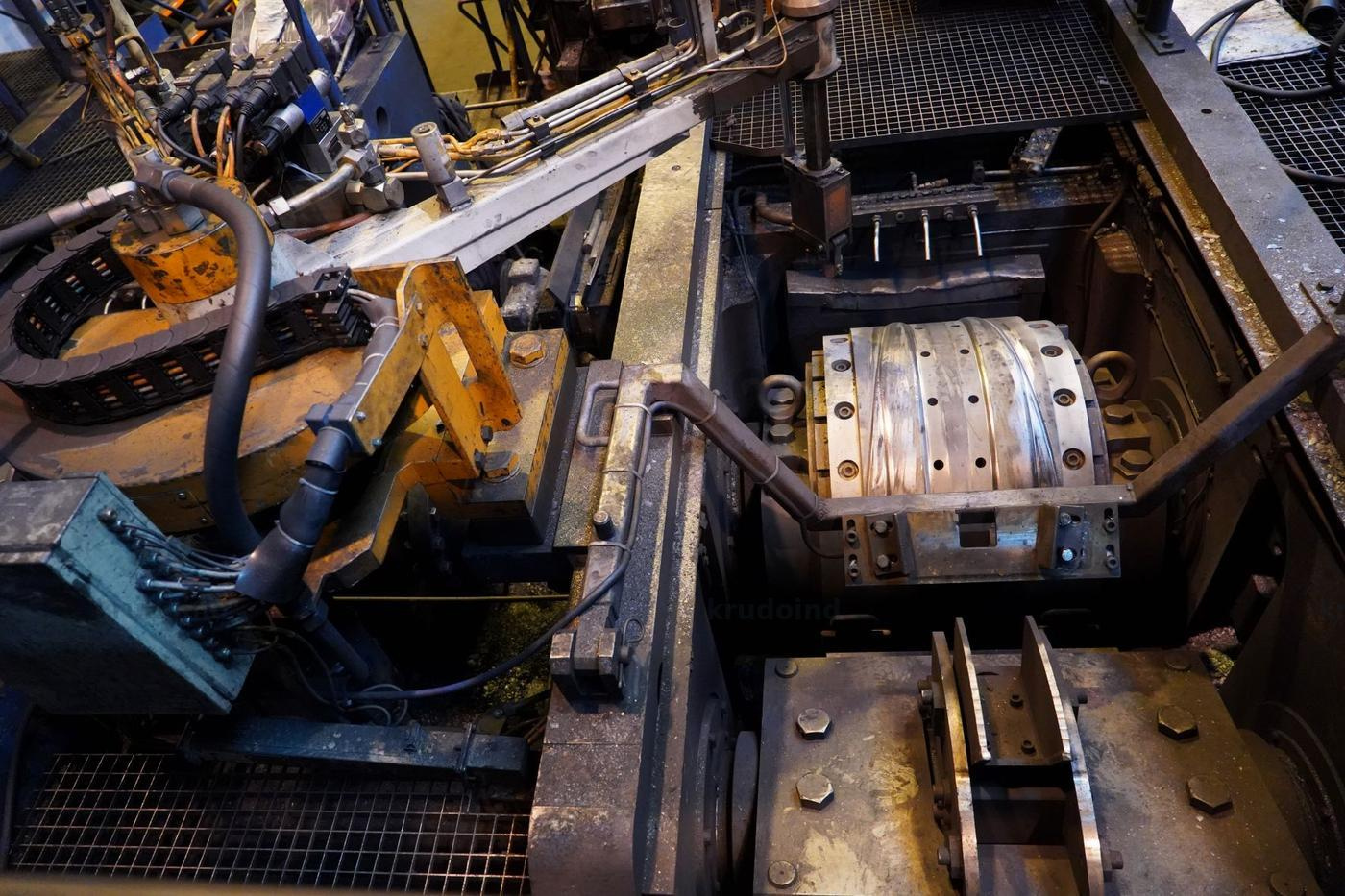

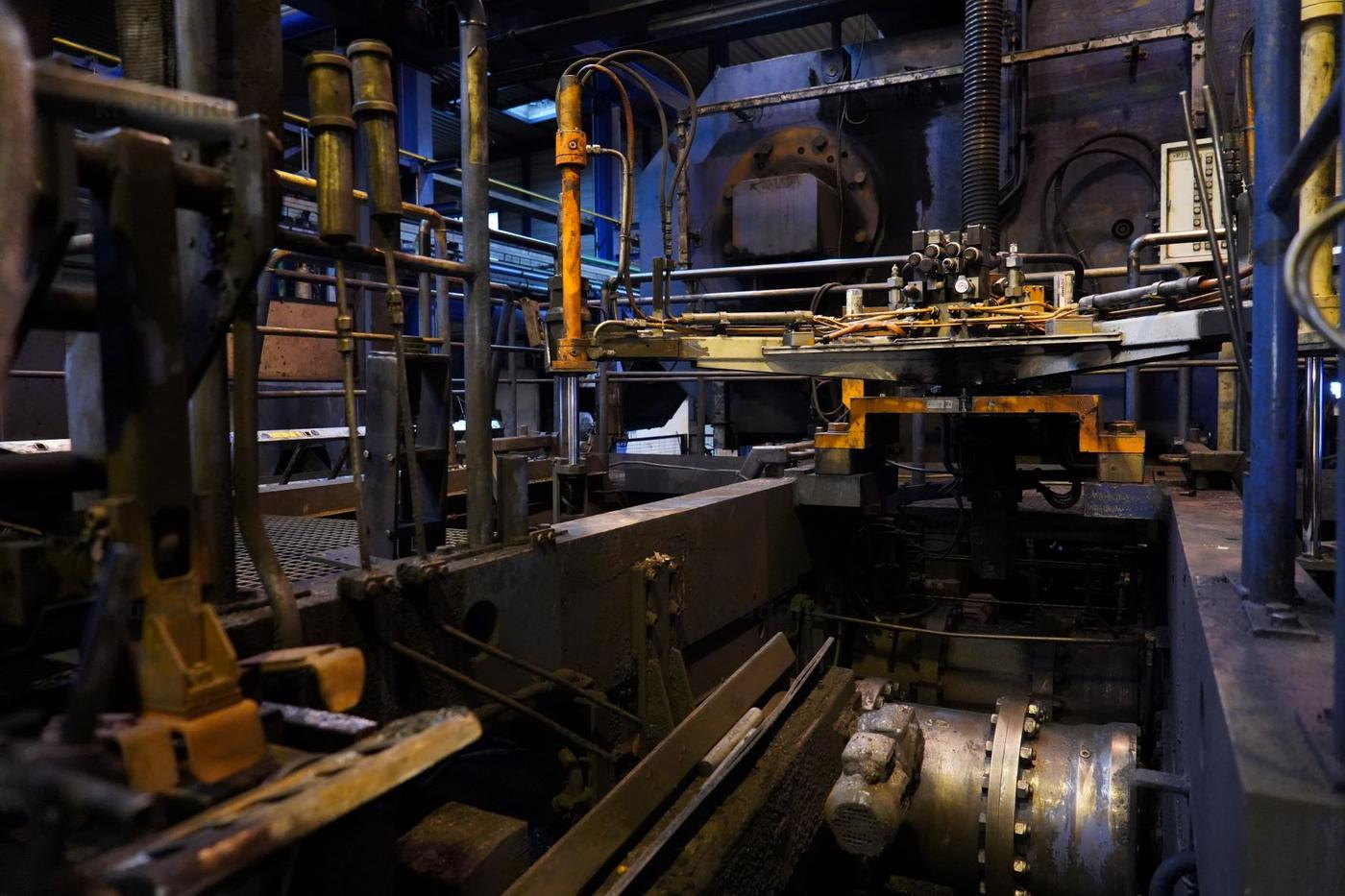

Double Wedge Cross Rolling Machine
Automated Bar Straightener & Cutter
Description
Working parameters
Roller diameter (tool clamping surface): 850mm
Roller width: 700mm
Adjustment distances
Roll gap adjustment: ± 40 mm
Blank dimensions
Diameter, max.: 80 mm
Length, max.: 600 mm
Speed
Roller speed, max.: 15 1/min
Achievement
Roller drive: 160 kW
Cycle times
A cross roller, min.: 4 sec.
Two cross rollers, min.: 2 sec.
Power supply
Current
Operating voltage, +5% /-10%: 400 V
Frequency: 50 Hz
Connected load: 280 kVA
Required pre-fuse: 630 A
Consumption
Water
Oil cooling roller gearbox, approx. 0.9 m³/h
The values for the cooling water quantity assumed a water inlet temperature into the coolers of: T ≤ 25°C
Roller cooling, depending on application: 0.4 m³/h
Operating pressure: approx. 7 bar
Compressed air
Operating pressure: 5 bar
