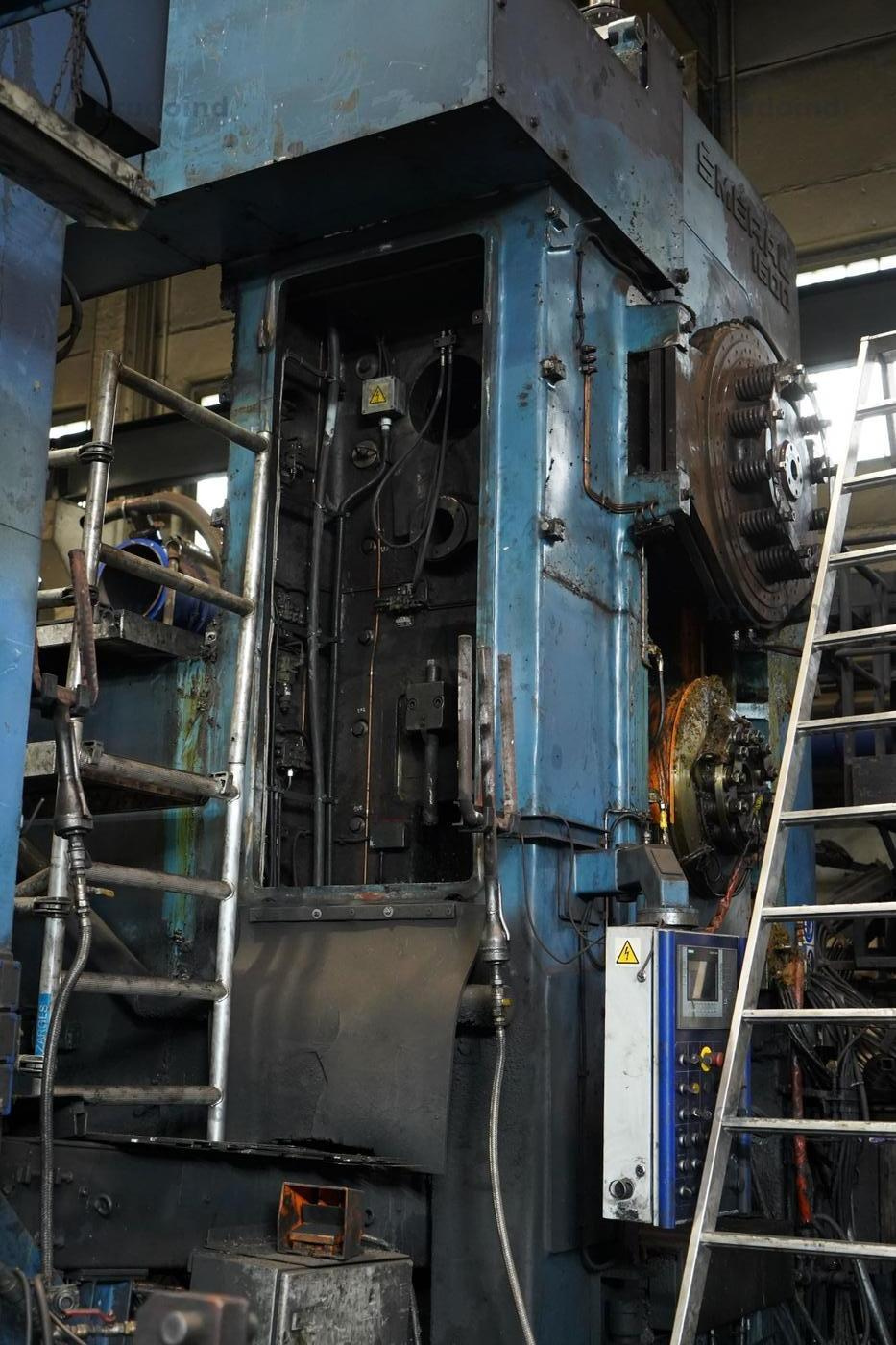

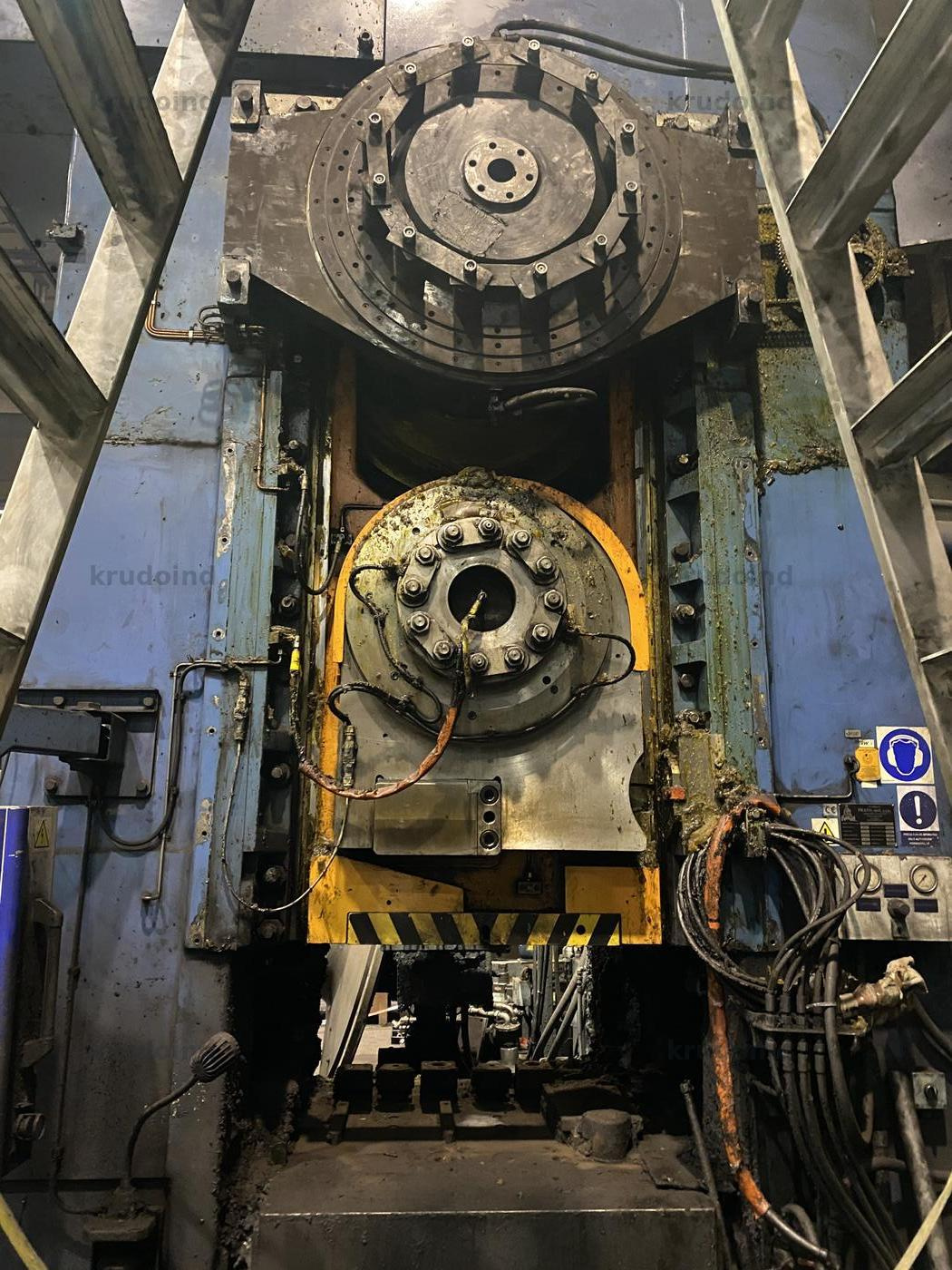

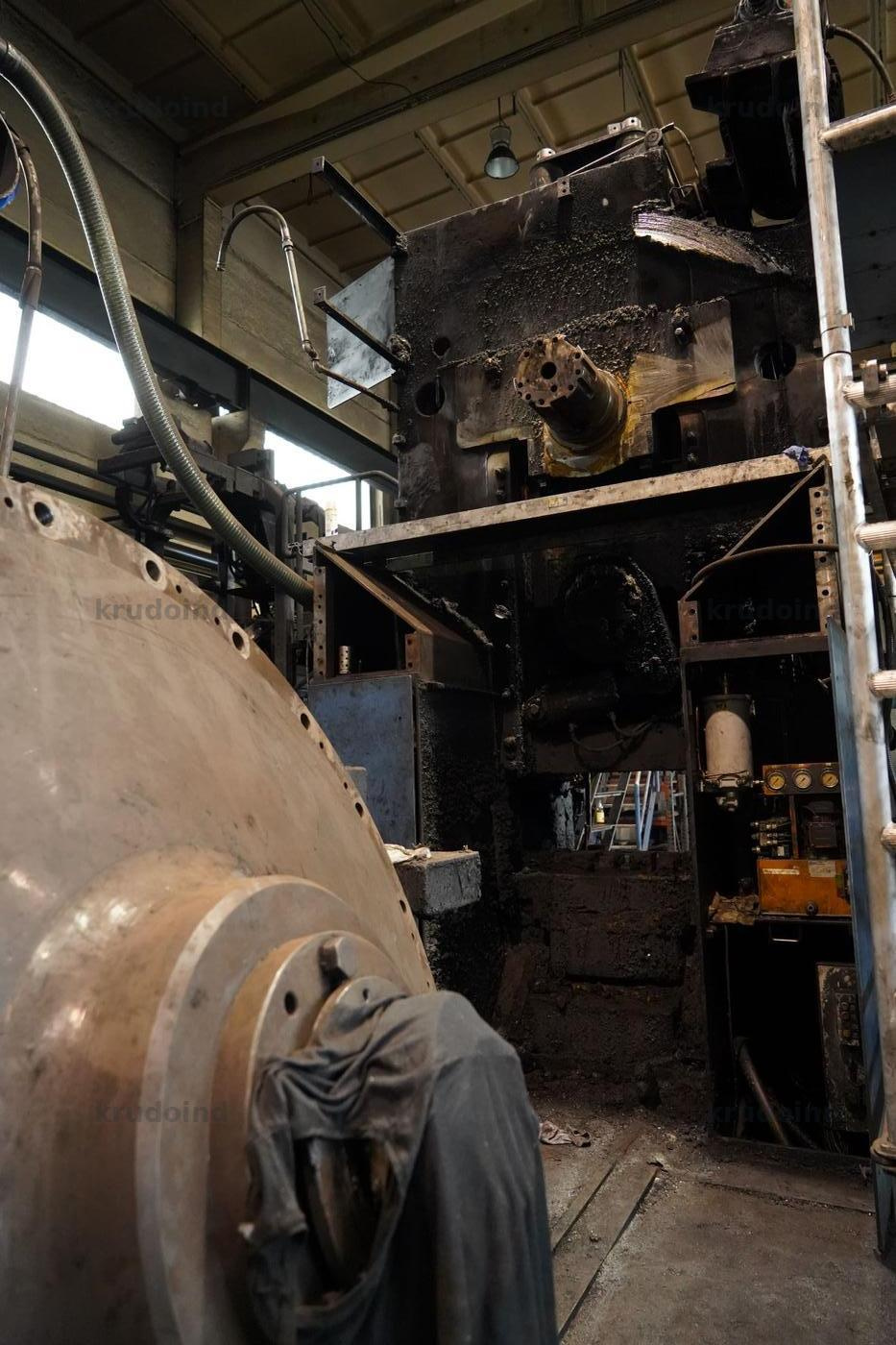

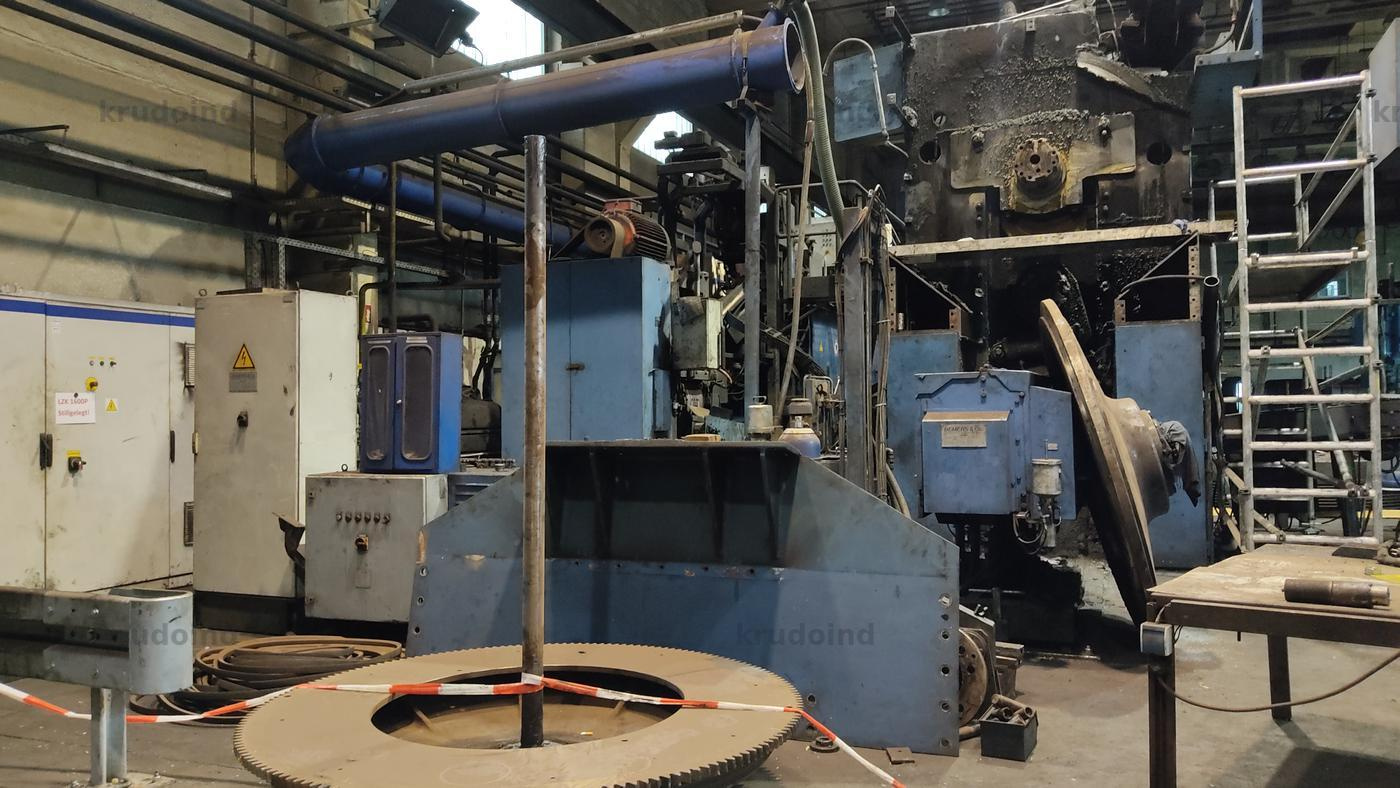

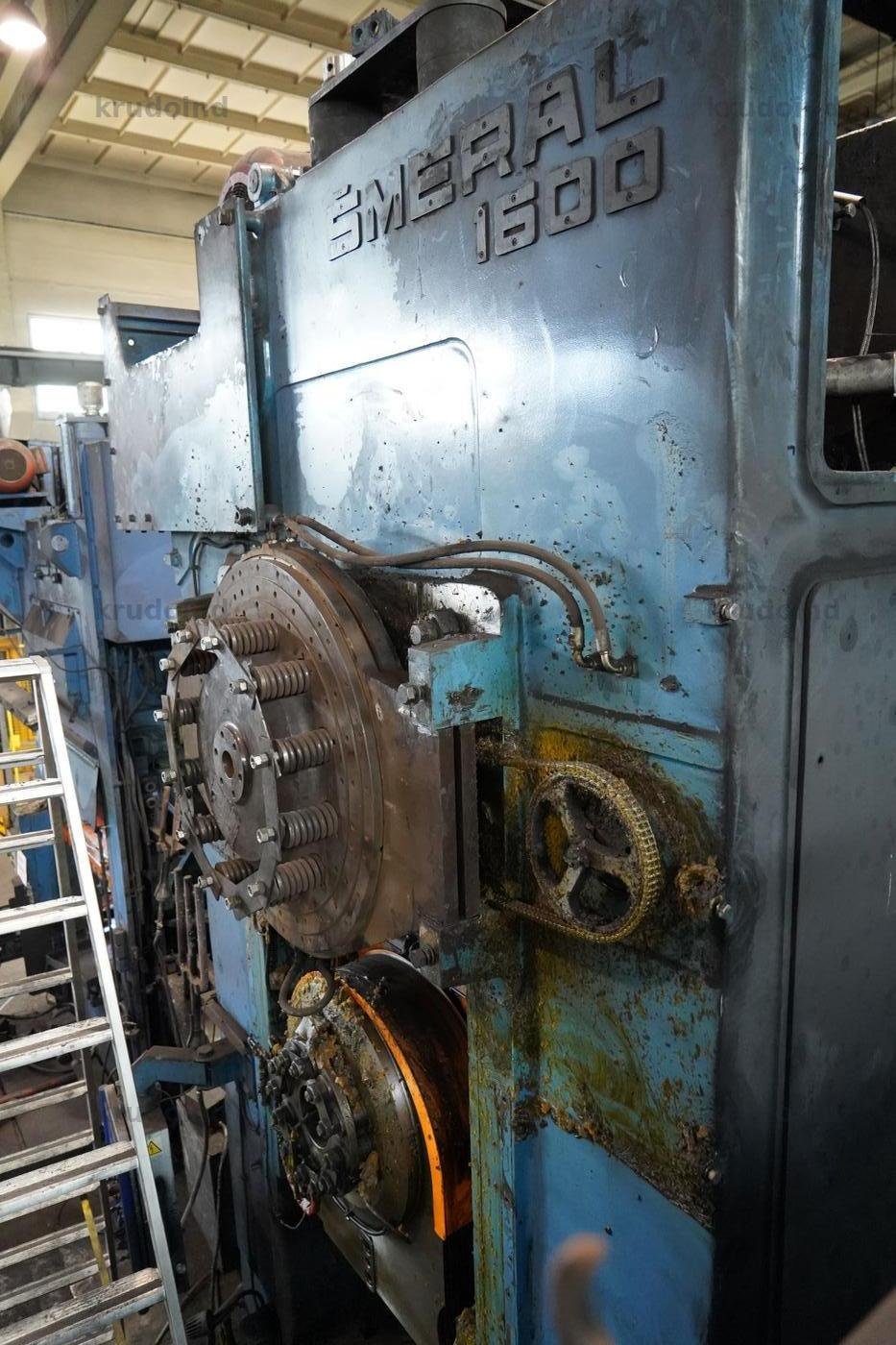

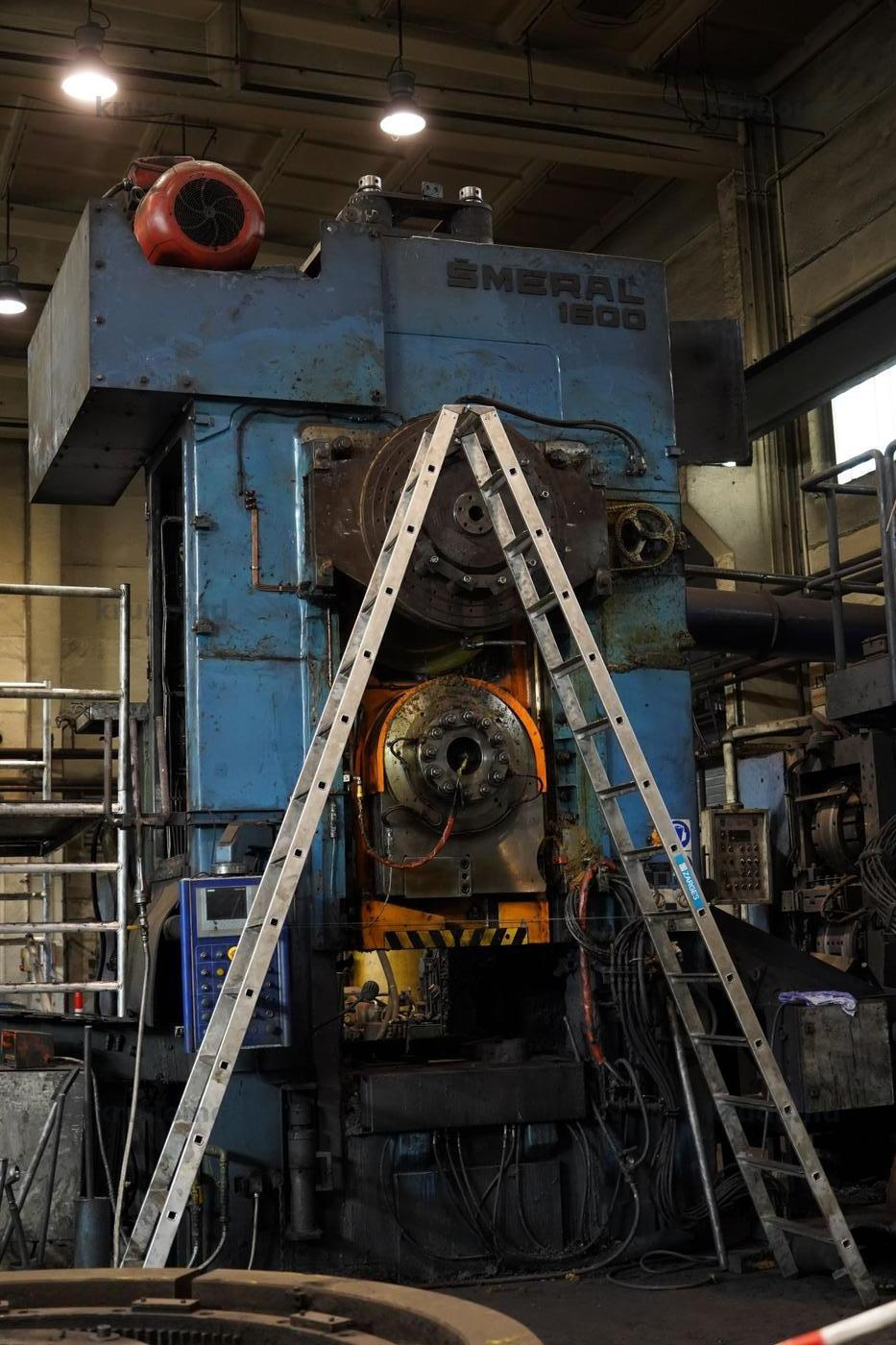

Eccentric Press
High-Speed Eccentric Press for Forging Operations
Description
Production No.:68155
Production Year: 1983
Restoration Year: 2016
Catalog No.:2013397
MAIN TECHNICAL SPECIFICATION
Rated deformation force: MN 16
Number of ram strokes: min-1 85
Passage (front)B: mm 1230
Passage side: width x height: mm 450 x 580
Shut height: mm 769
Ram stroke Z: mm 280
Slide adjustment E: mm 10
Working surface of slide l x b: mm 1000 x 920
Working surface of table l1 x b1: mm 1180 x 1120
Dimensions of the machine:
- Length – left to right: mm 3150
- Width – front to back: mm 2980
- Height above floor: mm 5470
- Total height: mm 5900
Output of main motor: kW 75
Consumption of cooling water: dm3/min 6
Weight of the machine: kg 85000
PRESSURED AIR SPECIFICATION
Input air pressure: MPa 0,6
Max. humidity of the air: % 80
Max. air temperature: °C 30
Air consumption per one slide stroke: dm3 175
Air inlet dimension: G 2’’
