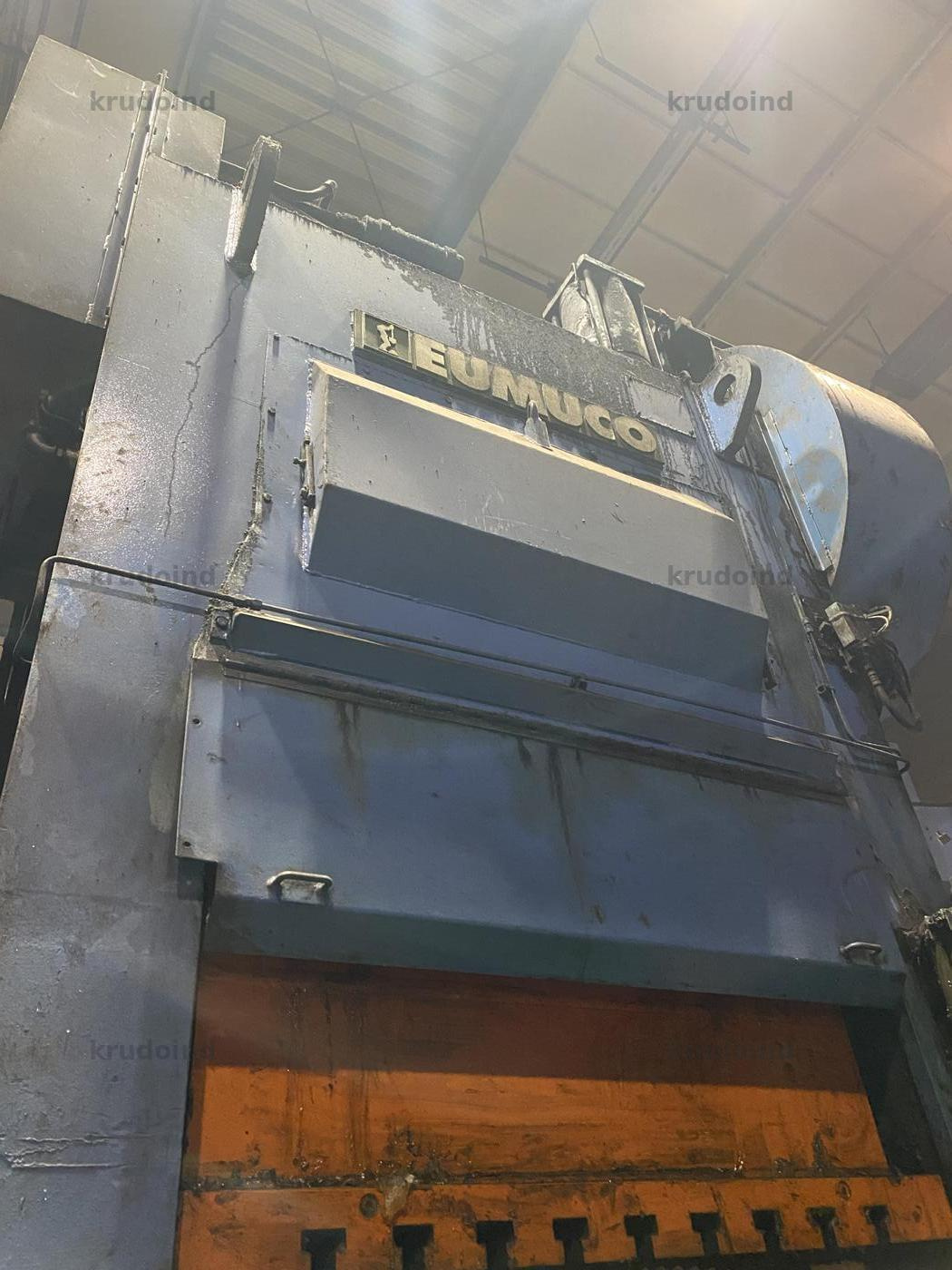

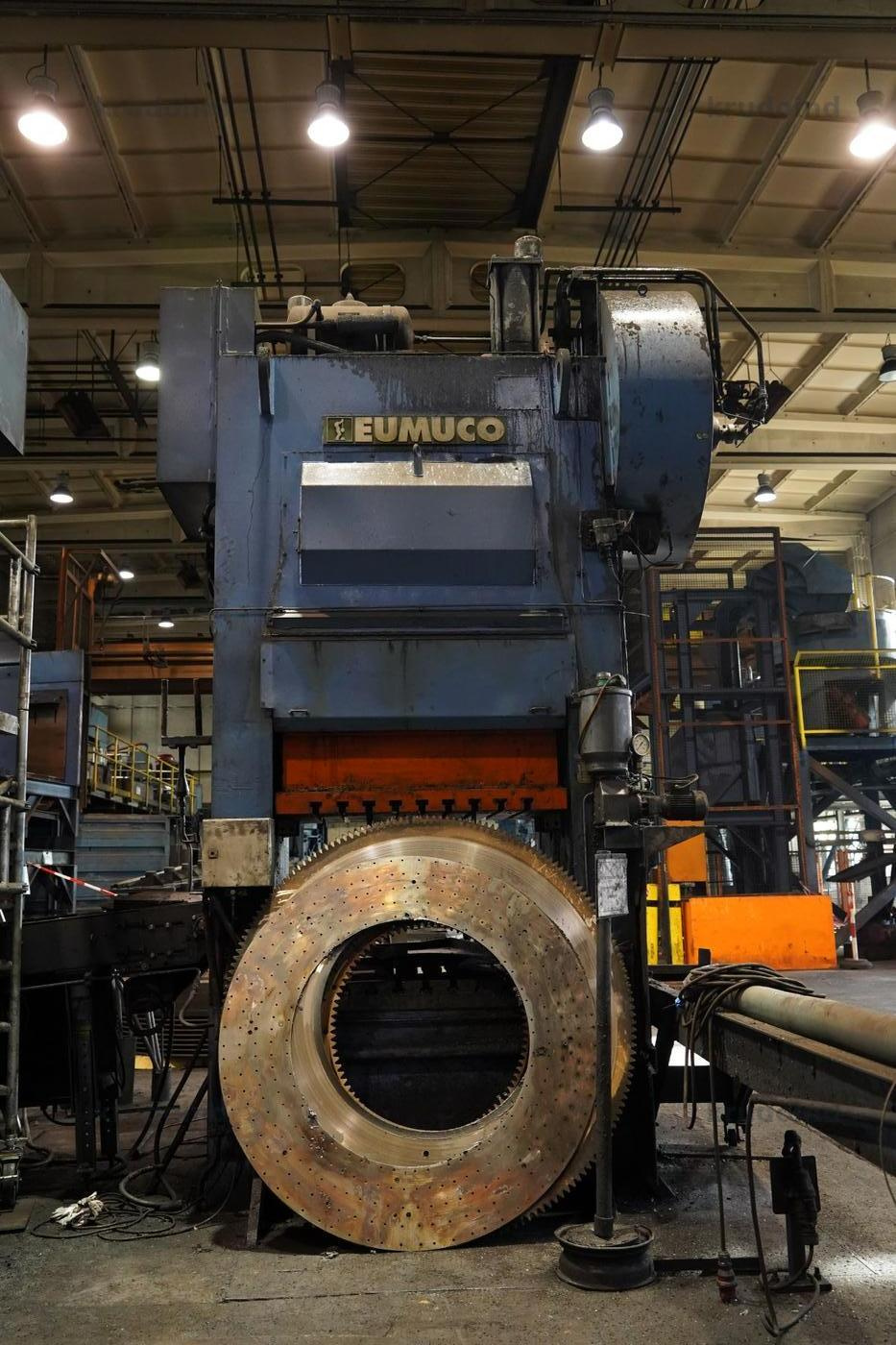

Eccentric Trimming Press
High-Speed Trimming Solution for Forged Components
Description
Nominal pressing force 30° in front of u.U.: 3150kN (315t)
centrically available over a table width of: 380 mm
Pressing force under the push rod 30° in front of u.U.: 2500 kN (250 tons)
Distance of the pressure bars: 850 mm
clear distance between columns: 1400 mm
Largest table-ram distance (ram up, adjustment up): 810 mm
Ram stroke: 250 mm
Motorized ram adjustment: 75 mm
Table surface:
Width: 1380 mm
Depth: 1050mm
Ram surface: width: 1380 mm
Depth: 950mm
Number of strokes: 46 min-1
Rated motor power: 18.5 kW
Engine speed: 1500 rpm

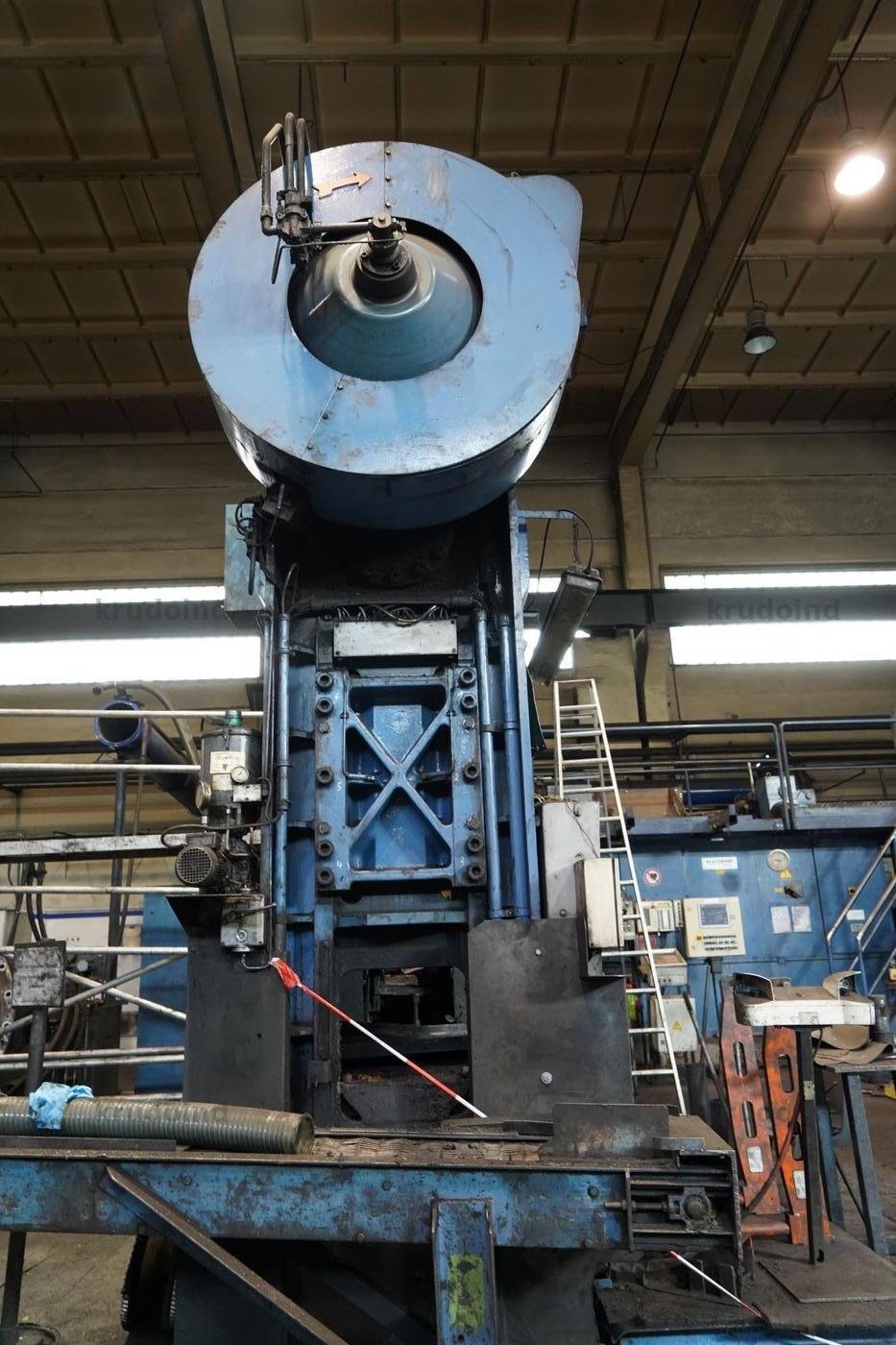

Ram guides: X-type, adjustable
Clutch/brake: pneumatic with friction blocks
Counterbalance cylinder: 2
Lateral opening in the press frame: width: 480 mm
Height: 400mm
Fall-through hole in the table: Ø100 mm
