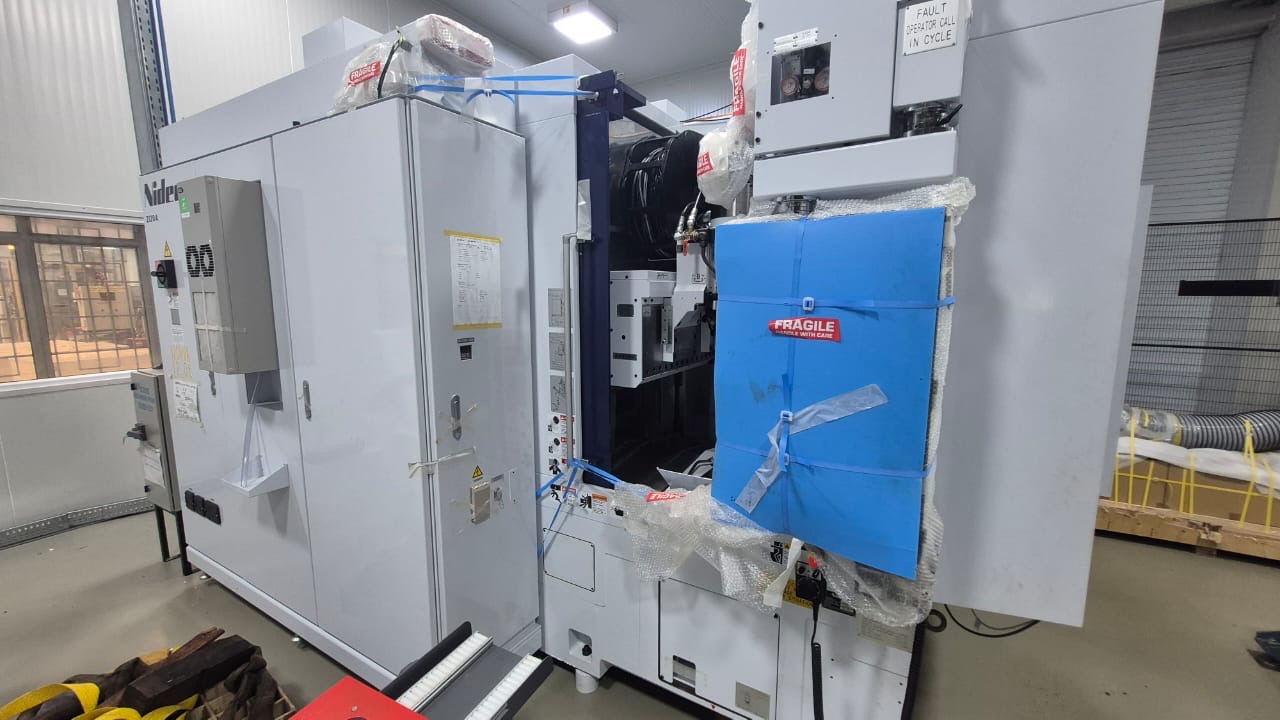

Internal Gear Grinding Machine #2
ZI20A
Advanced 8-Axis High-Precision Internal Gear Grinder
The ZI20A is a high-performance internal gear grinding machine engineered for the ultra-precise finishing of internal gears with a maximum workpiece diameter of 200 mm.
Industry
Automotive
Sale Type
Private Treaty
Manufacturer
Country
Asia
Machine Type
Gear Grinding Machine
Model
ZI20A
Max. Workpiece Diameter
200 mm
NC Axes
8
Technical Details
- Model: ZI20A

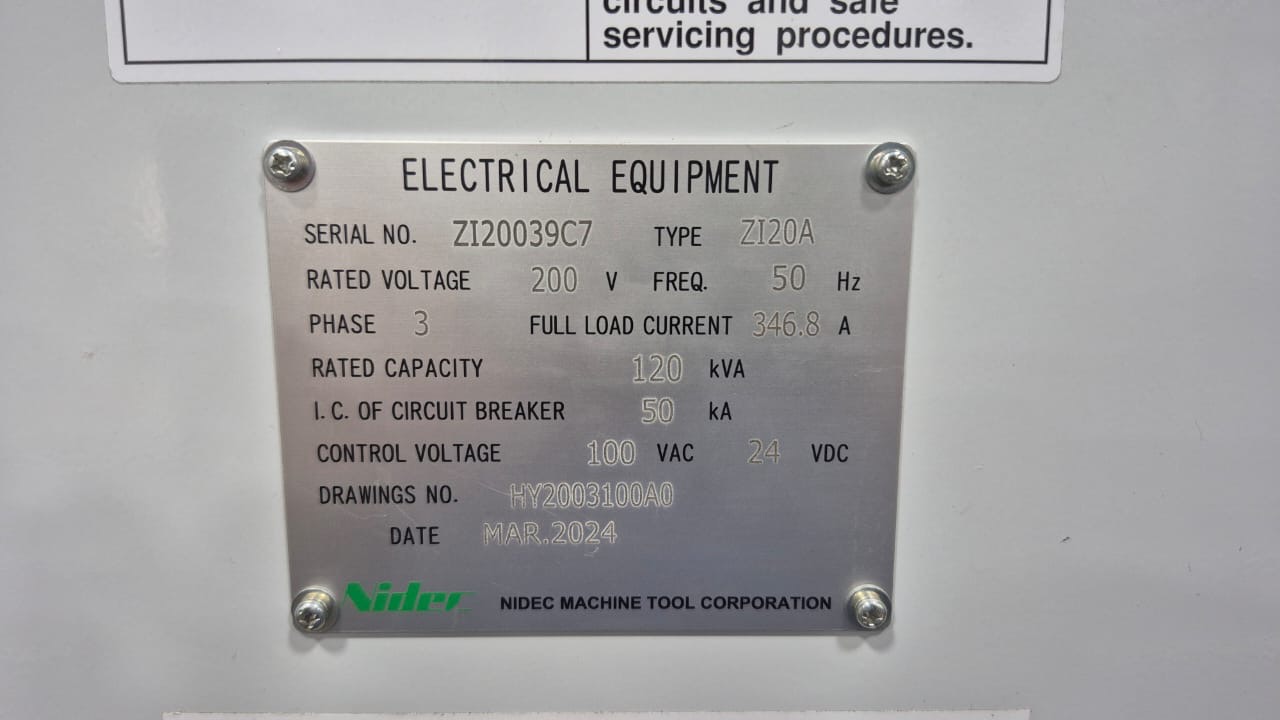

- Serial number: ZI20039C7

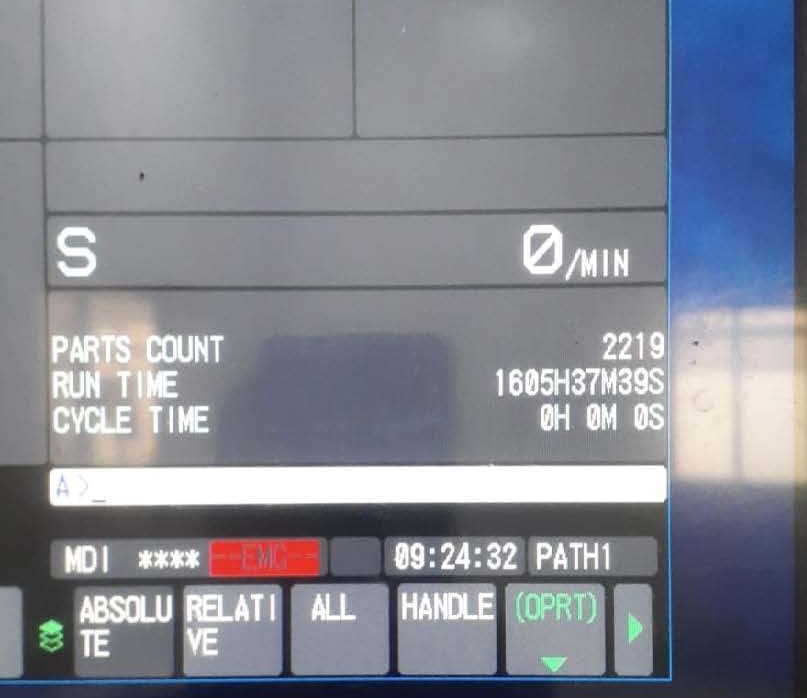

- Working hours: 1606 h
- Max. workpiece diameter: 200 mm
- Max. module: 1-3
- Grinding wheel outer diameter: 50-120 mm
- Grinding wheel head swivel angle: +/-40°
- Max. grinding wheel speed: 15000 rpm
- Table diameter: 200 mm
- Max. table speed: 6000 rpm
- Spindle motor: 25 kW
- Dresser diameter: 110 mm
- Dresser speed: 3260 rpm
- NC axes: 8
- Width: 3860 mm
- Depth: 4520 mm
- Total power consumption: 120 kVA
- Machine weight: 12000 kg
