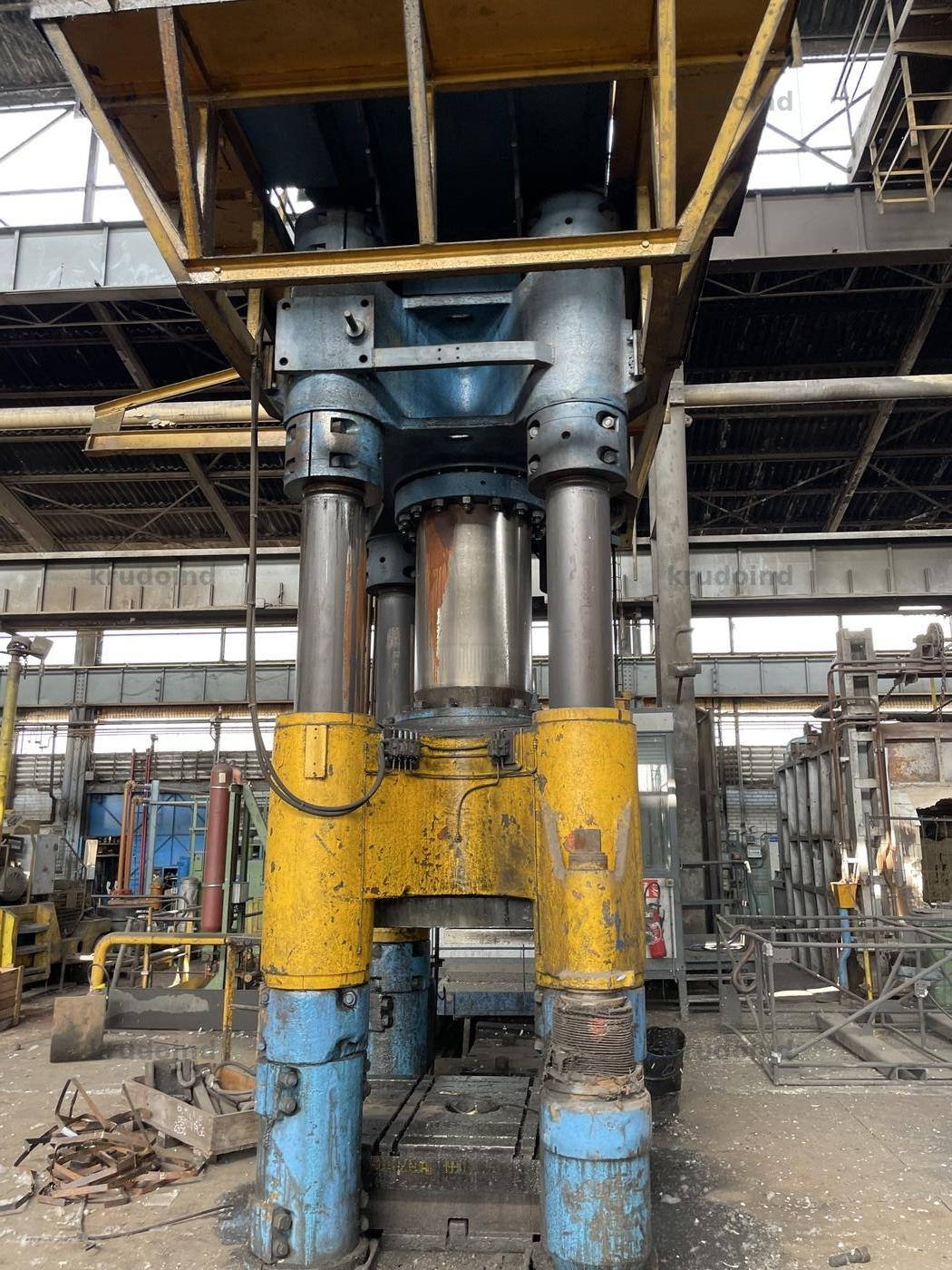

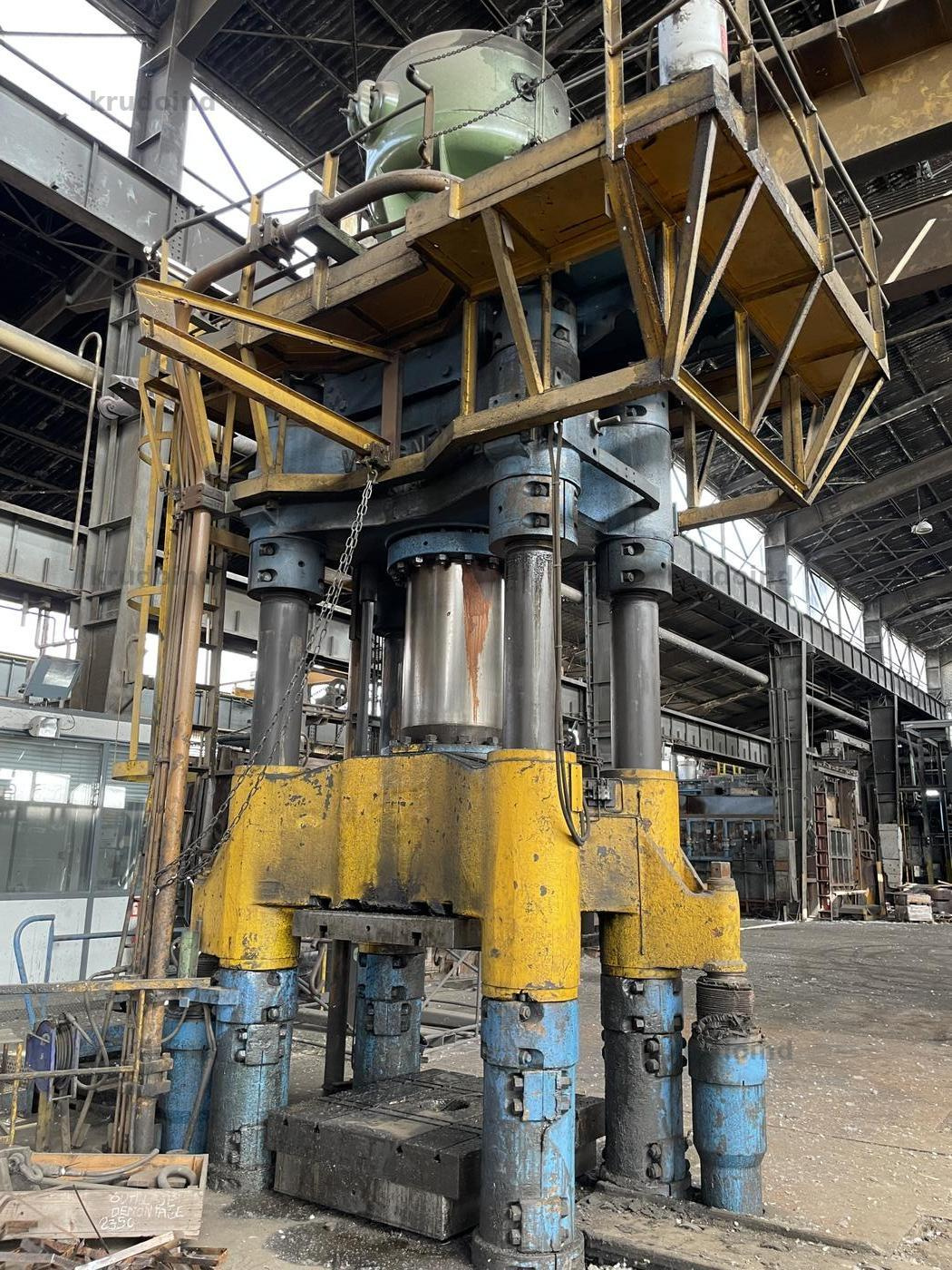

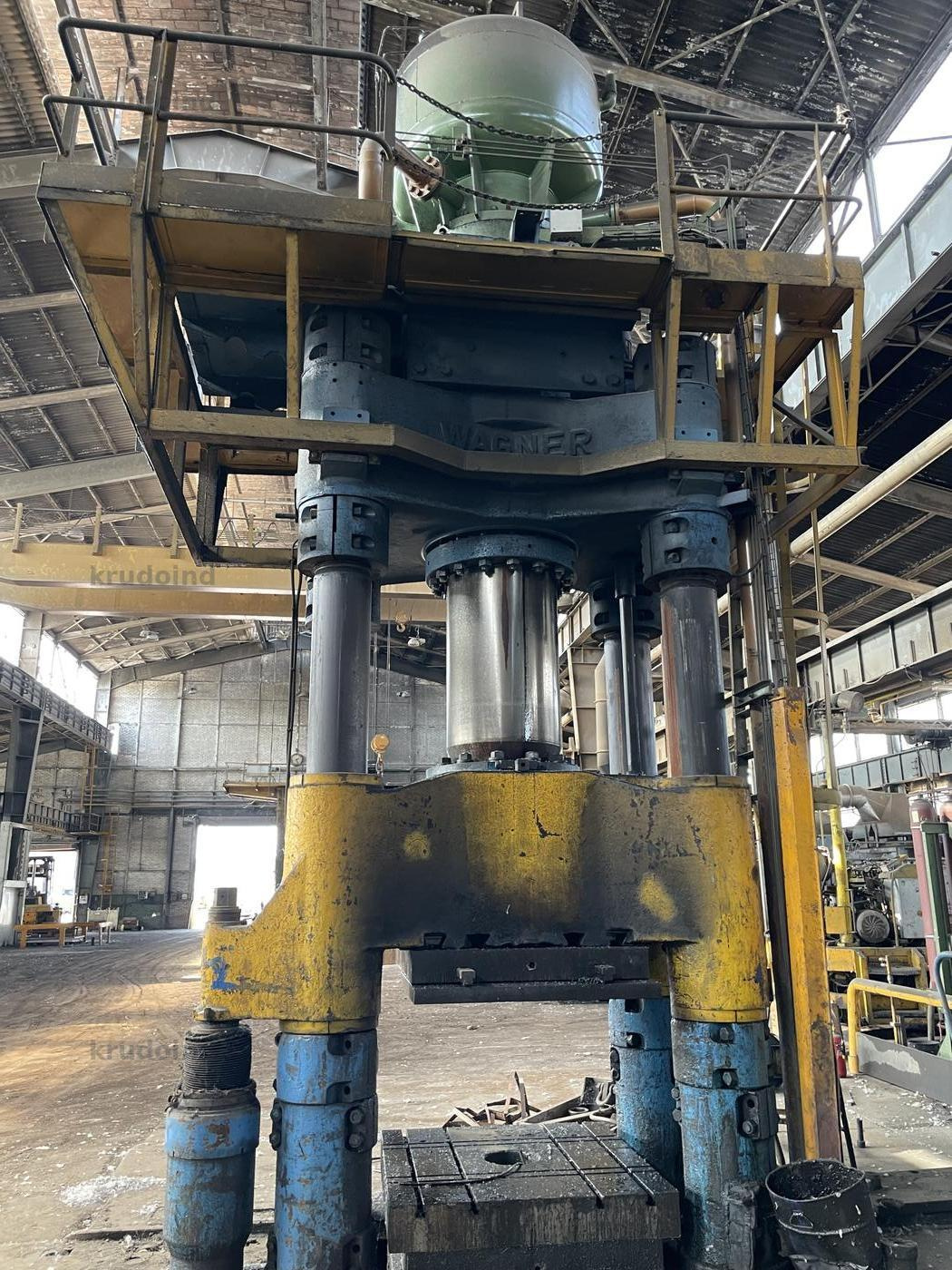

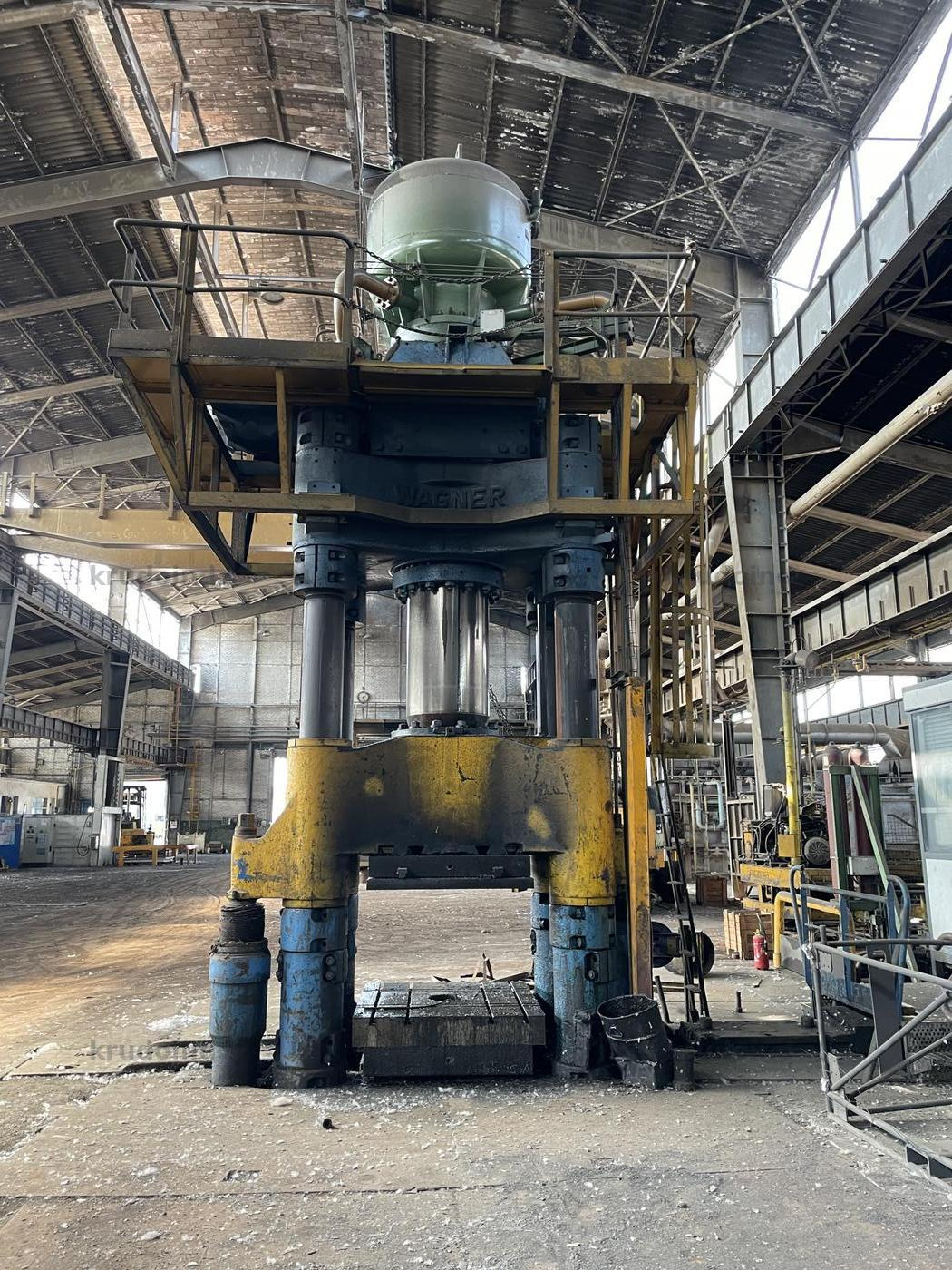

1000-Ton Trimming Press
(Revamped 2006 and 2019)
High-Capacity Forging Press for Precision Trimming
WAGNER SP 1ZO 1000 delivers up to 1000 t forging force with working speeds up to 80 mm/sec. Fully revamped in 2006 and 2019, it ensures precise trimming and leveling of heavy billets with ±1.5 mm stopping accuracy.
Industry
Forging
Sale Type
Private Treaty
Manufacturer
WAGNER (SMS-MEER)
Country
France
Machine Type
Trimming Press
Model
SP 1ZO 1000
Year of Manufacture
2019
Description
Characteristics:

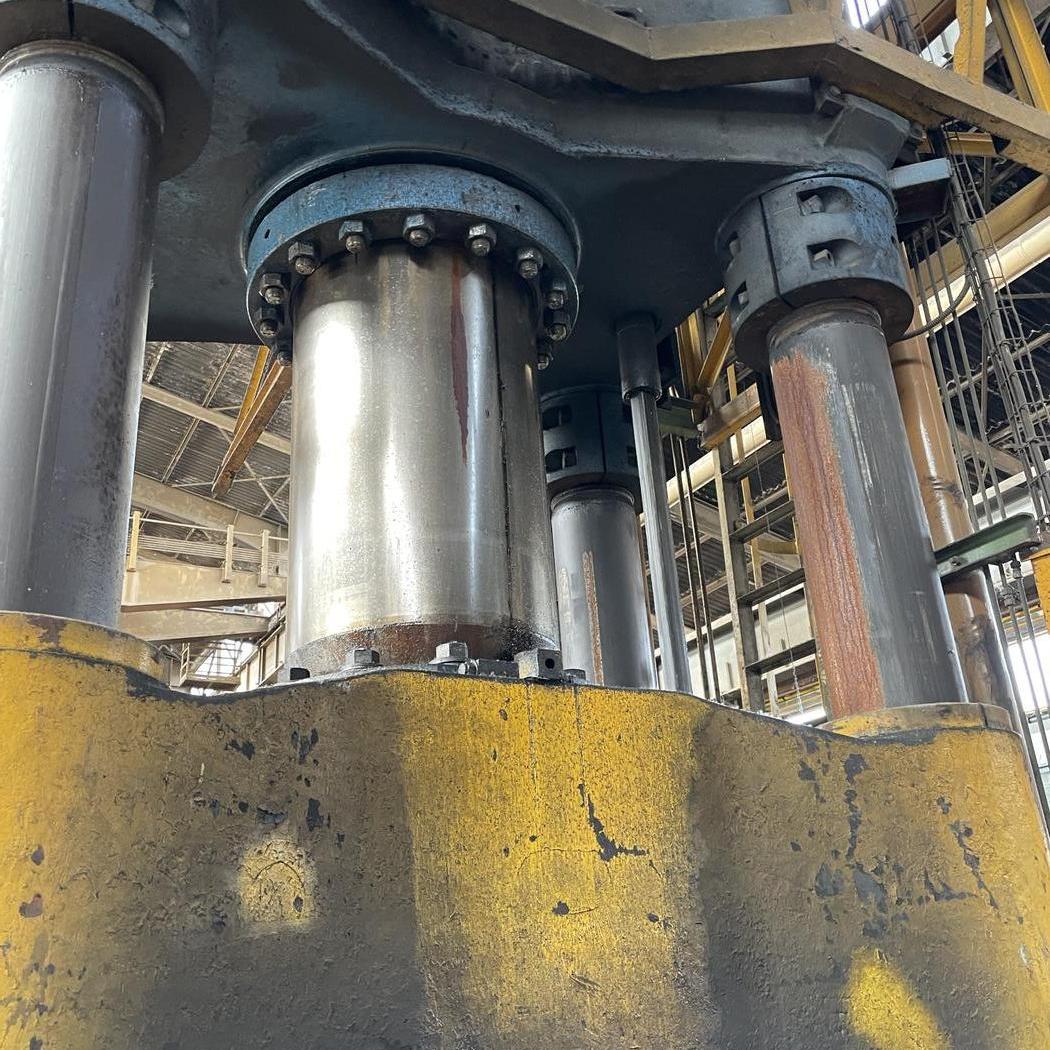

- Main cylinder diameter: 710 mm
- Useful section: 3959 cm²
- Diameter of the two return cylinders: 225 mm
- Useful section for two cylinders: 795 cm²
- Weight of the mobile crew (estimated): 5 T
- Operating pressure at 1000 T: 250 bar
- Working force (Free forging): 1000 T at 250 bar
- Restoring force: 200 T
- Leveling work force: 800 T
- Power: 3 × 225 kW
- Total useful flow: 1500 litres/min (3 × 500 litres)
- Working speed: 4 to 80 mm/sec (±5%)
- Work recall speed: 150 mm/sec (possible up to 200 mm/sec)
- Forging force = work: 50 T (±5 bar) to 1000 T (±10 bar)
- Stopping precision = working: ±1.5 mm
Project Value
End-to-end project management covering acquisition, disassembly, logistics, and compliance — executed with precision and global fluency.
By clicking Save my spot you're confirming that you agree with our Terms and Conditions.
USD
Total Project Cost

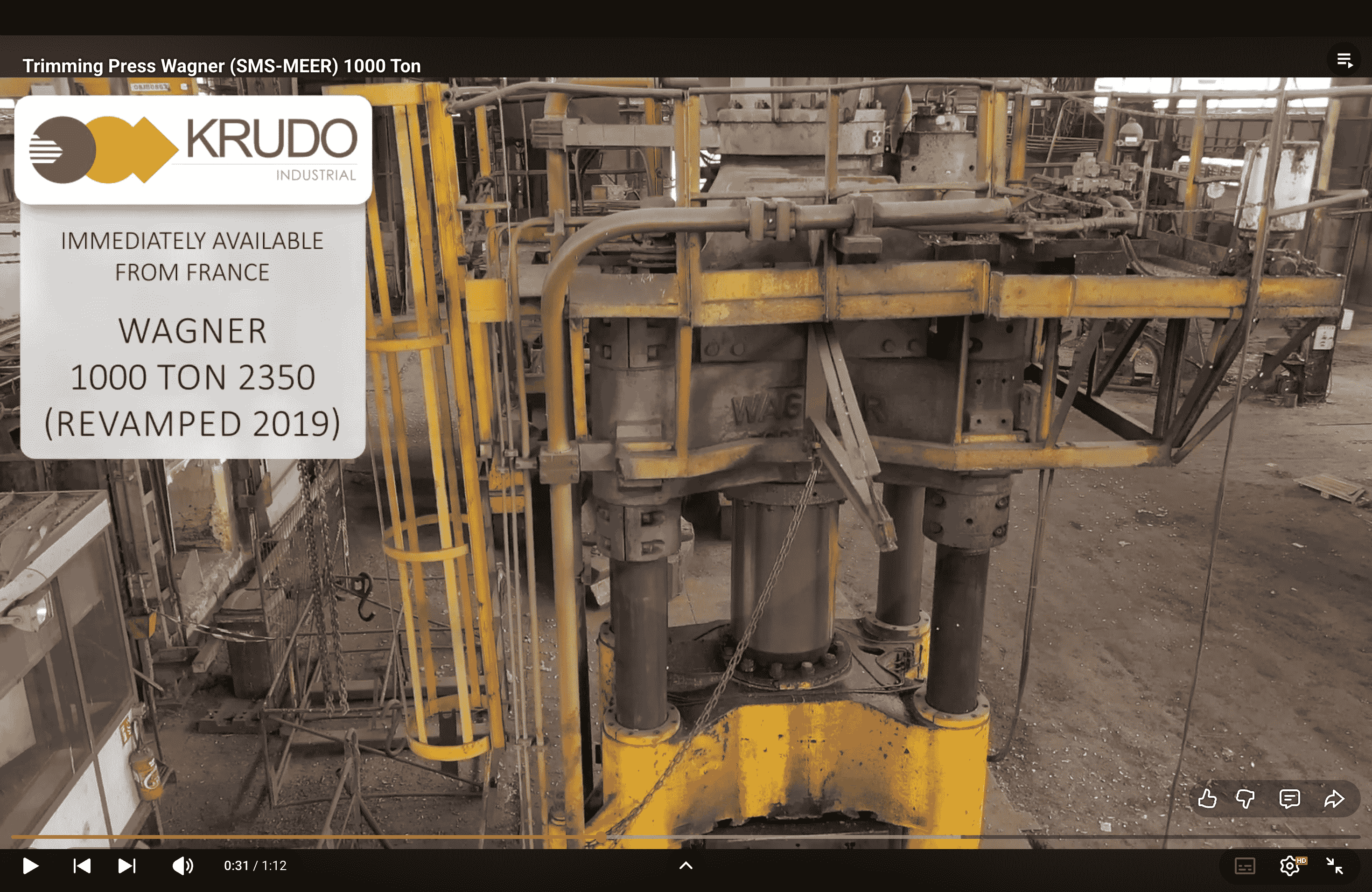

See It in Action
