Ring Rolling Mill
Precision Machine for Seamless Ring Production
Description

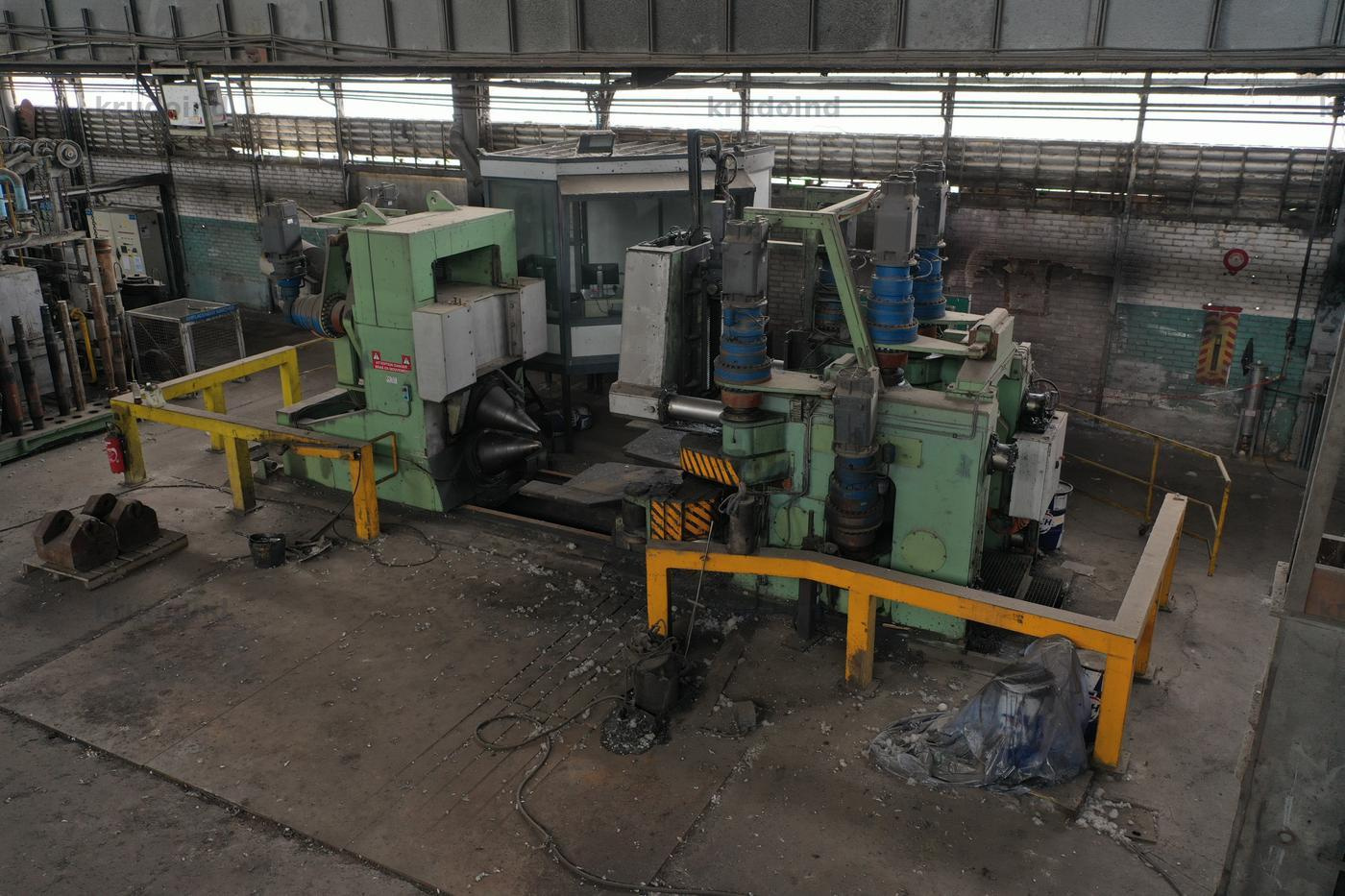

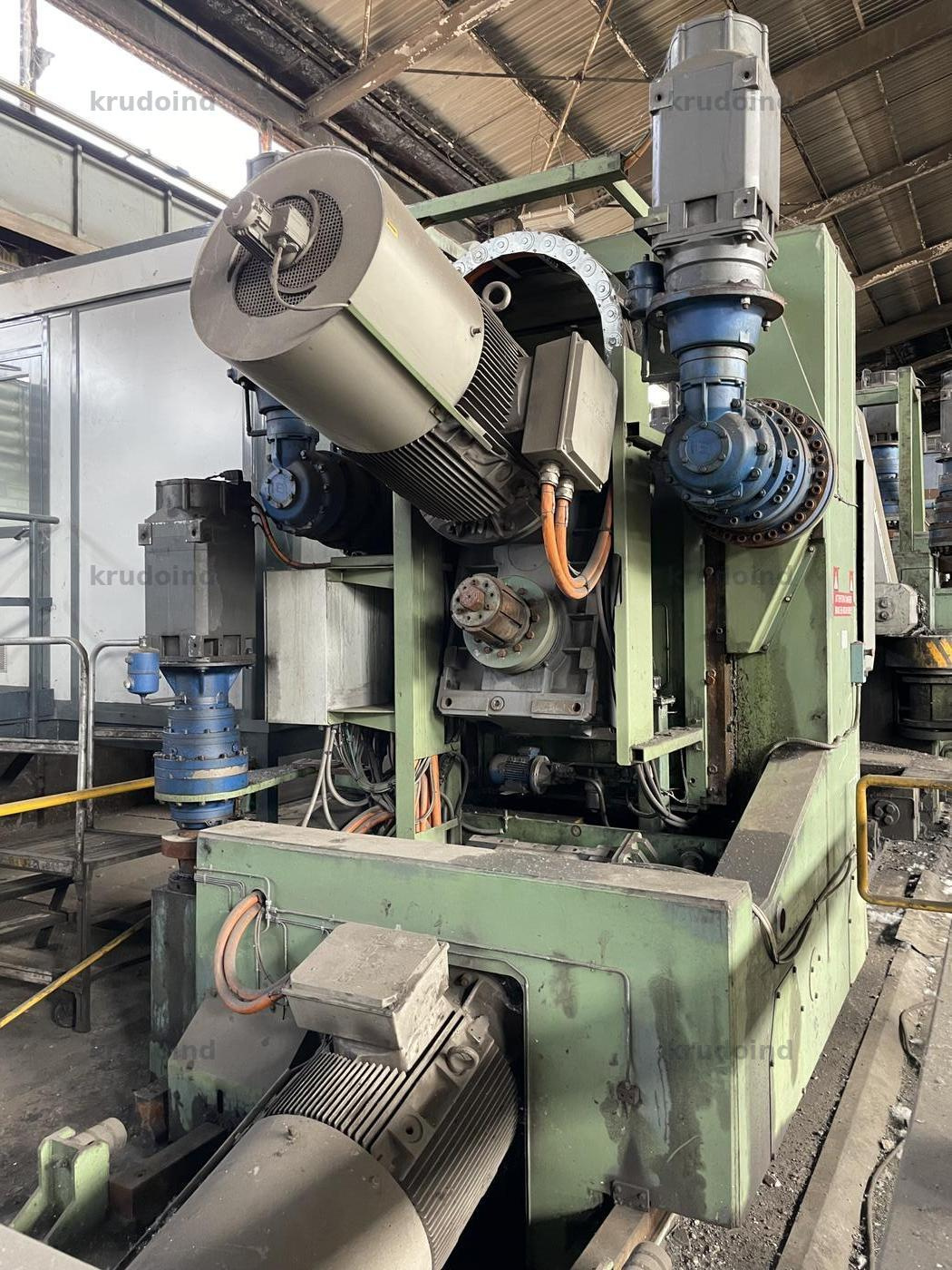

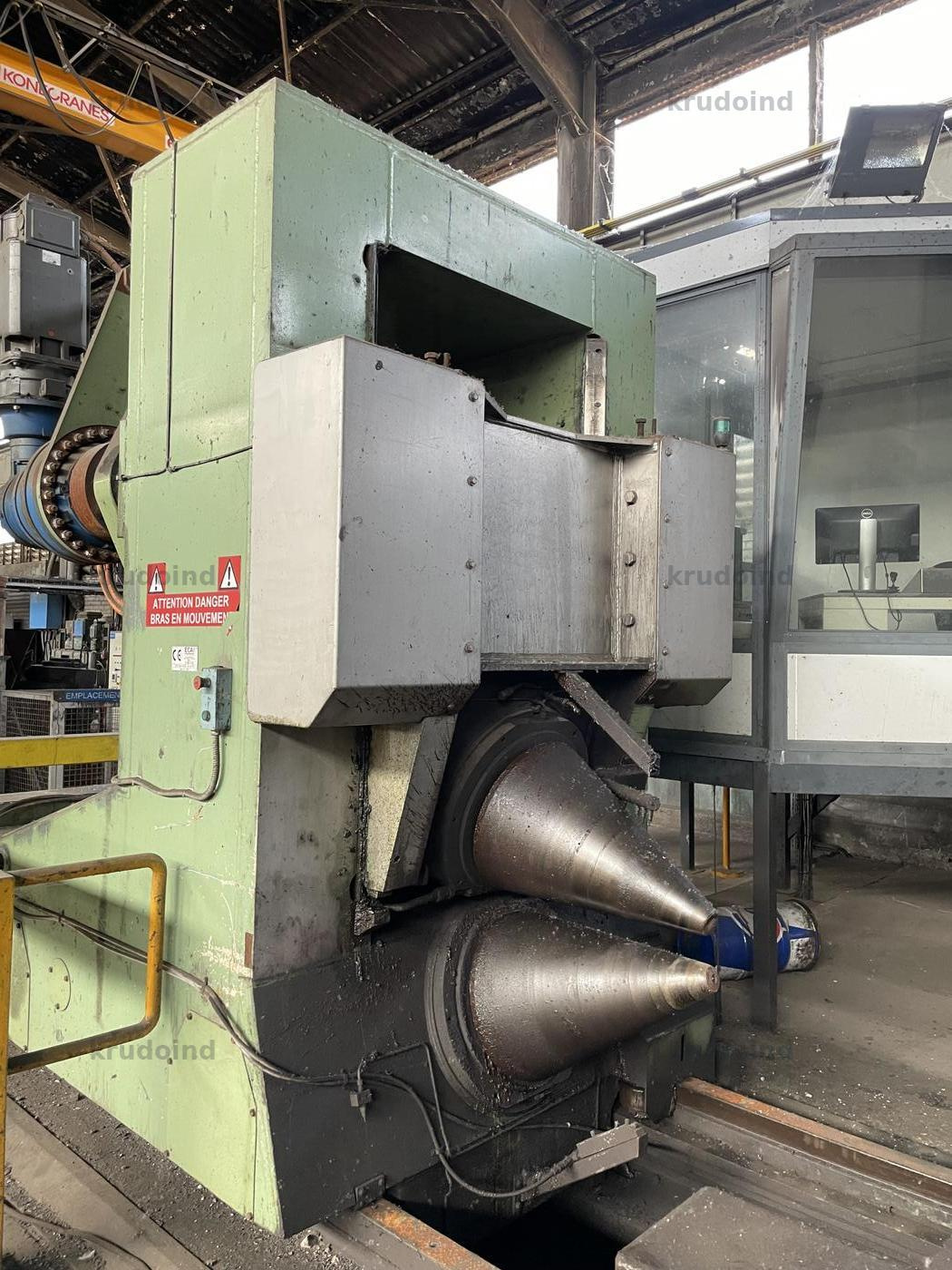

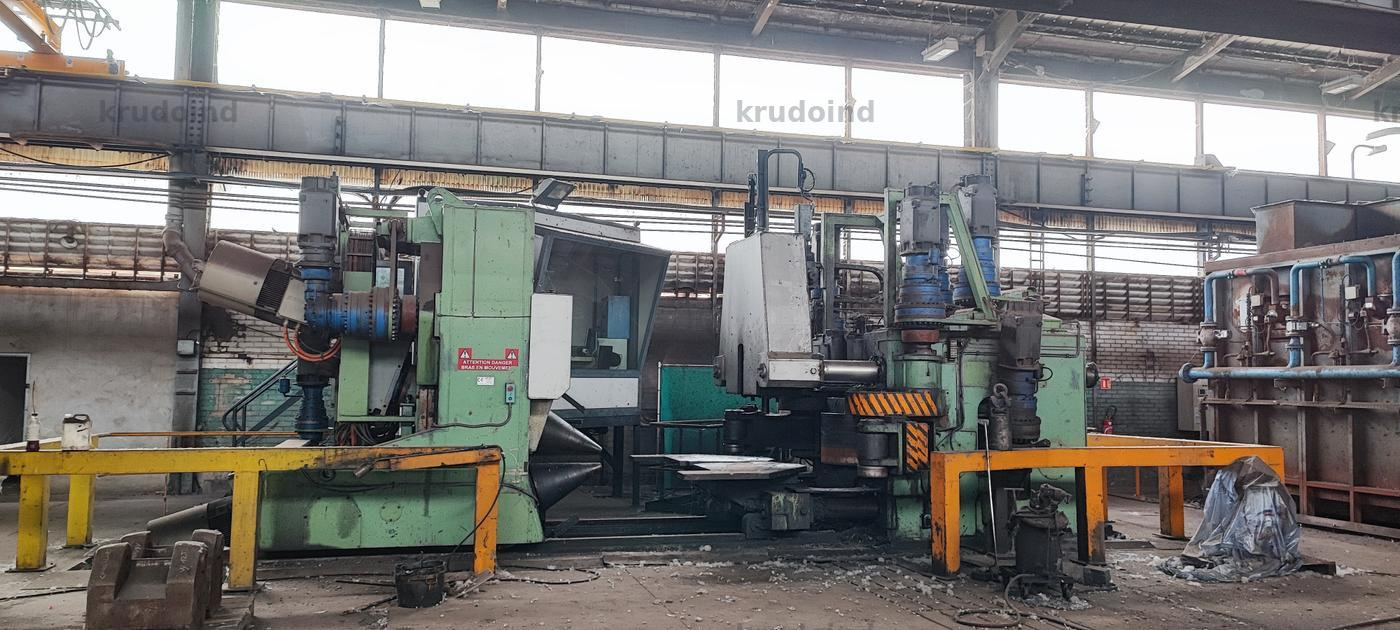

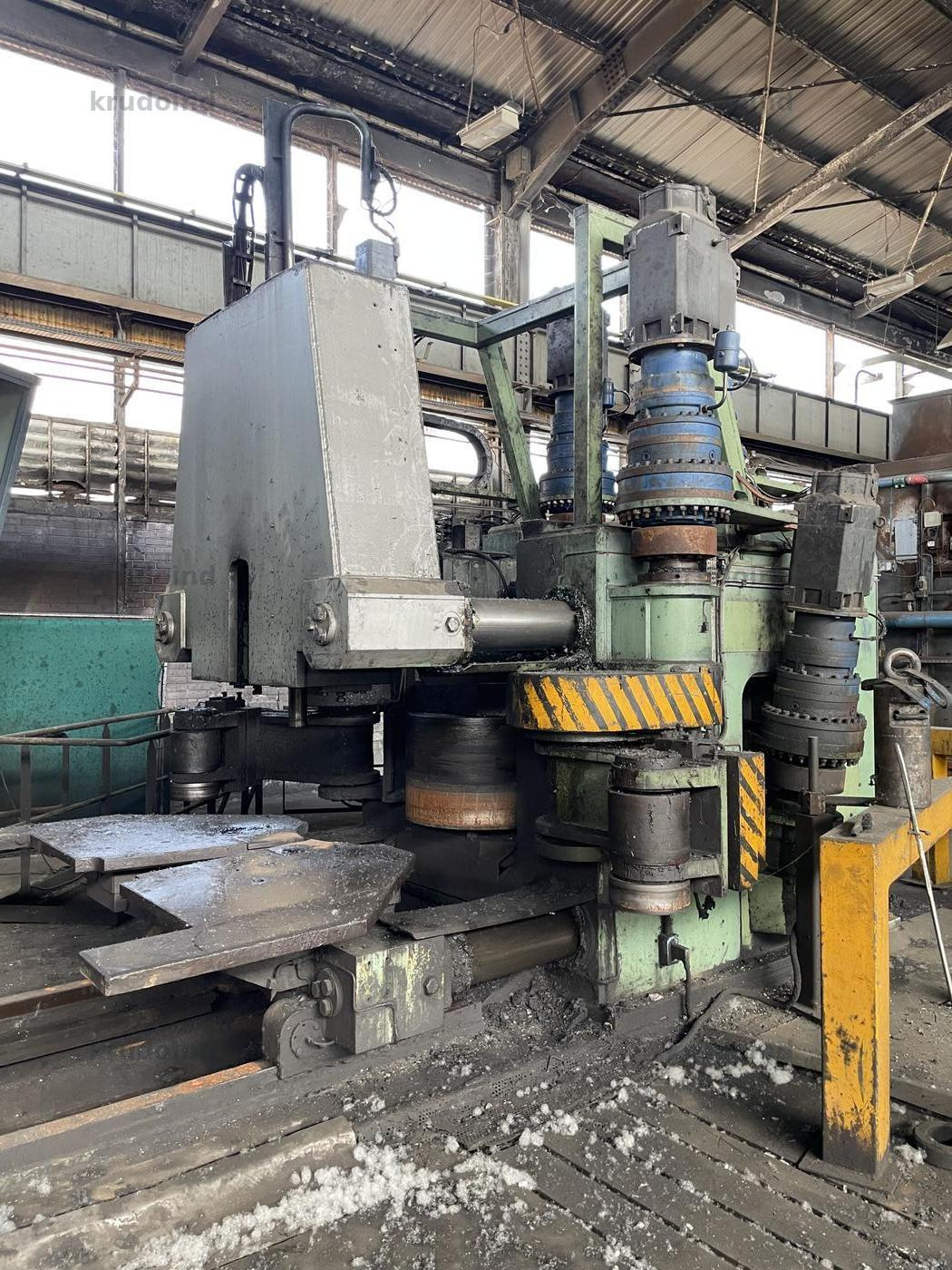

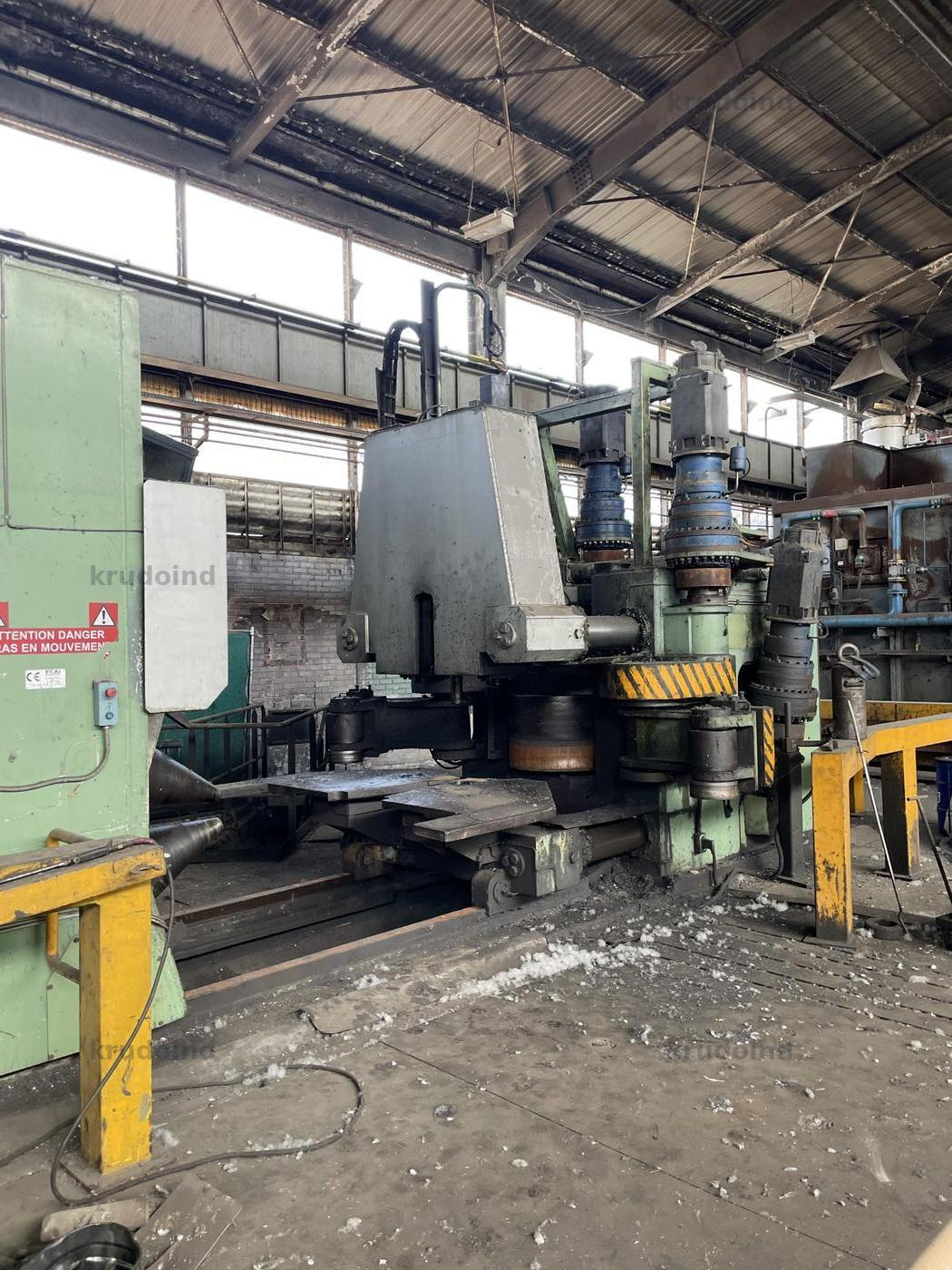

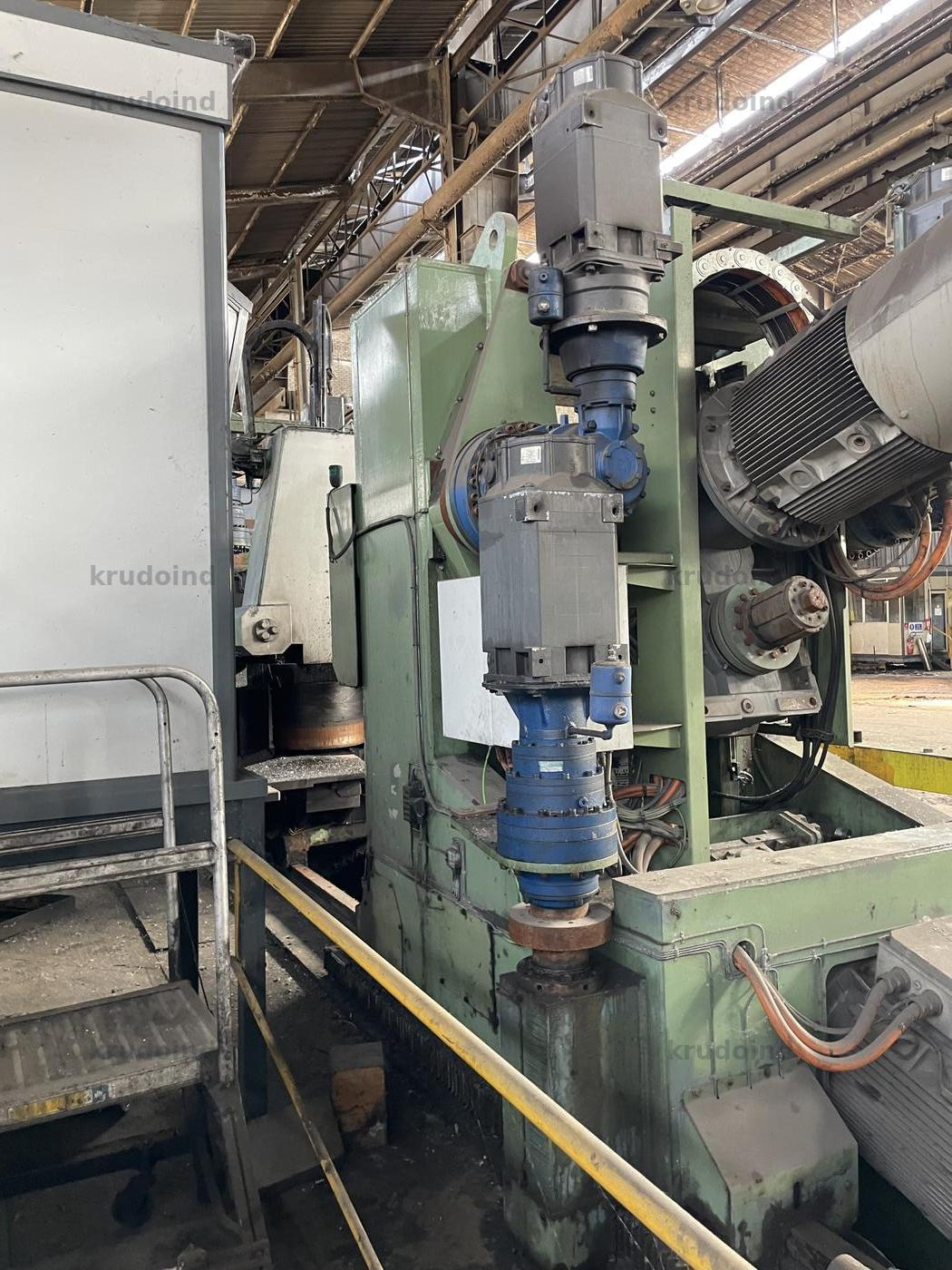

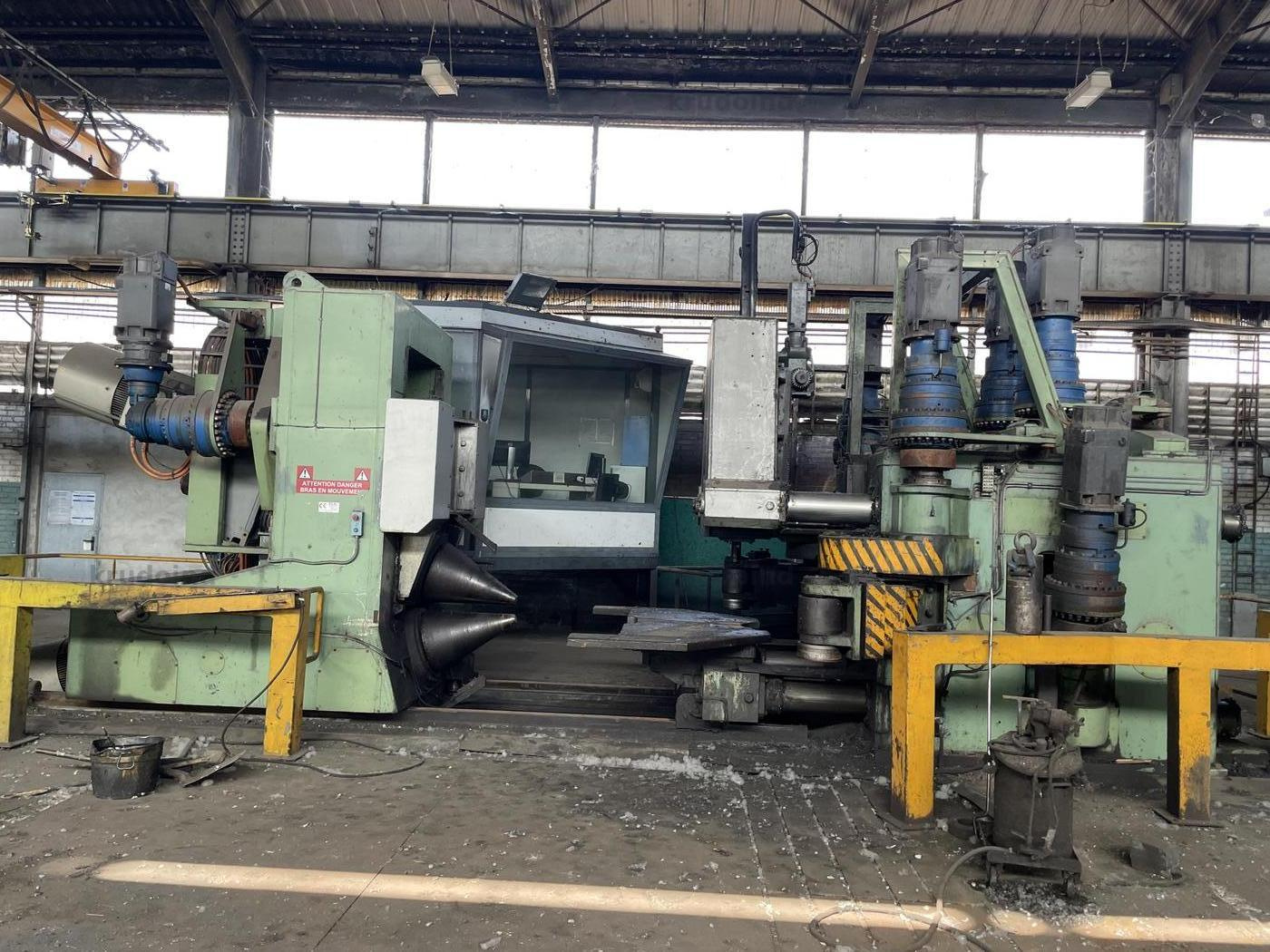

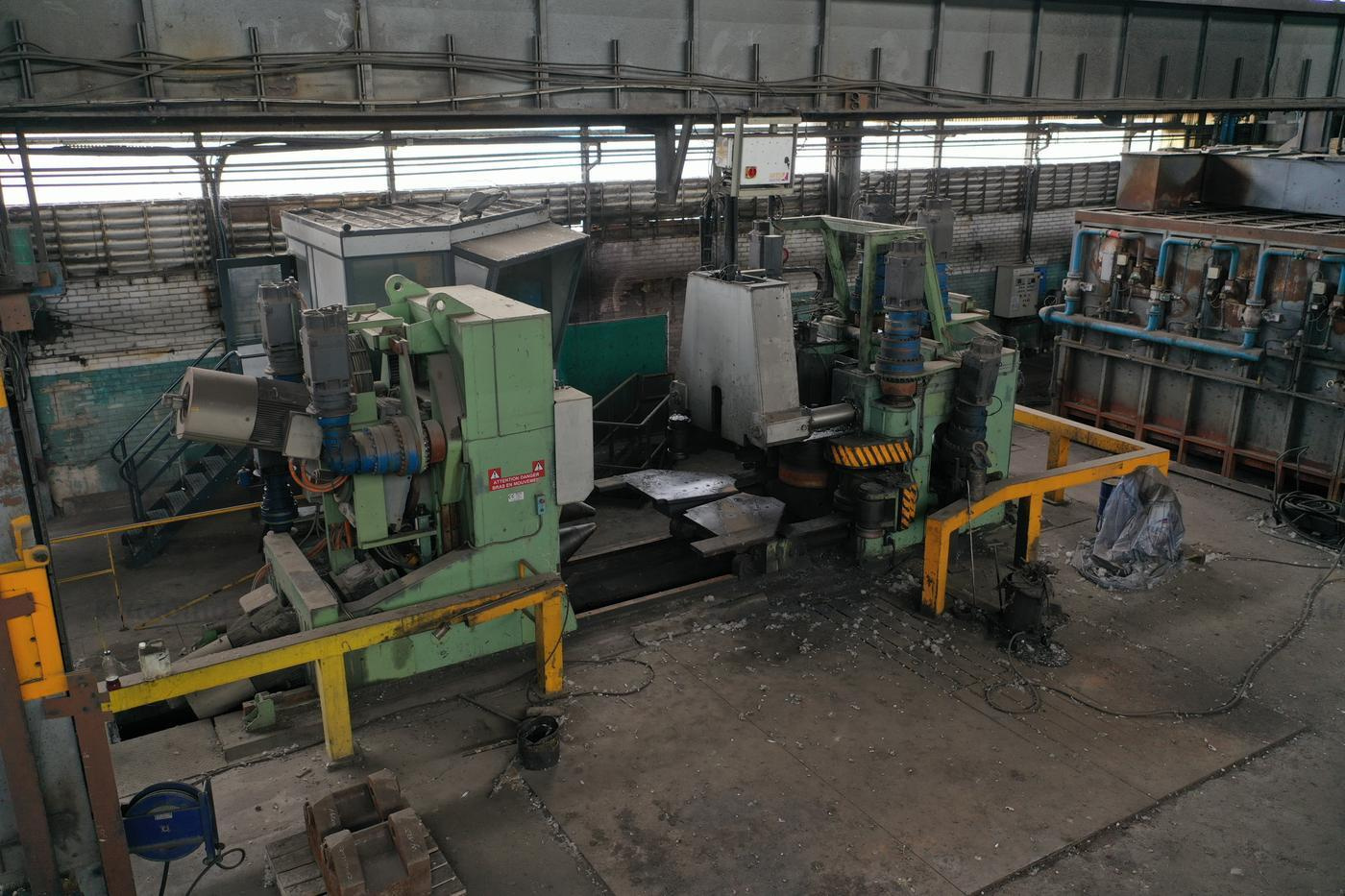

ECAI LCG32 is a rolling mill with a radial force of 125 tonnes and an axial force of 90 tonnes. It can roll rings with a maximum height of 500 mm, a maximum diameter of 2,500 mm and a maximum weight of 2.5 tonnes (these sizes are for standard steel). For alloy steels, Inconel, etc., they must be adjusted according to hardness.
Characteristics:
- EBAUCHE
- Minimum internal diameter: 110 mm (with mandrel of diameter 100)
- Minimum / maximum height: 40 mm / 500 mm
- Min/max thickness: 20 mm / 500 mm
- Maximum weight 2500 Kg
- FINISHED PRODUCT
- Max outer diameter: 2500 mm
- Min / max height: 40 mm / 500 mm
- Min/max thickness: 20 mm / 500 mm
- Thickness to height ratio: 5
- LIST OF DRAWINGS
- Operating conditions Ambient air temperature range: +5°C to + 45°C
- Water supply temperature: 30°C
- Humidity rate: 70% CAL
Project Value
End-to-end project management covering acquisition, disassembly, logistics, and compliance — executed with precision and global fluency.

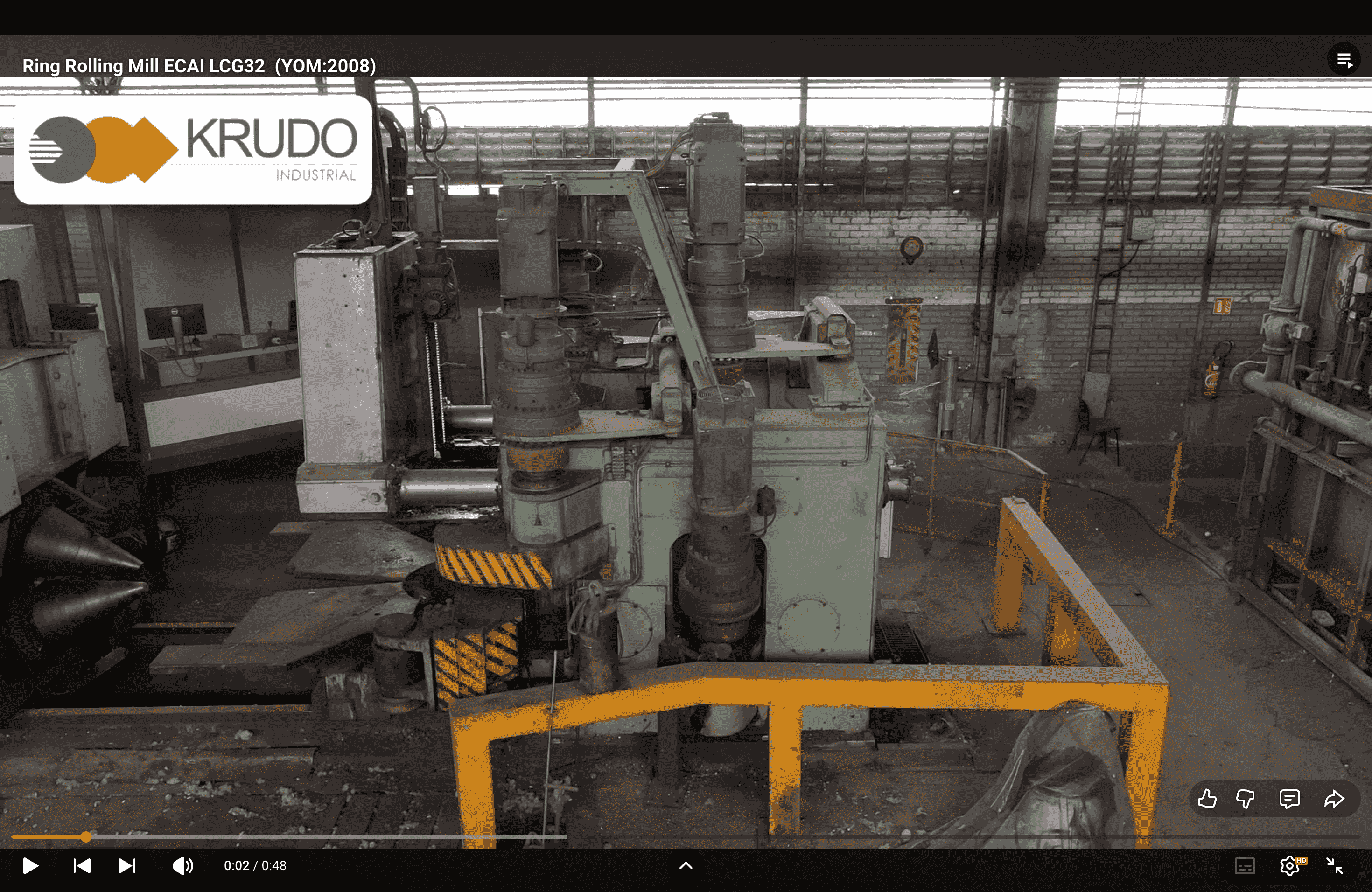

See It in Action
Watch the Machinery at work—capturing its quality in a real production environment.
More Machines from The Same Product Line
Explore additional assets from the same automotive painting and assembly line—available for standalone purchase or full-line relocation.

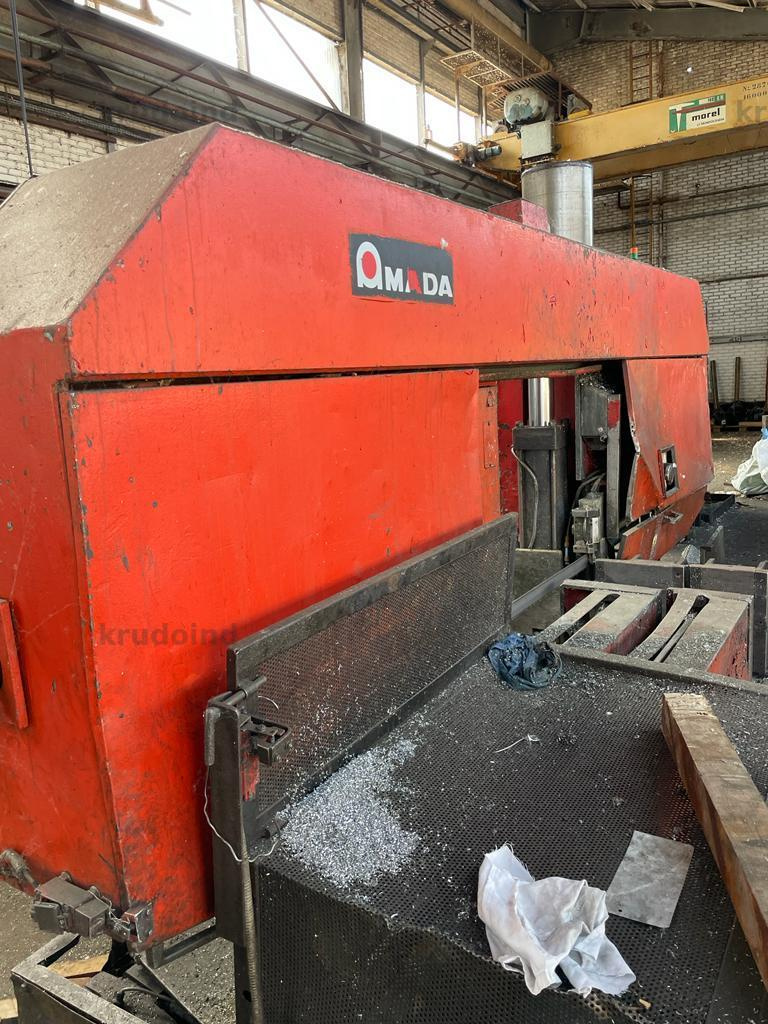

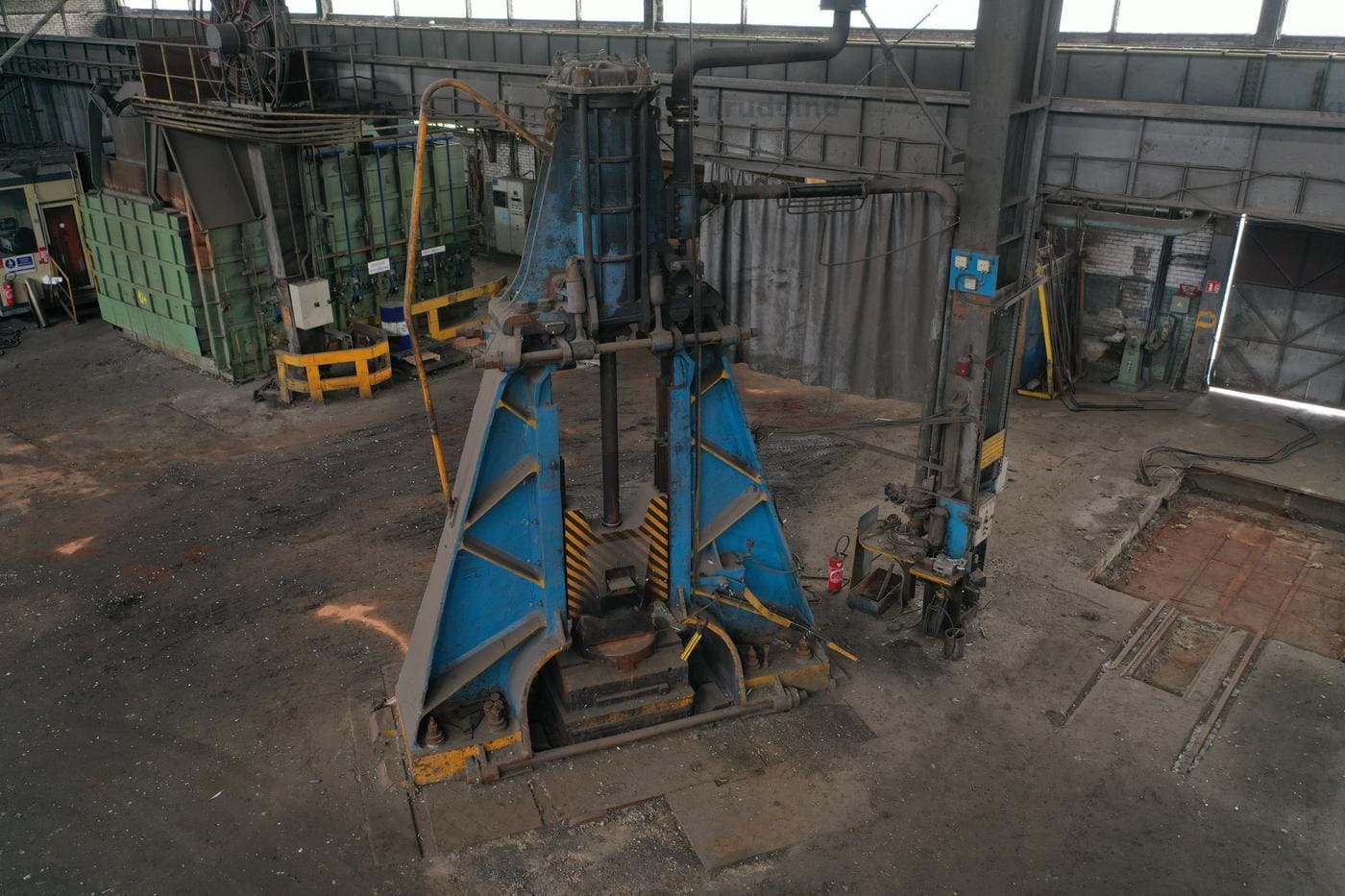

Machinery from The Same Factory
