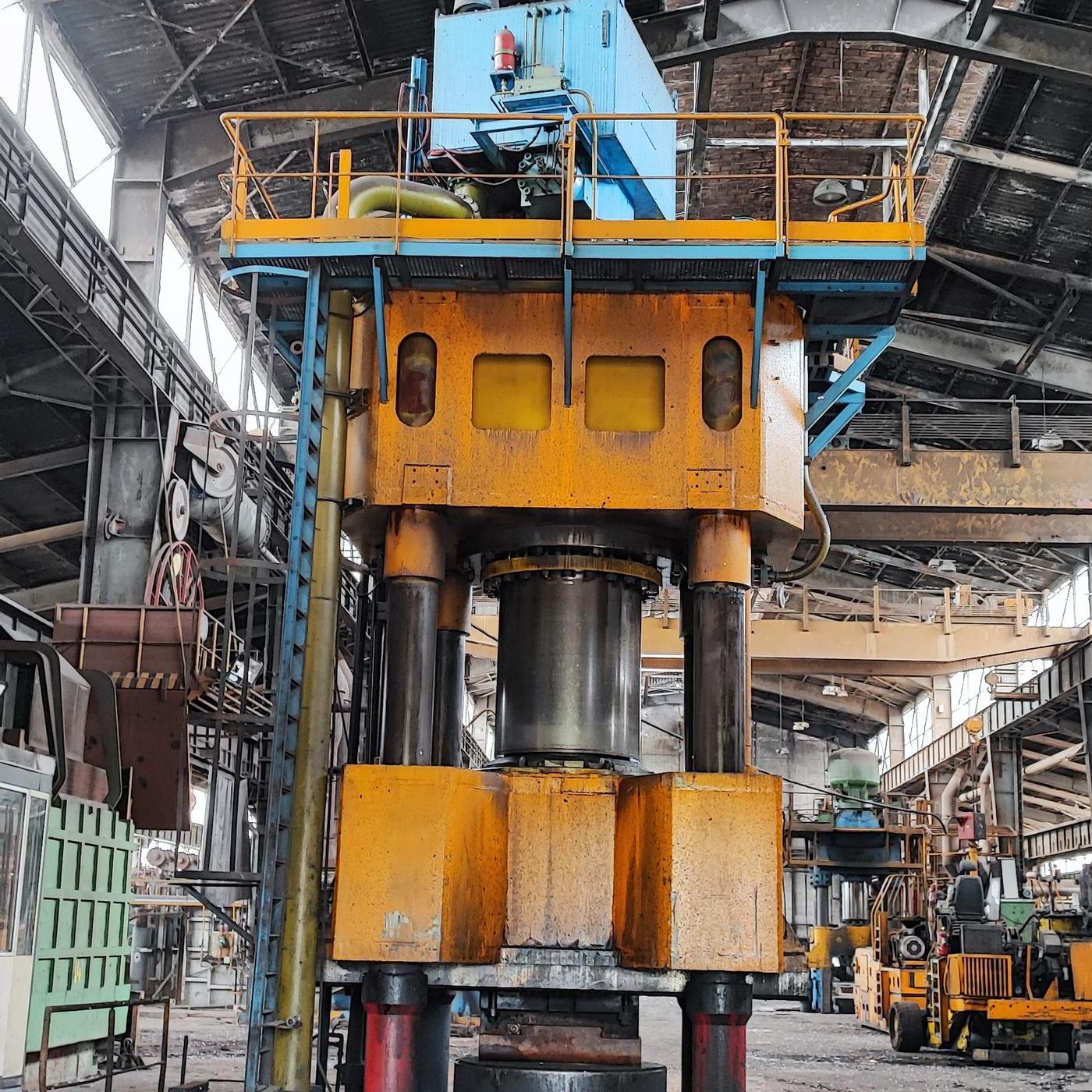

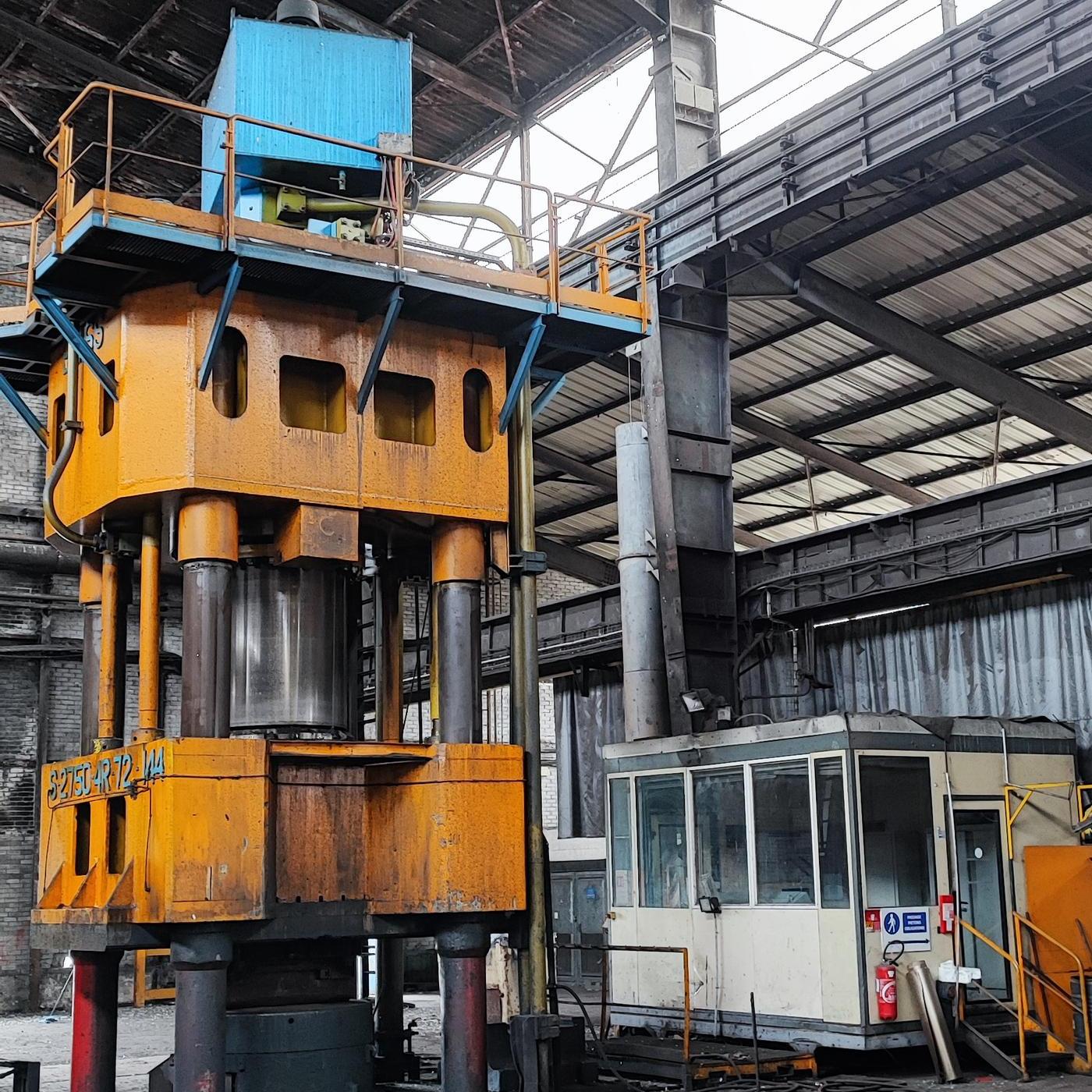

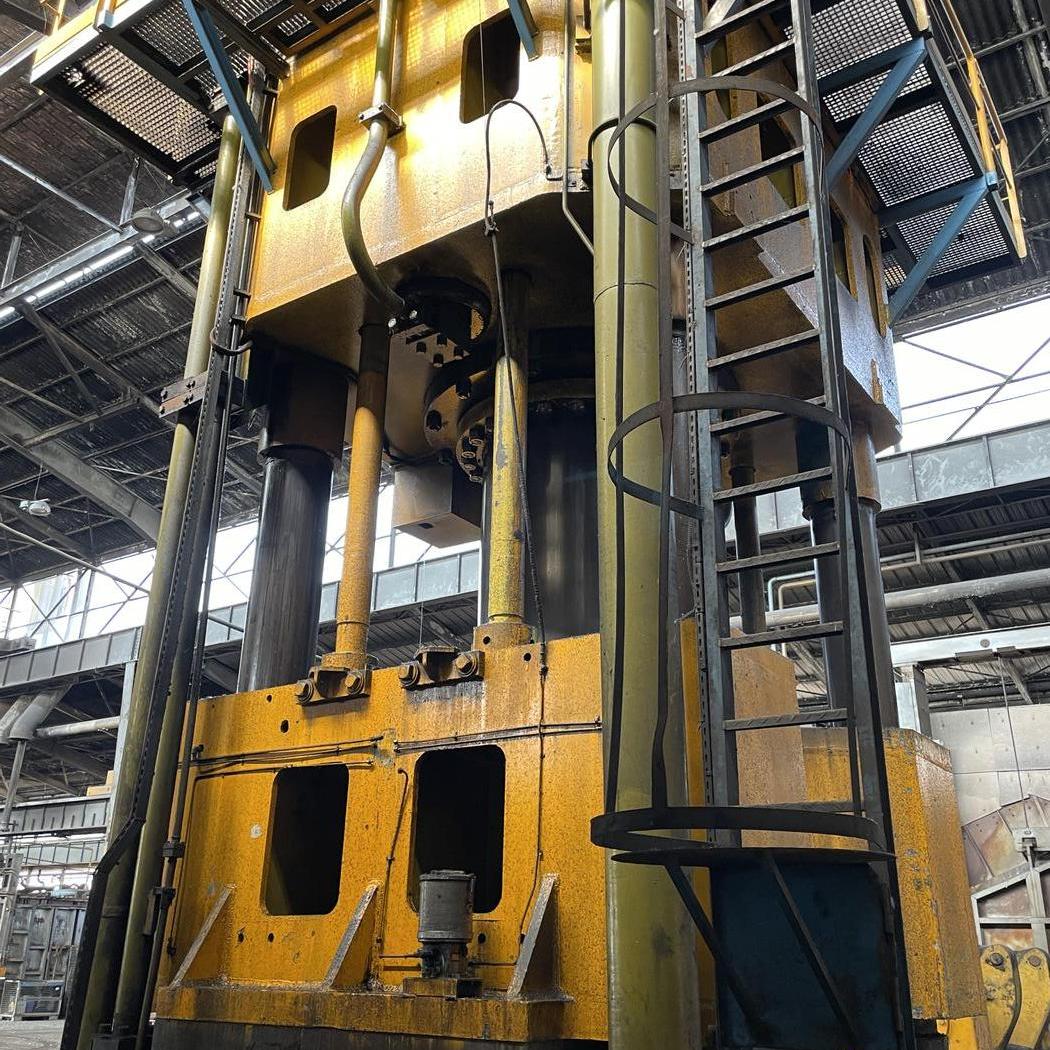

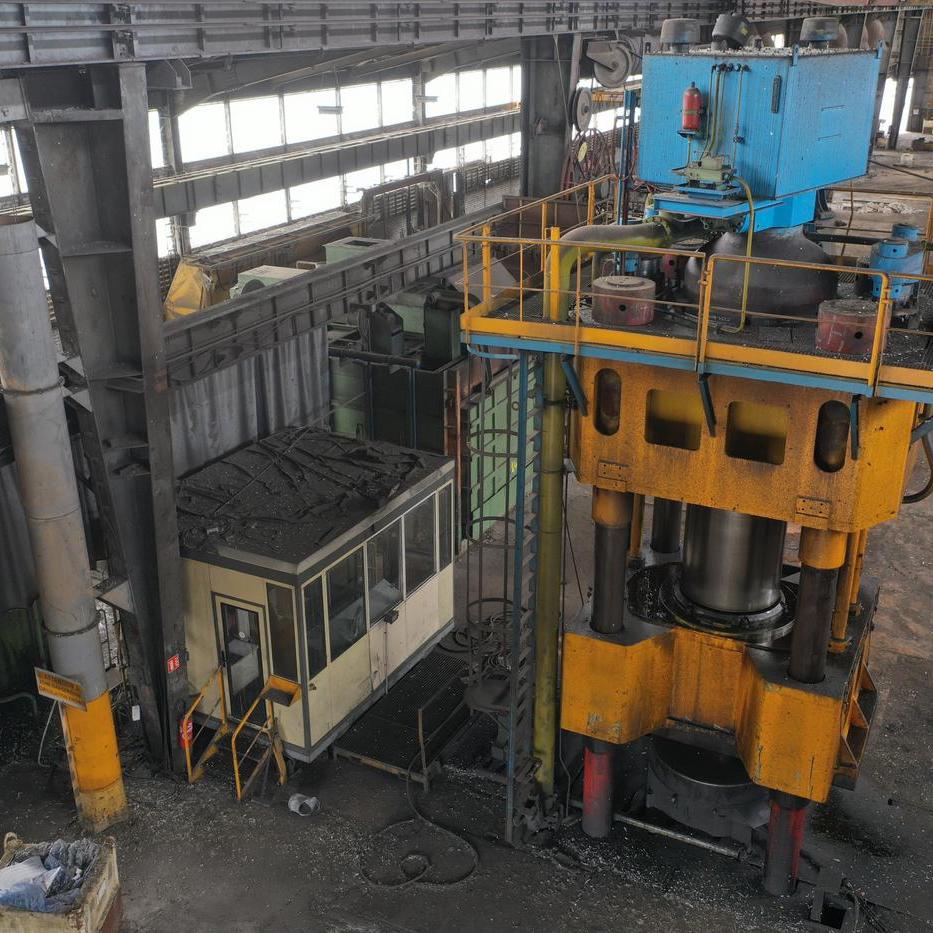

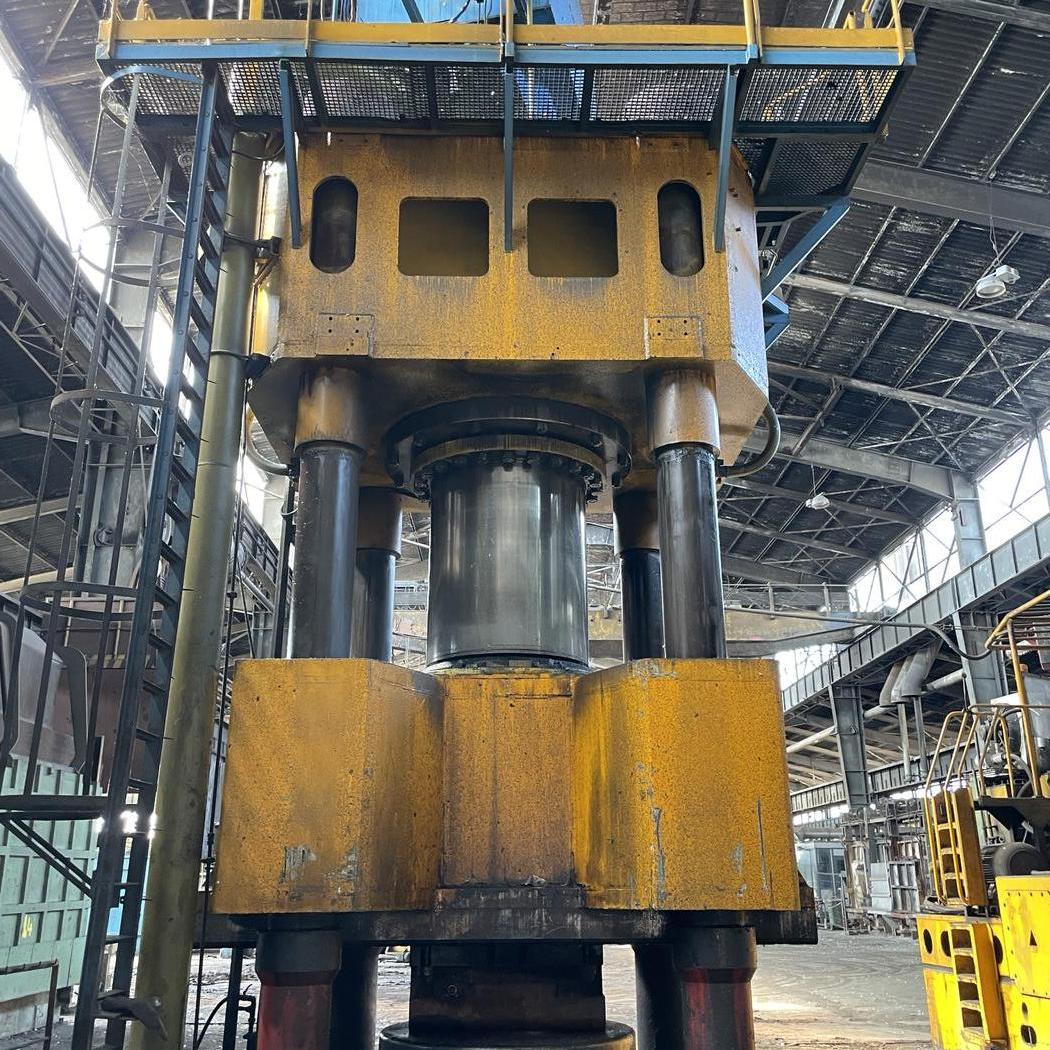

2750-Ton Open-Die Forging Press
Including a 12T WELLMAN Forging Manipulator
Heavy-Duty Open-Die Forging Press — Industrial-Grade Metal Shaping Power
A robust open-die forging press with up to 2,750 tons of force and a 12-ton Wellman manipulator, fully revamped in 2016 — built for large-scale, high-precision forging jobs and continuous heavy-duty production.
Industry
Forging
Sale Type
Private Treaty
Manufacturer
BLISS
Country
France
Machine Type
Open-Die Forging Press
Model

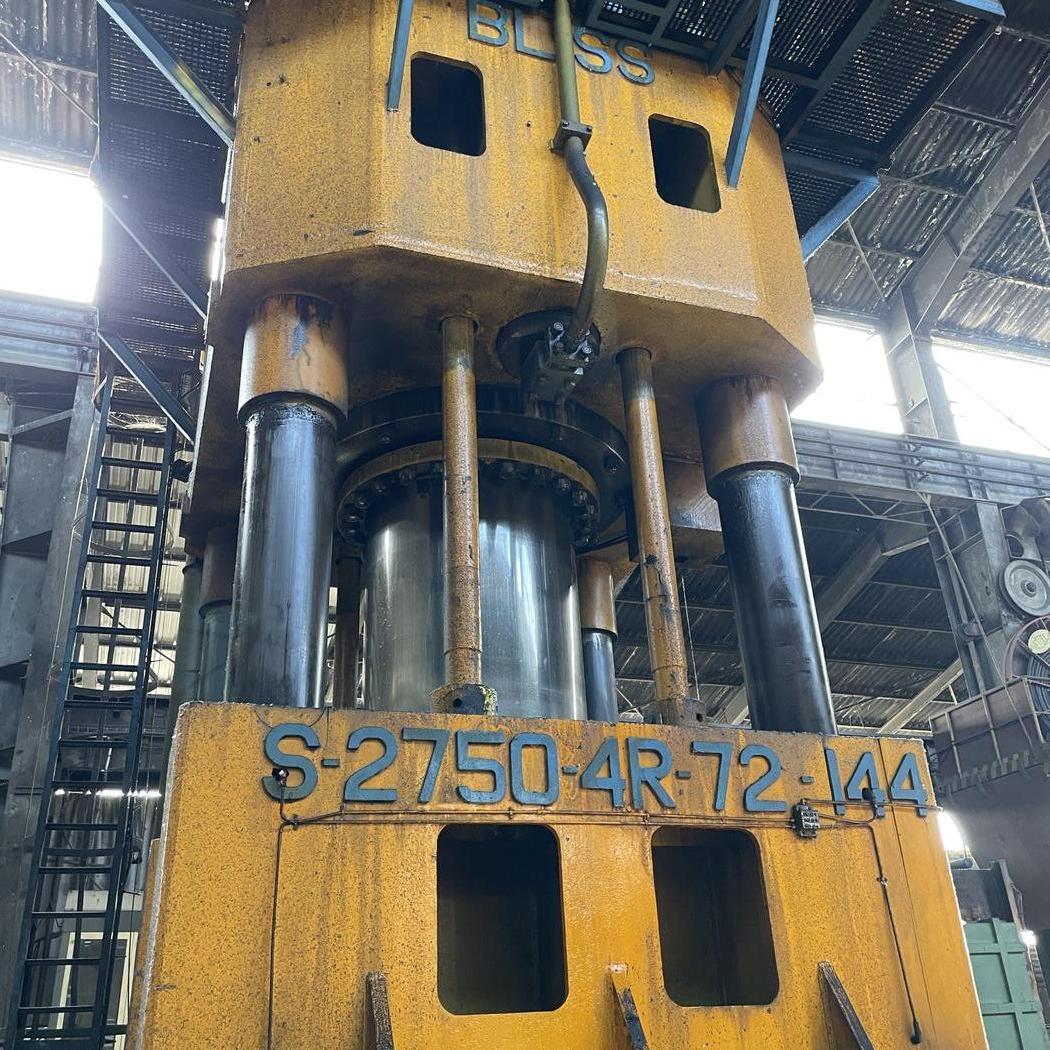

S-2750-4R-72-144
Year of Manufacture
1996
Description
Main Features
The Press was fully revamped in 2016 and is in full working condition.
- Rated force: 2,500 T
- MAX Force: 2,750 T
- Slide speed: 56 mm/s at 2,000 T - 45 mm/s at 2,500 T
- Number of strokes/min in leveling cycle at 400 T: 72 strokes/min
- Slide stroke: 1.525 mm
- Passage between columns: 1,850 mm2
- Maximum opening without removing the tool holder: 2,800 mm
- Ejection in the lower table: stroke of 610 mm and force of 170 Tons
- Lower table sliding by cylinder: capacity of 3 tools

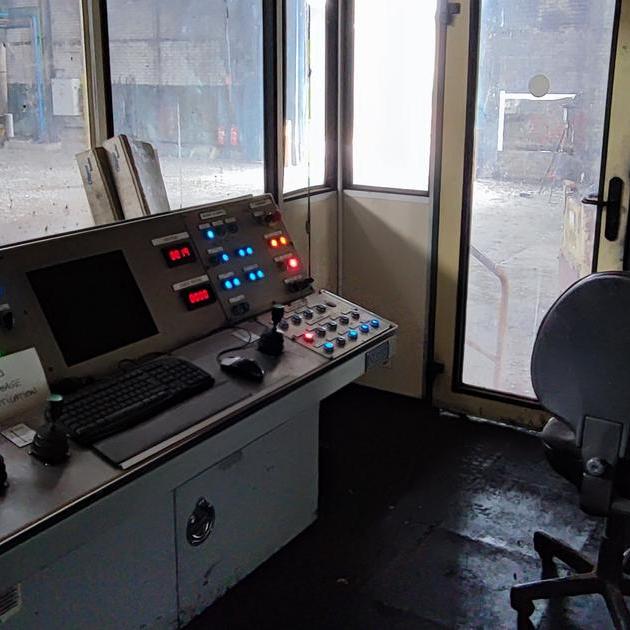

- Positioning of the slide, as well as force and speed, are controlled by a programmable controller
- Development and storage of programs at the workstation on a microcomputer
Project Value
End-to-end project management covering acquisition, disassembly, logistics, and compliance — executed with precision and global fluency.
By clicking Save my spot you're confirming that you agree with our Terms and Conditions.
USD
Total Project Cost

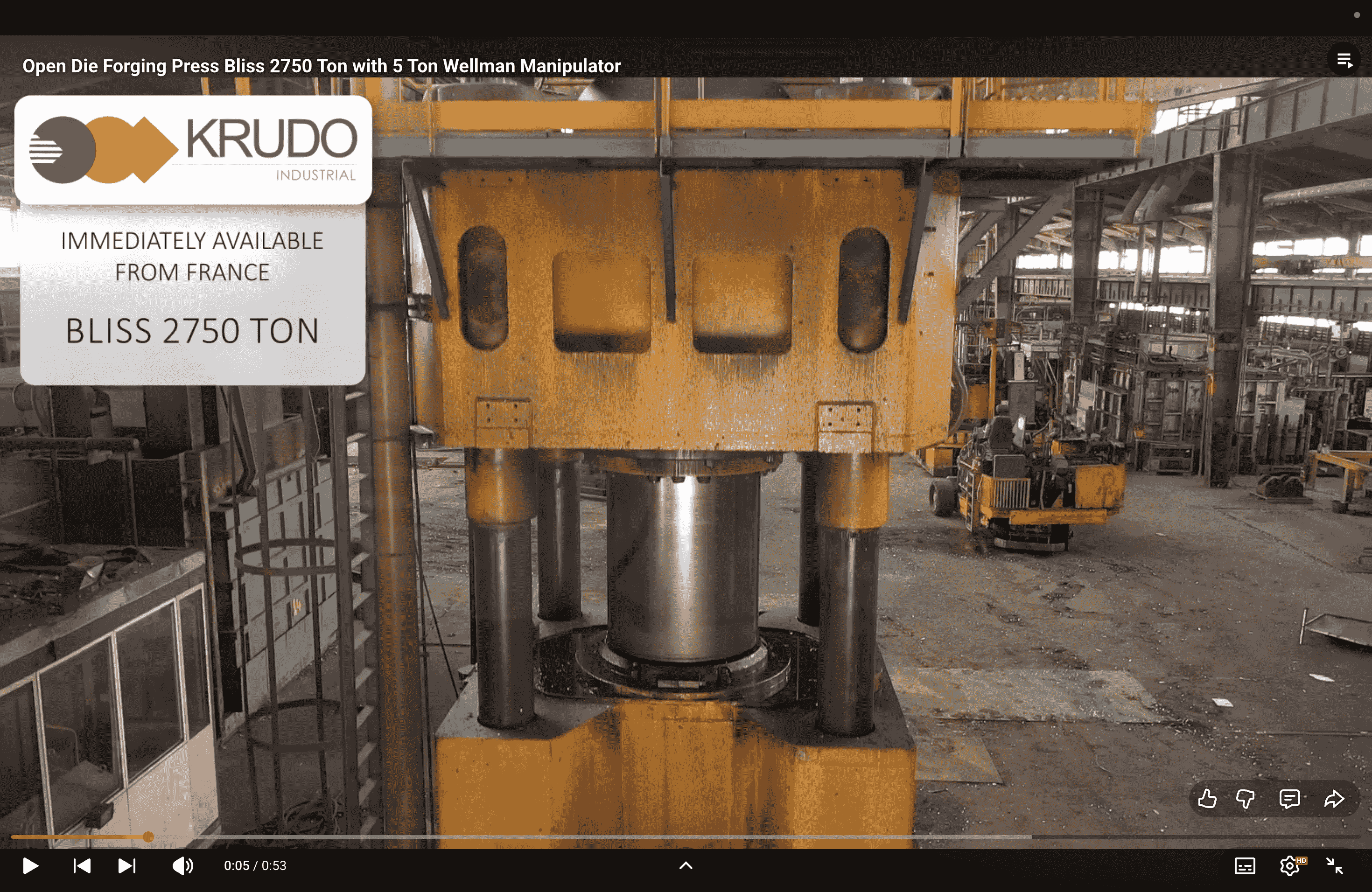

See It in Action
