660. Schuler Press Hardening Line
SCHULER SHC 1200-3.2x1.4
1200t Hardening Line with Wellmann Furnace
This is a heavy-duty 12,000 kN press hardening line engineered for high-volume industrial hot stamping. The massive 323,000 kg press features a 1,200 mm stroke length, rapid traverse speeds up to 800 mm/s, and accommodates tool lengths up to 3,200 mm. It is integrated with an expansive 50-meter, 1,395 kW Wellmann electrical furnace delivering an exceptional throughput of 6,500 kg/h with precise nitrogen (5 bar) and liquid methanol (3 bar) atmosphere controls, offering a complete end-to-end production solution for demanding press hardening workflows.
Industry
Automotive
Sale Type
Private Treaty
Manufacturer
Schuler
Country
Sweden
Machine Type
Hardening Line
Year of Manufacture
2007
Press Force
1200t
Stroke
1200 mm

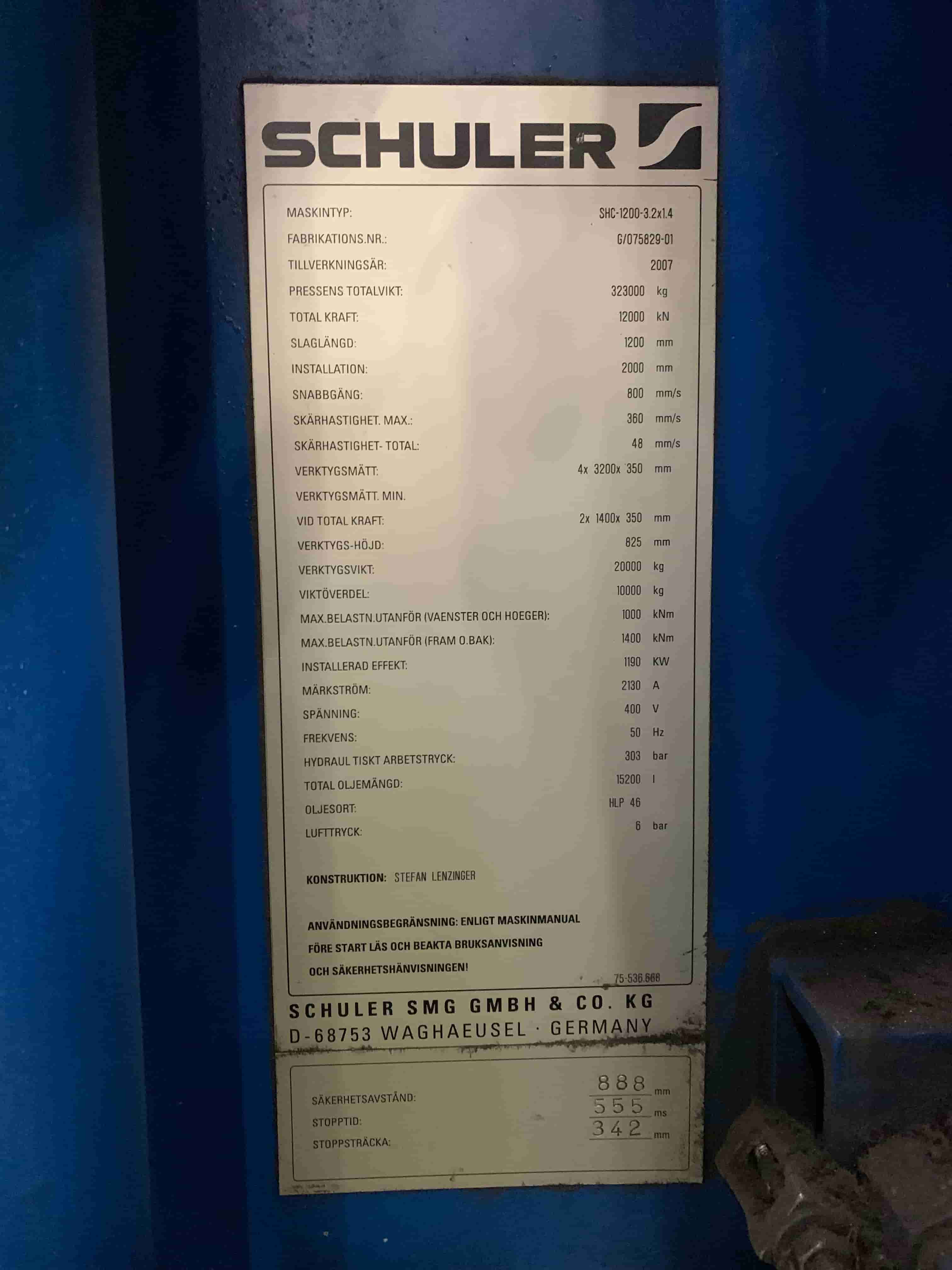

Technical Details
- Lot No. 660
- Manufacturer: Schuler
- Type / Model: SHC-1200-3.2x1.4
- Serial No. G/075829-01
- Year of Manufacture: 2007
- Press Force: 1200t / 12,000 kN
- Stroke: 1200 mm
- Total Press Weight: 323,000 kg
- Installation Height: 2000 mm
- Rapid Traverse Speed: 800 mm/s
- Max. Cutting Speed: 360 mm/s
- Cutting Speed at Total Force: 48 mm/s
- Tool Dimensions: 4×3,200×350 mm
- Minimum Tool Dimensions at Total Force: 2×1400×350 mm
- Tool Height: 825 mm
- Tool Weight: 20,000 kg
- Weight Distribution: 10,000 kg
- Max. Off-Center Load – Left/Right: 1,000 kNm
- Max. Off-Center Load – Front/Rear: 1,400 kNm
- Installed Power: 1,190 kW
- Rated Current: 2,130 A
- Voltage: 400 V
- Frequency: 50 Hz
- Hydraulic Operating Pressure: 303 bar
- Total Oil Capacity: 15,200 litres
- Oil Type: HLP 46
- Air Pressure: 6 bar
Furnace Specifications
- Manufacturer: Wellmann
- Charge Table Length: 13400mm
- Furnace Width: 1400mm
- Furnace Length: 50000mm
- Capacity: 6500 kg/hr
- Electrical Energy for Heating: 1395 kW
