Deduster & Quencher
Bag Filter Plant and Settling Chamber
Technical Details

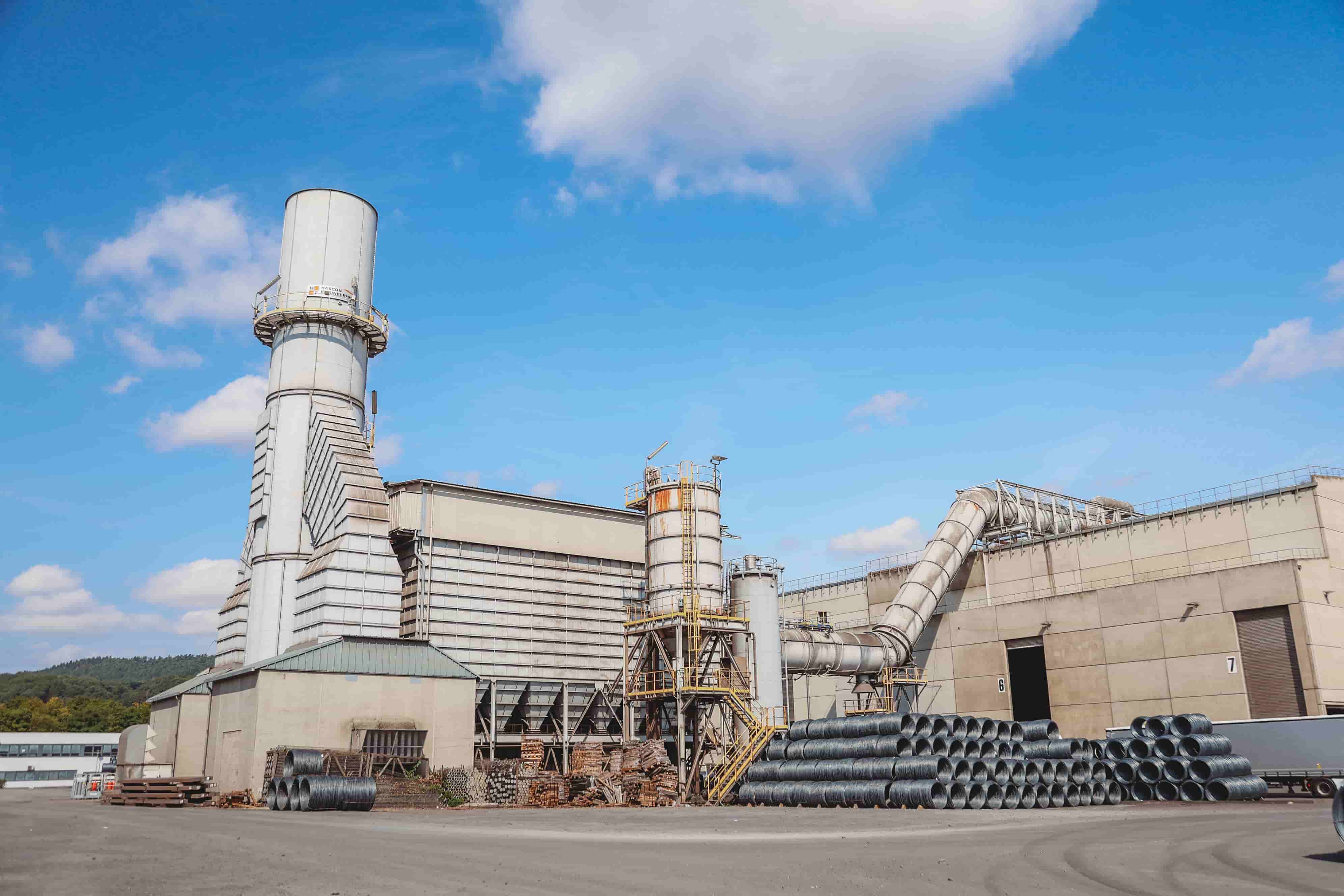

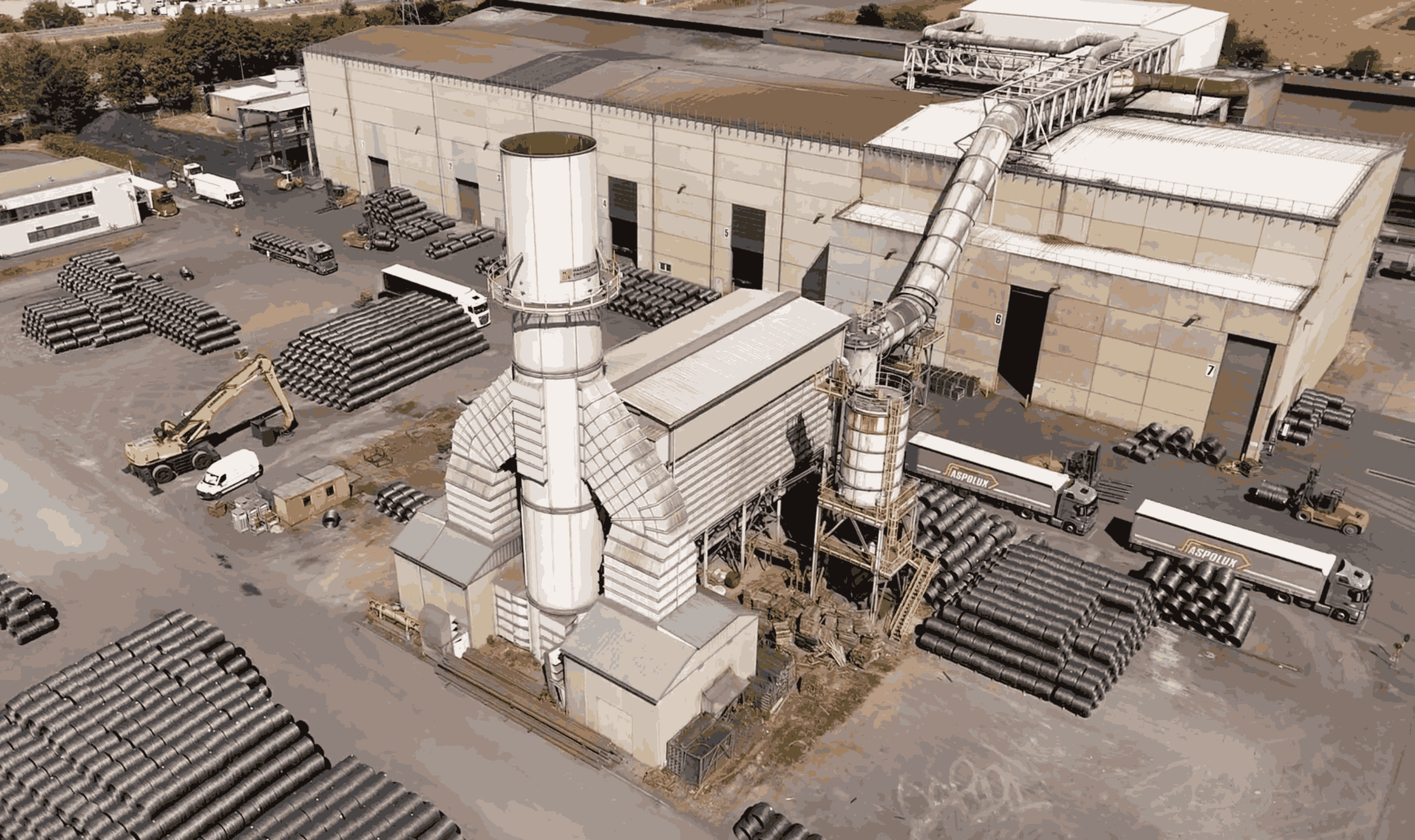

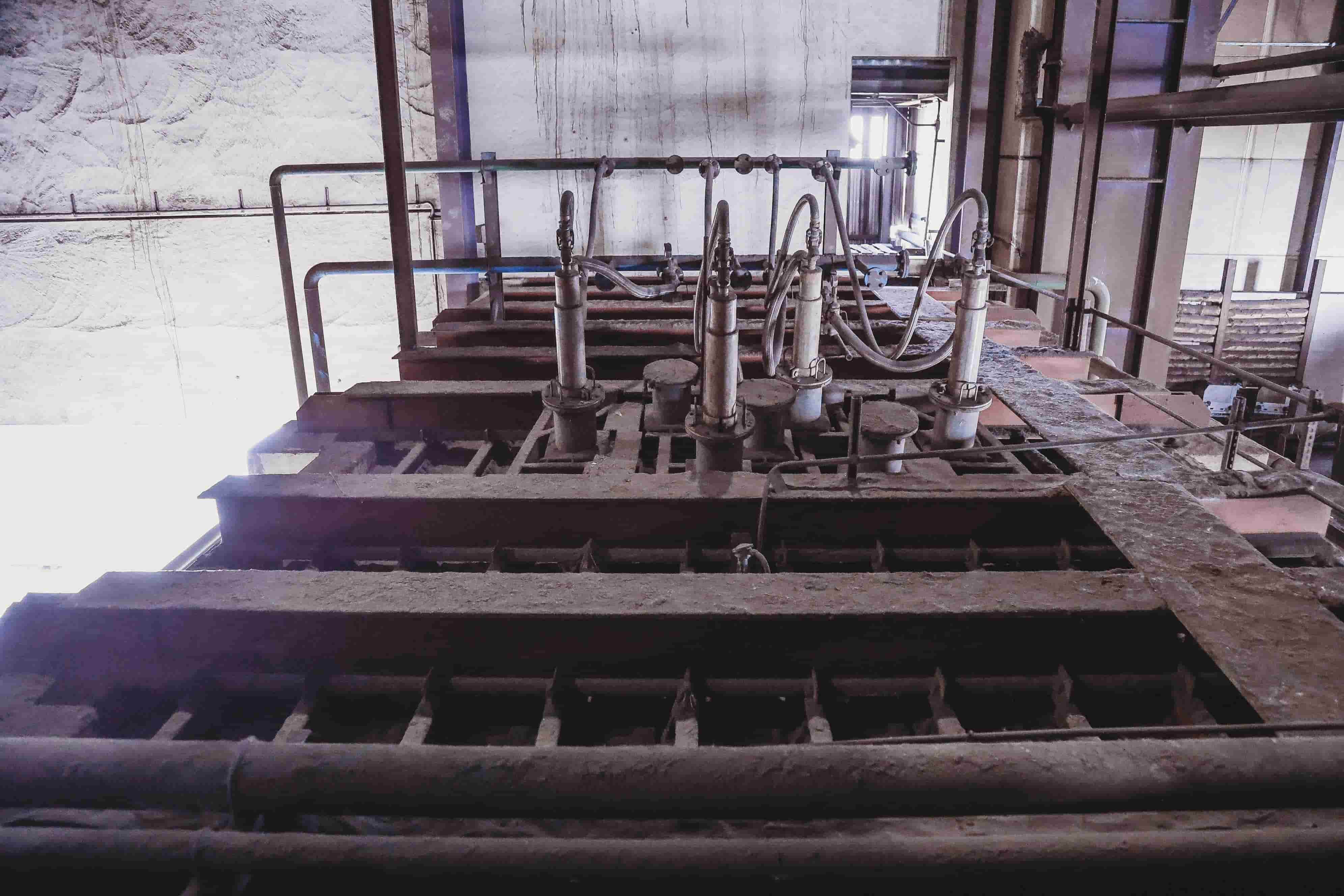

Deduster (Fume Extraction / Bag Filter Plant)
Manufacturer: Hascon Engineering S.p.A., Legnano (MI), Italy
Year of Manufacture / Reference: 2007
Type / Scope: Fume extraction and dedusting plant (bag filter) for the 60 t/h Electric Arc Furnace with Consteel, plus Ladle Furnace
Key technical data:

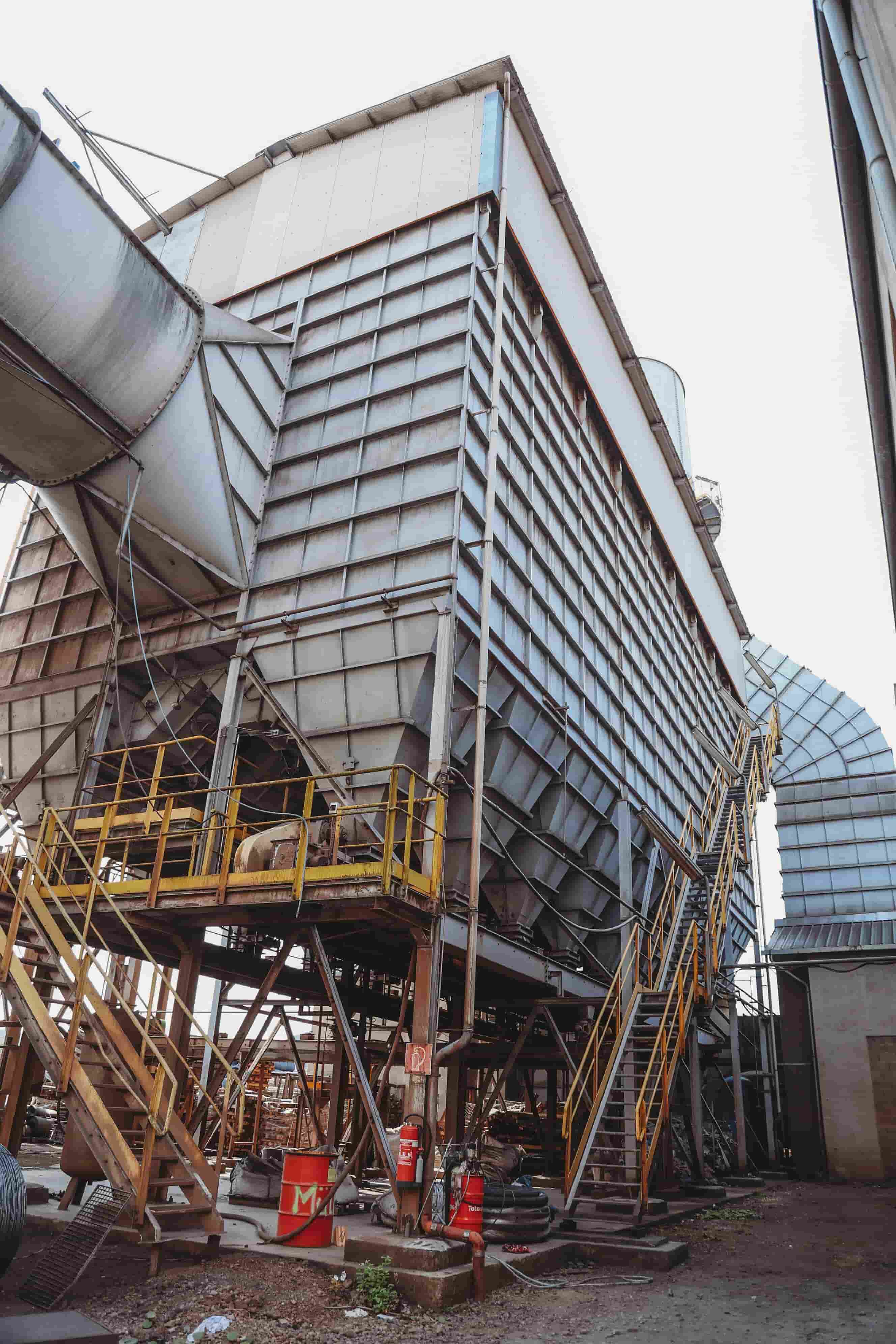

- Bag filter type AJ-D-9(4×16)-3M/192, flow rate 1,000,000 Em³/h, 130°C max, 18 compartments, 3,456 bags, ≈12,150 m² total filtering surface

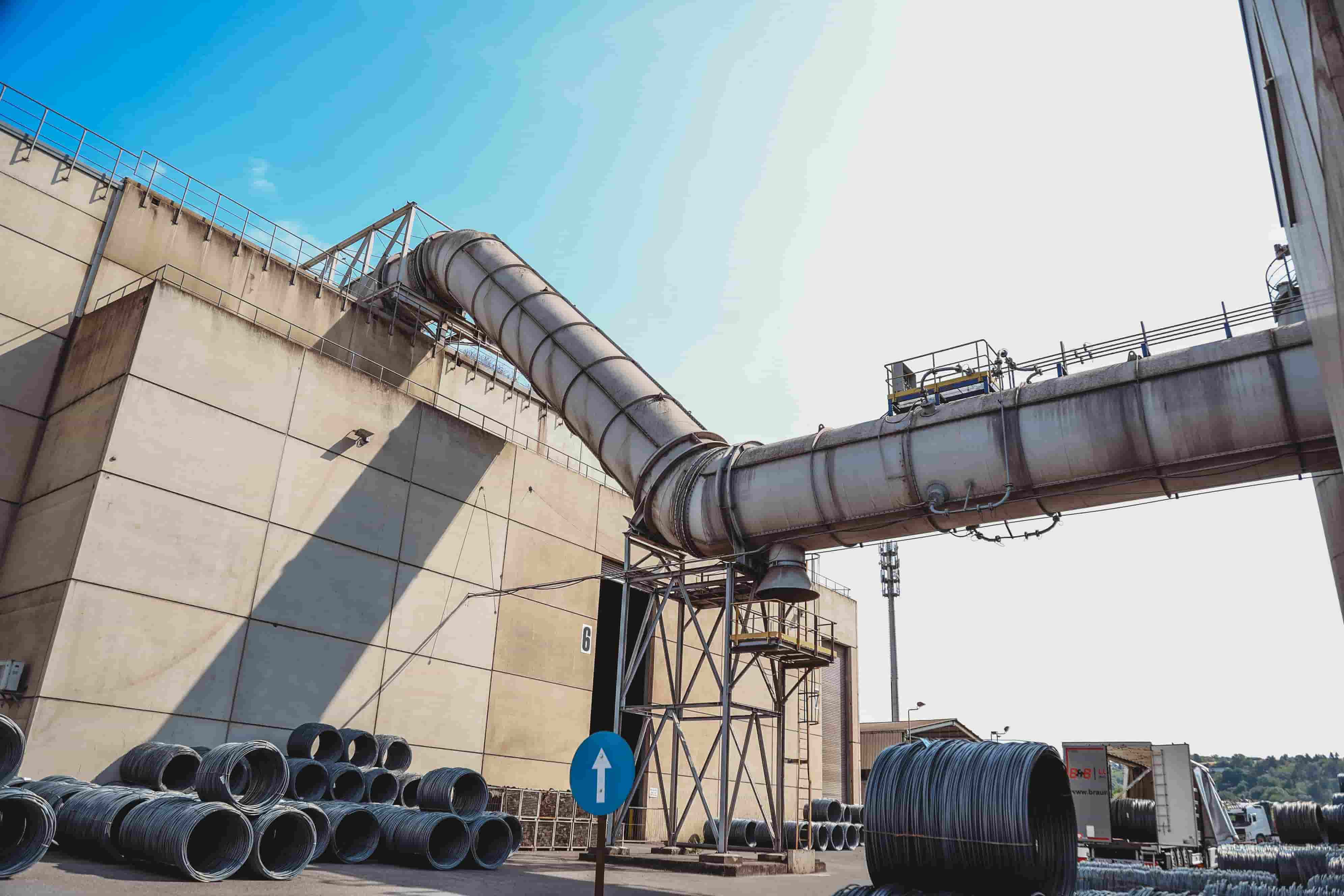

- Main duct (filter inlet): Ø3,500 mm, 706,964 Nm³/h at 48°C

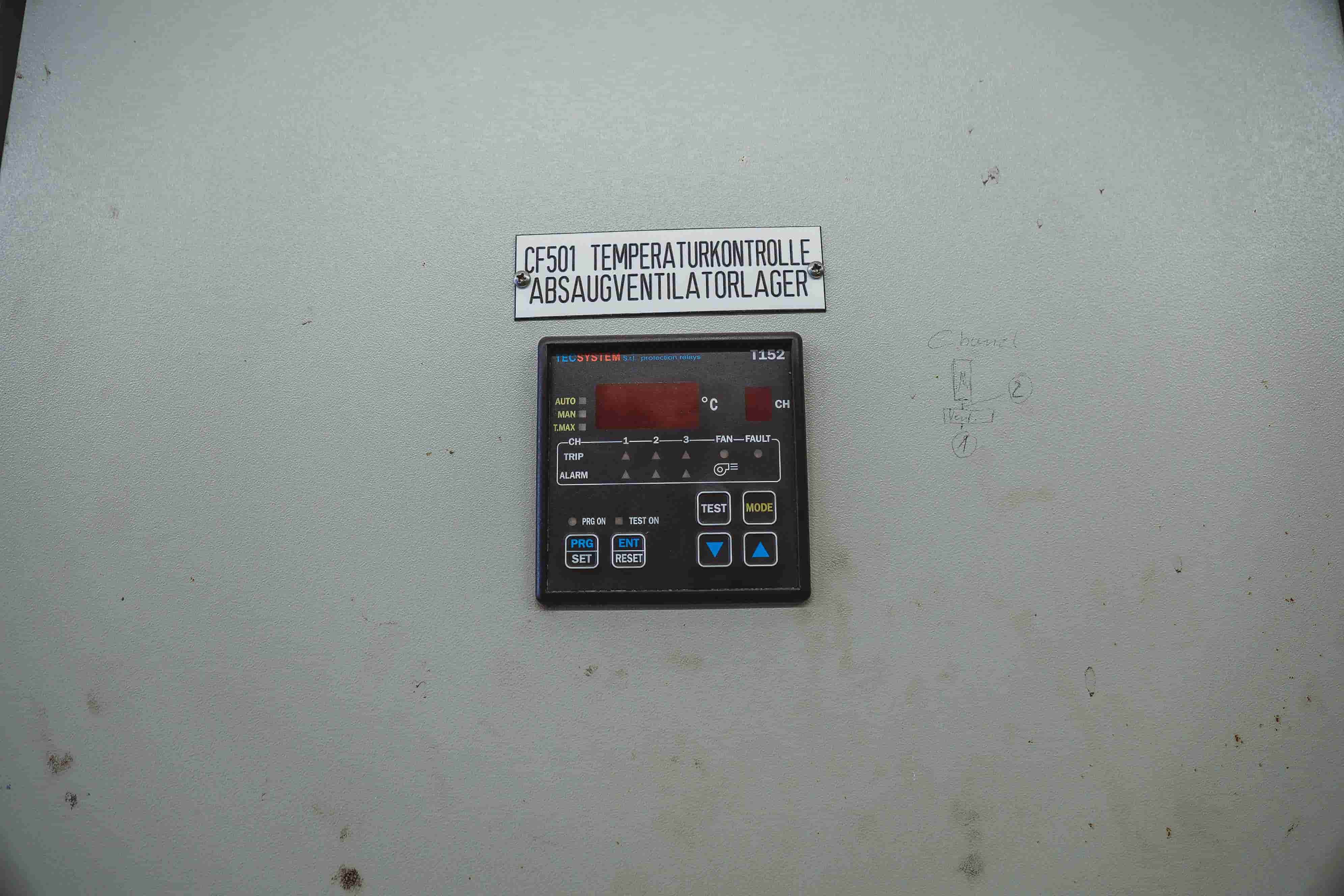

- 2× centrifugal exhaust fans, type XB 250, 500,000 Em³/h each, 1,800 kW installed power each, 6 kV motors

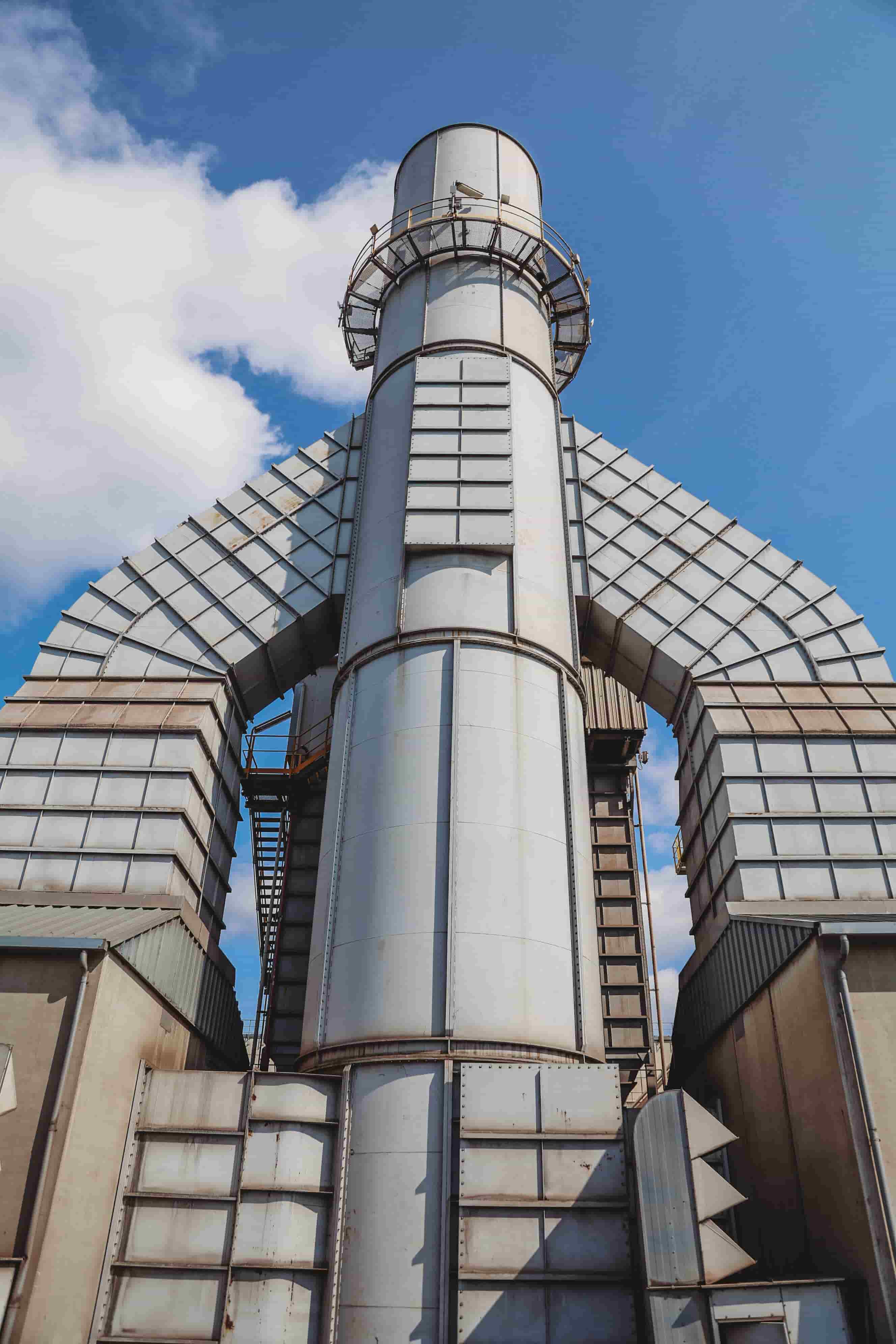

- Stack: Ø5,100 mm, 37 m high, continuous dust emission monitoring (SICK-MAIHAK FW100 probe)
- Stack dust emission limit: < 5 mg/Nm³ (dry gas)
- Design air volumes: Consteel outlet 73,000 Nm³/h @1,050°C; Ladle Furnace 25,000 Nm³/h @130°C; canopy hood 300,000–550,000 Nm³/h @60°C (tapping)

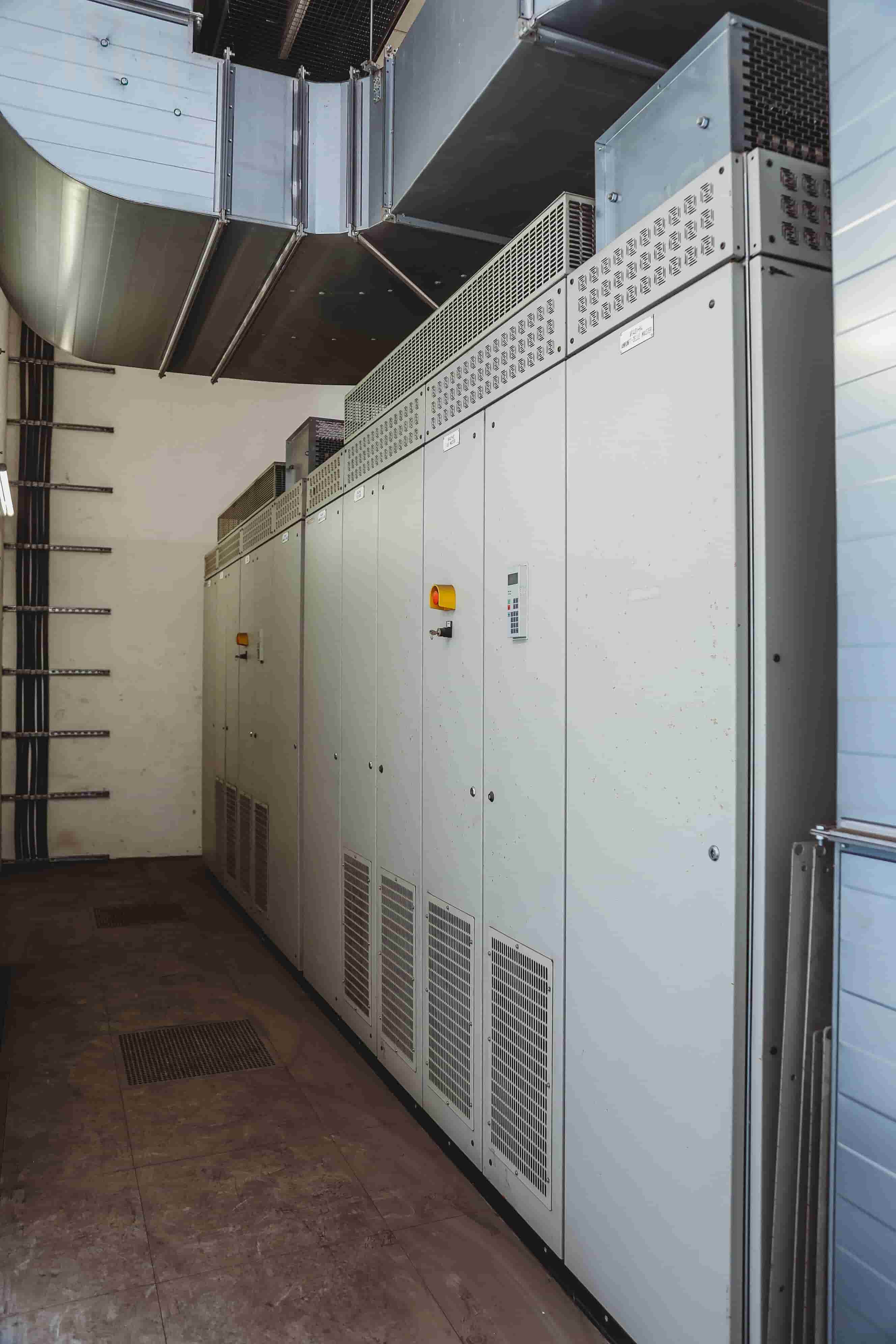

- Control system: Siemens S7-300 based PLC with SCADA/HMI
Quencher (Settling Chamber)
Manufacturer: Techint/Tenova
Year of Manufacture / Reference: 2005
Type / Scope: Primary fume suction and cooling train from the Consteel® preheating tunnel: suction pipe → settling chamber → gas cooling (spray system)
Key technical data:
- Suction pipe from Consteel®: water-cooled, pipe-to-pipe construction, Ø≈1,800 mm, length ≈8 m
- Settling chamber: concrete construction, refractory lined; settles coarse dust and completes CO → CO₂ combustion where needed
- Wide water-cooled door for coarse dust evacuation by front-end loader; fitted with explosion relief doors

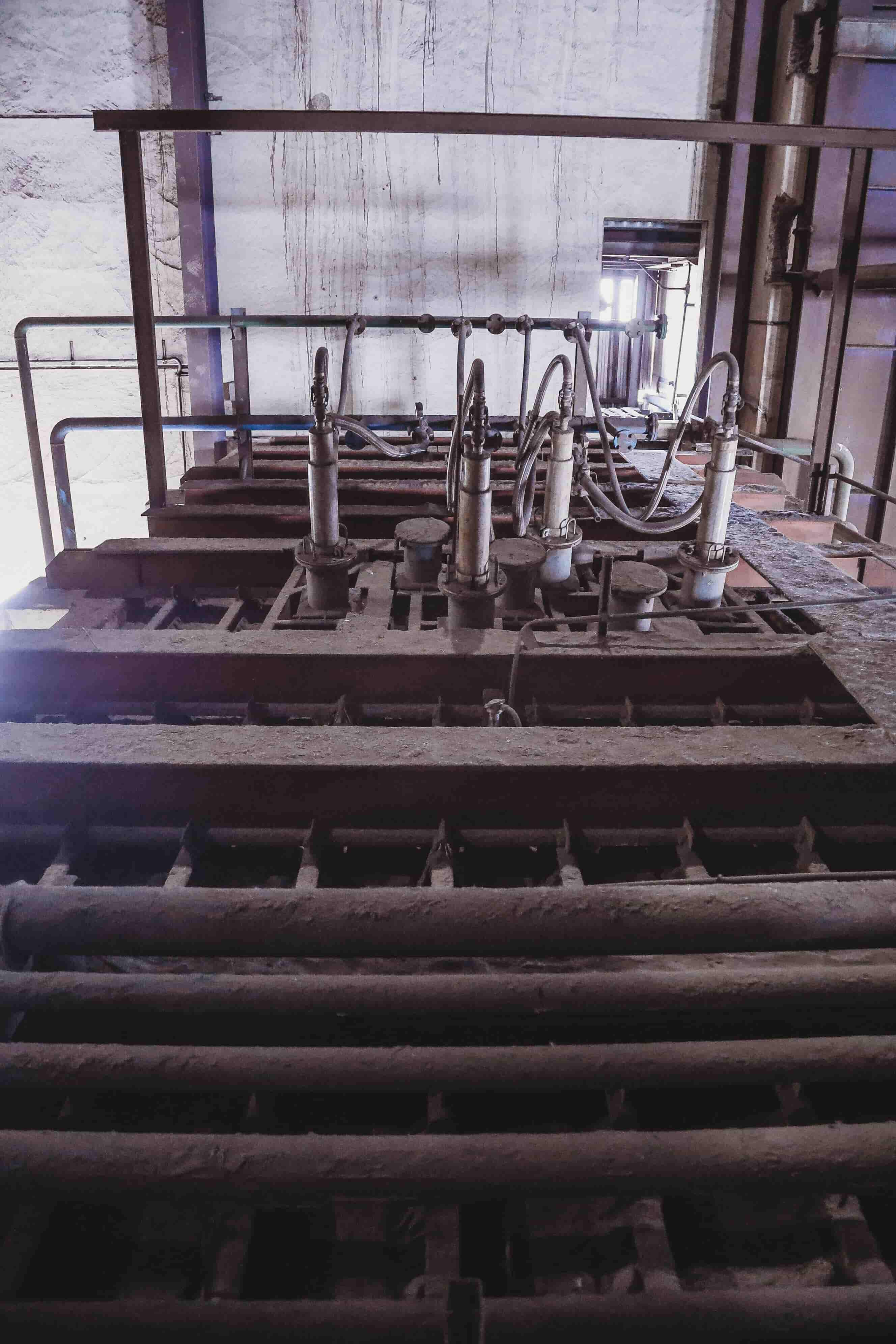

- Gas cooling: spray-nozzle system (water + compressed air); water requirement 20 m³/h; compressed air ≈1,300 Nm³/h
- Cooling unit includes water pumping station with two pumps (one duty, one stand-by)
