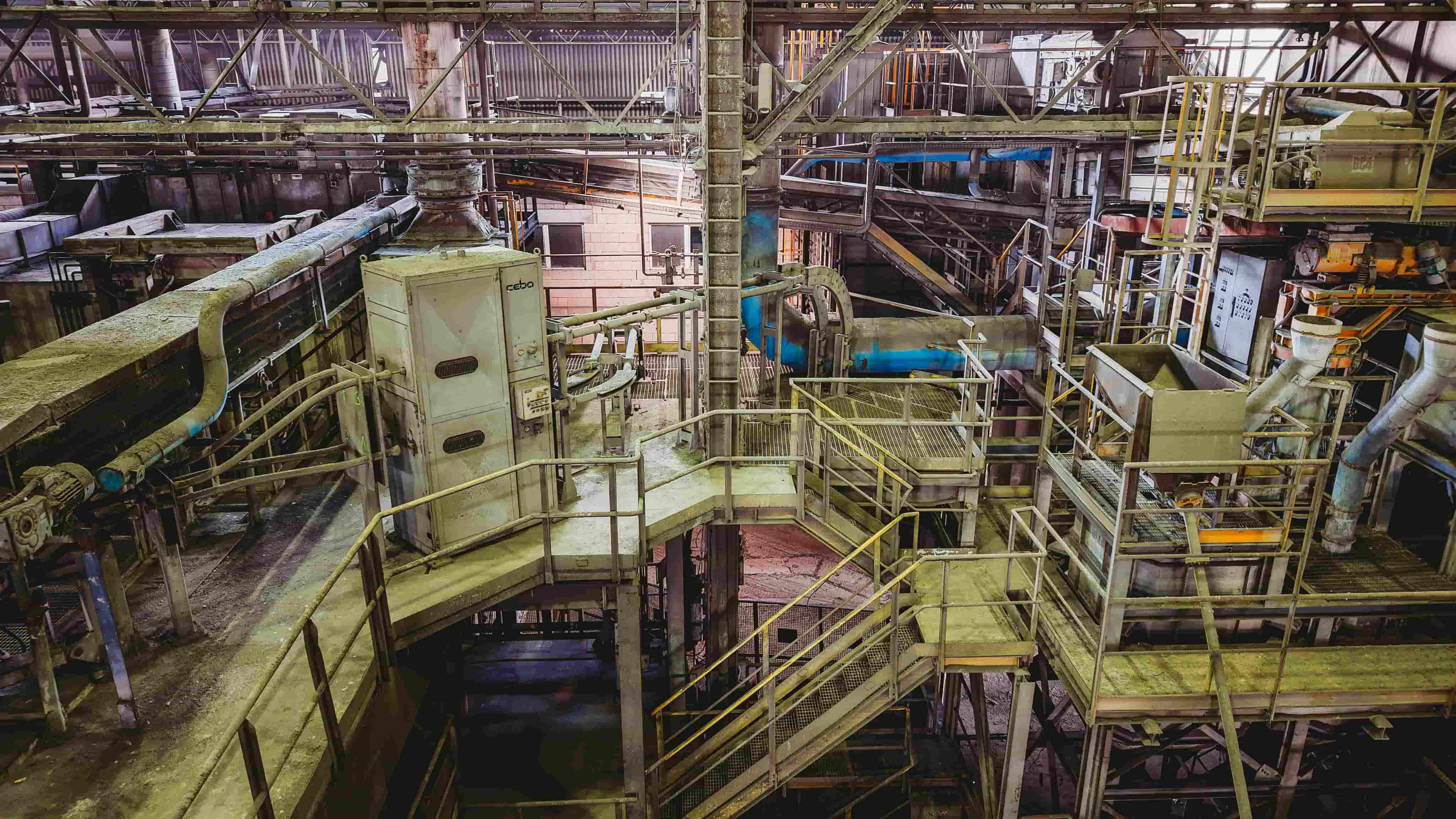

Ladle Furnace
Tenova 60t Ladle Furnace
Technical Details
Manufacturer: Tenova
Max. Capacity: 60t
Year of Manufacture: 2005/2008
Type / Scope: Ladle furnace station served by the primary/secondary fume extraction system and by the alloy addition/dosing plant
Key technical data:
- LF fume duct: Ø470mm, 42m/s velocity, 18°C, flow ≈26,232m³/h (24,609 Nm³/h)
- Design air volume to LF (dedusting basis): 25,000 Nm³/h at 130°C
- LF suction duct damper: butterfly, Ø750 mm, pneumatic cylinder on/off with limit switches
- Connection duct, LF to canopy hood duct: Ø≈750mm, length ≈90m, weight ≈15t including supports
- Alloy/additive charge per heat at LF (design basis): ≈1,090kg (lime, bauxite, FeSi, FeSiMn, FeMoMc)

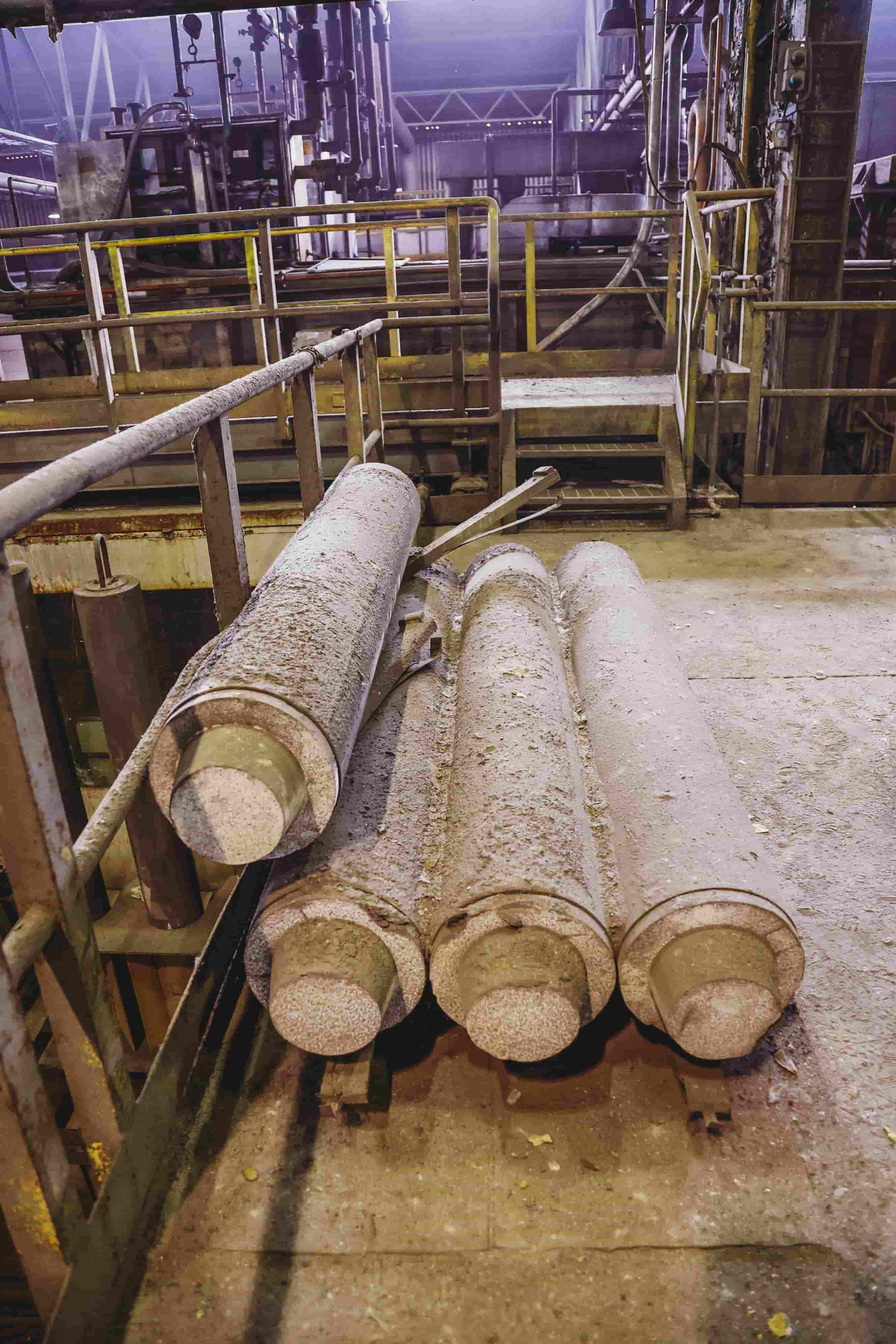

- Electrode diameter: 300mm
- Electrode pitch diameter: 550mm

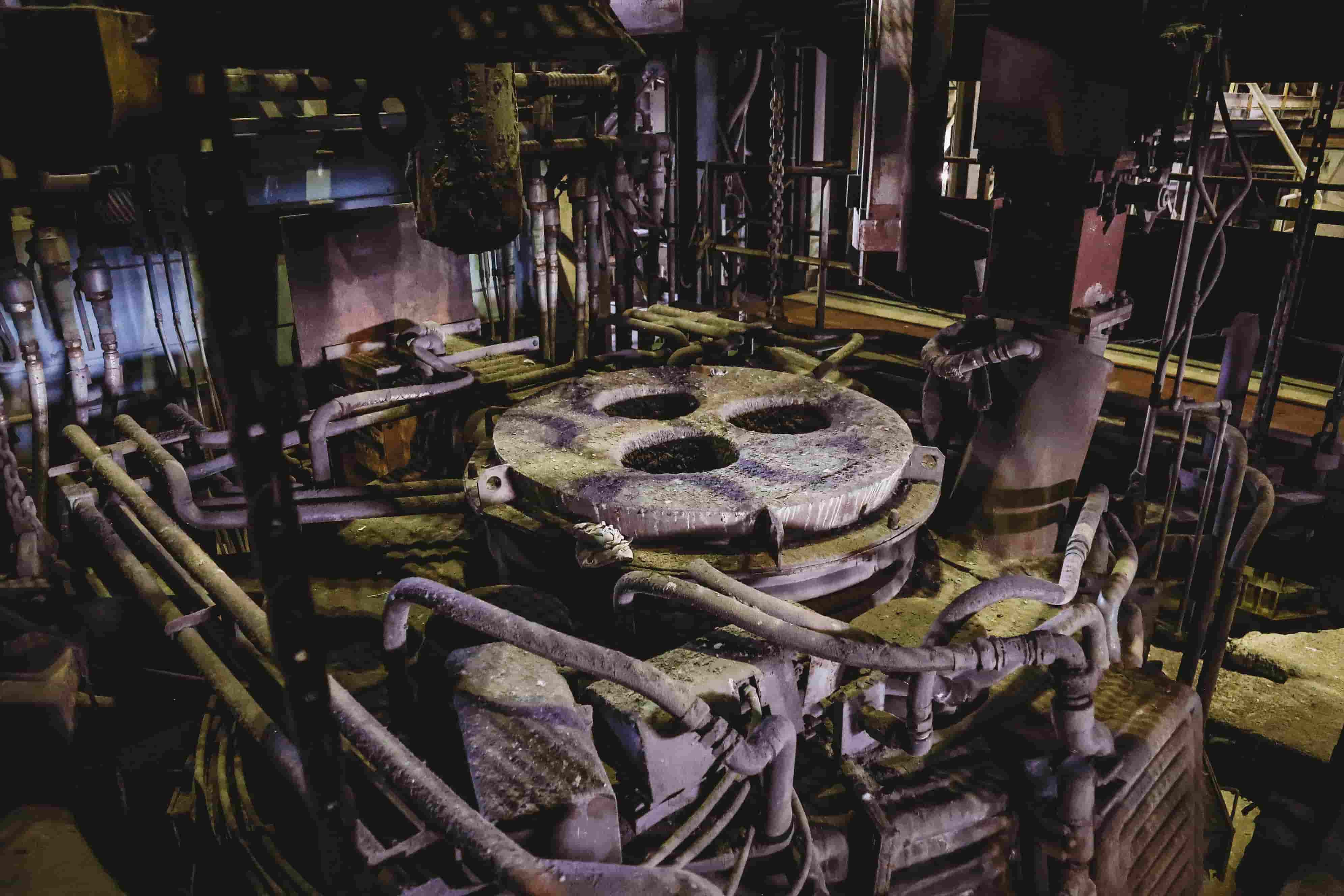

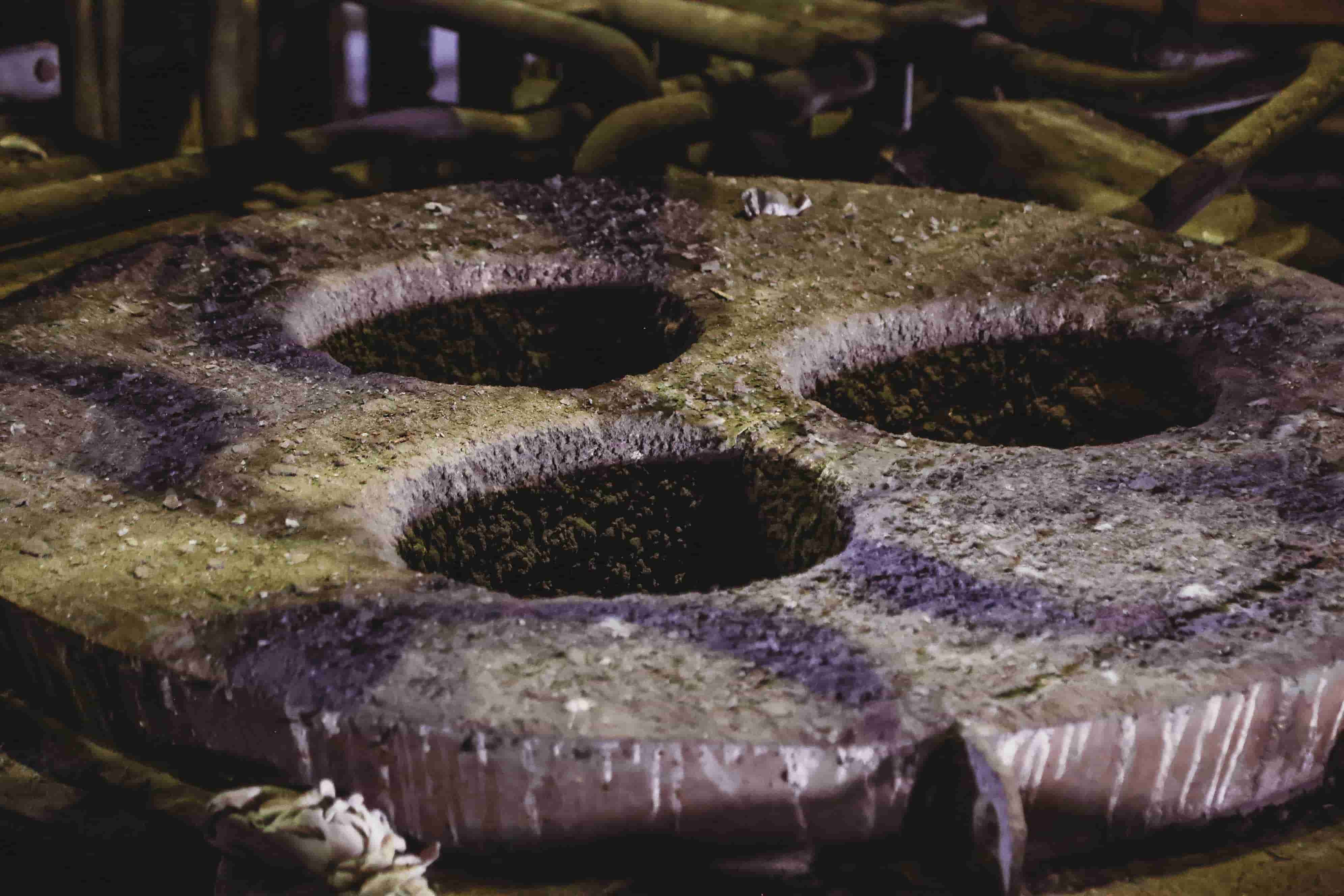

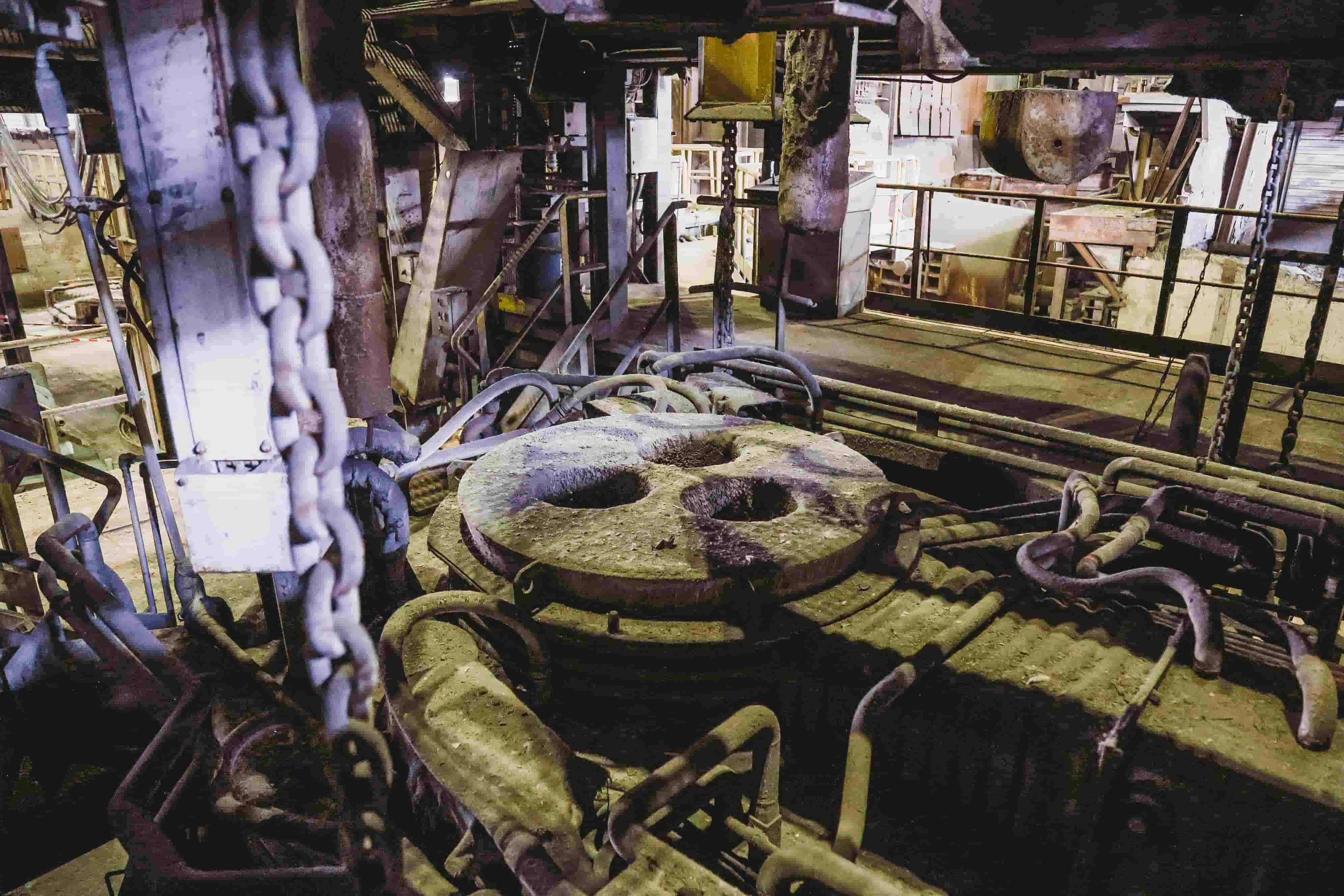

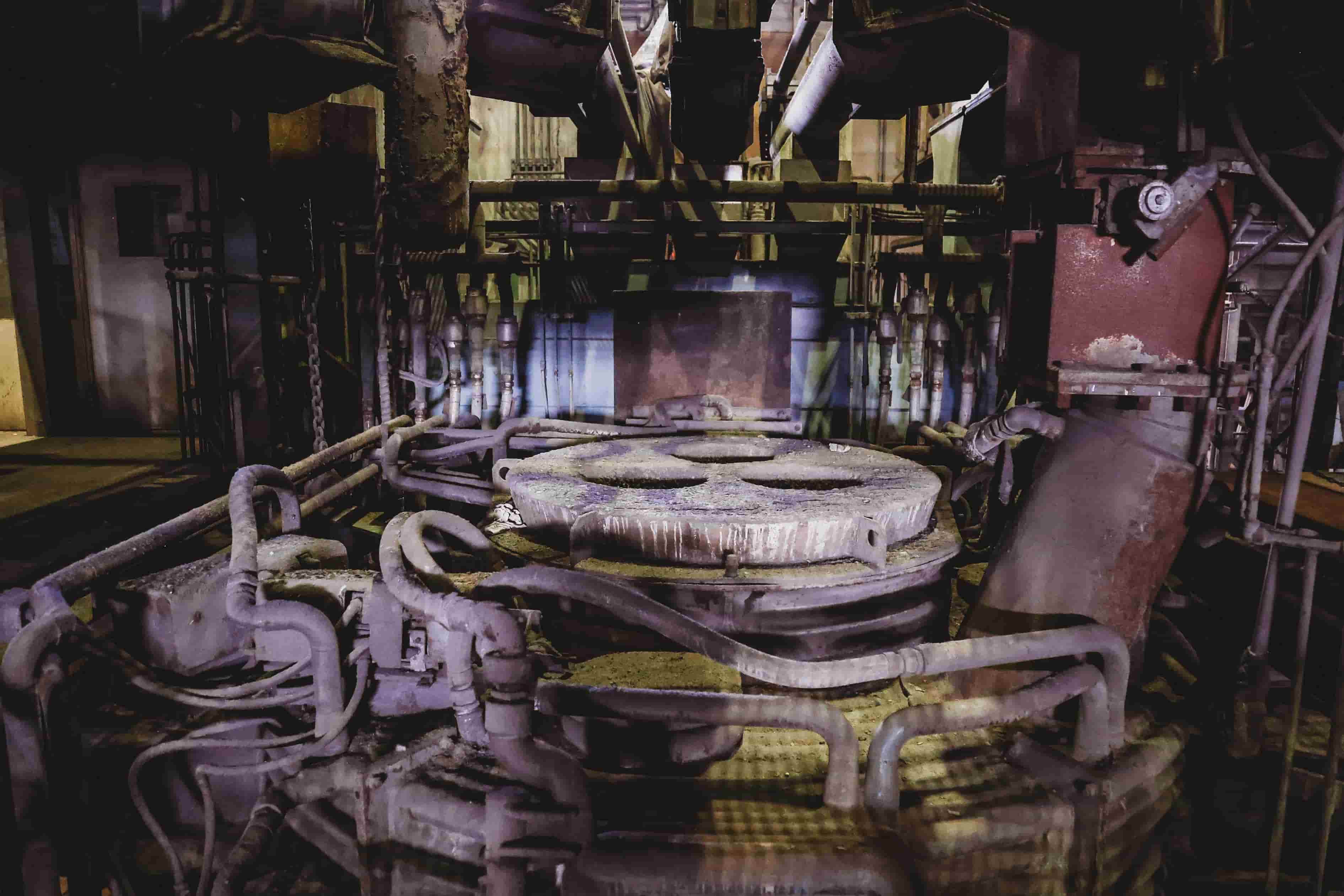

- Roof type: Indirect suction, water-cooled pipes
- Roof construction: Tubular type, with cooled gas elbow
- Roof lifting movement: Hydraulic cylinder
- Electrode lifting movement: Hydraulic cylinders
- Electrode regulation: TAGLIAFERRI digital electrode regulation, TDR
- Nominal rated power: 12 MVA
- Primary voltage: 20 kV – 50 Hz
