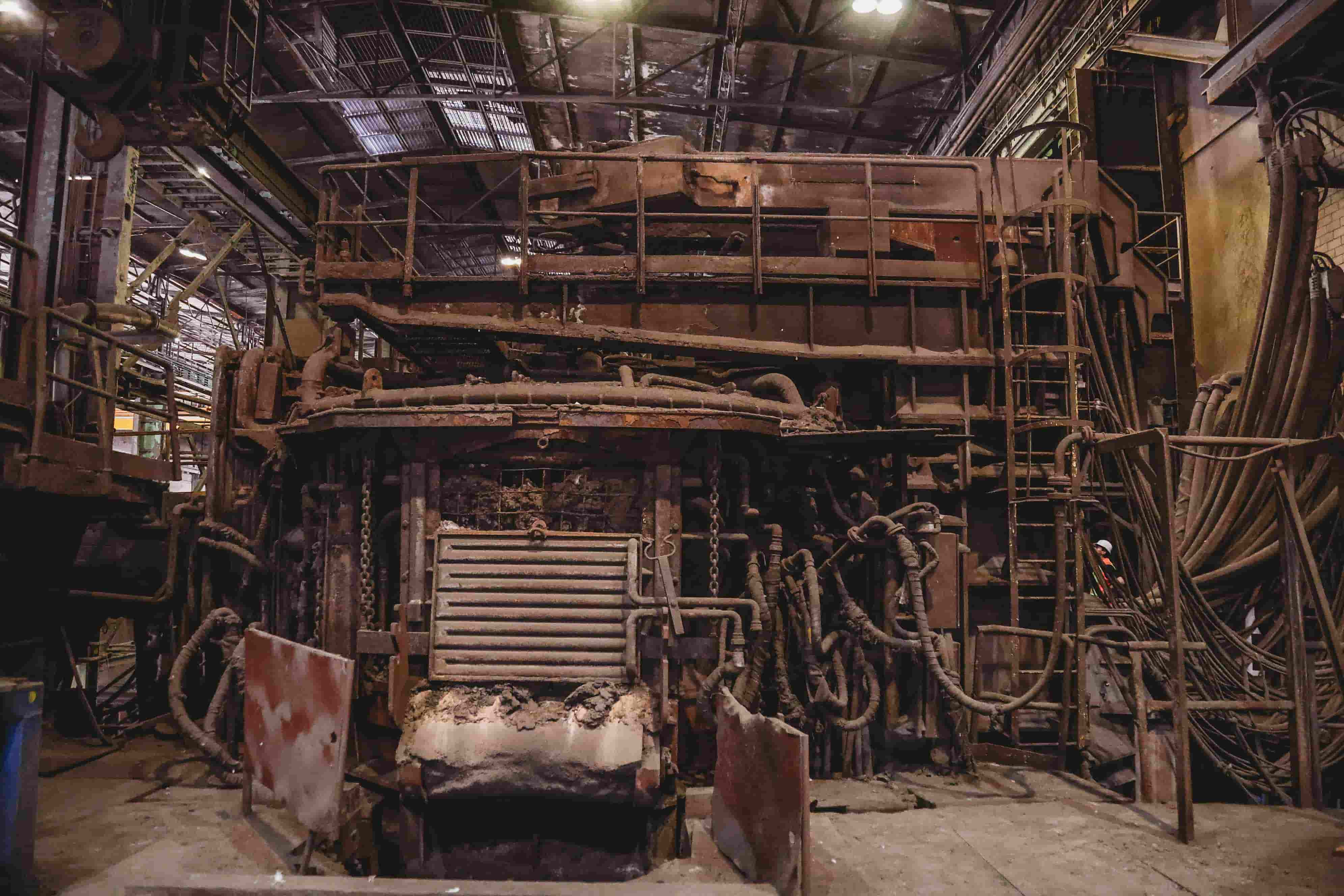

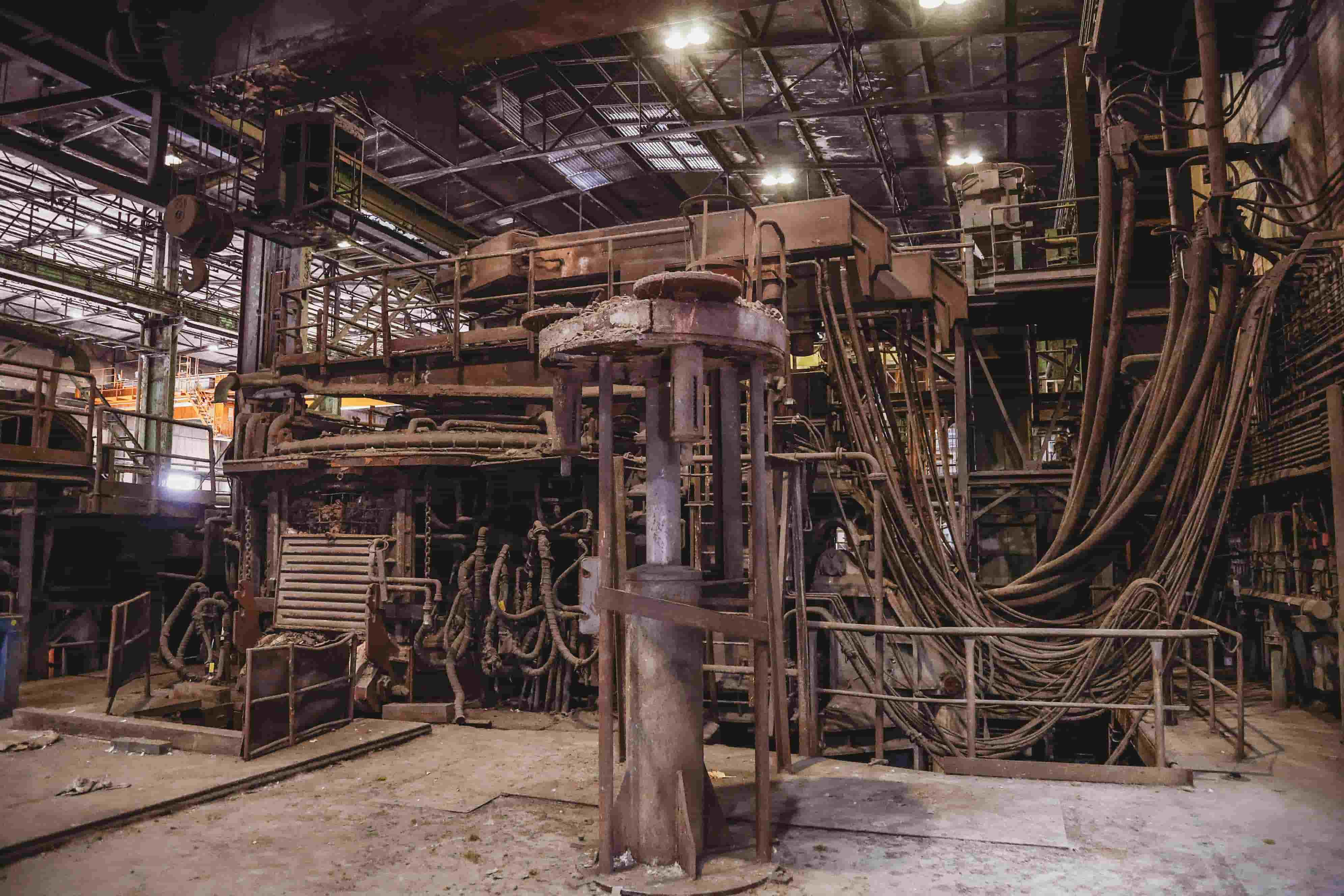

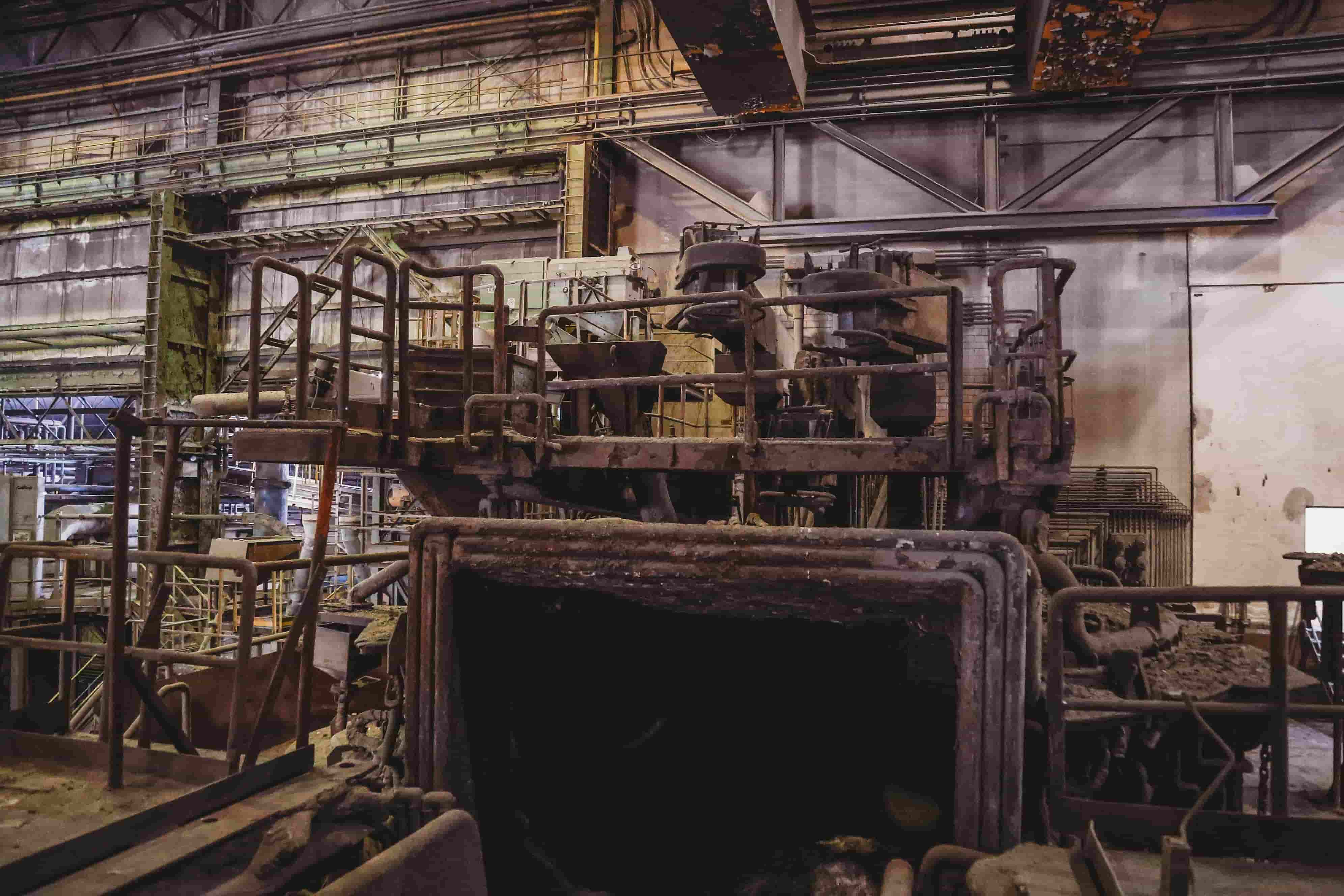

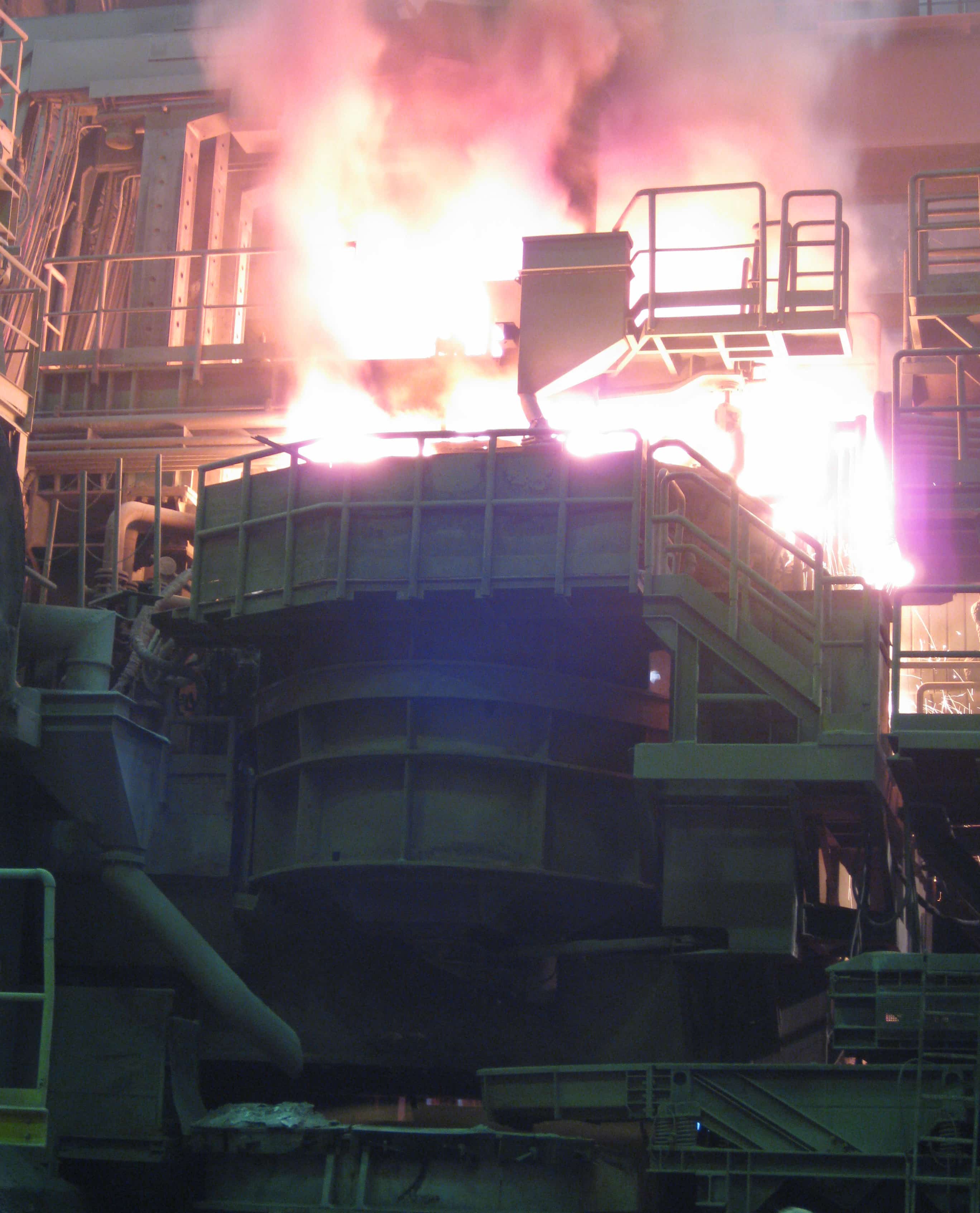

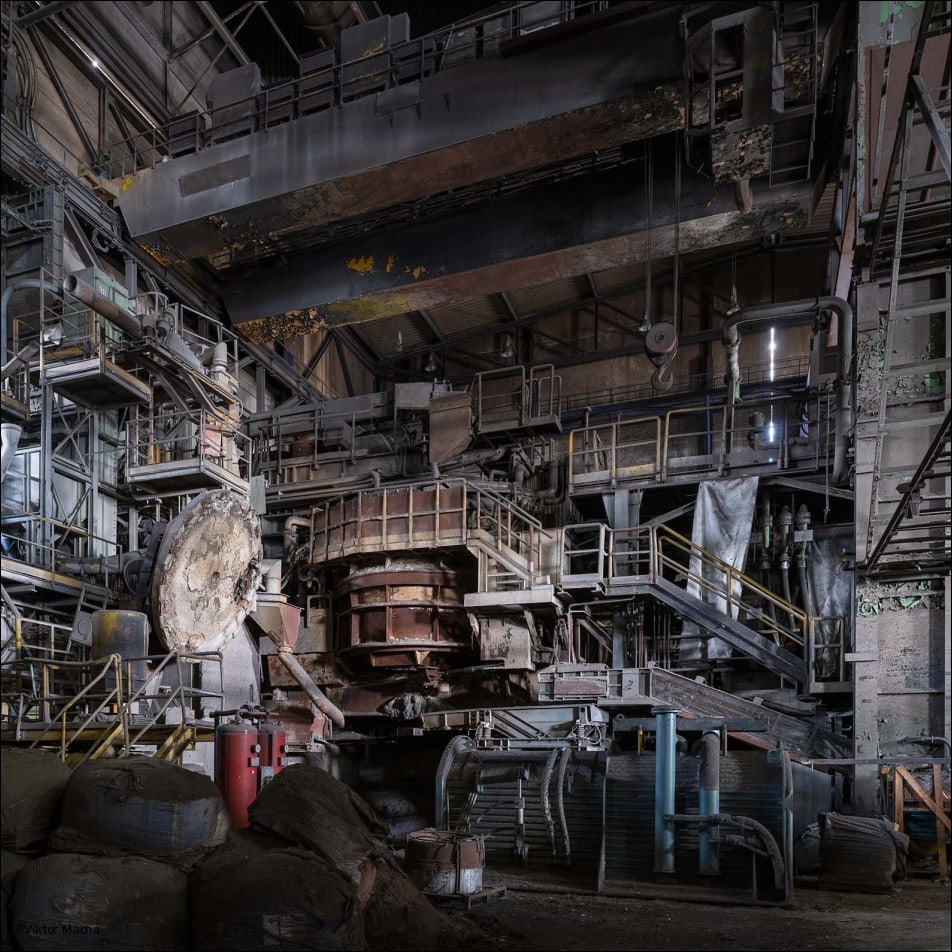

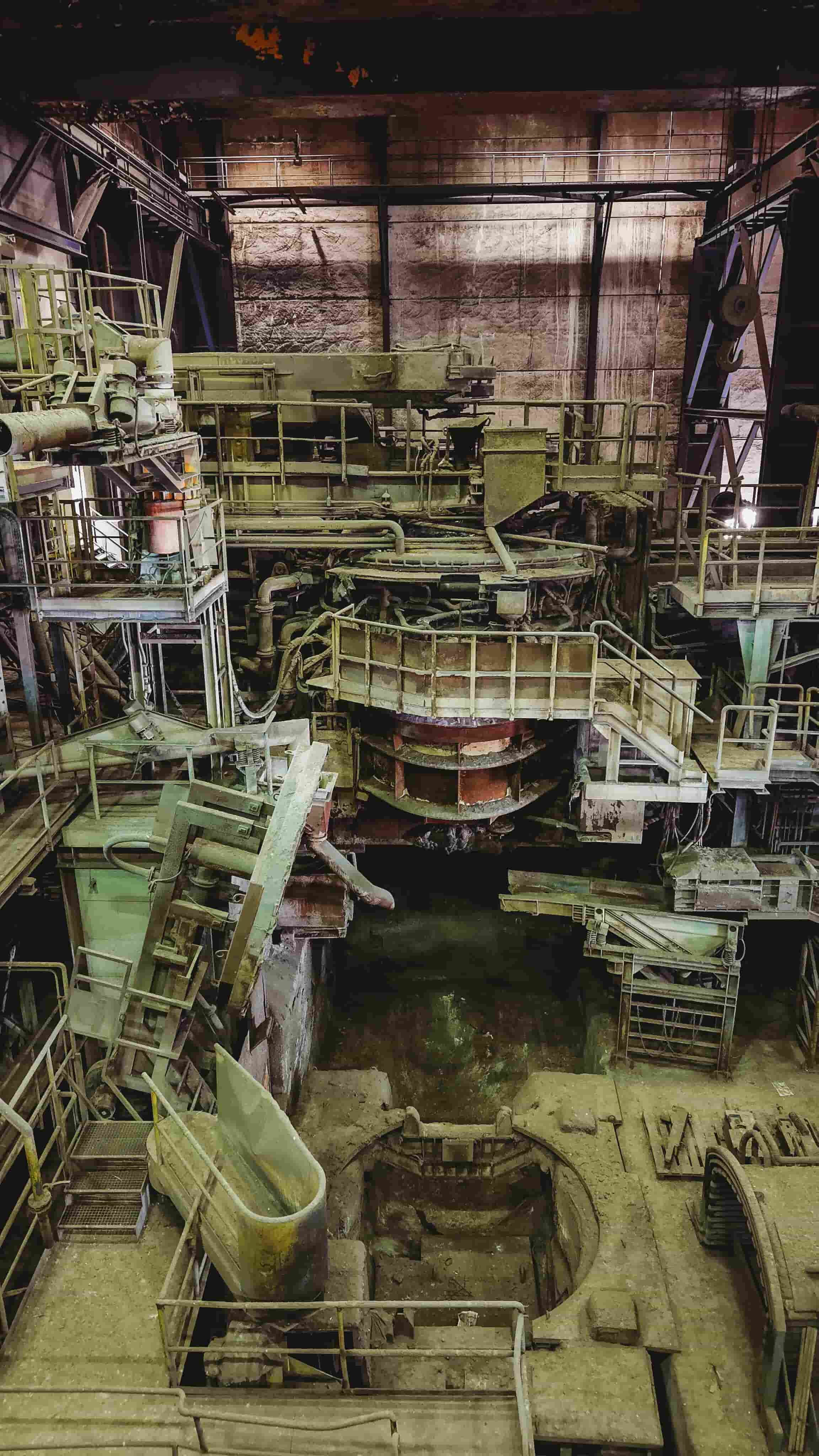

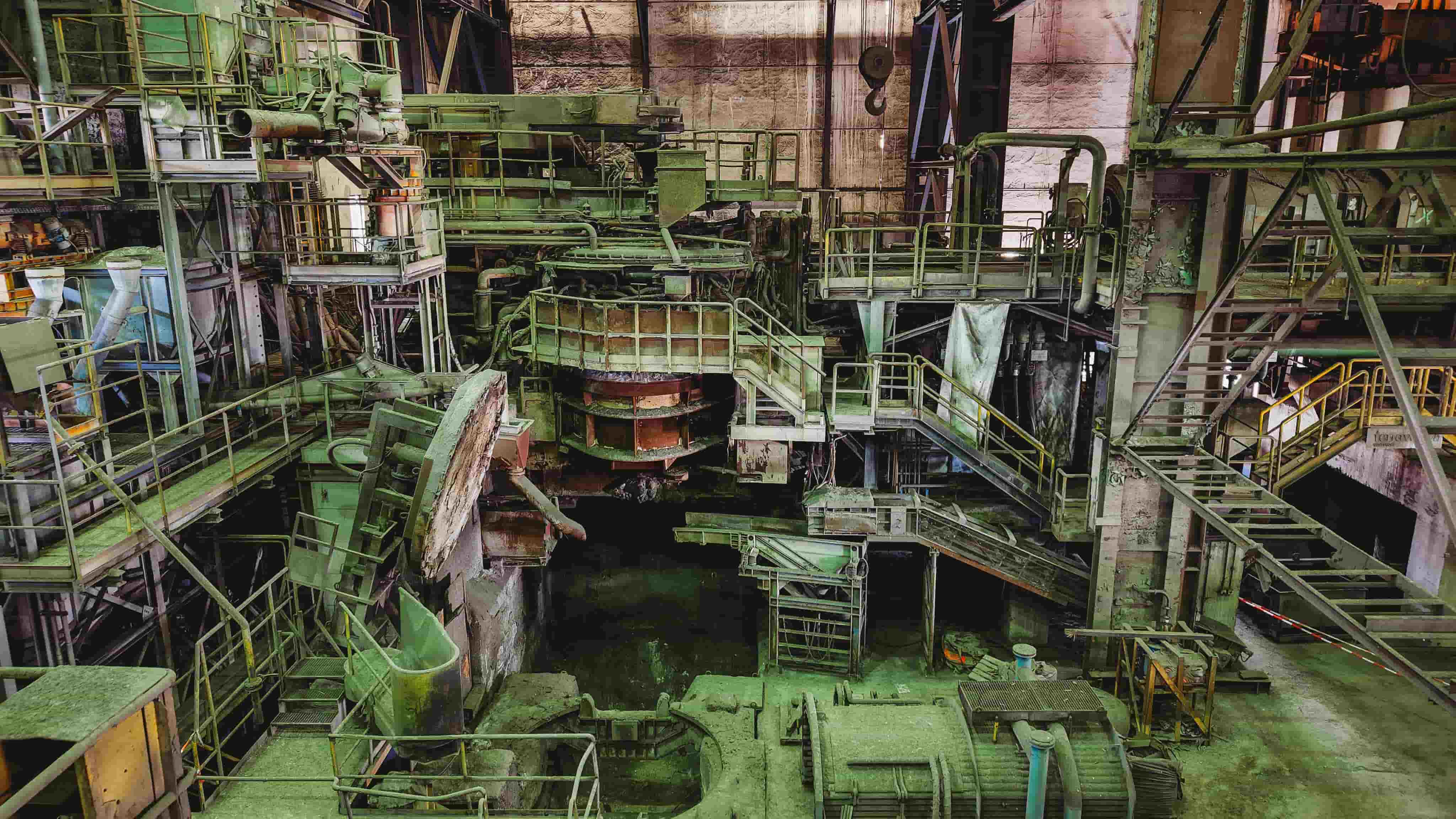

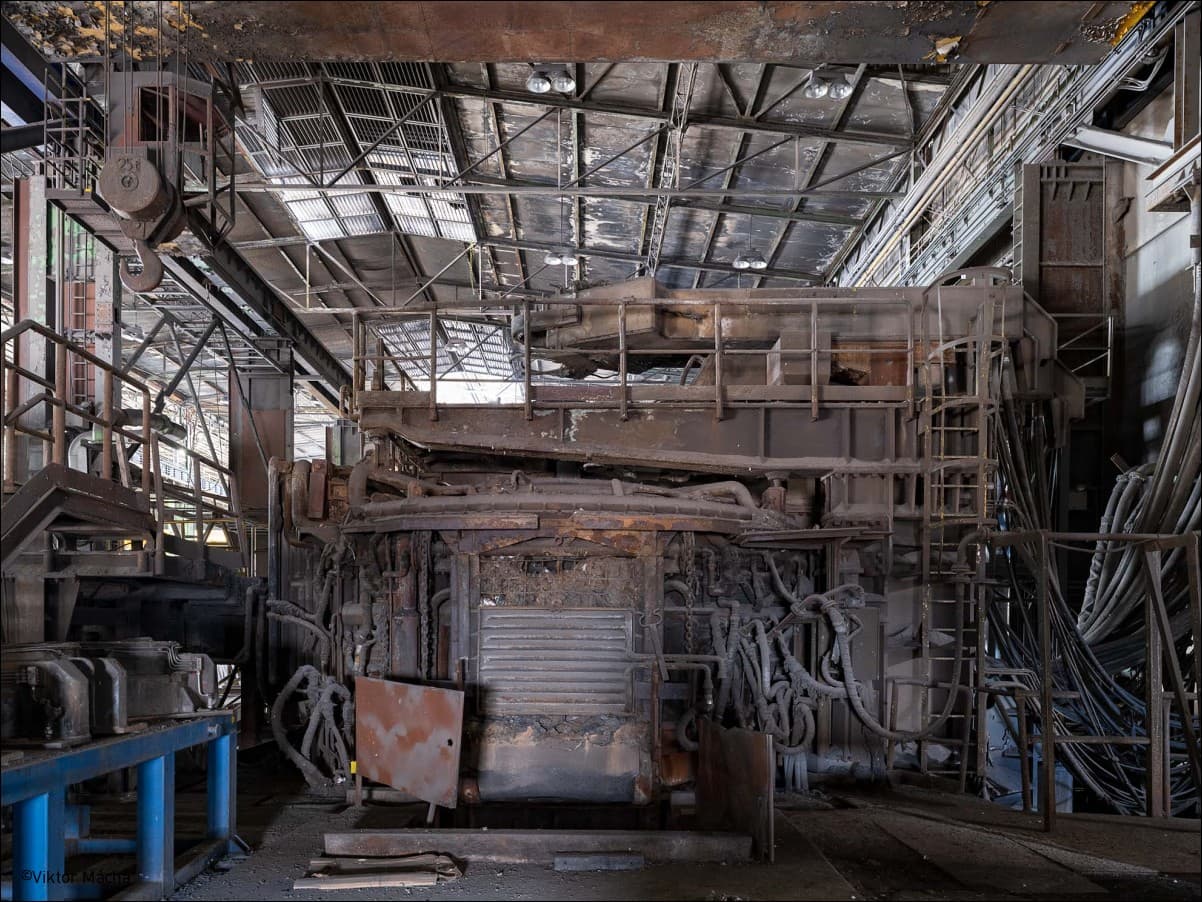

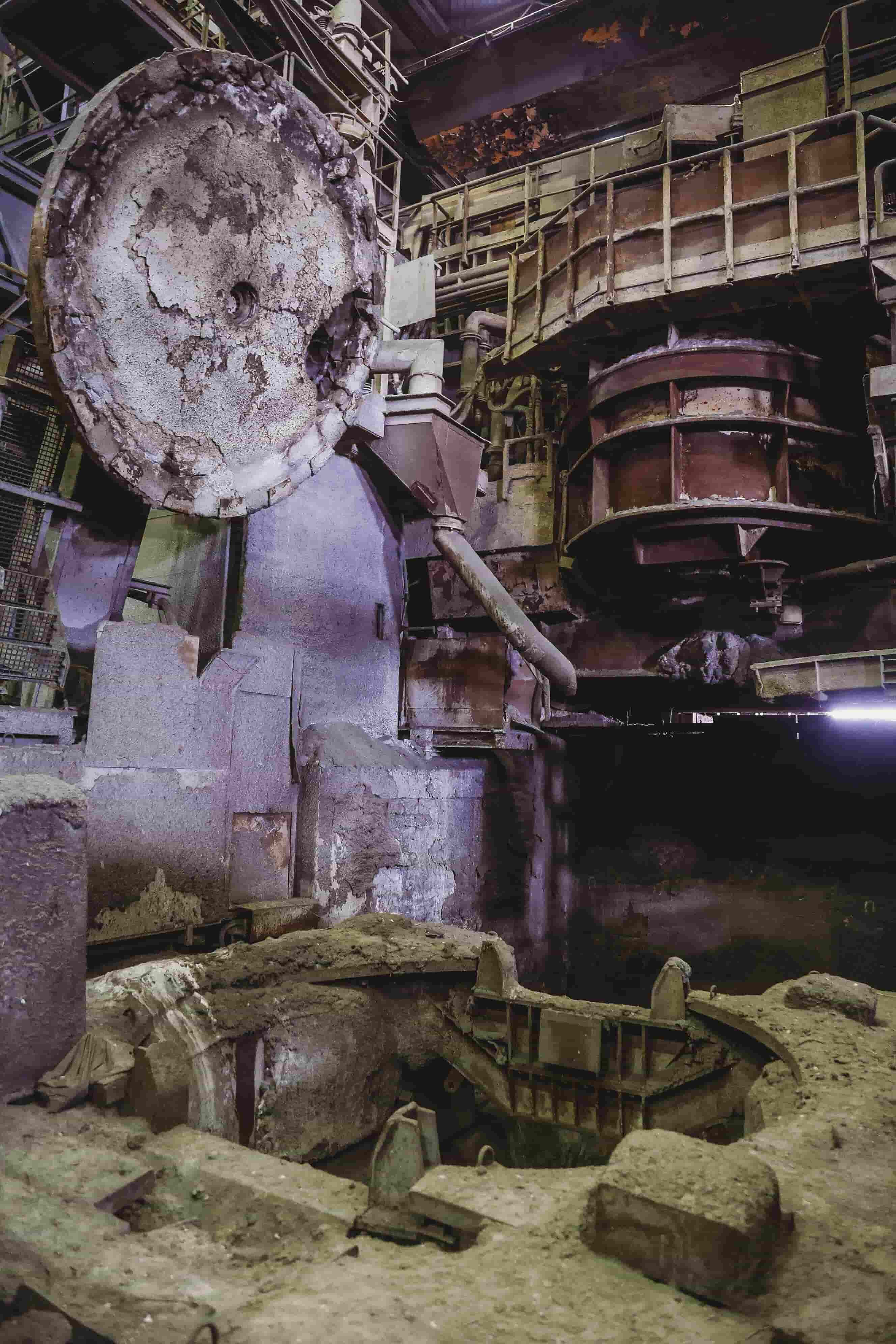

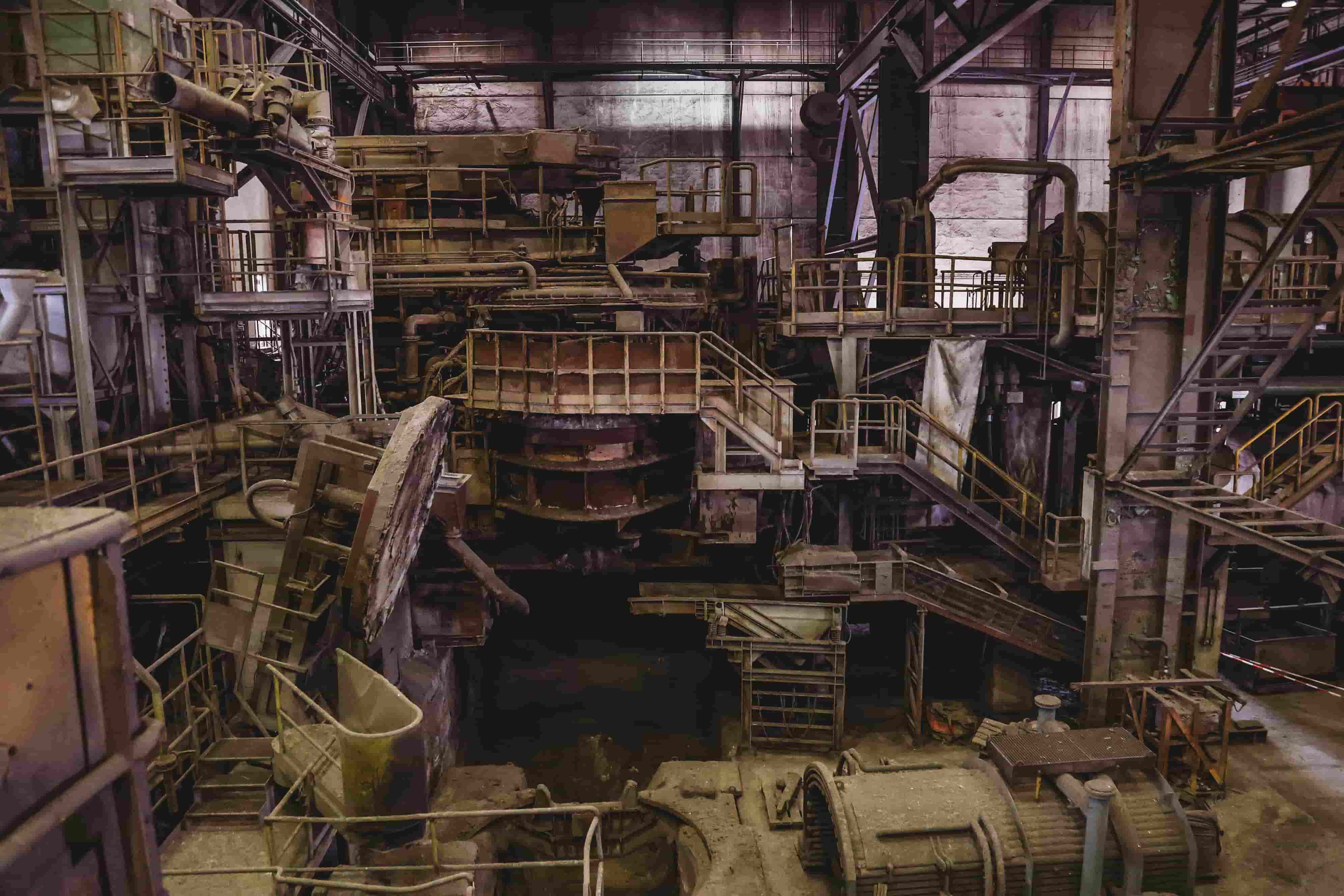

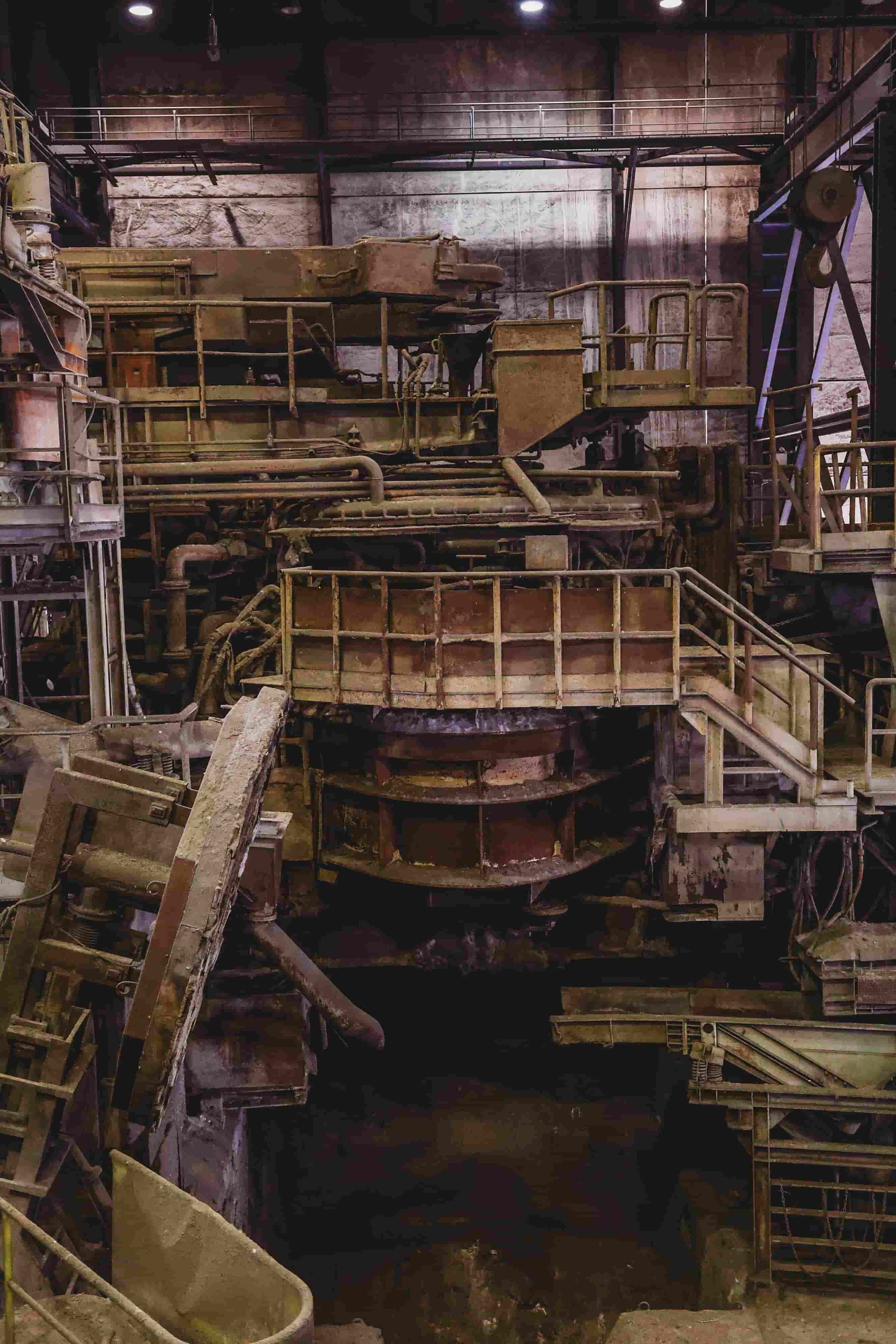

Electric Arc Furnace
Electric Arc Furnace Tagliaferri AC/TBT type for Consteel® operation
Technical Details

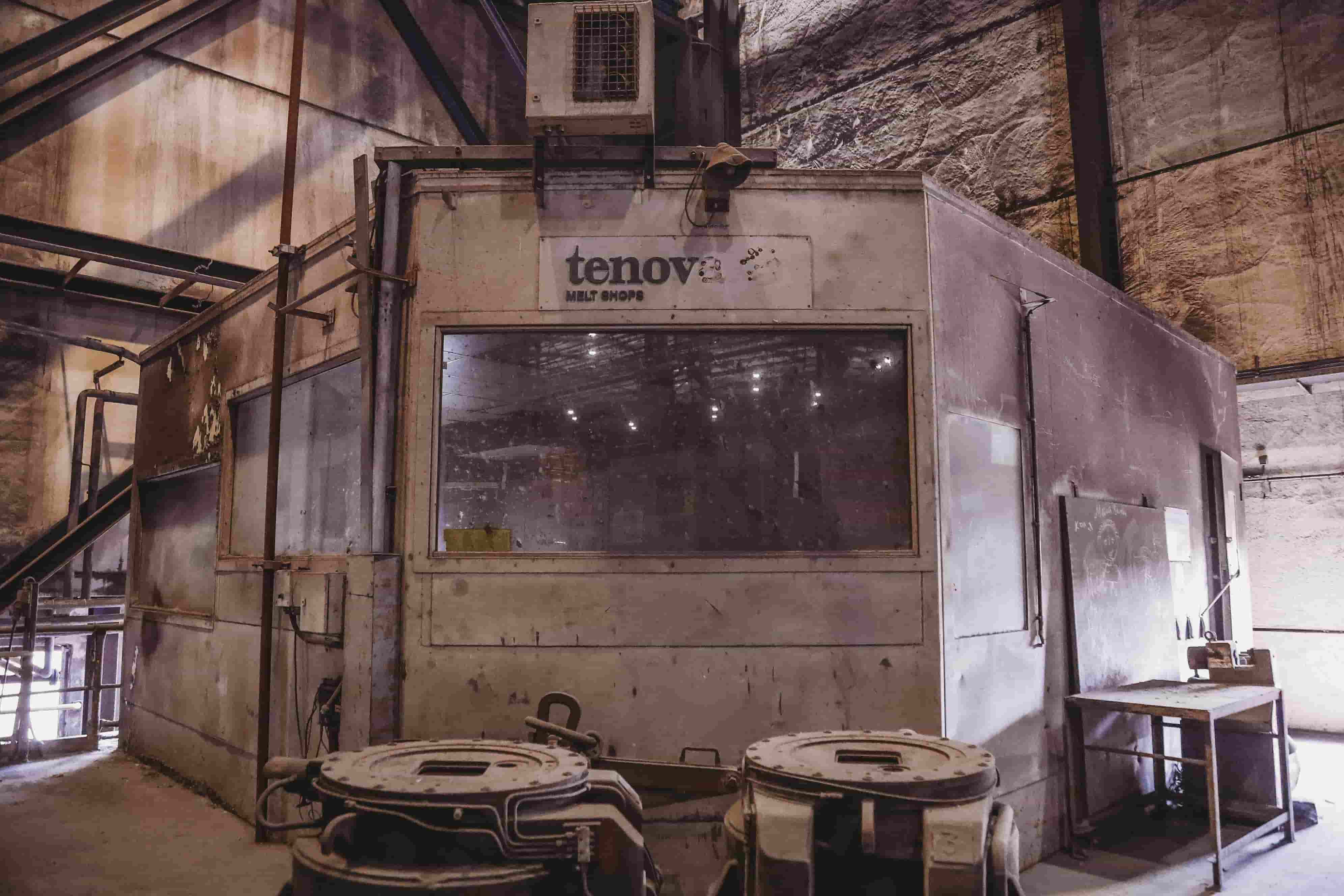

Manufacturer: Tenova
Year of Manufacture: 2005/2008
Type / Scope: Electric Arc Furnace, Tagliaferri AC/TBT type, for Consteel® operation
Key technical data:
- Nominal capacity: 60t
- Hot heel 25t
- Lower shell diameter: 5,200 mm (inside plate)
- Shell weight (with refractory): 135t
- Type of pouring: Tagliaferri Bottom Tapping (TBT)
- Electrode diameter: 500 mm
- Electrode pitch diameter: 1,100 mm
- Sidewall water-cooled panels: pipe-to-pipe, external, Tagliaferri tubular type (horizontal tubes with gap); copper EBT panels
- Roof: water-cooled, supporting structure and panels type

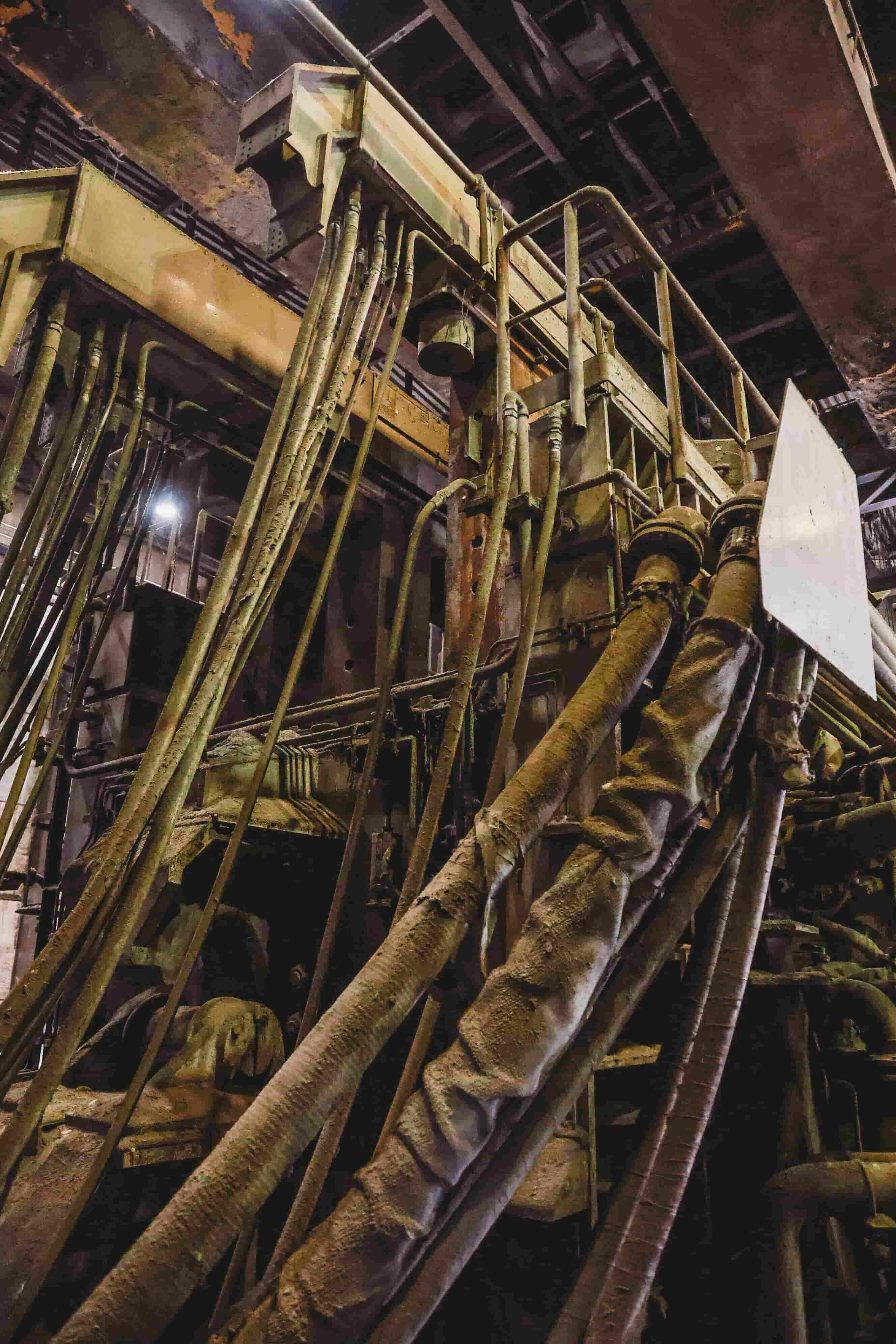

- Furnace movements: hydraulic - roof lift (single-acting cylinder), roof rotation (double-acting cylinder), tilting (two cylinders, +15° tapping / −10° slagging), door (single-acting cylinder)

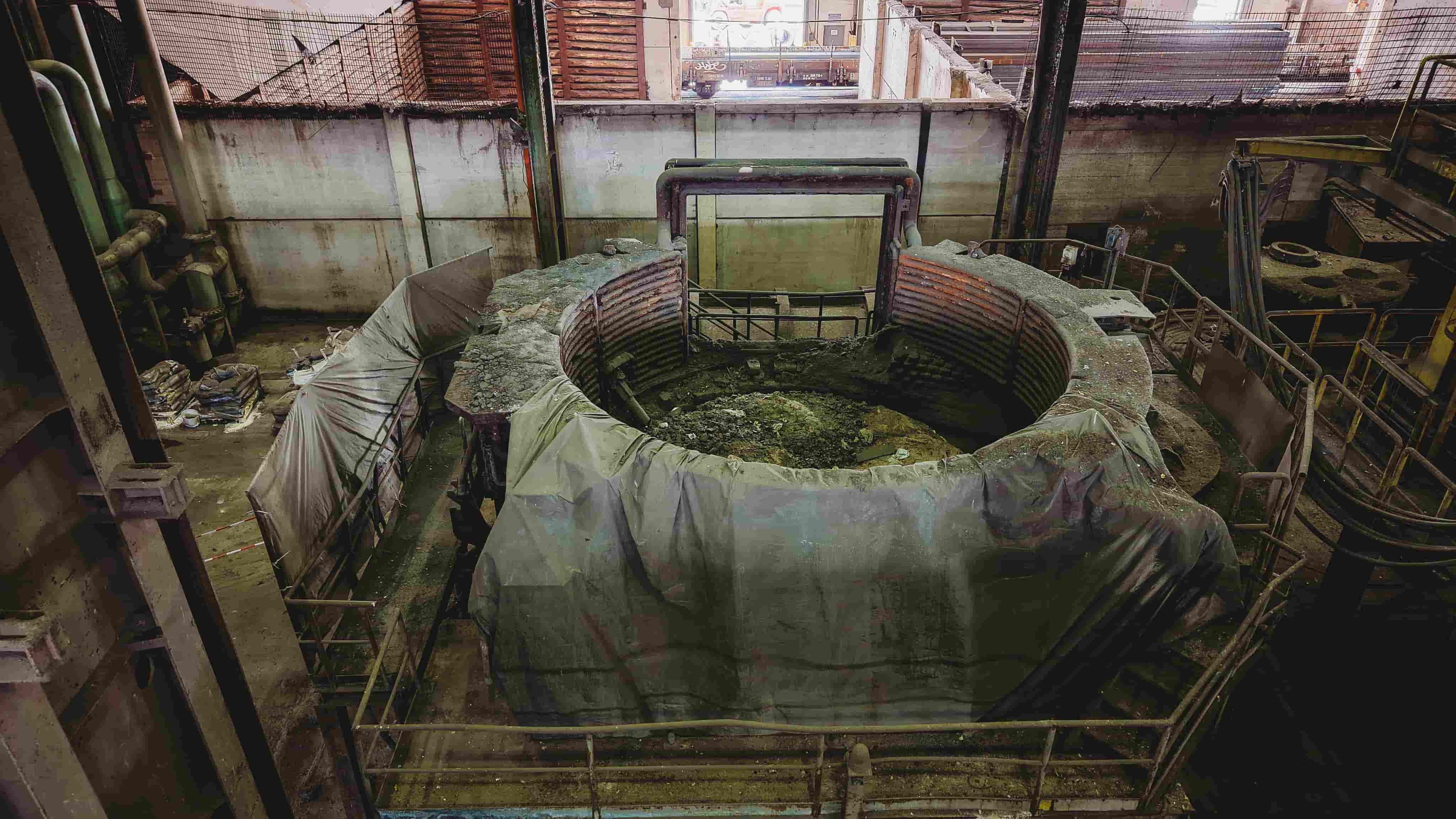

The Electric Arc Furnace is equipped with a spare shell (vessel), which is hot-swapped in after a period of use so the worn shell can be pulled out for repair while the furnace keeps running.
